Stratus X-Wide Asymmetric & Symmetric 10k lbs 2-Post Lift SAE-C10X
SKU SAE-C10X
Lead time:
Original price
$5,212.00
-
Original price
$5,212.00
Original price
$5,212.00
$5,212.00
-
$5,212.00
Current price
$5,212.00
-
DESCRIPTION
Stratus SAE-C10X Extra Wide Asymmetric & Symmetric 2-In-1 Clear Floor Direct Drive 10,000 LBS Capacity Single Point Manual Release Car Lift
Meet the Stratus Lift 2-In-1 Clear Floor Car Lift SAE-C10X! This impressive 2-Post Clear Floor Car Hoist combines both asymmetric and symmetric lifting capabilities. It's not just versatile - with 10,000 lbs capacity, it's also incredibly strong. Its direct drive is powered by a single-point manual release, giving you optimal control over your lift. Plus, its extra-wide design means it can handle all shapes and sizes of vehicles. Designed with a clear floor, this extra-wide 2-post lift gives you an unobstructed workspace underneath the car. It's the perfect addition to any garage or workshop space!
-
FEATURES + BENEFITS

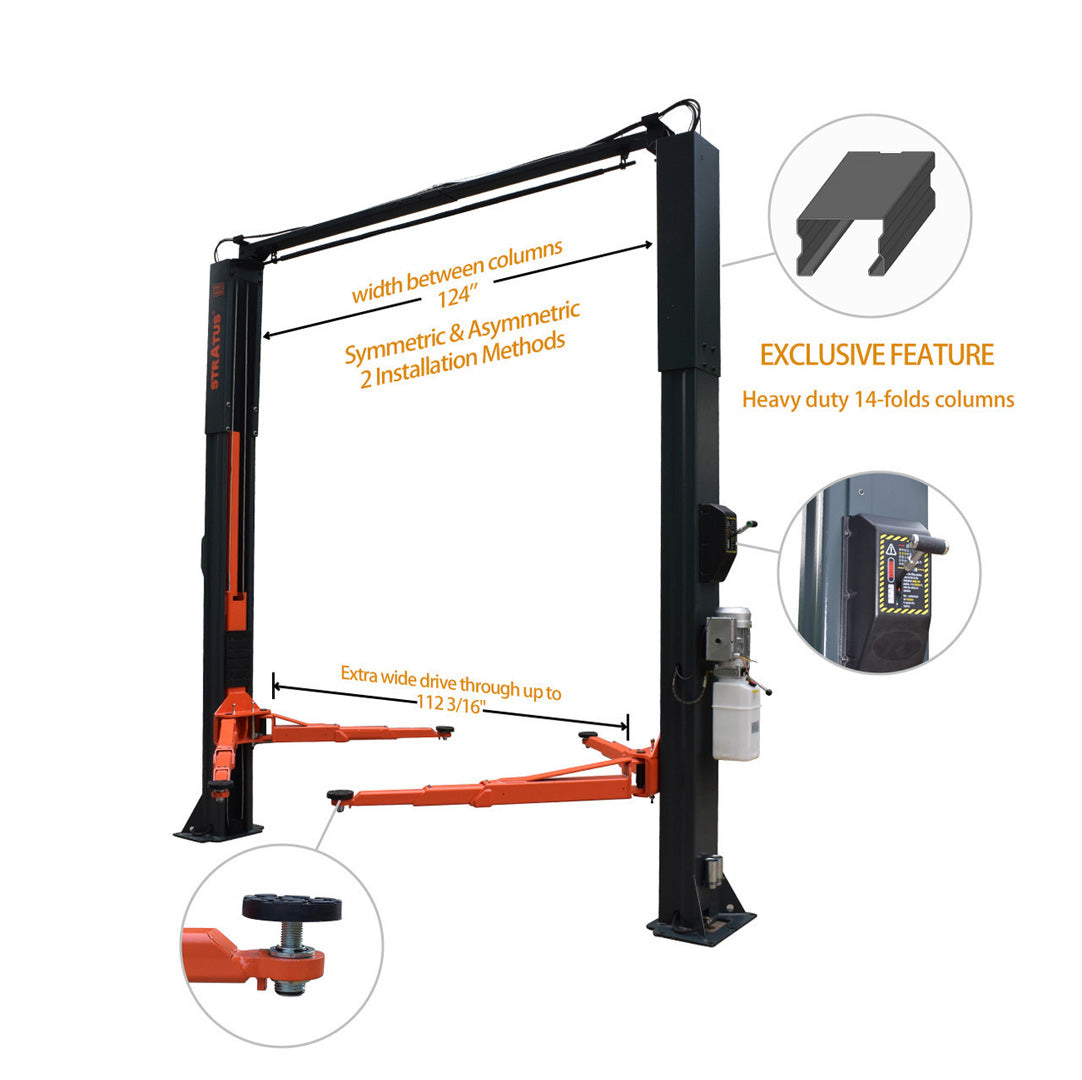

- Extra wide drive-through:
- -112”- Symmetrical
- -107 11/16"- Asymmetrical
- Heavy-duty 14-fold columns
- Clear floor
- Symmetric & Asymmetric 2-in-1 design
- Electric safety lock release

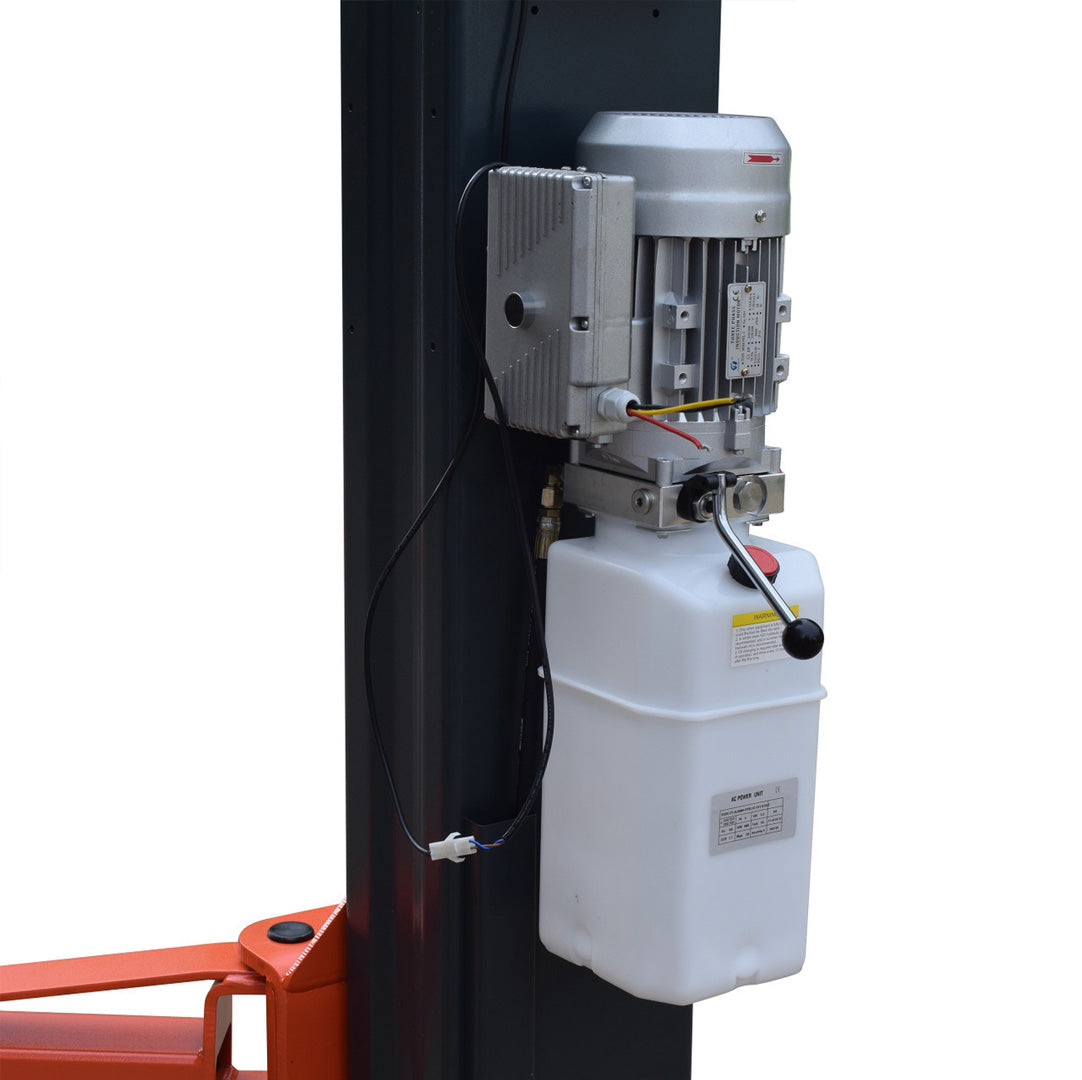

- Direct drive
- 2 top limiter switches
- Anti-surge valves
- Automatic arms restraints
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes

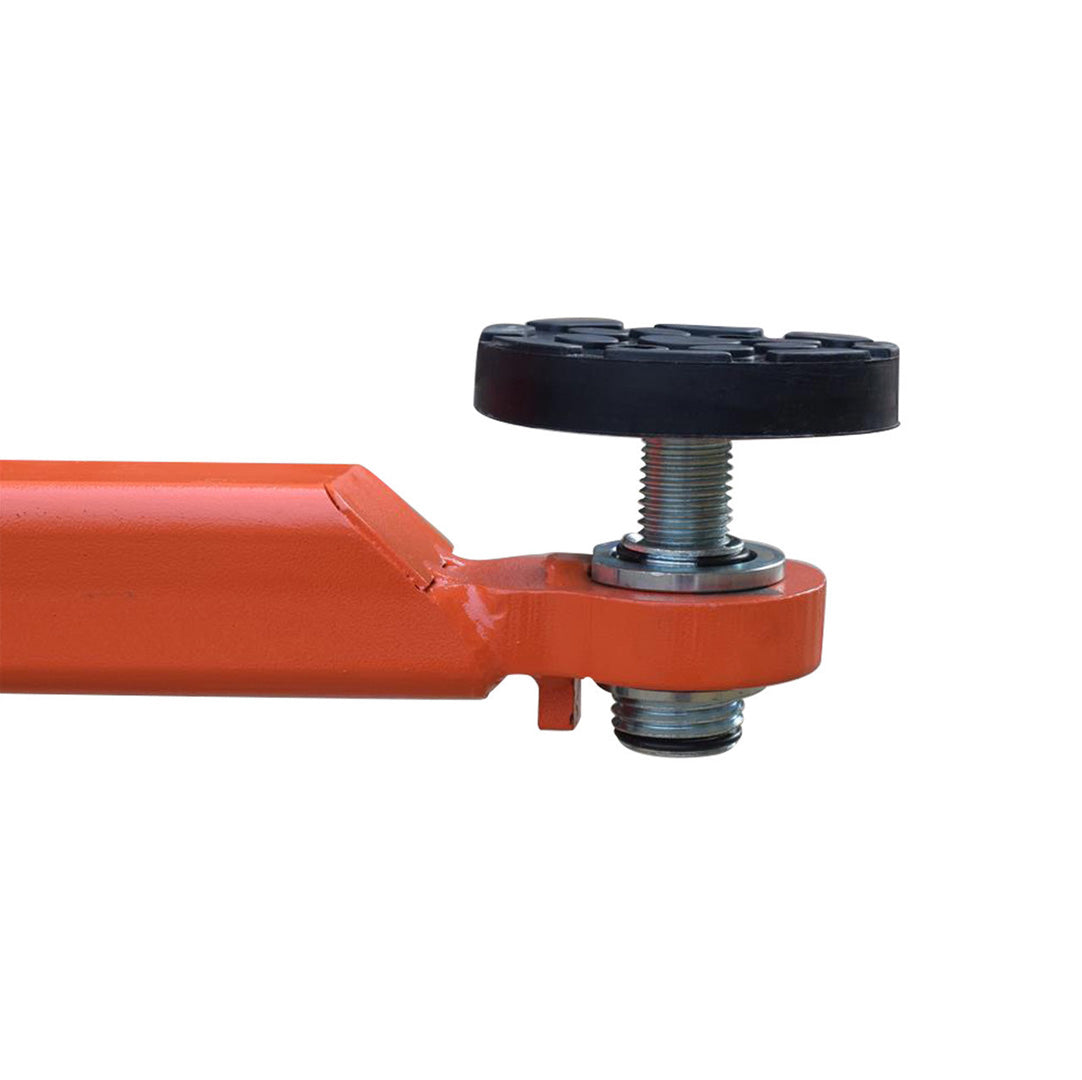

- 4pcs Screw-up rubber pads - Peg 50mm (4")
- 4pcs 4" Truck Adaptors - Peg 50mm (4")
-

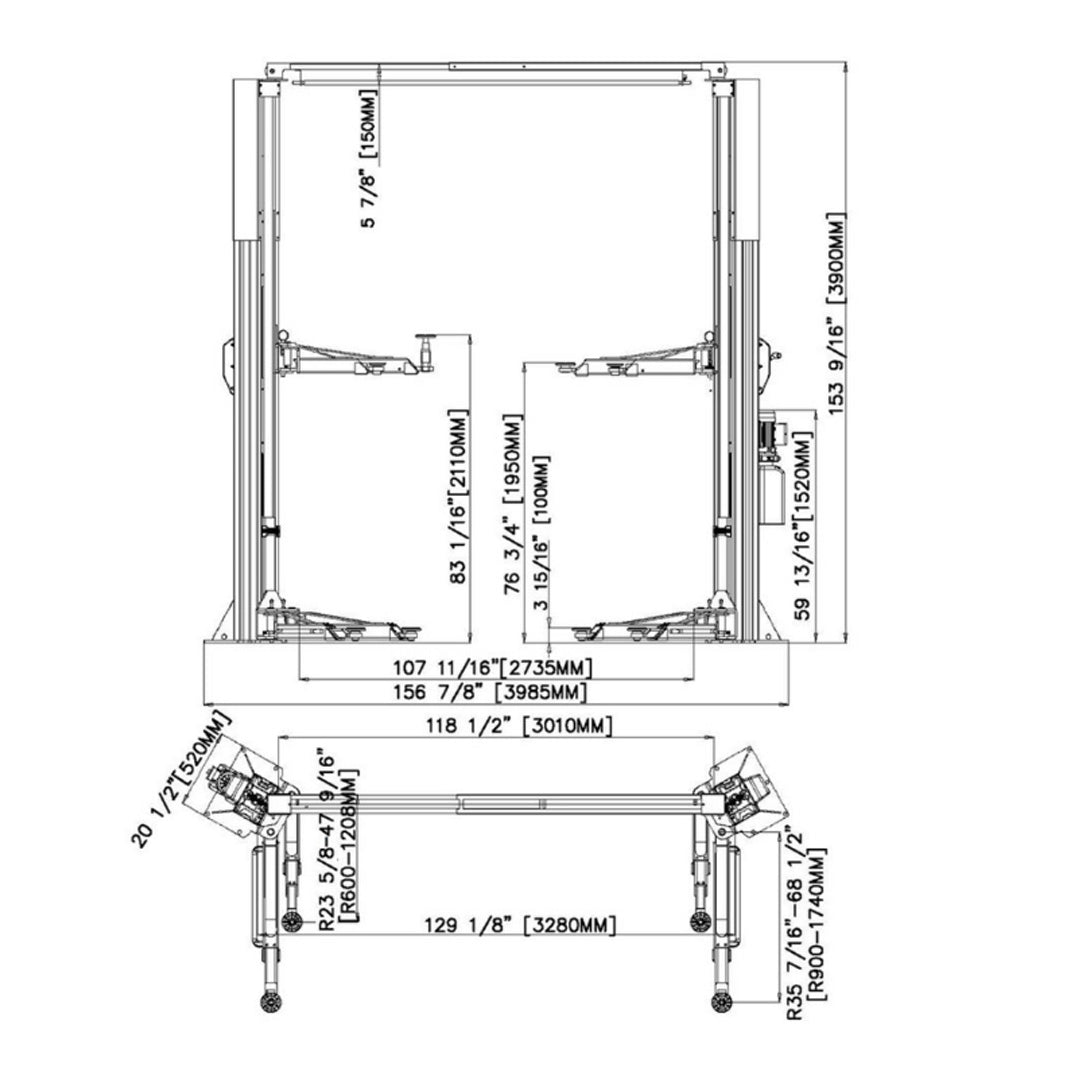

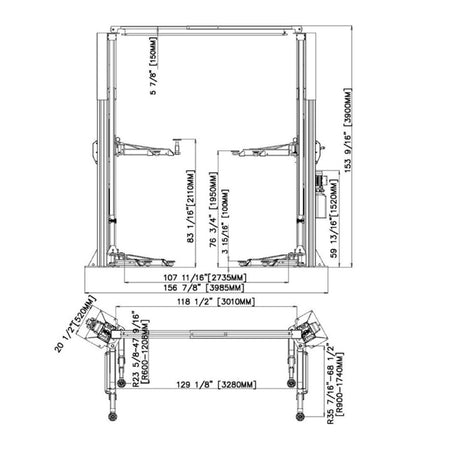

SPECIFICATIONS
Model - SYMMETRICAL SAE-C10X Capacity 10,000 lbs Max Lifting Height with Adaptors 83 1/16"(2110mm)
Min Lifting Height with Adaptors
10 1/4" (261mm)
Max Lifting Height without Adaptors
76 3/4" (1950mm)
Min Lifting Height without Adaptors
3 15/16" (100mm)
Rise Time
~50 sec
Overall Height
153 9/16" (3900mm)
Overall Width
20 1/2" (520mm)
Overall Length
150 13/16" (3900mm) Inside Columns 124" (3150mm) Drive Through 112 3/16 (2850mm) Front Arm Reach Max 68 1/2" (1740)
Front Arm Reach Min 35 7/16" (900) Rear Arm Reach Max 47 9/16" (1208) Rear Arm Reach Min 23 5/8" (600) Motor 3 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 1718 lbs Dimensions Flat 115"L x 29"W x 35"H Dimensions Tall 117"L x 29"W x 44"H Drive Thru 107 1/4" (2724mm) Requirements 6" - 3000 psi Model - ASYMMETRICAL SAE-C10X Capacity 10,000 lbs Max Lifting Height with Adaptors 83 1/16"(2100mm)
Min Lifting Height with Adaptors
10 1/4" (261mm)
Max Lifting Height without Adaptors
76 3/4" (1950mm)
Min Lifting Height without Adaptors
3 15/16" (100mm)
Rise Time
~50 sec
Overall Height 153 9/16" (3900mm) Overall Width 20 1/2" (520mm) Overall Length 156 7/8" (3985mm) Front Arm Reach Max 107 11/16" (2735mm) Front Arm Reach Min 35 7/16" (900mm) Rear Arm Reach Max 47 9/16" (1208mm) Rear Arm Reach Min 23 5/8" (600mm) -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
