Atlas® OHX10000X Commercial Grade Extra Tall 2-Post Lift 10,000 lb #ATEATTD-OHX10000X-FPD
Couldn't load pickup availability
-
DESCRIPTION
Atlas® Automotive Equipment OH-10X Ex-Tall/Ex-Wide 2 Post Lift 10,000 lbs
facilities or the “Mr. Homeowner” who demands the highest quality at the absolute best price. The Atlas® OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer. The Atlas® OHX10000X was engineered and manufactured to lift vehicles from Smart Cars® to a one-ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on all sizes of vehicles and offers a “fudge factor” of about 6 inches when “driving through” to another part of the building or lifting the van or “ladder truck”. If you are over 6′ 2″, the Atlas® OHX10X has longer cylinders, allowing the vehicle to be “lifted” about 3 inches higher than with many other lifts.

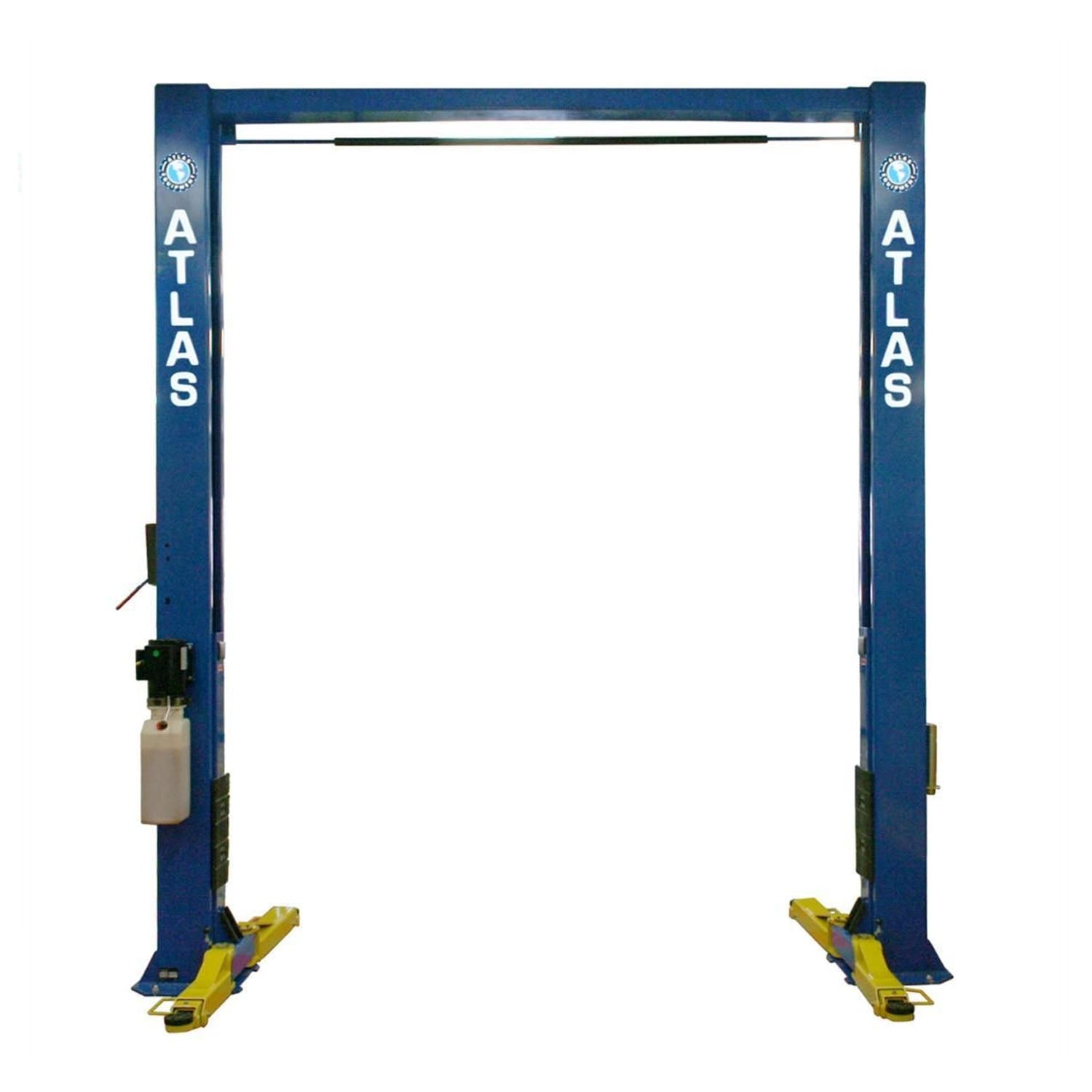

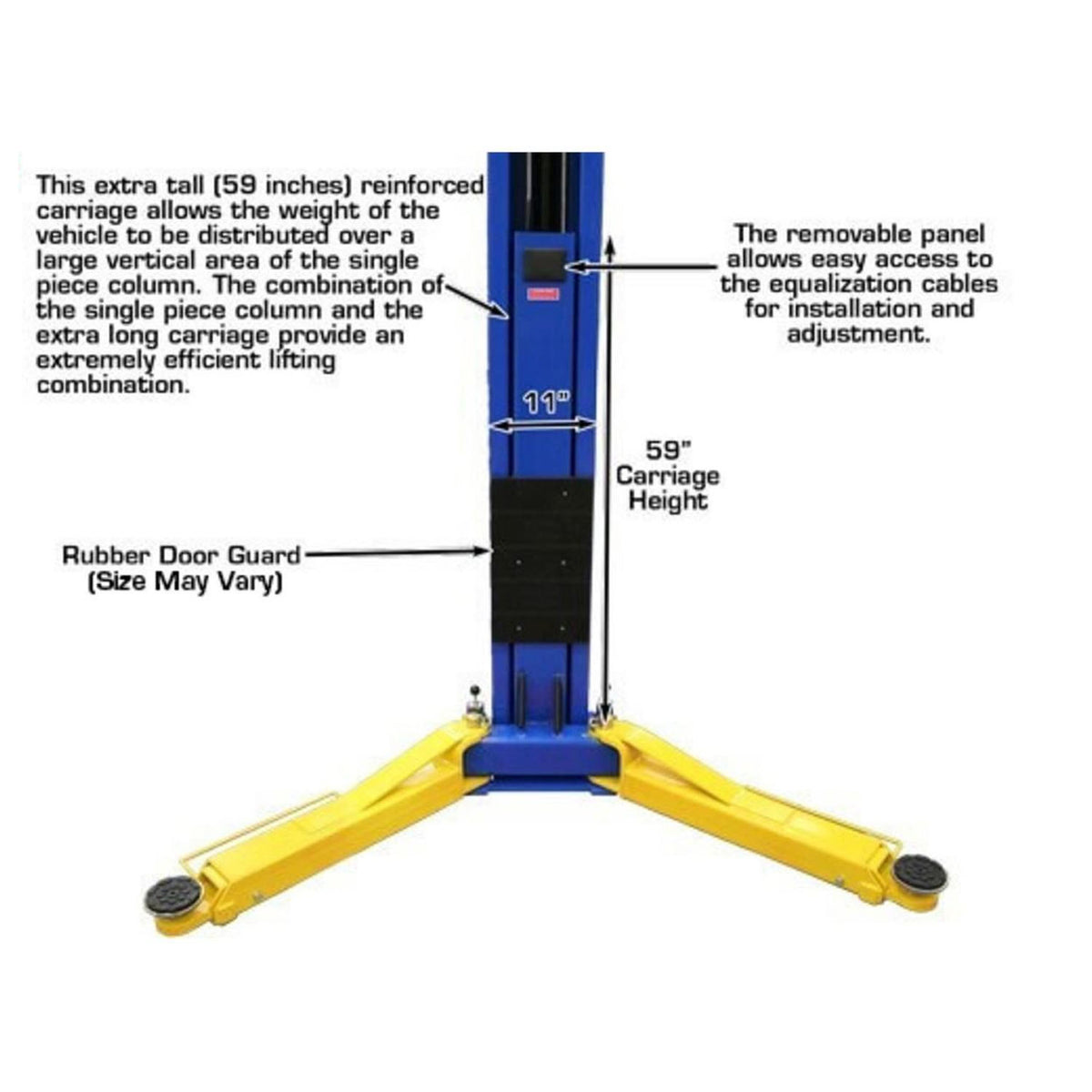

The Atlas® OHX10X incorporates a single-piece 12′ 7″ formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single-piece columns require the customer to have a ceiling of at least 13 feet to stand the column.
-
FEATURES + BENEFITS
- 10,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide
- Overall height: 152″ (12′ 8″)

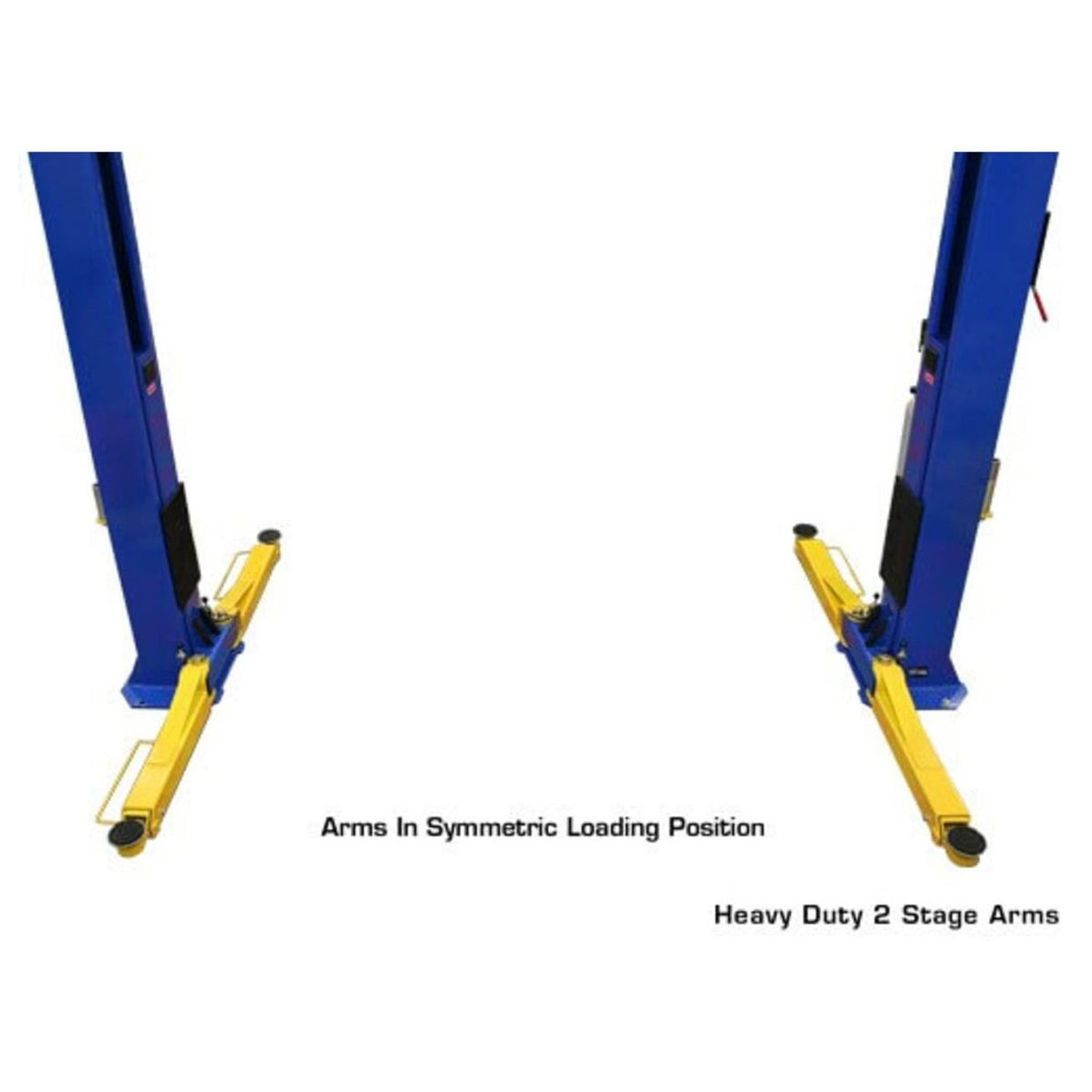

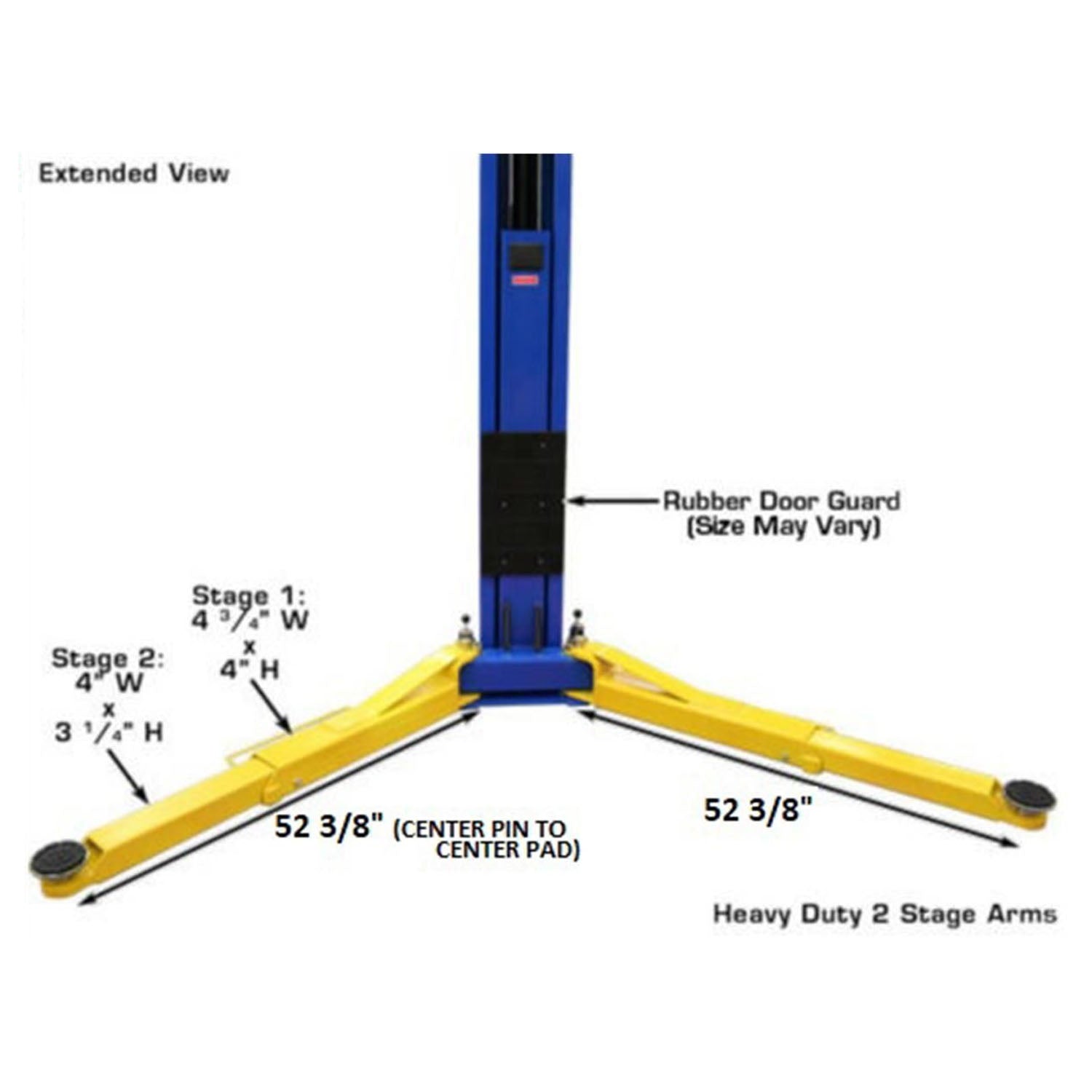

- Symmetric arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar

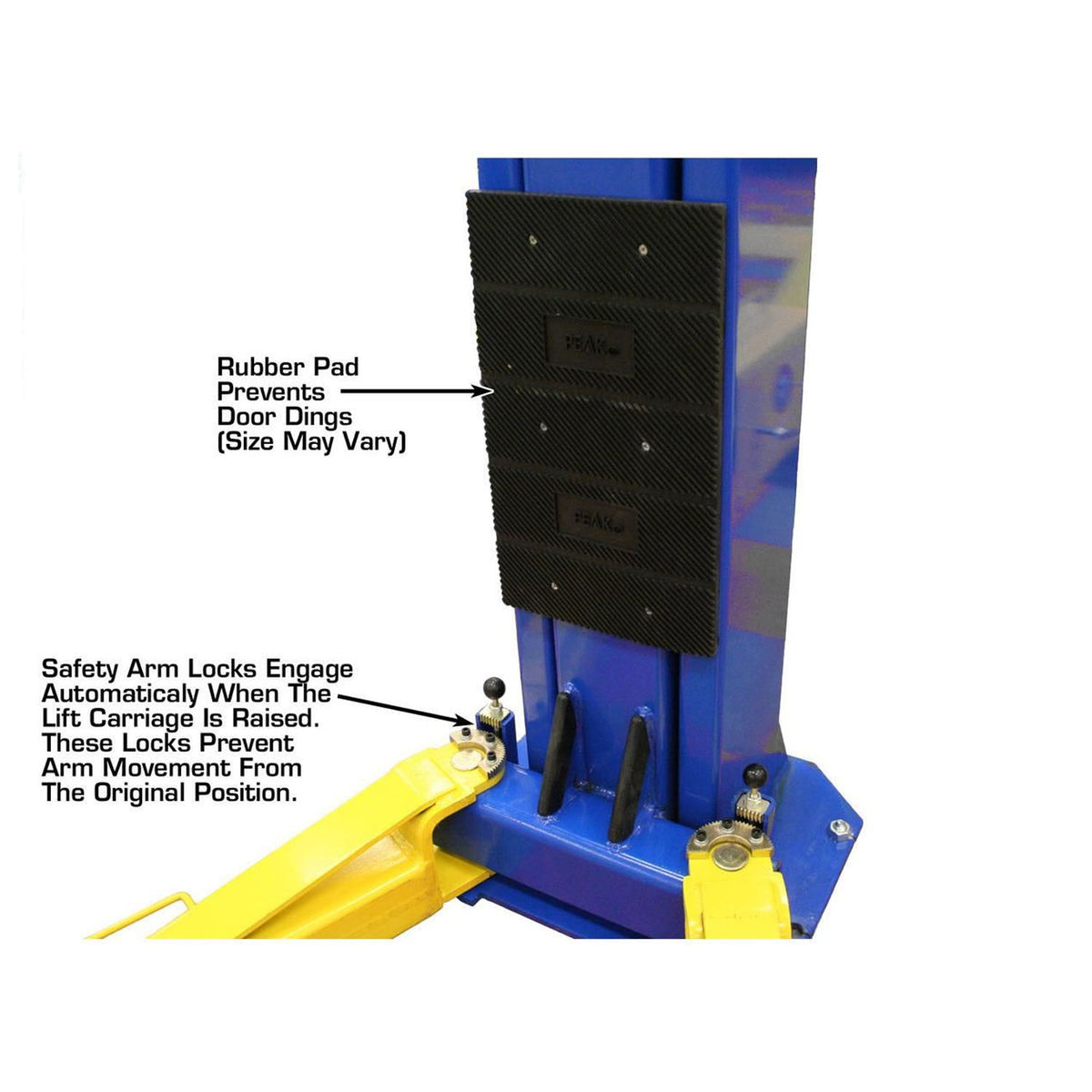

- Rubber Covers on Carriages

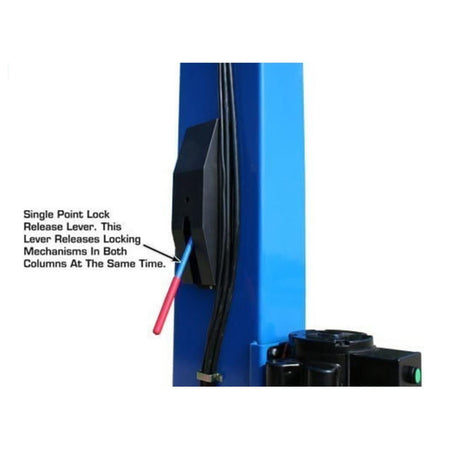

- Single Point Lock Release

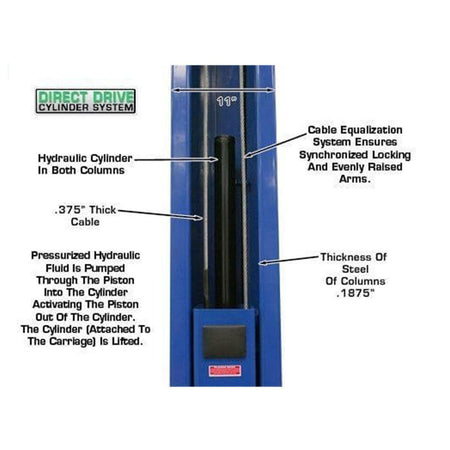

- Dual Direct-Drive Cylinders
- Powder Coat Finish
- Free Truck Adapters
- Mounting Hardware
Includes

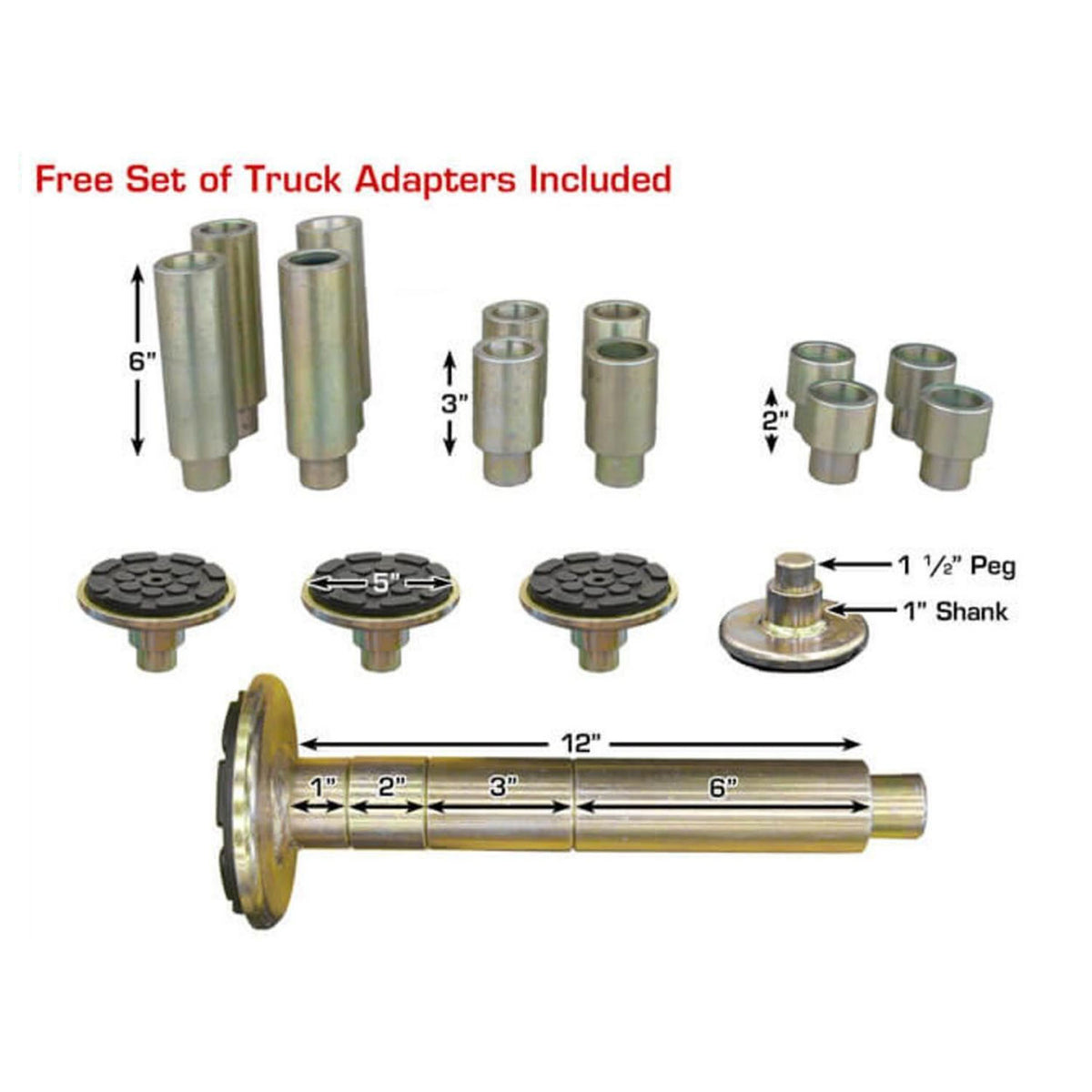

- 12 Piece Truck Adapter Set
-
SPECIFICATIONS

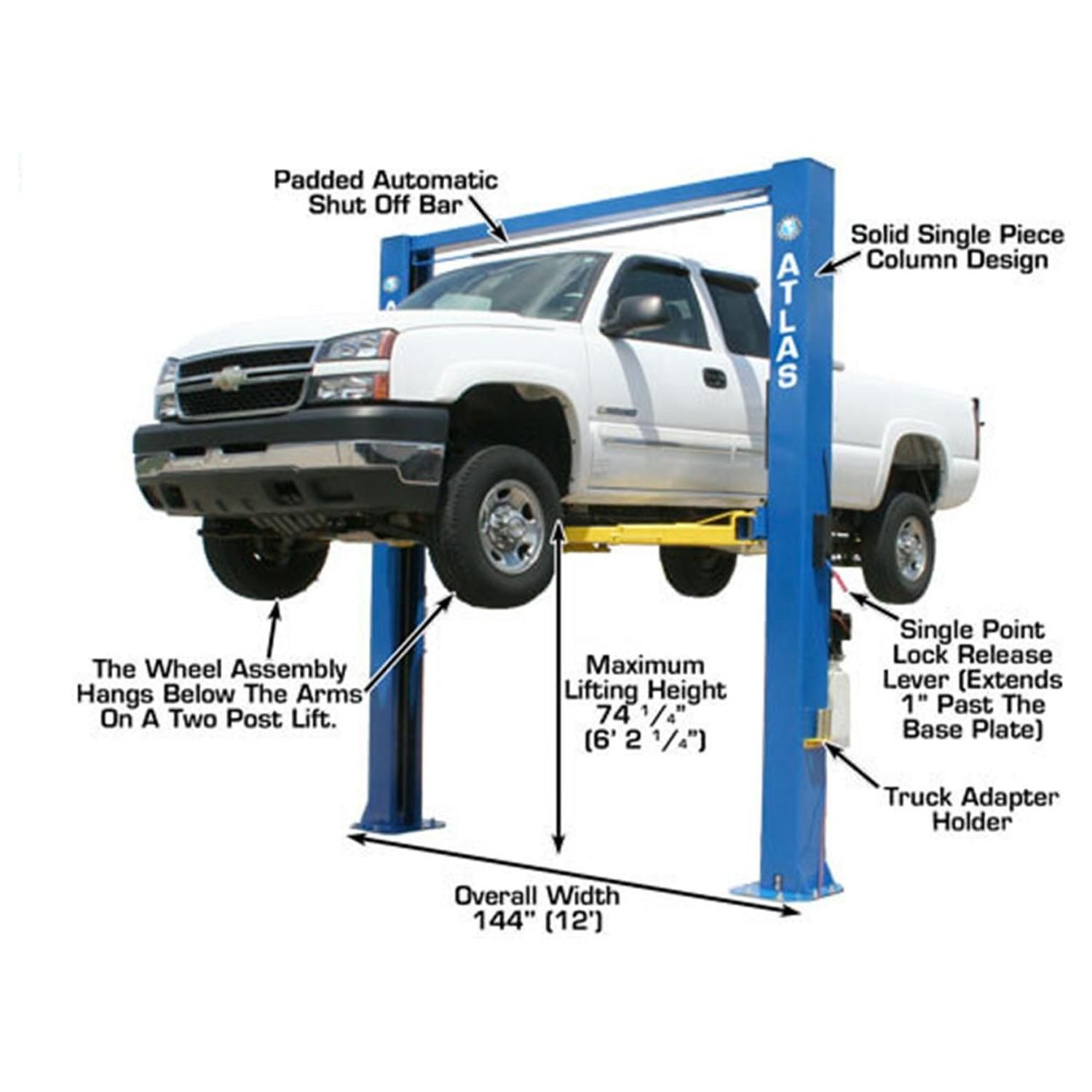

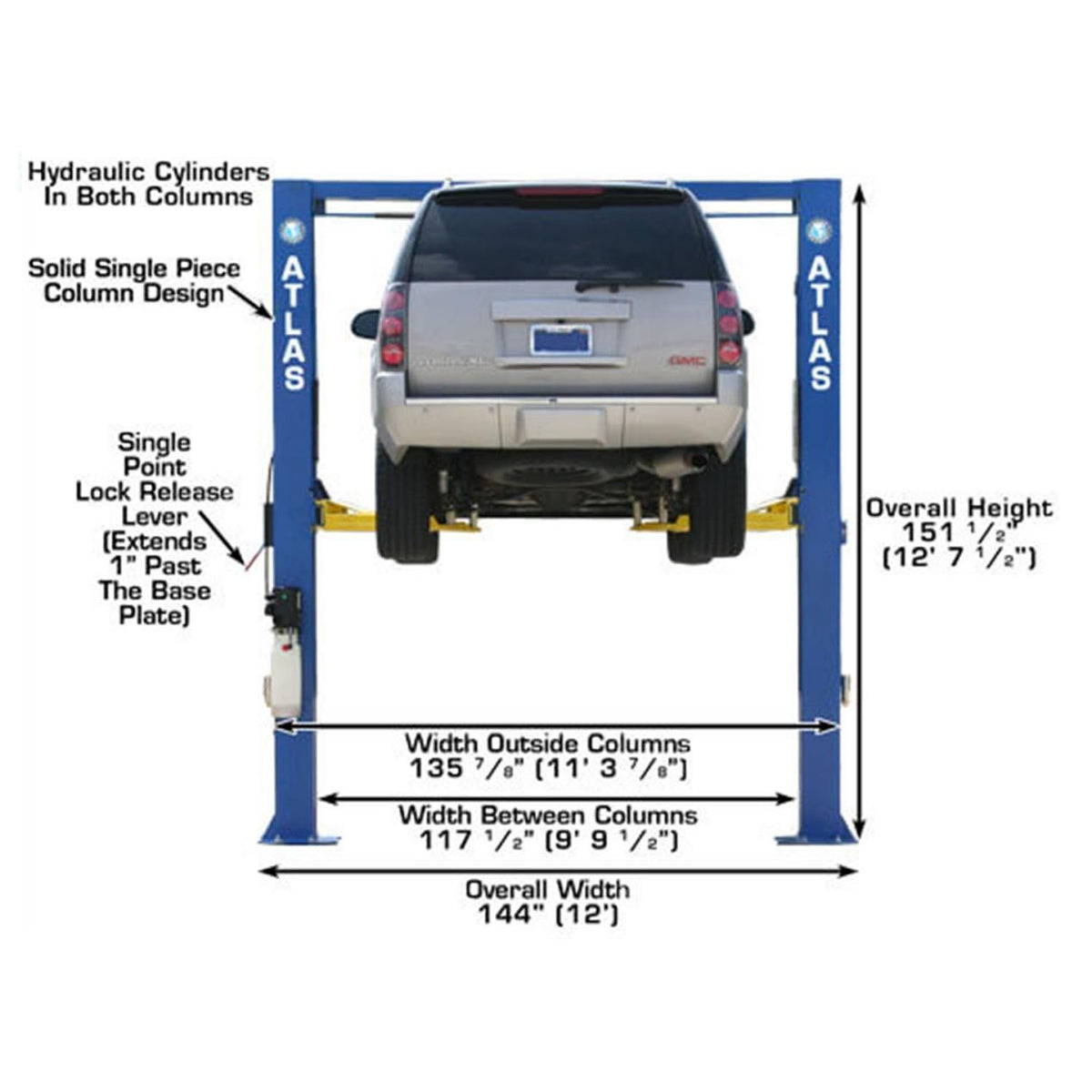

Lifting Capacity 10,000 lbs Overall Height 152" (12’ 8”)
Overall Floor Width 144 3/8" (12’ 3/8")
Outside Column To Outside Column 136" (11’ 4")

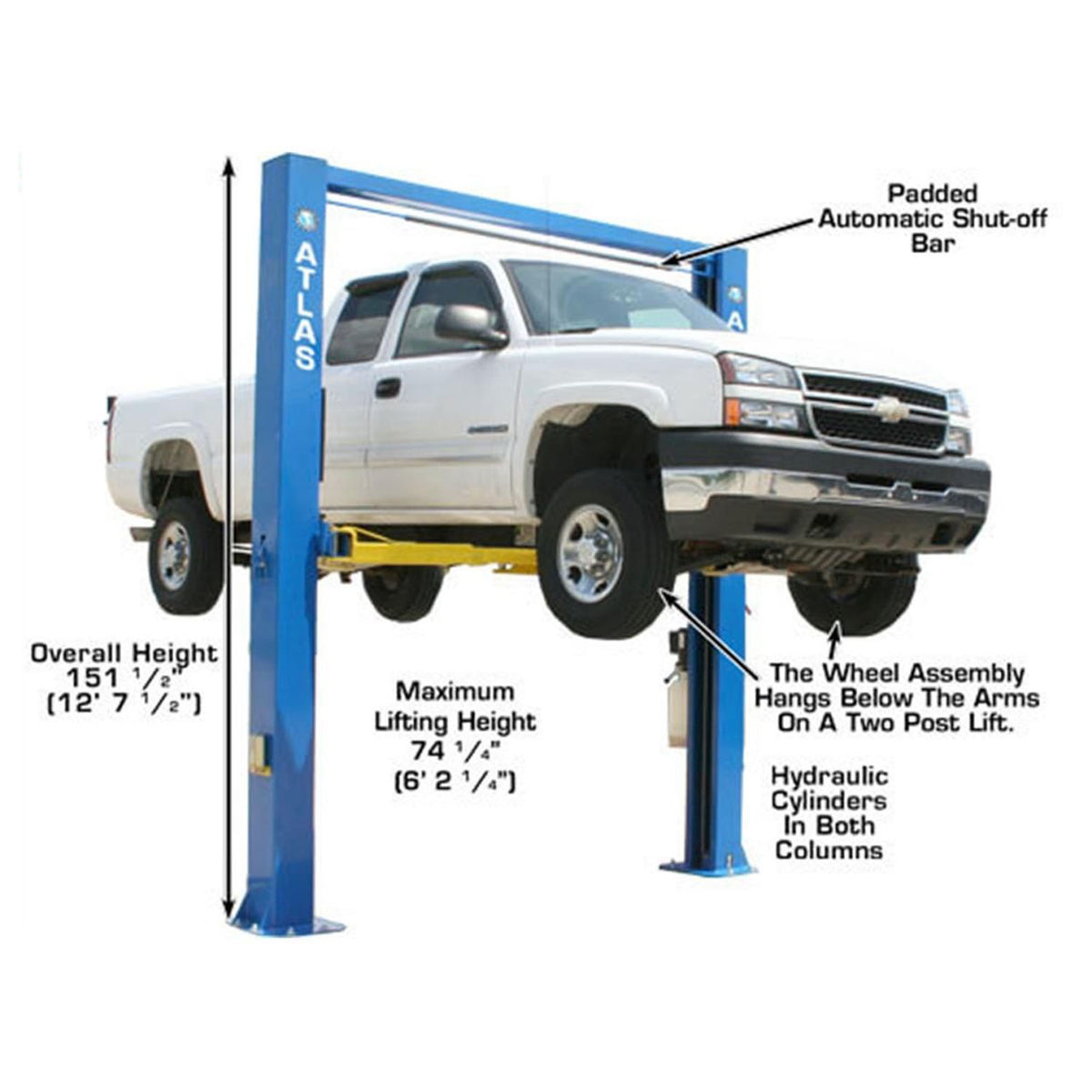

Maximum Lift Height w/adapters 85 3/4"
Maximum Lift Height w/o adapters
74 3/4"
Minimum Arm Height 4 1/2" Inside Column 118 1/4” (9’ 10 1/4”)
Drive Thru 106 7/8" (8' 10 7/8")

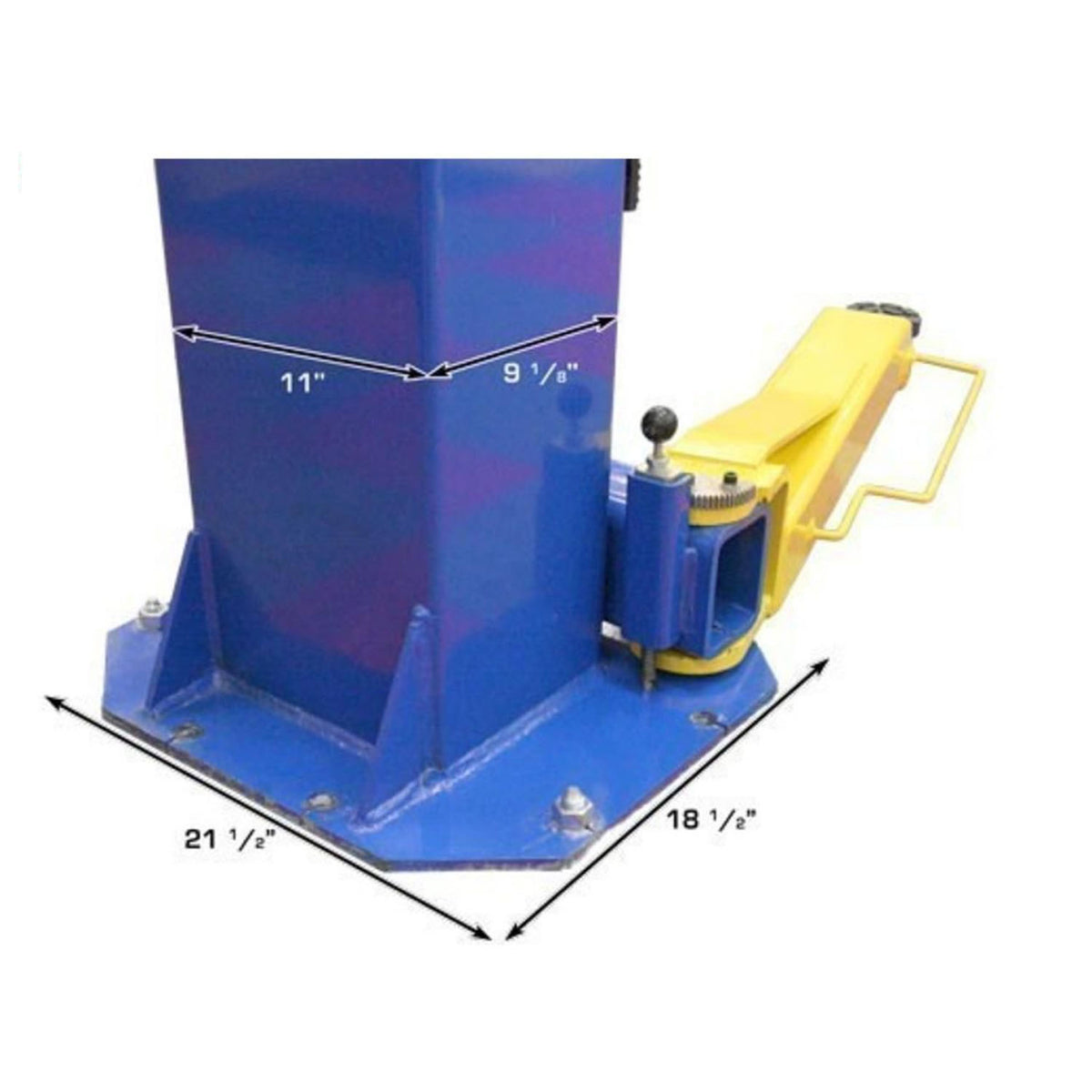

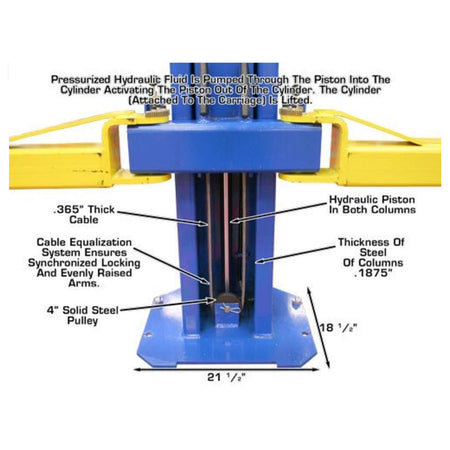

Column Size 11" x 9 1/8"
Column Thickness of Steel 5mm Base of Lift 18 1/2" x 21 1/2"

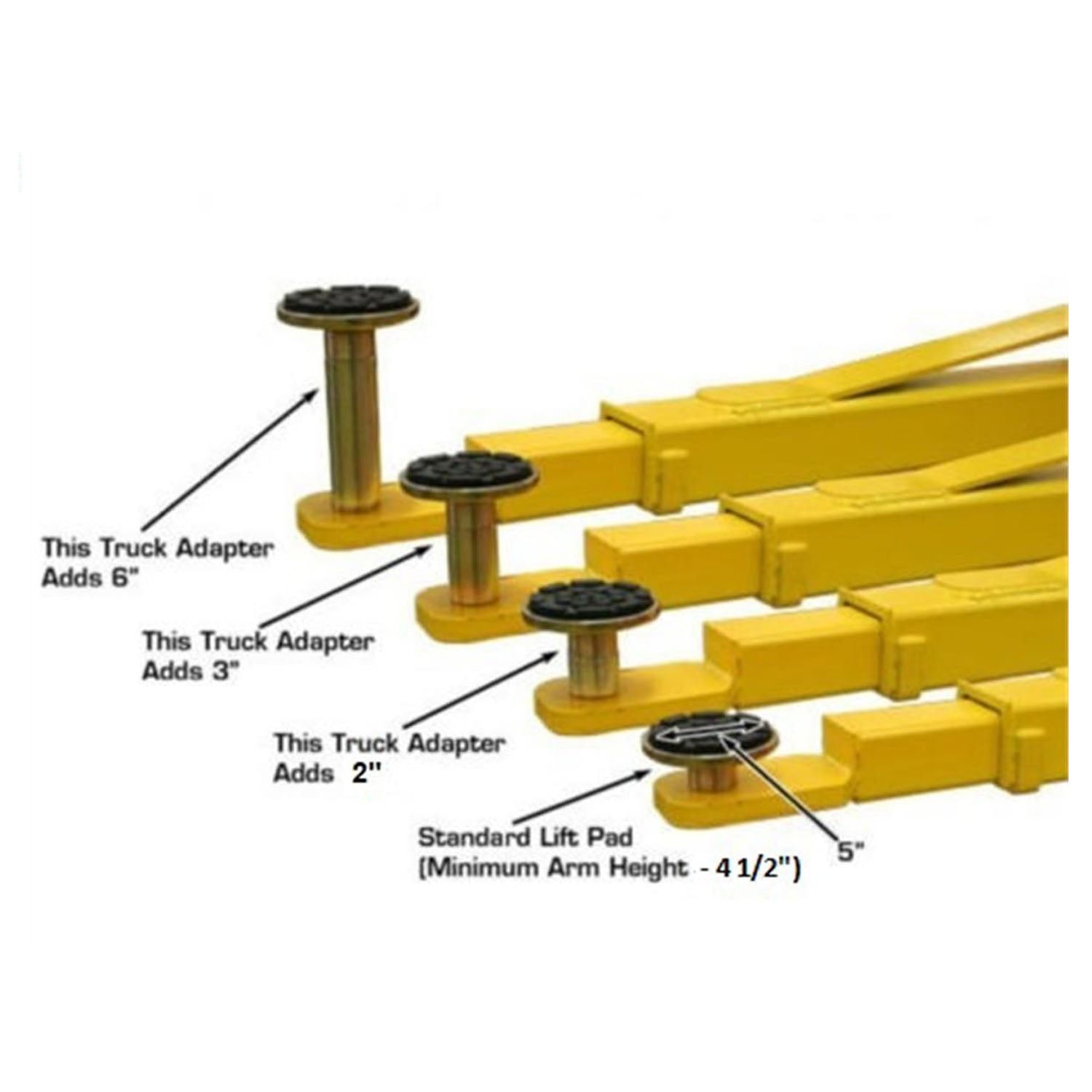

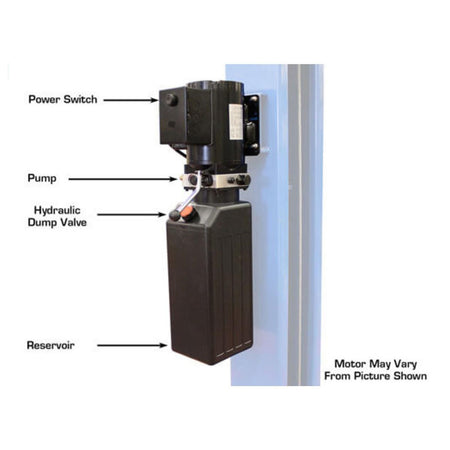

Adapter Heights 4 Each 2", 3", 6" Arm Hole/Adapter Peg Size 1.5” Motor/Electrical Requirement 220V single (1) phase / 30 amp breaker is required.
Oil Requirements 3-5 Gallons AW32/AW46 Shipping Weight 1,665 lbs. -
WARRANTY
Warranty Information
- 5-Year Structural Warranty
- 2-year on Hydraulic Cylinder
- 1-year Hydraulic-Power Unit Warranty
- 5-Year Structural Warranty
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
