Hofmann Swing Arm Tire Changer #MONTY1675

• DESCRIPTION
• FEATURES
• SPECIFICATIONS
• WARRANTY AND MEDIA

• DESCRIPTION

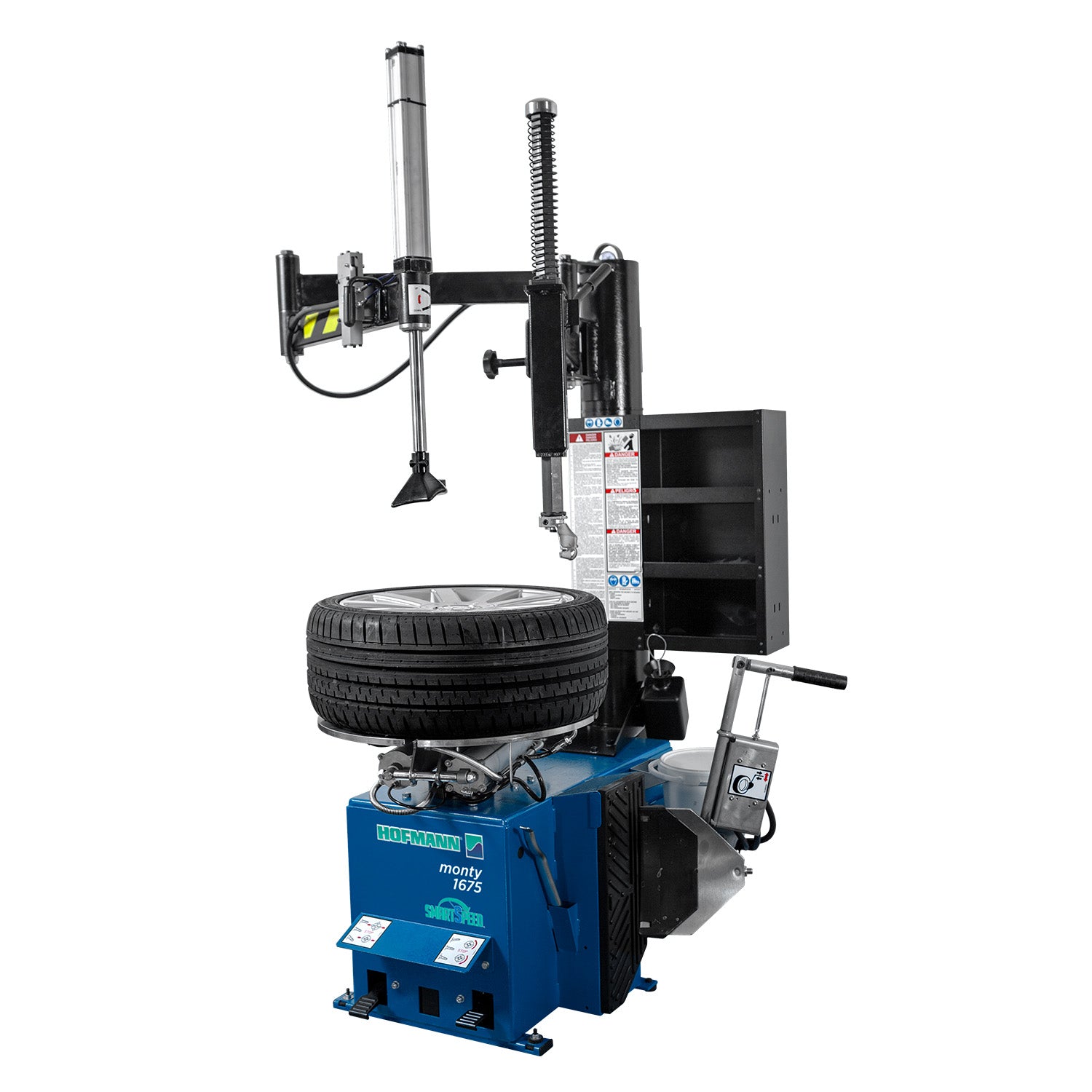

  The Hofmann® 1675 tire changing system is ideal for handling passenger cars, light trucks and high-performance wheel/tire assemblies. Ergonomic design and safety enhancing features provide the technician a safe workspace when changing a variety of tires. Locking mount/demount head offset provides maximum cosmetic safety for expensive wheels and significantly reduces the risk of harming wheel/tire assemblies.

• FEATURES

  • Part Number: EEWH779CU2
  • Robust, Professional Design: Precision cast and machined shoes with robust cast jaws make for precise, slop free clamping
  • Heavy-duty pneumatic valves are simple to operate and offer intuitive functionality
  • Powerful electric motor generates 1200Nm of torque to the table top to mount stiff, difficult tires

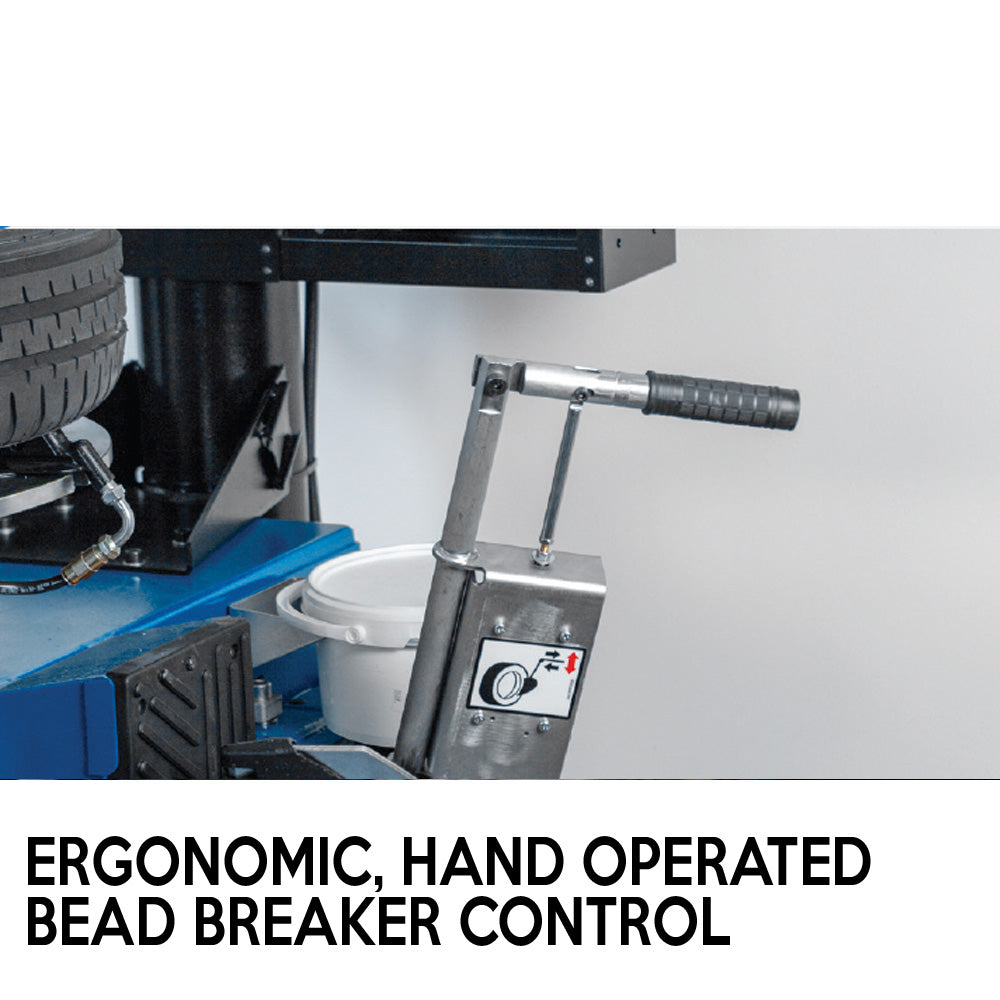

  • Ergonomic, Hand Operated Bead Breaker Control: Newly designed bead breaker is easy to use and prevents the technician from having to straddle the assembly during bead breaking

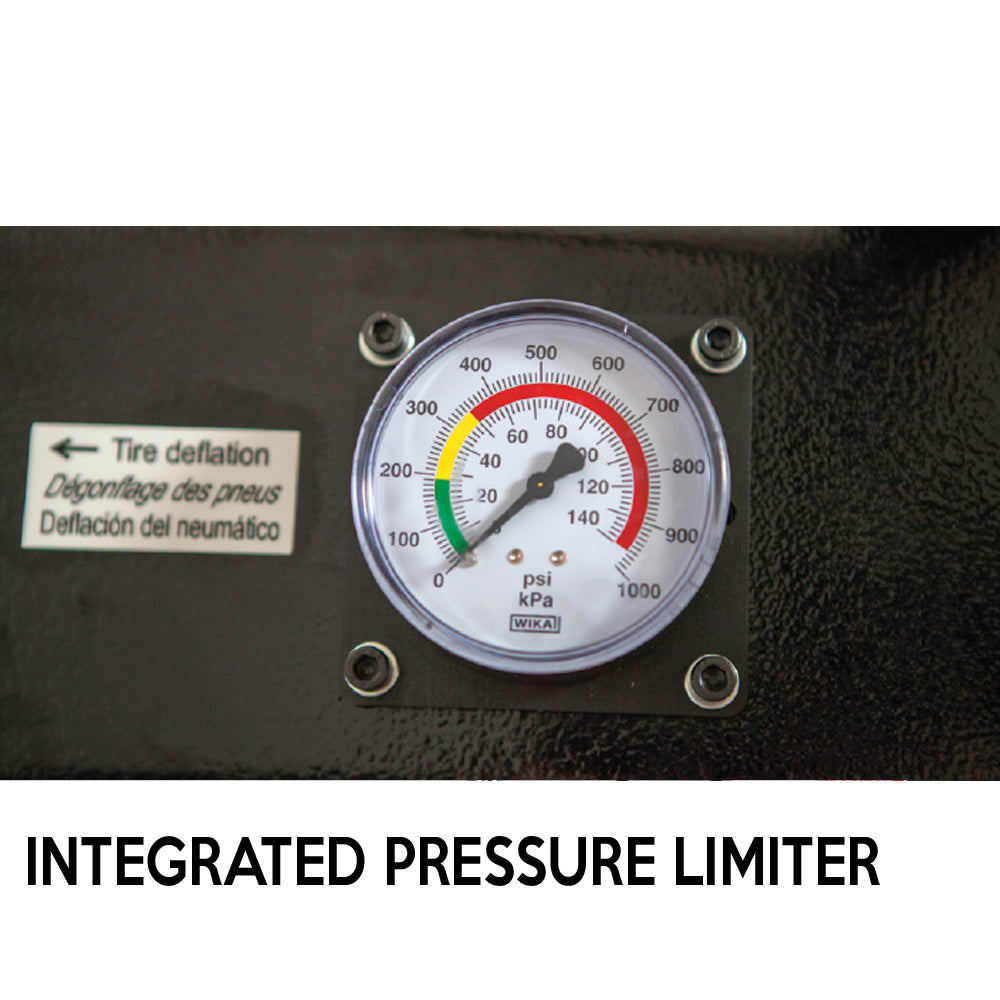

  • Integrated Pressure Limiter: Stops air flow once pressure has reached 55 PSI (3.5 Bar) preventing accidental tire over-inflation

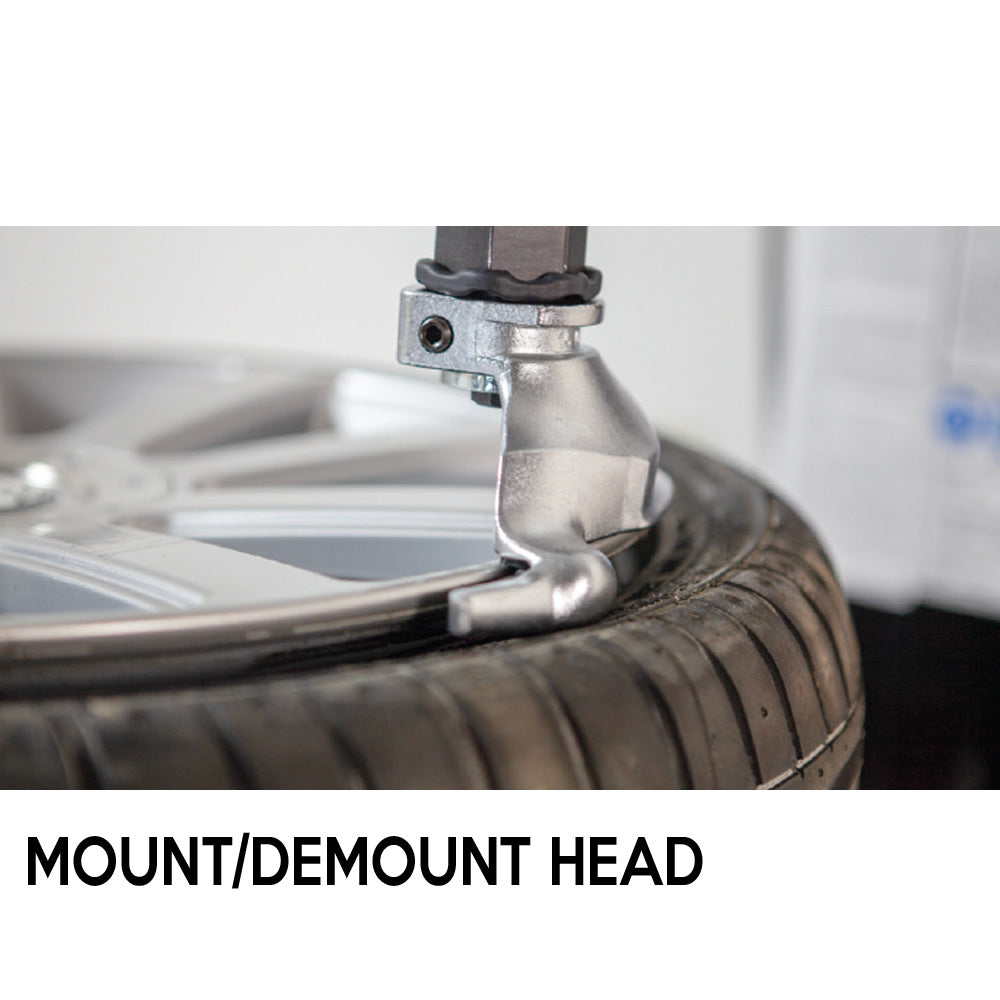

  • Mount/Demount Head: Locking of the mount/demount head offset, which provides maximum cosmetic safety for expensive wheels and significantly reduces the risk of harming wheel/tire assemblies

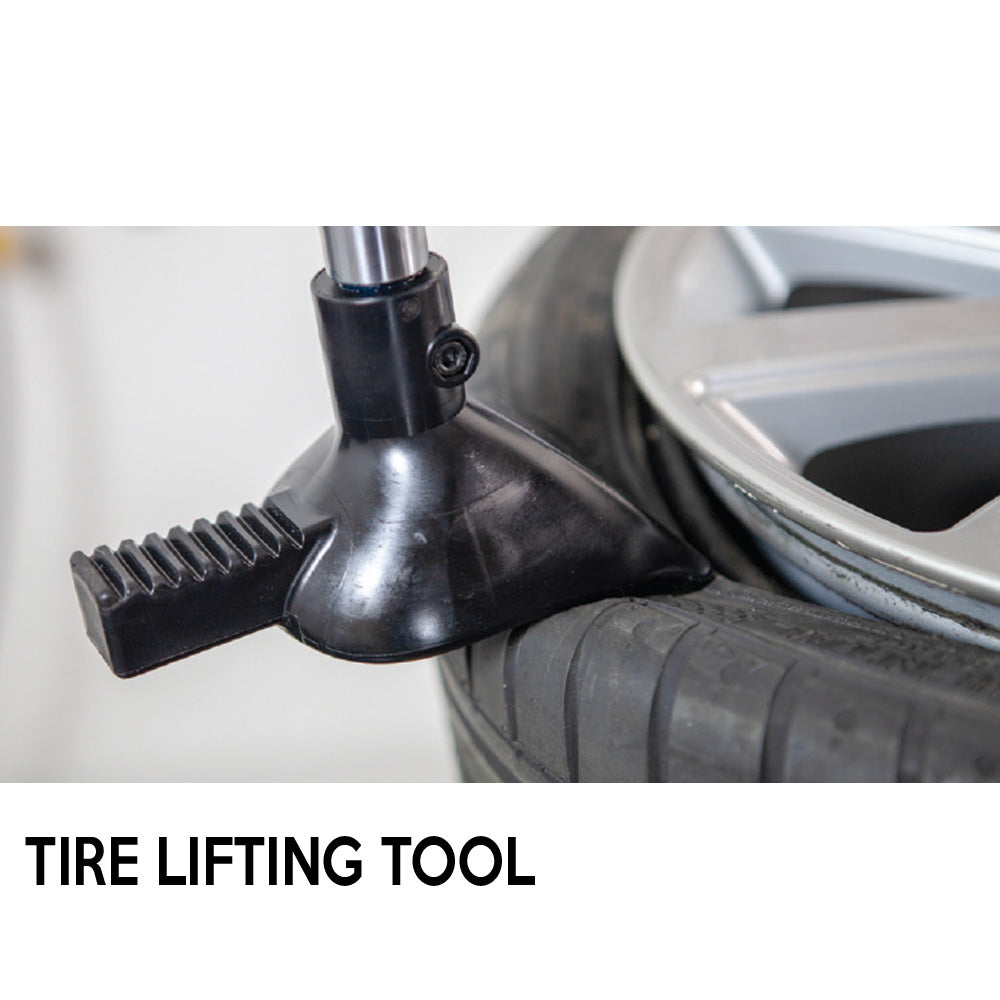

  • Tire Lifting Tool: Integrated bead pusher assists in the mount/demount process of the upper bead. Tire lifting tool aids the technician with the demounting process

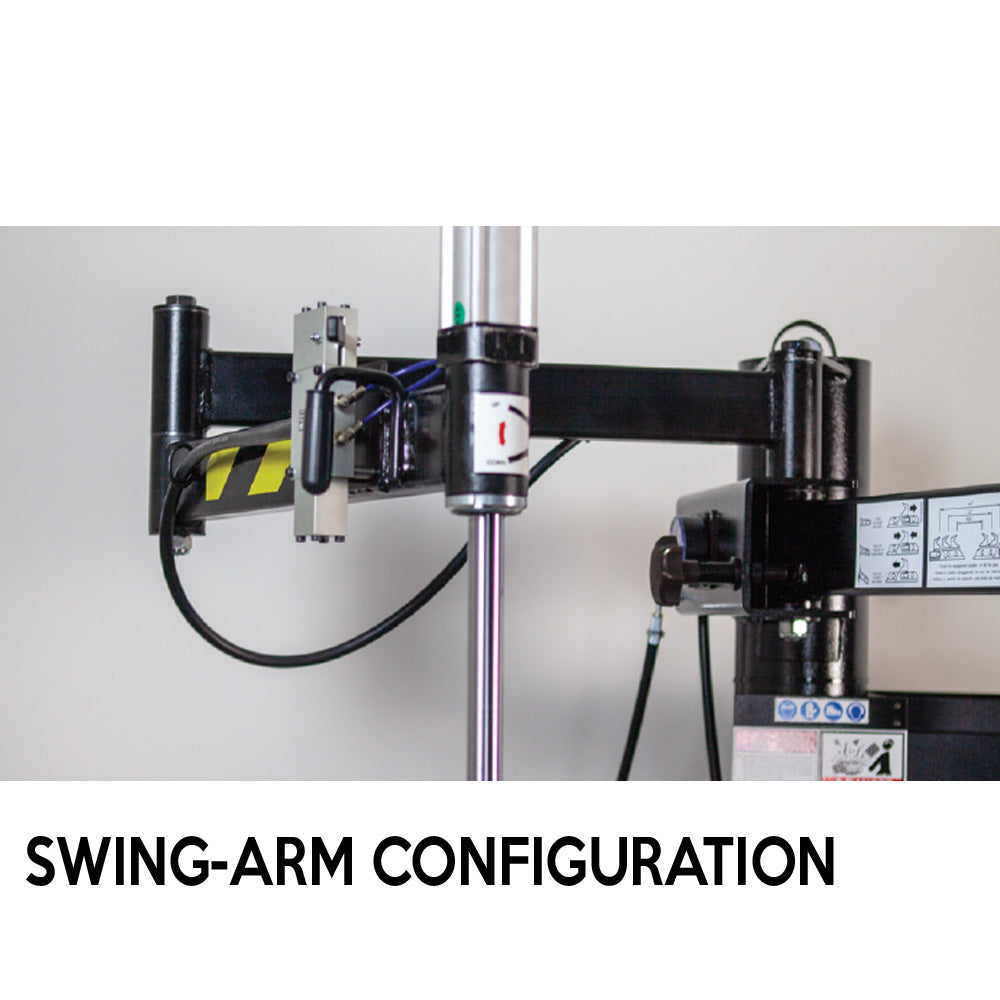

  • Swin-Arm Configuration: Quick and easy setup. Stays within a compact footprint, even with larger tire sizes. Provides an ergonomic tire changing position

• SPECIFICATIONS

  Specifications	MONTY1675
  Overall Wheel Clamping Diameter	10"-26" (25-66 cm)
  Inner Wheel Clamping Diameter	12"-26" (30-66 cm)
  Outer Wheel Clamping Diameter	10"-24" (25-61 cm)
  Bead Breaker Range	3"-13" (7.6-33 cm)
  Bead Loosening Power	6,000 lbs (2,722 kg)
  Max Wheel Width	13" (33 cm)
  Max Outer Tire Diameter	40" (101.6 cm)
  Shipping Weight	550 lbs (249.5 kg)
  Power Requirements	120V 1Ph 60Hz




• WARRANTY AND MEDIA

  2 Year Parts

  1 Year Labor

Hofmann Monty1675 Brochure

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN WHEEL BALANCERS

• LABOR 6 MONTHS
• PARTS 1 YEAR
• ELECTRONIC CIRCUIT BOARD 3 YEARS
• ELECTRIC MOTOR 5 YEARS

HOFMANN WHEEL ALIGNERS

• LABOR - 6 MONTHS
• CIRCUIT BOARDS, PC’S, CRT & LCD - 3 YEARS
• PARTS & PRINTER - 1 YEAR

Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN BRAKE LATHES

• LABOR - 6 MONTHS
• PARTS - 2 YEARS
• ELECTRIC MOTOR - 1 YEAR

HOFMANN TIRE CHANGERS

• LABOR - 6 MONTHS
• PARTS - 1 YEAR
• ELECTRIC MOTOR - 3 YEARS
• AIR MOTOR - 1 YEAR
• TRANSMISSION - 3 YEARS

Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN LIFTS

• LABOR - 1 YEAR
• PARTS - 1 YEAR
• POWER PACK - 18 MONTHS (1 YEAR SCISSOR ALIGNMENT)
• HYDRAULICS - 1 YEAR
