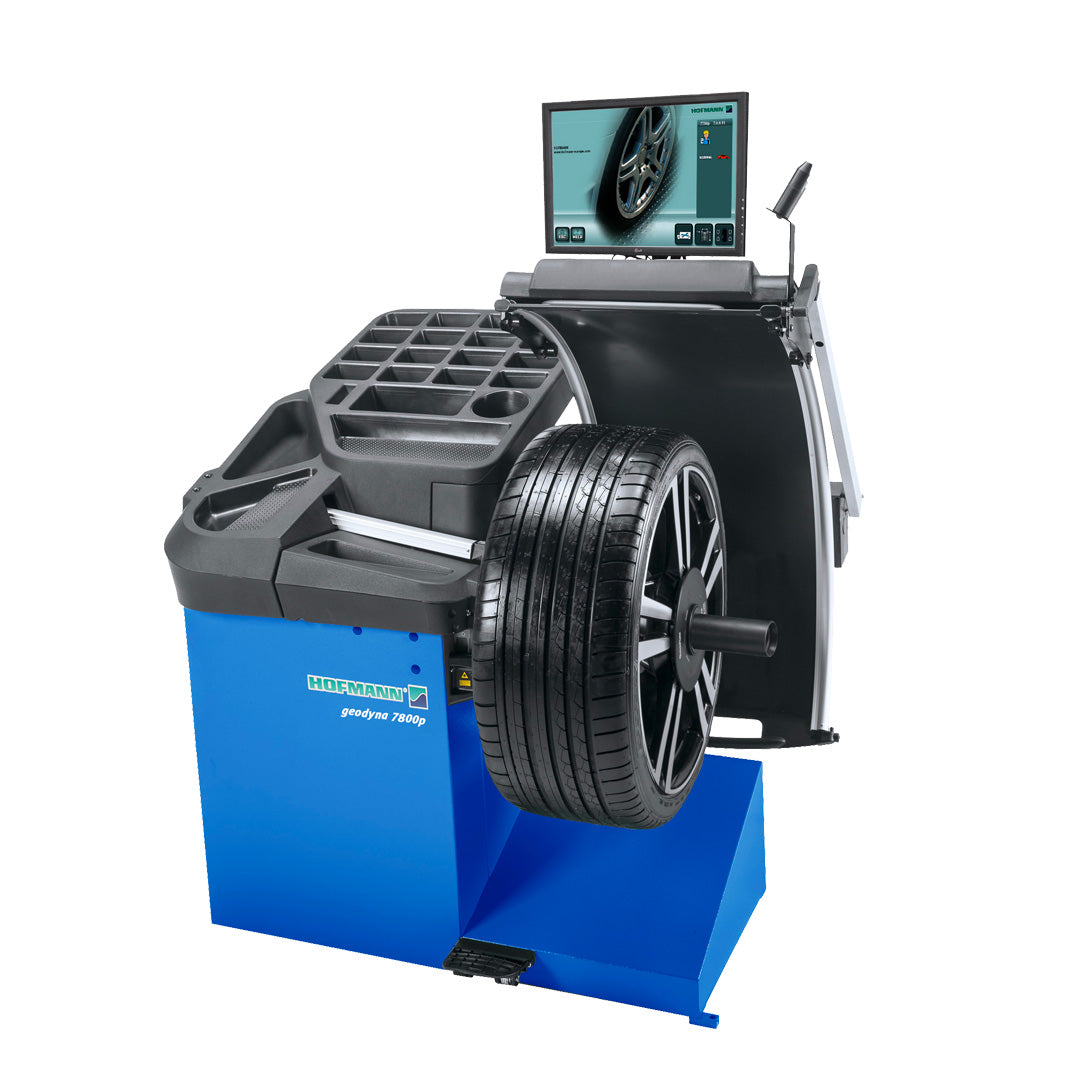

Hofmann GEODYNA® 7800P Wheel Balancer with Touchscreen Monitor #EEWB753BEB

• DESCRIPTION
• FEATURES
• SPECIFICATIONS
• WARRANTY + MANUALS

• DESCRIPTION

  Hofmann Wheel Balancer with Touchscreen Monitor and Non-Contact Data Entry is the wheel balancer for garages, car dealerships, tire shops, and premium workshops with high tire service volume. With touch screen monitor, automatic non-contact data entry, and easyWEIGHT™ pinpoint indicator light - an accurate, fast, and easy solution to position adhesive weights on the wheel.

  • Part Number: EEWB753BEB
  • Poductivity Enhancing Features
  • Automatic data entry and selection of balancing mode via scanner and Smart Sonar
  • Automatic spoke detection - automatically detects the number and position of rim spokes.
  • One-spin balance
  • VPM measurement technique for uncompromised accuracy
  • Intuitive, Ergonomic Design
  • Platinum touchscreen user interface: new resistive touch display with large icons for use with or without gloves on
  • Fast and intuitive selection of the cycle modes: fully automatic with spoke detection, fast automatic without spoke detection, and manual mode
  • Patented ergonomic telescopic wheel guard reduces the overall equipment footprint
  • geodata - The geodyna 7800p is equipped with the geodata arm.
  • VPM Measurement Technique - The geodyna 7800p comes with the patented virtual plane measurement (VPM) technique which ensures accurate balancing results while being insensitive to ambient conditions.
  • easyWEIGHT - Pinpoint indicator light is the accurate, fast, and easy solution
  • Power Clamp - The electromechanical power clamp
  • EZ-Collets - Mobile app helps service technicians identify the best tools for their wheel balancing jobs.
  • The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
  • Additional Features
  • The patented wheel scanner detects wheel diameter and offsets and the number and position of wheel spokes.
  • The 225mm long shaft allows the use of accessories with every type of wheel.
  • The operator only has to touch the amount of unbalance on the screen, and the tire is automatically indexed to the correct position.

• FEATURES

  • EZ-COLLETS MOBILE APP: The EZ-Collets mobile app makes wheel balancing more efficient.
  • AUTOMATIC SPOKE DETECTION: Scanner automatically detects number and position of rim spokes. Provides easy recall of split weight mode for hidden adhesive weights by simply pressing an icon on the screen.
  • ASANETWORK: A tool that allows equipment to be connected to a garage. W
  • RIM LIGHTING: Facilitates application of the geodata gauge arm.
  • SMART SONAR™: Automatic, non-contact rim width acquisition delivers greater accuracy and ease of use for a 30% savings in the complete process when compared to manual operation.
  • STOP IN POSITION: Touch the screen to automatically rotate the wheel to weight application position.
  • POWER CLAMP™: Patented automatic Power Clamp electromechanical clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.
  • EASYWEIGHT™: Pinpoint laser identifies exact weight placement location for increased accuracy and efficiency.
  • EASYALU™: Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.
  • SPLIT WEIGHT MODE: Hides adhesive weights behind two adjacent spokes so they cannot be seen from the outside.
  • QUICKBAL™: 30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.
  • OVERSIZED SHAFT: The 225 mm length allows the use of stud-hole flanges and other accessories for almost every type of rim.
  • VPM TECHNIQUE: Measurement system for high precision and repeatability.

• SPECIFICATIONS

  Specifications	GEODYNA7800P
  Wheel clamping	Power clamp
  Diameter of shaft	40 mm
  Measuring speed	< 200 rpm
  Balancing accuracy	0.035 (1 g)
  Angular resolution	±0.35°
  Length of shaft	225 mm
  Start/Stop balance time - Check spin (Wheel 195/65R15)	4.5 s s
  Manual rim diameter range	8" - 32"
  Manual offset range	1" - 20"
  Manual rim width range	1" - 20"
  Semi-automatic rim diameter range	8" - 30"
  Semi-automatic rim width range	1" - 20"
  Automatic rim diameter range	14" - 26"
  Automatic offset range	4.7" - 16.3"
  Automatic rim width range	3" - 15.8"
  Max. wheel diameter	42"
  Max. wheel weight	154 lbs ( 70 kg)
  Motorized	Yes
  Power Requirements	230 VAC 1ph 50/60 Hz – 1.1A
  Dimensions LxWxH (Unit only)	54" x 40" x 73"
  Net Weight	297 lbs (135 kg)




• WARRANTY + MANUALS

  • 5 Years Motor
  • 2 Year Parts
  • 1 Year Labor
