Atlas 12,000 lb Alignment Lift w/ Runway Lifts #ATEATTD-12AWFSL-N-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

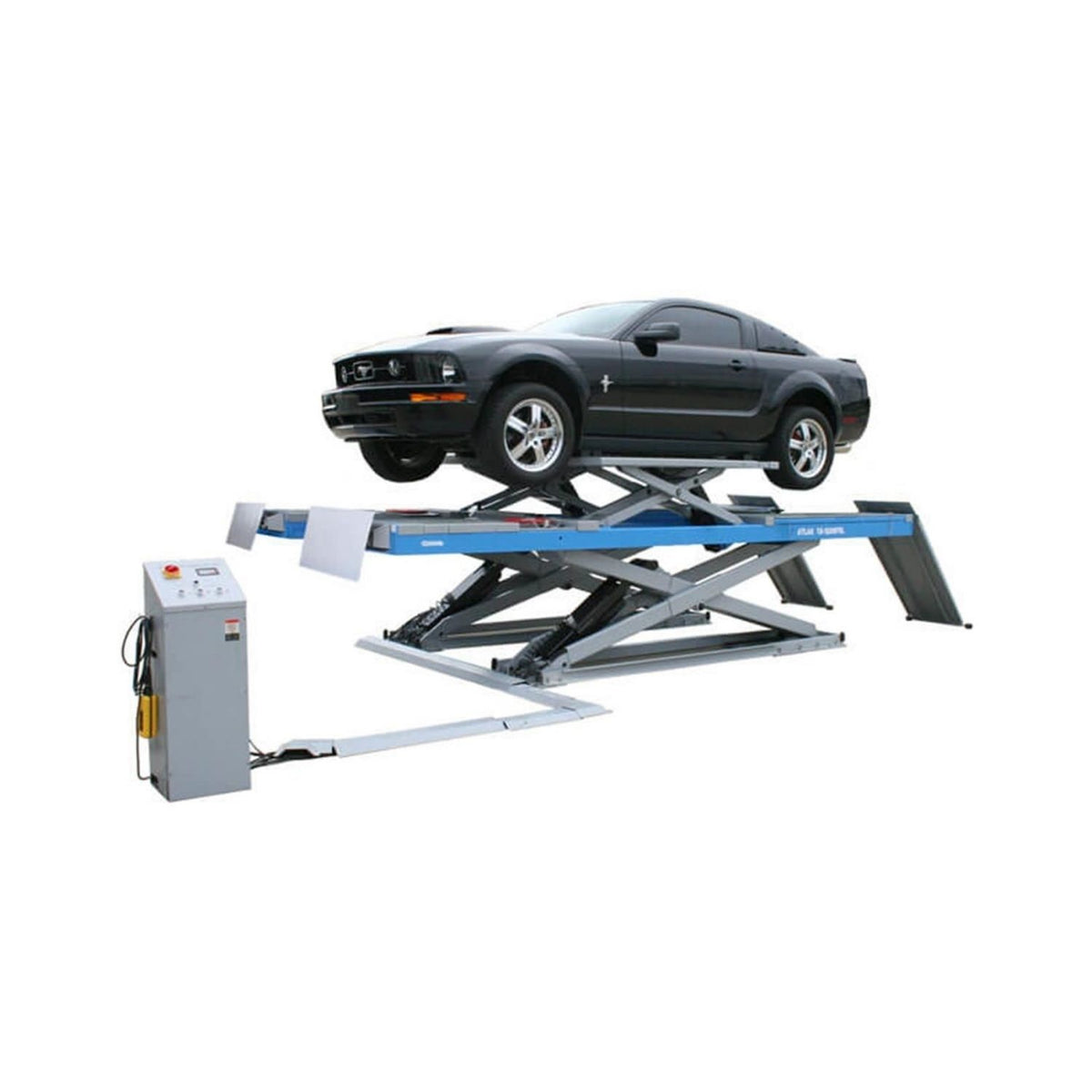

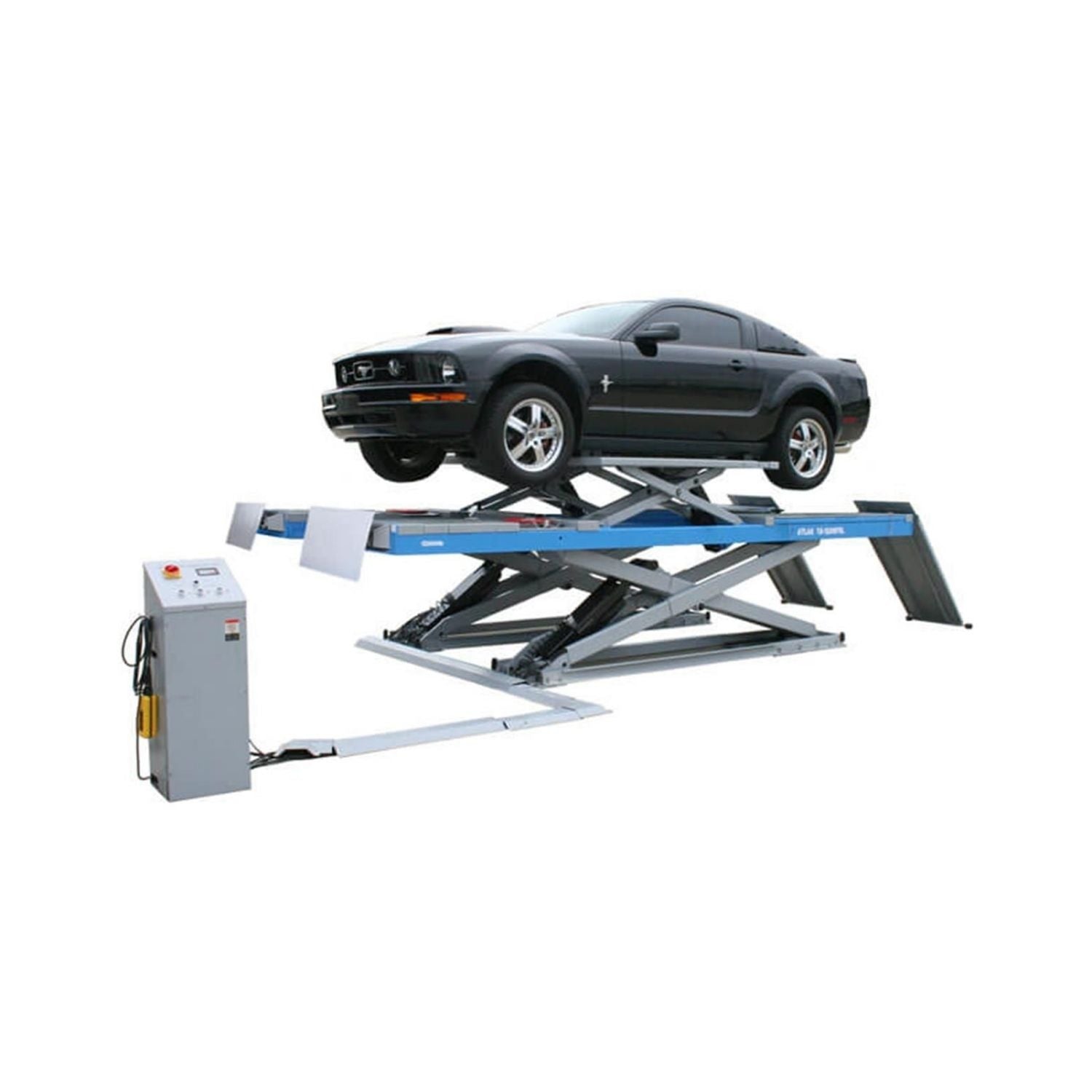

  The Atlas 12,000 lb Alignment Lift with Runway Lifts is designed for advanced wheel alignment and vehicle service applications in professional automotive shops.

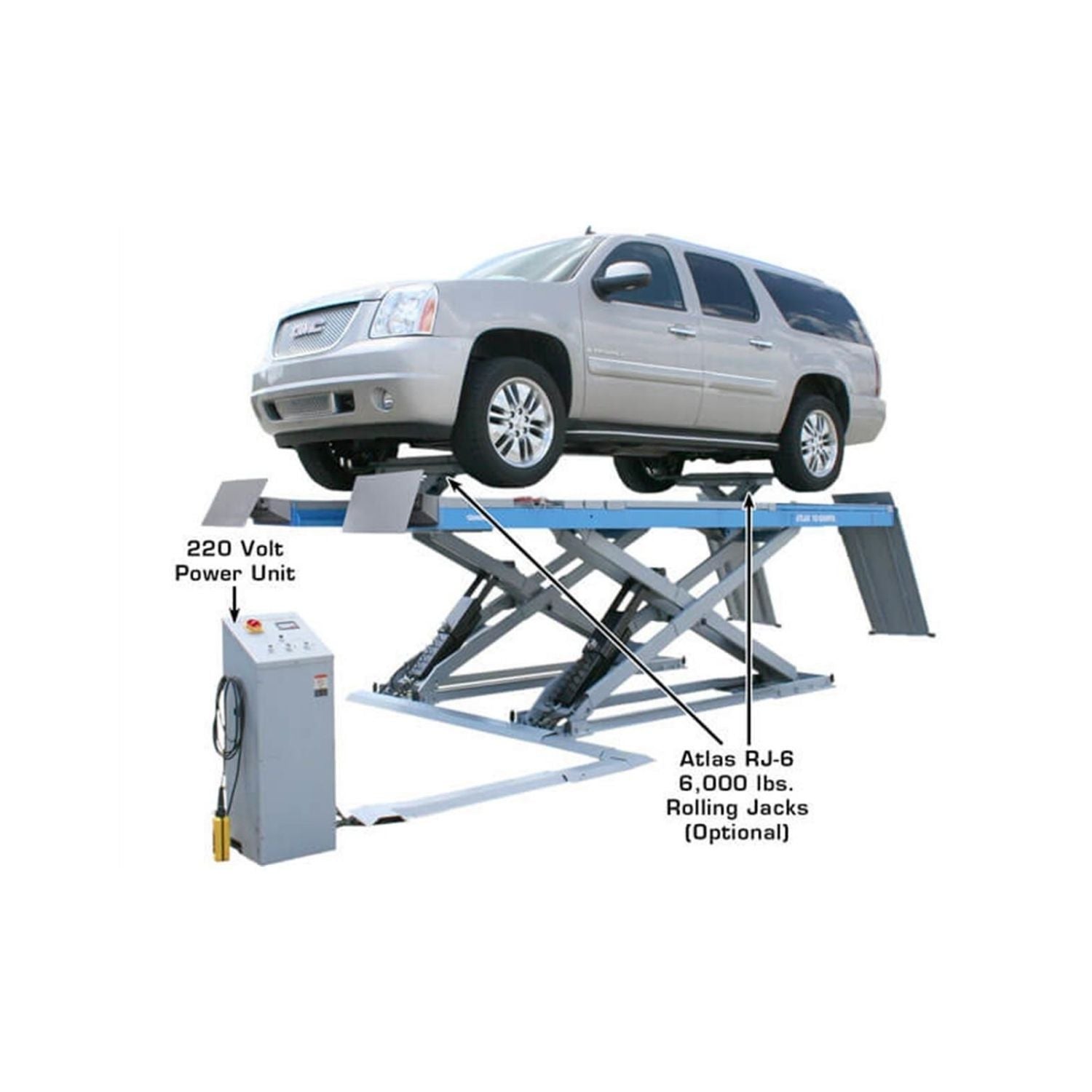

  With a 12,000 lb capacity, this lift provides a stable platform for servicing cars, SUVs, and light trucks. The integrated runway lift system allows technicians to raise vehicles off the runways, enabling wheel-free service for brake, suspension, and alignment work.

  Built for durability and efficiency, this lift enhances workflow while delivering precise alignment capability and reliable lifting performance.

• FEATURES AND BENEFITS

  • 12,000 LB. Capacity
  • Commercial Grade
  • Scissor Alignment Lift

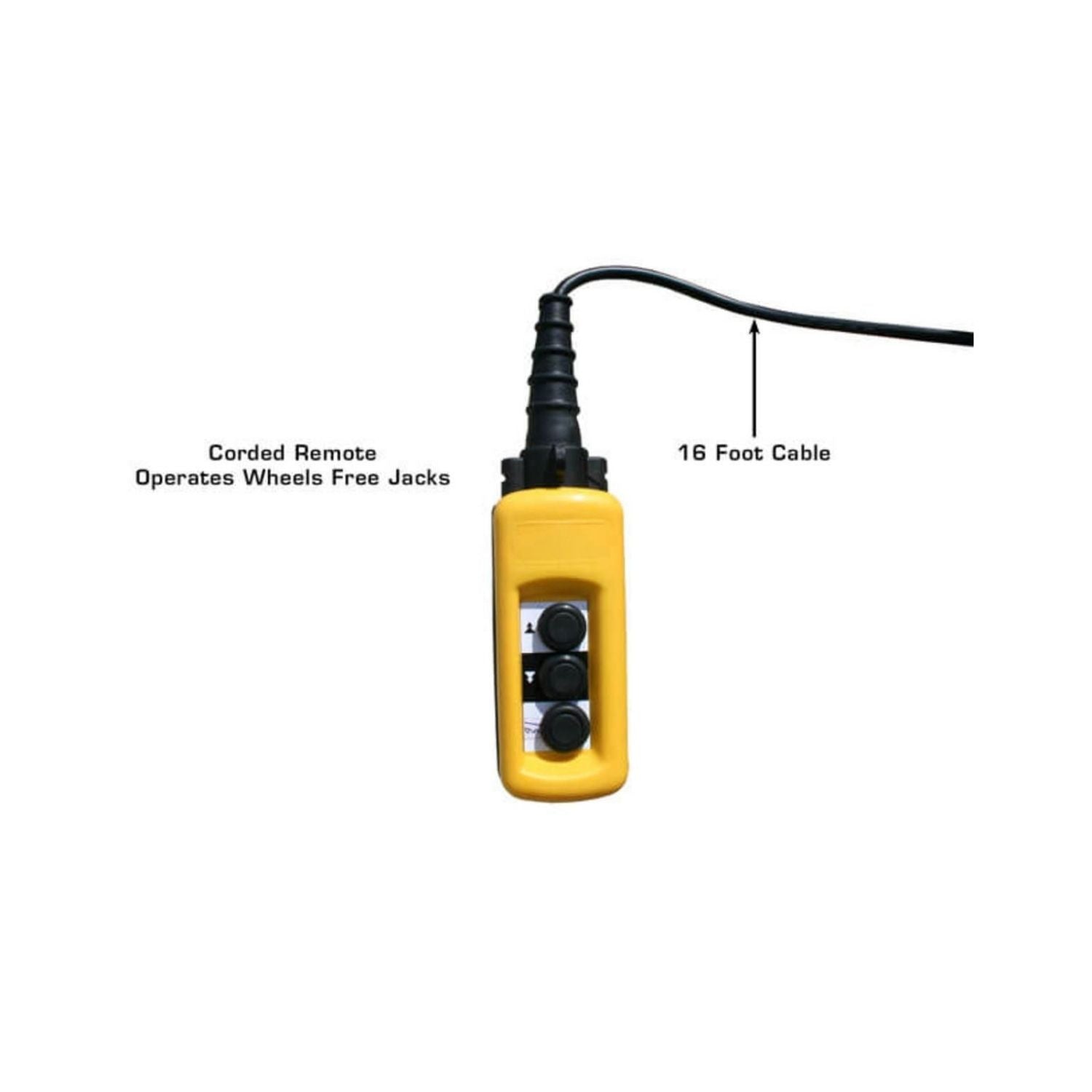

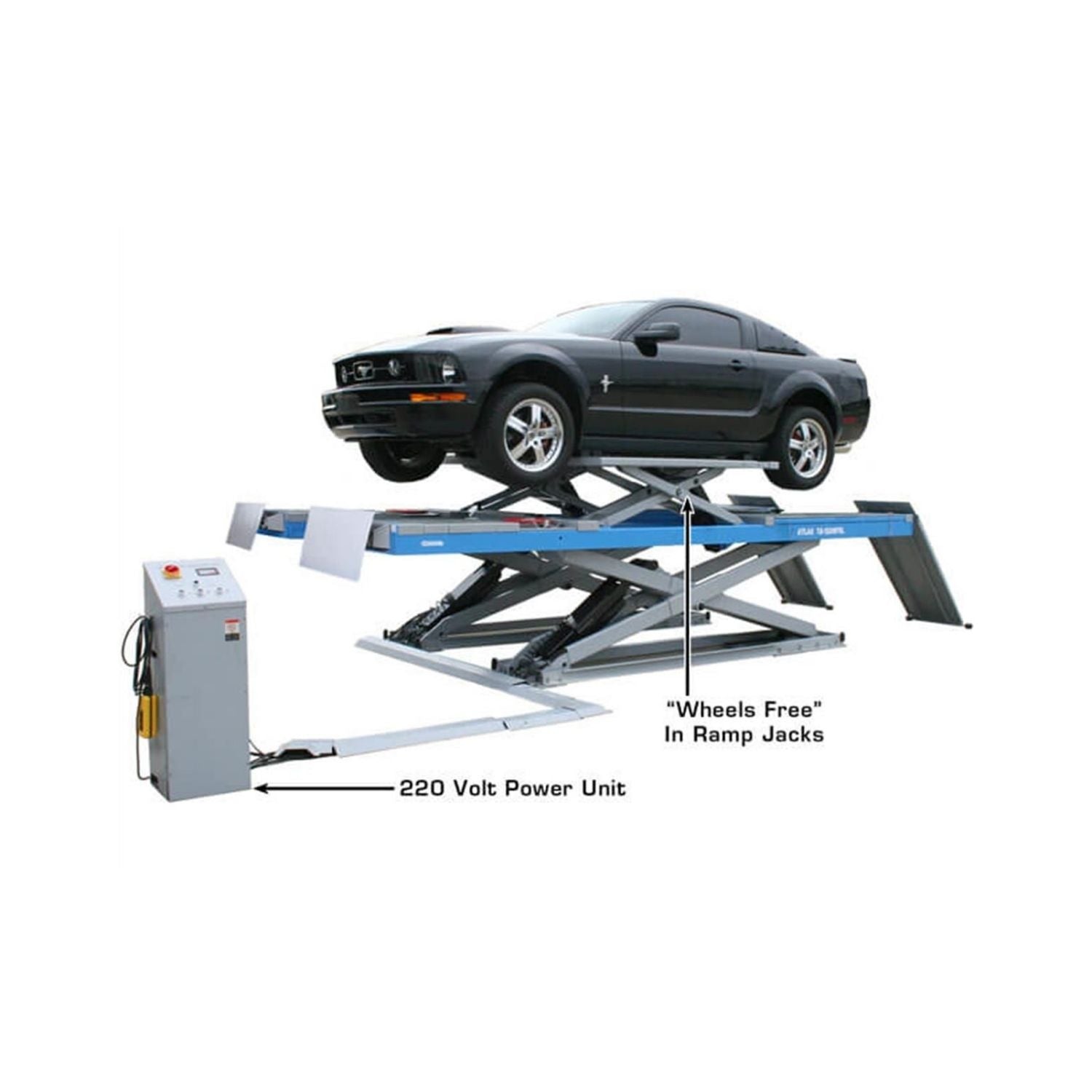

  • Built in “Wheels Free” Lifting System

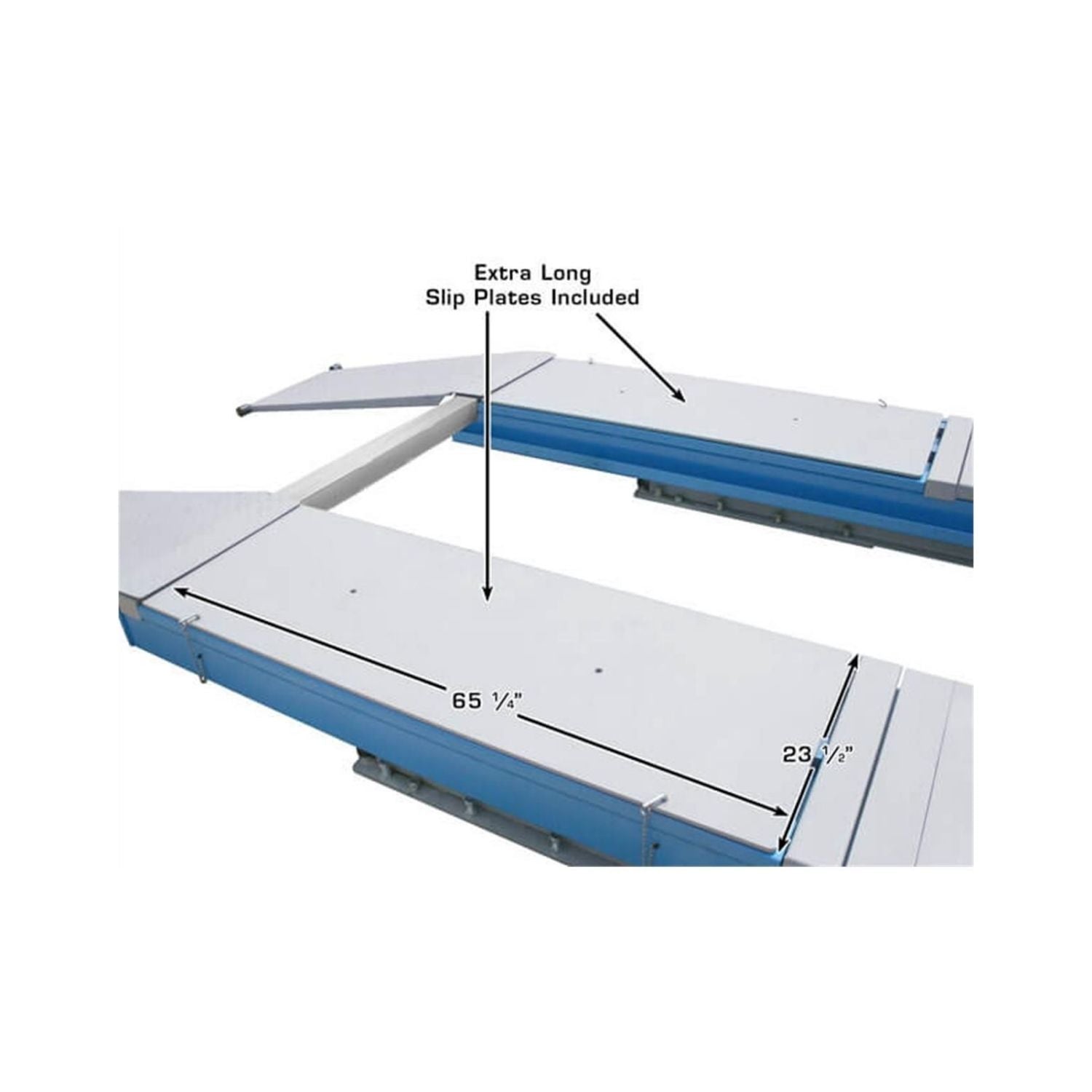

  • Built in Slip Plates and Alignment Turntables Included
  • Turntable Covers Included
  • Open Center Design for Easy Access

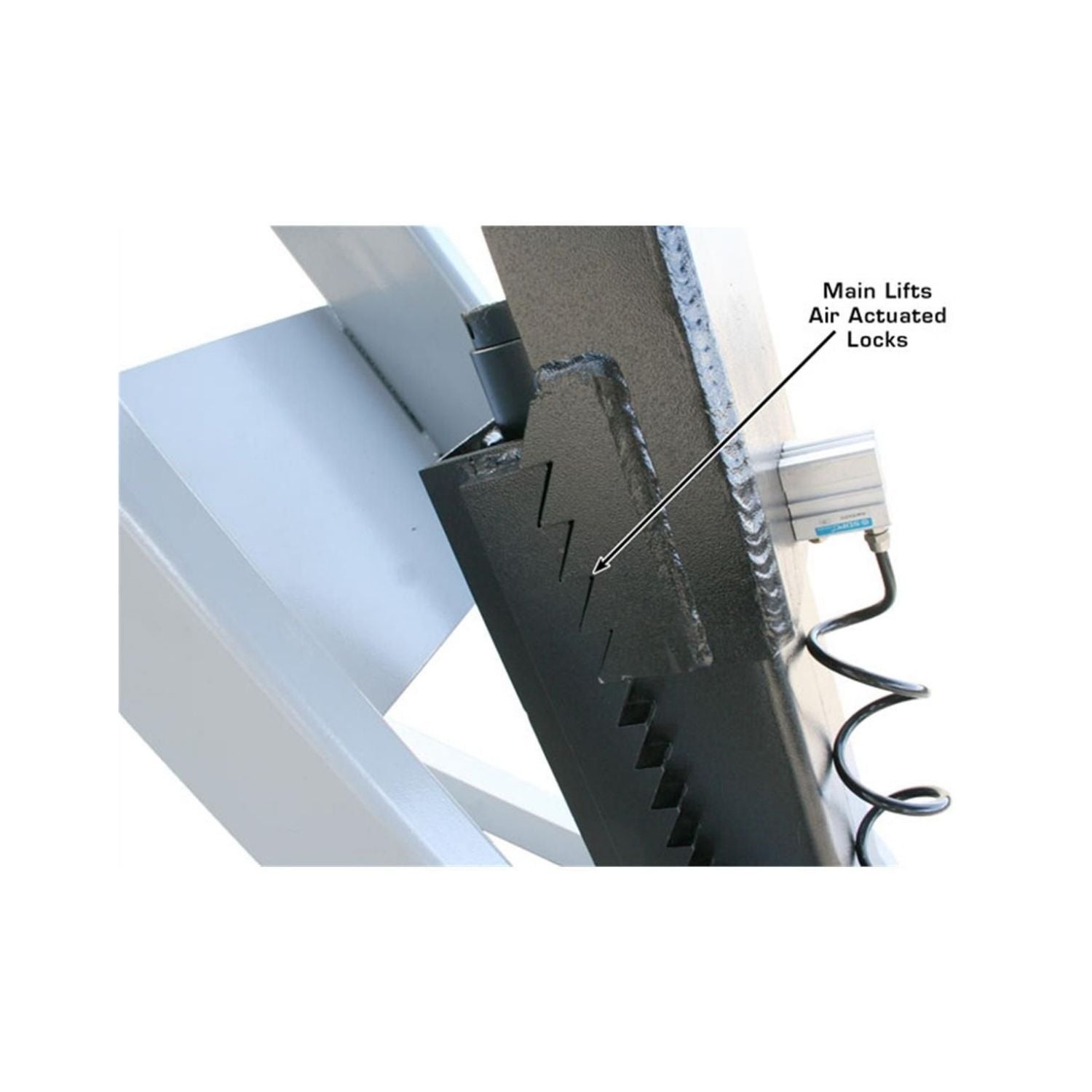

  • Air-Operated Single Point Lock Release (External Air Supply Required)
  • Airline Kit Included

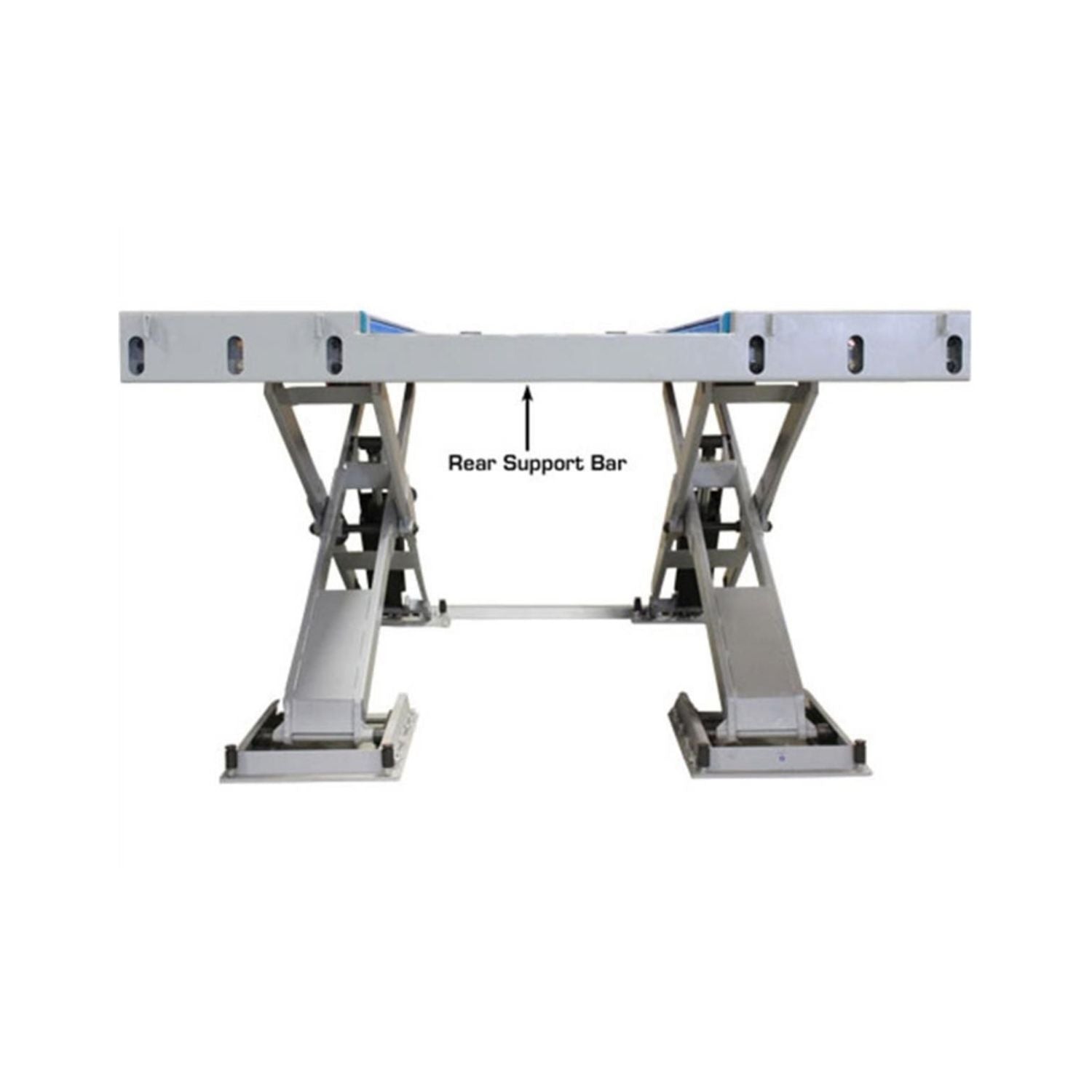

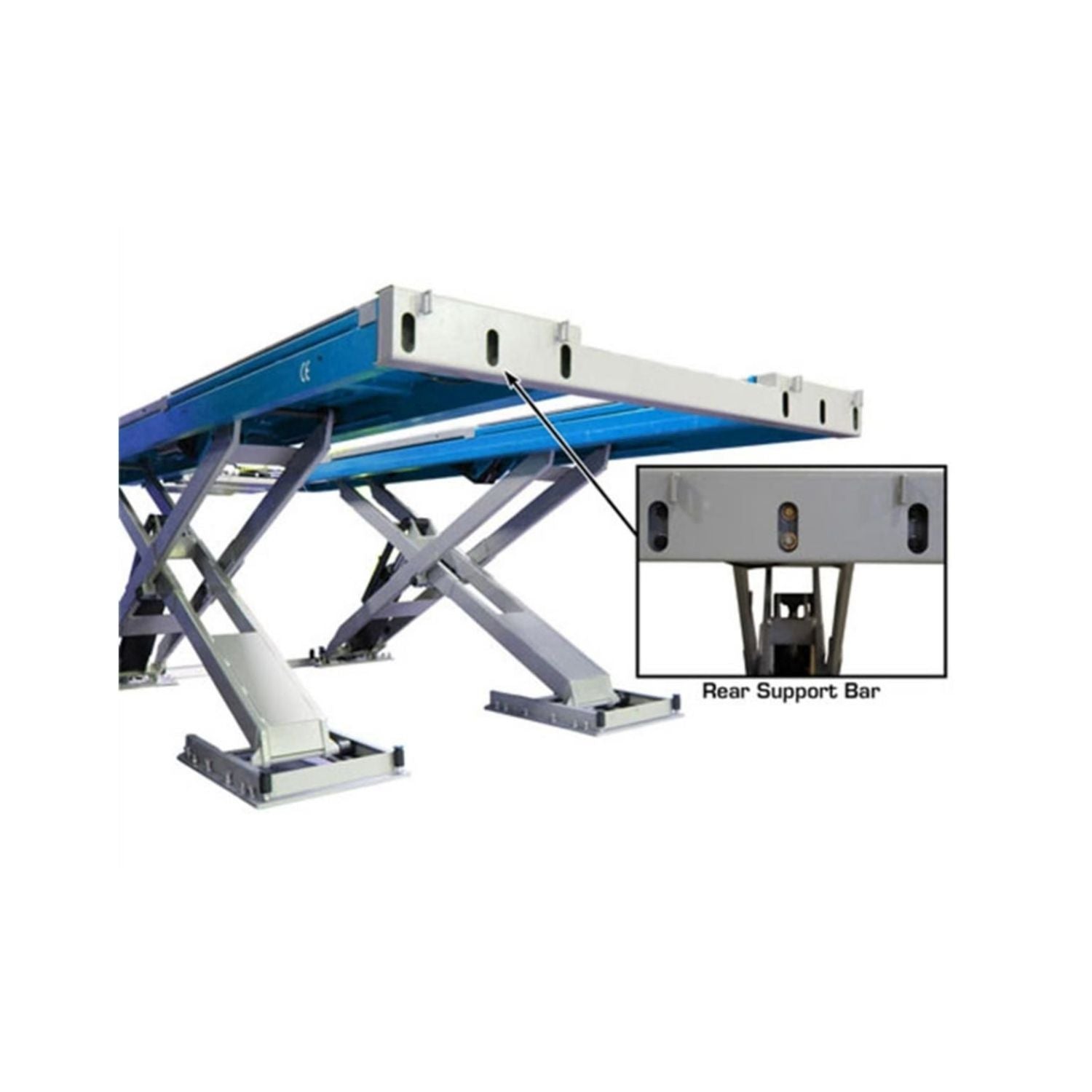

  • Rear Cross Beam for Extra Stability Included
  • Extra Long 72" Ramps Standard
  • Precise Platform Leveling Accuracy

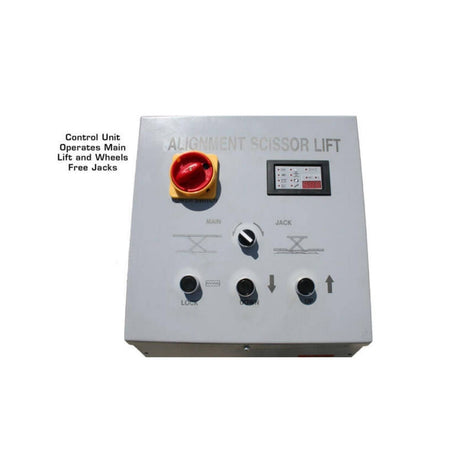

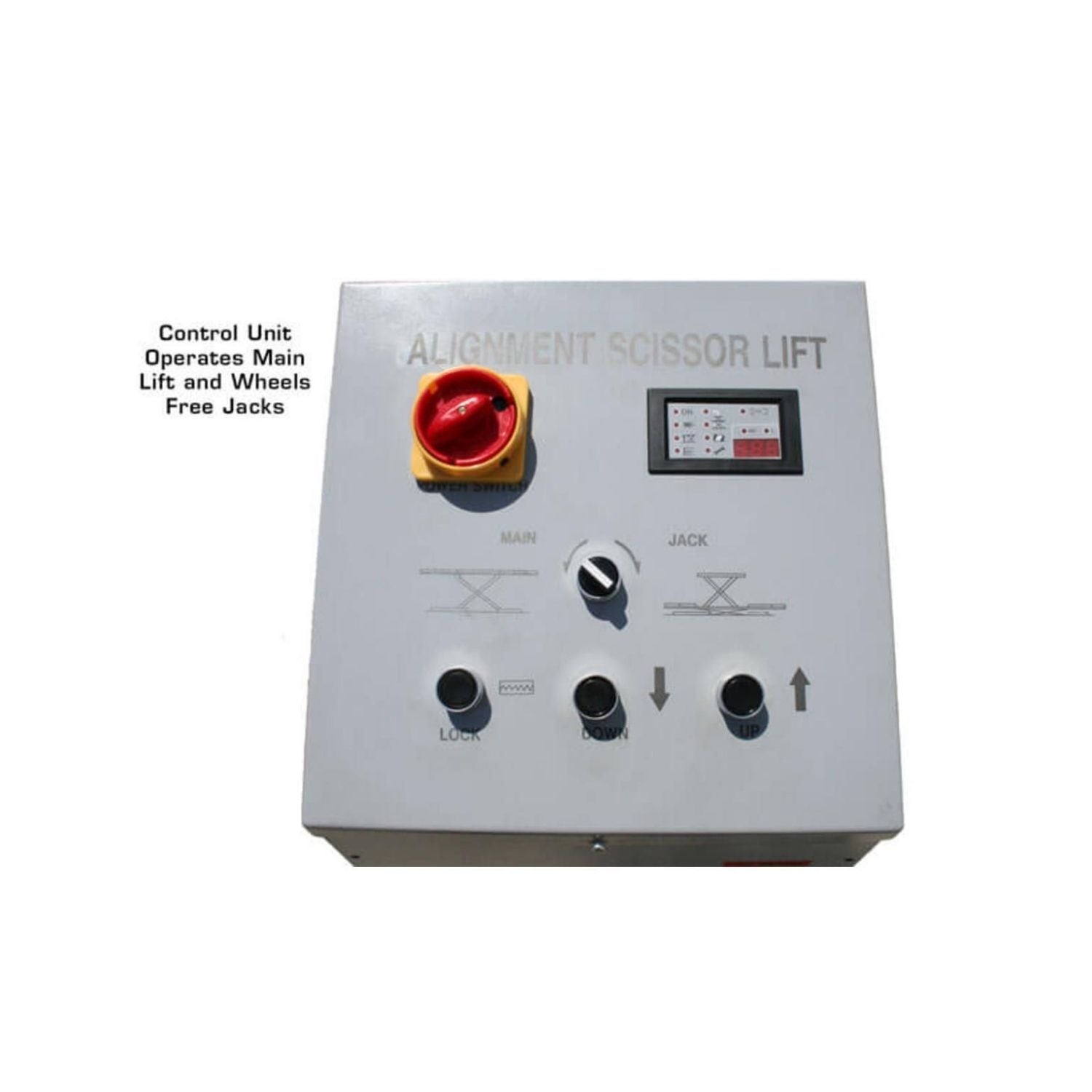

  • Separate Self-Contained Control Panel
  • Emergency Manual Pump for Lowering

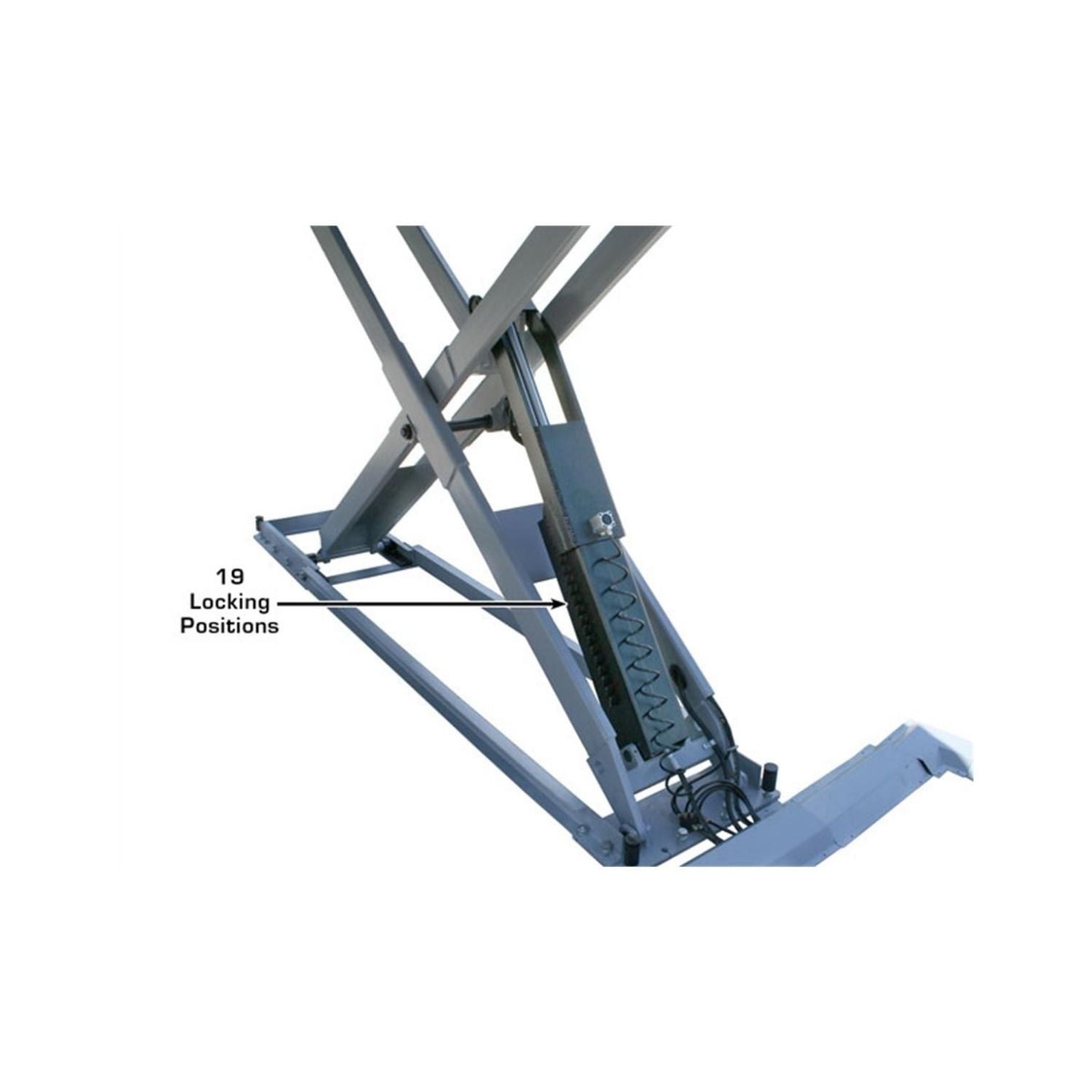

  • 19 Locking Positions
  • CE Certified

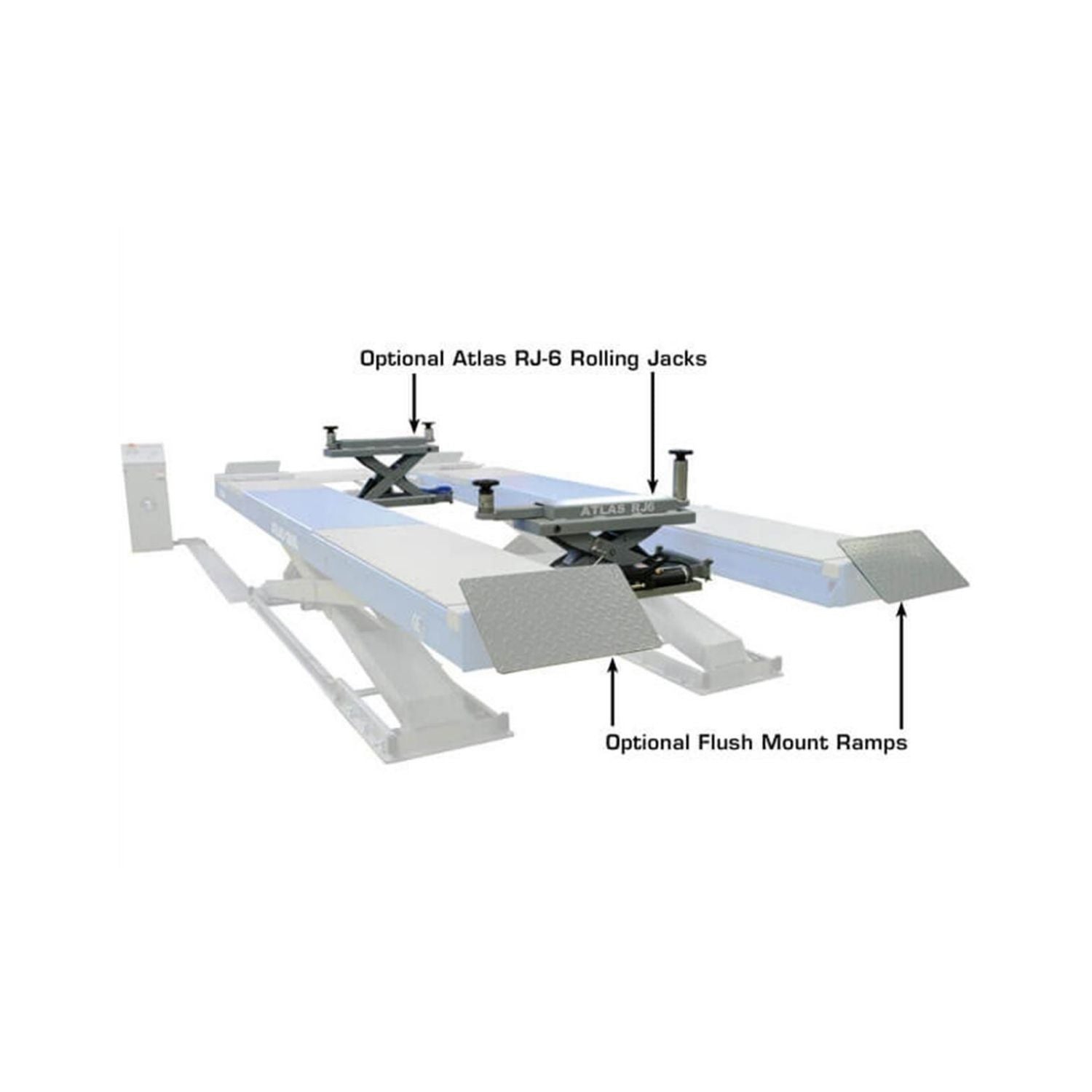

  • Can be Surface Mounted or Flush Mounted
  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)

  • 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-12AWFSL-N-FPD
  Dimensions:	198" L × 53" W × 30" H
  UPC:	810524028028
  Country of Origin:	CHN
  Lifting Capacity:	12,000 LB

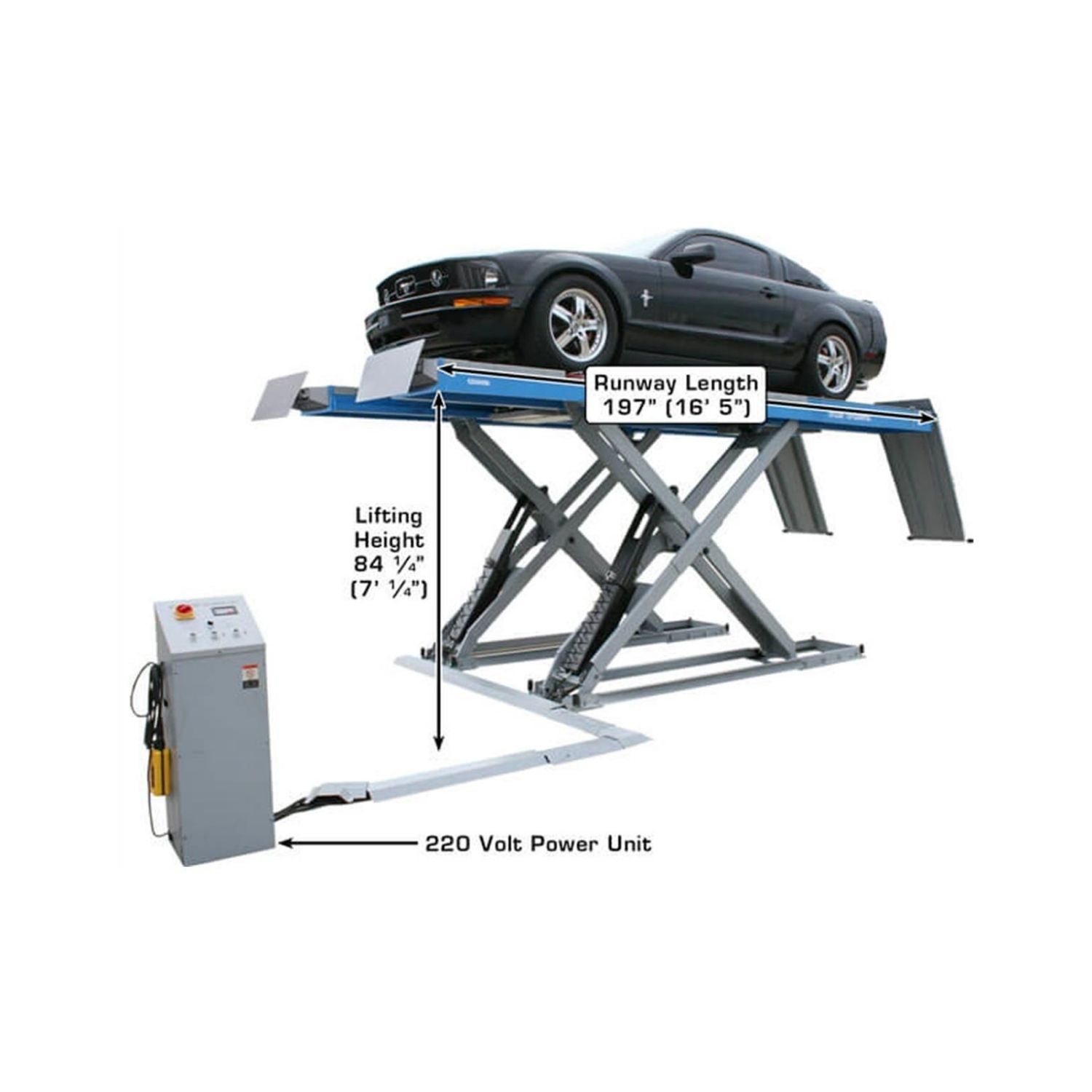

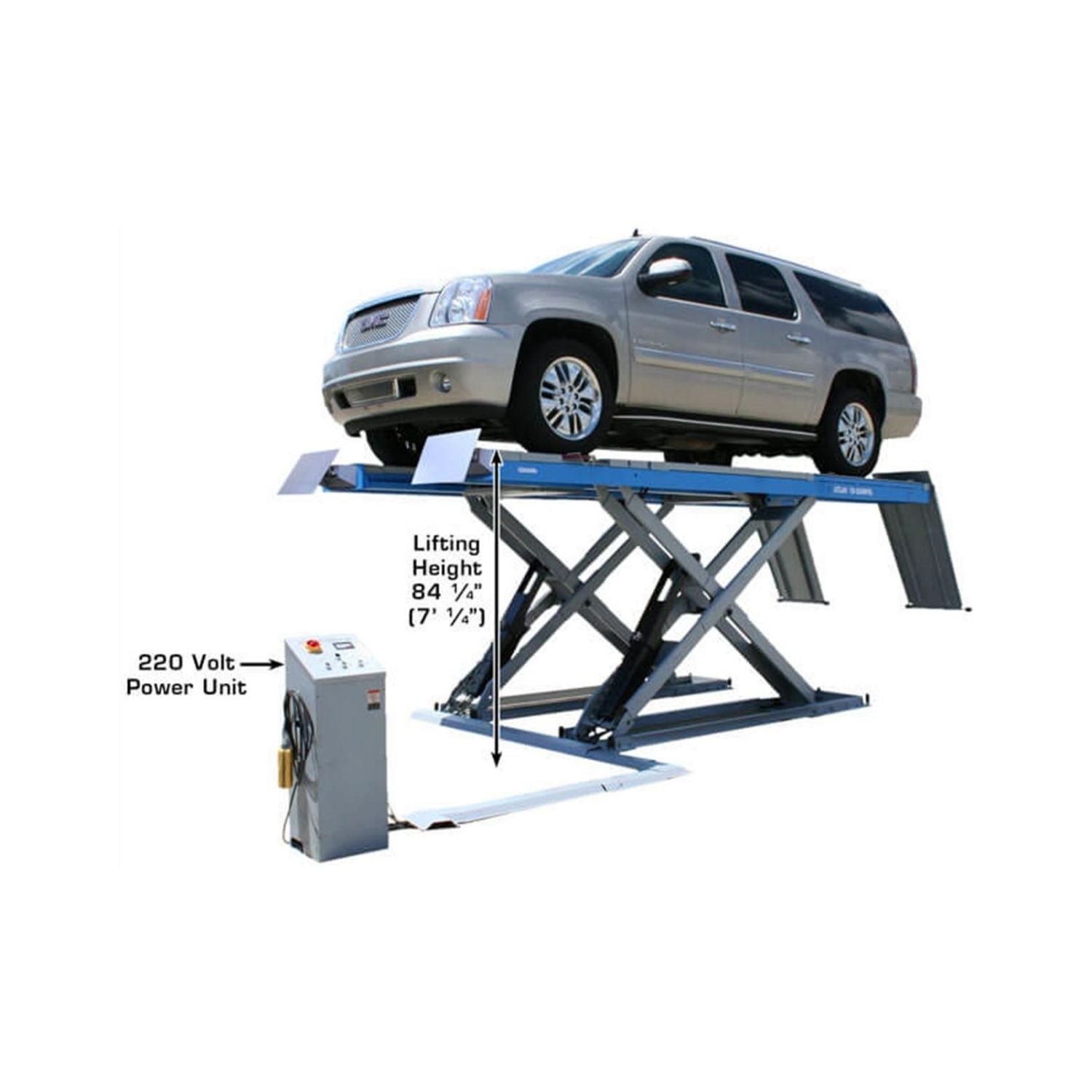

  Lifting Height:	84 1/4" (7' 1/4") (Surface Mounted)
  "Wheels Free" Lift Height:	17" (Above Runway)
  Lowered Height:	11 1/2"
  Overall Width:	86 3/8" (7' 2 3/8")

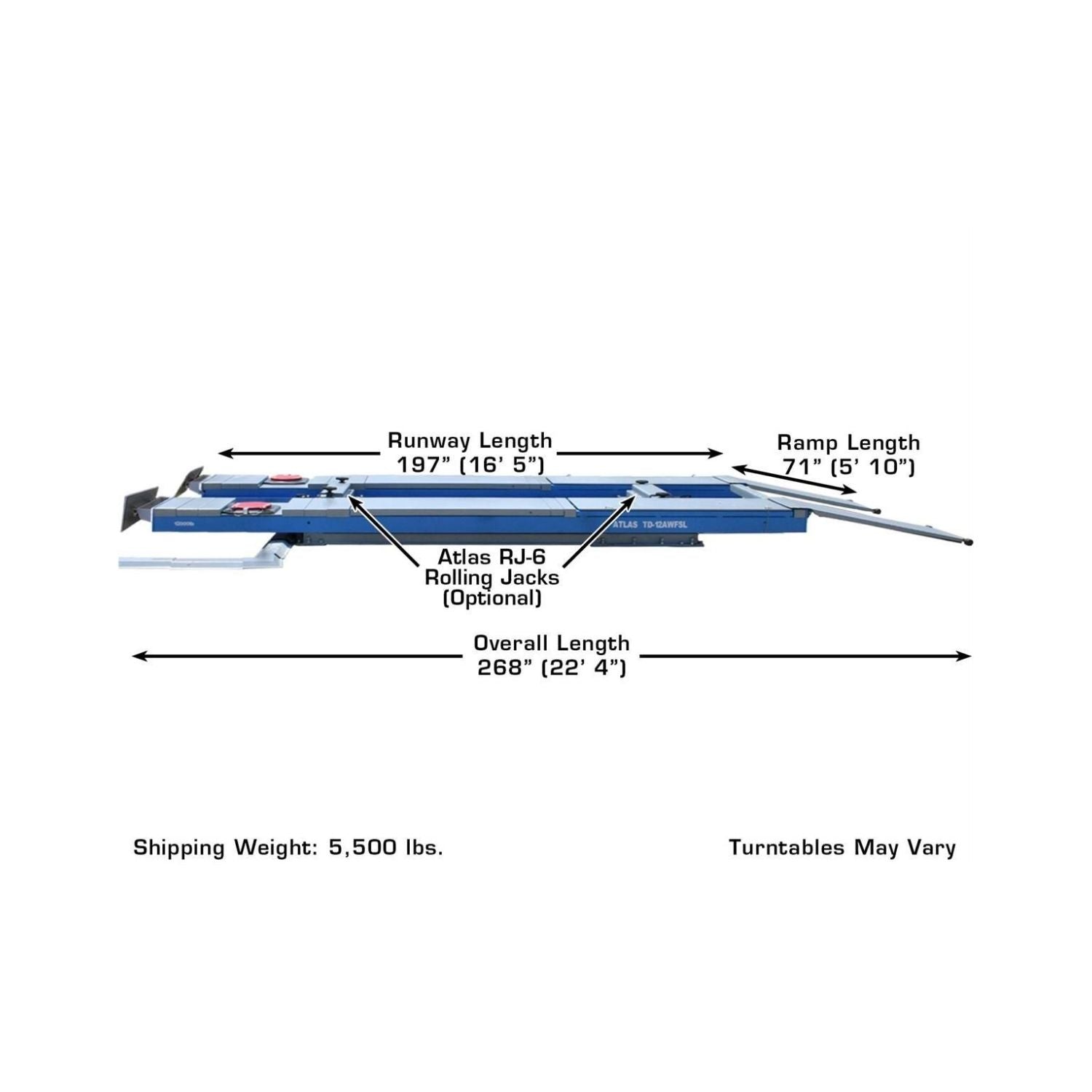

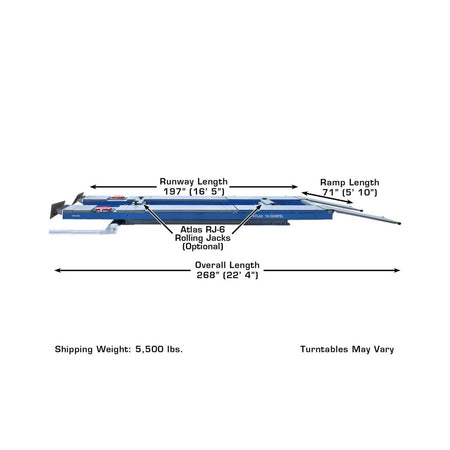

  Overall Length with Approach Ramps:	250" (20' 10")
  Overall Length without Approach Ramps:	197" (16' 5")
  Approach Ramp Length:	72" (6')
  4-Wheel Alignment Wheelbase:	Max. 168 in. Min. 90 in.
  2-Wheel Alignment Wheelbase:	Max. 172 in. Min. 86 in.
  Runway Width including Rail:	23 3/4" (1' 11 3/4")
  Width Between Runways:	39 1/4"
  Width Between Runway Rails:	34 3/8"
  Air Requirement:	90-120 PSI

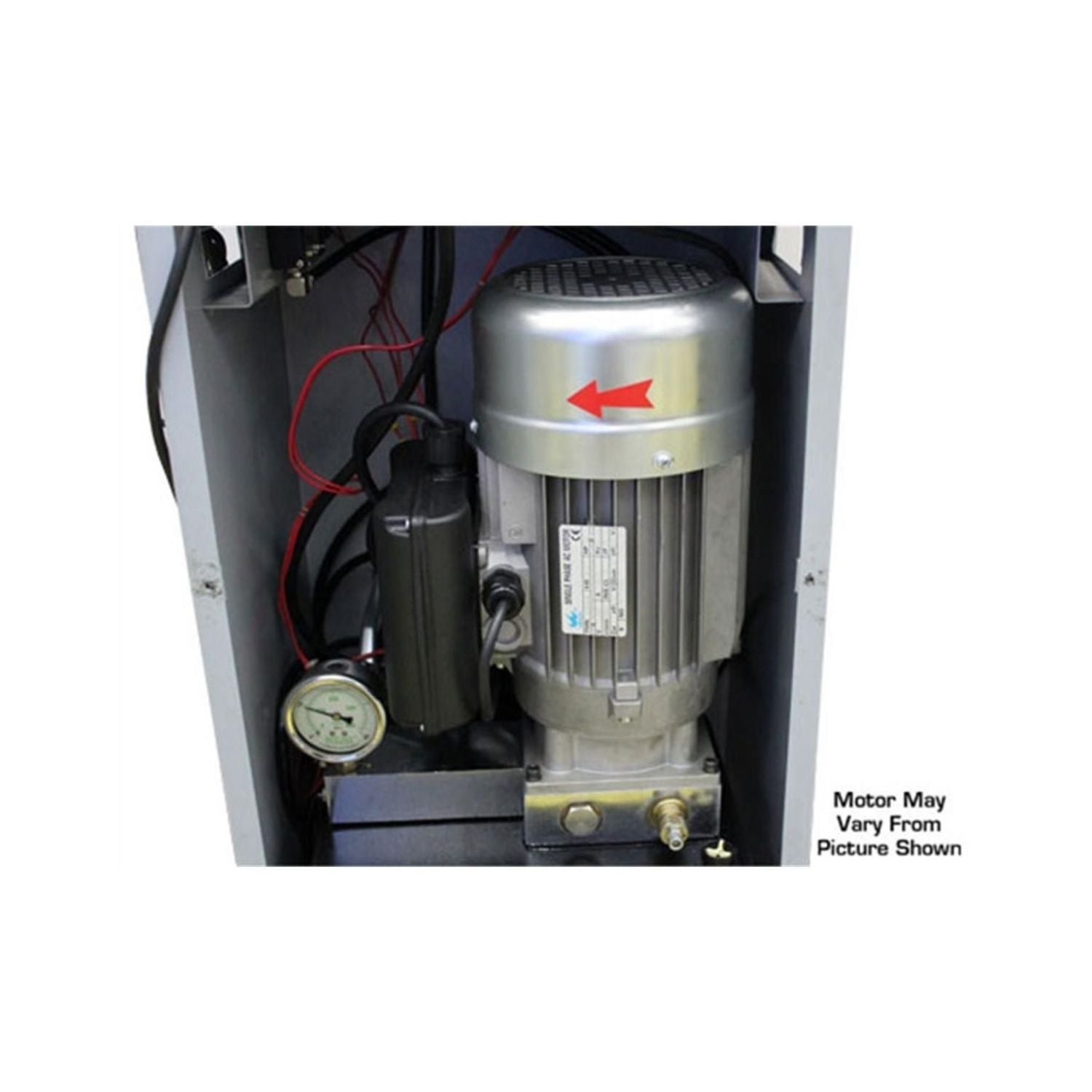

  Motor/Electrical Requirement:	220 volt +/- 5% (209-231 volts) single (1) phase. A 30 amp breaker is required.
  Oil Requirement:	3-5 Gallons AW32 or AW46 (NOT INCLUDED)
  Shipping Weight:	5,000 lbs.
  Concrete Requirement:	Requires a minimum of 6" of concrete with a 3000 psi. rating

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
