BP10000X Commercial Grade Baseplate 2-Post Lift 10,000 lbs #ATEATTD-BP10000X-FPD

• DESCRIPTION
• FEATURE + BENEFITS
• SPECIFICATIONS
• WARRANTY

• DESCRIPTION

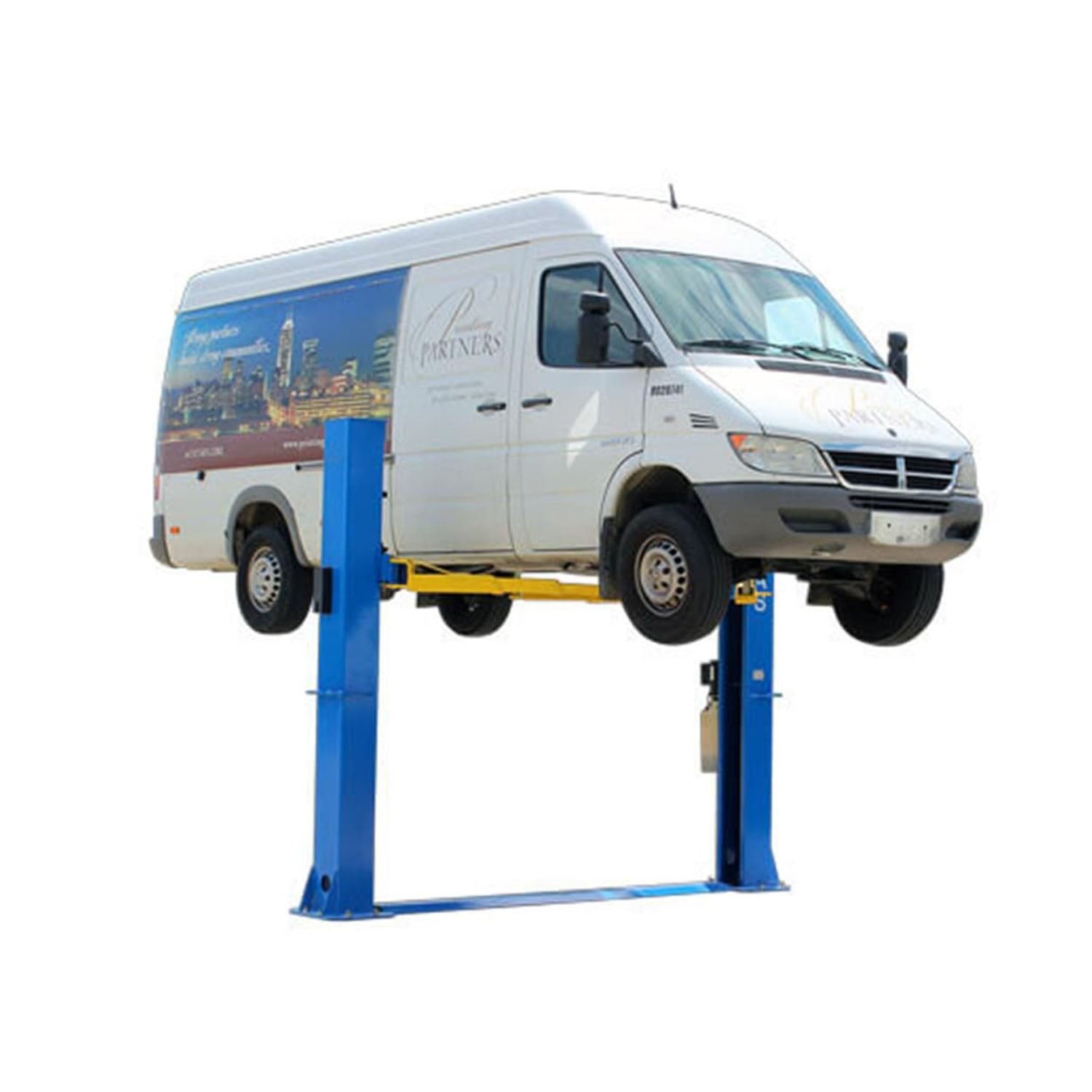

  Atlas® Automotive Equipment BP-10000 Floor Baseplate 2 Post Lift 10,000 lbs

  The Atlas® BP-10000 commercial grade 2-post base plate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP-10000 incorporates the popular single point lock release. Columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a SMART CAR and only have an 11 foot ceiling, then this is the lift for your shop.

• FEATURES + BENEFITS

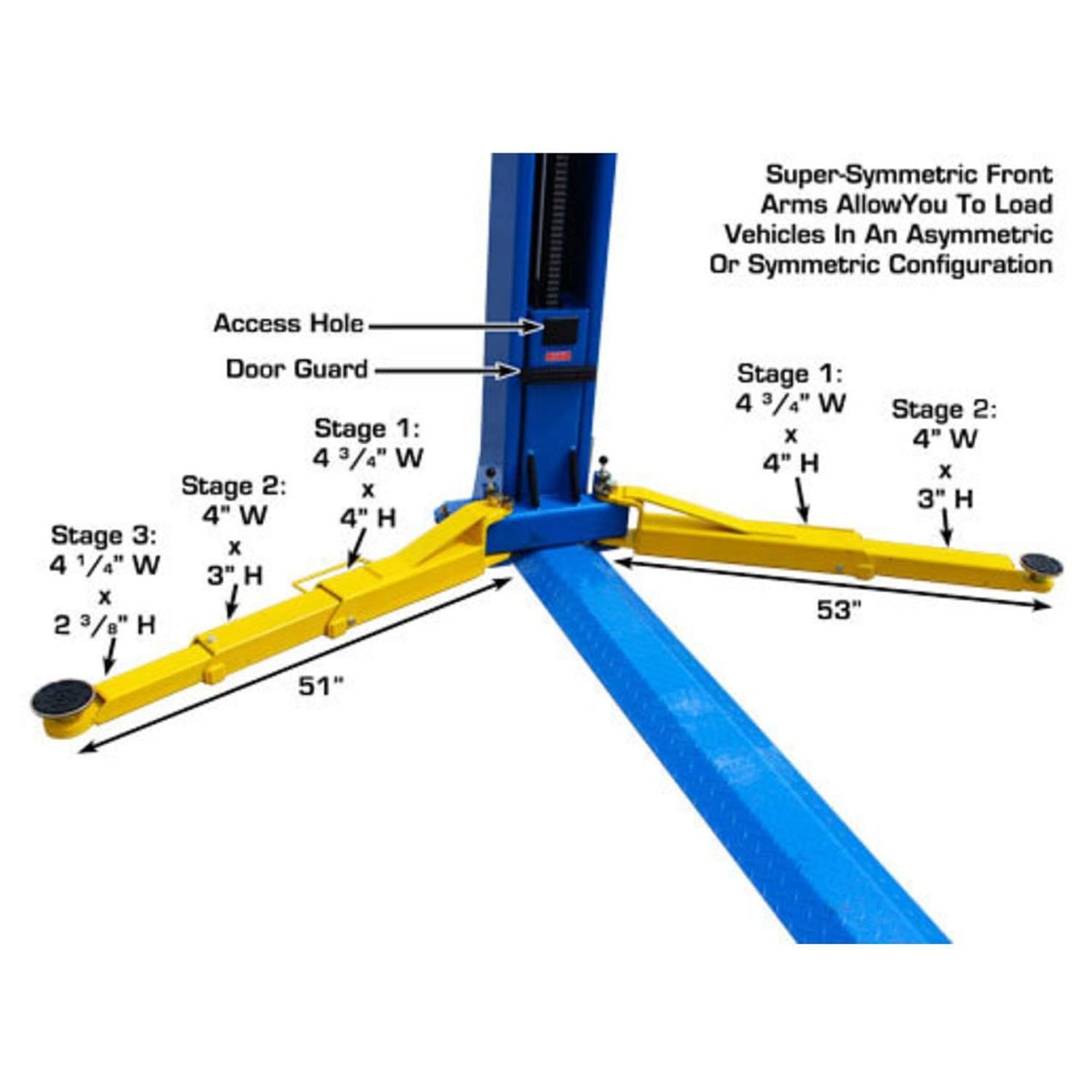

  • Super-Symmetric Arms

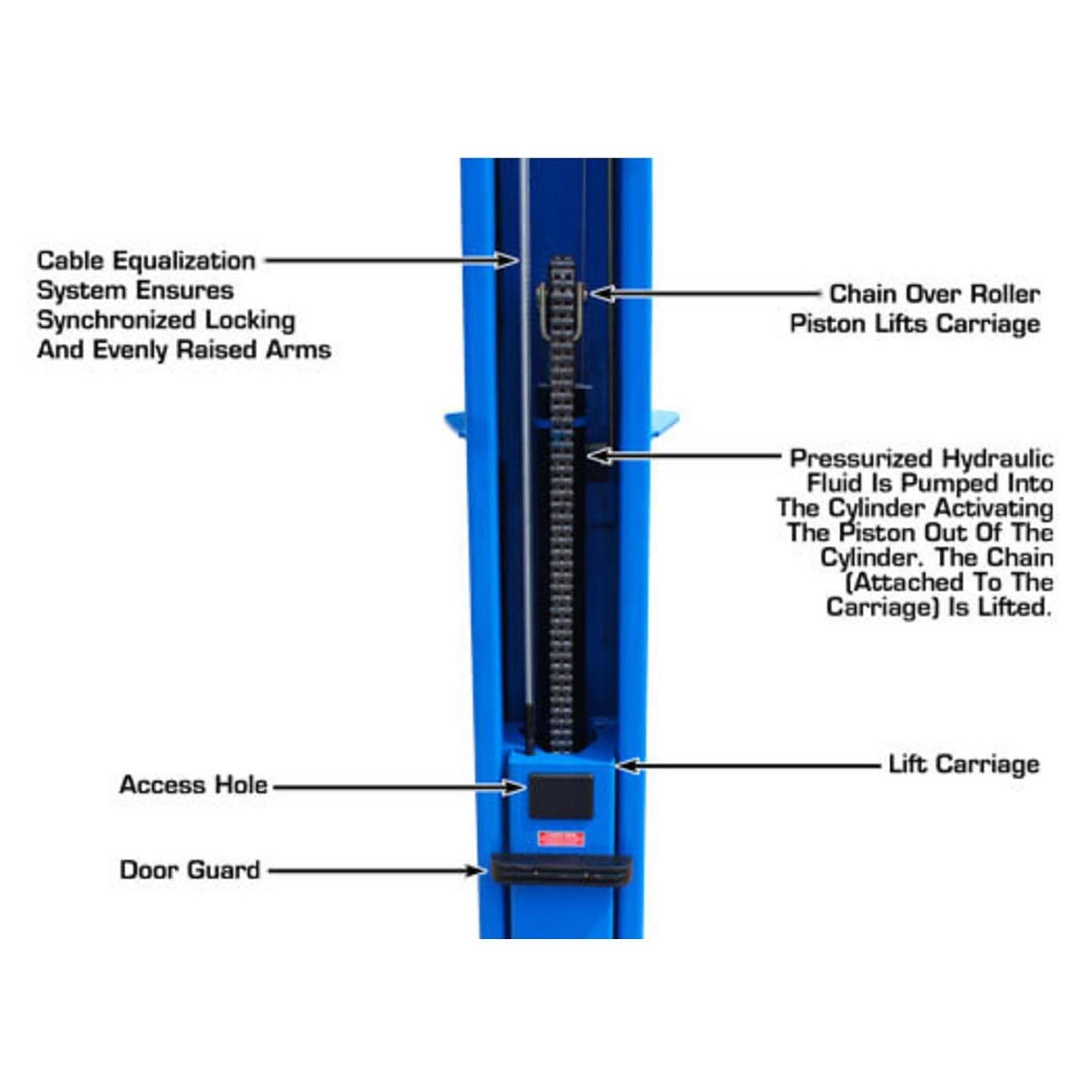

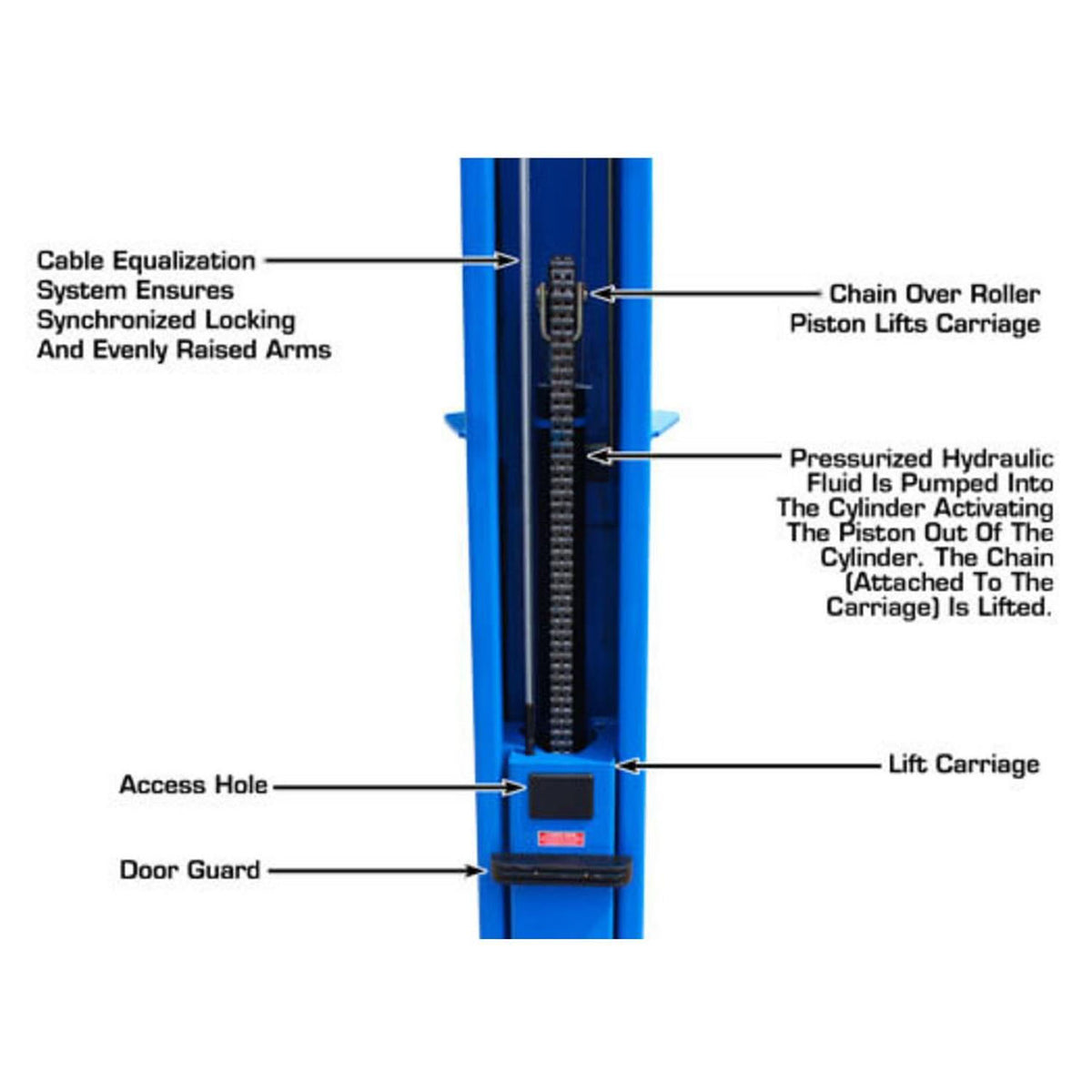

  • Dual Hydraulic Chain-Drive Cylinders Made On ANSI Standard

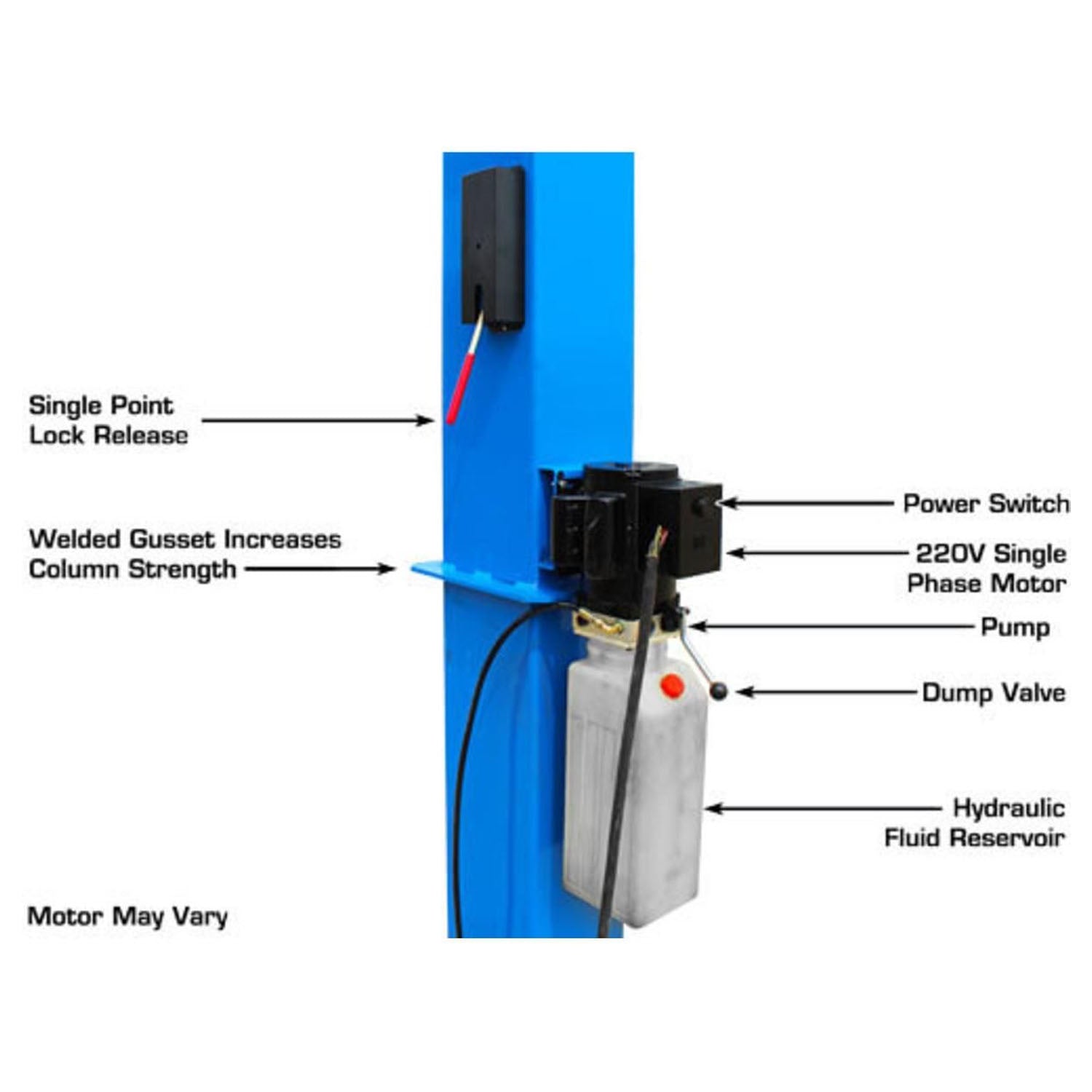

  • Single-Point Lock Release Allows Both Columns To Be Disengaged
  • Simultaneously

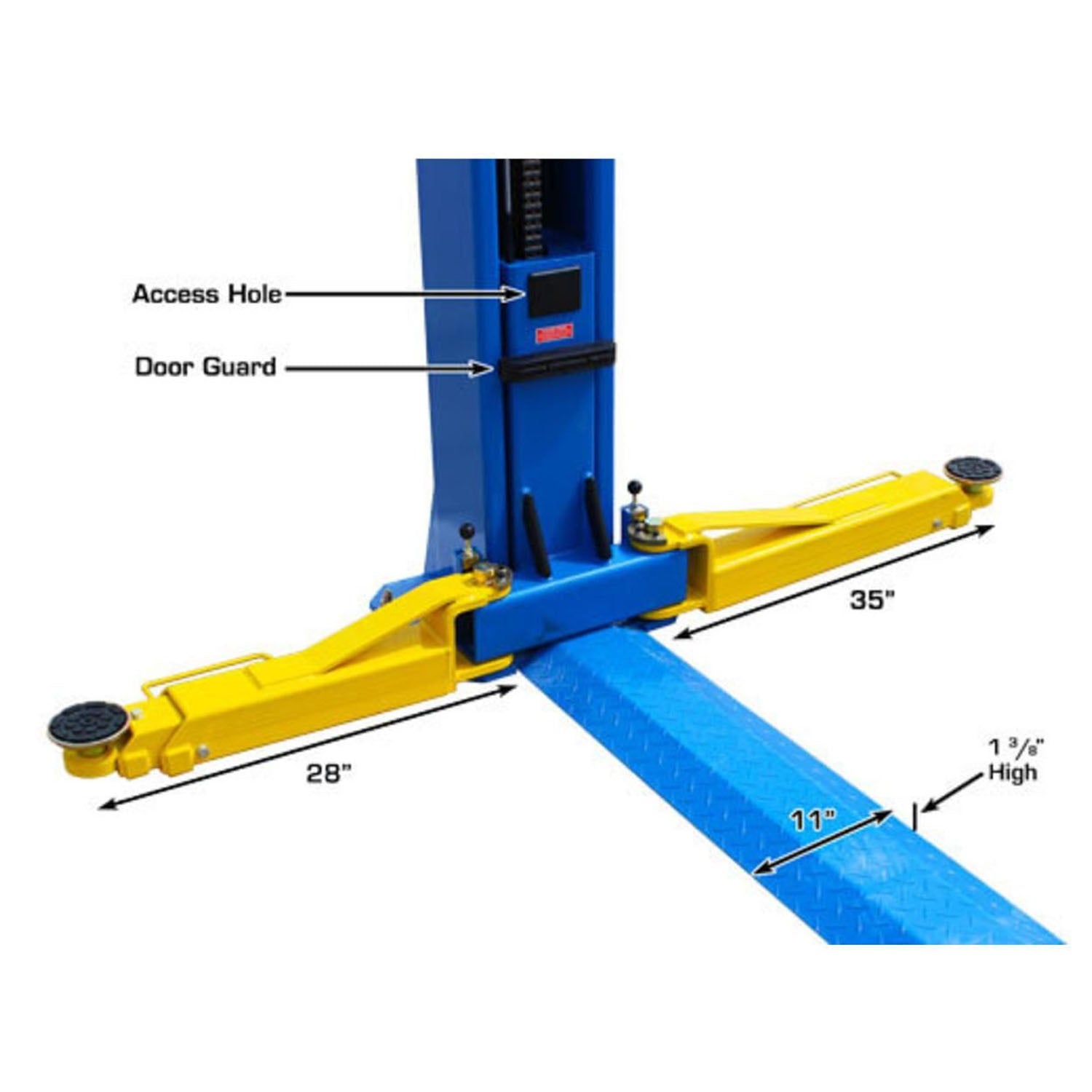

  • Base Plate Design
  • Welded Support Gussets Increase Column Strength.

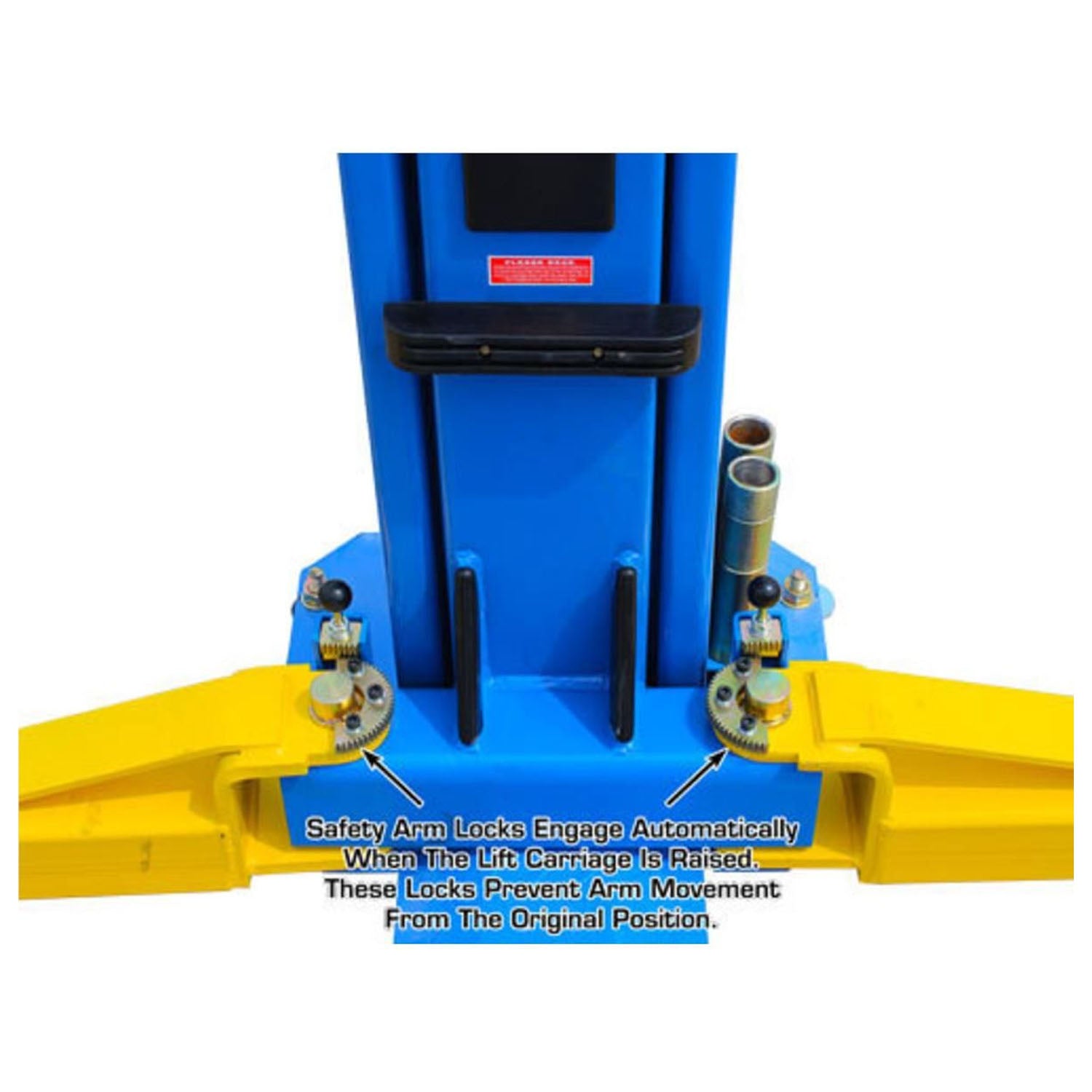

  • Automatic Arm Restraints
  • Powder Coat Finish

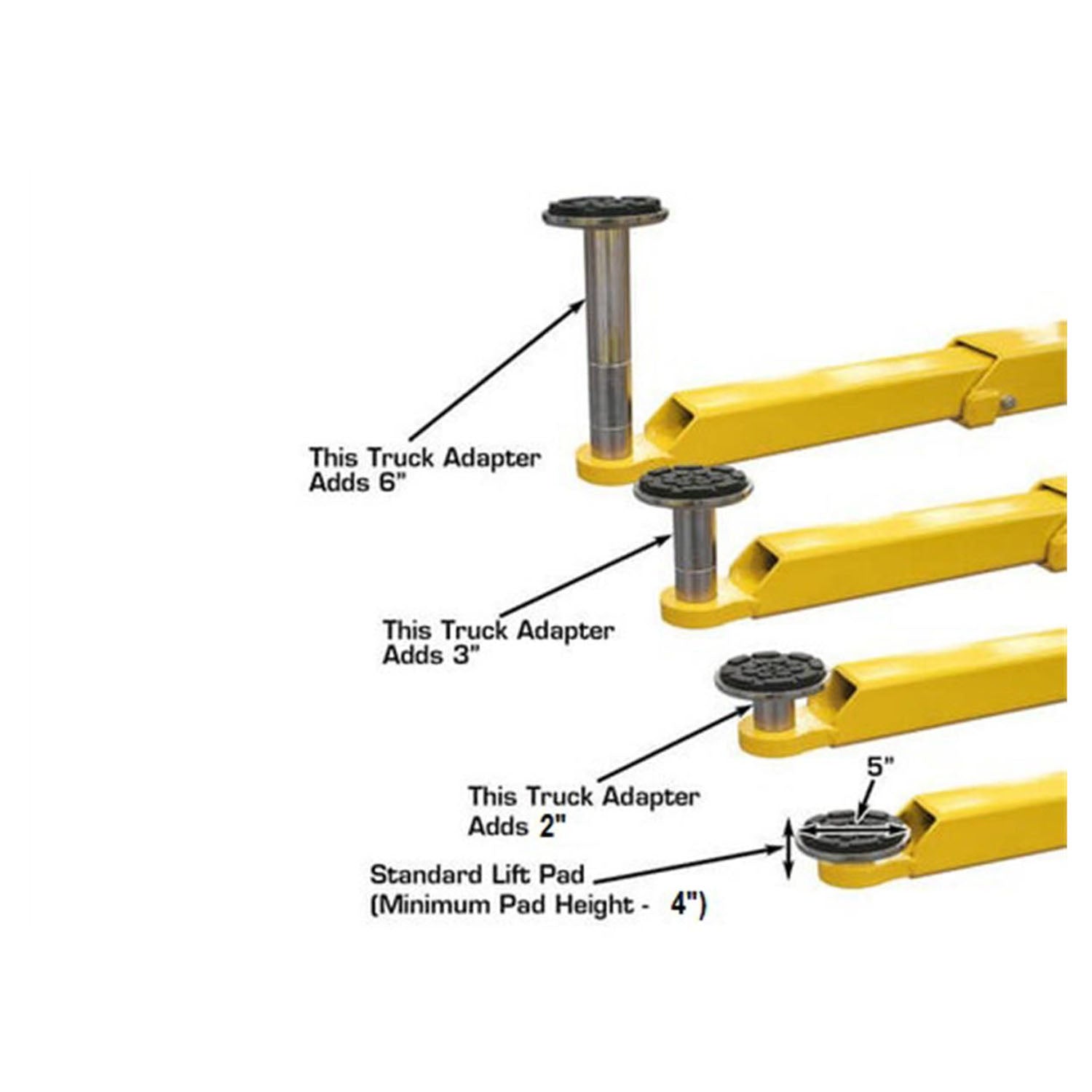

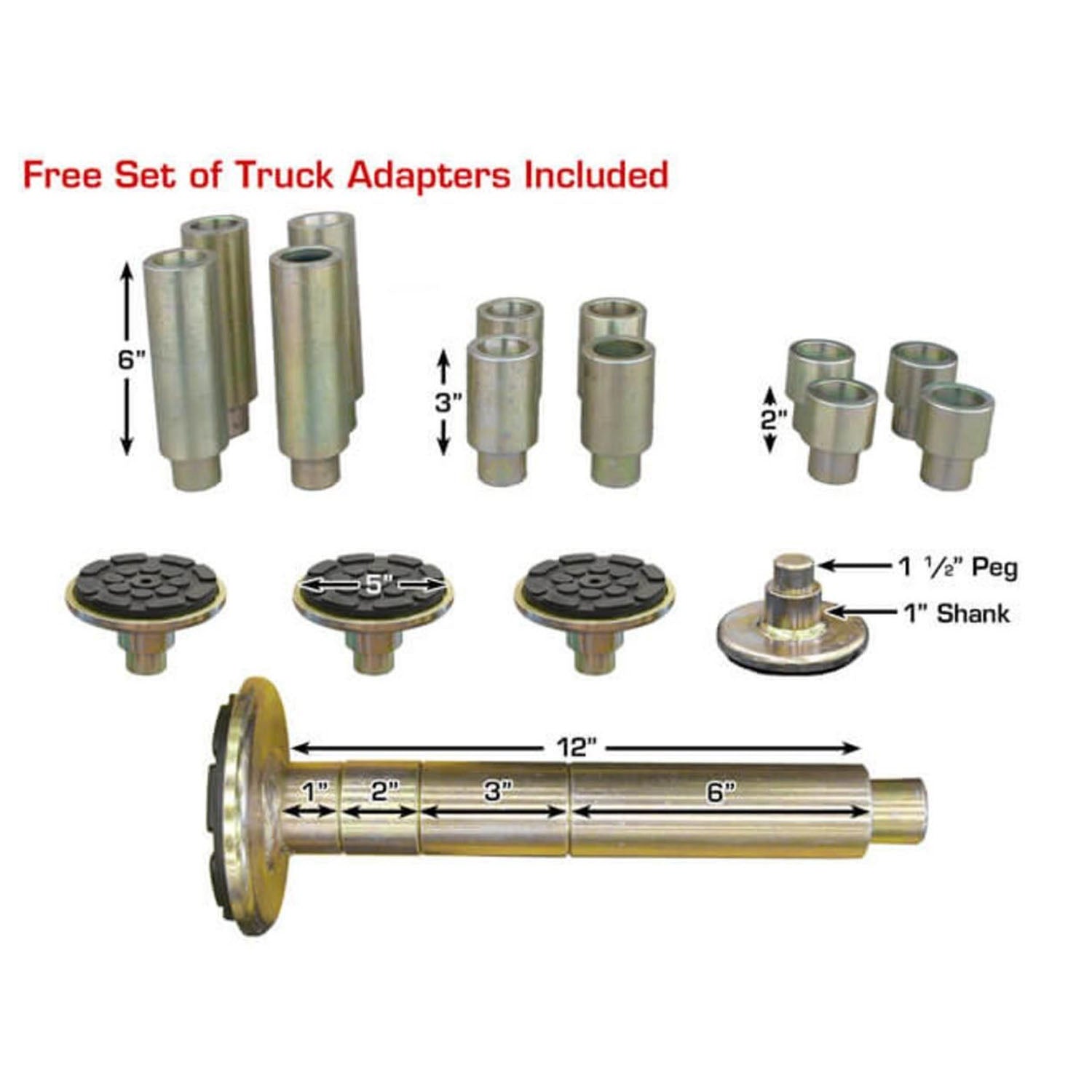

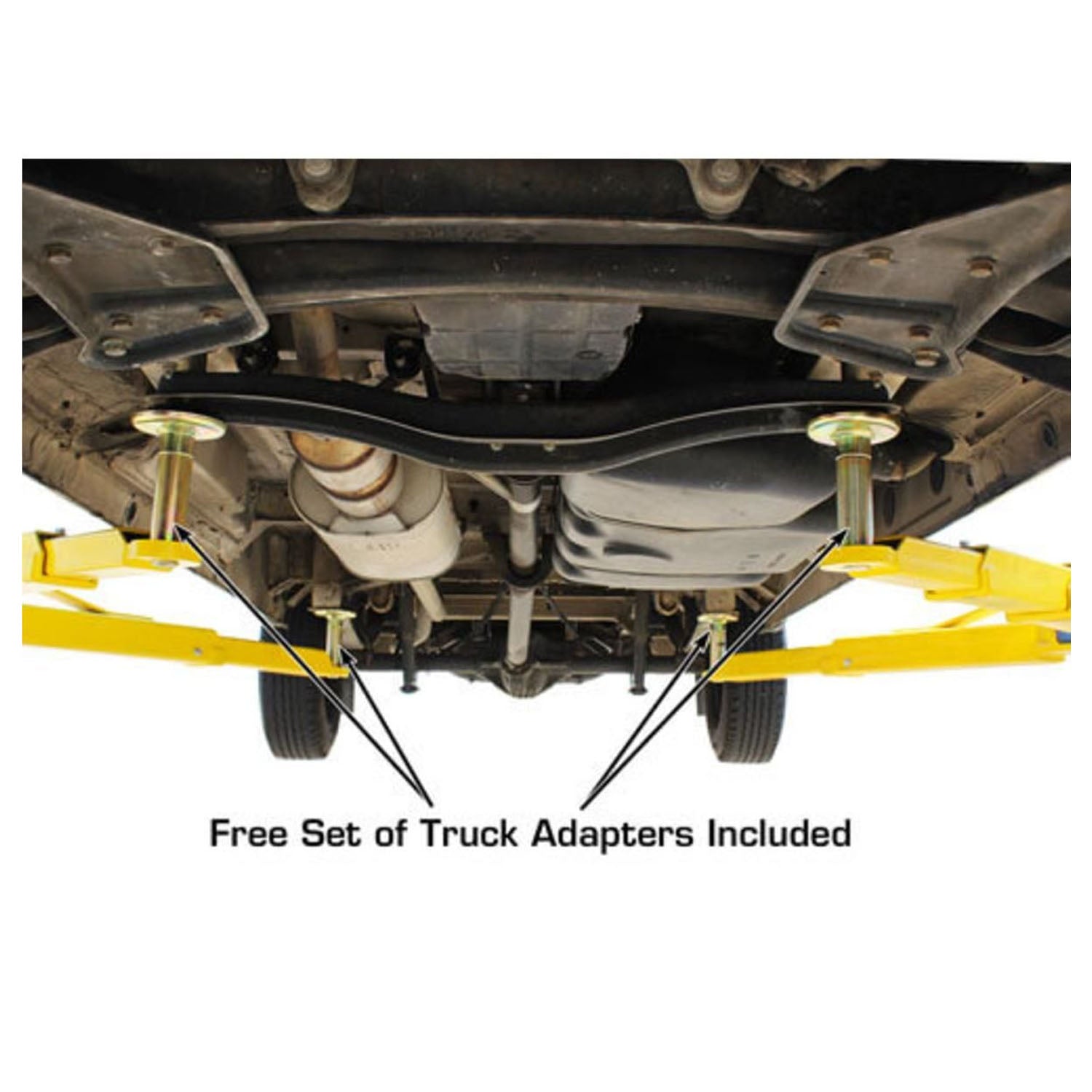

  • Free 12 Piece Truck Adapter Set

  Includes

  • 4 Each - 2", 3", & 6" Adapters

• SPECIFICATIONS

  Lifting Capacity	10,000 lbs

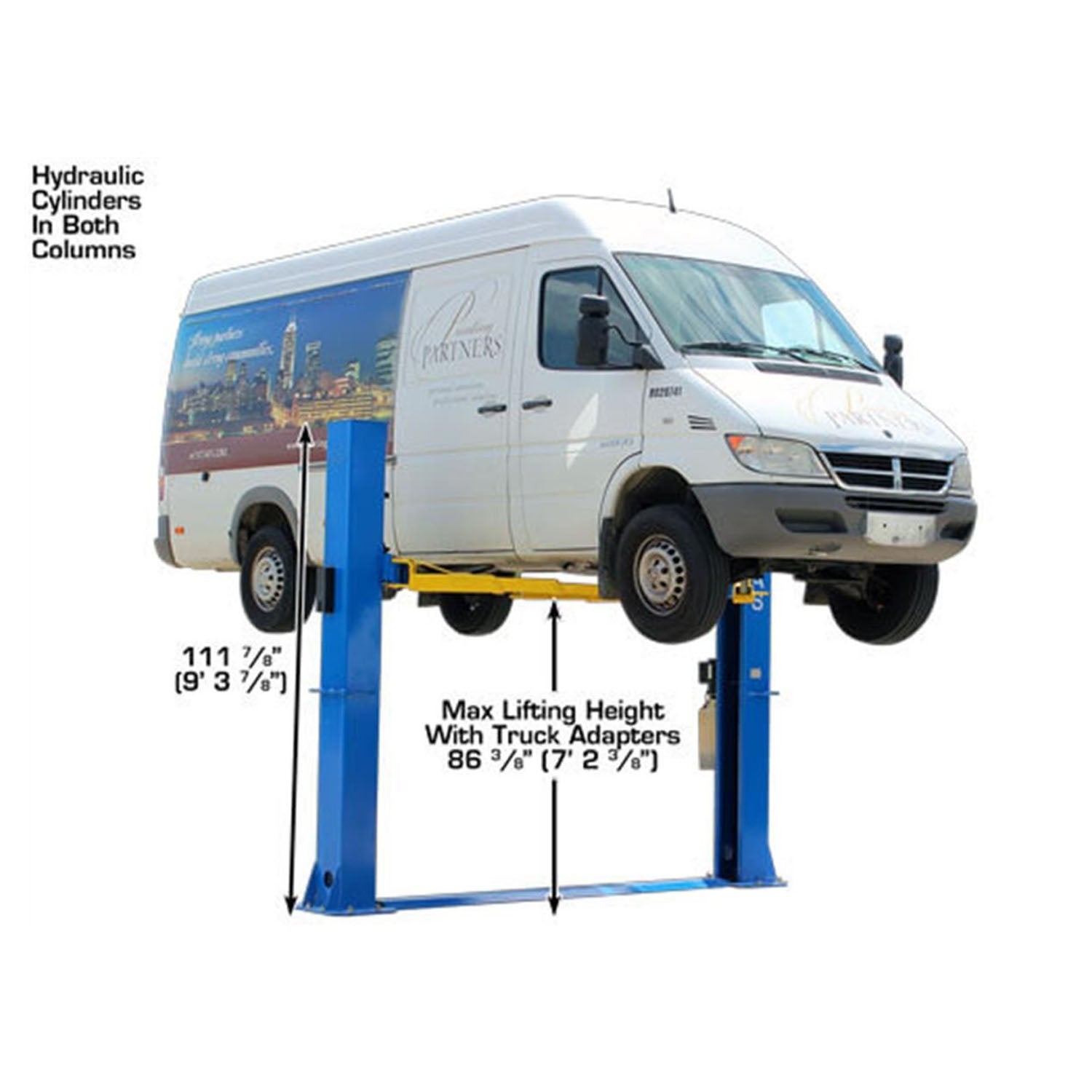

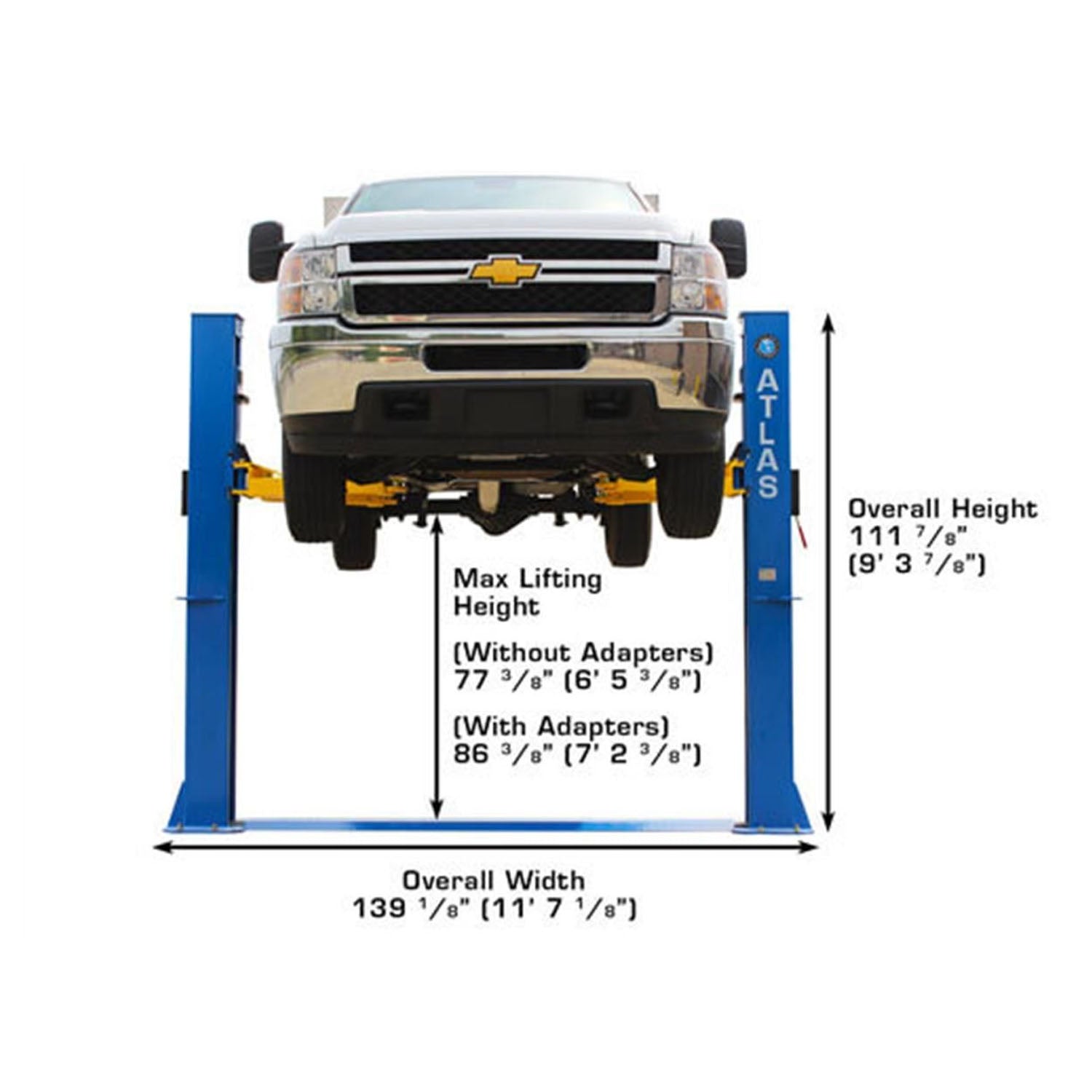

  Overall Height	111 7/8" (9' 3 7/8")

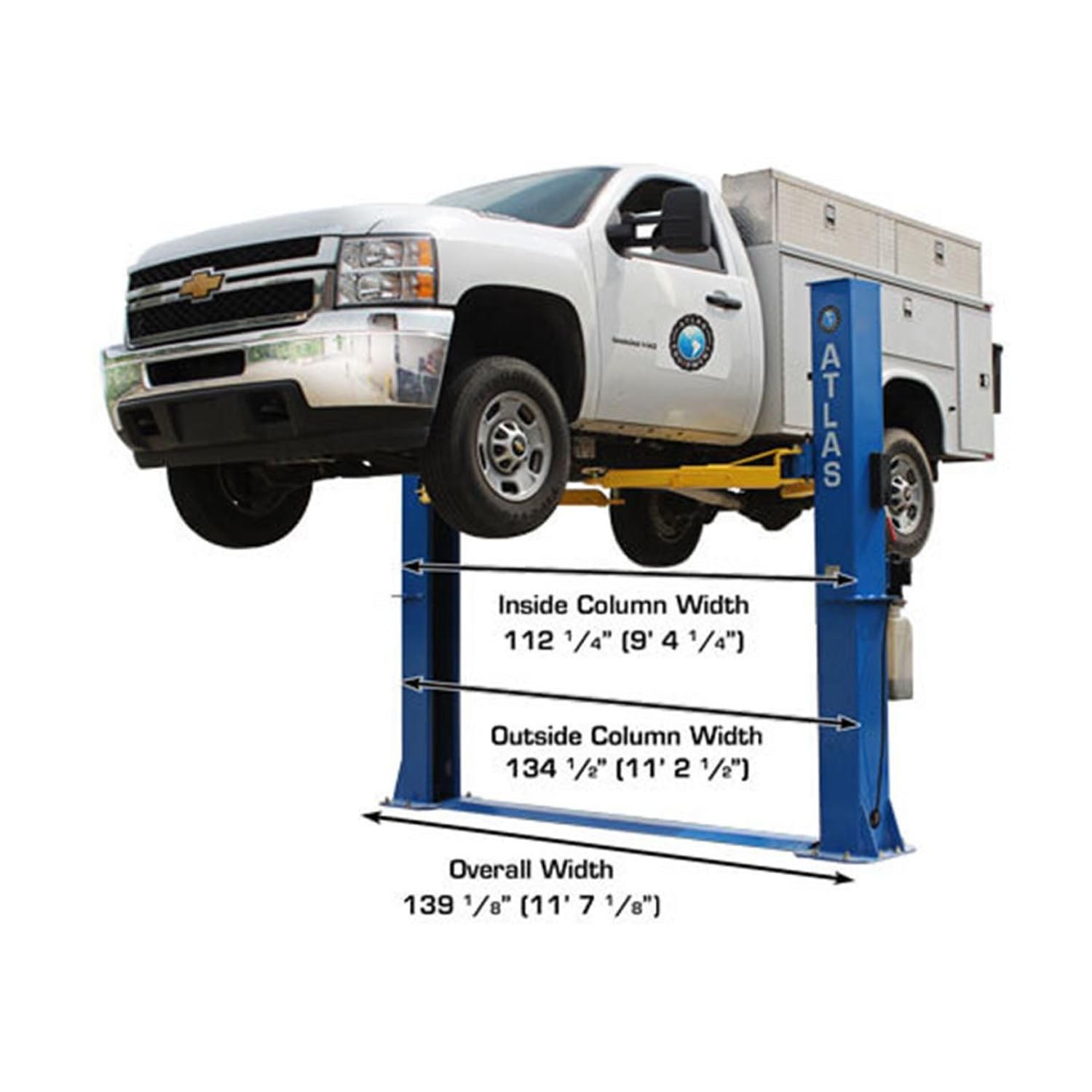

  Overall Floor Width	139 1/8" (11' 7 1/8")
  Outside Column To Outside Column	134 1/2" (11' 2 1/2")

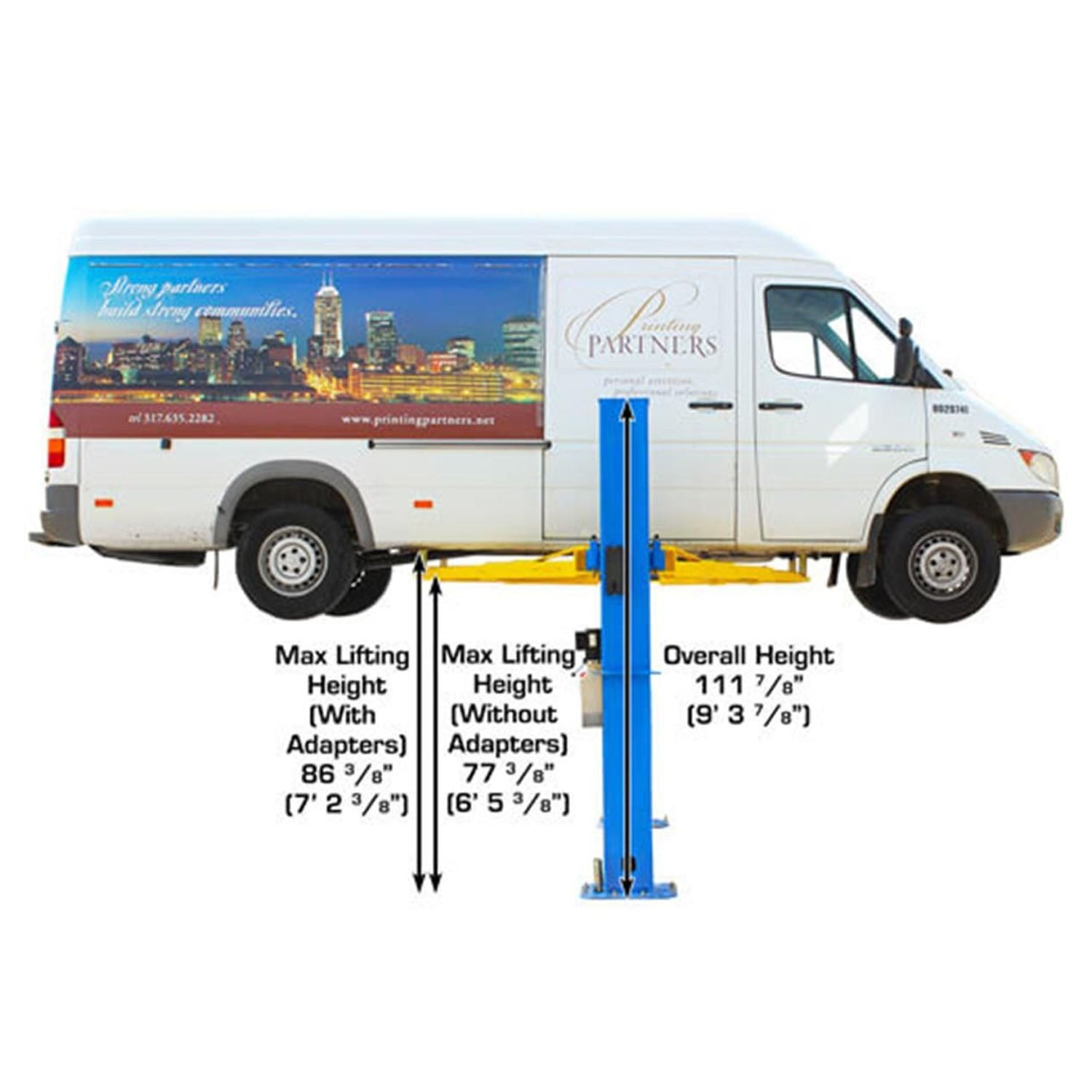

  Maximum Lift Height w/adapters	86 3/8" (7' 2 3/8")
  Maximum Lift Height w/o adapters	77 3/8" (6' 5 3/8")
  Minimum Arm Height	4"

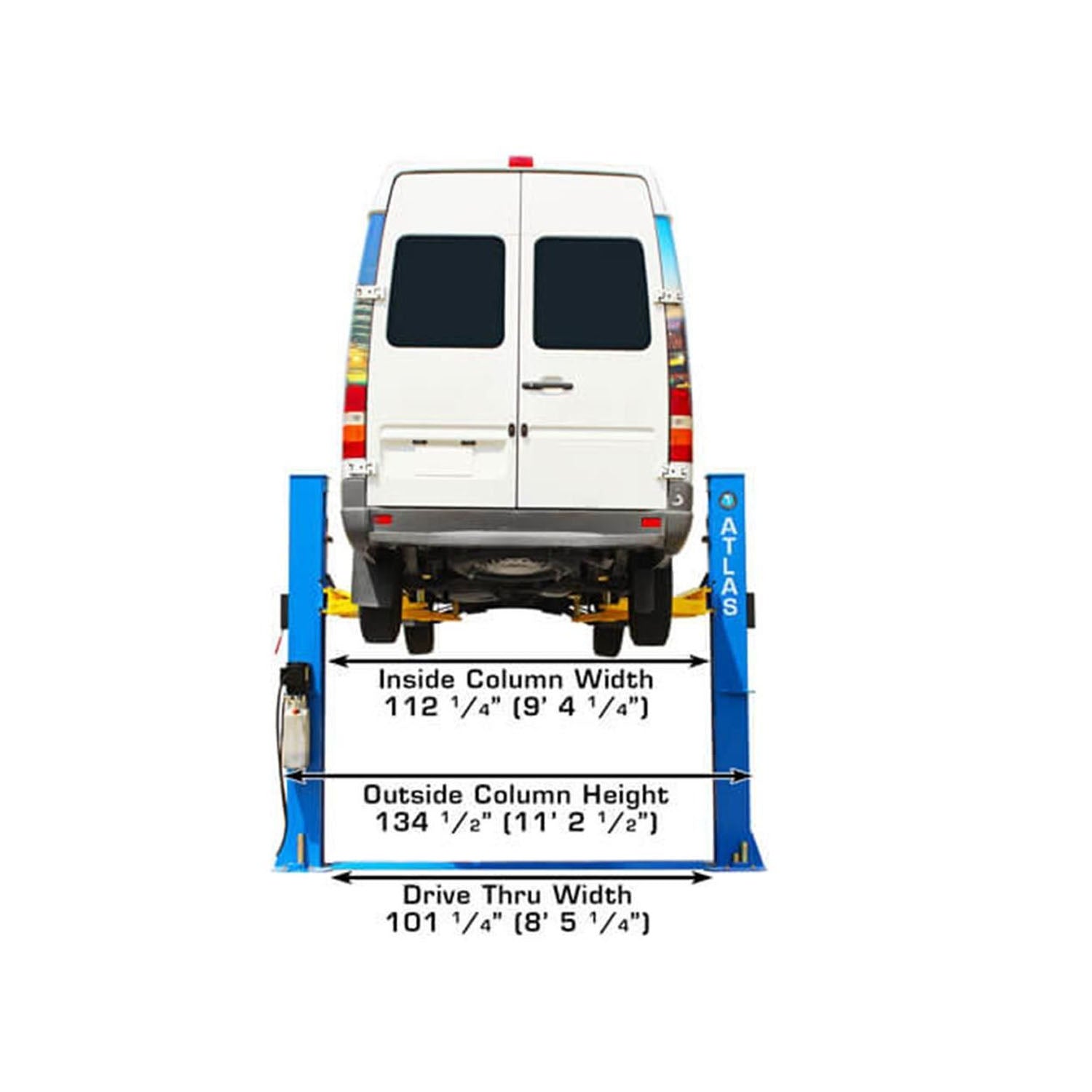

  Inside Column	112 1/4" (9' 4 1/4")
  Drive Thru	101 1/4" (8' 5 1/4")

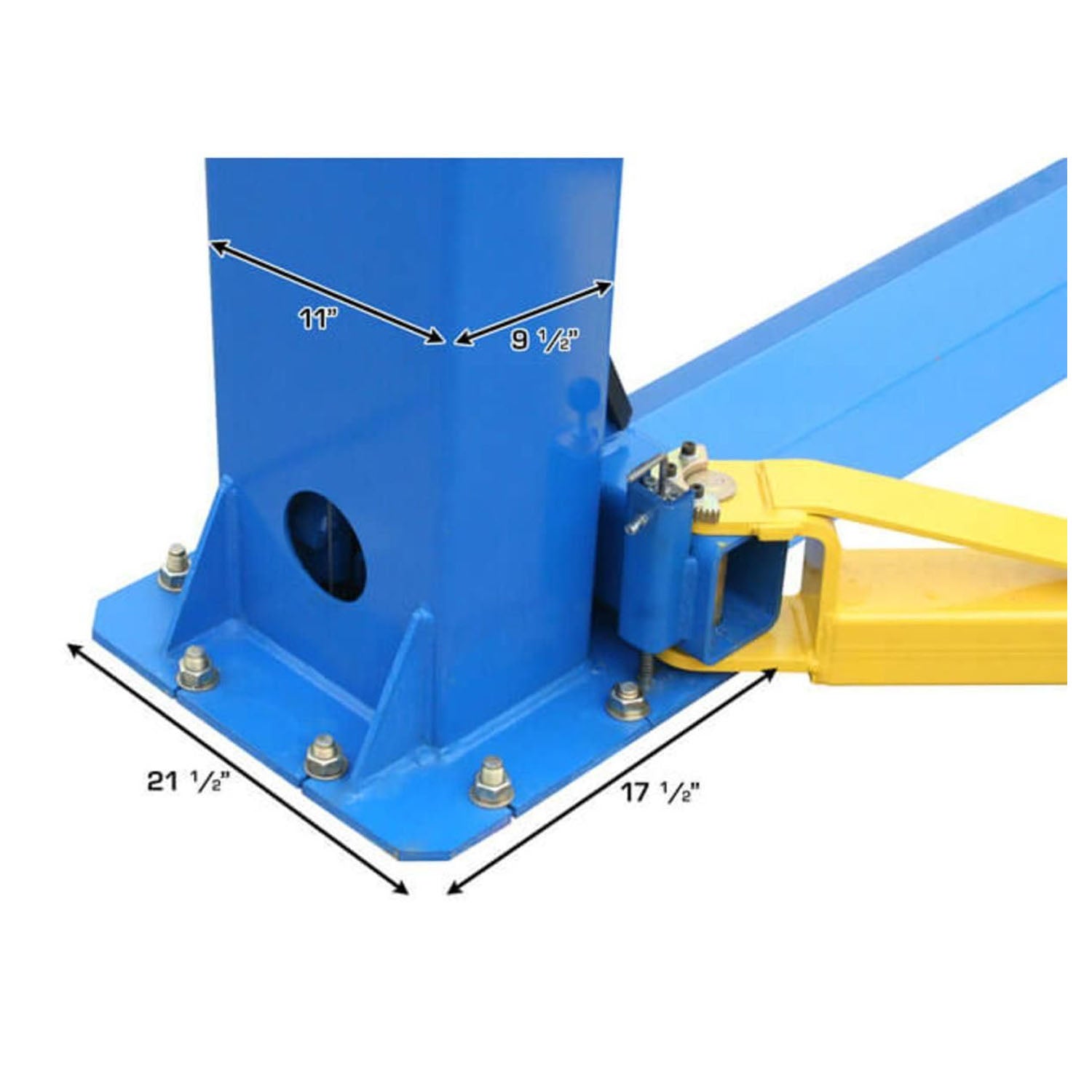

  Column Size	9 1/2" x 11"
  Column Thickness of Steel	6mm
  Base of Lift	17 1/2" x 21 1/2"
  Arm Hole/Adapter Peg Size	1.5”
  Motor/Electrical Requirement	220V single (1) phase / 30 amp breaker is required.
  Oil Requirements	3-5 Gallons  AW32/AW46 (NOT INCLUDED)
  Shipping Weight	1,640 lbs.

• WARRANTY

  Warranty Information

  • 5-Year Structural Warranty

  • 2-Year Hydraulic-Power Warranty
  BP10000X Warranty

  BP10000X Owners Manual

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
