Challenger 5K 4-Post / Alignment #4115EFX
Couldn't load pickup availability
-
DESCRIPTION

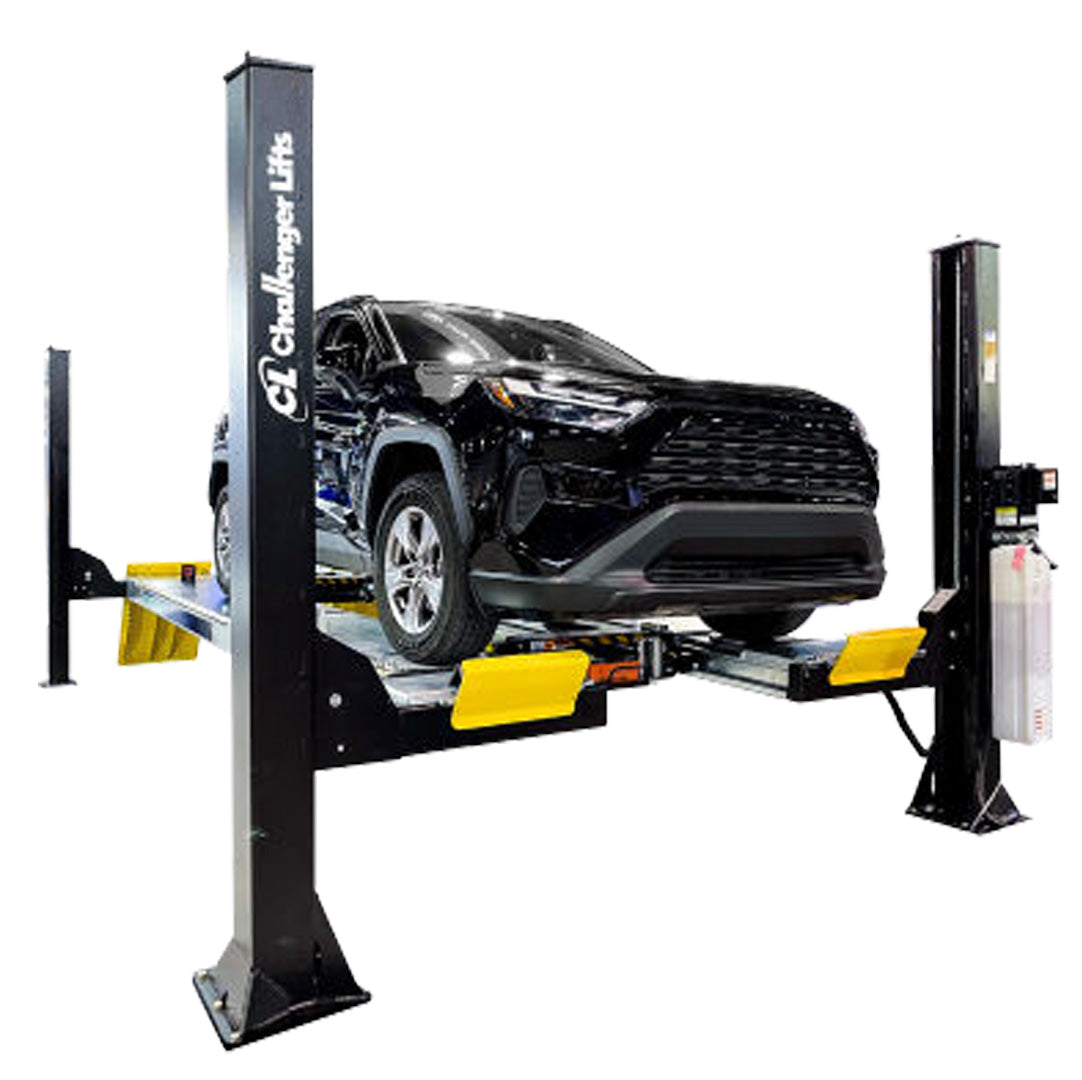

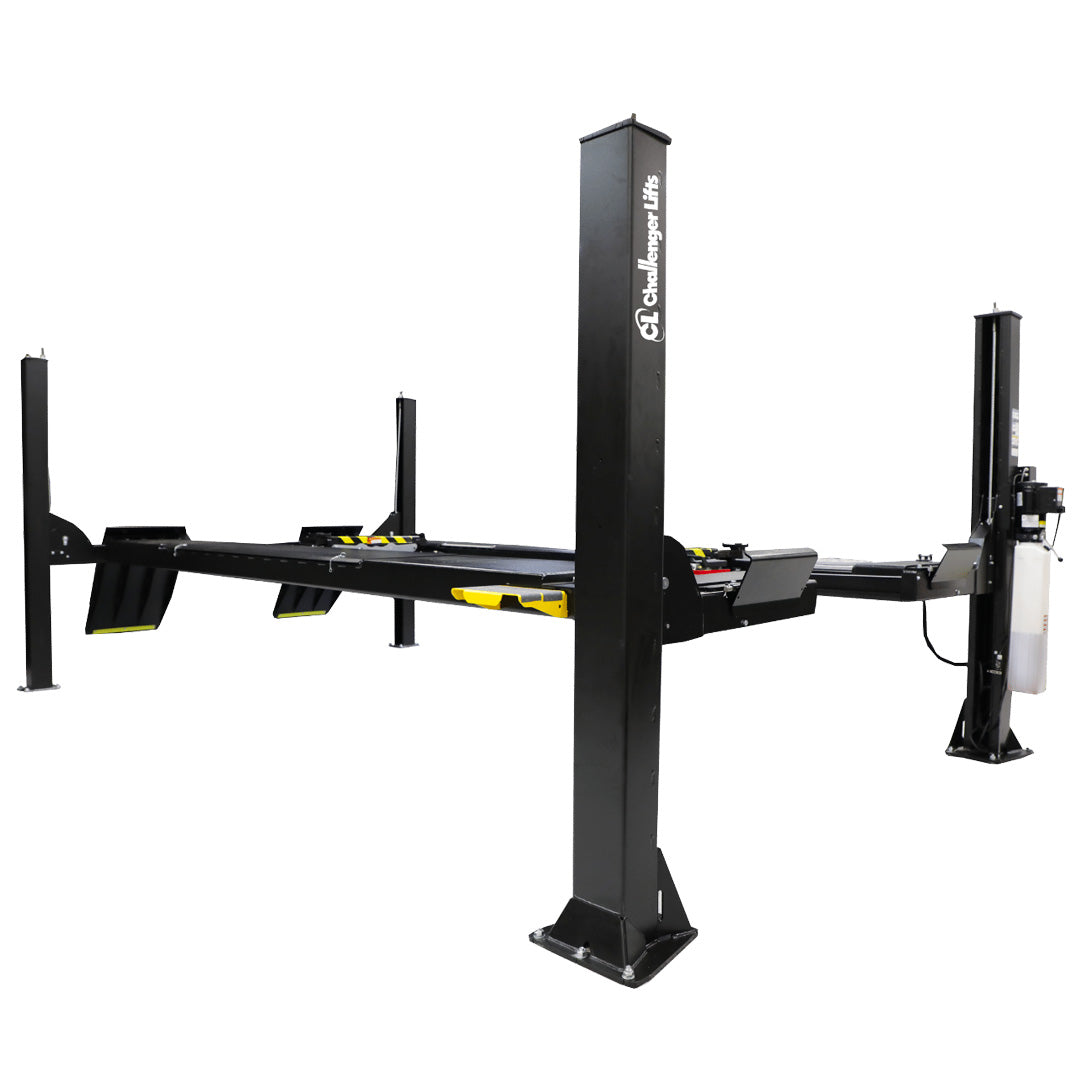

Challenger's newly improved 15,000 lb 4-Post Lift would be a great addition to any shop floor, designed with productivity and safety in mind. You can find the lift to meet your needs with several configurations available.
Increase your customer base with this lift, as it can accommodate and service many vehicles. Anything from a small passenger car to a medium-duty truck and even medium-sized vans. All while boosting workplace safety with our open-front design, assisting technicians moving around a vehicle’s frame.
Also available is our Galvanized Coating Upgrade. This will upgrade the runways, jack rails, turn plate pockets & slip plate pockets to a galvanized coating to greatly extend the life of your 4115 Lift.
ALI® / ETL Certified
-
FEATURES + BENEFITS
- Also available is our Galvanized Coating Upgrade. This will upgrade the runways, jack rails, turn, and slip plate pockets to a galvanized coating to greatly extend the life of your 4115 Lift.
- All-new and wider 22” runways.
- Open and closed front design for better ergonomics allows easy access to adjustment points on standard or long-length runway racks.
- Improved 4-wheel alignment wheelbase for extended alignment capabilities, allowing you to service both long and short-wheelbase vehicles.
- Louvered approach ramps prevent wheel spin and are more effective than diamond tread or abrasive strips.
- Keep your shop looking stylish & clean with our new, improved all-enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.
- Compatible with the industry’s latest imaging alignment systems. 17 locking positions with improved lock design.
- Optional Alignment kit includes rolling jacks, internal airline system, & stainless steel turn plates
-
SPECIFICATIONS
Model Number 4115EFX
Description
Standard Open-Front Flat Deck
Lifting Capacity 15,000 lbs. Open or Closed Front
Closed
Max. Wheelbase (I)
183"
Max. 2-Wheel Alignment(J)
NA
Max. 4-Wheel Alignment (K)
NA
Rise Height (L)
78"
Overall Length (A)
247.625"
Overall Width (B)
Front: 142" Rear: 141.75"
Inside Columns (C)
125.5"
Between Columns (D)
196"
Height of Columns (E)
98"
Width of Runways (F)
22.375"
Height of Runways (F)
7"
Width Between Runways
40.625"
Air Supply Required
90-120 psi
Standard Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph Speed of Rise 85 s Required Bay Size W x L
14' x 24'
ALI/ETL Certified Yes Colors Available
Black -
MANUAL + SPECS
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Challenger Warranty
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson. Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ www.challengerlifts.com/register-your-lift
