Hofmann GEOLINER® 678 Mobile Imaging Wheel Aligner #EEWA715TBV3
Lead time:
-
DESCRIPTION

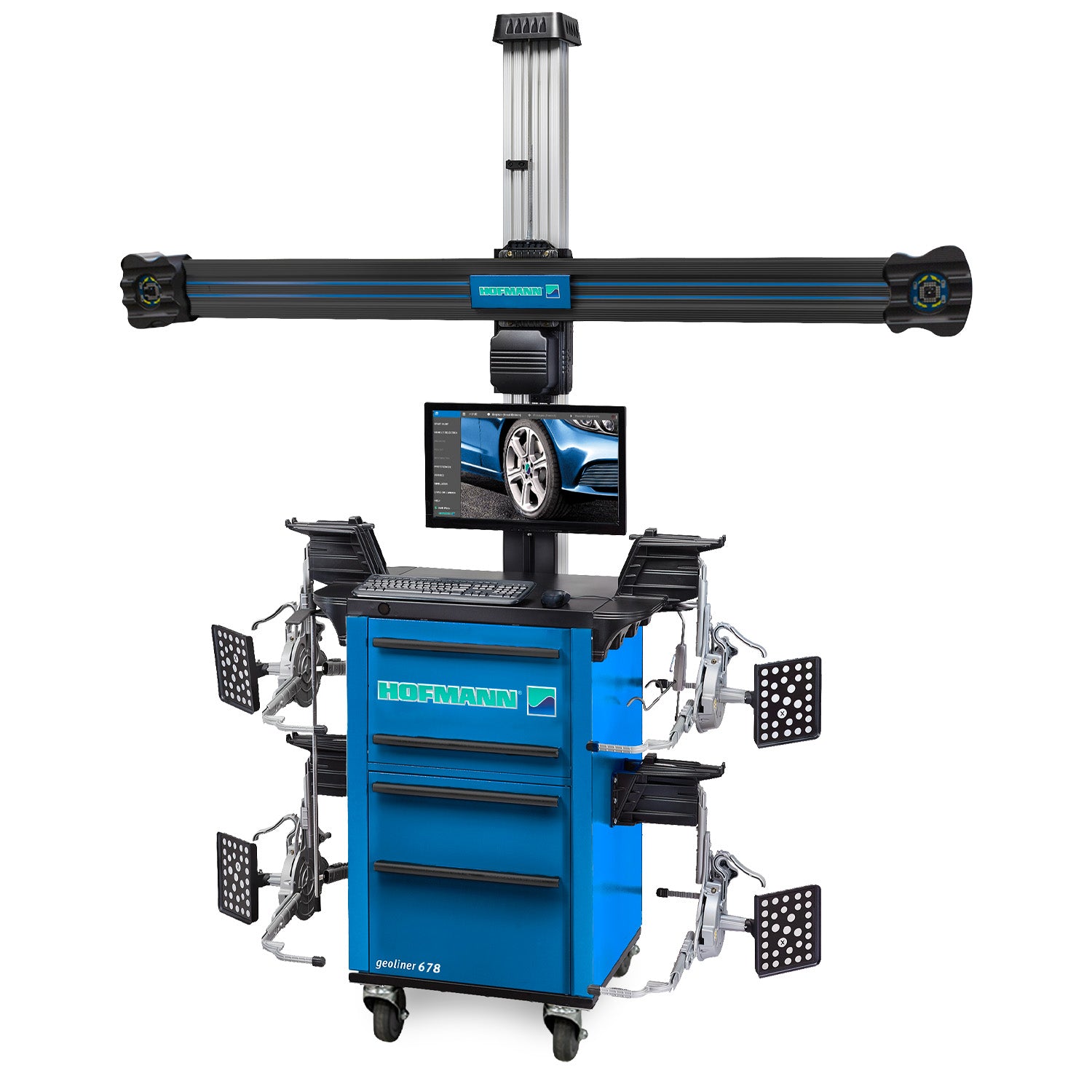

Introducing the latest addition to the Hofmann® Imaging Alignment family - the geoliner® 678 Imaging Wheel Aligner.
Designed with the technician in mind, this wheel aligner offers advanced technology with the most intuitive software to give any alignment technician the tools needed for an easy and fast alignment.

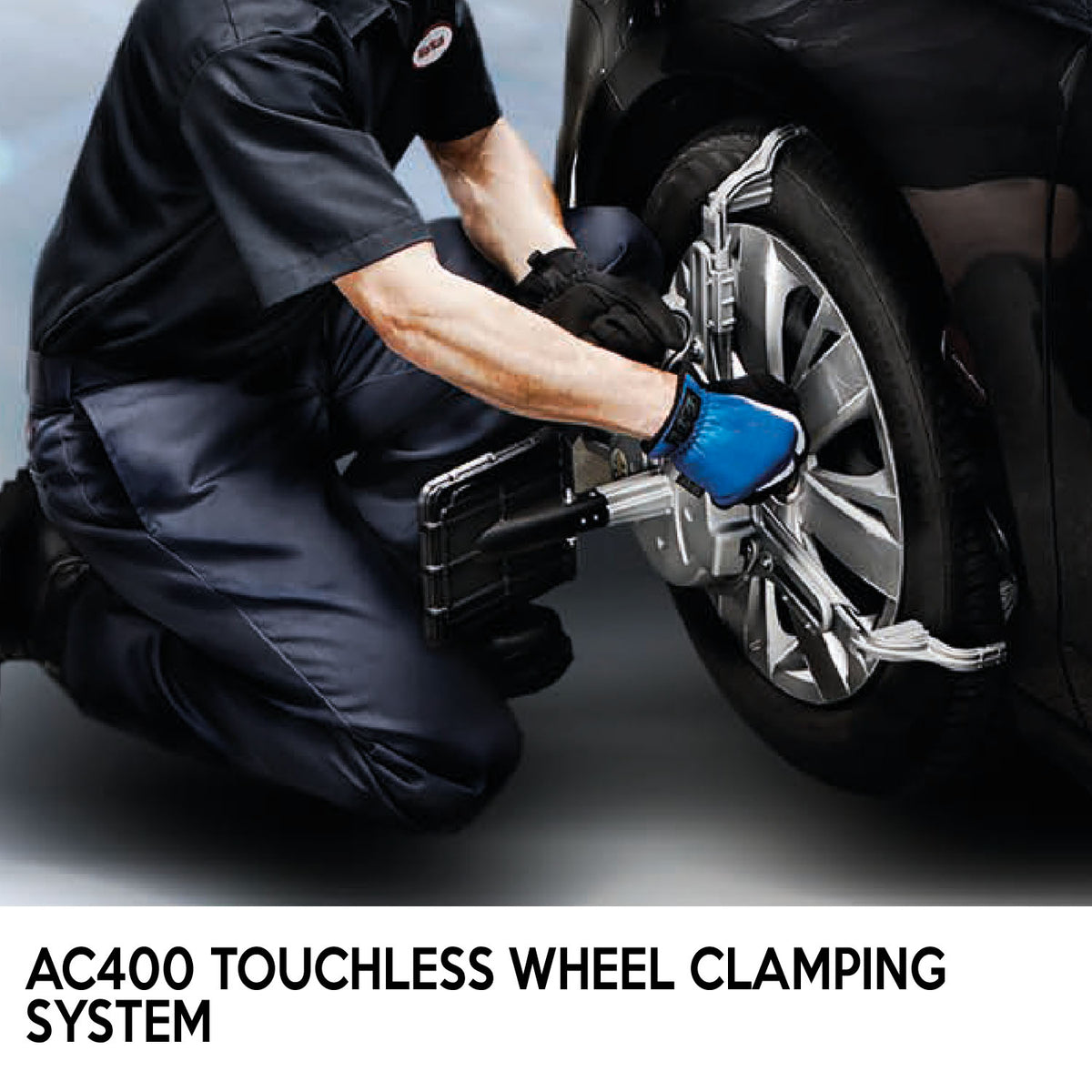

AC400 TOUCHLESS WHEEL CLAMPING SYSTEM: Fast and easy to use, it provides secure clamping without touching the rim. This patented technology allows accurate and repeatable results coupled with ease of use and durability. No accessories needed to accommodate the full range of tire sizes.

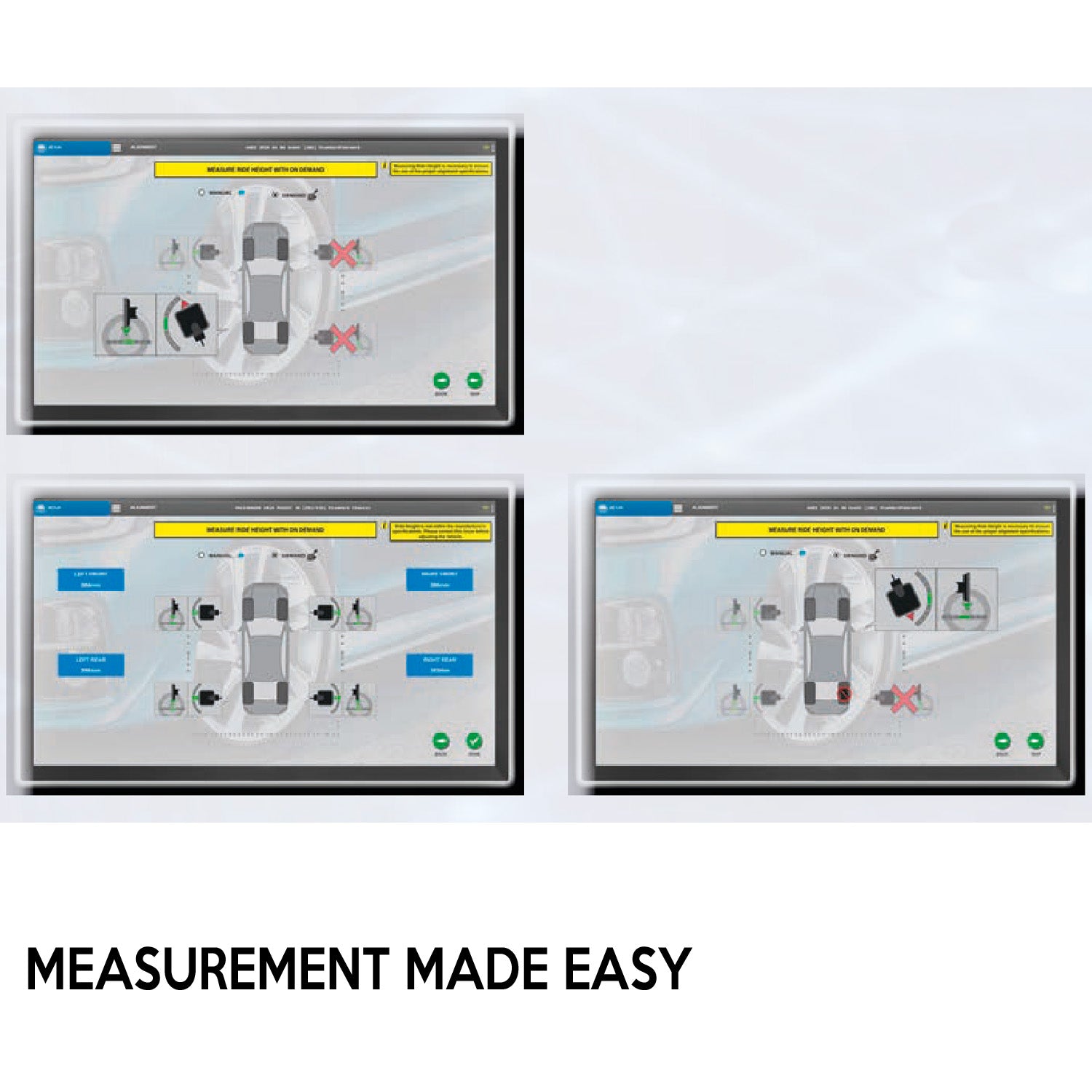

MEASUREMENT MADE EASY: Quick rolling compensation provides critical information via an adaptive user interface, with instant access to productivity tools and assistance.

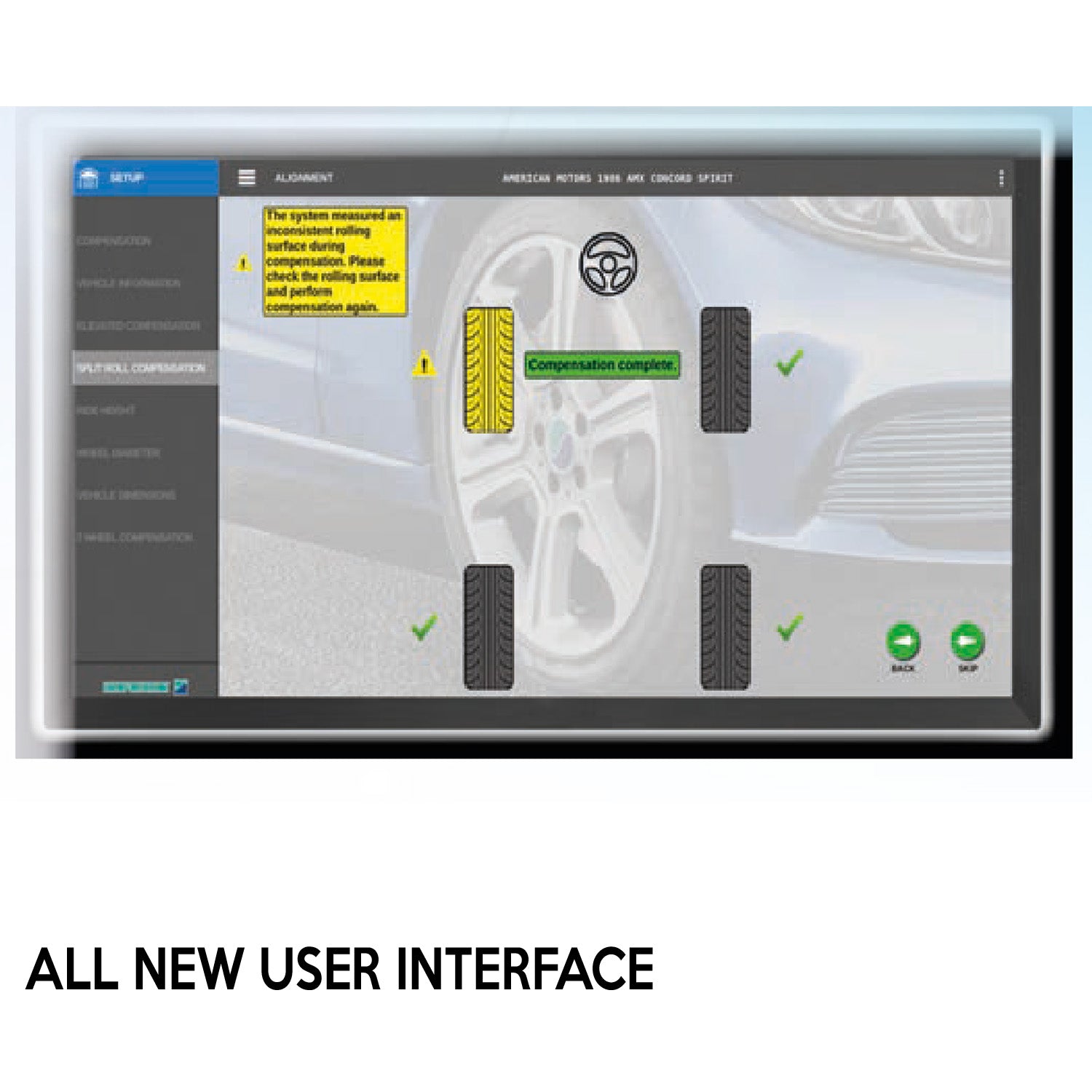

ALL NEW USER INTERFACE: All new user interface with three levels of intervention — Compensate, Warn, Alert — with corrective actions clearly identified and more information just one click away.
- Part Number: EEWA715TBV3
-
FEATURES
-
Fast & Easy to Use:
New, intuitive software is designed together with technicians to provide the core alignment functions, only one click away
Complete alignment process with minimal steps resulting in more alignments per day
Compensate, Warn, Alert diagnostic system feature is for detecting and, where possible, compensating errors without interrupting the alignment process -
Advanced Features:
Automatic Tracking: No need to adjust the camera after raising the lift, thanks to the automatic camera tracking feature that delivers optimum accuracy.
Video Speed Camera: Allows faster compensation, reducing wait time
Live Readings: No need to remeasure -
Intelligent Software Tools:
EZ-Toe: Allows adjustment of the critical Front Individual Toe without locking the steering column resulting in a level steering wheel every time
Rolling Radius: Checks for mismatched tire sizes, alerting possible mechanical failure (AWD)
Cross Diagonal: Checks for vehicle structural damage, alerting possible additional repair
Adjustment Assistance: Shows where the adjustments are on the vehicle -
AC400 Touchless Wheel Clamps:
Touchless Design: Provides secure clamping with no wheel contact
Fast Setup: Get your readings faster. No adapters required! -
Cloud Services & Online Report Management:
Provides quick access to vehicle specifications and repair information, ADAS guide, technical service bulletins, recall information, TPMS information, sensor reset information, firmware updates and much more
- Fast and easy software and vehicle specification updates
- Access, print, email or text aligner reports -
Body Shop Vehicle Check:
- Combined measurements help discover hidden damage before starting the alignment process
- Measurements include cross diagonal, vehicle track width and wheelbase, front & rear set back, and axle offset
- Specialized reports provide clear communication to body shop partners -
Standard Accessories:
- Wheel Clamps
- Brake Pedal Depressor
- Color Inkjet Printer
- Steering Wheel Holder
- Two Wheel Chocks
-
Fast & Easy to Use:
-
SPECIFICATIONS
Specifications EEWA715TBV3 Wheel size (AC200) 12" - 24" Tire Size (AC400) 19"- 39" Power Supply 115 VAC 1Ph 50/60 Hz Tracking Width 48" - 96" Wheel Base mm 2007 - 4572 mm Wheel Base inches 79" - 108"
-
WARRANTY + MANUALS
- 5 Years Motor
- 2 Year Parts
- 1 Year Labor
