Atlas® BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs #ATEATTD-BP8000-FPD

• DESCRIPTION
• FEATURE + BENEFITS
• SPECIFICATIONS
• WARRANTY + INFO

• DESCRIPTION

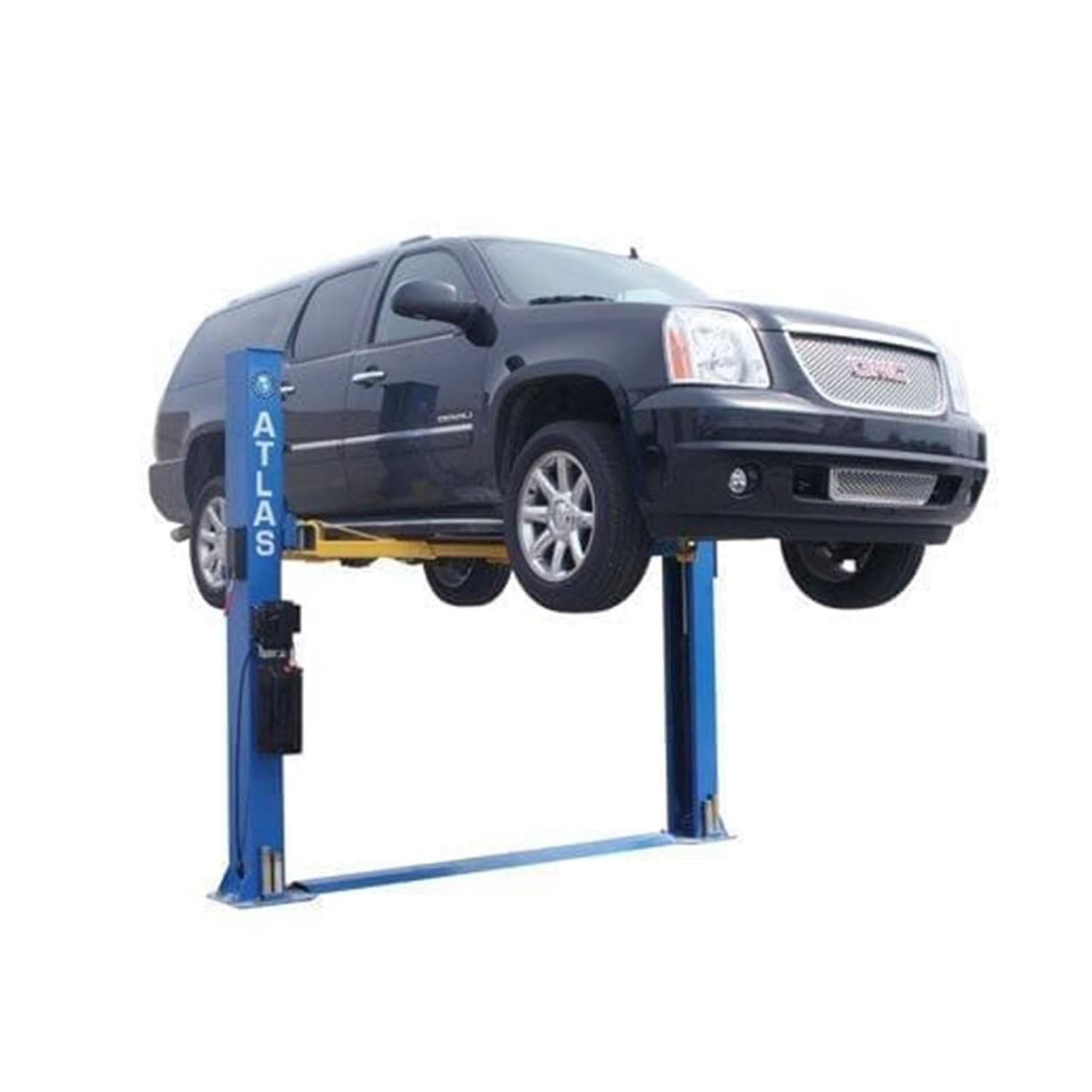

  Atlas® Automotive Equipment BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs

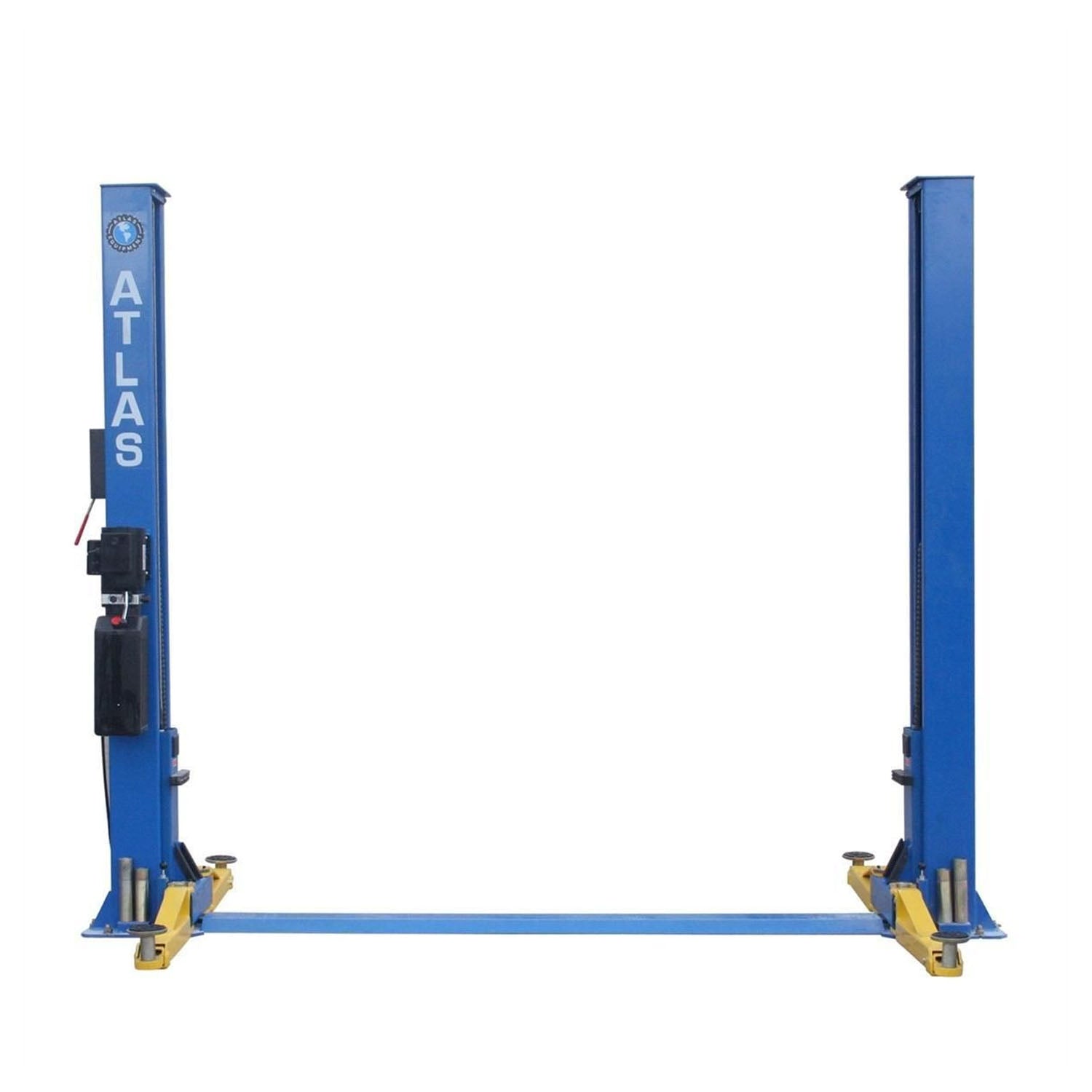

  The Atlas BP8000 is a base-plate two-post lift designed for low-ceiling garages. The total column height of 108" (9 feet) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 3 inches.

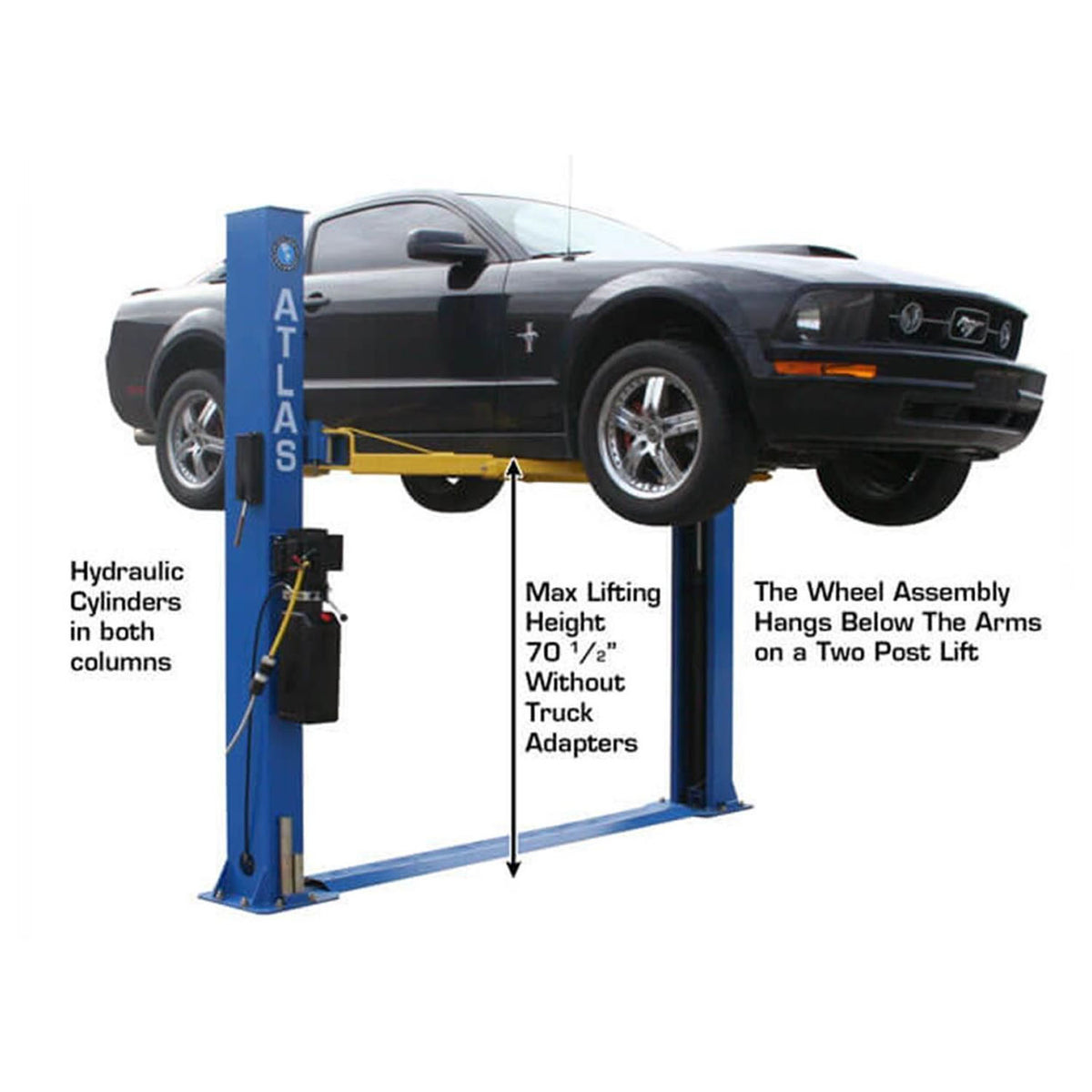

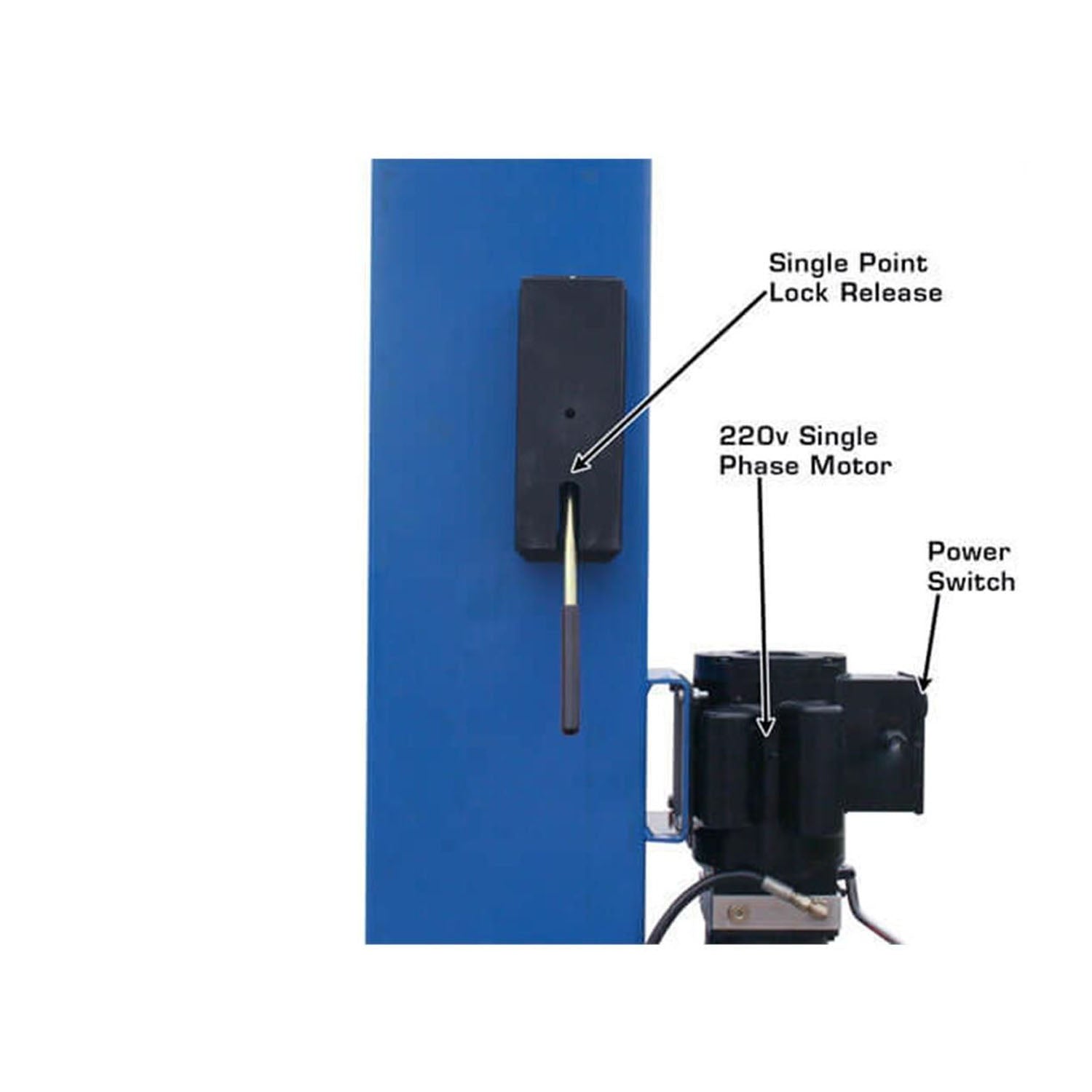

  The Atlas BP8000 features a single-point lock release, automatic arm restraints, super symmetric arms, double safety lock system, powder coat finish, and heavy-duty dual hydraulic chain-drive cylinders (one cylinder in each column).

• FEATURES + BENEFITS

  • 8,000 lb. Capacity

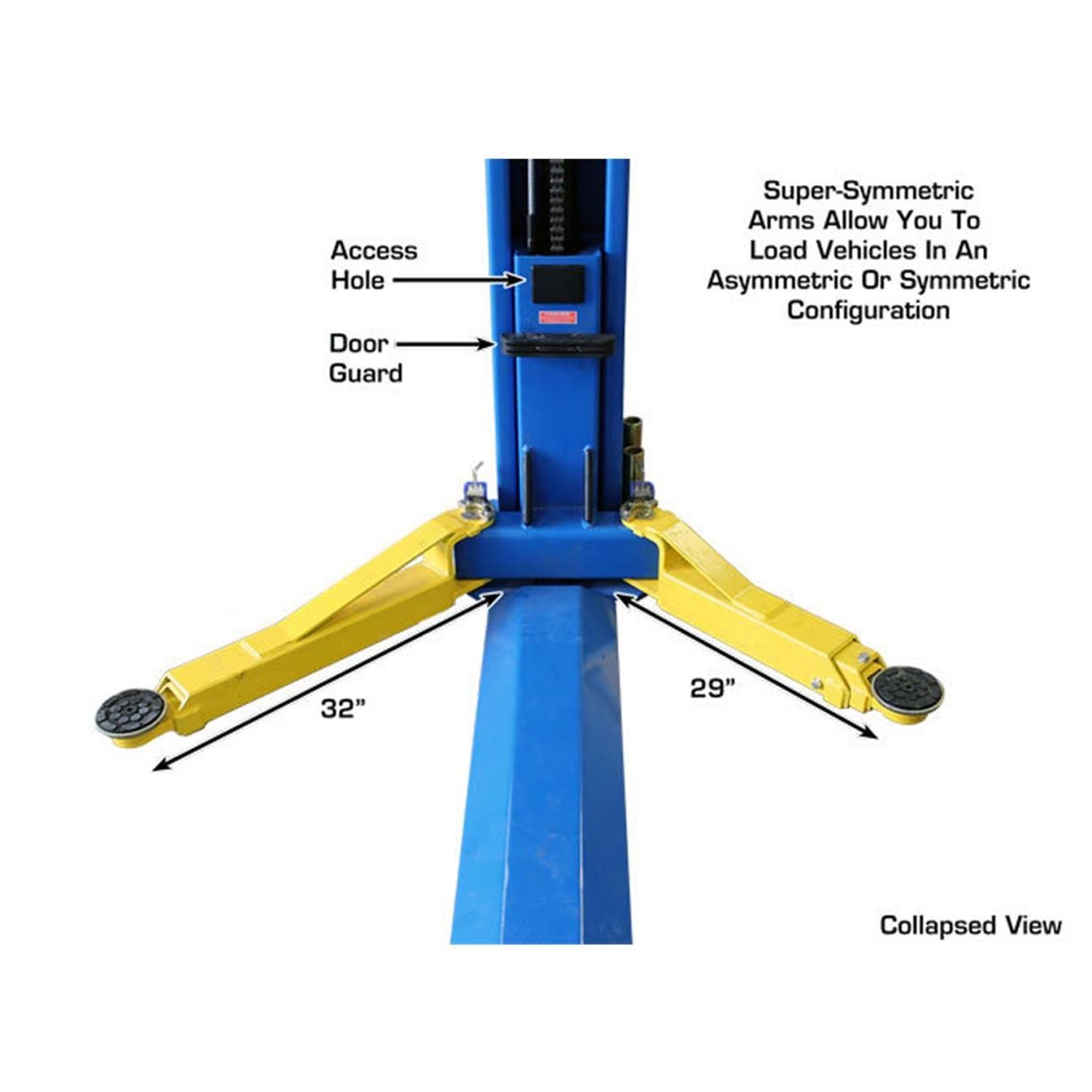

  • Super Symmetric Arms
  • Base Plate Design
  • Single-Point Release
  • Double Lock System

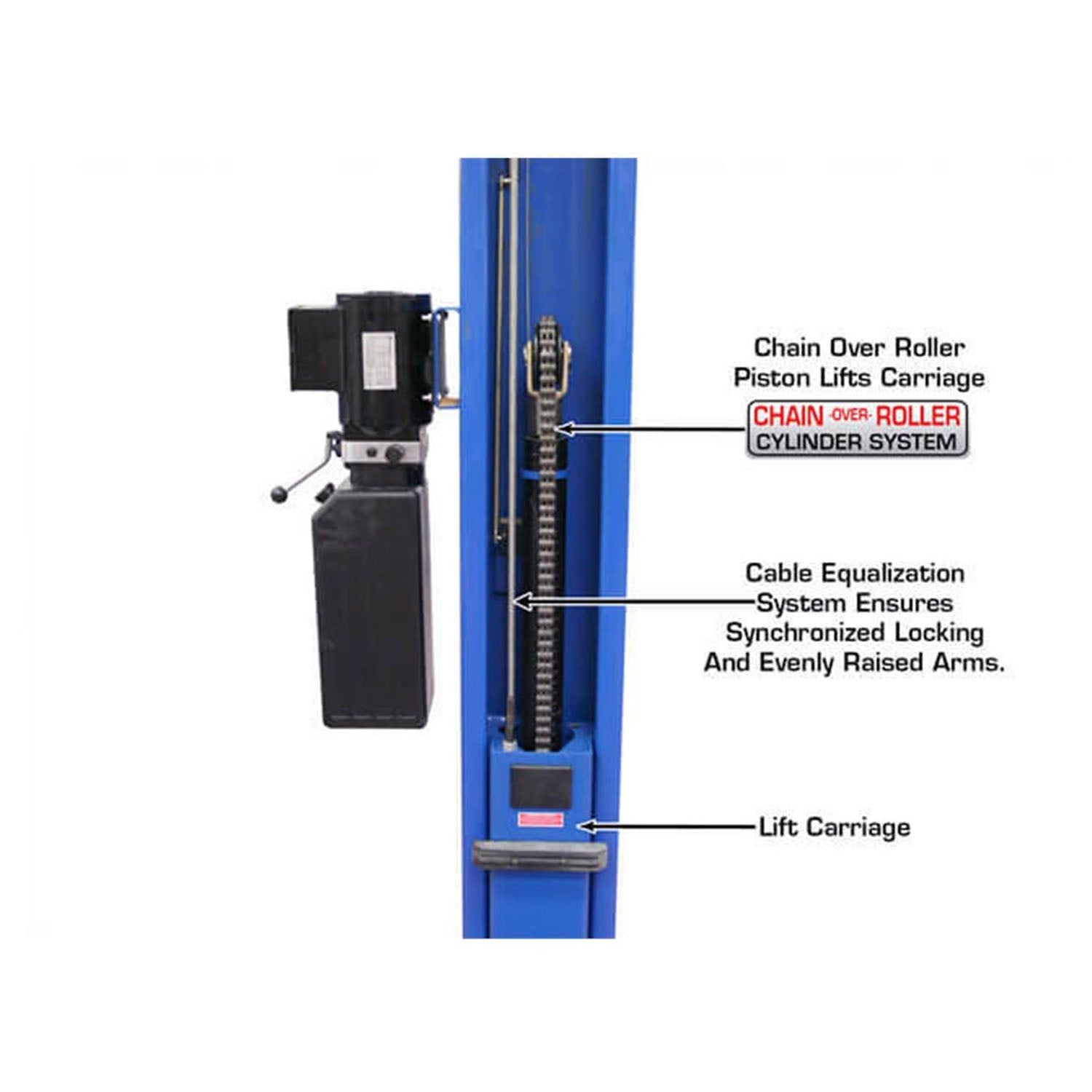

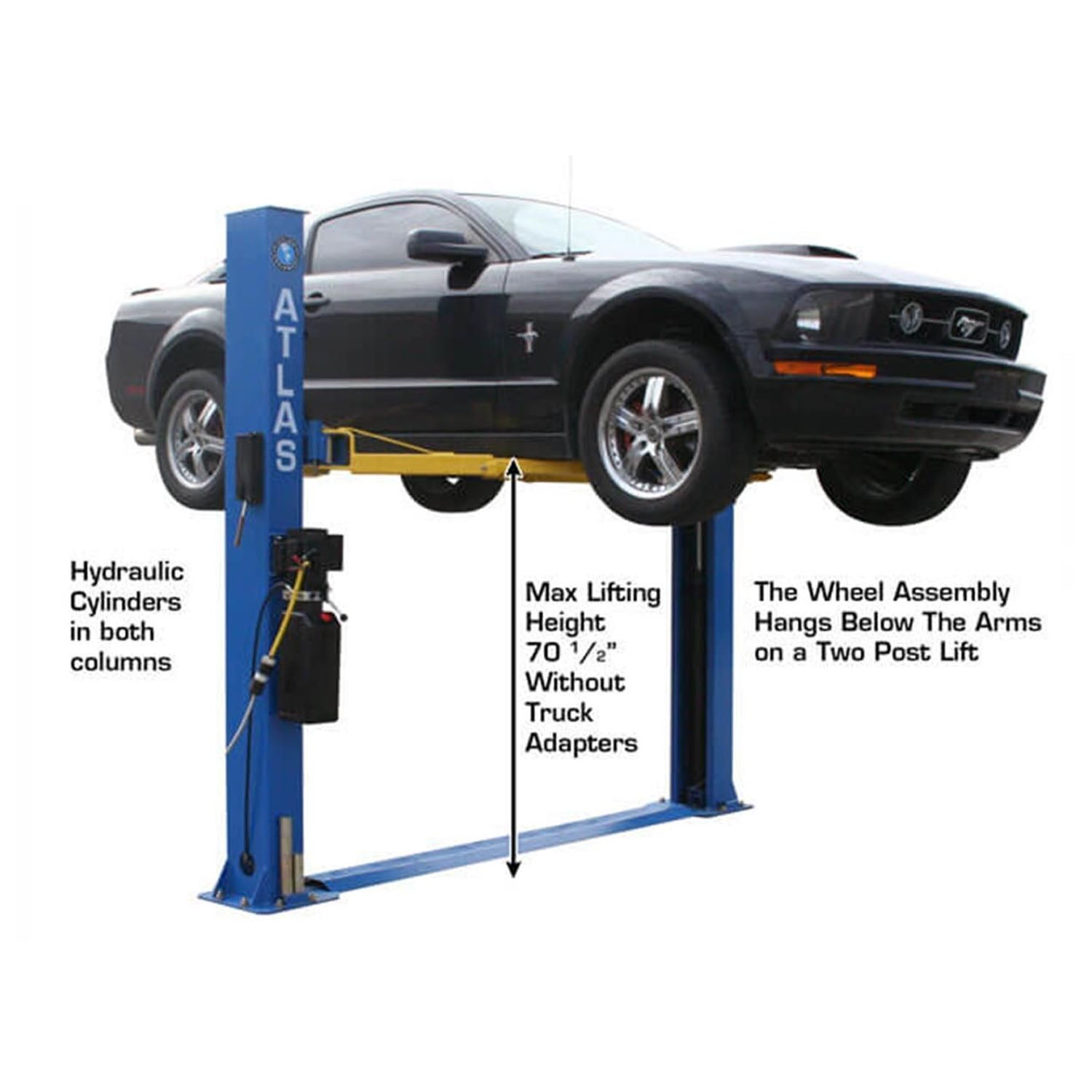

  • Dual Hydraulic Chain-Drive Cylinders

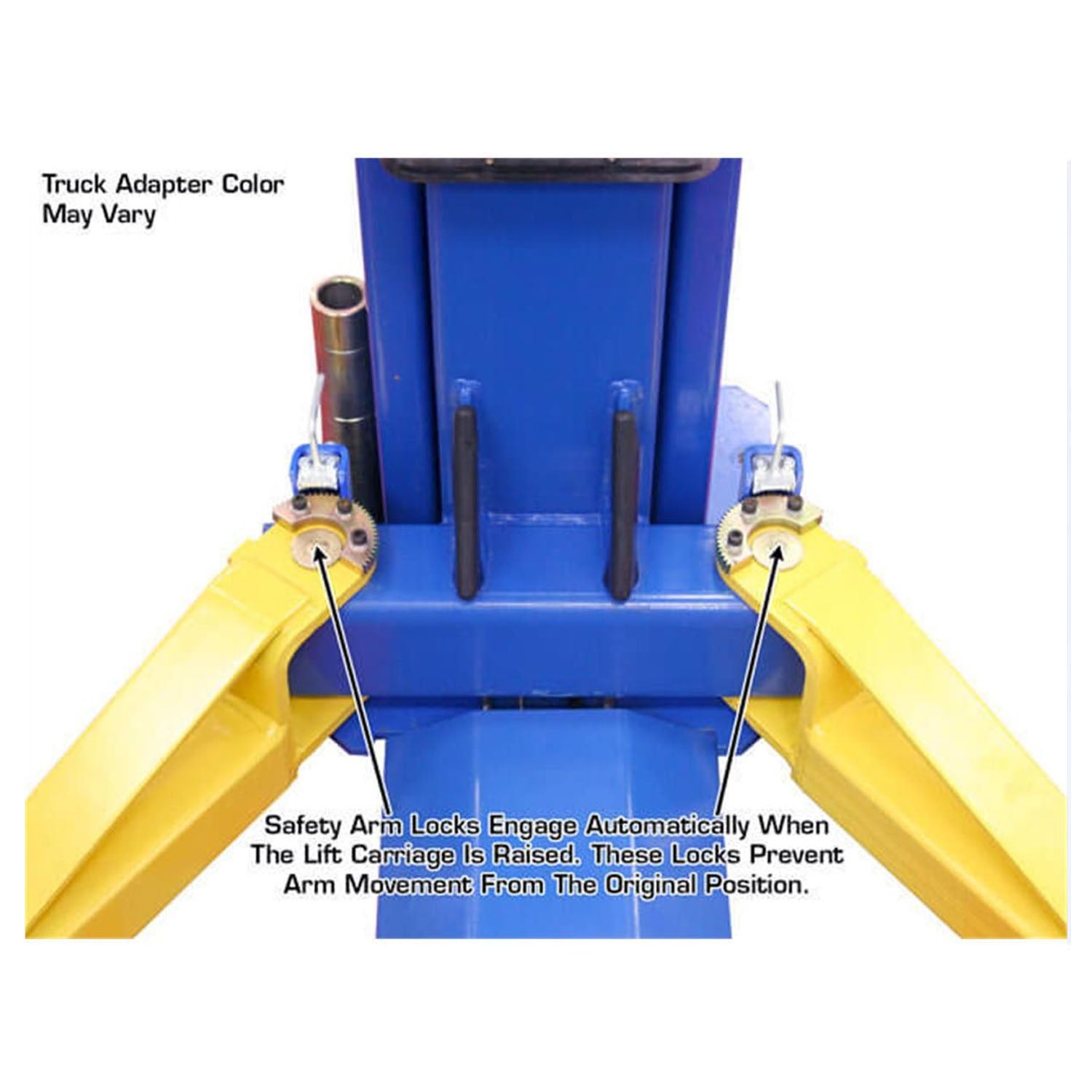

  • Automatic Arm Restraints
  • Self-Lubricating HMW Polyethylene Sliders and Bronze Bushings
  • Powder Coat Finish

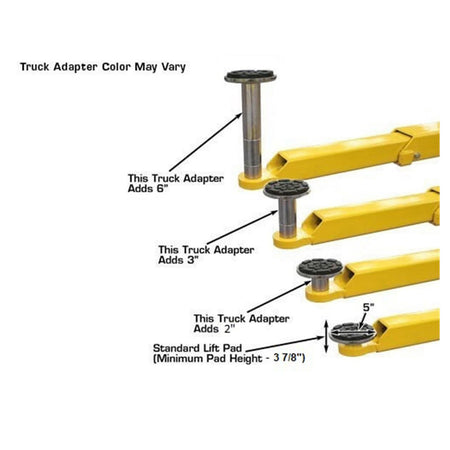

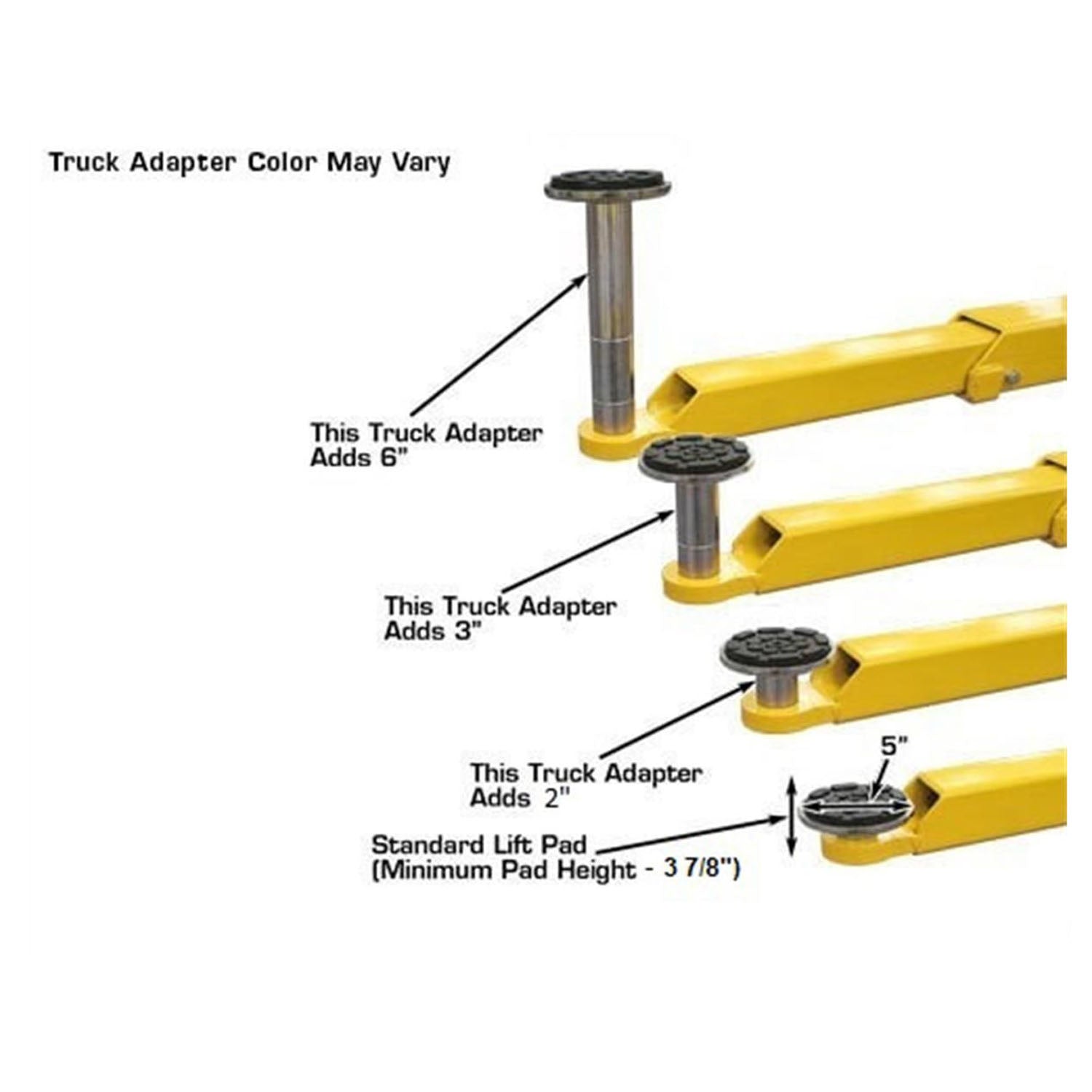

  • Free Truck Adapters

  Includes

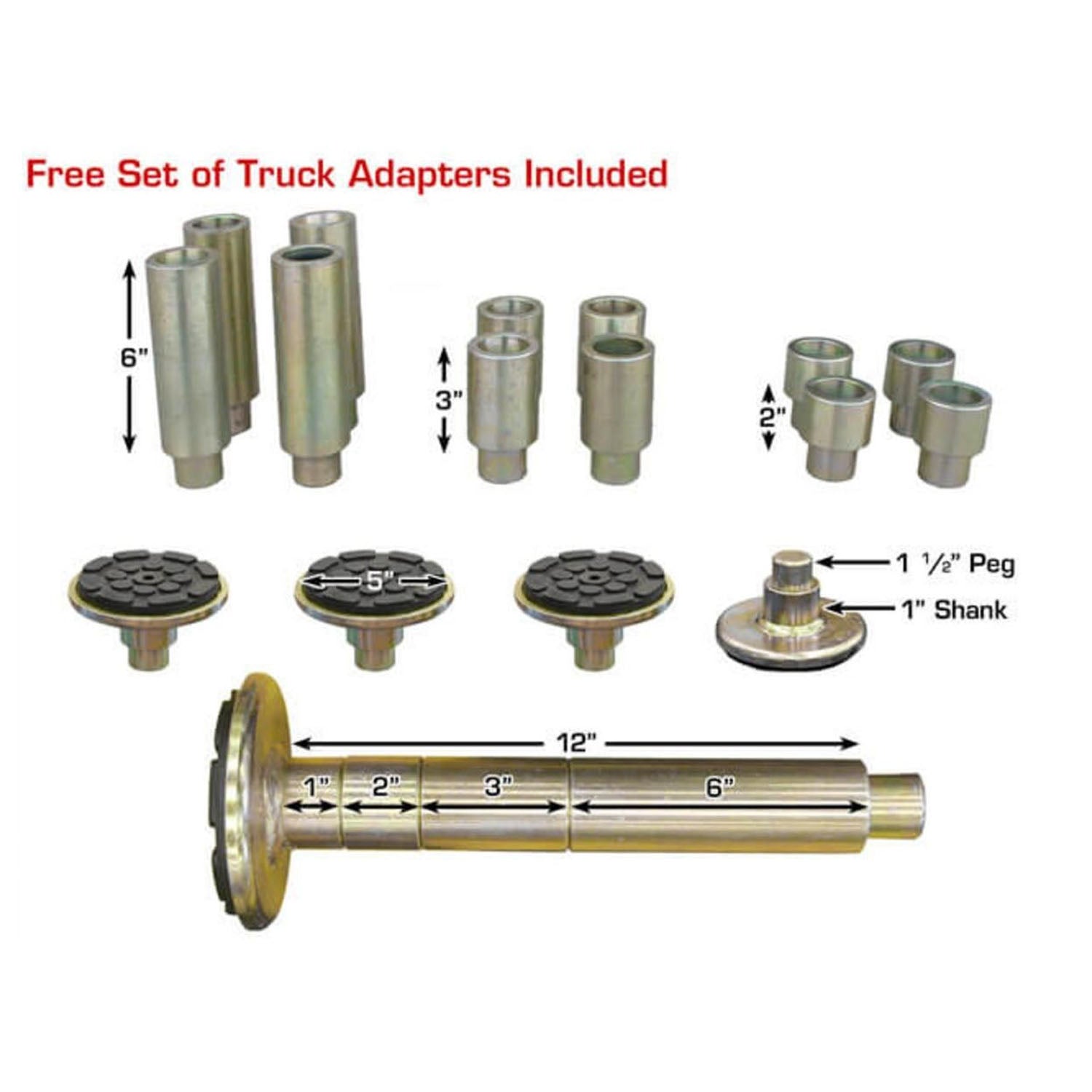

  • 12 Piece Truck Adapter Set - 2", 3", & 6" Sizes
  • Mounting Hardware

• SPECIFICATIONS

  Lifting Capacity	8,000 lbs

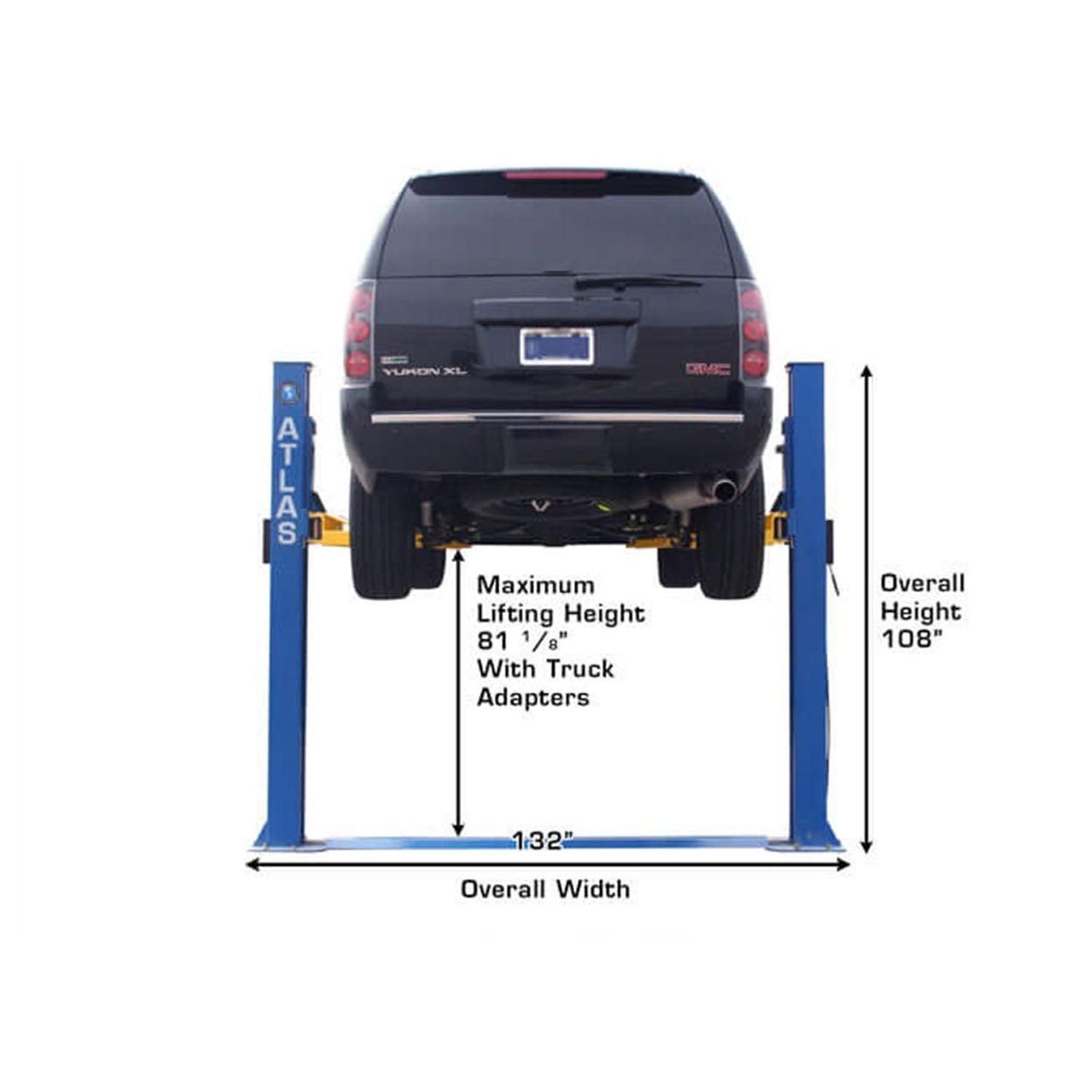

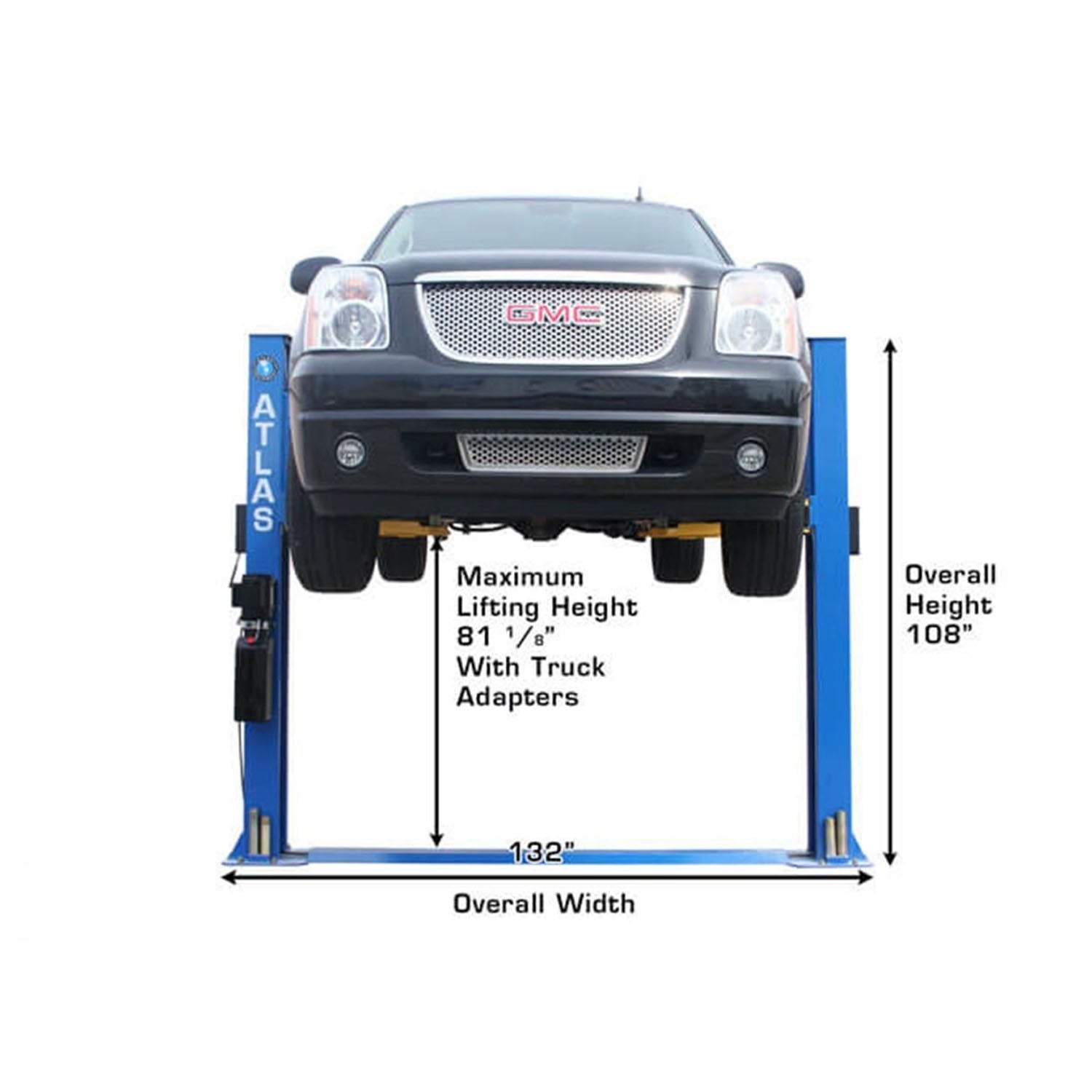

  Overall Height	108" (9')
  Overall Width	132" (11')
  Outside Column To Outside Column	124" (10' 4")

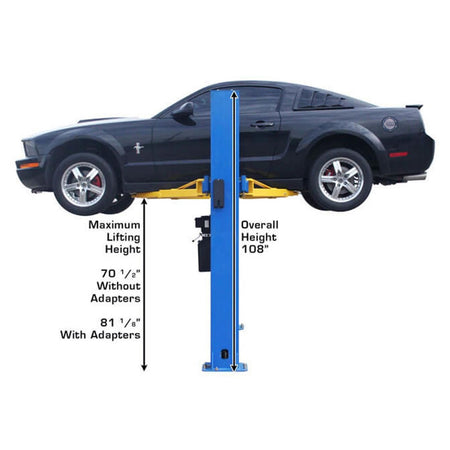

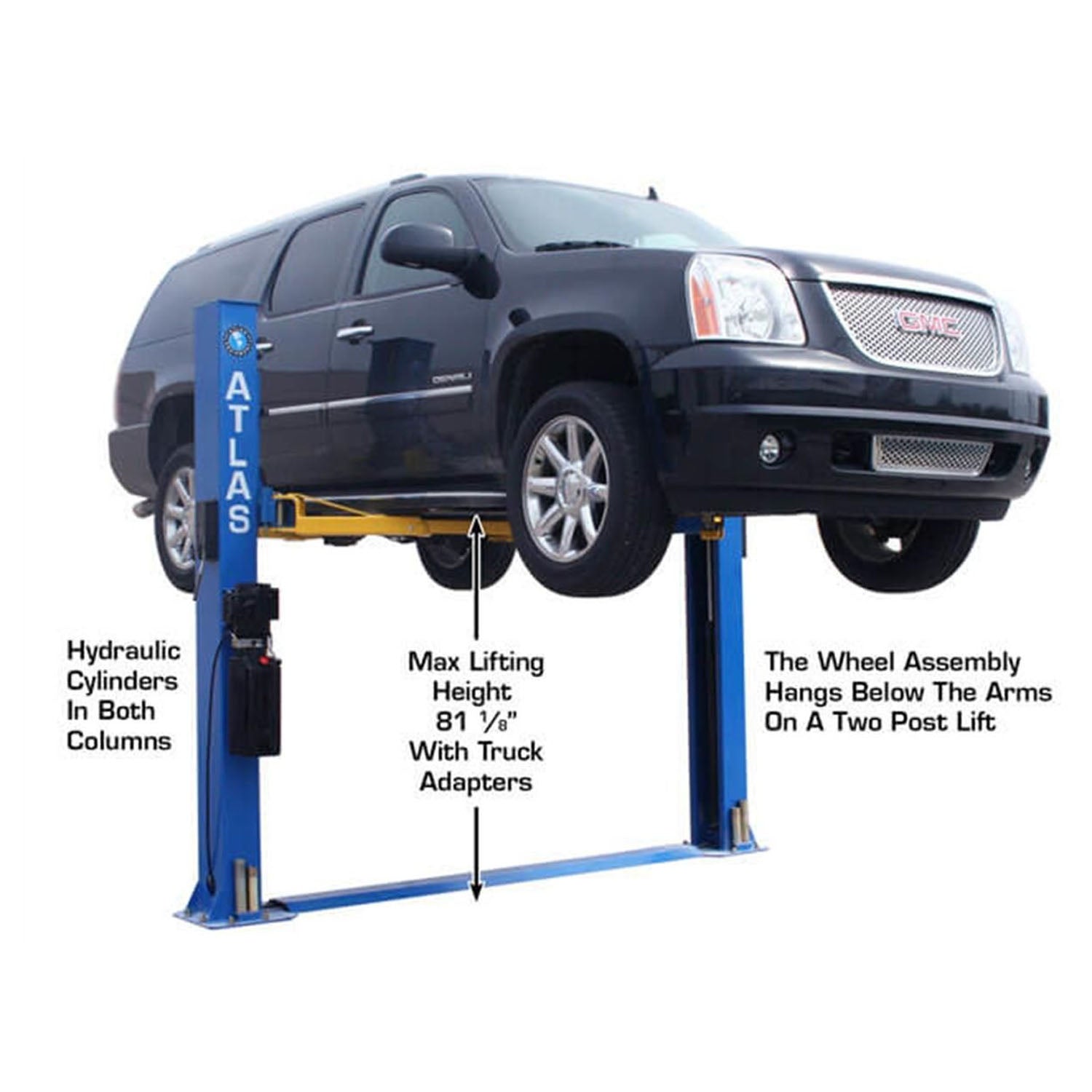

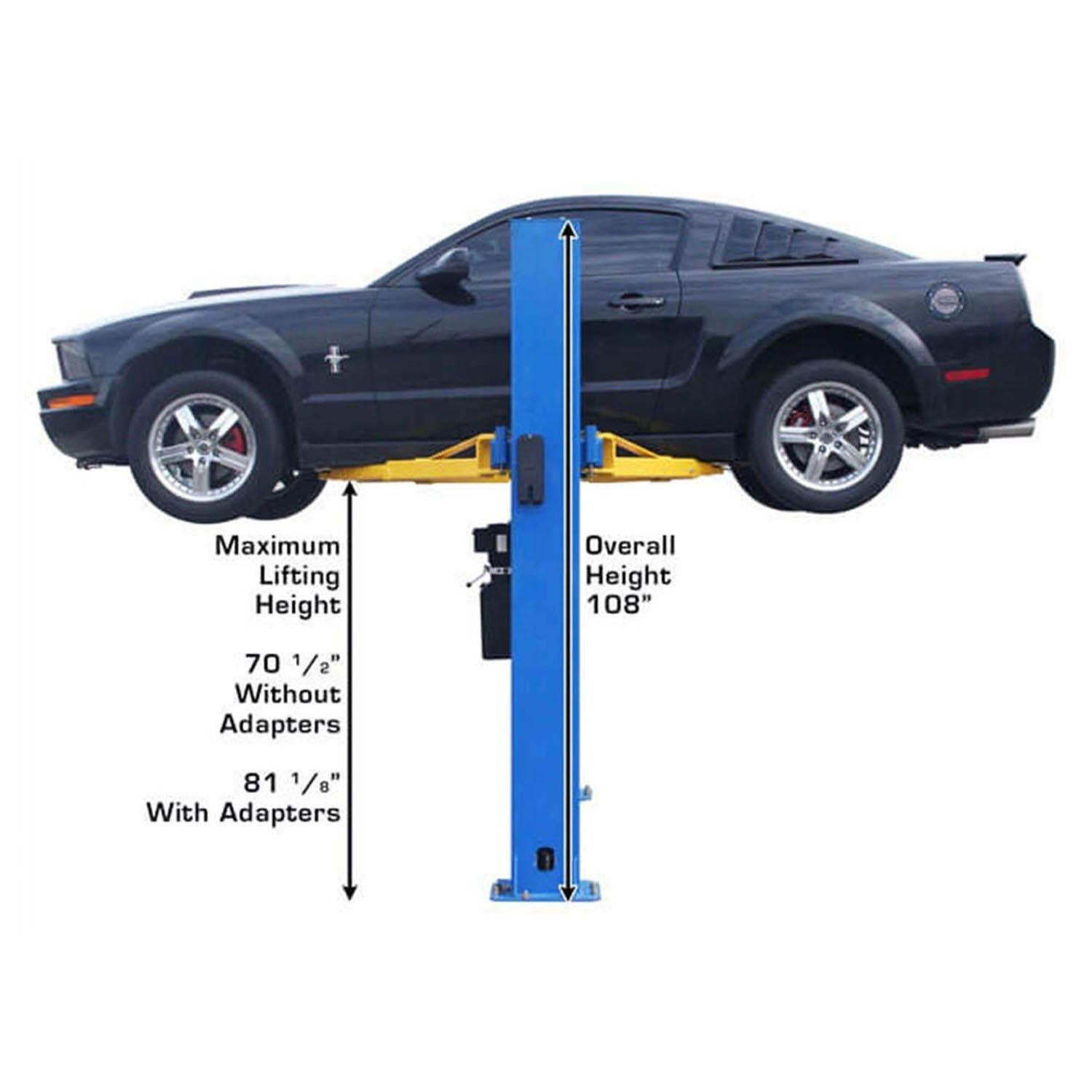

  Maximum Lift Height w/Adapters	86.5"
  Maximum Lift Height without Adapters	75.5"
  Minimum Arm Height	4"
  Base Plate Width	11 ½"
  Inside Column	109 5/8" (9' 1 5/8")
  Drive Thru	99" (8' 3")
  Column Size	7 ¼" x 11"
  Column Thickness of Steel	6mm
  Base of Lift	17 ½" x 17 3/4"
  Carriage Thickness of Steel	6mm
  Arm Thickness of Steel	6mm
  Cable Diameter	.375"

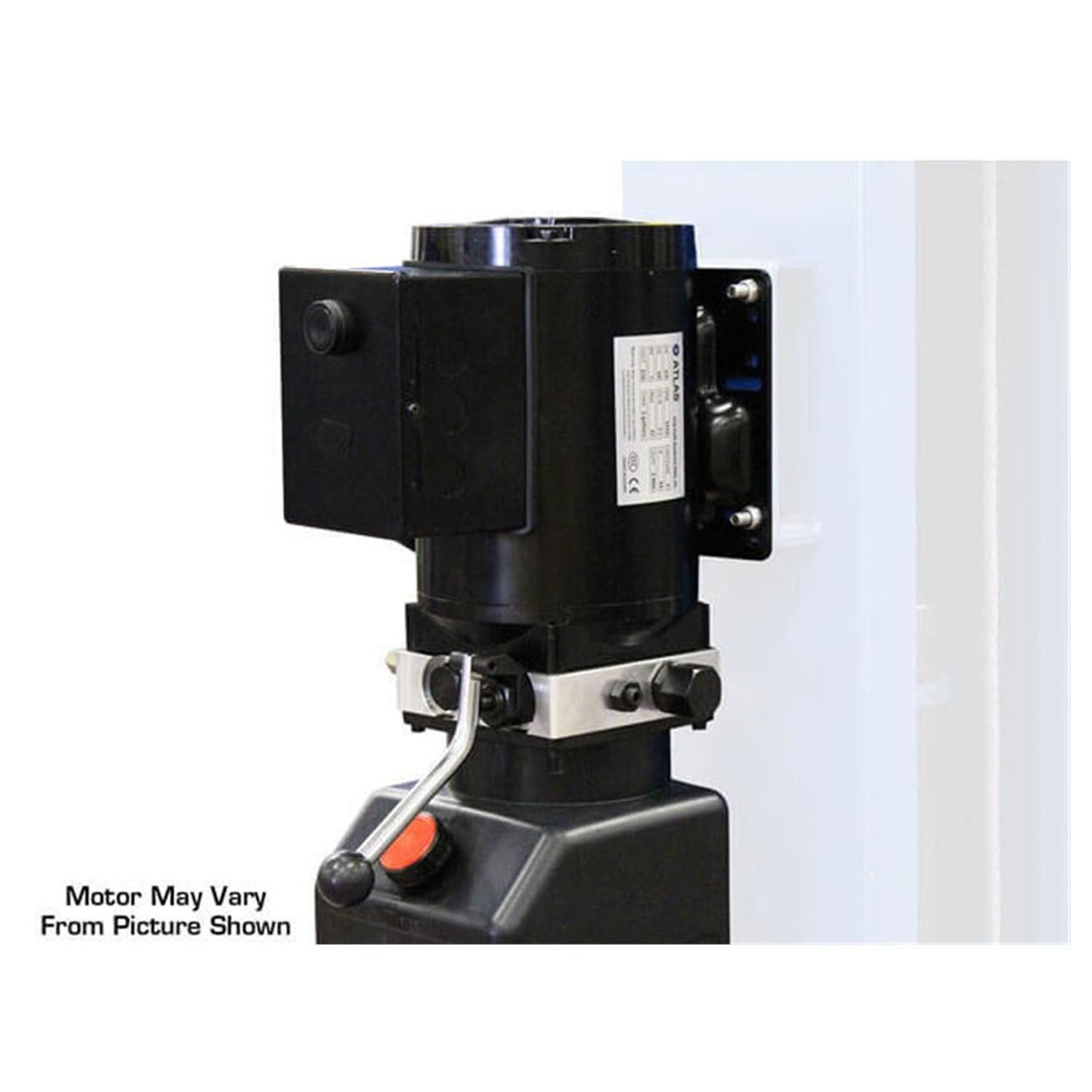

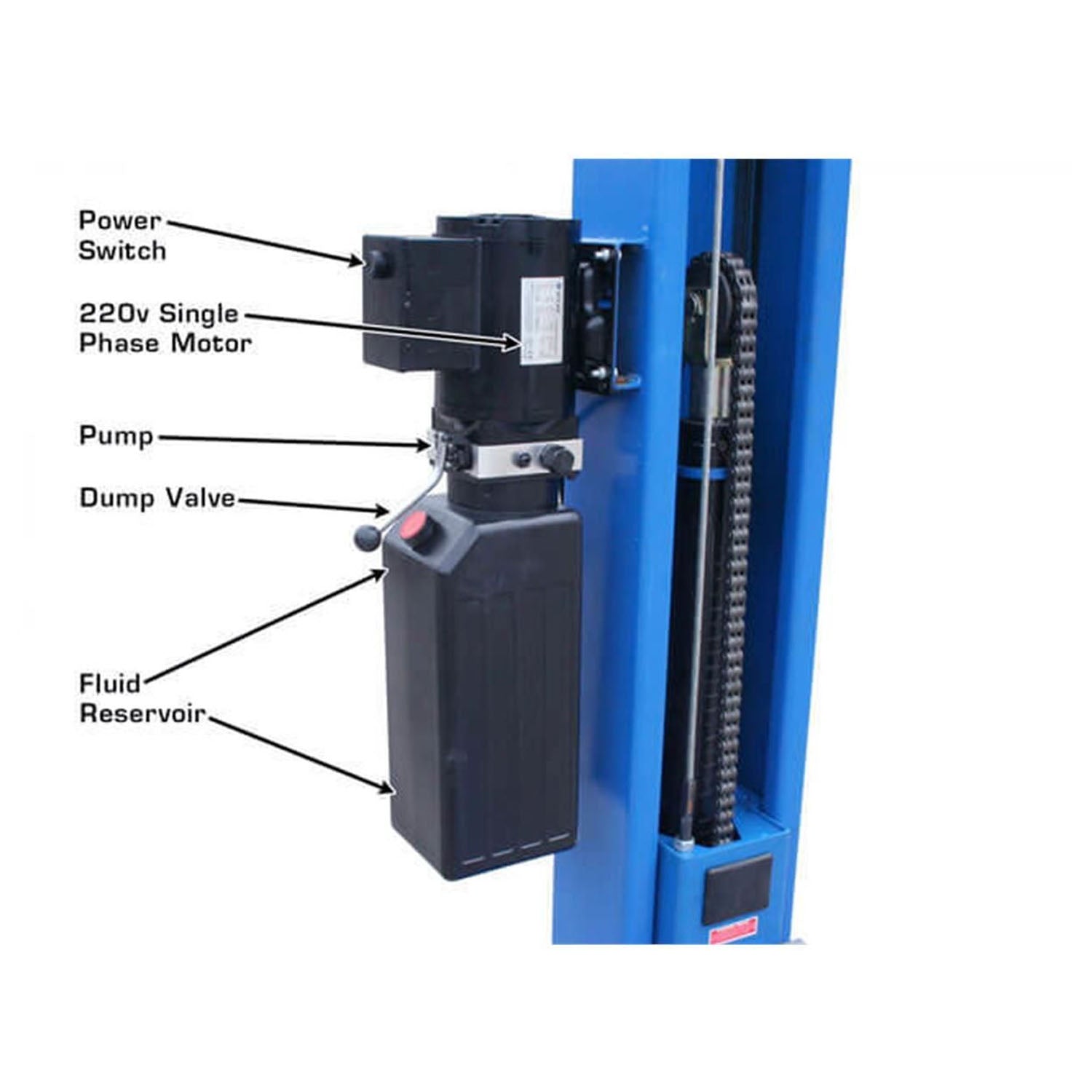

  Motor/Electrical Requirement	220V single (1) phase / 30 amp breaker is required.
  Oil Requirements	3-5 Gallons AW32/AW46
  Shipping Weight	1,290 lbs.

• WARRANTY + INFO

  Warranty Information

  • 2-Year Structural Warranty

  • 1-Year Hydraulic-Power Warranty
  BP8000 Warranty BP8000 - Owner's Manual BP8000 - Bleeding Info

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
