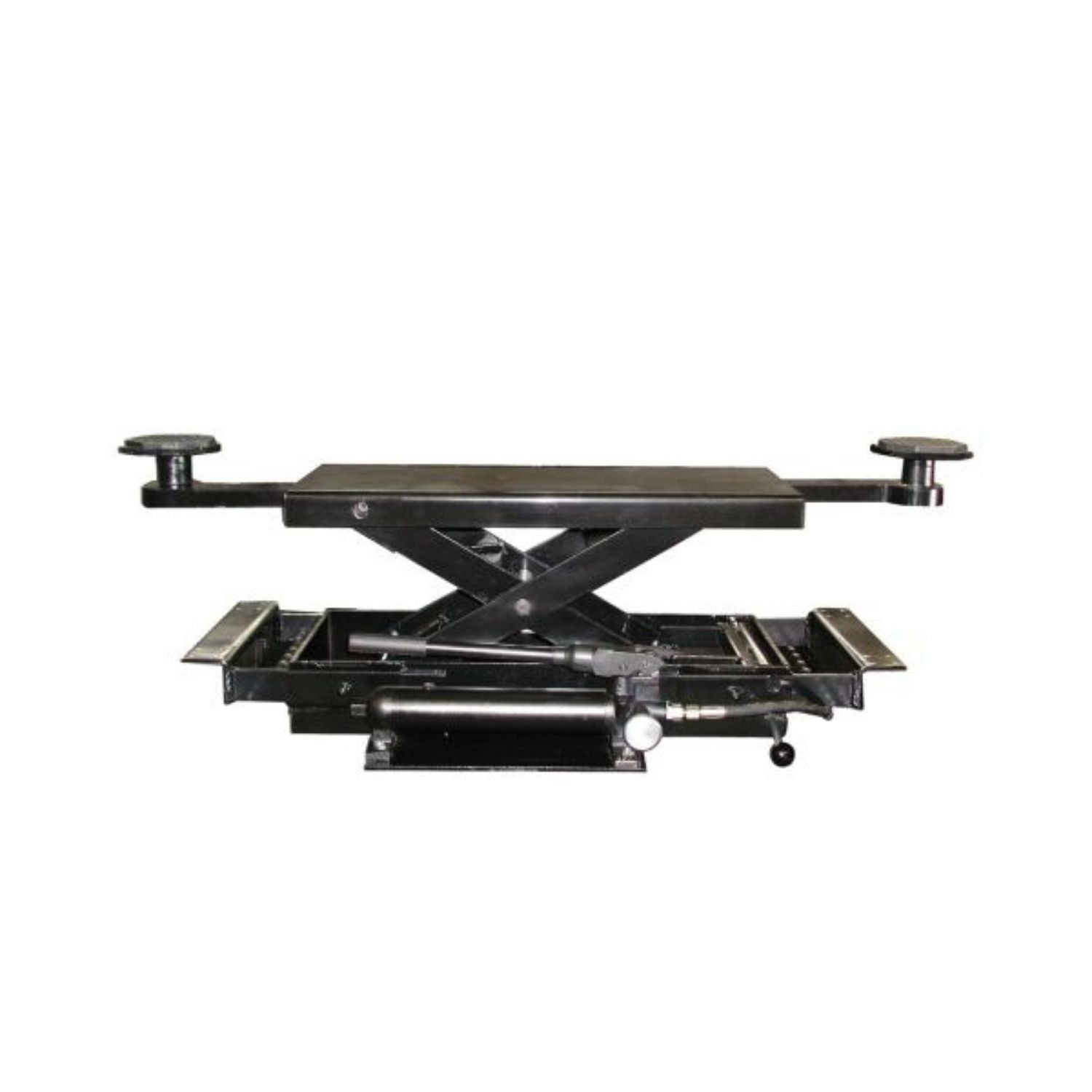

Atlas® PROJACK35 3,500 lb. Sliding Bridge Jack #ATEXH-PROJACK35-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® PROJACK35 3,500 lb. Sliding Bridge Jack is designed for use with compatible Atlas® 4-post lifts to provide wheel-free lifting capability during automotive service operations. Ideal for brake, suspension, tire, and wheel service applications, this sliding bridge jack allows technicians to raise a vehicle off the runways for improved service access.

  The PROJACK35 features heavy-duty steel construction and a sliding design that allows flexible positioning along the lift runways. Built for professional automotive shops and garage environments, this bridge jack delivers dependable lifting performance and improved service versatility. The FPD designation indicates freight prepaid shipping.

• FEATURES AND BENEFITS

  • Sliding Bridge Jack
  • Capacity: 3,500 lbs
  • Manual, hand pump operated
  • Scissor mechanism allows for level lifting
  • Low Profile, Compact Design
  • Adjustable Width to fit many 4-post lifts
  • Adjustable Lift Arms to reach many lifting points
  • Multiple Safety Lock Positions
  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEXH-PROJACK35-FPD
  Dimensions:	38" L × 23" W × 10" H
  Weight:	350 lbs
  UPC:	810524020114
  Country of Origin:	CHN

  Atlas® RJ35 Sliding Jack Specifications

  Capacity:	3,500 lbs
  Lower Extension Width (Between Runway):	20 1/2" to 47"
  Top Width (Arms Retracted & Extended):	39 1/2" to 64 3/4"
  Min. Pad Height Above Runway:	3 1/2" (may vary by lift)
  Lift Pad Height Above Arm:	1 3/8"
  Max Height Raised w/o Adapter:	11"
  Max Height Raised w/ Adapters:	17 1/4"
  Adapter Heights:	2 each 1 1/2", 5"
  Arm Hole/Adapter Peg Size:	1 1/2"

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
