Atlas® BP-12000 HD Floor Base-Plate 2 Post Lift 12,000 lbs #ATEATTD-BP12000X-FPD

• DESCRIPTION
• FEATURE + BENEFITS
• SPECIFICATIONS
• WARRANTY

• DESCRIPTION

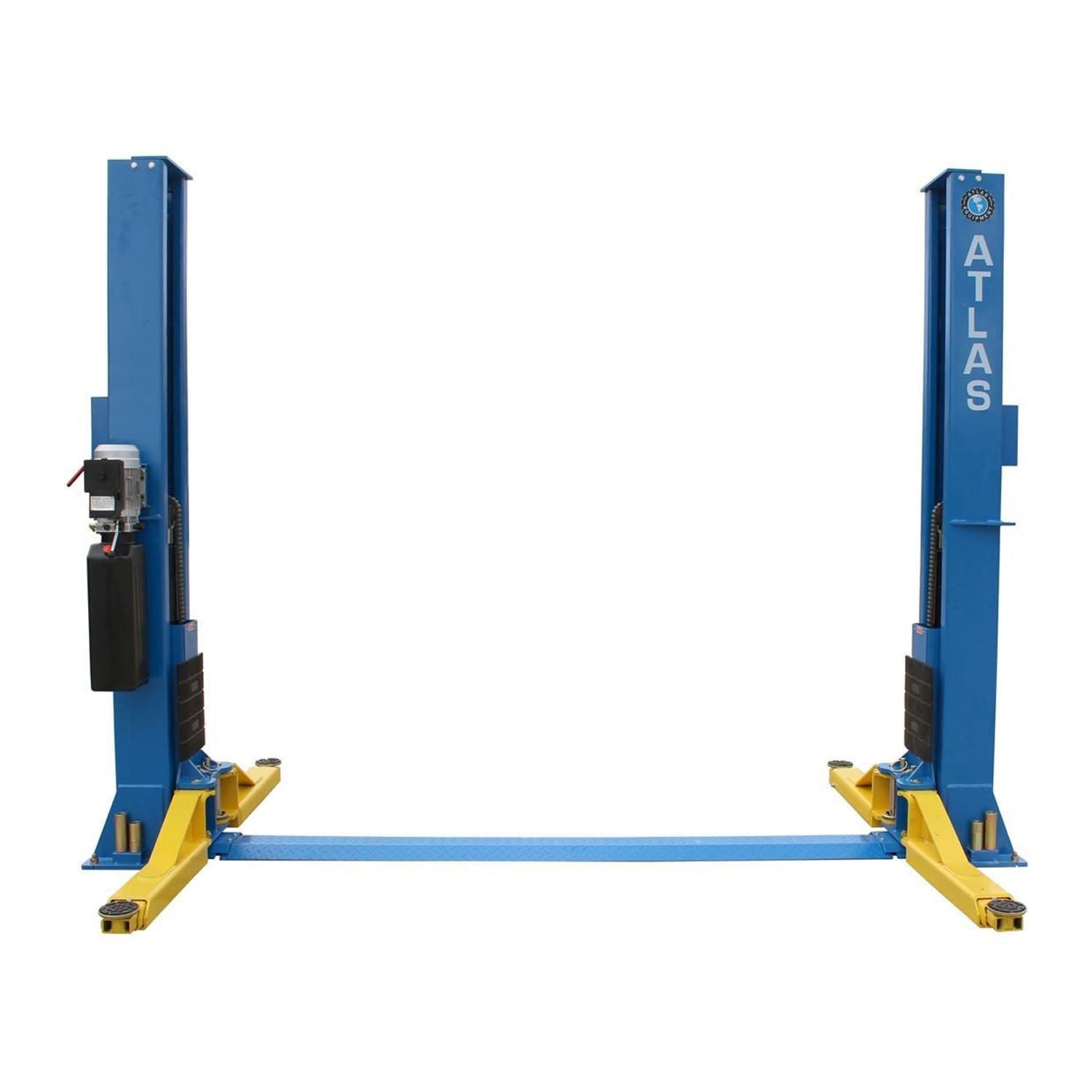

  Atlas Automotive Equipment BP12000X Commercial Grade Baseplate 2-Post Lift 12,000 lb. Capacity

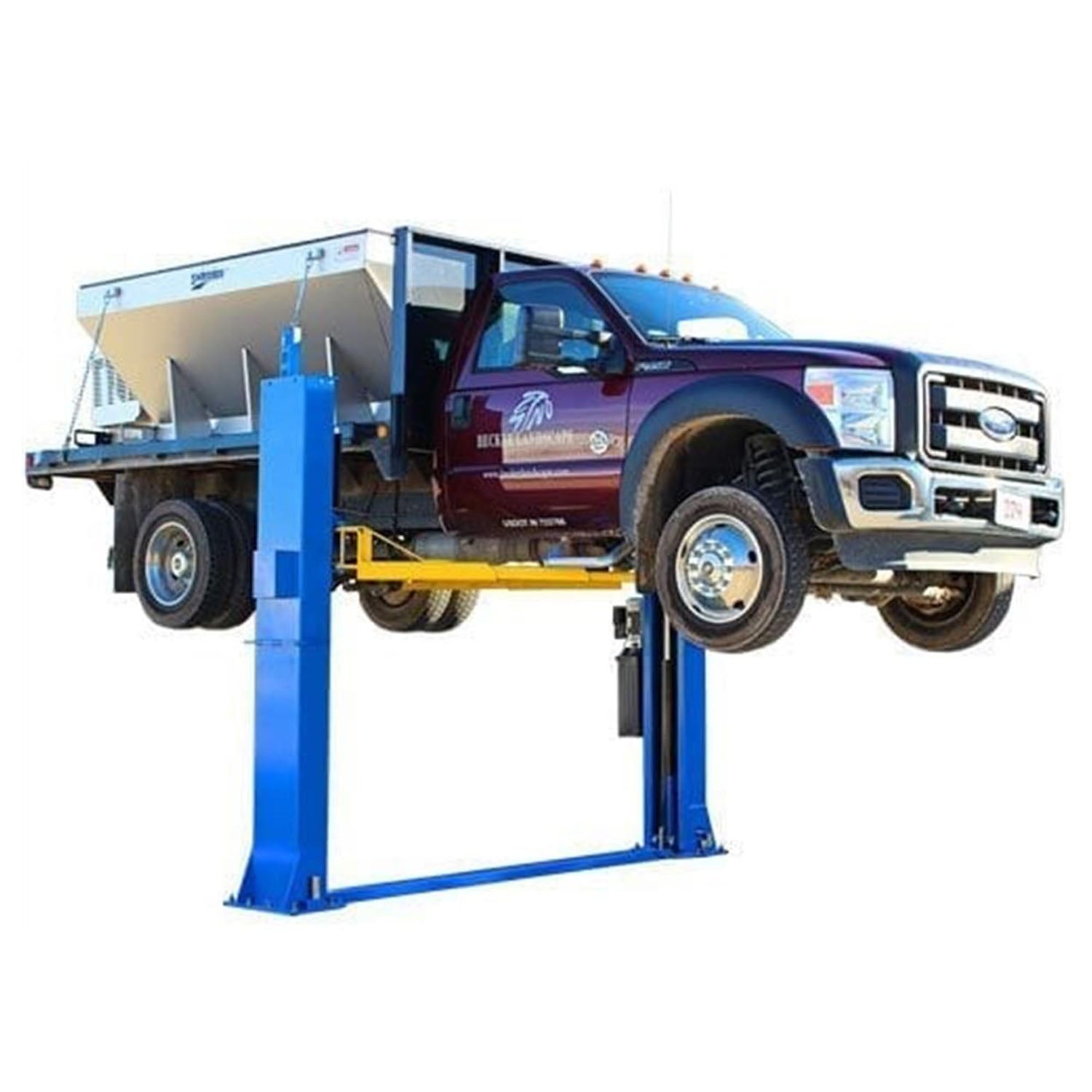

  The Atlas® BP12000X is a commercial-grade, heavy-duty 12,000 lb capacity 2-post base plate lift designed for above-ground installation. Featuring oversized columns, symmetric three-stage arms, and a single-point lock release, it is ideal for commercial garages needing to lift heavier vehicles while managing limited ceiling height. This lift offers adjustable width settings to accommodate wider trucks or trailers and allows for convenient driving between the columns, enhancing versatility and workspace efficiency.

• FEATURES + BENEFITS

  • 12,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Baseplate, Open-Top Style Lift

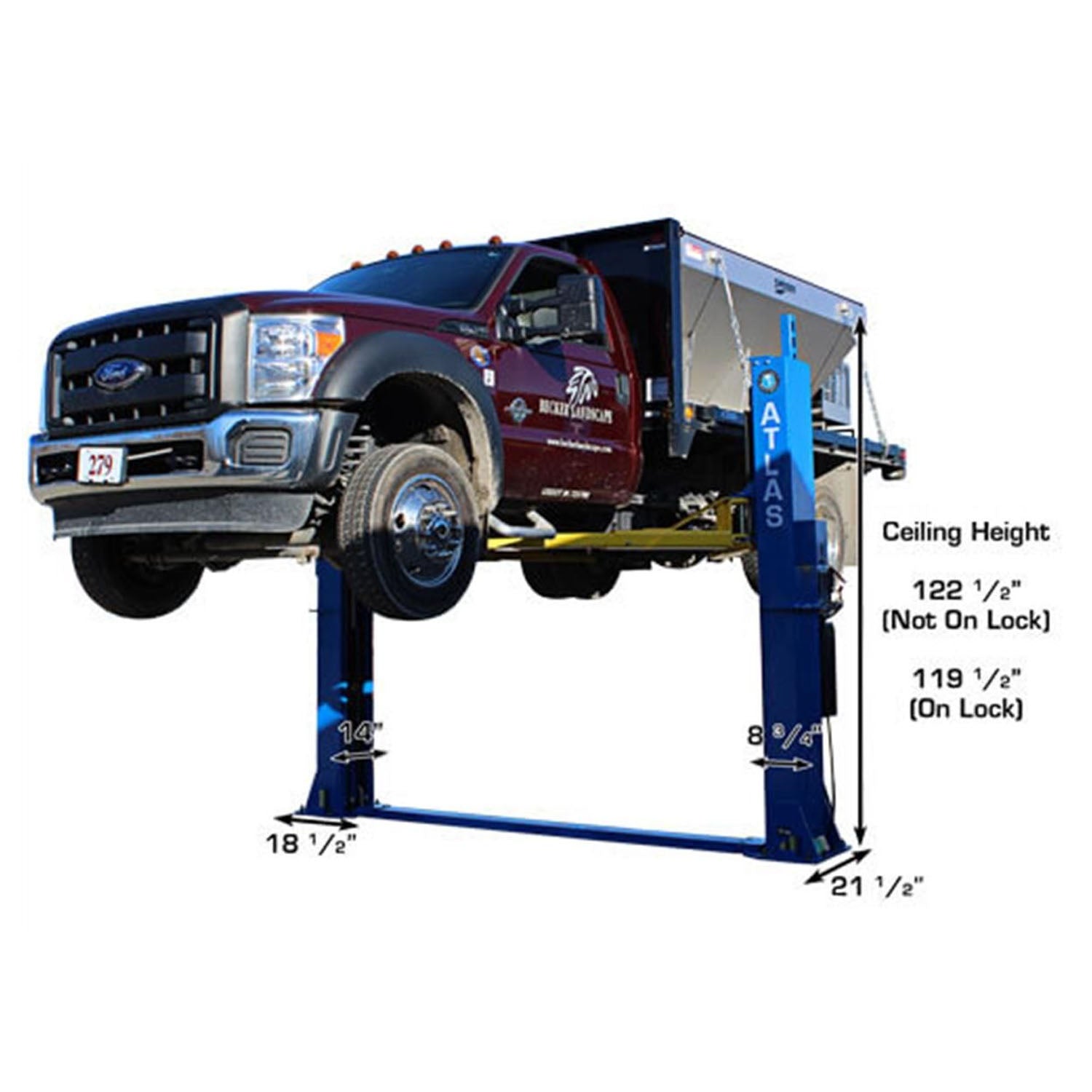

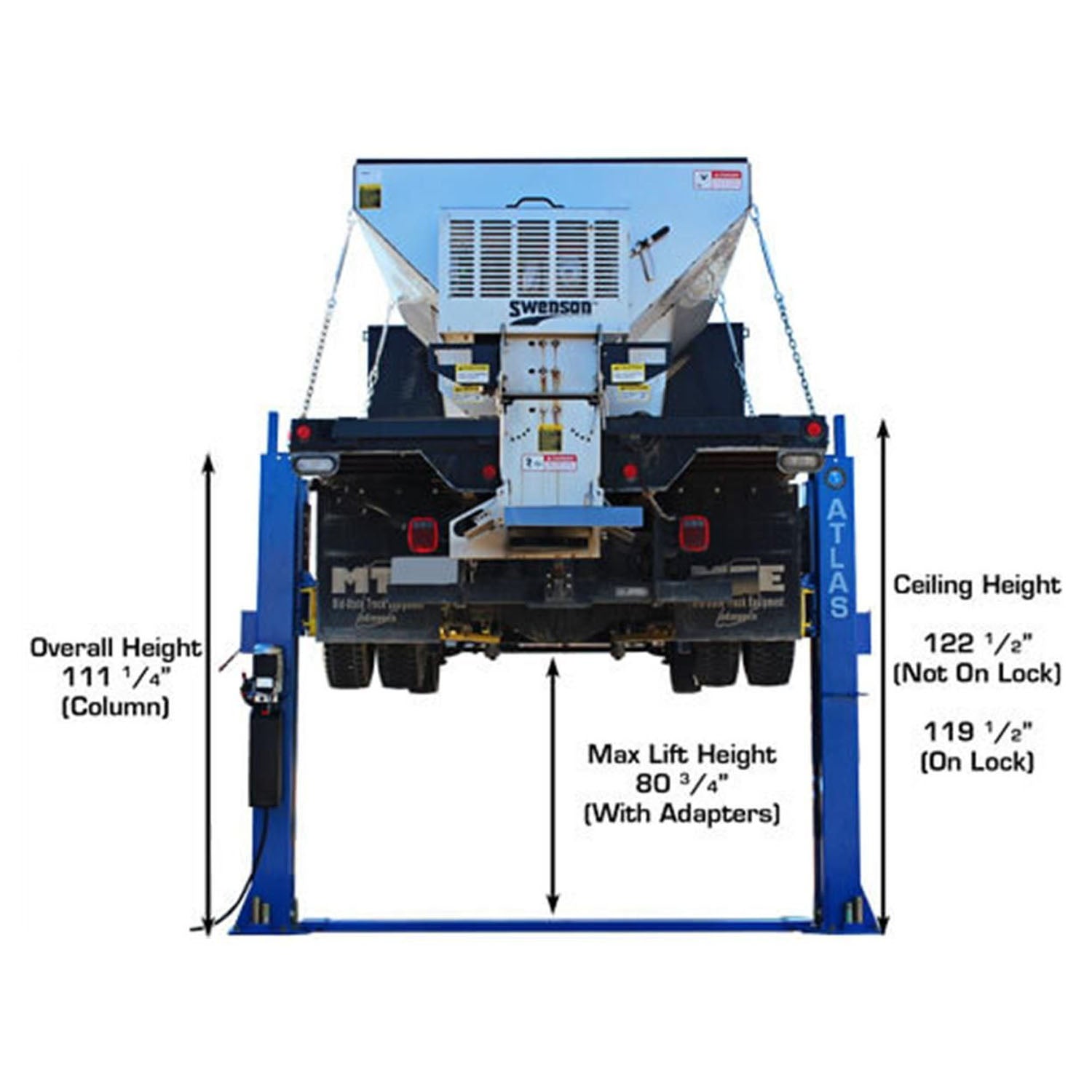

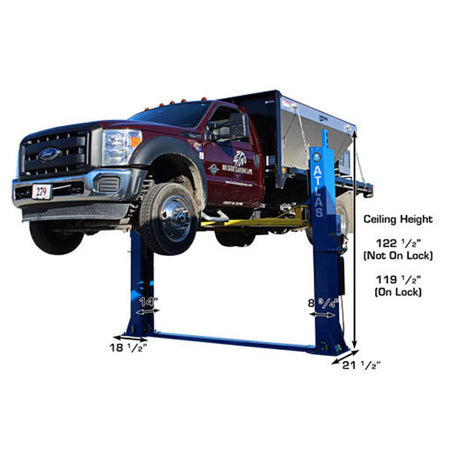

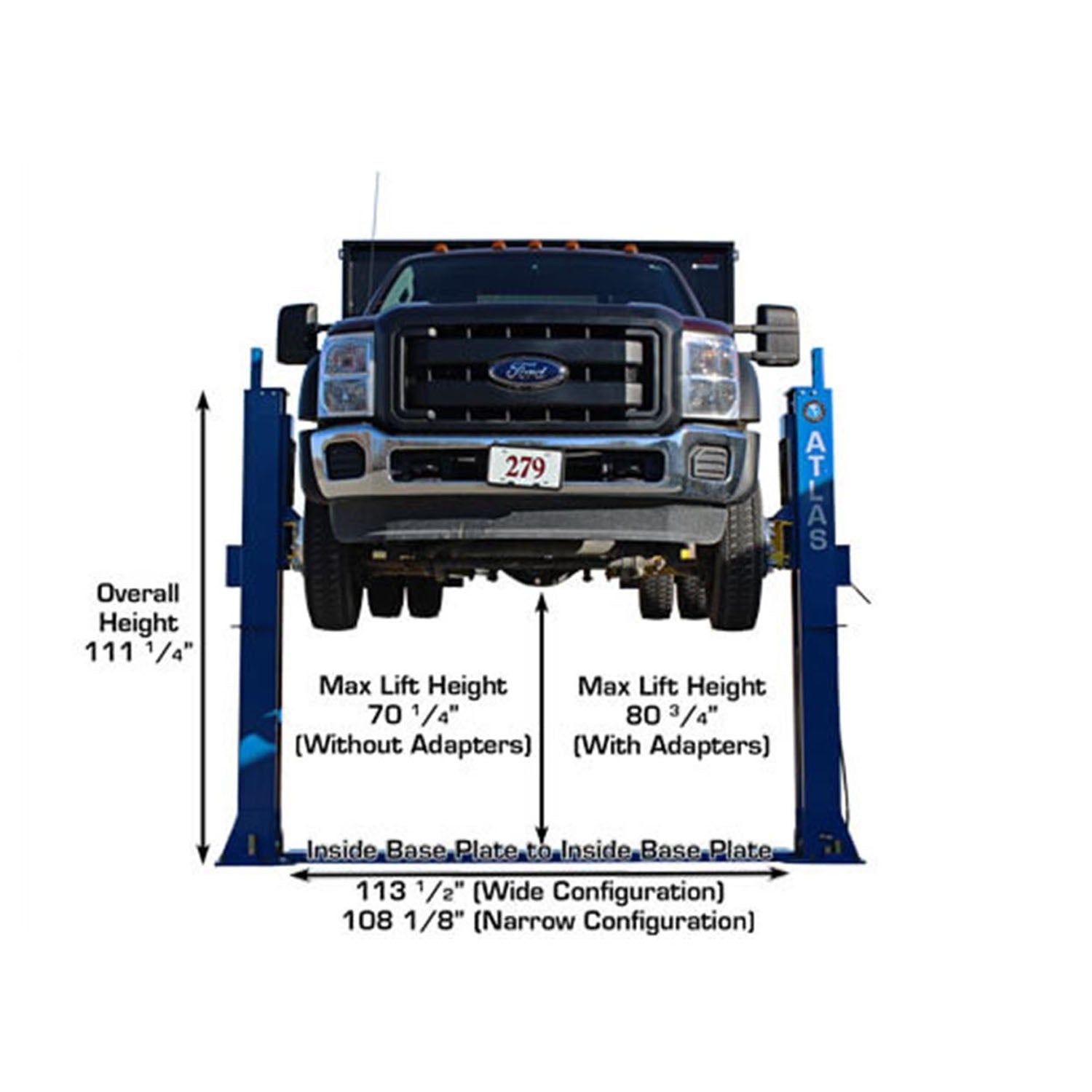

  • Overall Height: 122 1/2" (10' 2 1/2")
  • Adjustable Width

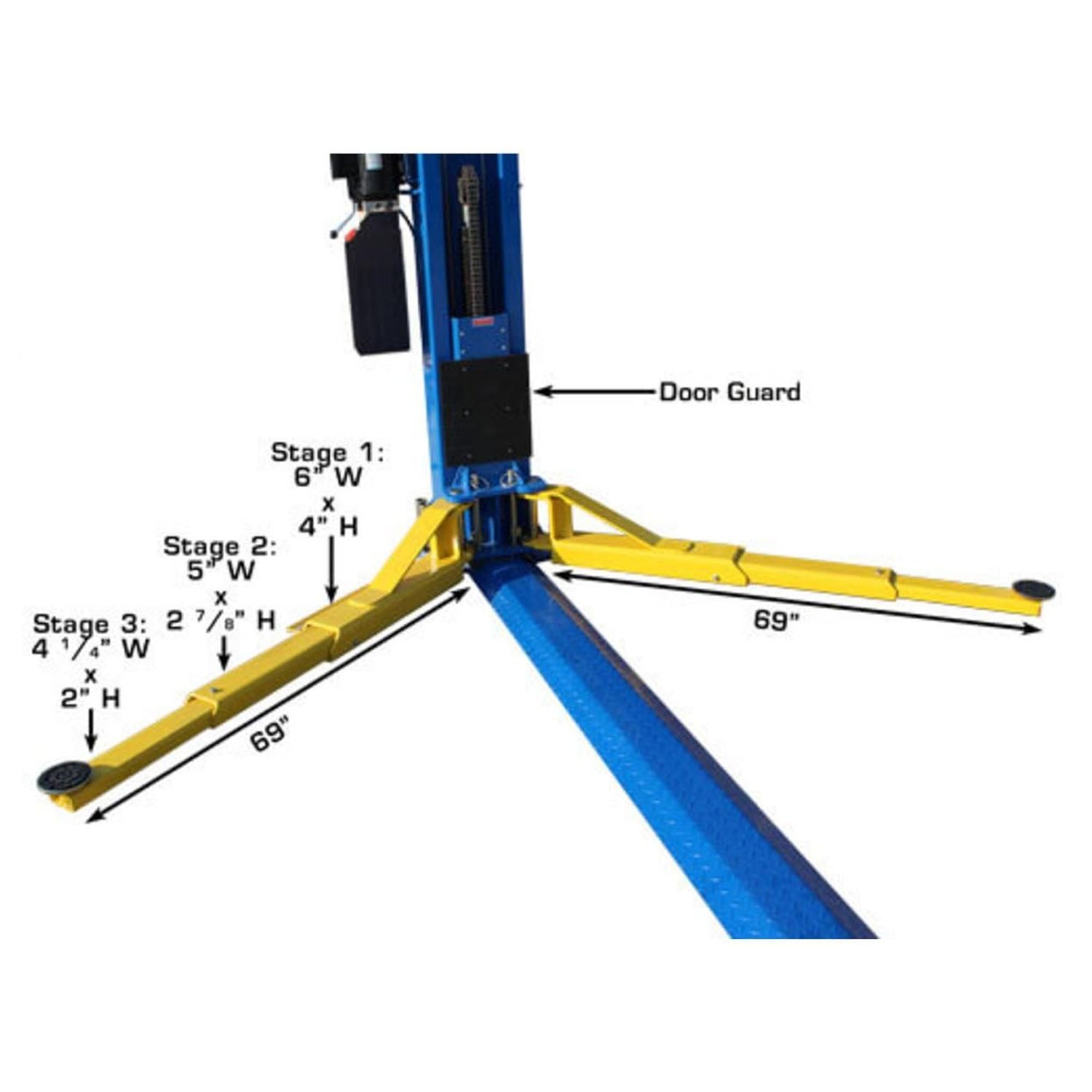

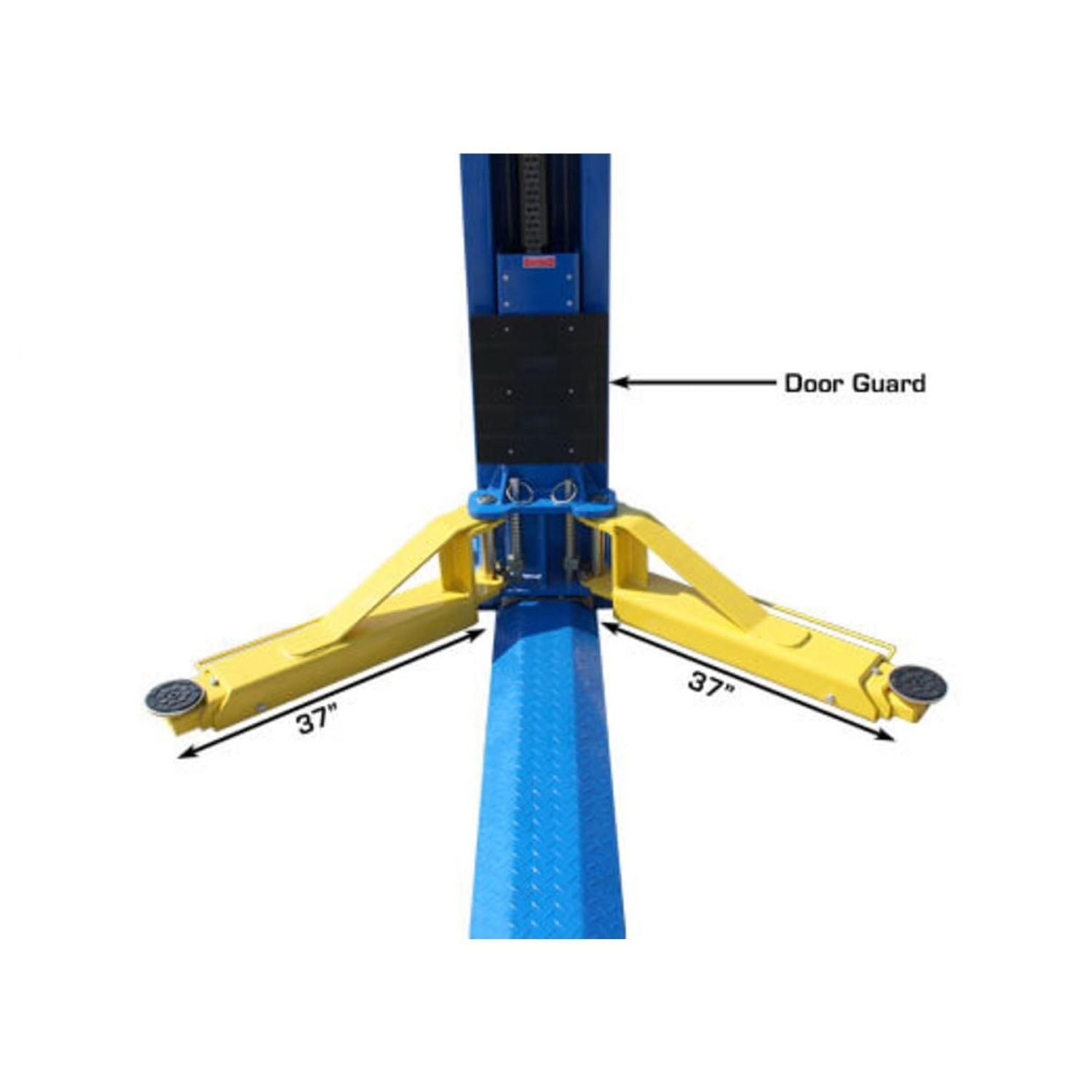

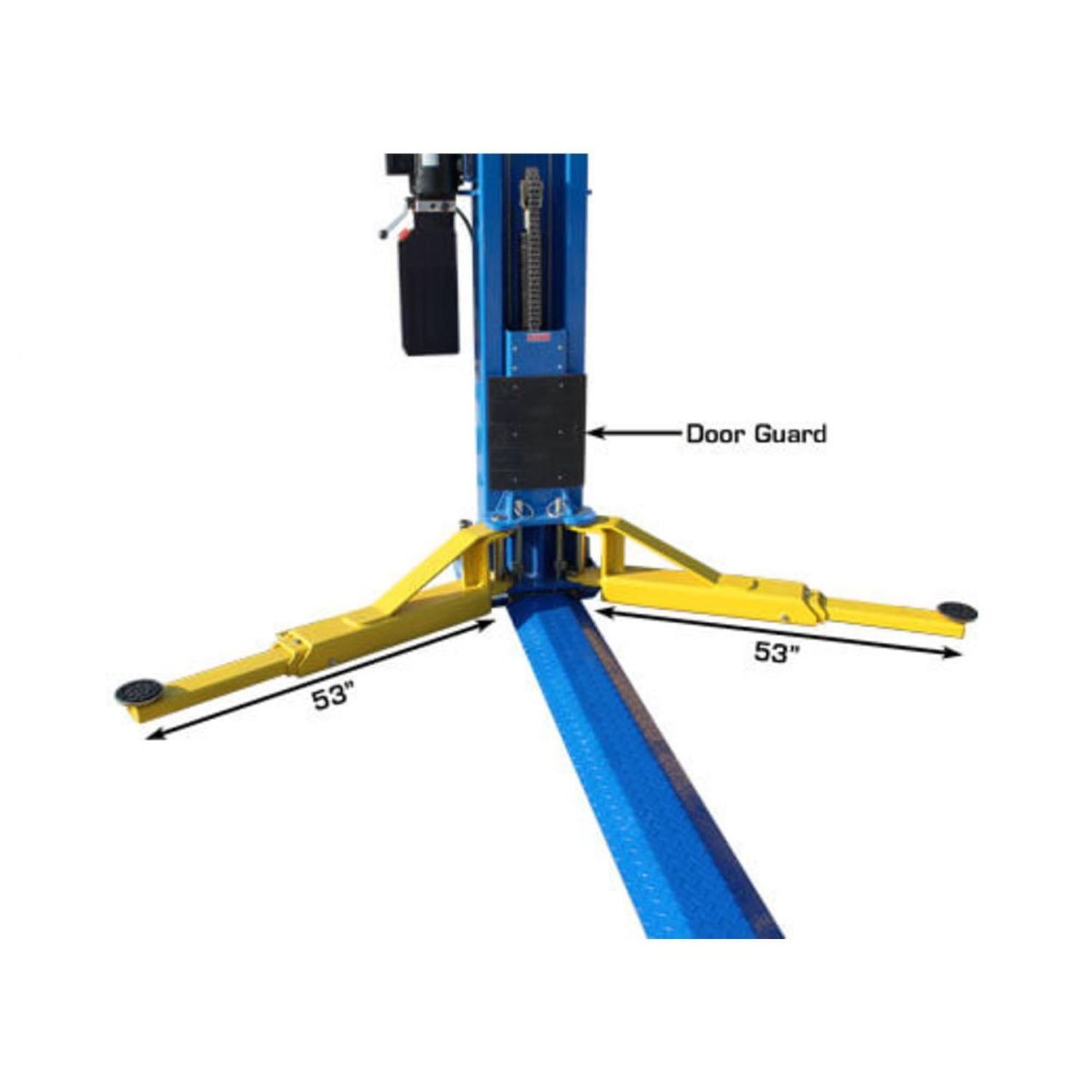

  • 3-Stage Symmetric Arms

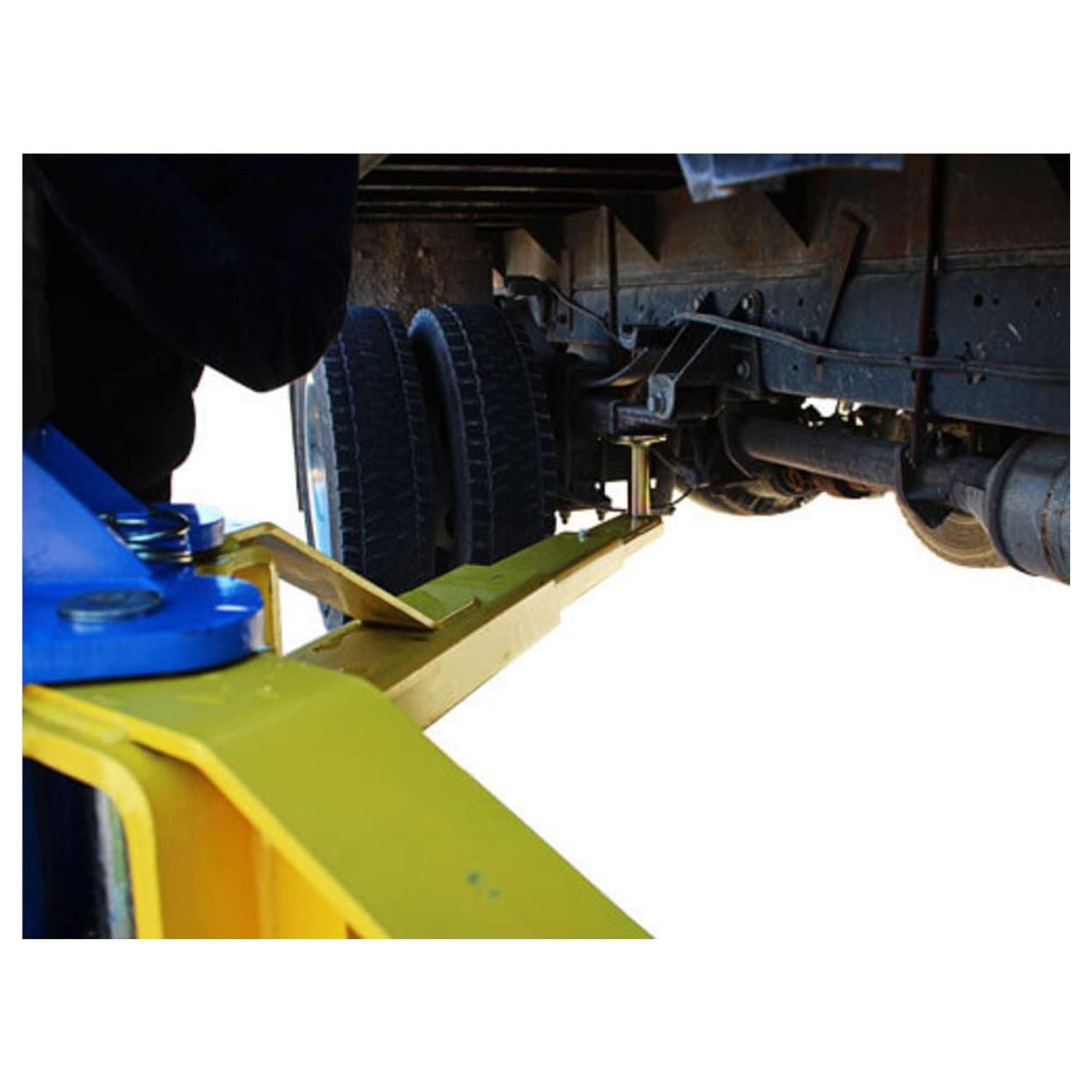

  • Automatic Arm Restraints

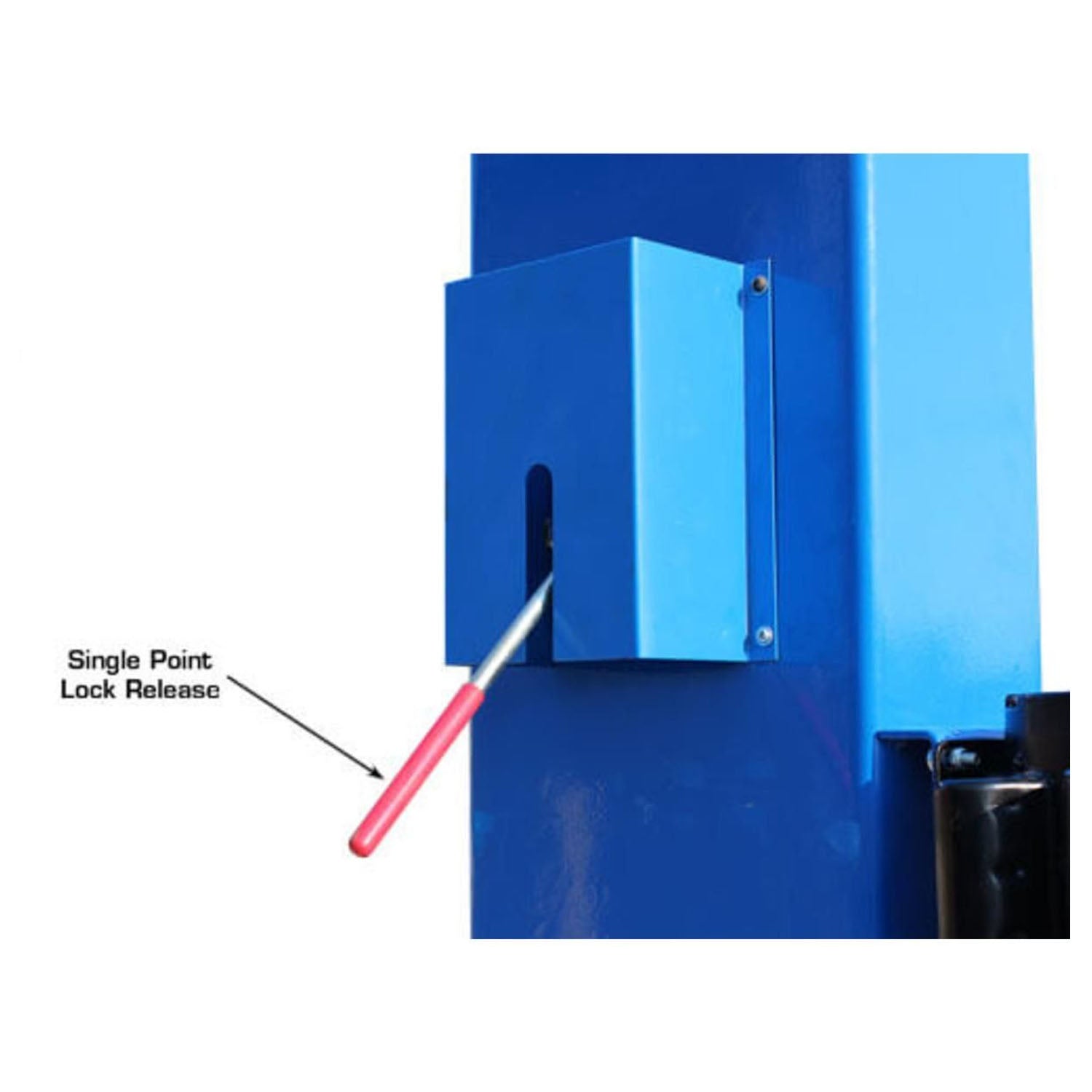

  • Single-Point Lock Release
  • Rubber Guards on Carriages

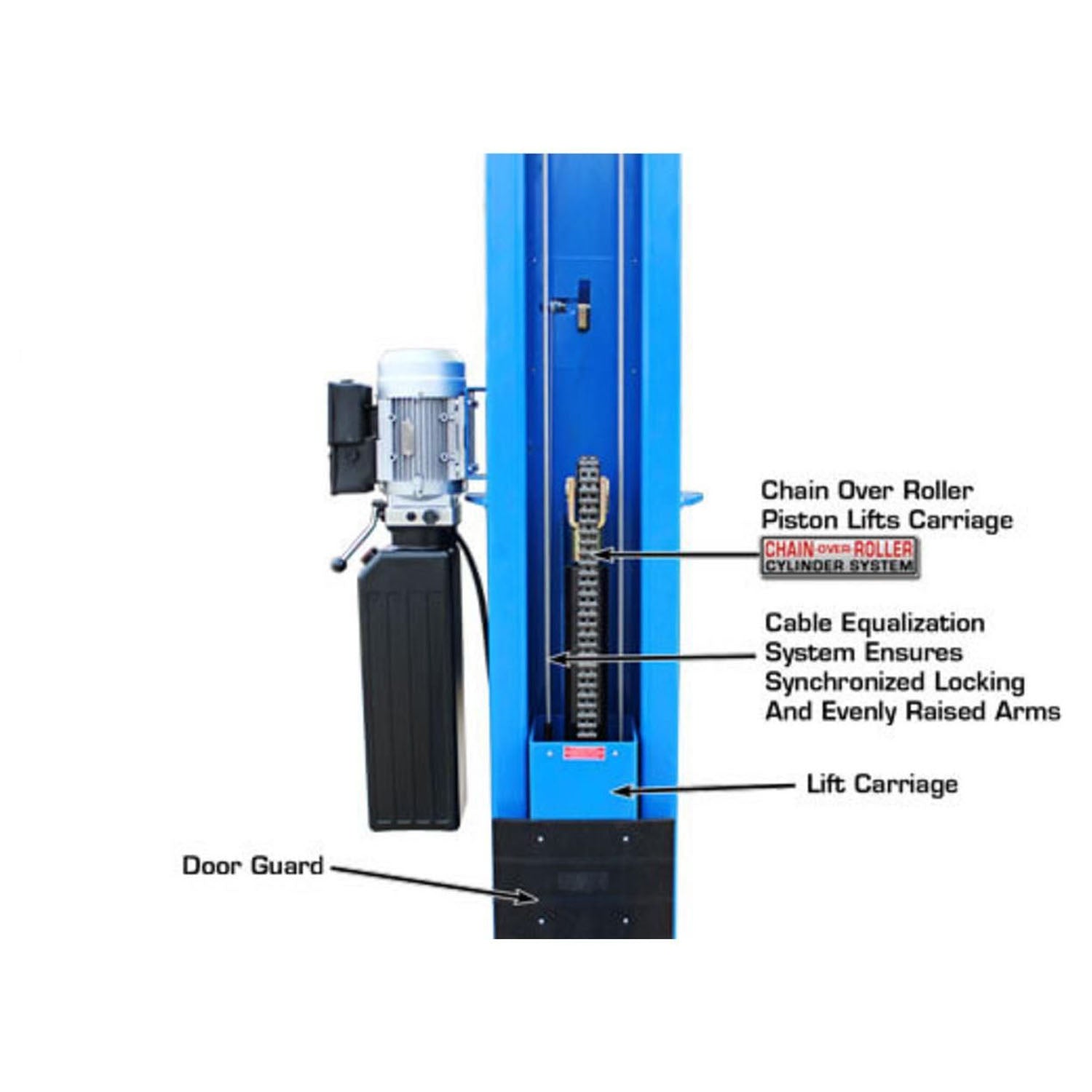

  • Dual Hydraulic Chain-Over Cylinders
  • Powder Coat Finish
  • Free 12-piece Truck Adapter Set

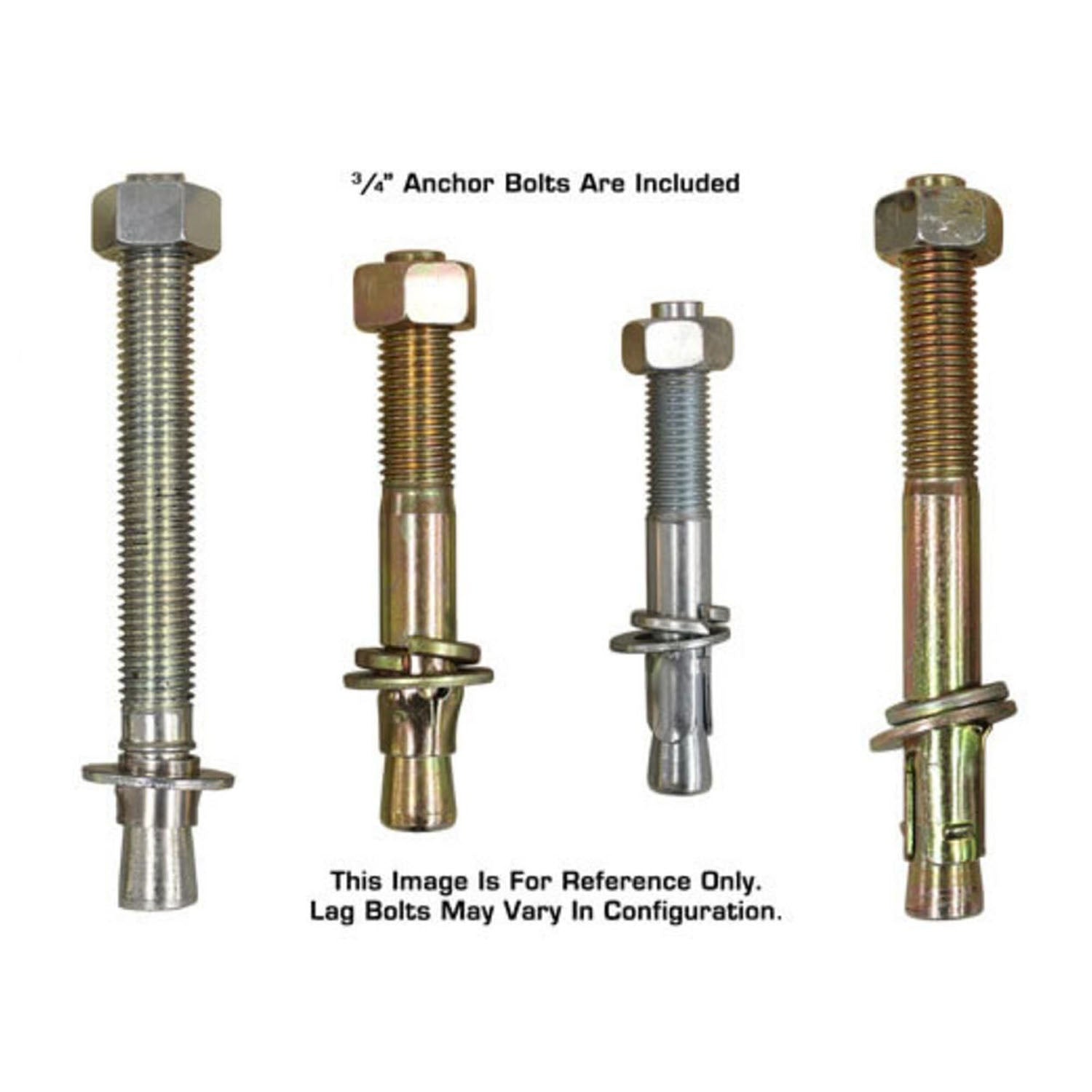

  • Mounting Hardware Included
  • Shipping Weight: 2,130 lbs.
  • 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only

  Includes

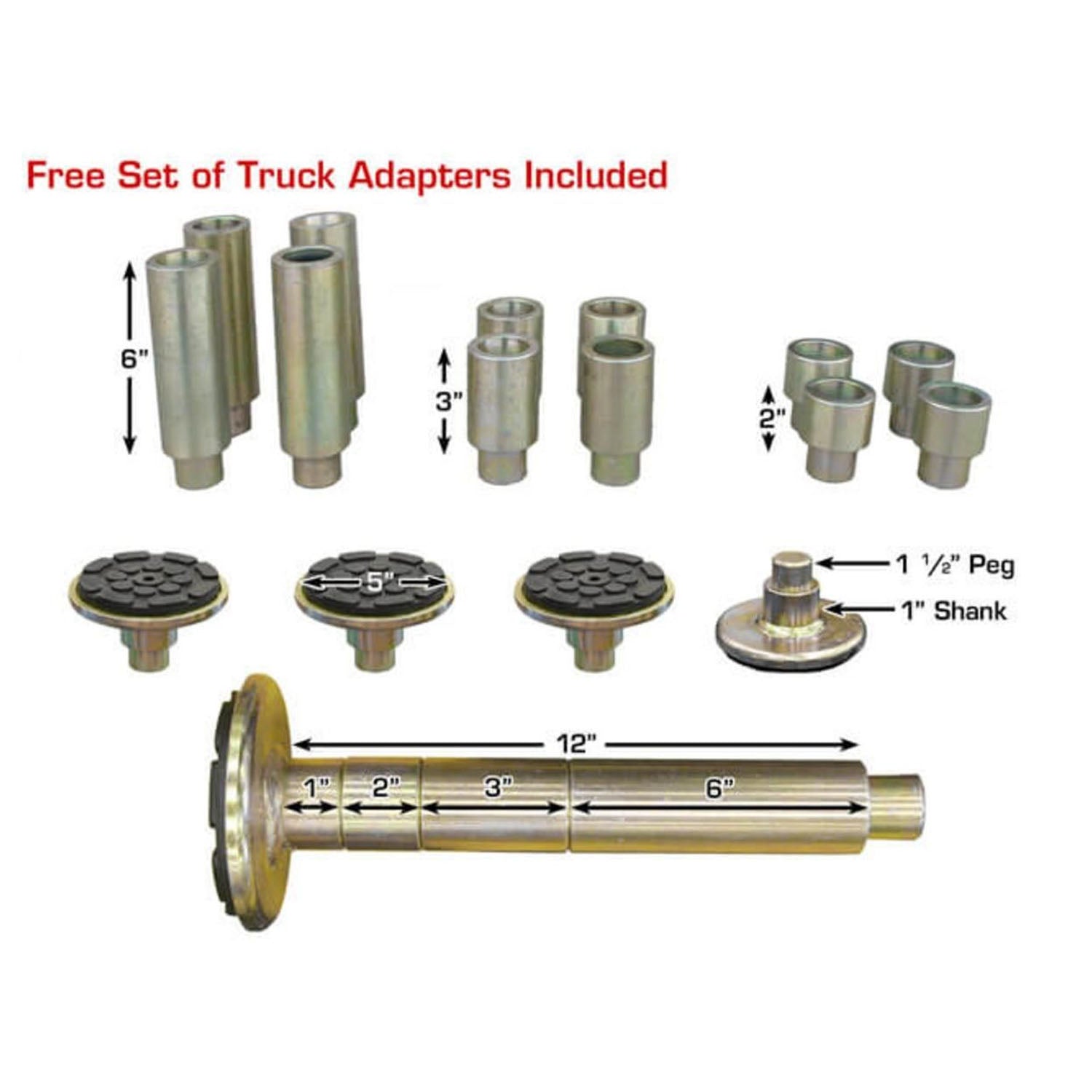

  • 12 Piece Truck Adapter Set

• SPECIFICATIONS

  Lifting Capacity	12,000 lbs

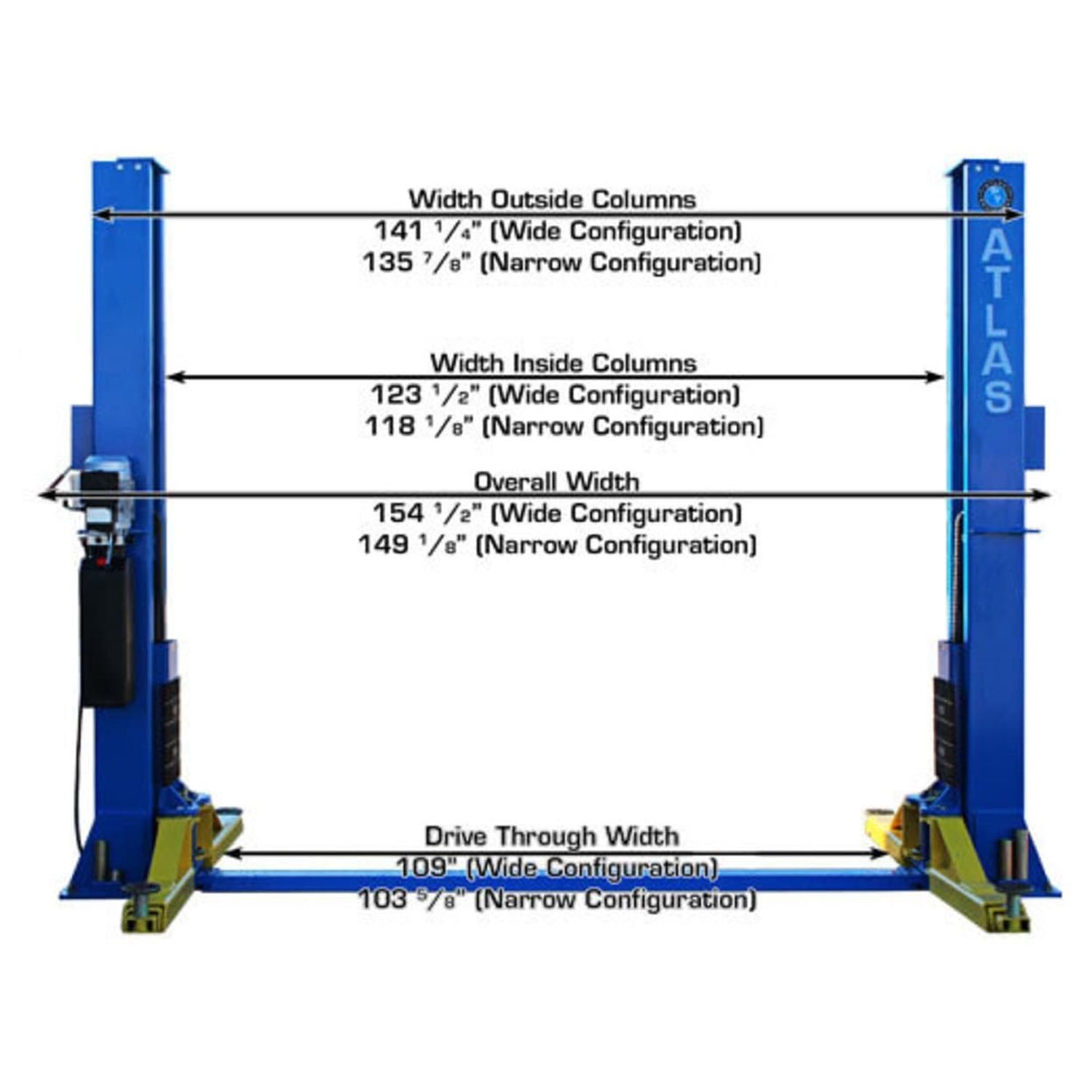

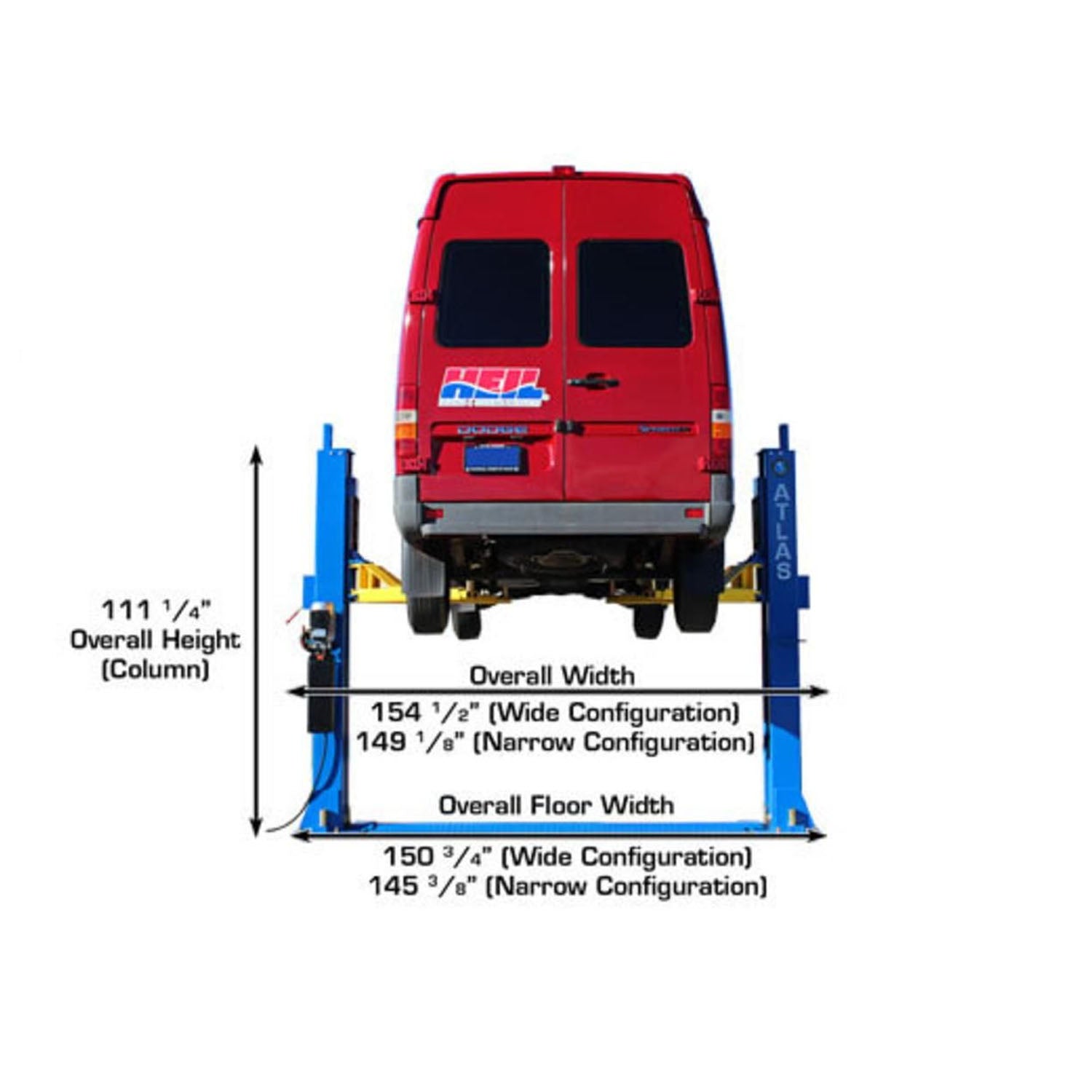

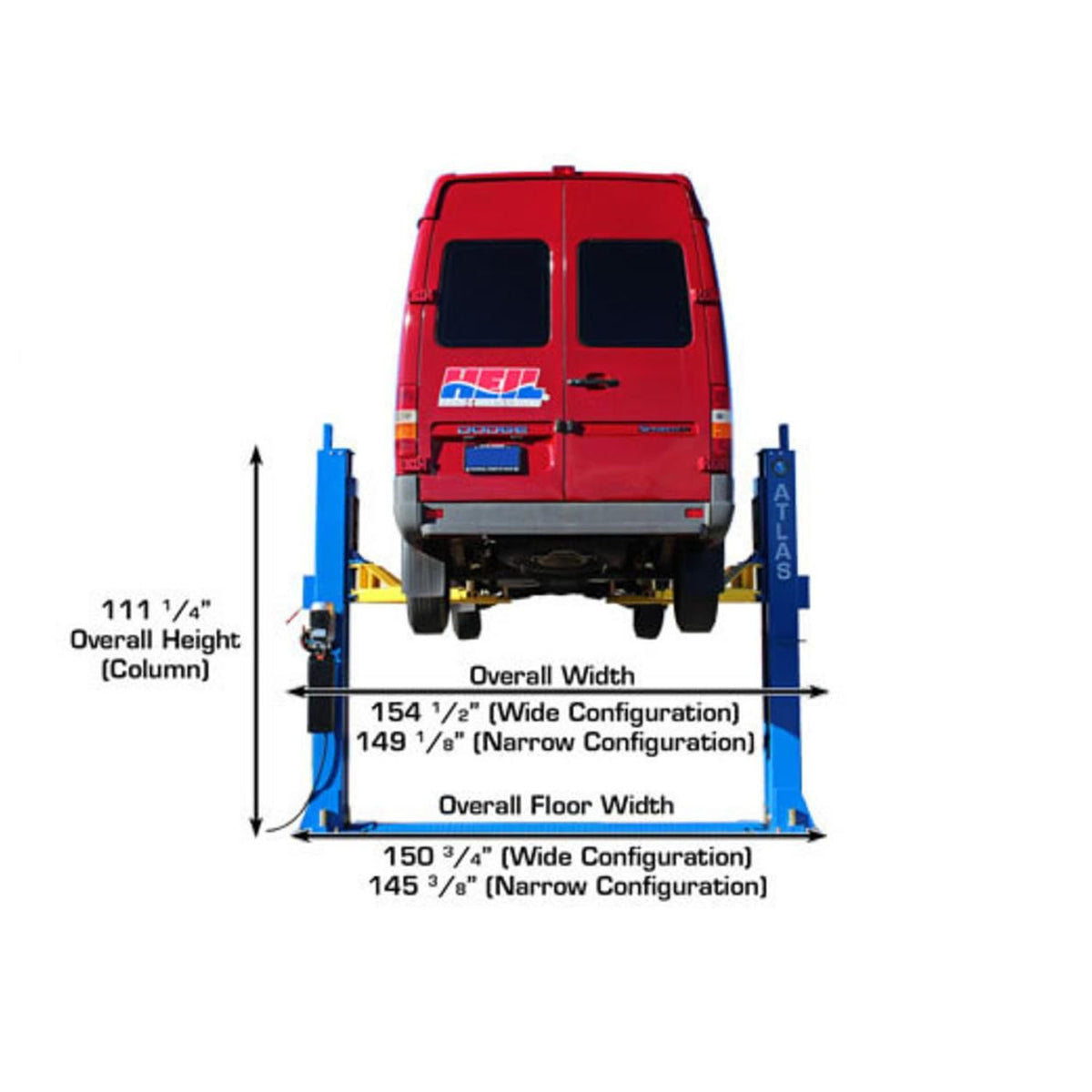

  Overall Floor Width	149 3/8" (12' 5 3/8") or 154 1/2" (12' 10 1/2")

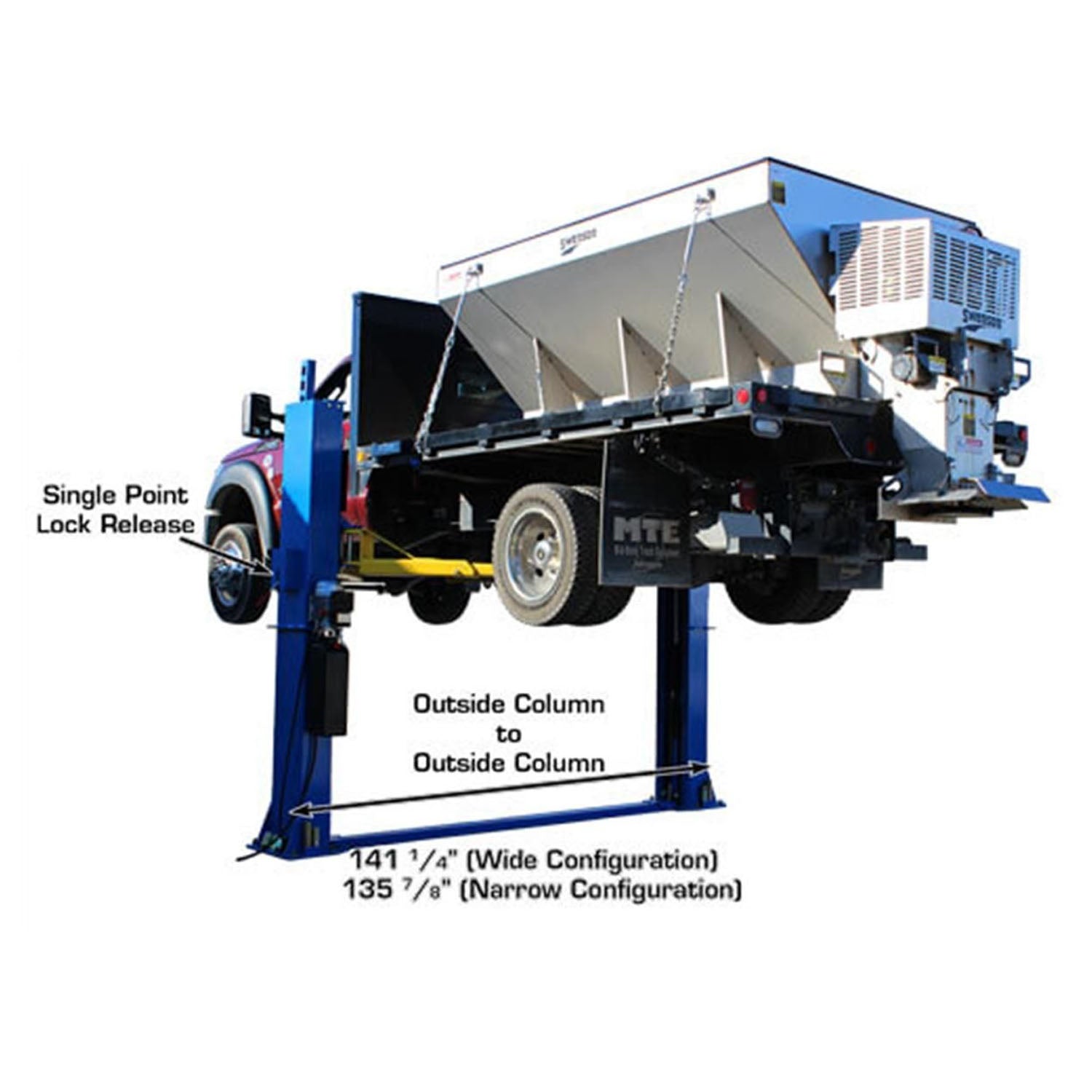

  Outside Column to Outside Column	135 7/8" (11' 3 7/8") or 141 1/4" (11' 9 1/4")

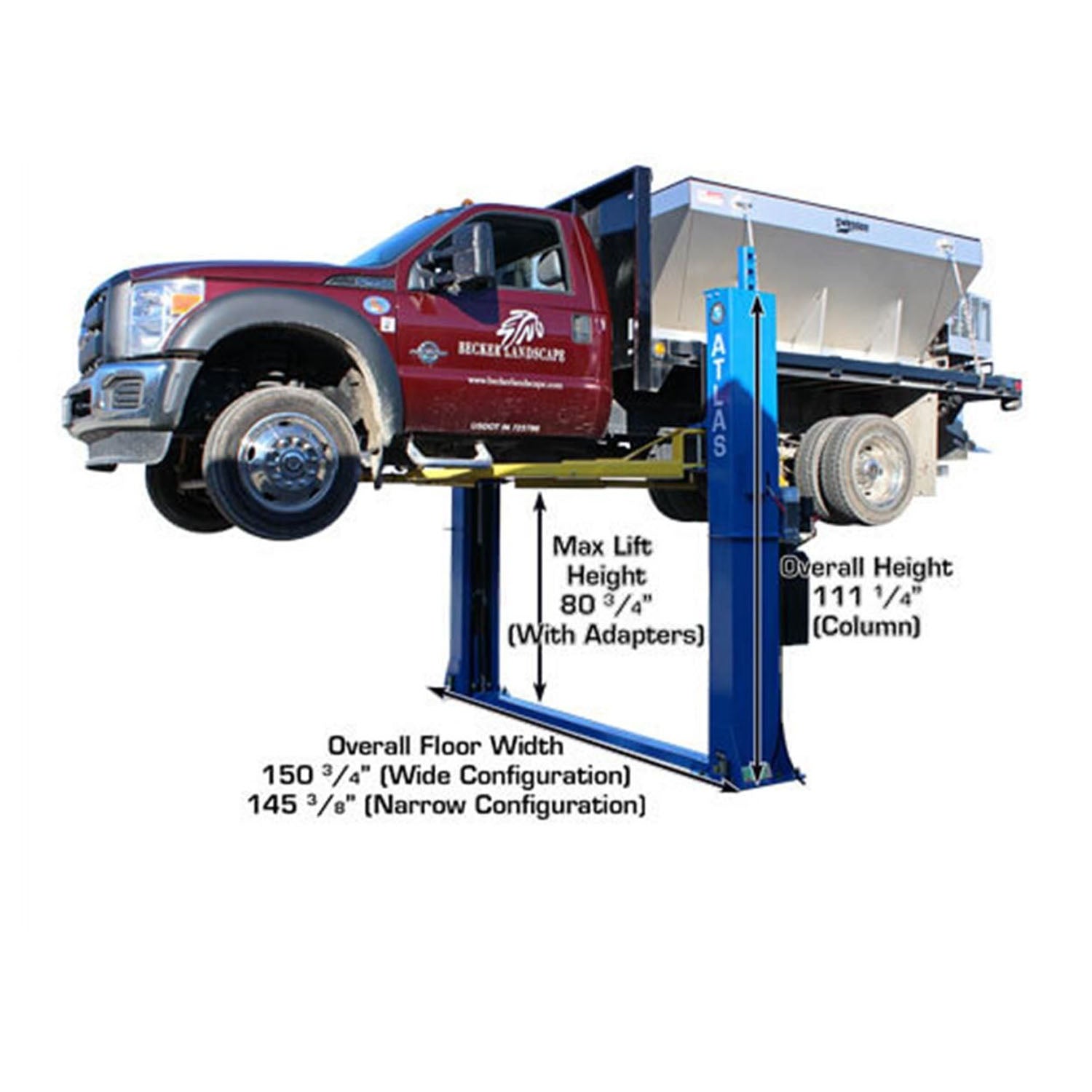

  Maximum Lift Height (Without Adapters)	77 1/2"

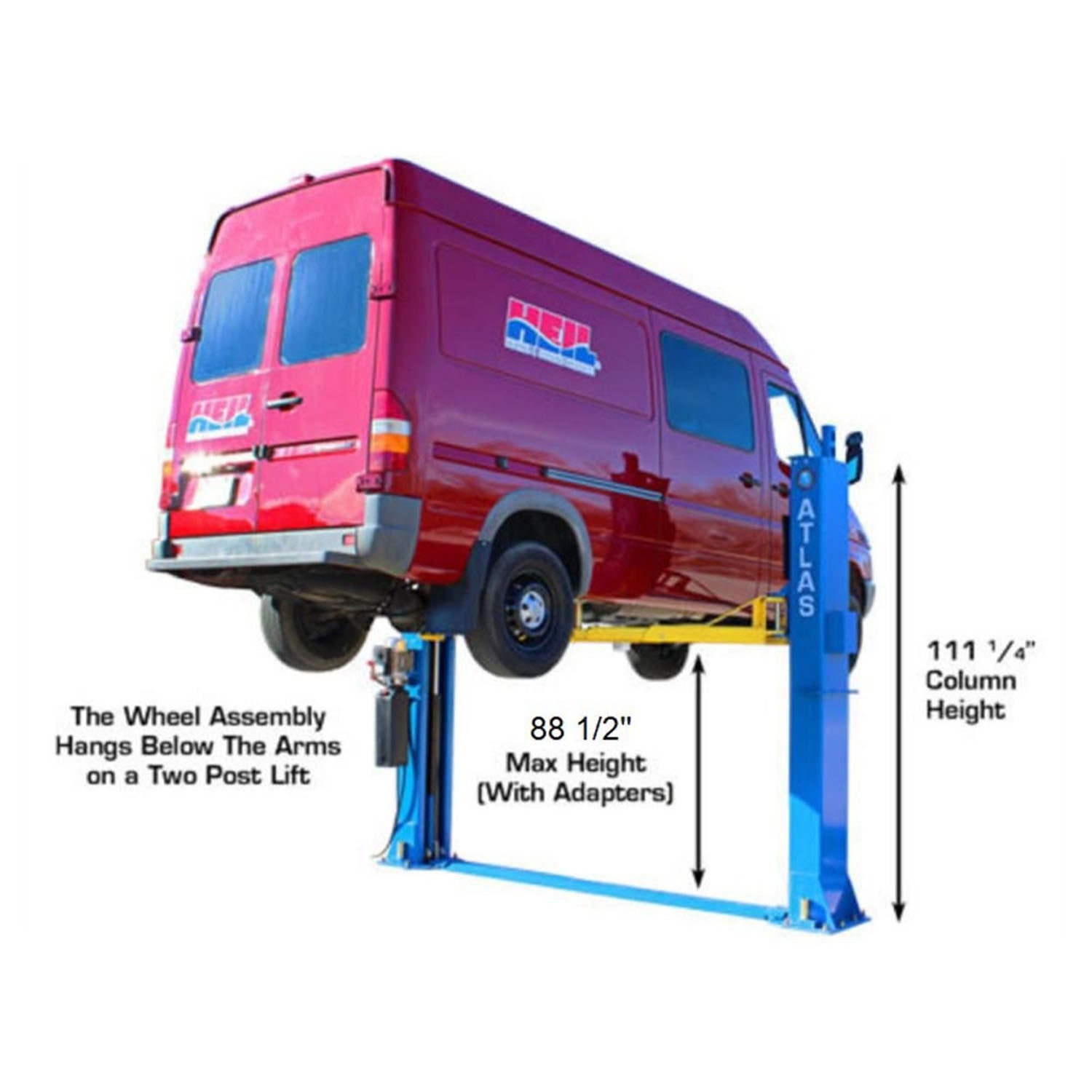

  Maximum Lift Height (With Adapters)	88 1/2"

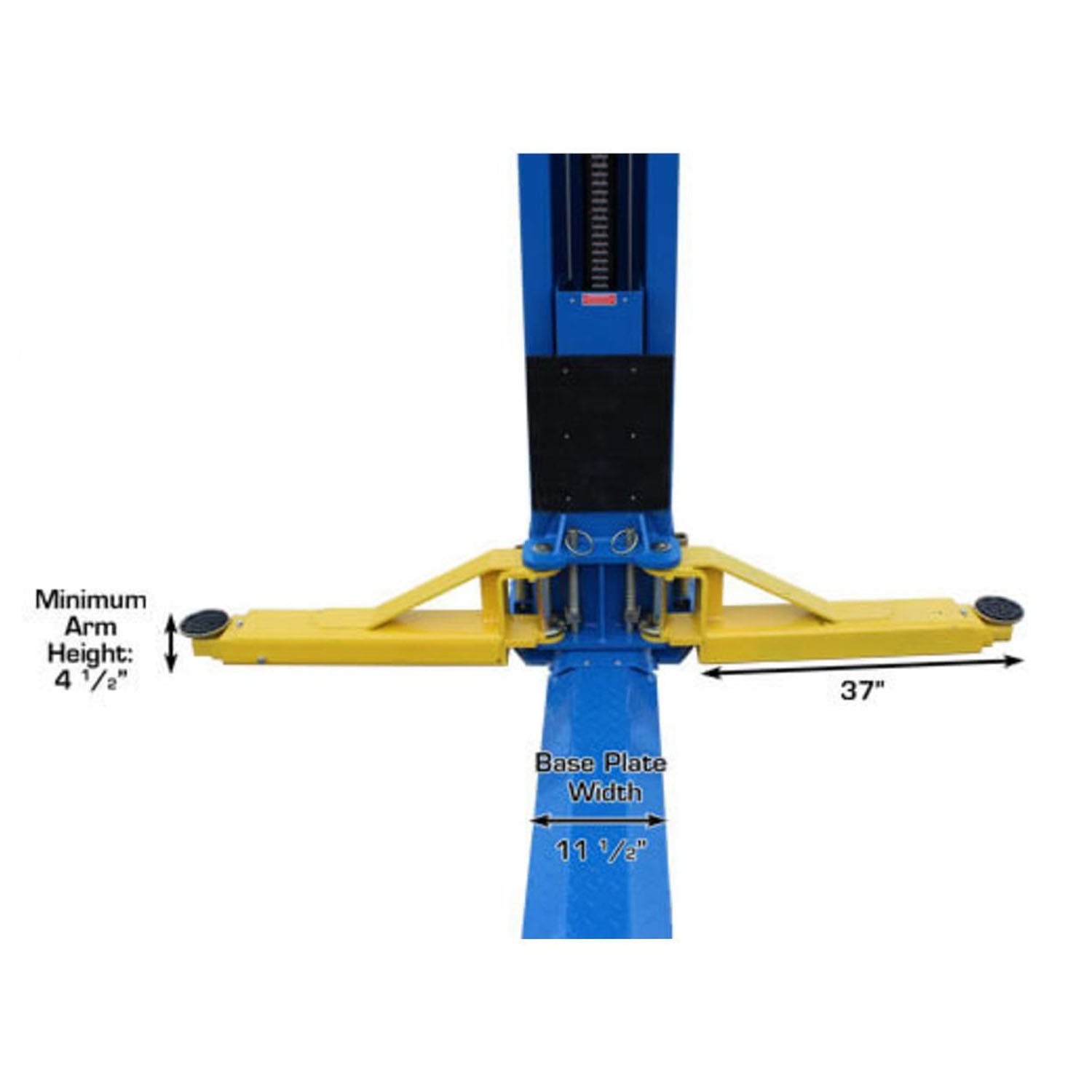

  Minimum Arm Height	4"
  Inside Column	118 1/8" (9' 10 1/8") or 123 1/2" (10' 3 1/2")

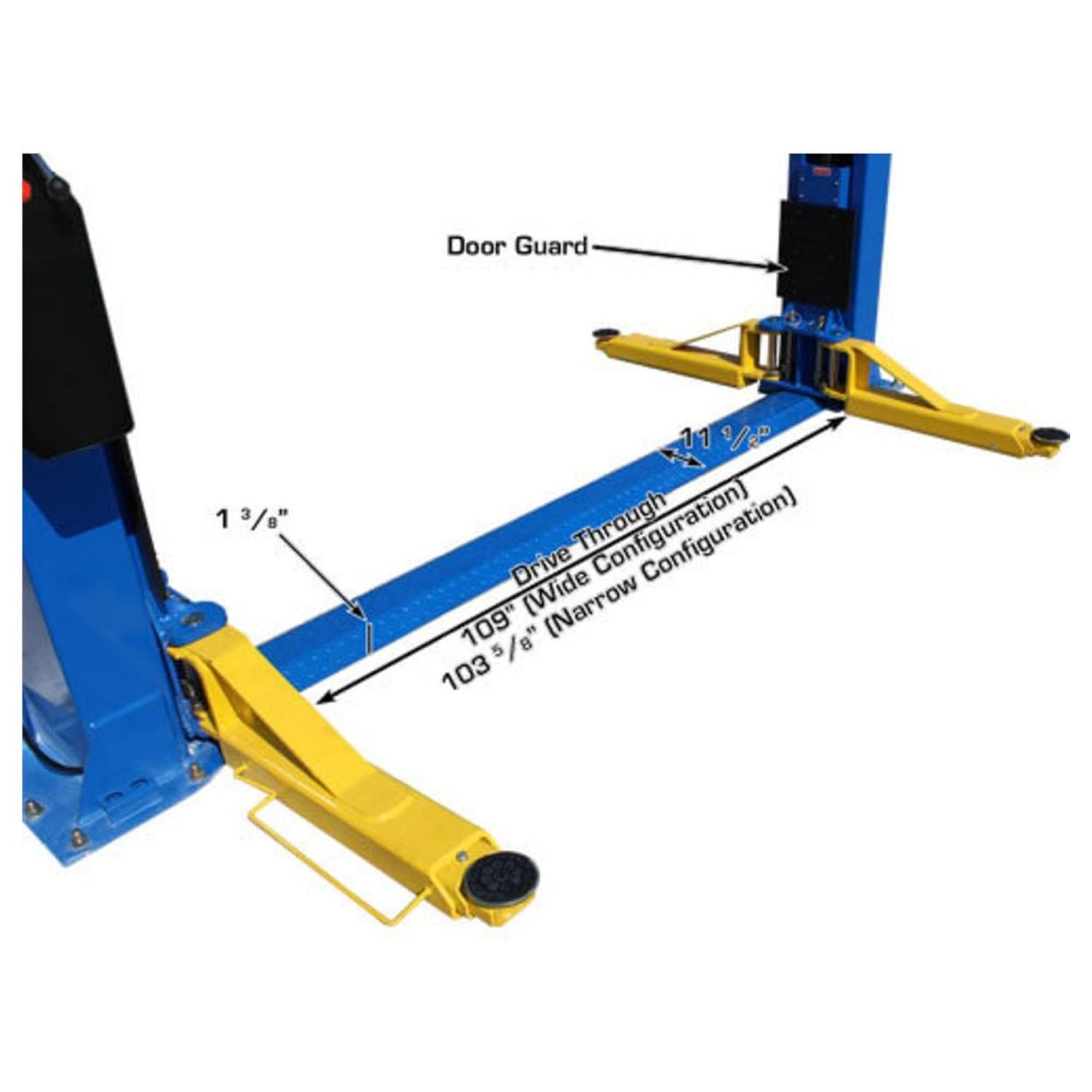

  Drive Thru	103 5/8" (8' 7 5/8") or 109" (9' 1")

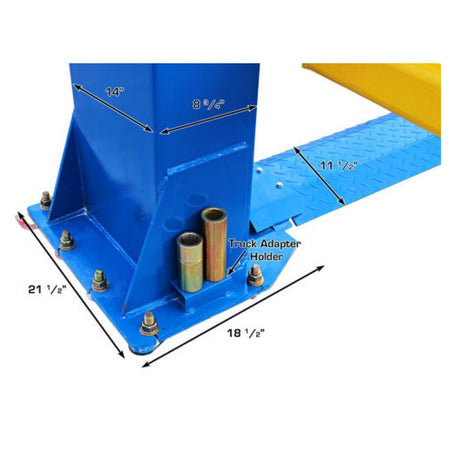

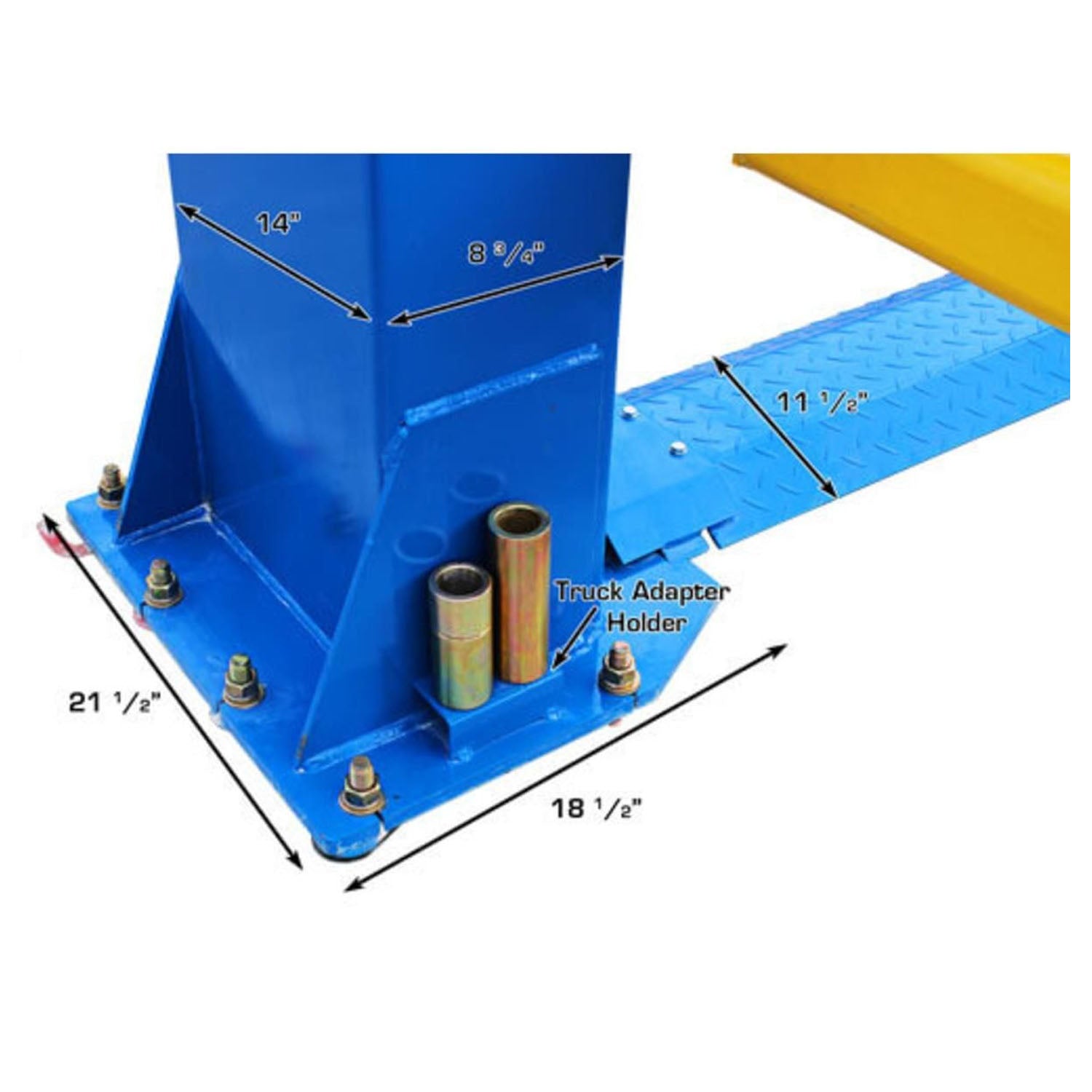

  Column Size	8 3/4" x 14"
  Motor/Electrical Requirement	220 volt single (1) phase. A 30-amp breaker is recommended
  Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
  Shipping Weight	2,130 LBS.

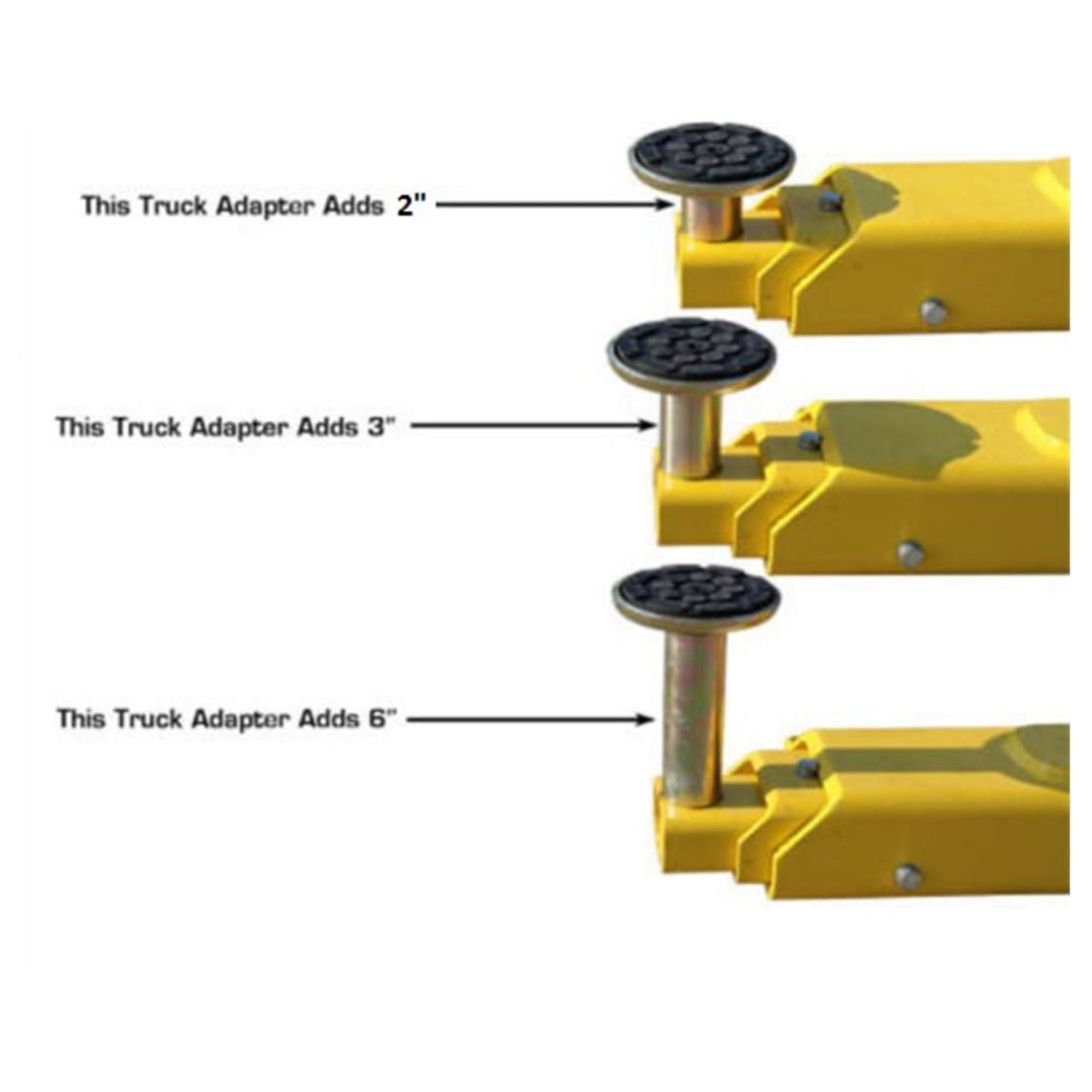

  Adapter Heights	4 Each 2", 3", 6"

• WARRANTY

  Warranty Information

  • 5-Year Structural Warranty

  • 2-year Hydraulic-Power Warranty

  BP-12000 HD Warranty

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
