Atlas® Equipment 9OHSC Overhead 9k lb. Capacity 2-Post Lift #ATEATTD-9OHSC-SS-FPD

• DESCRIPTION
• FEATURE + BENEFITS
• SPECIFICATIONS
• WARRANTY

• DESCRIPTION

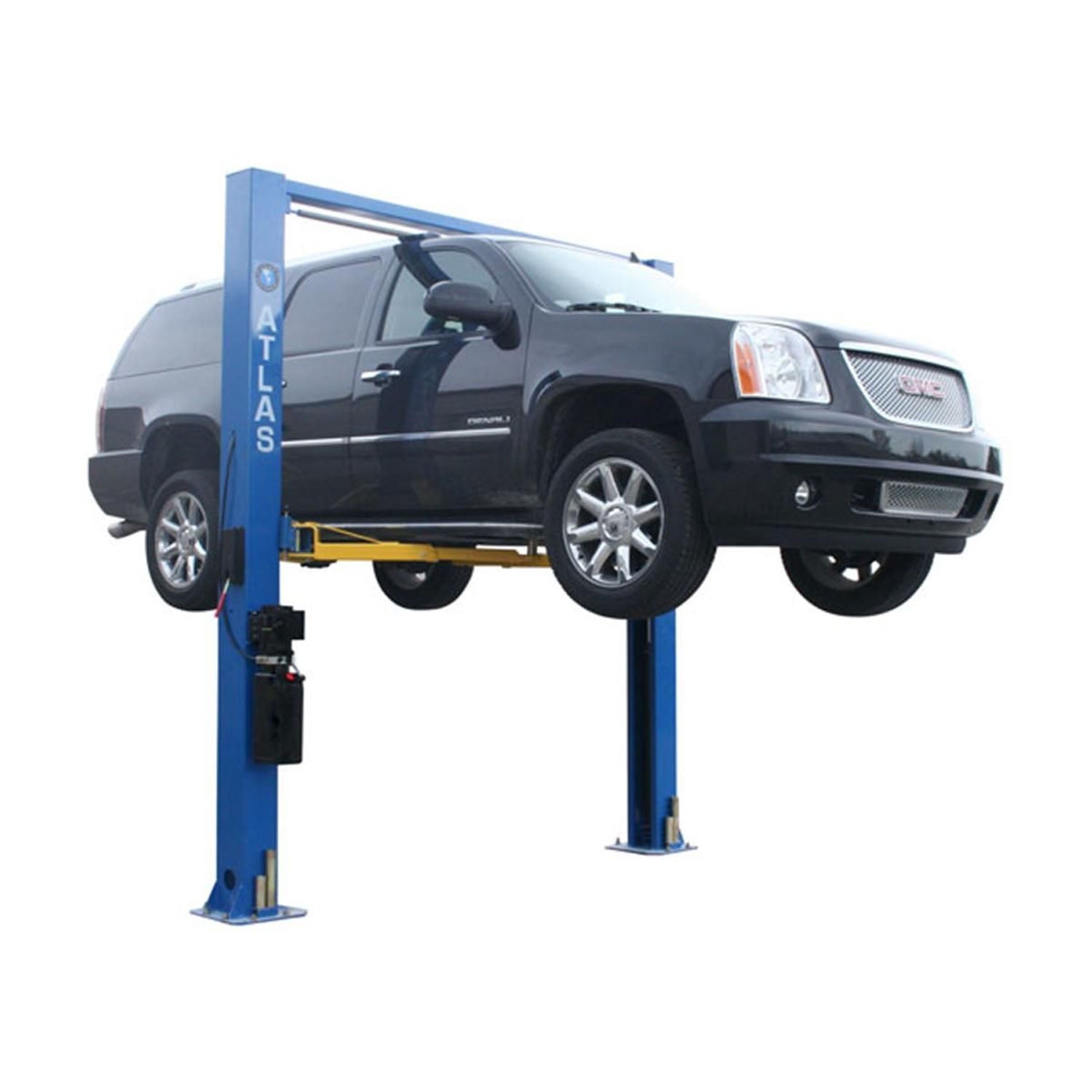

  Atlas® 9OHSC Two-Post Above-Ground Lift

  The Atlas® 9OHSC two-post lift is the ideal solution for smaller commercial repair shops or home mechanics who need top-tier quality at an unbeatable price. With a true 9,000 lb. lifting capacity, the 9OHSC delivers exceptional value for those seeking reliable performance.

  Designed to handle a wide range of vehicles, from compact Smart Cars® to large SUVs, the Atlas® 9OHSC is built to provide the strength and stability required for everyday lifting. Featuring a single-piece 11’ 10” formed column and an extra-long carriage, it ensures maximum arm and column strength to safely lift and support up to 9,000 lbs.

  Built for durability, the Atlas® 9OHSC’s single-piece columns and extended carriages are engineered for long-lasting, trouble-free service. Please note: due to the single-piece column design, a 12-foot ceiling height is required for installation.

  Choose the Atlas® 9OHSC for superior performance, quality, and value—your go-to lift for various vehicles.

• FEATURES + BENEFITS

  • 9,000 lb. Capacity
  • Overhead, Open-Floor Lift

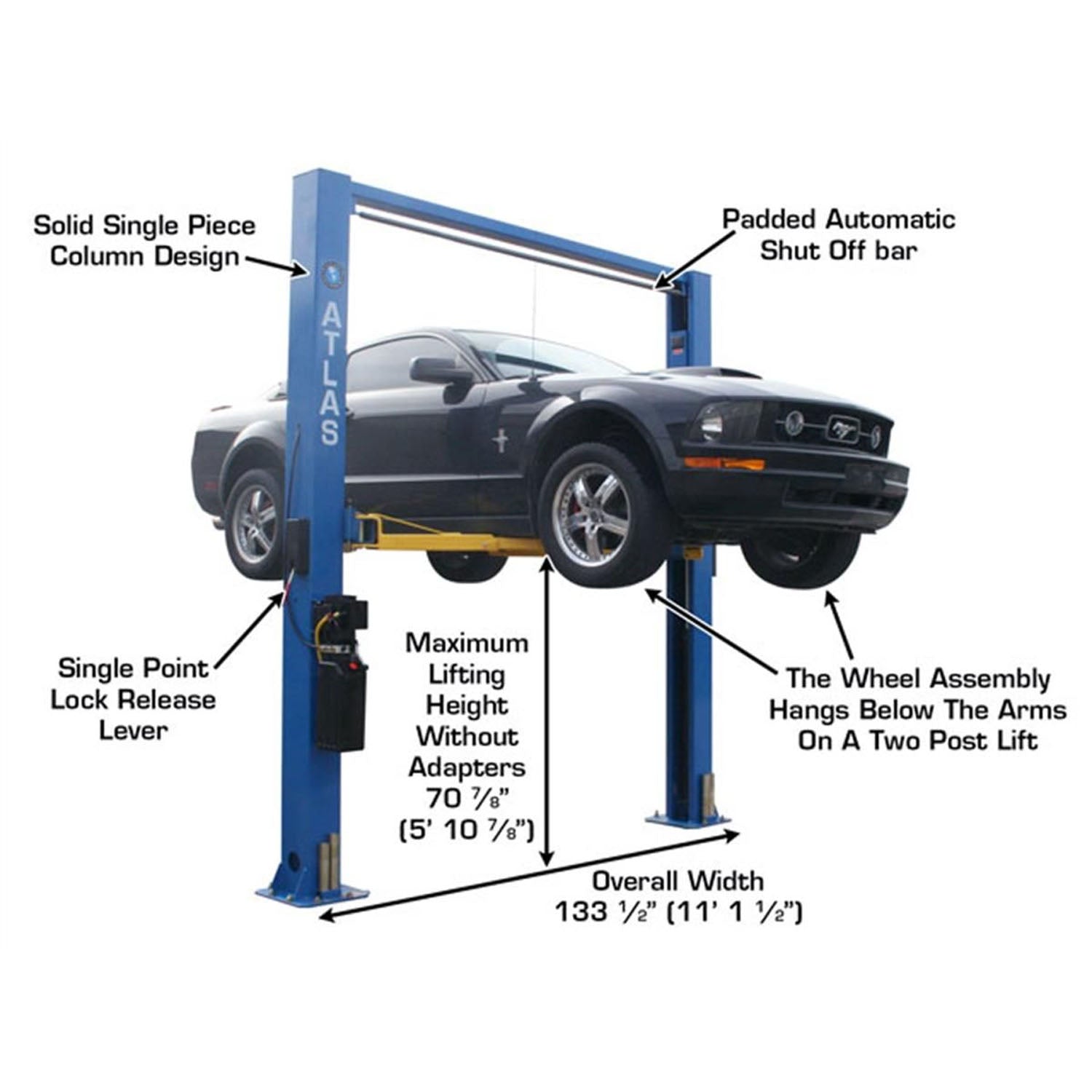

  • Single-Piece Column Design
  • Overall Height: 142' (11' 10')
  • 3-Stage Front Arms/2-Stage Rear Arms
  • Automatic Arm Restraints
  • Single-Point Lock Release
  • Rubber Guards on Carriages
  • Dual Hydraulic Chain-Drive Cylinders
  • Free 12 Piece Truck Adapter Set

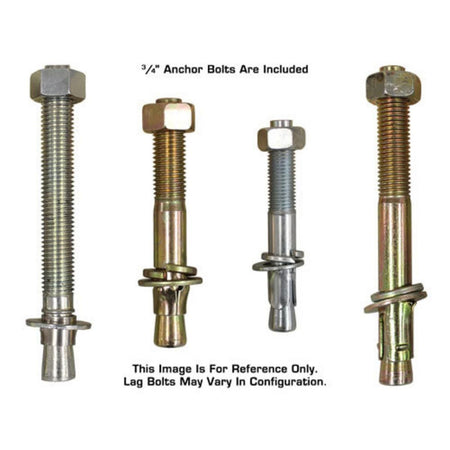

  • Mounting Hardware Included

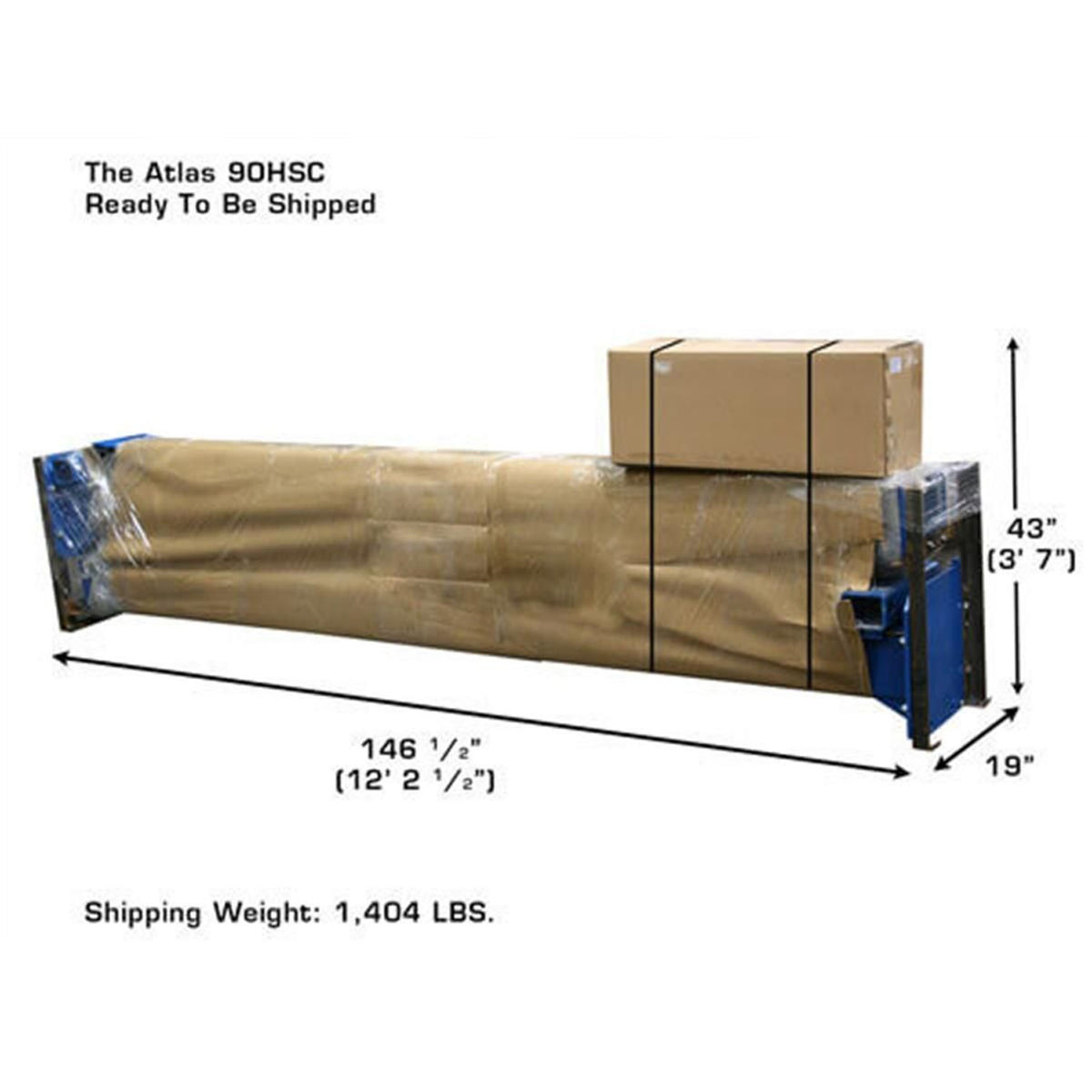

  • Shipping Weight: 1,430 lbs.
  • 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
  • This part number is FREIGHT PREPAID

• SPECIFICATIONS

  Lifting Capacity	9,000 lbs

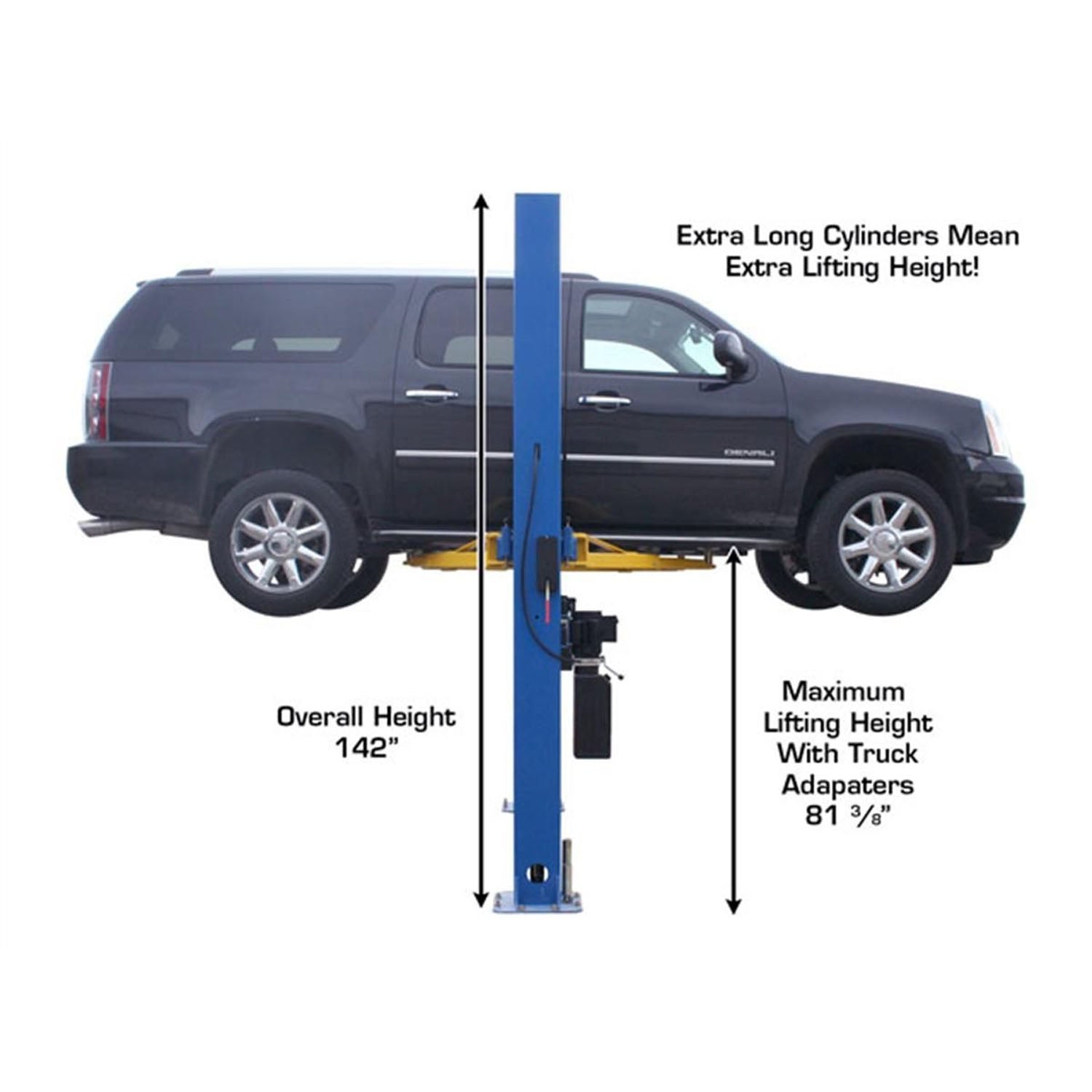

  Overall Height	11' 10" (142")
  Overall floor Width	11' 1 1/2" (133 1/2")
  Outside Column to Outside Column	10' 5 1/2" (125 1/2")
  Maximum Lift Height (without adapters)	76 3/4"
  Maximum Lift Height (with adapters)	87 3/4"
  Maximum Arm Height	4"
  Inside Column	9' 1/2" (109 1 1/2")
  Drive Thru	8' 4 1/2" (100 1/2")
  Column Size	8 x 9 1/2"
  Column Thickness of Steel	5mm
  Base of Lift	16 3/4" x 17 3/4"
  Motor/Electrical Requirement	220 volt single (1 phase) (A 30 amp breaker recommended)
  Oil Requirements	3-5 Gallons AWS/AW46 (not included)
  Shipping Weight	1,430 lbs.
  Adapter Heights	4 each - 2", 3", 6"
  Arm Hole/Adapter Peg Size	1.5"
  Requires a minimum of	4" concrete with a 3000 psi rating

• WARRANTY

  Warranty Information

  • 5-Year Structural Warranty
  • 1-Year Hydraulic Cylinder Warranty
  • 1-Year Hydraulic-Power Warranty
  9OHSC Warranty

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
