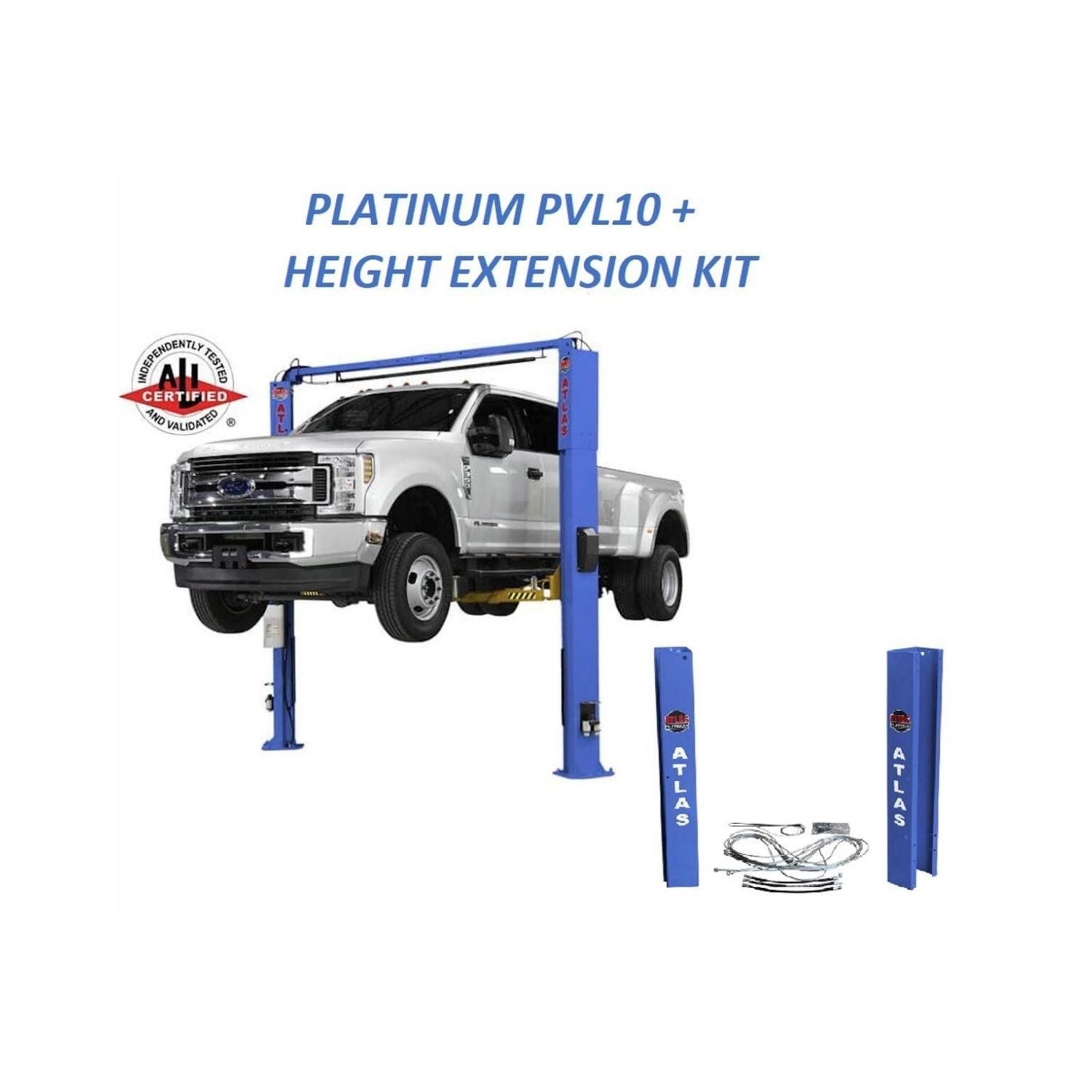

Atlas® Platinum PVL10 Lift – Height Extension Kit #ATEAP-PVL10-EXT-FPD
Couldn't load pickup availability
Meets the highest safety standards set by the Automotive Lift Institute.
Quick Specs
| Model / Part Number | ATEAP-PVL10-EXT-FPD |
| Capacity | 10,000 lbs |
| ALI Certified | Yes |
| Lift Type | Height-extension overhead 2-post lift |

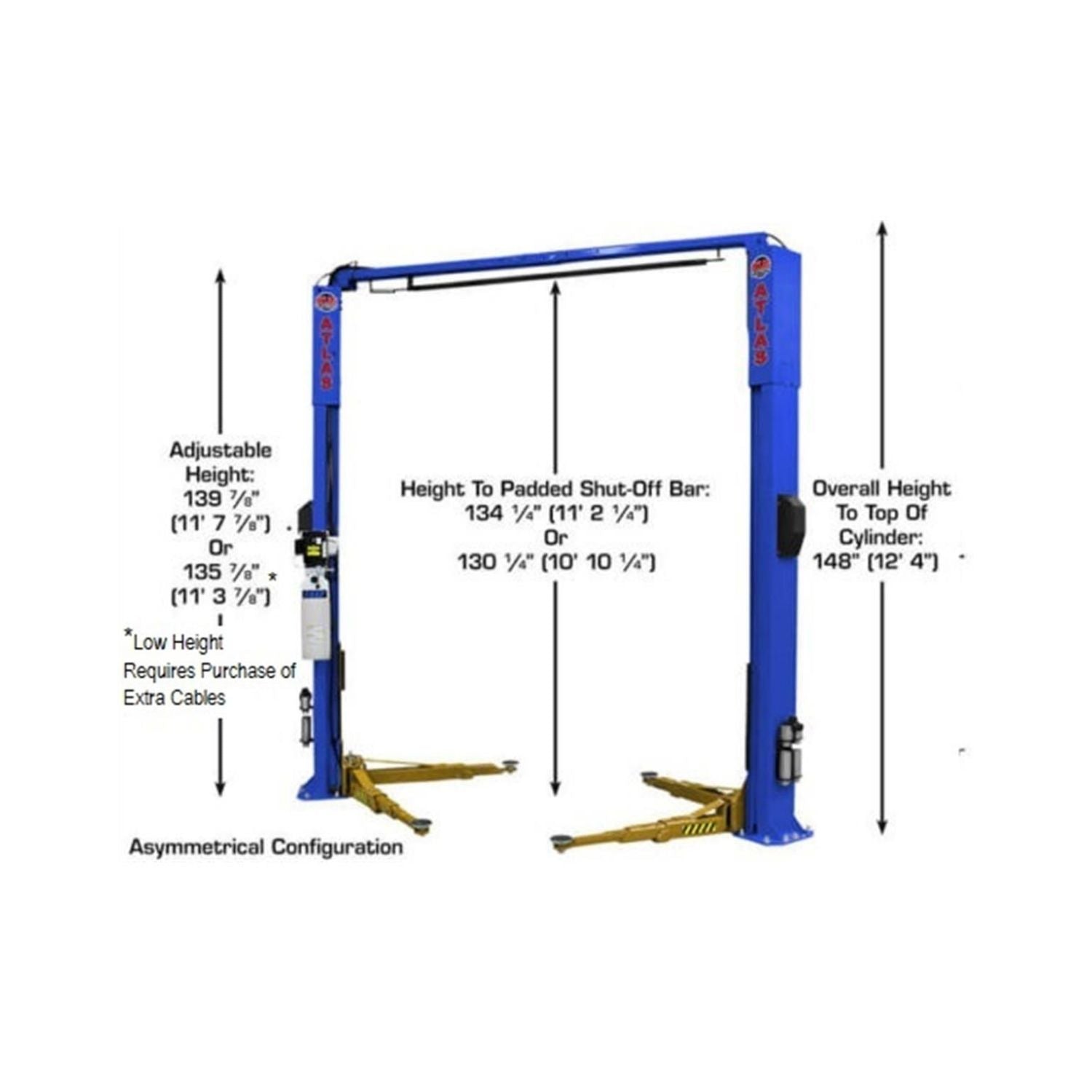

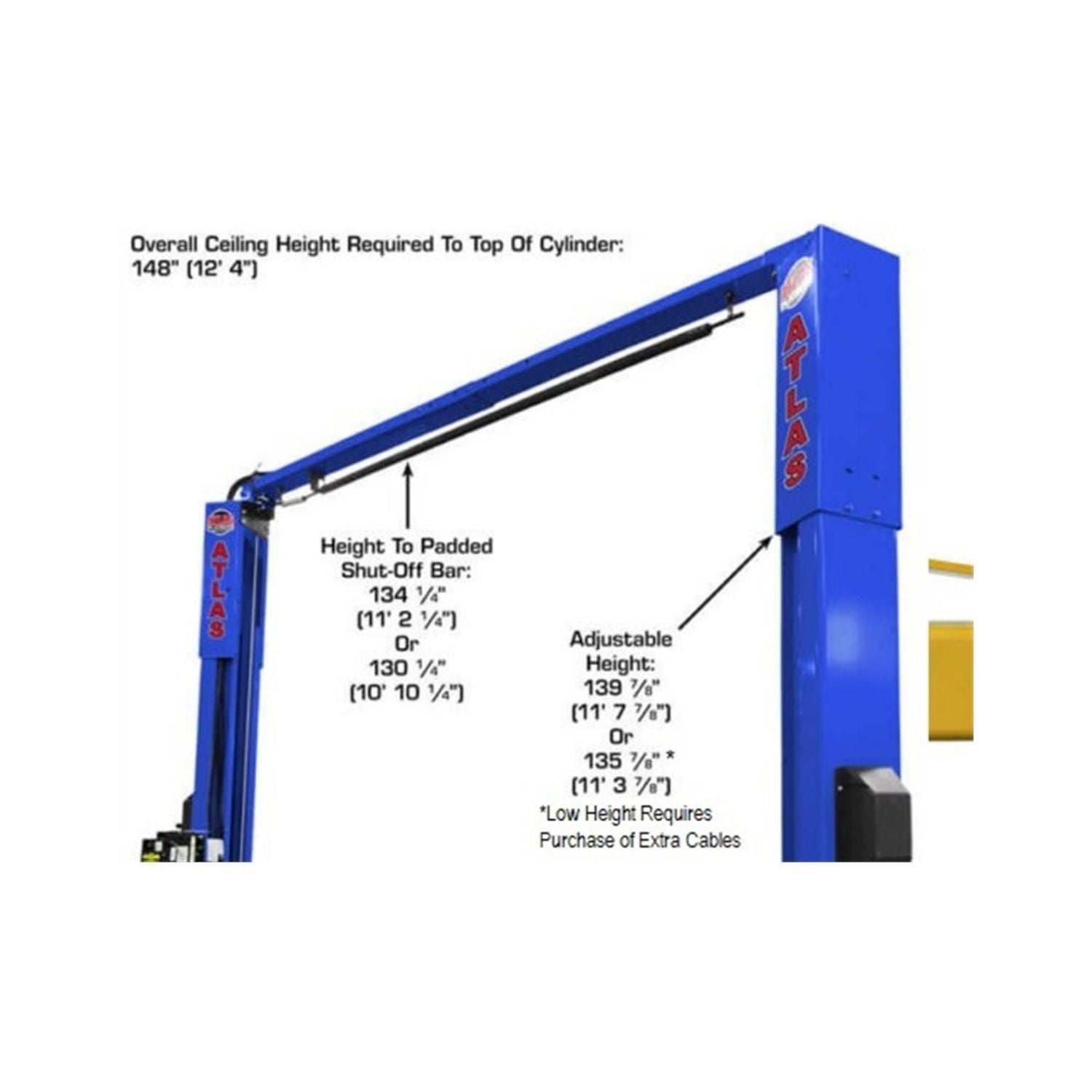

| Overall Height | 159 7/8" or 163 7/8" |

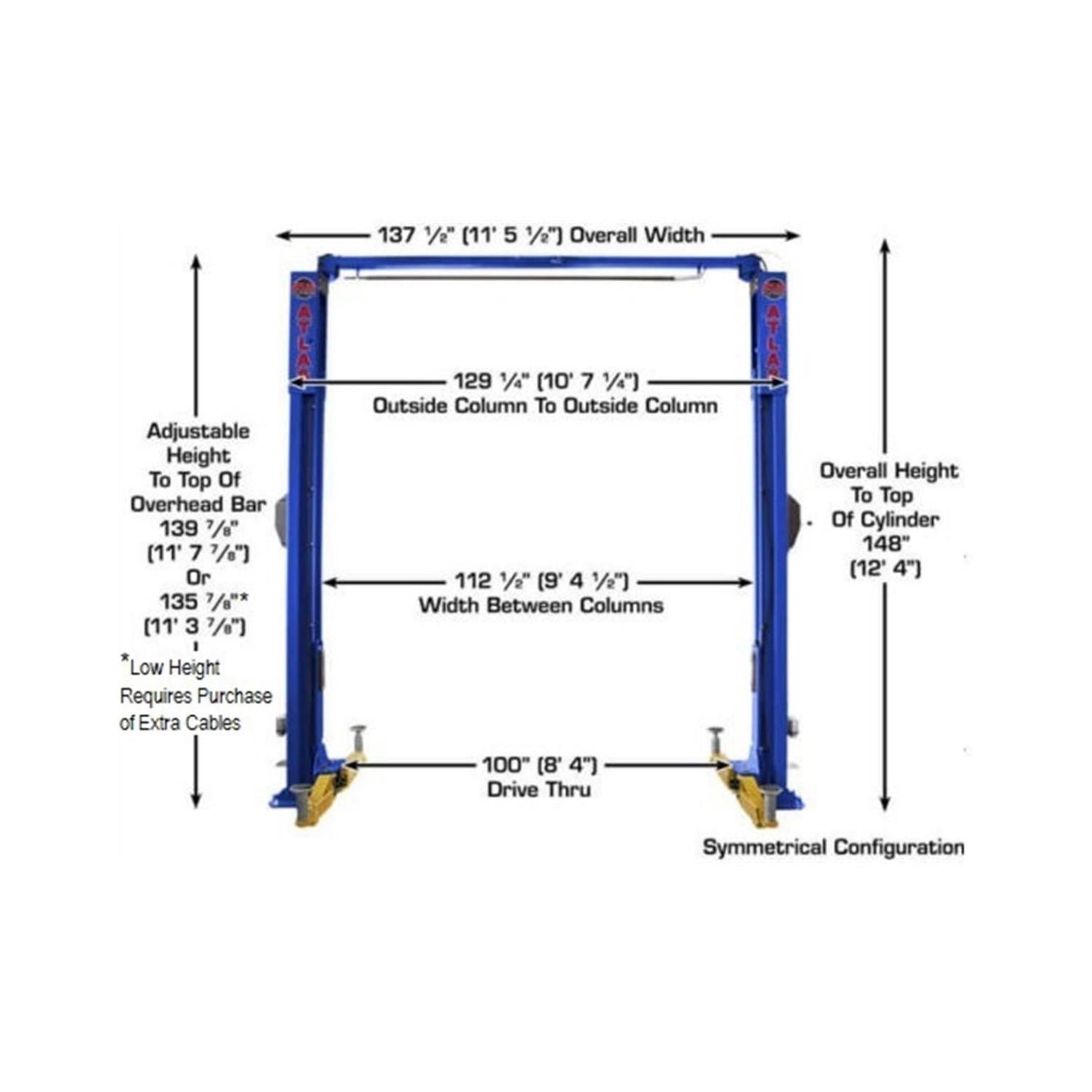

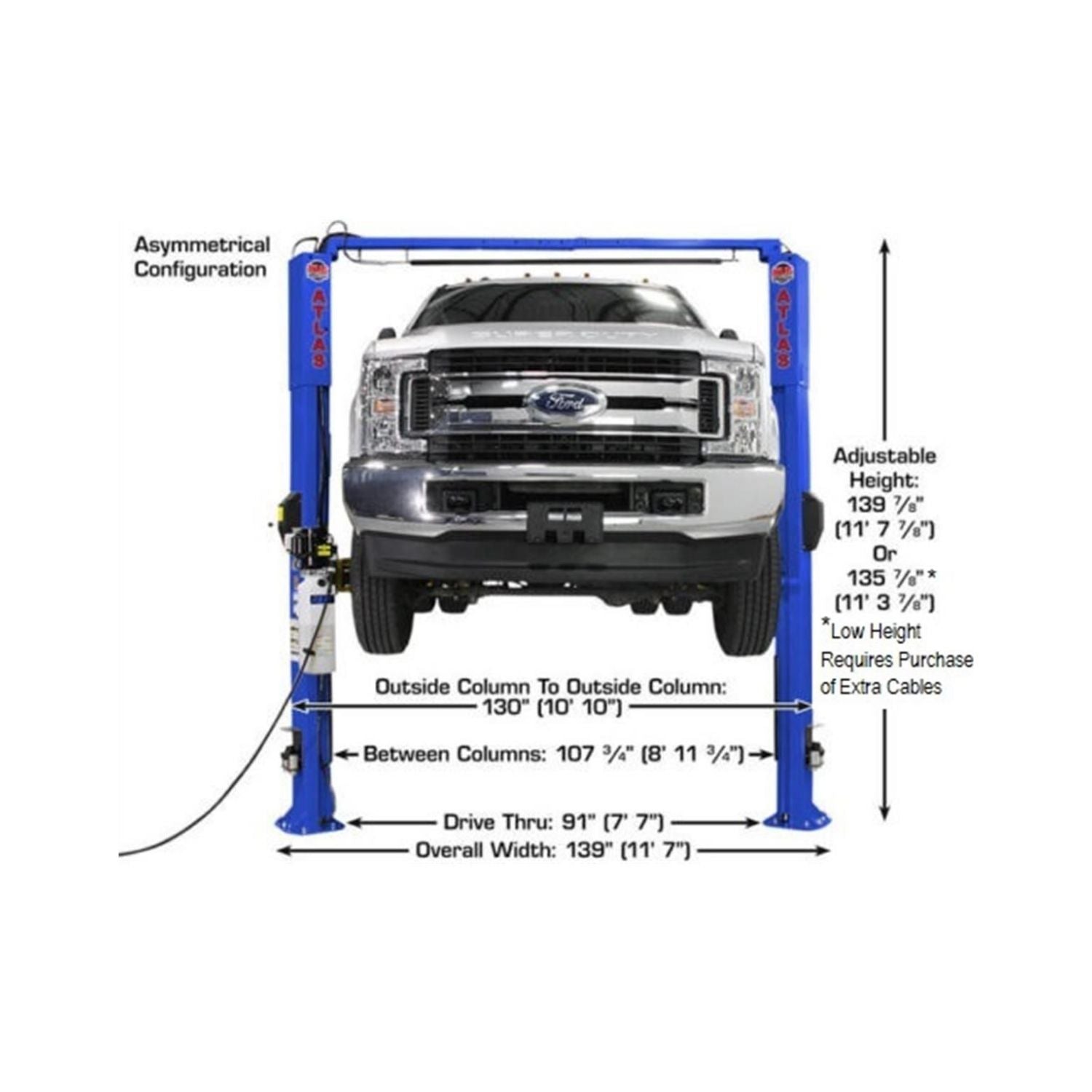

| Overall Width | 139" asymmetric / 137 1/2" symmetric |
| Inside Columns | 107 3/4" asymmetric / 112 1/2" symmetric |

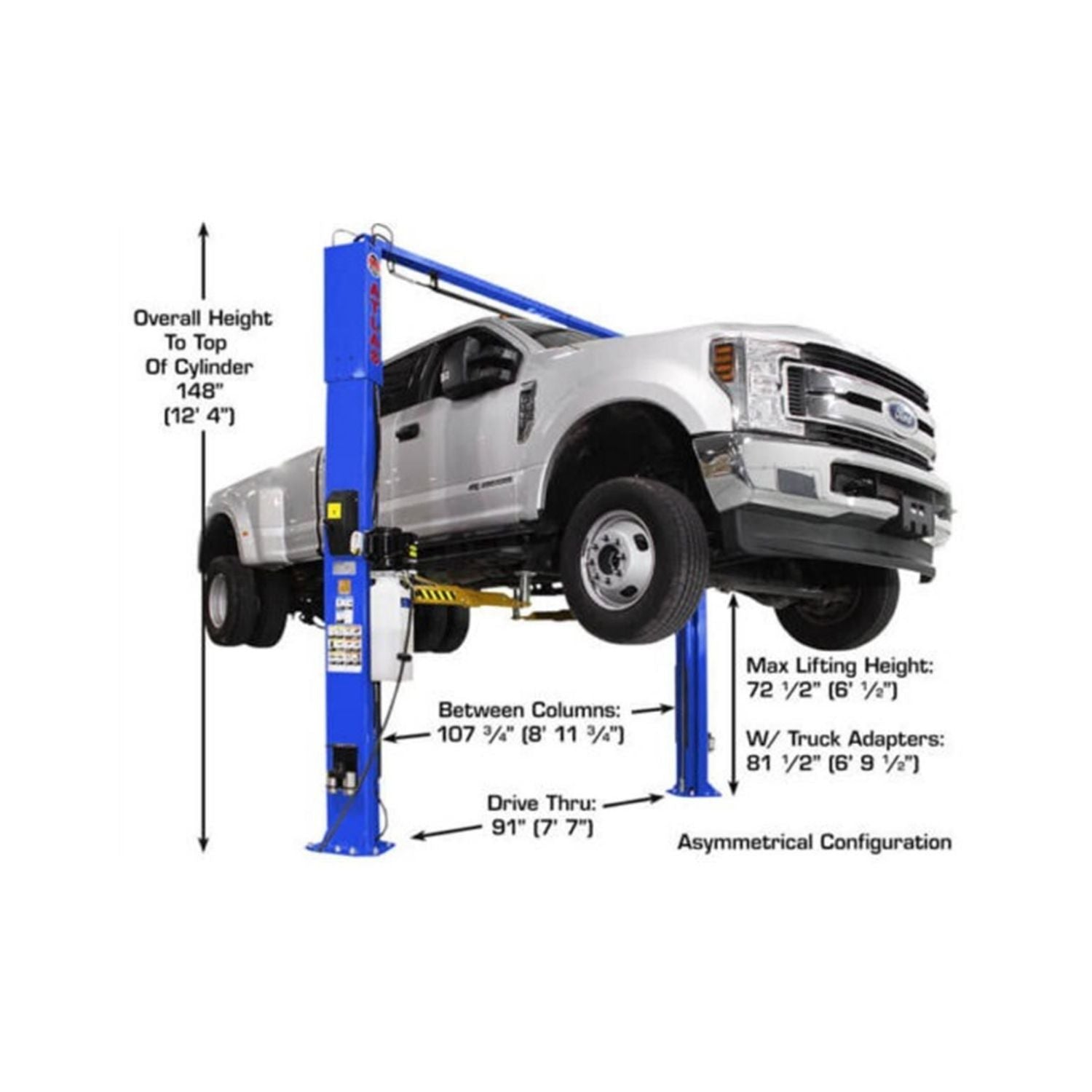

| Drive-Thru Clearance | 91" asymmetric / 99 1/2" symmetric |

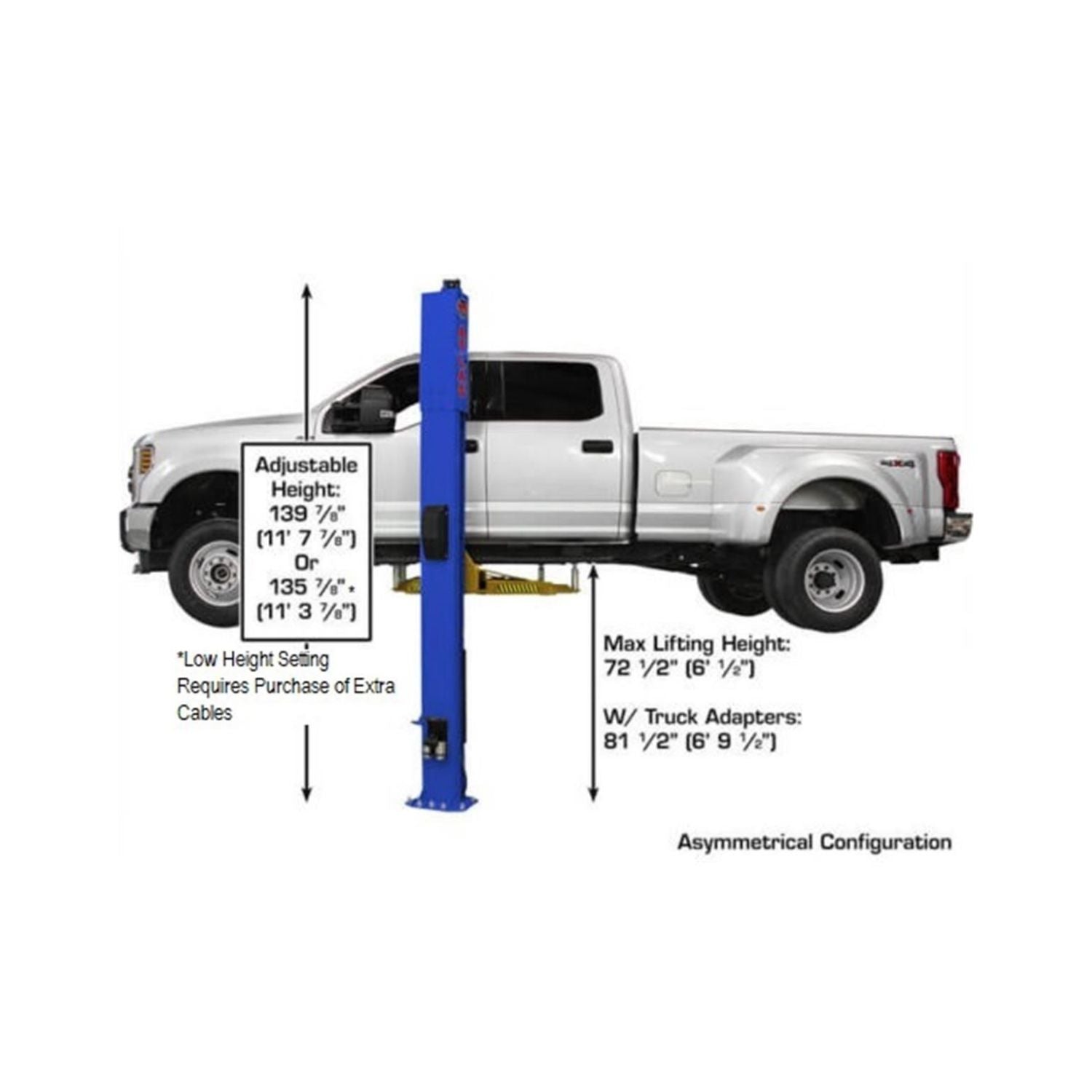

| Max Lift Height | 81 1/2" with adapters / 72 1/2" without adapters |
| Minimum Arm Height | 4" |

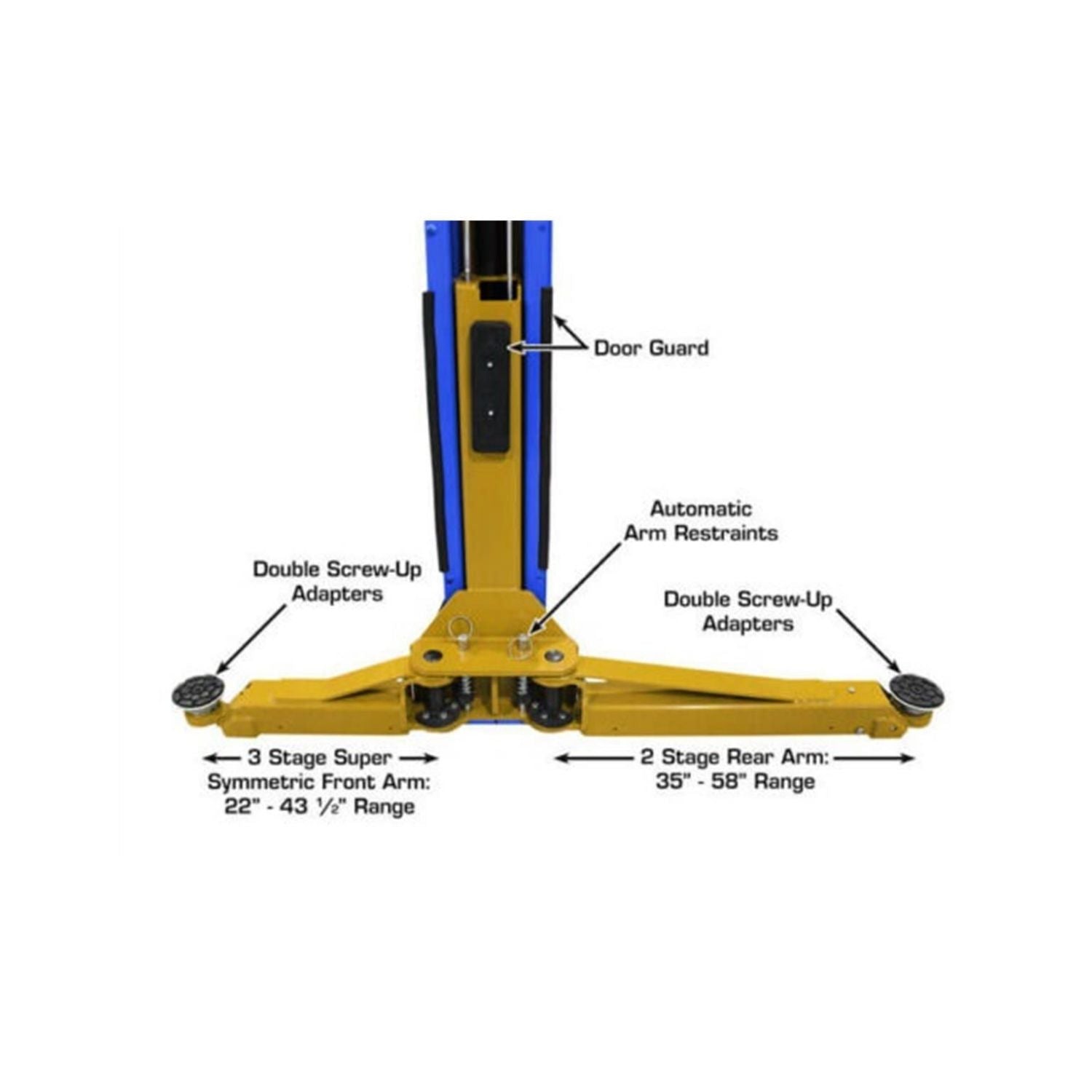

| Adapter Heights | 4 each 3" and 6" |

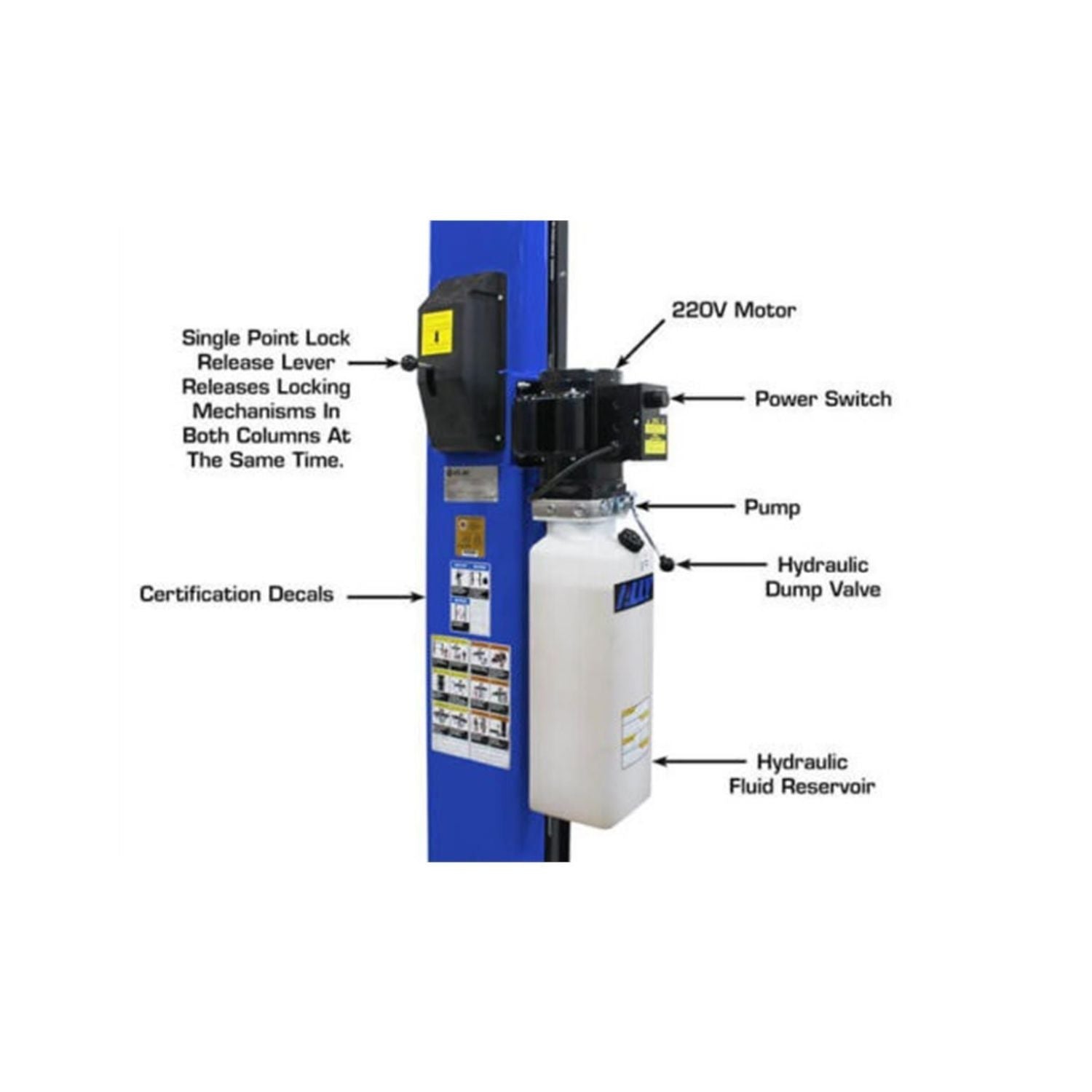

| Motor / Electrical | 220V, 1-phase, 30A breaker recommended |
| Concrete Requirement | Minimum 4" concrete, 3000 PSI |
| Shipping Weight | 2,000 lbs |
| Warranty | 5-year structural / 2-year hydraulic / 2-year power unit |
| Installation | Available - call (817) 865-3707 |
The Atlas® Platinum PVL10 EXT is an ALI certified 10,000 lb two-post lift with a height extension kit for buyers who want more overhead working range than the standard PVL10.
It supports symmetric or asymmetric installation, includes adapter heights, and uses 220V single-phase power for shops servicing cars, SUVs, and light trucks.
ALI Certified 10K Lift
The PVL10 EXT gives shops documented certification in a 10,000 lb Atlas® Platinum package.

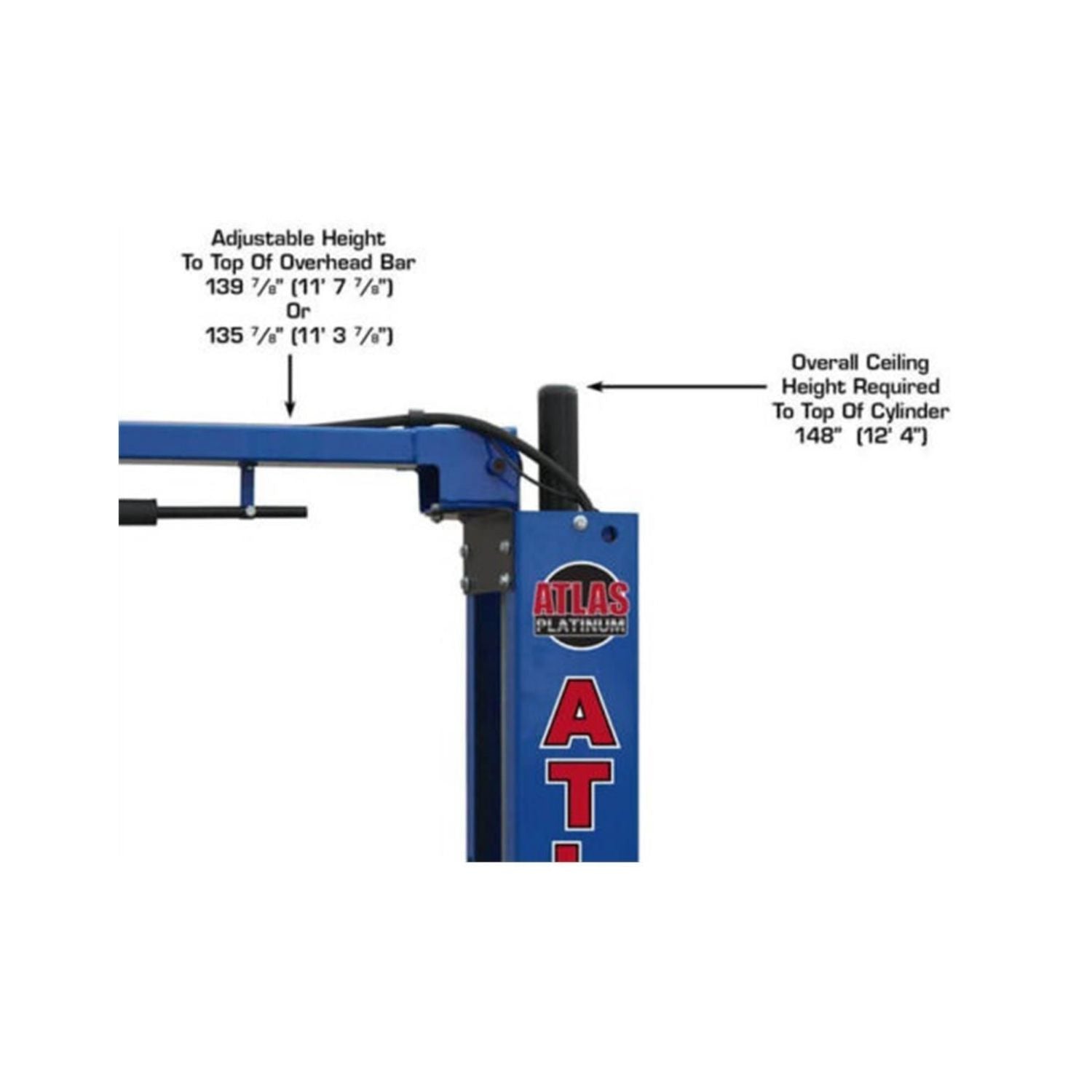

Height Extension Kit

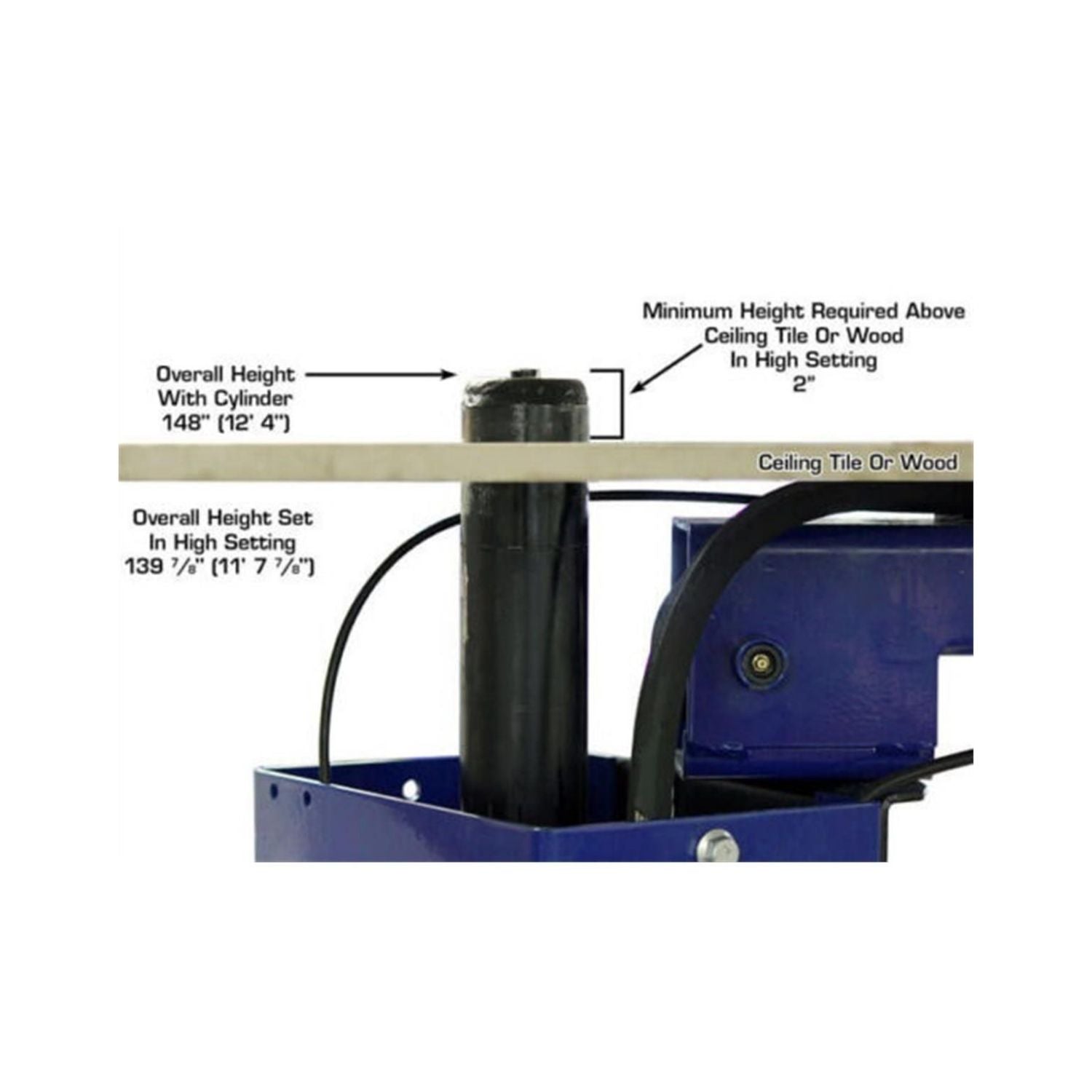

The extension-kit model raises the published overall height for shops that want more working room than the standard PVL10.

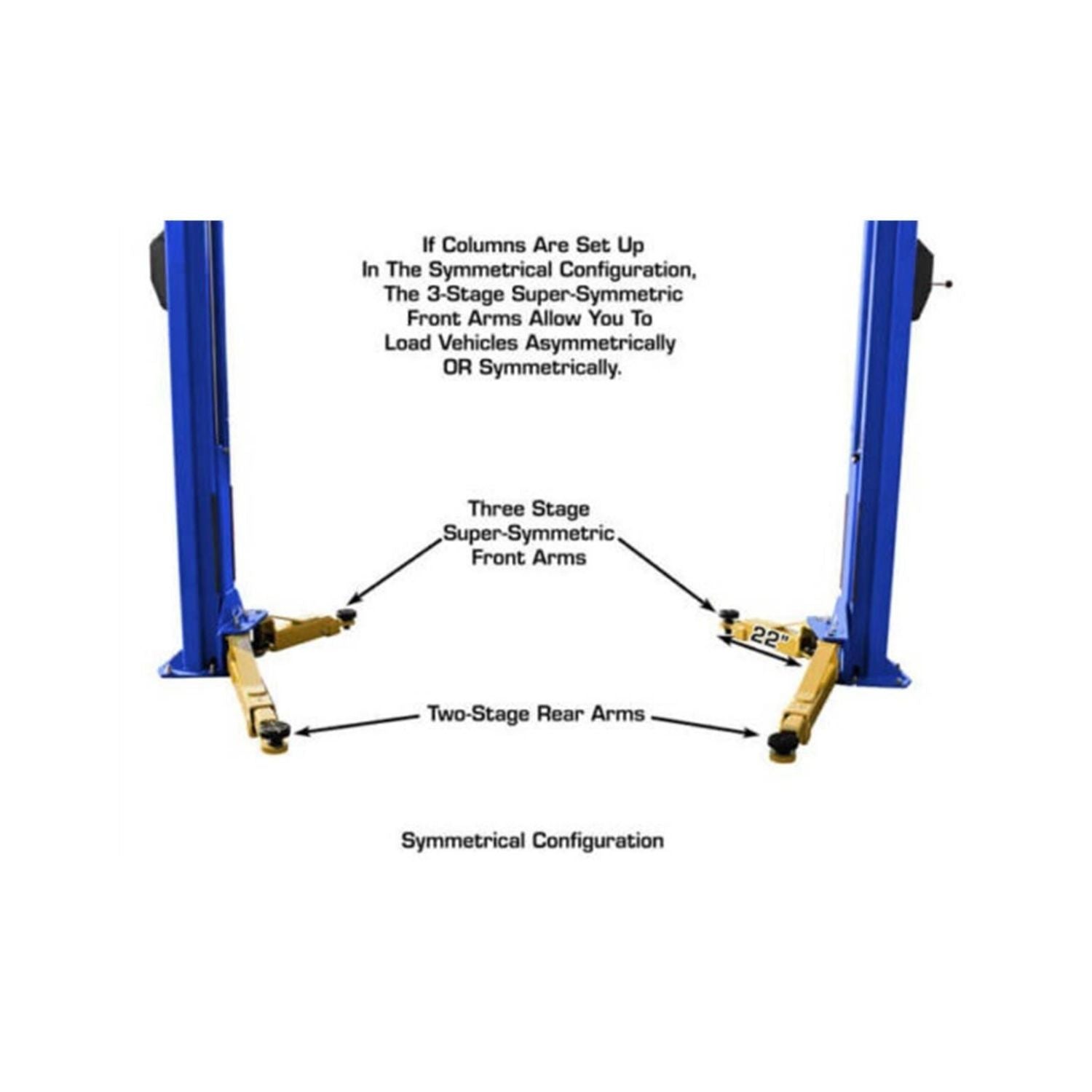

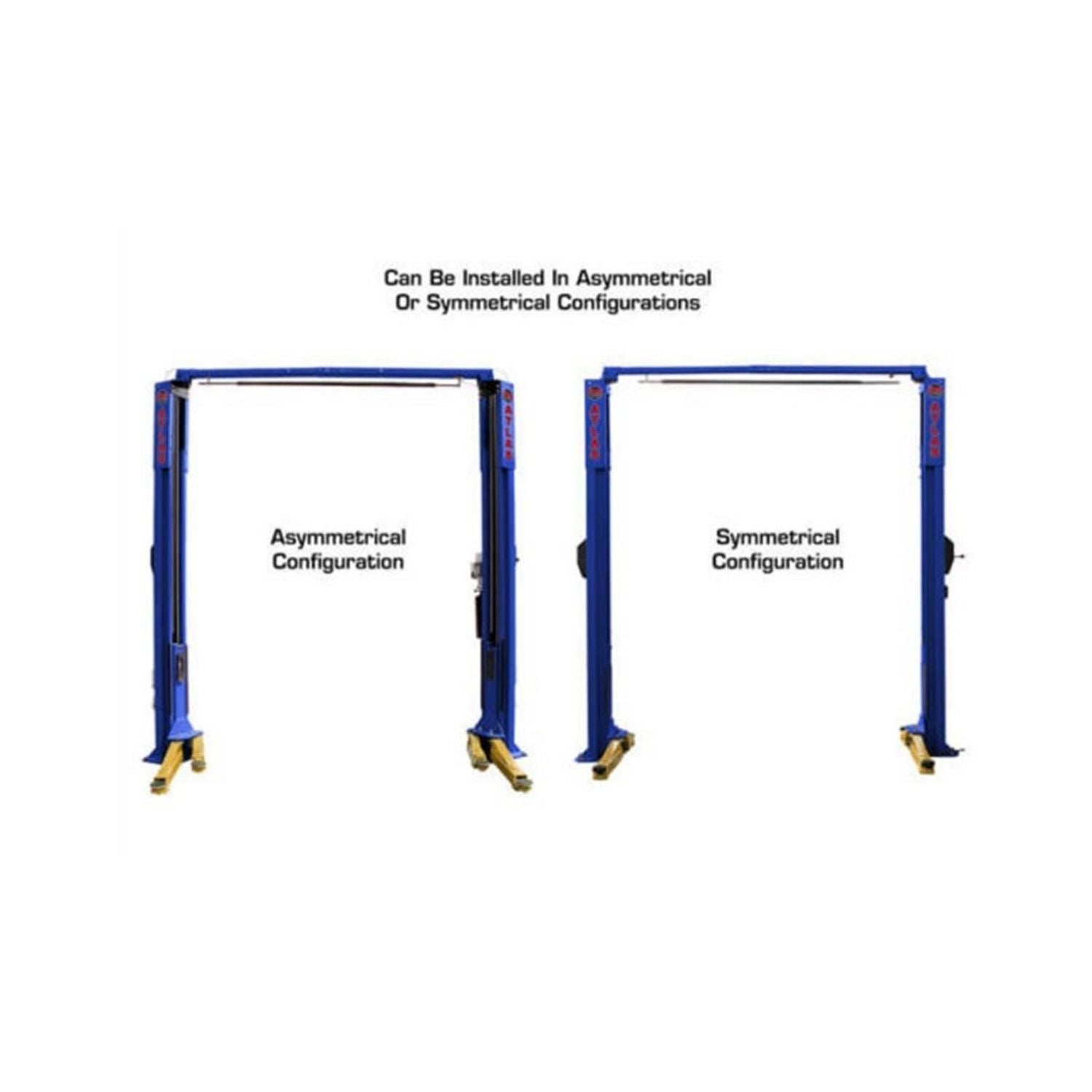

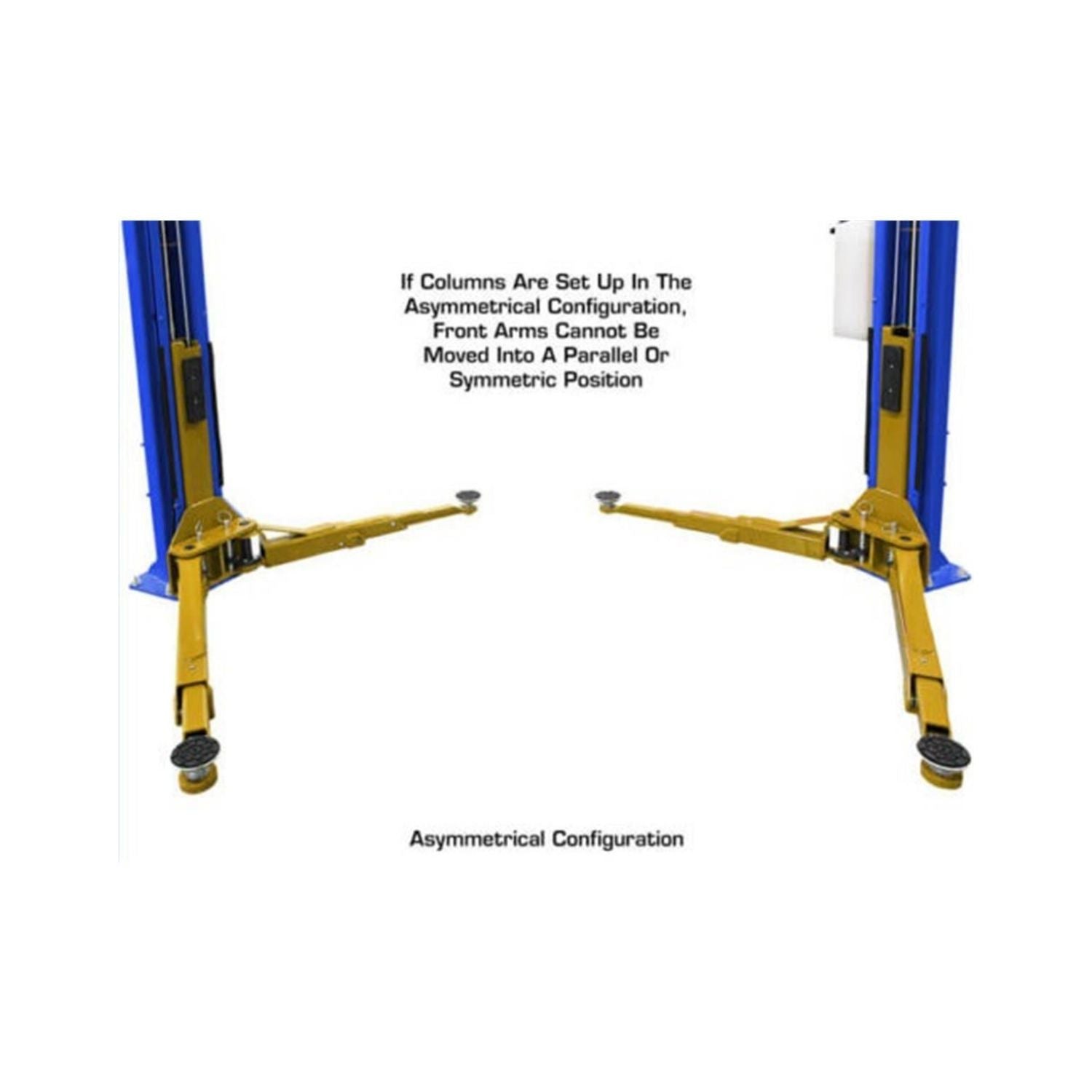

Symmetric or Asymmetric Install
The source lists both symmetric and asymmetric dimensions, letting the installer match the layout to vehicle access needs.

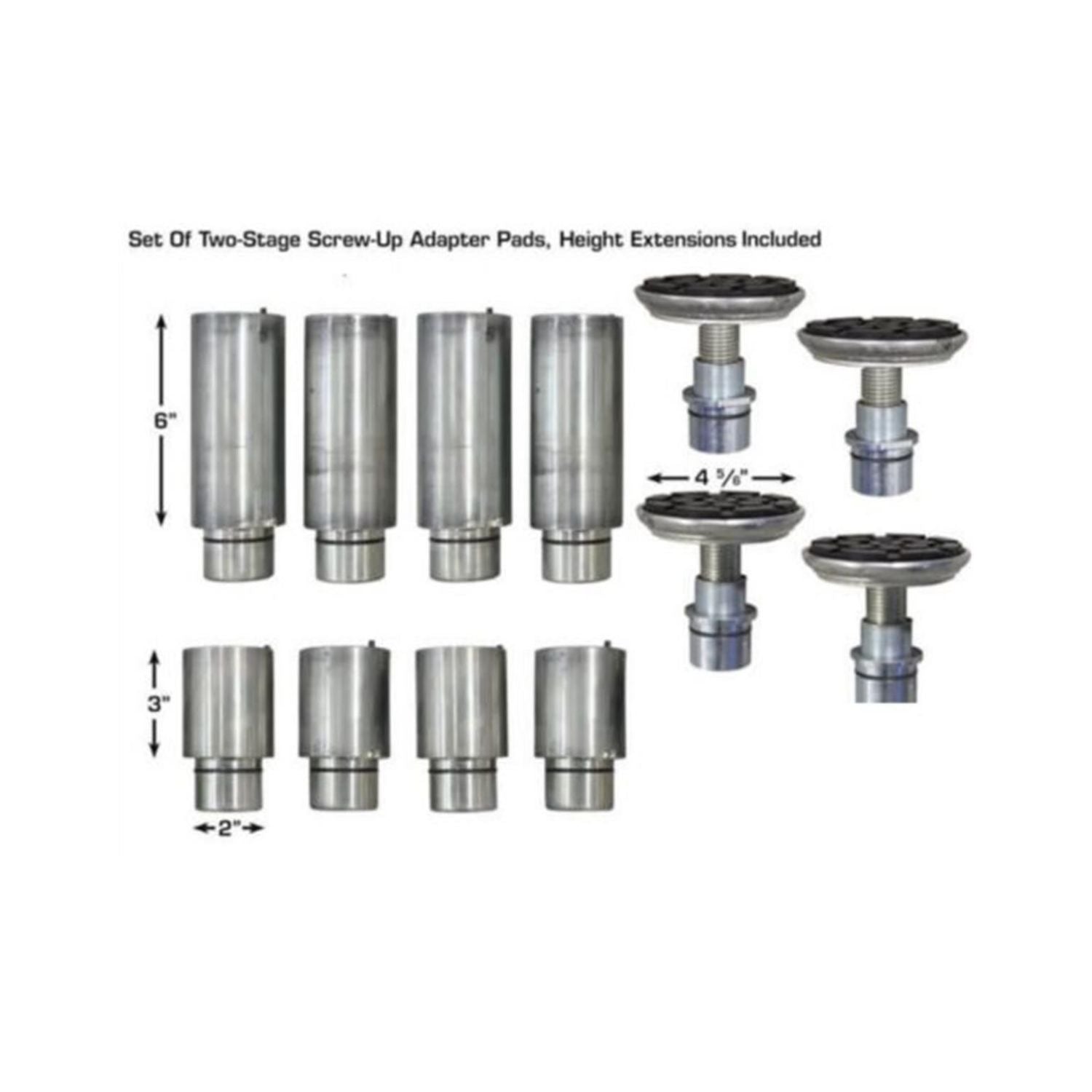

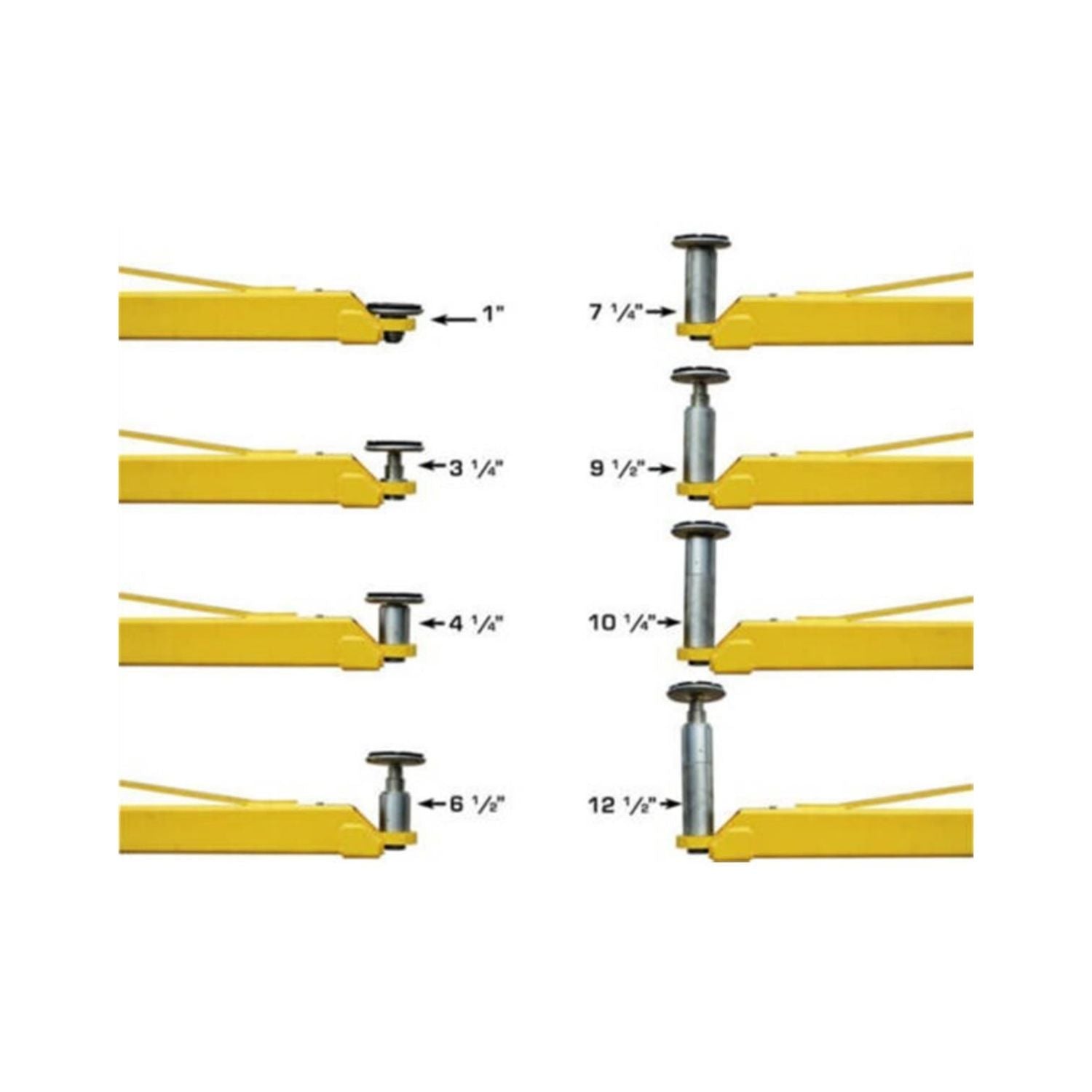

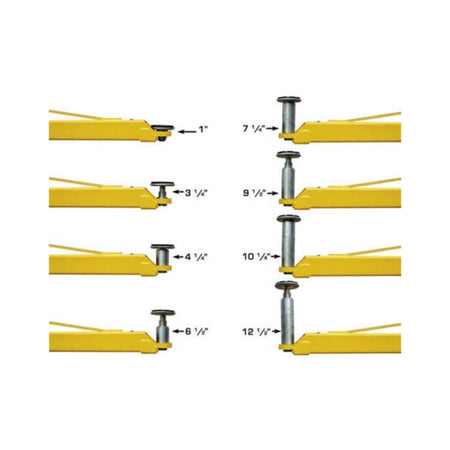

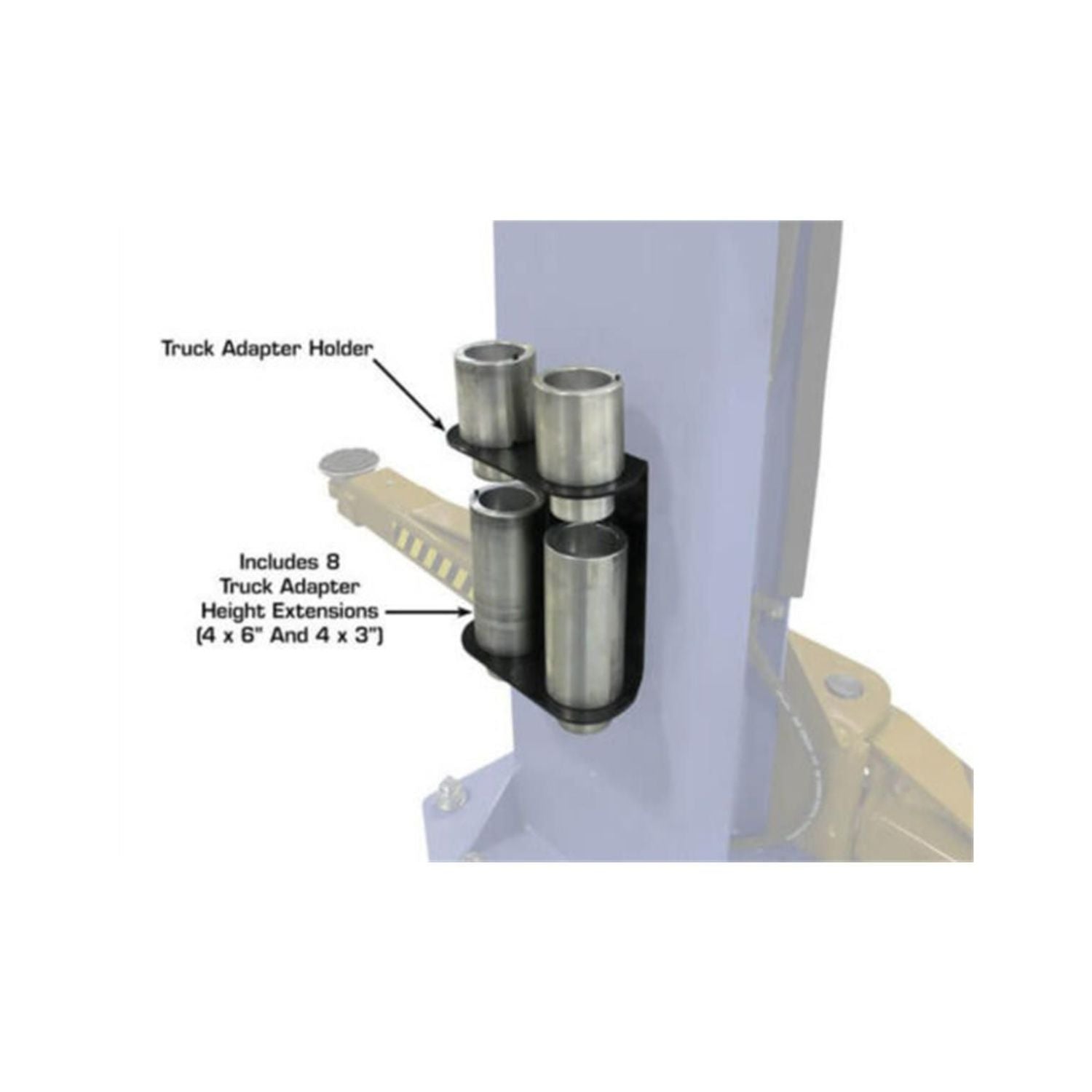

Adapter Heights Included

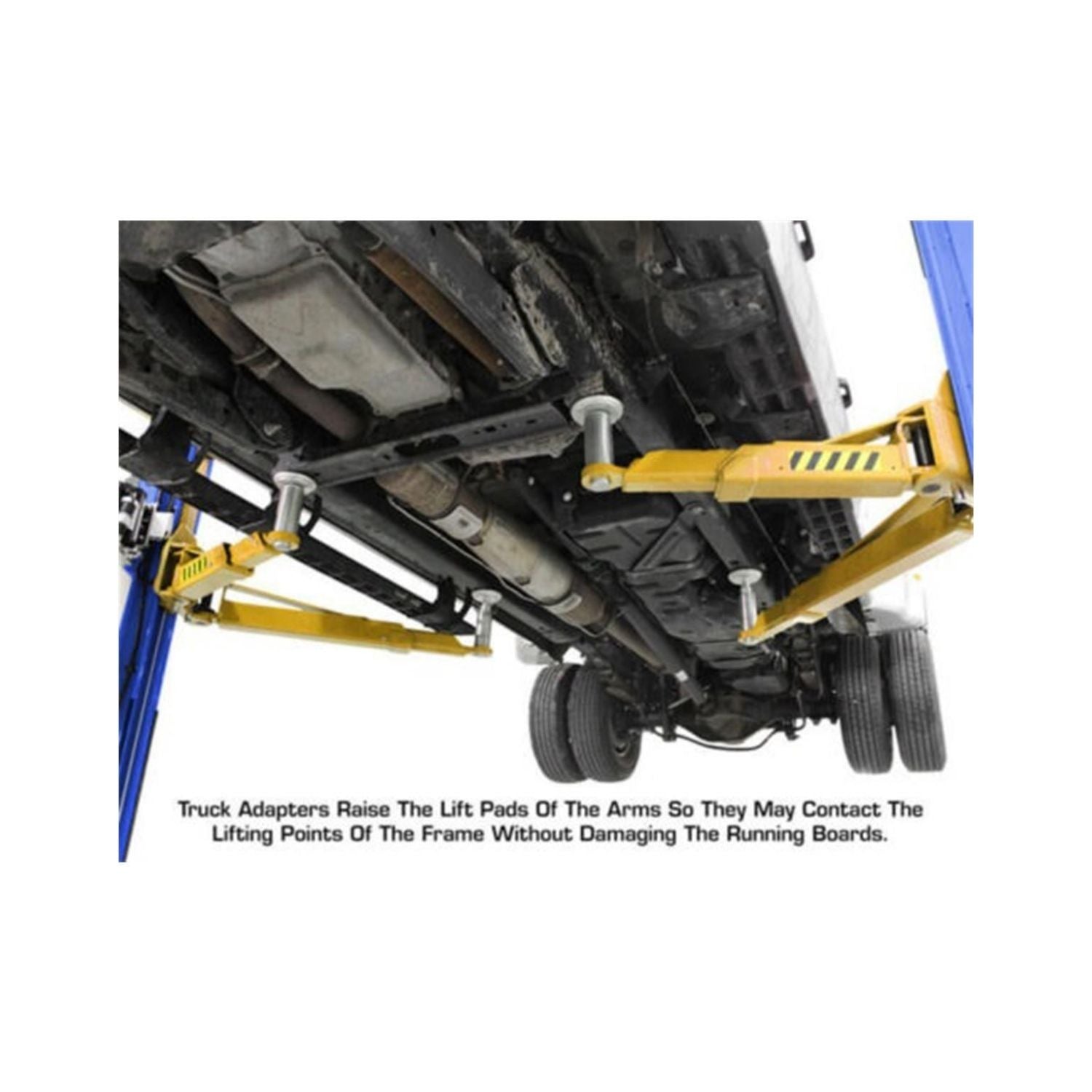

The 3 inch and 6 inch adapter heights support common truck and SUV pickup points.
Lower Concrete Minimum
The source lists a minimum 4 inch / 3000 PSI concrete requirement, but slab condition and local code still need verification.
Frequently Asked Questions
What is the lifting capacity of the ATEAP-PVL10-EXT-FPD?
The ATEAP-PVL10-EXT-FPD is rated for 10,000 lbs, assuming the lift is installed correctly and the vehicle is positioned within the lift rating.
Is the ATEAP-PVL10-EXT-FPD ALI certified?
Yes. This source page supports an ALI certification claim for this model.
What type of 2-post lift is the ATEAP-PVL10-EXT-FPD?
Height-extension overhead 2-post lift
What electrical service does the ATEAP-PVL10-EXT-FPD need?
220V, 1-phase, 30A breaker recommended
What concrete does the ATEAP-PVL10-EXT-FPD require?
Minimum 4" concrete, 3000 PSI
Does the ATEAP-PVL10-EXT-FPD include adapters?
4 each 3" and 6"
Can Alamo install the ATEAP-PVL10-EXT-FPD?
Yes. Alamo Equipment & Service can help with bay planning, installation, annual inspections, repair, and long-term service support. Call (817) 865-3707 to discuss the bay.
How does the ATEAP-PVL10-EXT-FPD compare to the Challenger CL10AV3?
Choose the Atlas® Platinum PVL10 EXT when the buyer wants an ALI certified Atlas® 10K package with the height extension kit and symmetric/asymmetric install flexibility. Choose the Challenger CL10AV3 when Challenger Versymmetric arm design, QuickCycle controls, and premium Challenger support matter more.
Best For
✓ Buyers who want an ALI certified 10,000 lb Atlas® Platinum lift with added height
✓ Bays that can fit the 159 7/8 inch or 163 7/8 inch extension-kit height
✓ Shops choosing between symmetric and asymmetric installation
✓ Facilities servicing cars, SUVs, and light trucks within a 10K rating
✗ Not ideal for low-ceiling shops
✗ Not ideal when a lower standard-height PVL10 is the better fit
✗ Not ideal for vehicles above 10,000 lbs
Installation Requirements

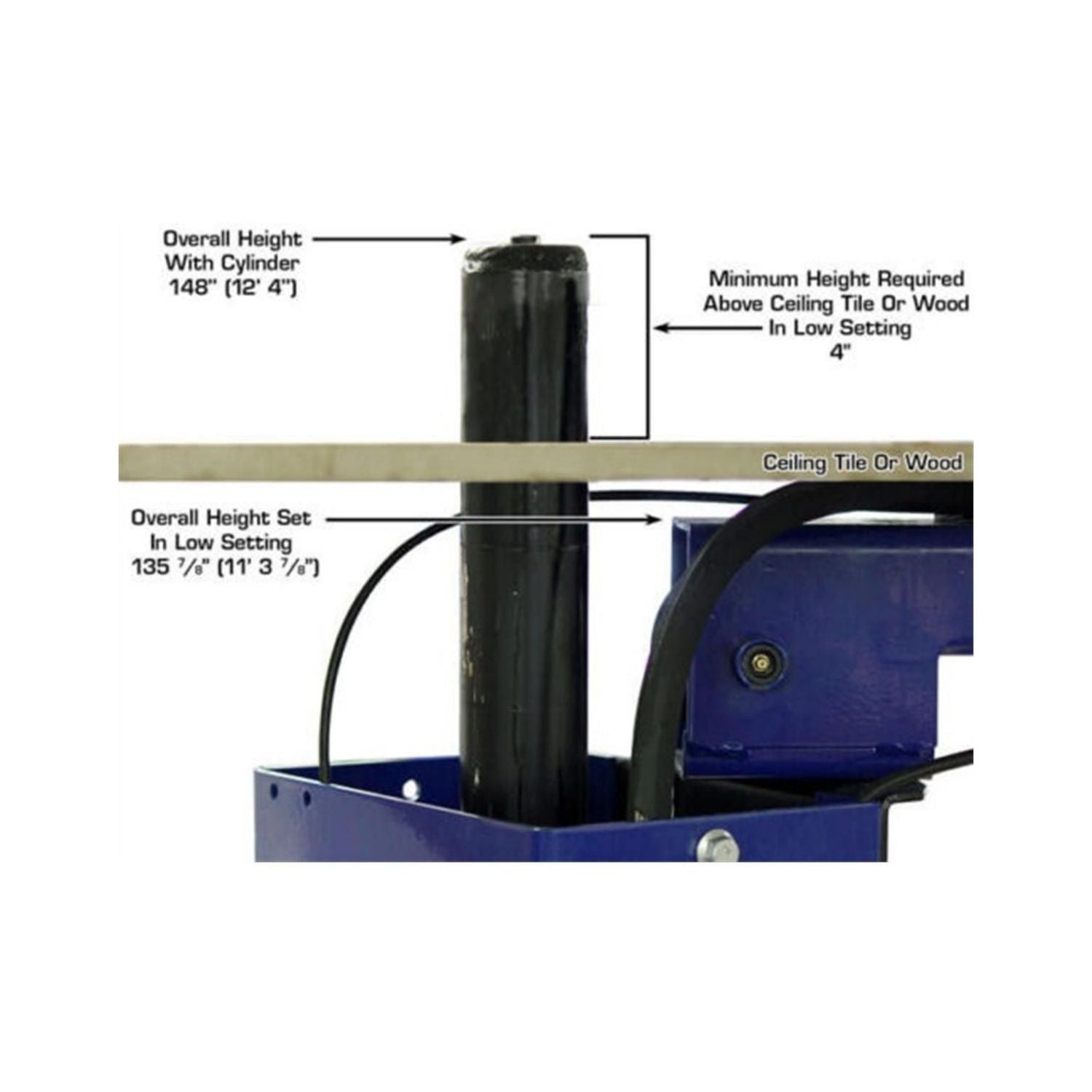

• Confirm 159 7/8" or 163 7/8" overall height plus vehicle and working clearance
• Choose symmetric or asymmetric layout before anchoring
• Verify minimum 4" / 3000 PSI concrete, slab condition, anchors, and local code
• Provide 220V single-phase power with a 30A breaker recommended

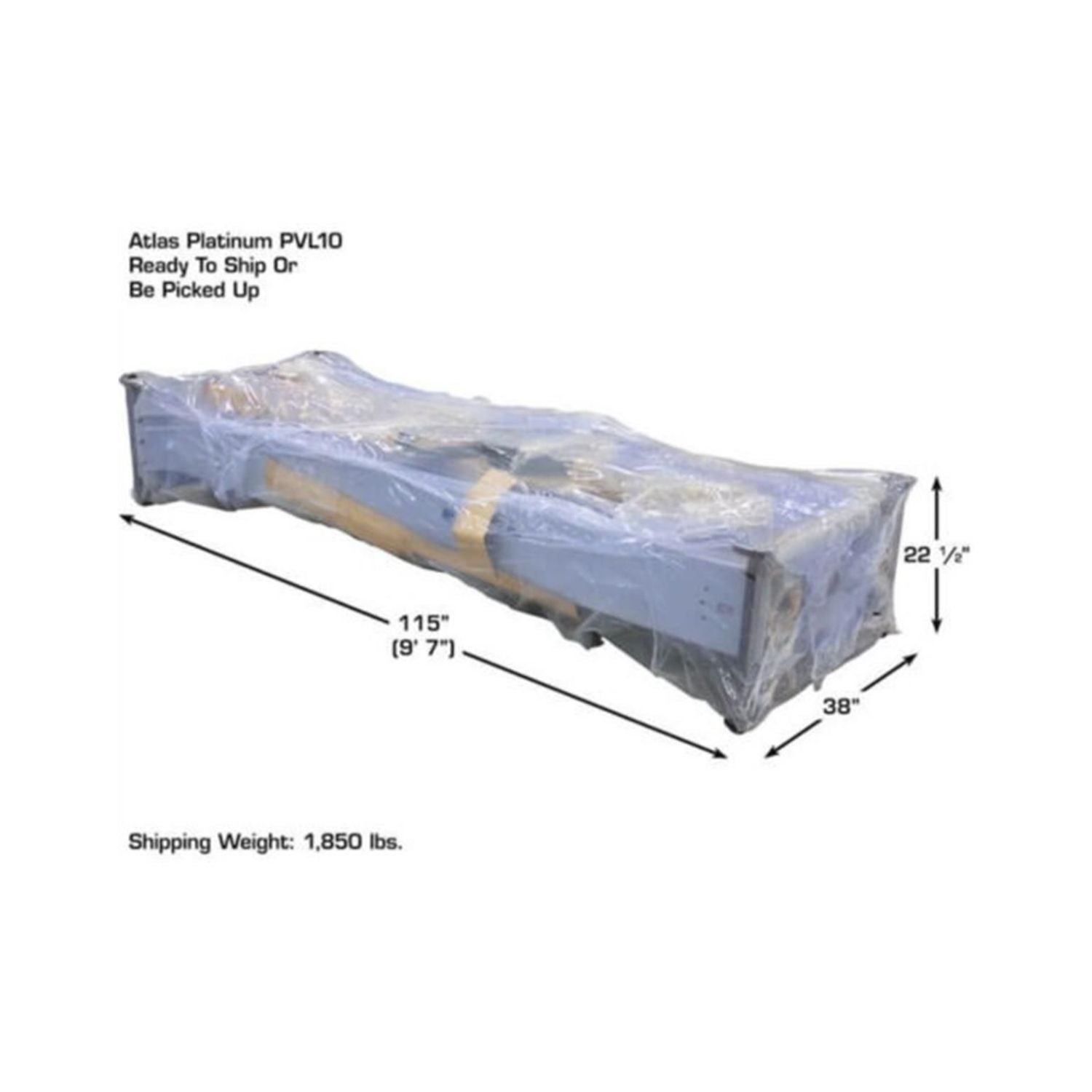

• Plan receiving equipment for the listed 2,000 lb shipping weight
• Professional installation strongly recommended for commercial 2-post lifts
• Alamo offers installation planning and support - call (817) 865-3707
Why Buy This ATEAP-PVL10-EXT-FPD From Alamo Equipment
✓ Alamo can help confirm whether the PVL10 EXT's ALI certified 10K height-extension layout is right for the bay
✓ Symmetric/asymmetric dimensions should be reviewed before installation so the columns match the vehicle mix
✓ The extension-kit height, adapter set, and 2,000 lb package need bay and receiving planning
✓ Alamo can compare the PVL10 EXT against internal premium 10K options like Challenger CL10AV3
✓ Alamo supports buyers with installation planning, inspection, maintenance, repair, and replacement-part guidance
(817) 865-3707
ATEAP-PVL10-EXT-FPD vs Challenger CL10AV3
Both products are sold by Alamo and serve nearby two-post lift use cases.
| Spec | ATEAP-PVL10-EXT-FPD | Challenger CL10AV3 |
|---|---|---|
| Capacity | 10,000 lbs | 10,000 lbs |
| Positioning | Atlas® Platinum PVL10 EXT 10K ALI 2-Post Lift | Premium Challenger Versymmetric 10K lift |
| Certification | ALI certified | ALI / ETL certified |
| Bay Layout | Height-extension overhead 2-post lift | Overhead clearfloor |
| Overall Height | 159 7/8" or 163 7/8" | Premium 10K Challenger configuration |
| Drive-Thru Clearance | 91" asymmetric / 99 1/2" symmetric | See Challenger CL10AV3 product specs |
| Best Fit | Buyers who want an ALI certified 10,000 lb Atlas® Platinum lift with added height | Best when certification, Versymmetric arms, and QuickCycle support matter most |
Choose the Atlas® Platinum PVL10 EXT when the buyer wants an ALI certified Atlas® 10K package with the height extension kit and symmetric/asymmetric install flexibility. Choose the Challenger CL10AV3 when Challenger Versymmetric arm design, QuickCycle controls, and premium Challenger support matter more.

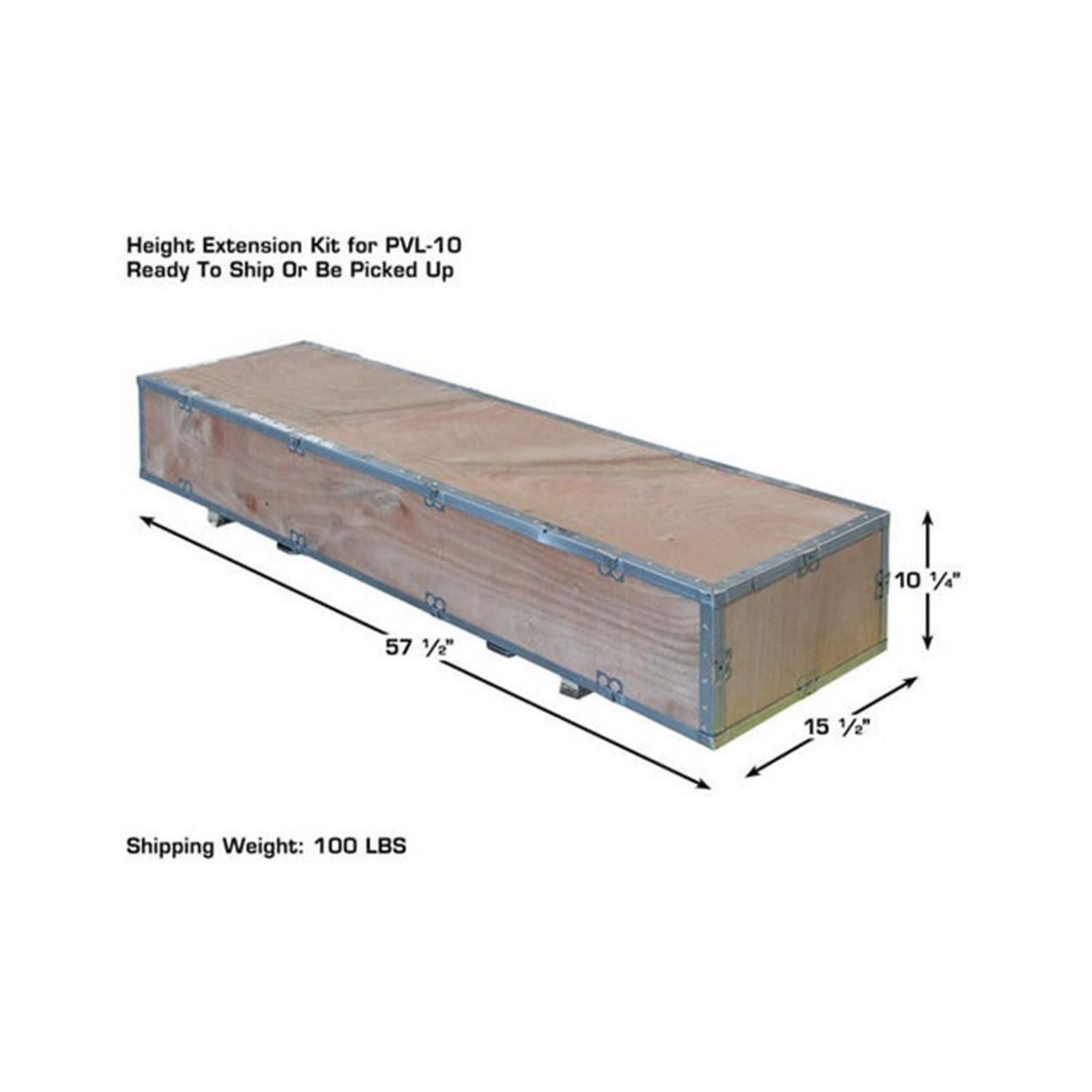

Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
