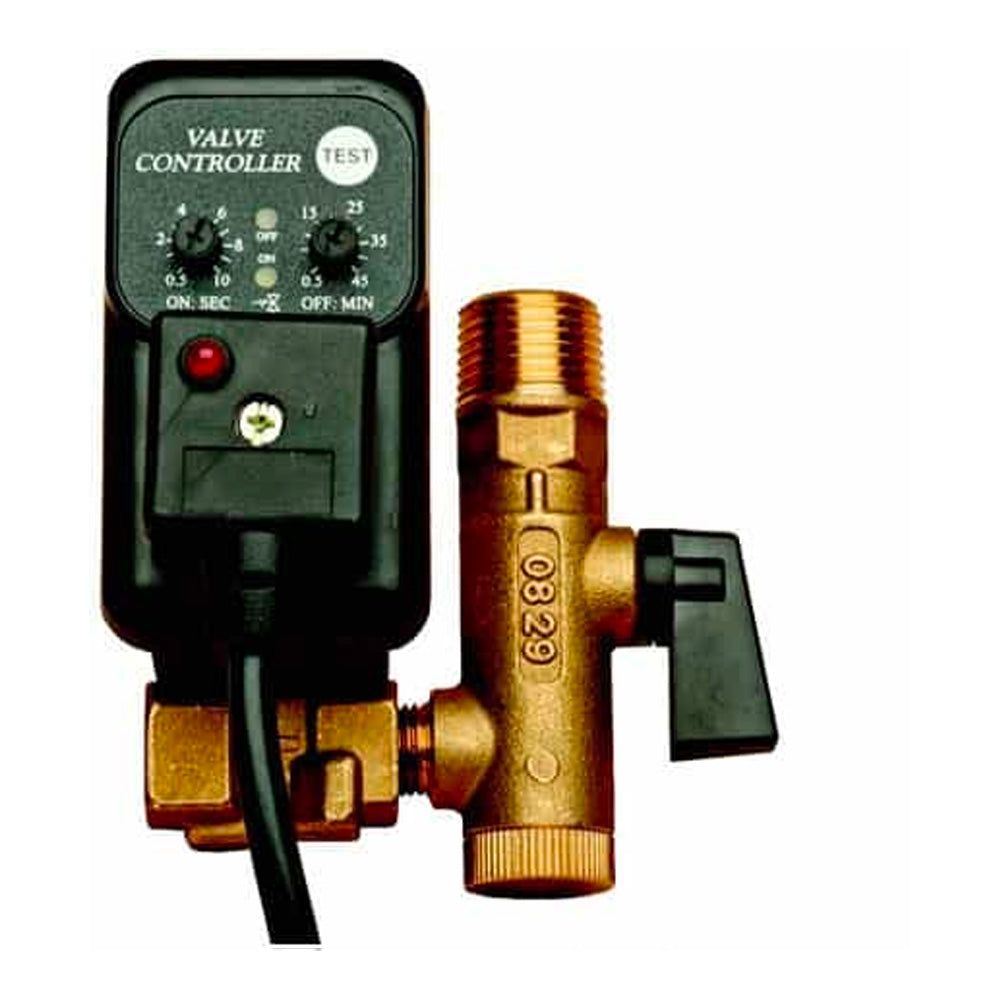

SynergAir Electronic Timer Drain Valve, 1/2"NPT w/Strainer #90900-08
Lead time:
SynergAir 90900-08 Electronic Timer Drain Valve, 1/4"NPT w/Strainer
Condensate poses a serious threat to compressed air systems.
Failure to carry out regular draining will result in serious equipment damage and costly system disruption. The IDV guarantees regular uninterrupted condensate drainage from your compressed air systems. It is the most economical product available for the prevention of liquid contamination.
Part Number:
- 90900-04: Electronic Timer Drain Valve, 1/4"NPT w/Straine
- 90900-08: Electronic Timer Drain Valve, 1/2"NPT w/Strainer
Warranty:
- 6 months guarantee on parts against any manufacture defect from time of purchase.
- SynergAir does not accept returned inventory unless due to an error or omission by their company.
Technical Specifications
Specifications |
90900-04 / 90900-08 |
|
Value Data |
|
|
Connection Inlet |
1/2" npt male |
|
Connection Outlet |
90900-04 1/4" npt male / 90900-08 1/2" npt male |
|
Operating Pressure 16 Bar |
235 psig |
|
Body Material |
Brass |
|
Seal Material |
Viton |
|
Internal Components |
Stainless Steel |
|
Media Type |
Air / Oil / Water |
|
Voltage |
100-120V / 50-60 Hz |
|
Timer Data |
|
|
Timing Scale |
On Time - Adj 0.5 - 10 seconds Off Time - Adj 0.5 - 45 seconds |
|
Connection Input (Power Supply) |
DIN 43650 Form A |
|
Connection Output (To Value) |
DIN 43650 Form A |
|
Voltage |
100-120V / 50-60 Hz |
|
Current Consumption |
4mA Max |
|
Switch Capacity |
1 AMP |
|
Inrush Current |
10 Amps for 10 mSec |
|
Operating Temperature |
14°F - 122°F |
|
Duty Cycle |
100% ED |
|
Inrush Current |
10 Amps for 10 mSec |
|
Environmental Protection |
IP65, Nema IV |
|
Indicators |
LED to indicate Phases |
|
Manual Override |
Test Switch |
|
Filter Ball Value Data |
|
|
Inlet Size |
1/2" npt male |
|
Body Material |
Brass |
|
Handle Material |
ABS |
|
Strainer Material |
Stainless Steel |
