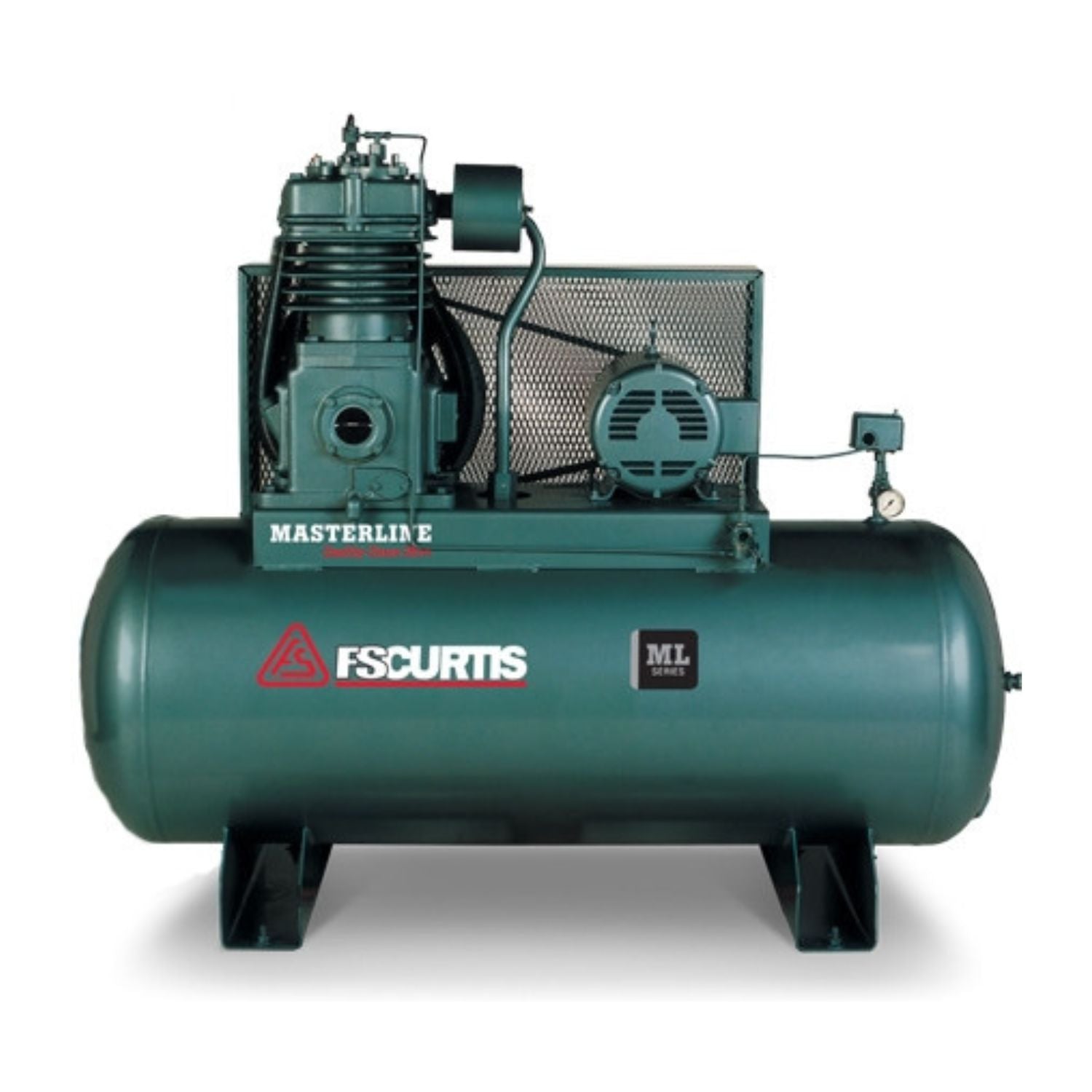

FS-Curtis ML30 200G Horiz 30HP Simplex Tank Elec Air Comp #ML30-SH
-
DESCRIPTION
The FS-Curtis ML30 200G Horizontal 30HP Simplex Tank Electric Air Compressor is a high-capacity industrial compressor engineered for continuous, demanding applications in automotive, manufacturing, and workshop environments. Equipped with a 30HP electric motor and a 200-gallon horizontal air receiver, it delivers strong, consistent airflow—up to 102.2 CFM at 175 PSI—to power heavy pneumatic tools and equipment. Built as part of the durable Masterline (ML) Series, this unit features a pressure-lubricated two-stage pump with rugged cast-iron components, industrial controls, and safety-approved valves for long life and reliable operation with minimal maintenance.
Masterline is the most robust, heavy-duty reciprocating air compressor lineup available. The perfect combination of quality components and efficient design makes the ML Series rugged, affordable, and smart. Because every model is built tough to last a lifetime in demanding working conditions, the ML Series is an outstanding alternative to splash-lubricated reciprocating compressors and small rotary compressors. Choose higher quality. Choose superior durability. Choose ML Series pressure-lubricated air compressors.
-
FEATURES + BENEFITS
Centro-Ring Pressure Lubrication
Patented FS-Curtis design
- Proprietary technology is an FS-Curtis exclusive
- Supplies pressurized oil internally to all bearings and critical wear surfaces through the rifle-drilled crankshaft and connecting rods
- Helps ensure maximum uptime and increases service life
100% Cast-Iron Cylinders, Cylinder Heads, Connecting Rods, and Crankshaft
All cast-iron where it counts for longer life with less maintenance.
- Some pumps claim 100% cast iron yet still have aluminum cylinders, cylinder heads, connecting rods, and crankshafts – not FS-Curtis
- Ductile cast-iron crankshaft and connecting rods are stronger, more corrosion-resistant, and less likely to break
- Slow-turning pump increases pump life
- Rugged parts and construction for industrial performance
Robust Quality Components
Built for increased longevity and durability
- Industry-leading stainless-steel valve assemblies for increased airflow and reliability
- Oversized tapered main roller bearings to ensure long life
- Premium finned intercooler maximizes heat dissipation
- Metal intake filter/silencer is superior to plastic
- Heavy-duty stamped-steel belt guard
- Suction valve head unloaders for continuous running air compressors
-
SPECIFICATIONS
Model Number ML30 Simplex
HP
30 Phase / hz / Voltage Three Phase
3/60/200-208V - FML30C98H2S-A9L1XX
3/60/230V - FML30C98H2S-A3L1XX
3/60/460V - FML30C98H2S-A4L1XXPump
C98
CFM (@175psi)
102.2 Configuration
Horizontal Tank
200 Gallons Dimensions
78" L x 43" W x 76" H Shipping Weight
2350 lbs
