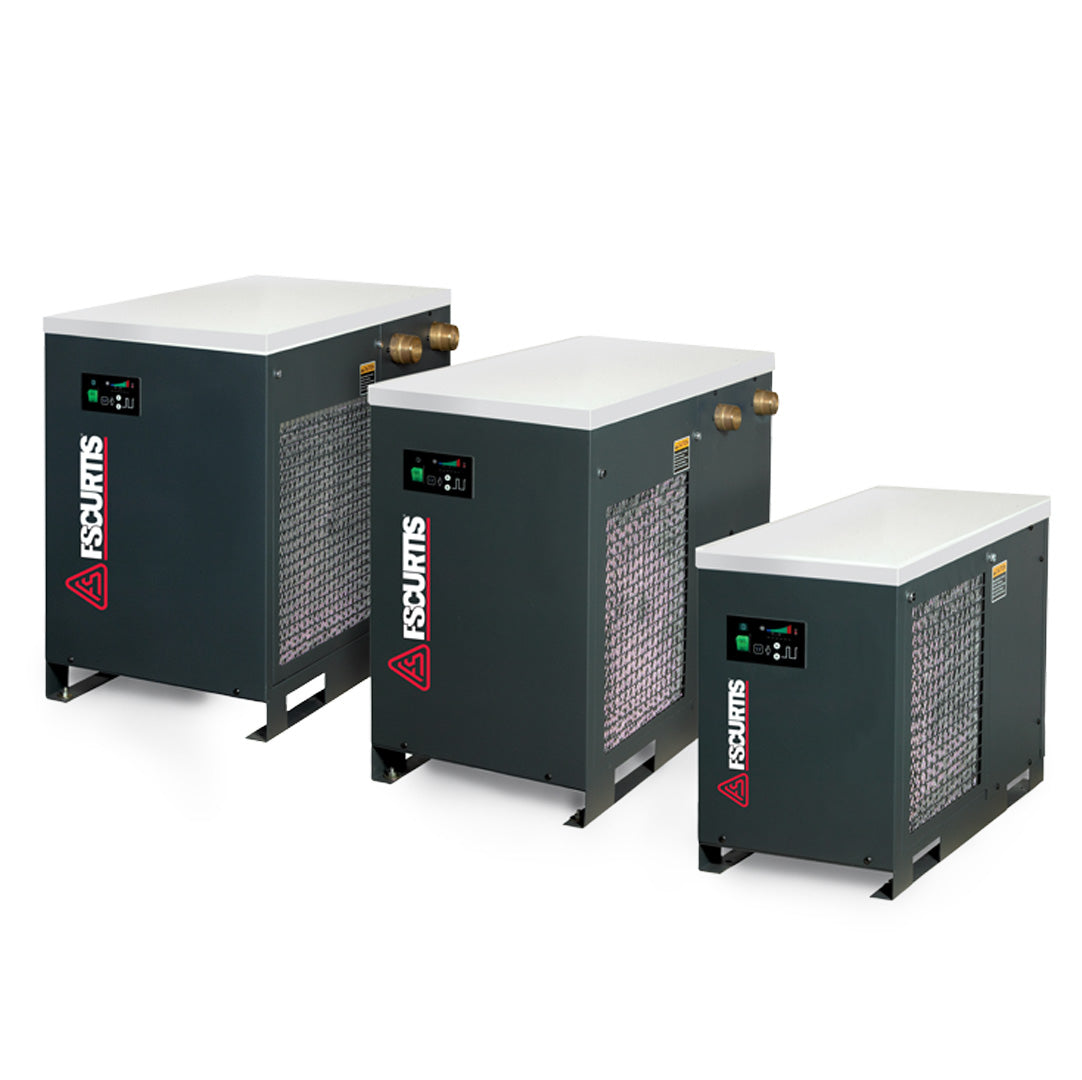

FS-Curtis RNP25 Non Cycling Refrigerated Dryer 25cfm #RNP25
-
DESCRIPTION
The FS-Curtis RNP25 Non Cycling Refrigerated Dryer 25 CFM #RNP25 is a compact and dependable refrigerated air dryer designed to remove moisture from compressed air systems for cleaner, drier air. This non-cycling dryer is rated for 25 CFM and provides continuous moisture removal without the need for cycling control, making it ideal for shop and light industrial applications. Built with quality components and engineered for reliable performance, the RNP25 helps protect tools, equipment, and processes from water damage and corrosion. Its straightforward design and reliable operation make it a great addition to automotive shops, fabrication facilities, maintenance areas, and other compressed air systems that require effective moisture control.
For a stable dew point at a great value, the compact RNP dryer is an outstanding choice. CNP dryers are easy to install and save valuable floor space with their compact design. Environmentally friendly R-134a refrigeration system, CFC-free.
Sometimes a simple solution is all you need. With their small design and compact footprint, RNP dryers take the basics to new heights, delivering reliable performance day in and day out you’ve come to expect from FS-Curtis. They remove maximum moisture to increase efficiency and help you get the most from your equipment
-
FEATURES + BENEFITS
- Simple and reliable copper tube-on-tube heat exchange for RNP10-50
- Stainless-steel brazed plate heat exchanger for RNP75-500
- Designed with quality components for extended service life
- At-a-glance control panel dew point indication verifies performance
- Cleanable cabinet filter for RNP100-500
- R-134a environmentally friendly refrigerant
-
SPECIFICATIONS
Model Number RNP25 1-Capacity scfm 25 Power Supply 115/1/60 Standard
In/Out Connections 3/4" NPT Dimension 22" H x 16" W x 15" D
Weight 88 lbs Maximum Inlet Temperature 120°F (49°C) Maximum Operating Pressure 250 psig Warranty Two Years
