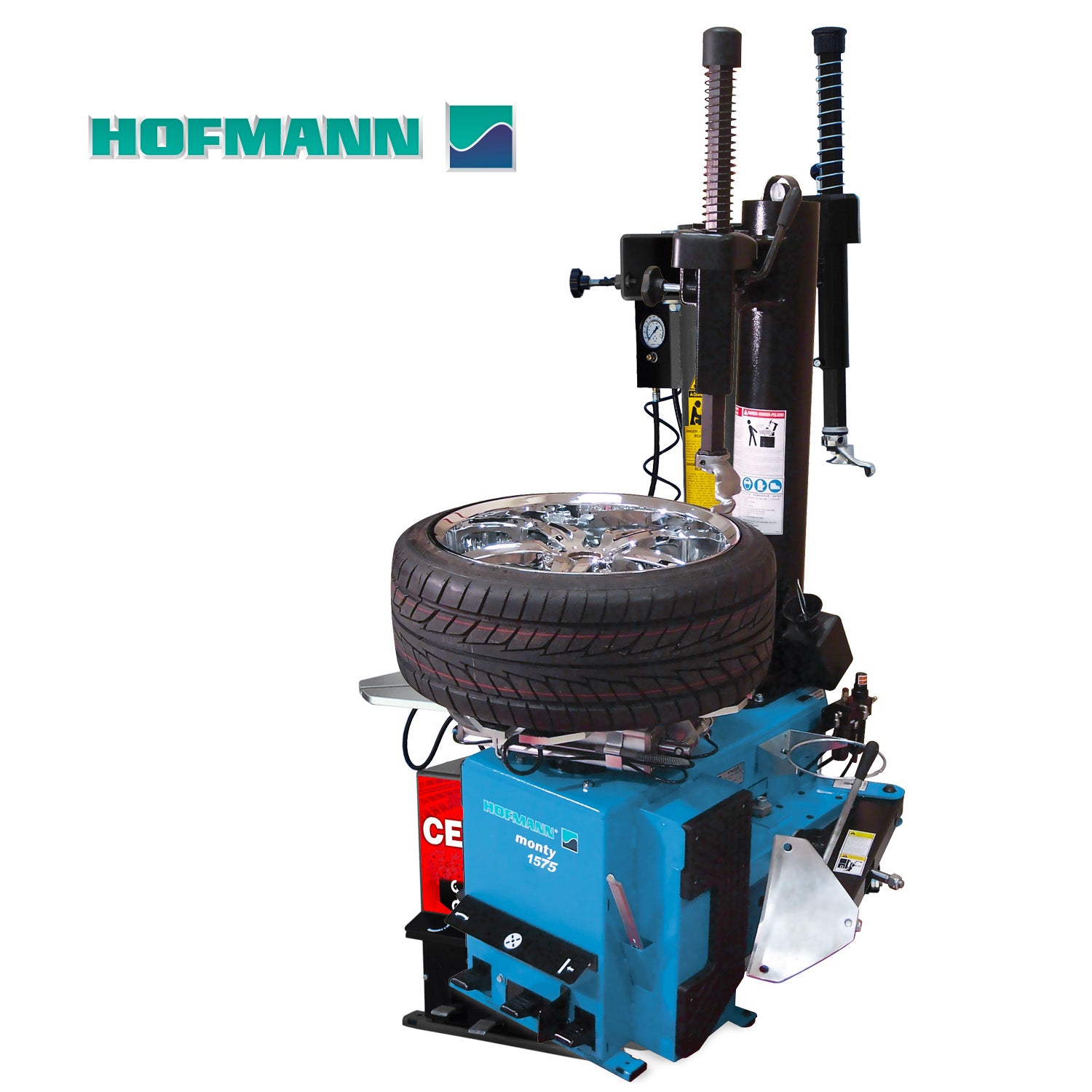

Hofmann Swing Arm Tire Changer #MONTY1575B
SKU MONTY1575B
Lead time:
by Hofmann
Save 19%
Original price
$5,573.00
Original price
$5,573.00
-
Original price
$5,573.00
Original price
$5,573.00
Current price
$4,514.00
$4,514.00
-
$4,514.00
Current price
$4,514.00
-
DESCRIPTION
The Monty® 1575 is ideal for shops looking for great value without sacrificing productivity. It includes wheel protectors so even the most expensive wheels can be changed without additional expense and fear of cosmetic damage. The Monty 1575 can also be upgraded by adding Hofmann’s patented EasyMont Pro, aiding in single-operator mounting/demounting of extra-stiff, low-profile, high-performance, and run-flat tires.
- Part Number: MONTY1575B
- Accommodates Large Wheel & Tire Assemblies - Allowing for a tire diameter of 40" (1016 mm) and outer-wheel diameters of 21" (530 mm), the Monty 1575 can handle wheel and tire assemblies found on cars and light trucks
- Dual Wheel Clamping Cylinders - Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheels due to slippage
- Adjustable Four-Jaw Clamping Chuck - Self-centering jaw clamps wheels from either 26" inner or 24" outer diameter
- Powerful Two-Stage Bead Breaker - 6,000 lbs (2,722 kg) of power at the bead shovel and a range of up to 14" (356 mm) wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed. Both the stiffest and the softest sidewalls are a snap
- Powerful Tire Inflation System - Powerful air blast operated by the foot pedal. Each movable jaw is precisely set to the exact position under the wheel to seal the tire bead
- Upgrade With Optional Easymont Pro - Easymont Pro features a three-piece design with a top roller, pressing foot and lifting disc. Each piece provides a specialized function that assists a single operator in mounting/demounting low-profile and high-performance tires

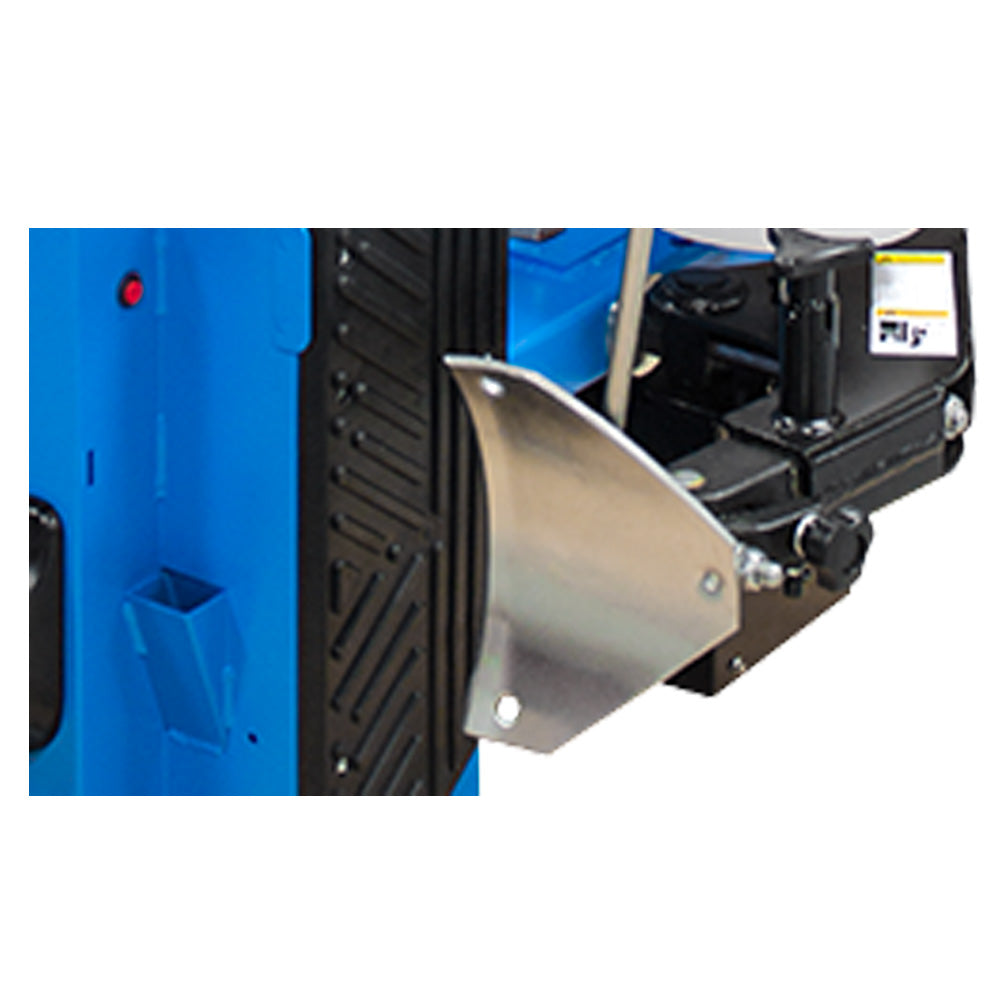

- BEAD BREAKER BLADE
-
FEATURES

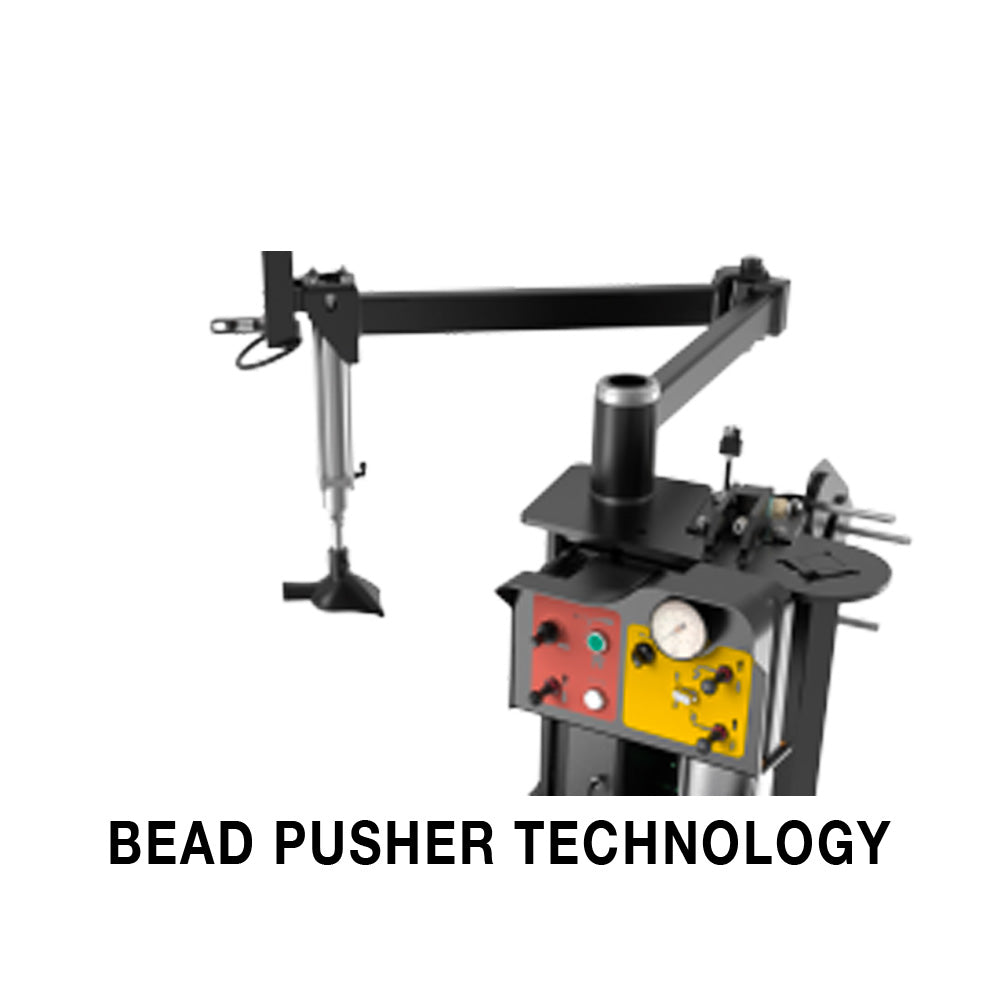

- BEAD PUSHER TECHNOLOGY: Integrated bead pusher assists in the mounting process of the upper bead.

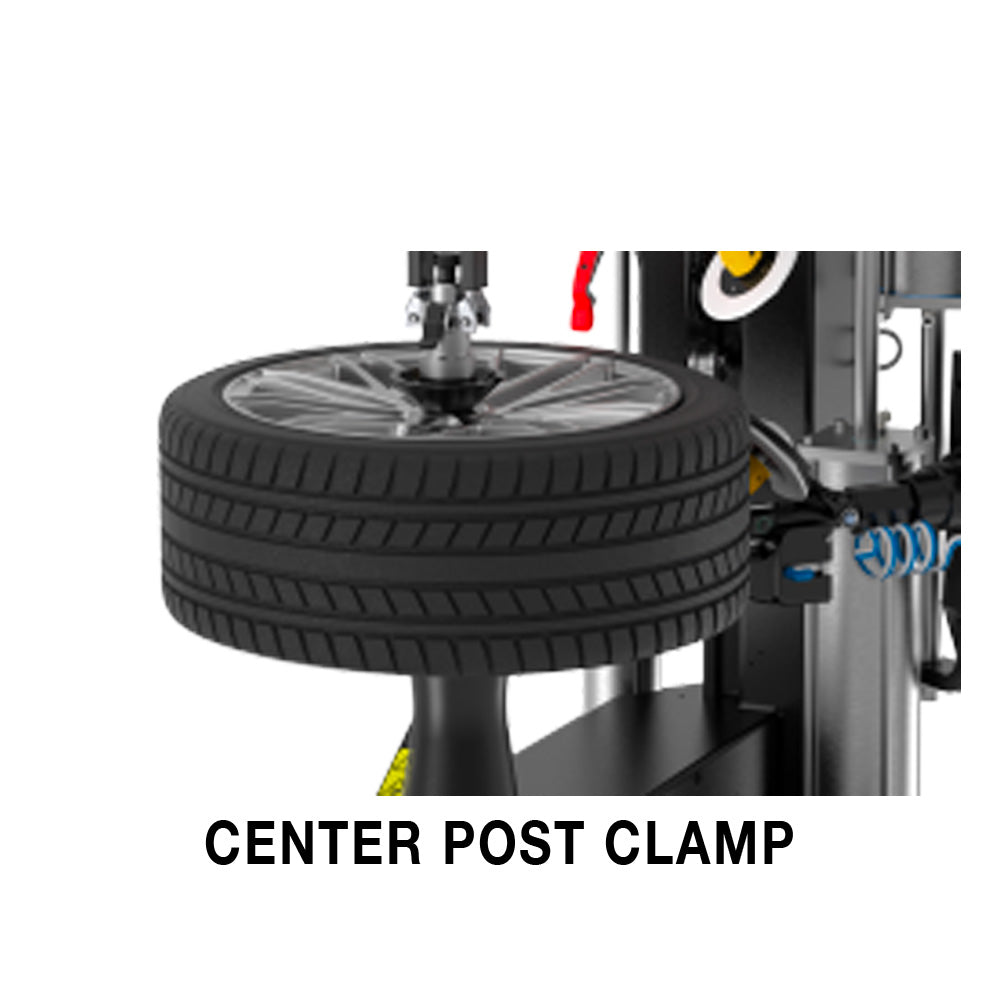

- CENTER POST CLAMP: Traditional center post design accommodates a wide range of wheel sizes.

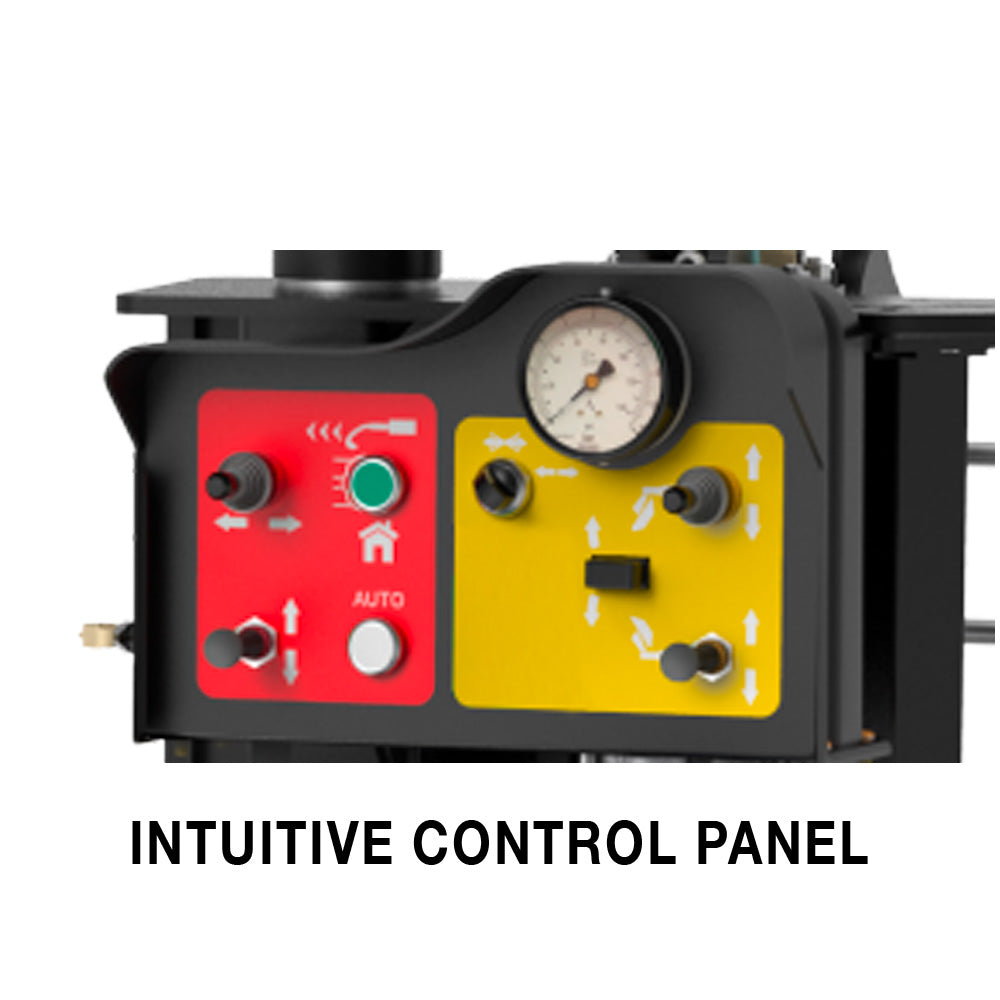

- INTUITIVE CONTROL PANEL: Simple, color-coded control panel matches machine operating procedures.

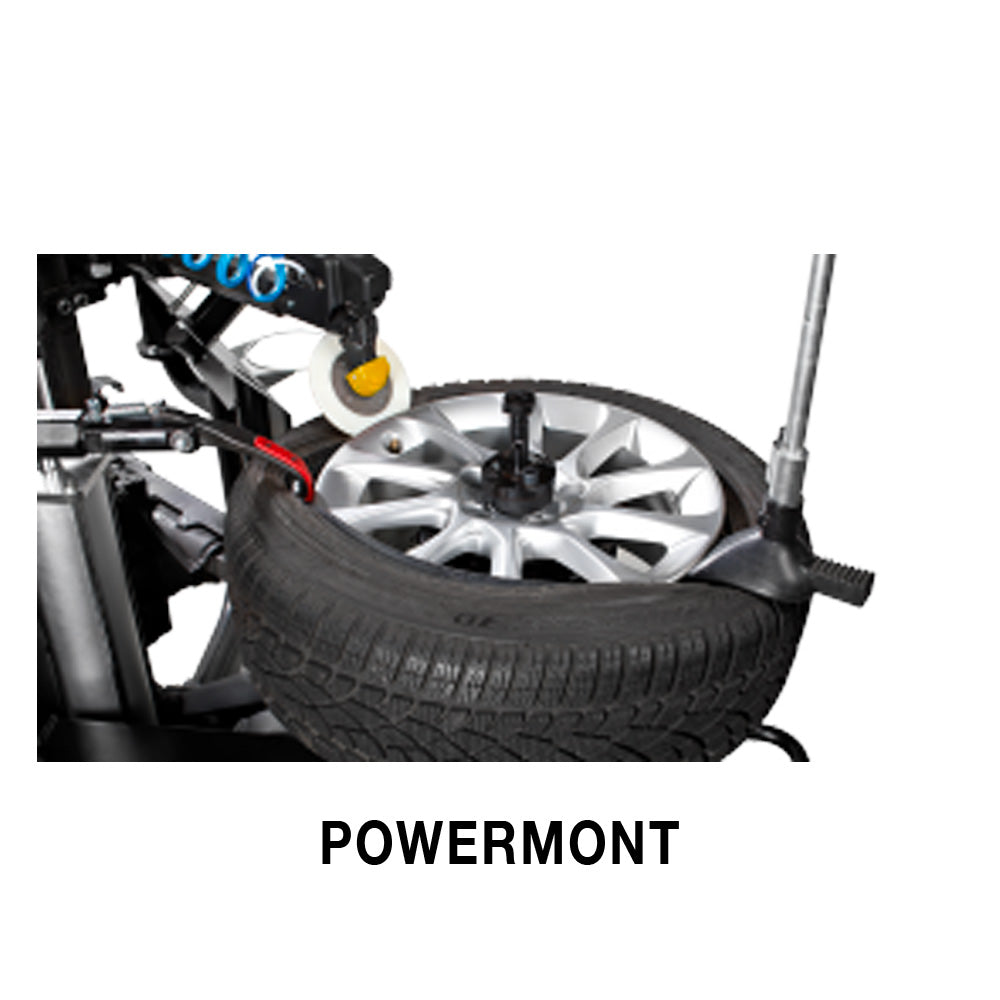

- POWERMONT: Innovative and fast mount/demount system with simple controls for precise tool positioning to prevent tire damage and technician injury.

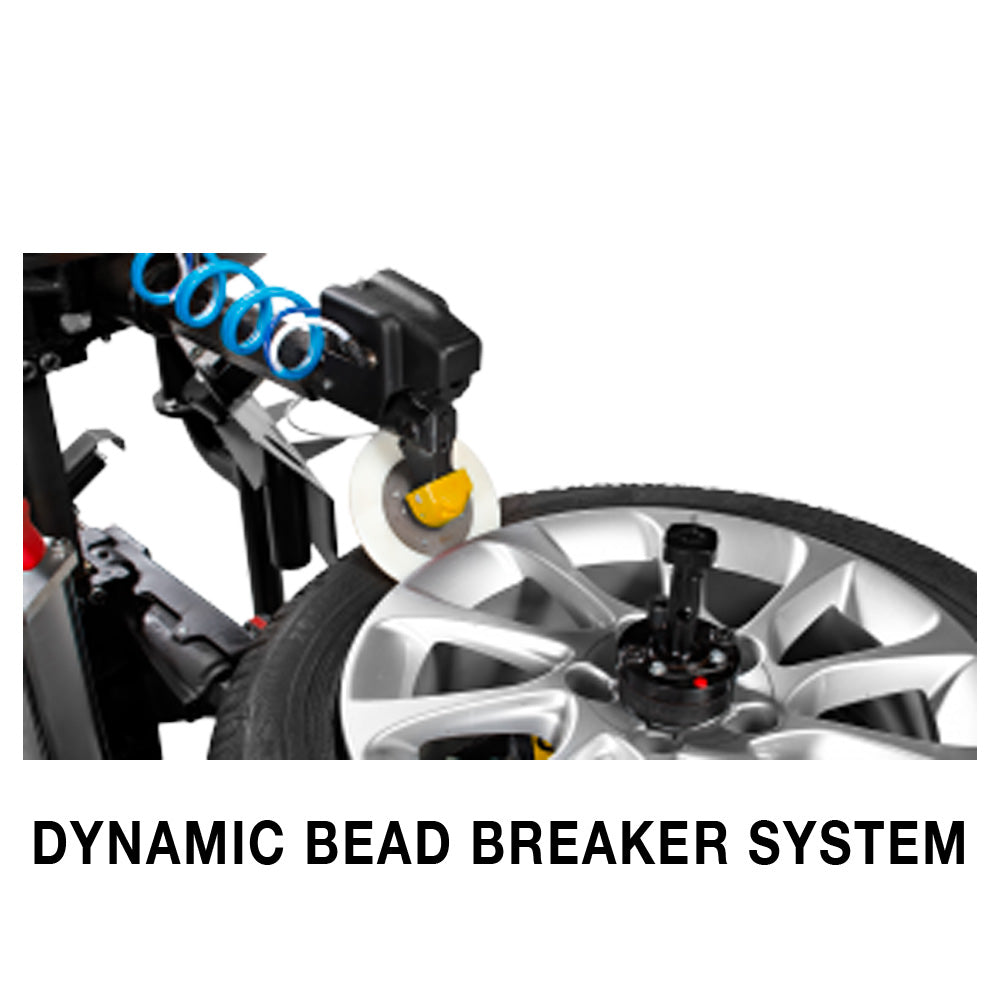

- DYNAMIC BEAD BREAKER SYSTEM: Synchronized dual disks for precision positioning on upper and lower beads with adjustable tilt for hard sidewall tires.

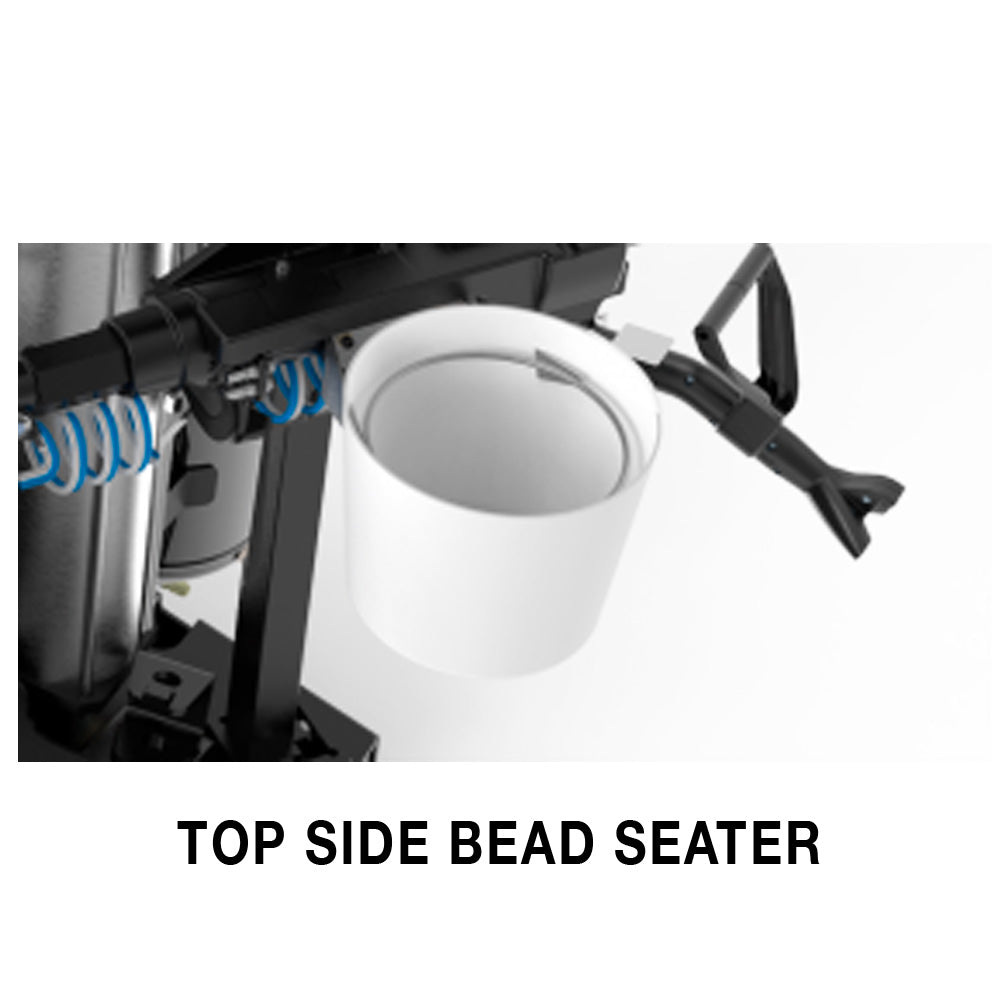

- TOP SIDE BEAD SEATER: Ergonomic nozzle injects high-speed air blast into the tire, rising the bead to seal the tire to the rim.

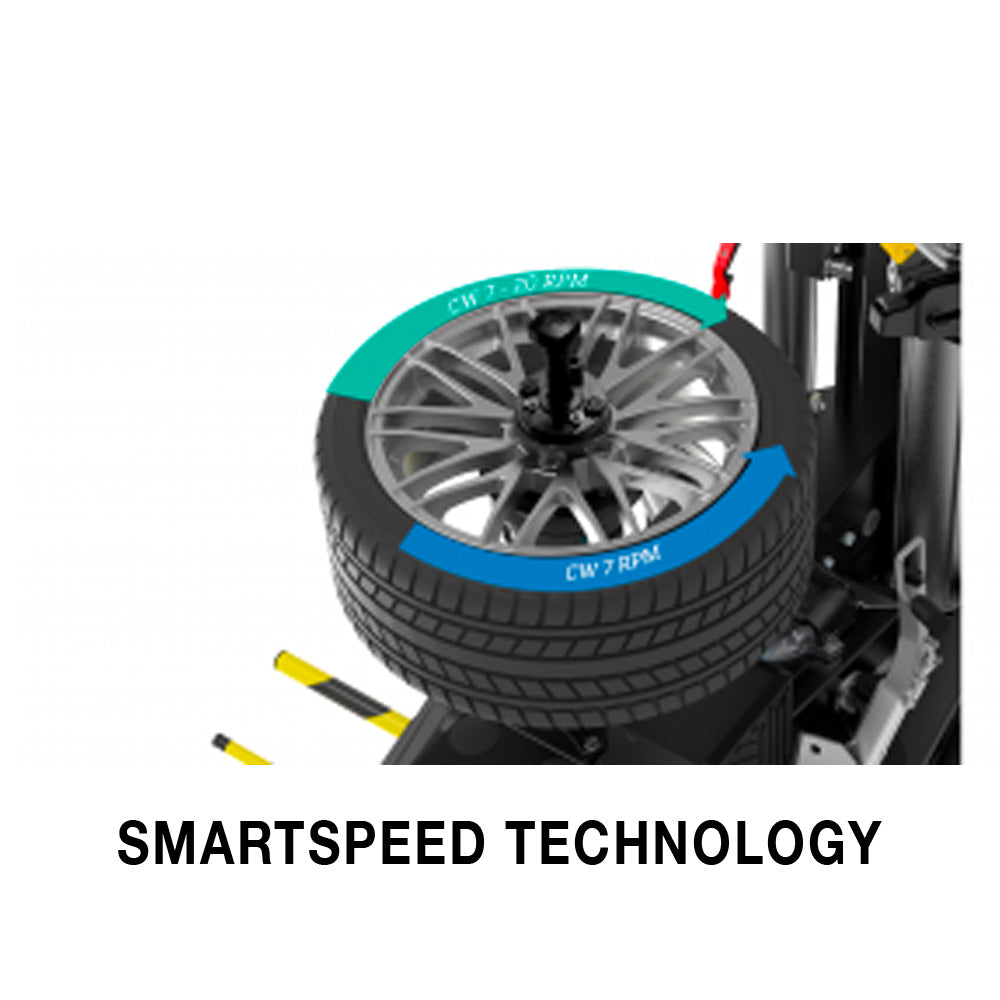

- SMARTSPEED TECHNOLOGY: Continuously controls mount/demount conditions to provide optimum torque/speed combination from 7 to 20 RPM.

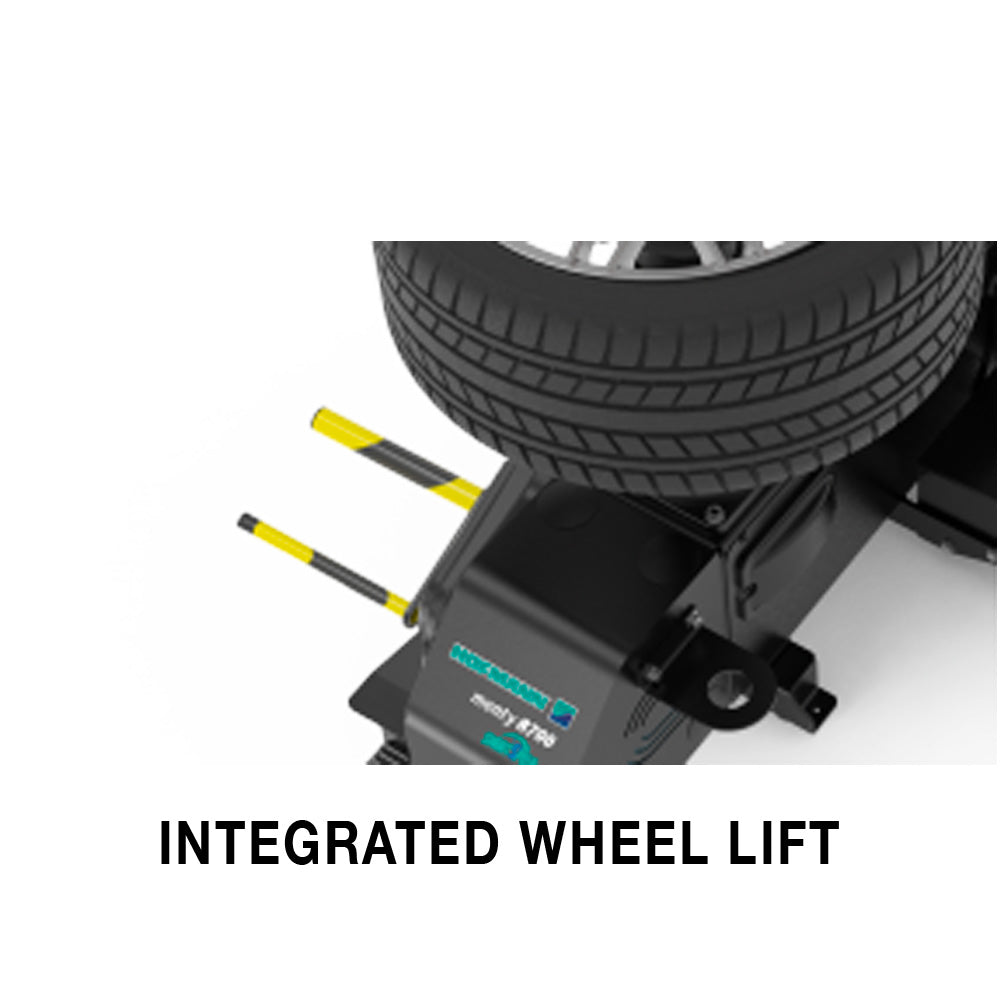

- INTEGRATED WHEEL LIFT: Pedal operated wheel lift assists technicians in lifting and positioning heavy tires, helping to reduce fatigue and increase productivity.
-
SPECIFICATIONS
Specifications MONTY1575B Overall Wheel Clamping Diameter
10"-26" (25-66 cm)
Inner Wheel Clamping Diameter 12"-26" (30-66 cm) Outer Wheel Clamping Diameter 10"-24" (25-61 cm) Bead Breaker Range 3"-13" (7.6-33 cm) Bead Loosening Power 6,000 lbs (2,722 kg) Max Wheel Width 13" (33 cm) Max Outer Tire Diameter 40" (101.6 cm) Shipping Weight 550 lbs (249.5 kg) Power Requirements 120V 1Ph 60Hz
-
WARRANTY & MEDIA
2 Year Parts
1 Year Labor
Hofmann Swing-Arm Tire Changer Monty1575B Manual
Hofmann Swing-Arm Tire Changer Monty1575B Accessories
