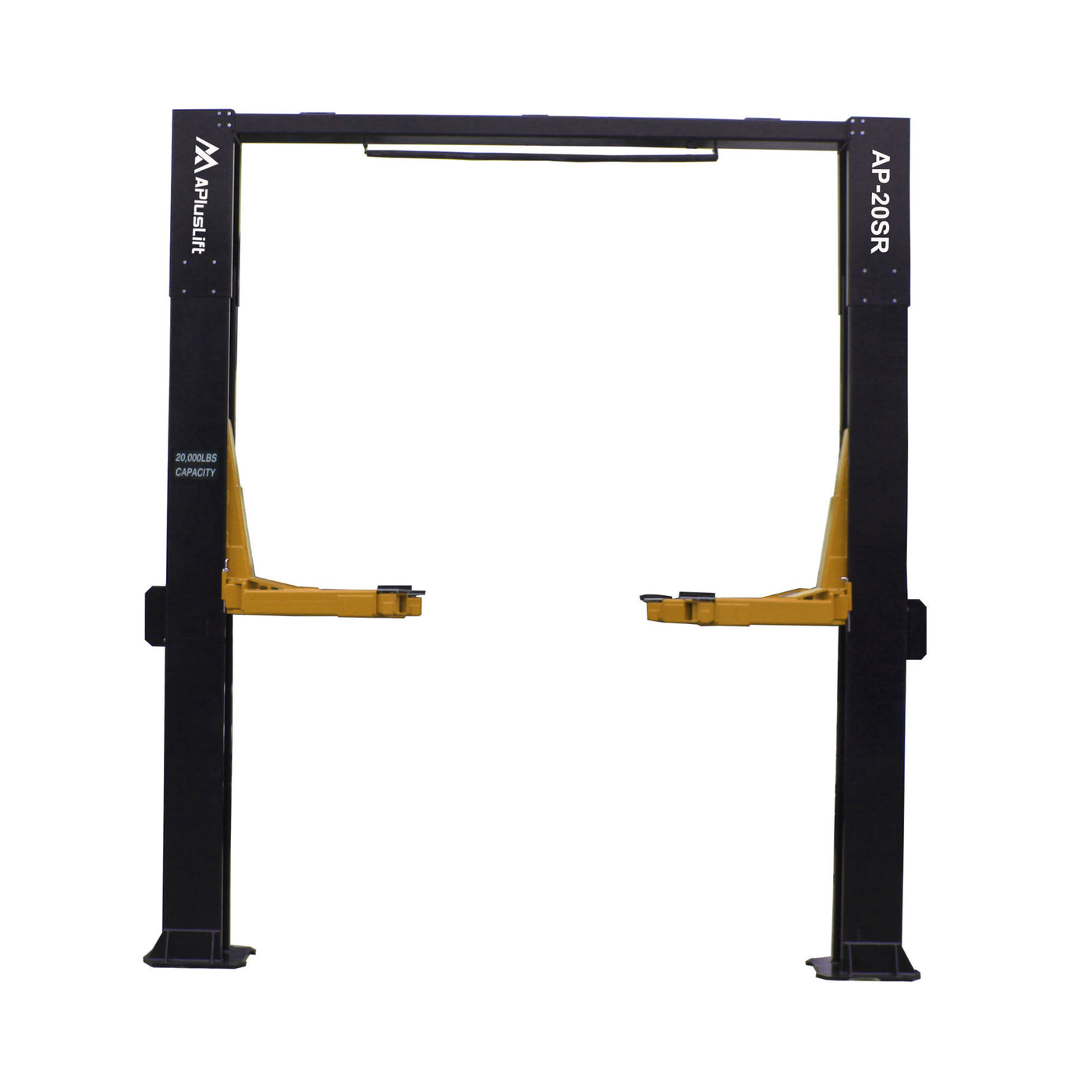

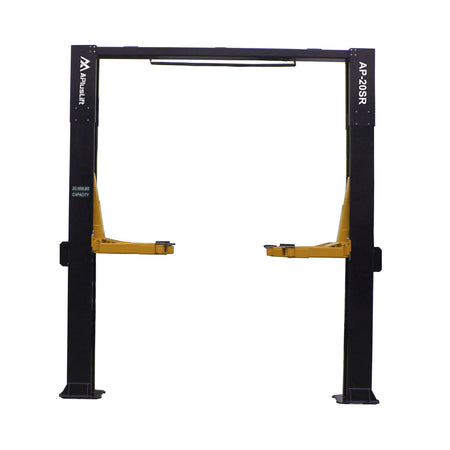

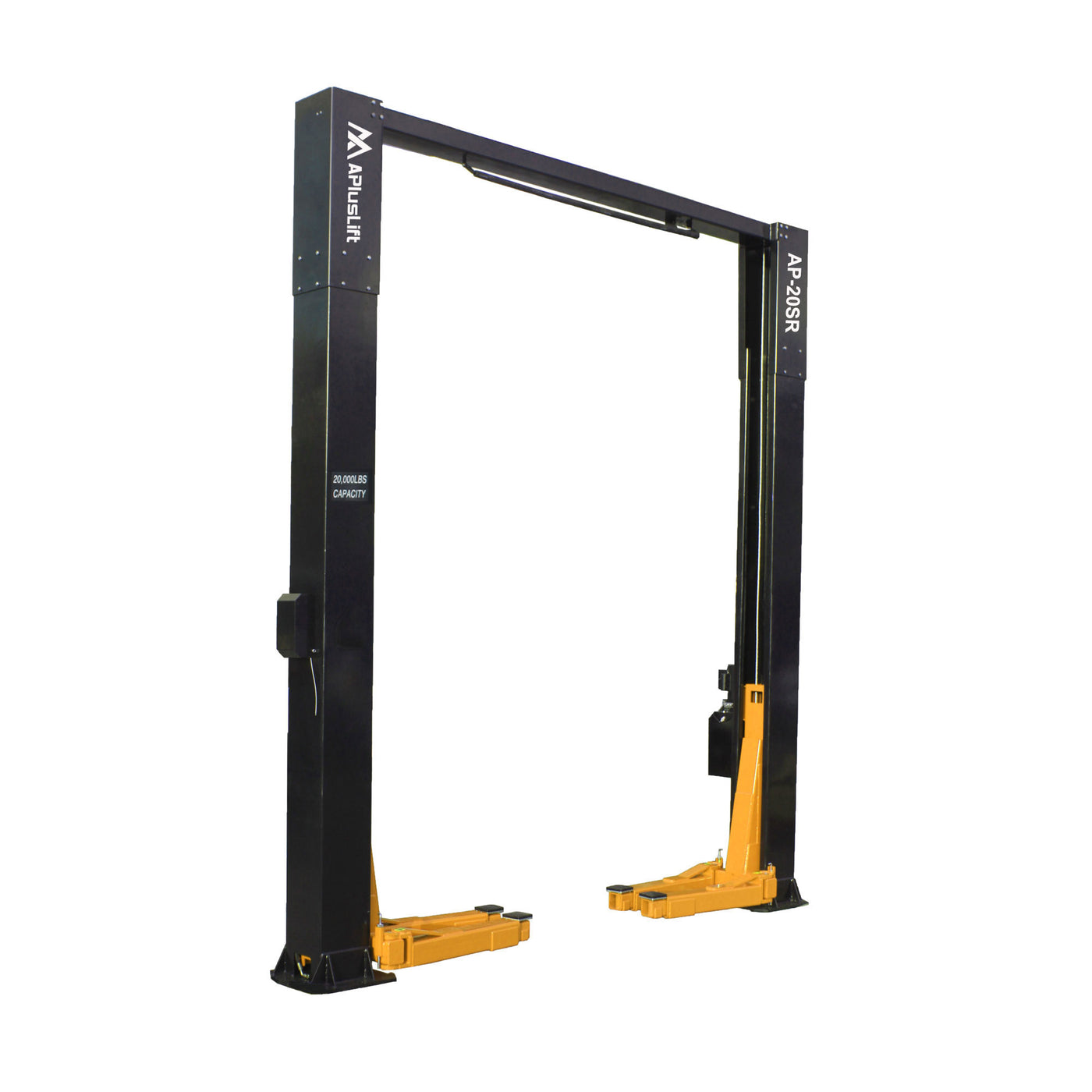

APlusLift 20,000LB 2-Post Overhead Single Release Direct Drive Car Lift #AP-20SR
Couldn't load pickup availability
Quick Specs
| Model / Part Number | AP-20SR |
| Capacity | 20,000 lbs |
| Lift Type | Overhead direct-drive 2-post lift |
| Lock Release | Single-point release |

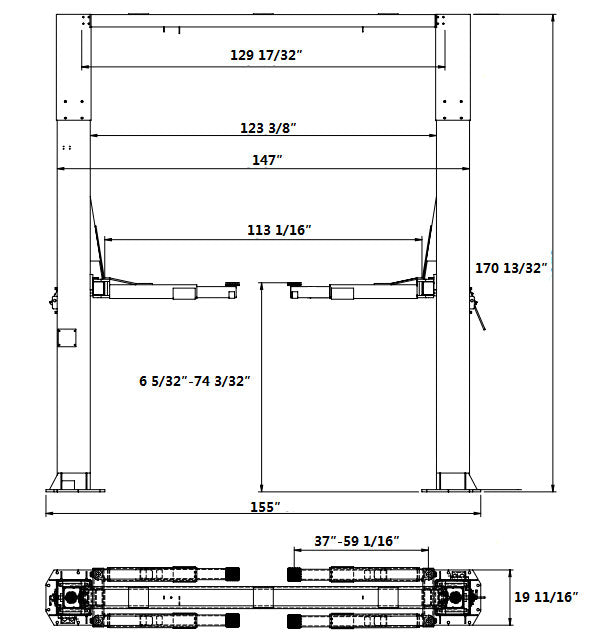

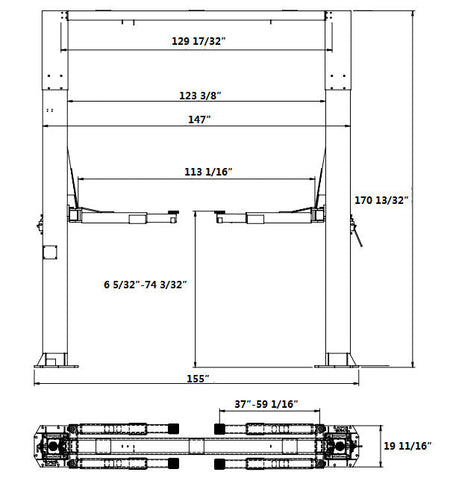

| Overall Height | 170 13/32" |
| Overall Width | 155" |
| Drive-Thru Clearance | 113 1/16" carriage-to-carriage |
| Column-to-Column Width | 123 3/8" |
| Max Lift Height | 79 19/32" with adapters / 74 3/32" without adapters |
| Arm Configuration | Symmetric 2-stage front and rear arms |
| Motor / Electrical | 220V, 1-phase, 3 HP, 30A breaker recommended |
| Rise Time | About 75 seconds |
| Truck Adapters | 2 3/4" and 5 1/2" adapter sets |
| Concrete Requirement | At least 13" thick, C25 strength concrete |
| Shipping Weight | 2,300 lbs |
| Warranty | 3 years / 36 months |
| Installation | Available - call (817) 865-3707 |
The APlusLift AP-20SR is a 20,000 lb overhead 2-post lift for facilities that need substantially more capacity than a typical 10K or 12K service lift.
It pairs dual direct-drive hydraulic cylinders, single-point release, symmetric 2-stage arms, included truck adapters, and a heavy concrete requirement for serious truck and fleet service bays.
20K Heavy-Capacity Platform
The AP-20SR is the largest-capacity product in this two-post lift group, making it a fit for heavier service applications where a 15K lift is not enough.
Direct-Drive Hydraulic System
Dual hydraulic cylinders and direct-drive operation support a straightforward heavy-duty lift design.
Wide Service Bay Access
A 155 inch overall width and 113 1/16 inch carriage-to-carriage drive-through width help position larger vehicles.
Included Truck Adapters
Two adapter-height sets, adjustable pads, anchors, and shims are listed with the source package.
Heavy Slab Requirement
The published concrete requirement is much heavier than standard light-duty lifts, so slab verification is mandatory before purchase.
Frequently Asked Questions
What is the lifting capacity of the AP-20SR?
The AP-20SR is rated for 20,000 lbs, assuming the lift is installed correctly and the vehicle is positioned within the lift rating.
Is the AP-20SR ALI certified?
The current Alamo source page does not support an ALI certification claim for this model.
What type of 2-post lift is the AP-20SR?
Overhead direct-drive 2-post lift
What electrical service does the AP-20SR need?
220V, 1-phase, 3 HP, 30A breaker recommended
What concrete does the AP-20SR require?
At least 13" thick, C25 strength concrete
Does the AP-20SR include adapters?
2 3/4" and 5 1/2" adapter sets
Can Alamo install the AP-20SR?
Yes. Alamo Equipment & Service can help with bay planning, installation, annual inspections, repair, and long-term service support. Call (817) 865-3707 to discuss the bay.
How does the AP-20SR compare to the Challenger E15?
Choose the AP-20SR when the shop needs the highest capacity in this two-post lift group and can meet the heavy slab requirement. Choose the Challenger E15 when ALI certification and a premium 15K commercial platform are the deciding factors.
Best For
✓ Fleet and truck service shops that need 20,000 lb 2-post lifting capacity
✓ Bays with the height, width, slab, power, and unloading equipment for a 2,300 lb lift package
✓ Buyers who want overhead access, direct-drive cylinders, and single-point release
✓ Facilities that can meet the listed 13 inch / C25 concrete requirement
✗ Not ideal when the facility cannot verify the heavy concrete requirement
✗ Not ideal when documented ALI certification is required
✗ Not ideal for lighter-duty shops that would be better served by a 10K, 12K, or 15K lift
Installation Requirements
• Confirm 170 13/32" overall height plus vehicle and working clearance
• Plan around 155" overall width and 113 1/16" drive-through clearance
• Verify the listed at least 13" thick C25 concrete requirement before ordering
• Provide 220V single-phase power for the 3 HP motor; 30A breaker recommended

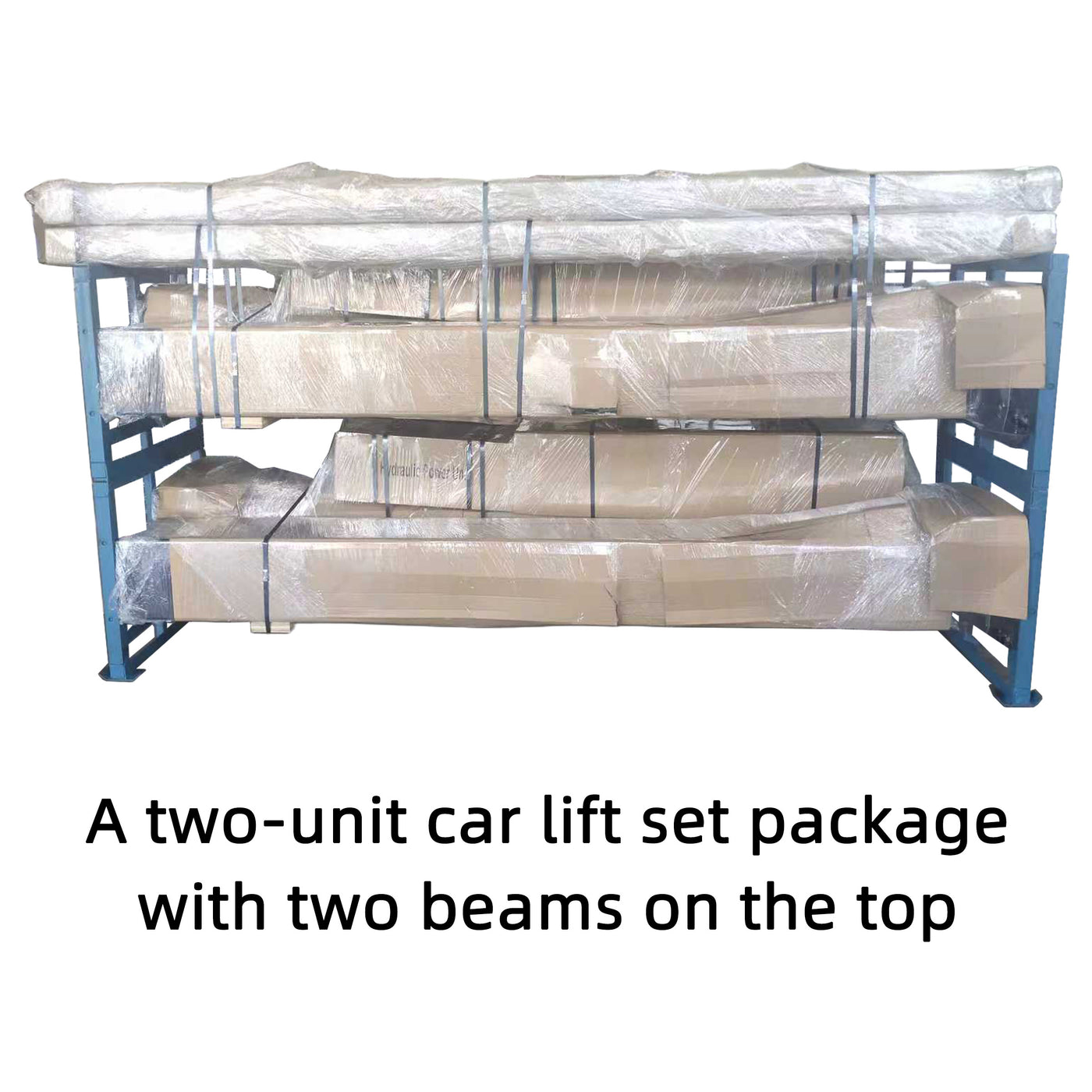

• Plan receiving equipment for the 2,300 lb listed shipping weight
• Professional installation strongly recommended for commercial 2-post lifts
• Alamo offers installation planning and support - call (817) 865-3707
Why Buy This AP-20SR From Alamo Equipment
✓ Alamo can help verify whether the AP-20SR's 20,000 lb capacity is appropriate for the shop's vehicle mix
✓ The AP-20SR has a much heavier slab requirement than typical 2-post lifts, and Alamo can help buyers surface that before delivery
✓ Alamo can compare the AP-20SR against internal heavy-duty options like Challenger E15 when certification or premium support matters more
✓ The listed 155 inch width, 170 13/32 inch height, and 2,300 lb package need careful bay and receiving planning
✓ Alamo supports heavy lift buyers with installation planning, inspection, maintenance, repair, and replacement-part guidance
(817) 865-3707
AP-20SR vs Challenger E15
Both products are sold by Alamo and serve nearby two-post lift use cases.
| Spec | AP-20SR | Challenger E15 |
|---|---|---|
| Capacity | 20,000 lbs | 15,000 lbs |
| Positioning | APlusLift AP-20SR 20K Overhead Direct-Drive 2-Post Lift | Premium Challenger heavy-duty commercial 15K lift |
| Certification | No ALI claim on current source | ALI / ETL certified |
| Bay Layout | Overhead direct-drive 2-post lift | Overhead clearfloor |
| Overall Height | 170 13/32" | Commercial 15K configuration |
| Drive-Thru Clearance | 113 1/16" carriage-to-carriage | See Challenger E15 product specs |
| Best Fit | Fleet and truck service shops that need 20,000 lb 2-post lifting capacity | Best when certification and premium Challenger support matter most |
Choose the AP-20SR when the shop needs the highest capacity in this two-post lift group and can meet the heavy slab requirement. Choose the Challenger E15 when ALI certification and a premium 15K commercial platform are the deciding factors.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
