Atlas® PV12PX Adj Height Ex-Wide/Ex-Tall 2 Post Lift 12k lbs ATEXH-PV12PX-FPD
Couldn't load pickup availability
-
DESCRIPTION
Atlas® PV12PX Two Post Lift – Heavy-Duty Performance at Unbeatable Value
The Atlas® PV series delivers exceptional value for those who demand a professional-grade, heavy-duty two-post lift—without the premium price tag. Trusted by automotive professionals for over a decade, these lifts are known for their rugged durability and uncompromising performance. Thousands have been sold, and customers continue to describe them with words like “bulletproof,” “built like a tank,” and “tough as nails.”

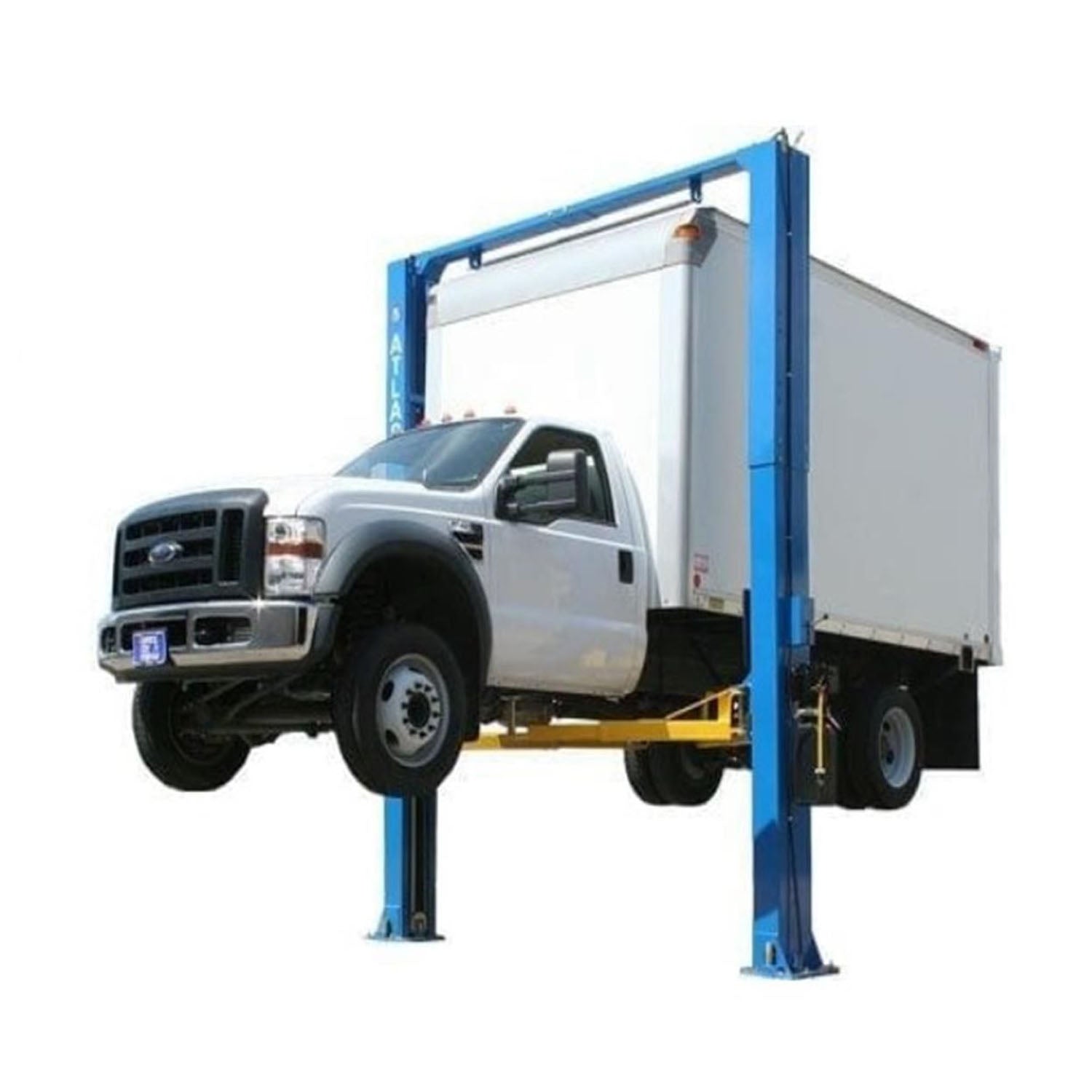

The Atlas® PV12PX is a commercial-grade two-post lift engineered to handle both long wheelbase trucks and low-clearance passenger vehicles. With 123 inches between the symmetrical columns and a 109-inch drive-through clearance, even the widest vehicles—or those with large mirrors—can be easily accommodated.
Features
- Extended-length symmetrical arms to safely support trucks with running boards.
- Low pad height for easy access to standard passenger cars.

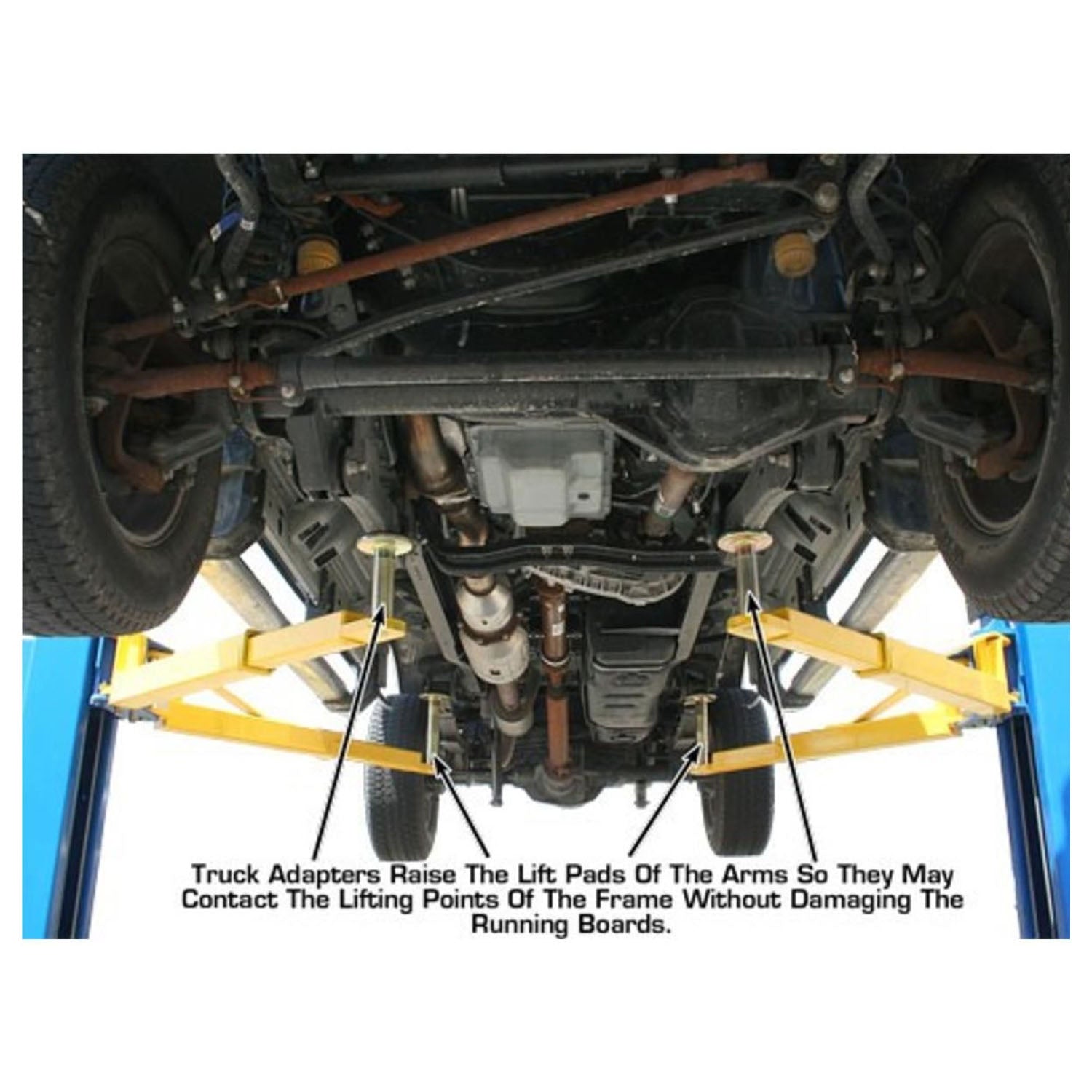

- Peg-style truck adapters for added reach and flexibility.
- Increased lift height for hassle-free servicing of vans, box trucks, and taller vehicles.
The Atlas® ATEXH-PV12PX model includes three adjustable height settings, with a minimum height of 150 inches (12'6")—ideal for shops with taller ceilings. Note: Extra short cables are required for operation at the lowest height setting.
Whether you're lifting a sedan or a commercial truck, the Atlas® PV12PX is built to perform—day in, day out.
-
FEATURES + BENEFITS
- 12,000 lb. capacity
- Extra Tall & Extra Wide
- Commercial Grade
- Adjustable height 150" (12' 6") or 165" (13' 9") or 177" (14' 9")
- Special low height 150" (12' 6") (Requires purchase of extra cables)
- Symmetric arms
- Automatic Arm Restraints
- "Padded" Shut-Off Bar
- Door Guards on Carriages

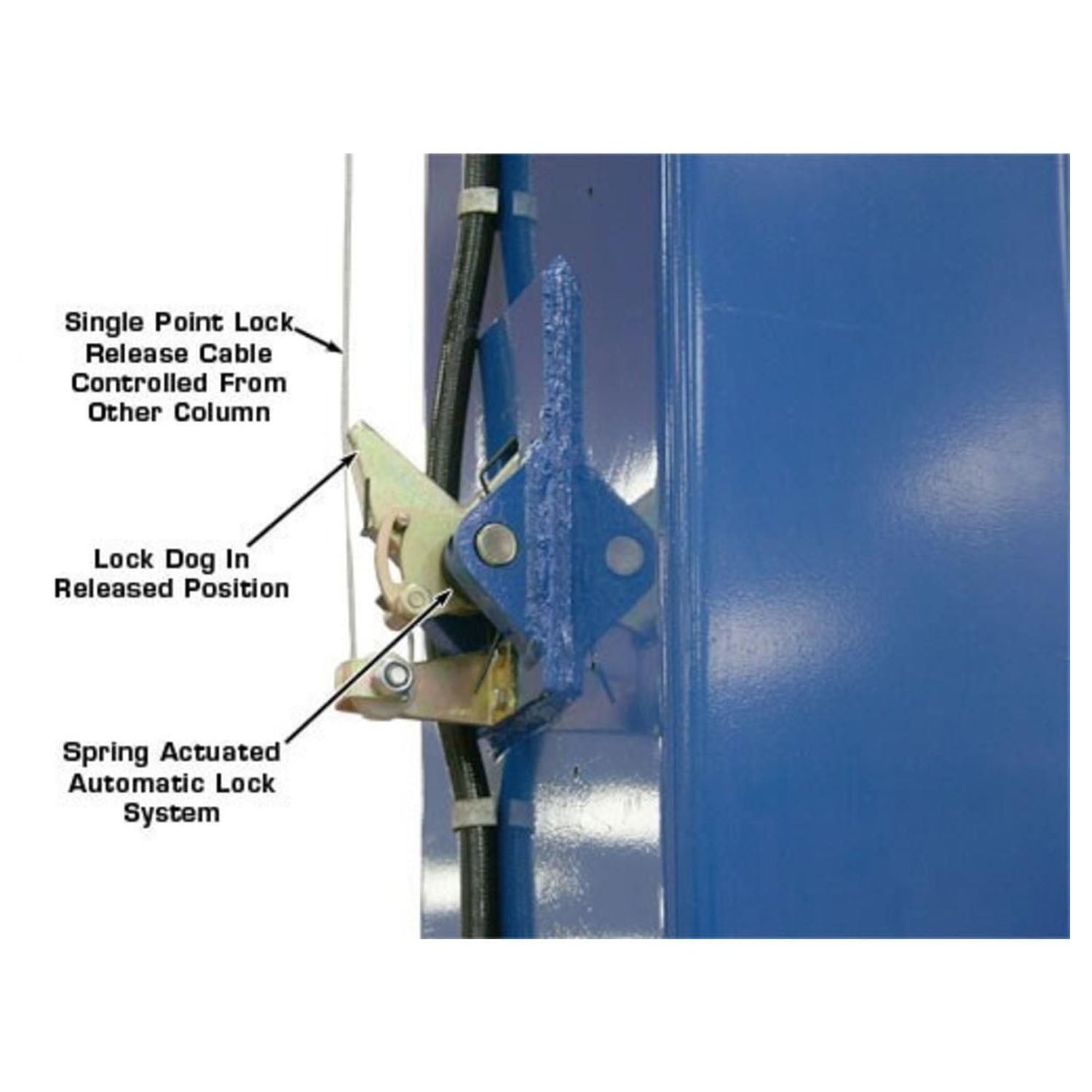

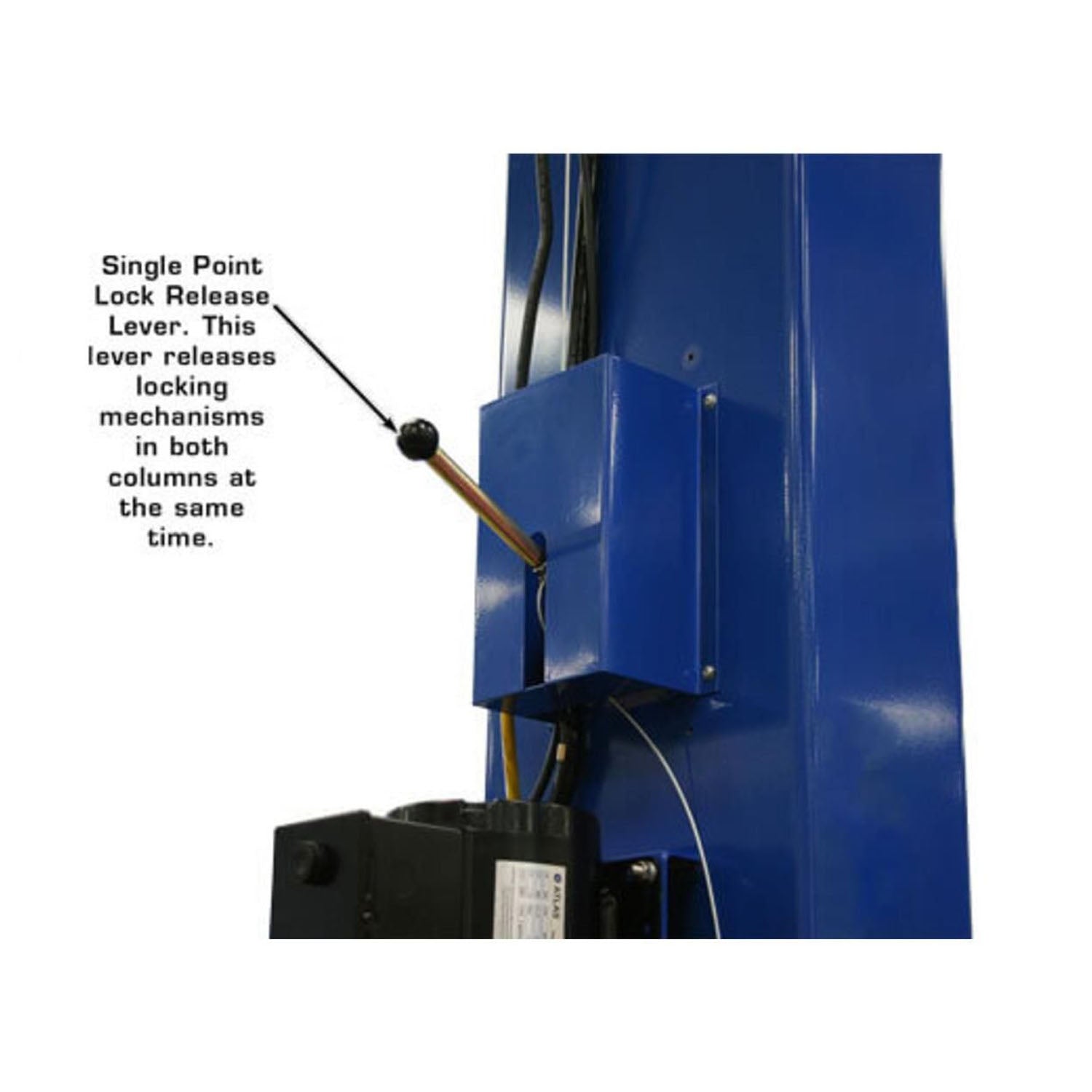

- Single Point Lock Release

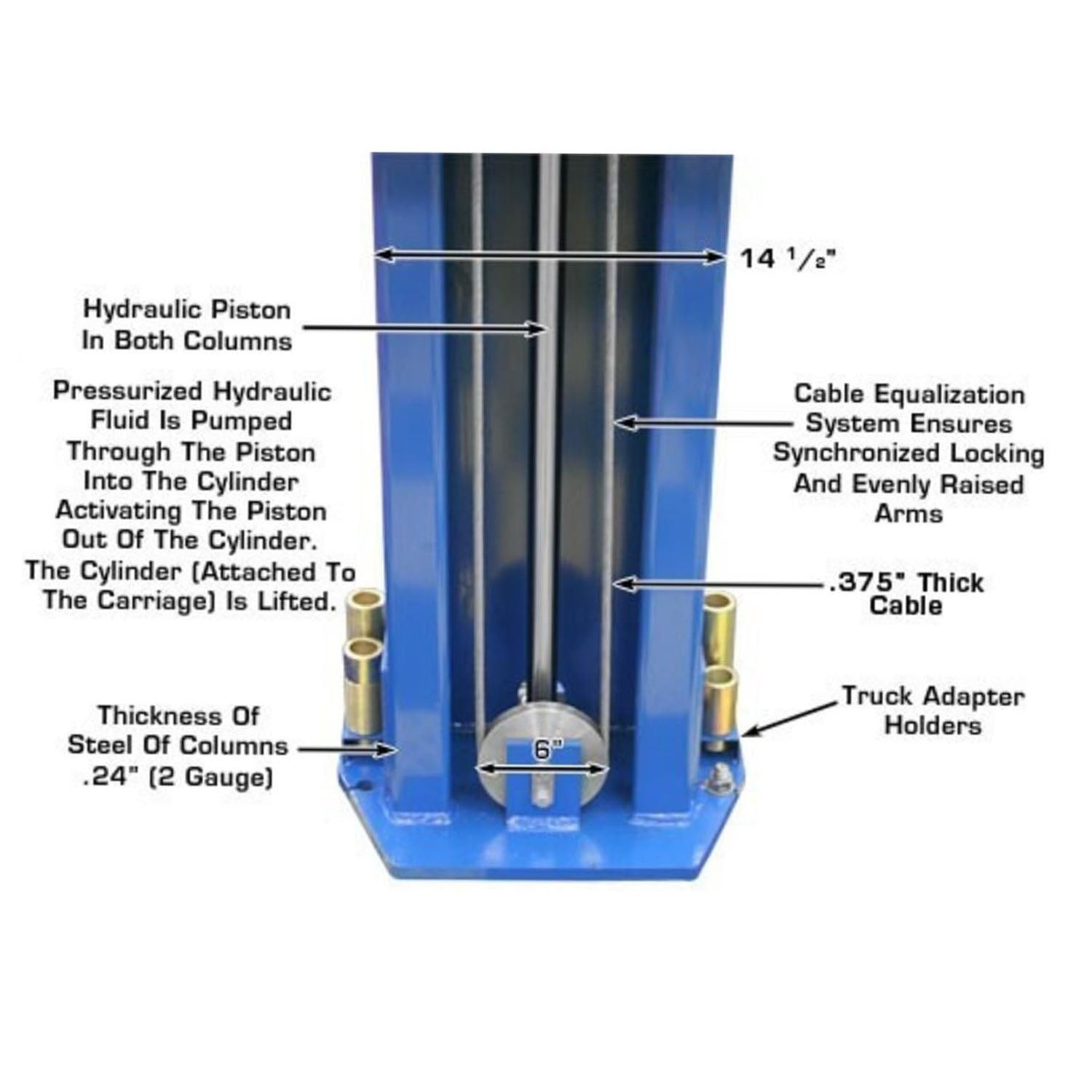

- Direct-Drive Cylinders
- Powder Coat Finish

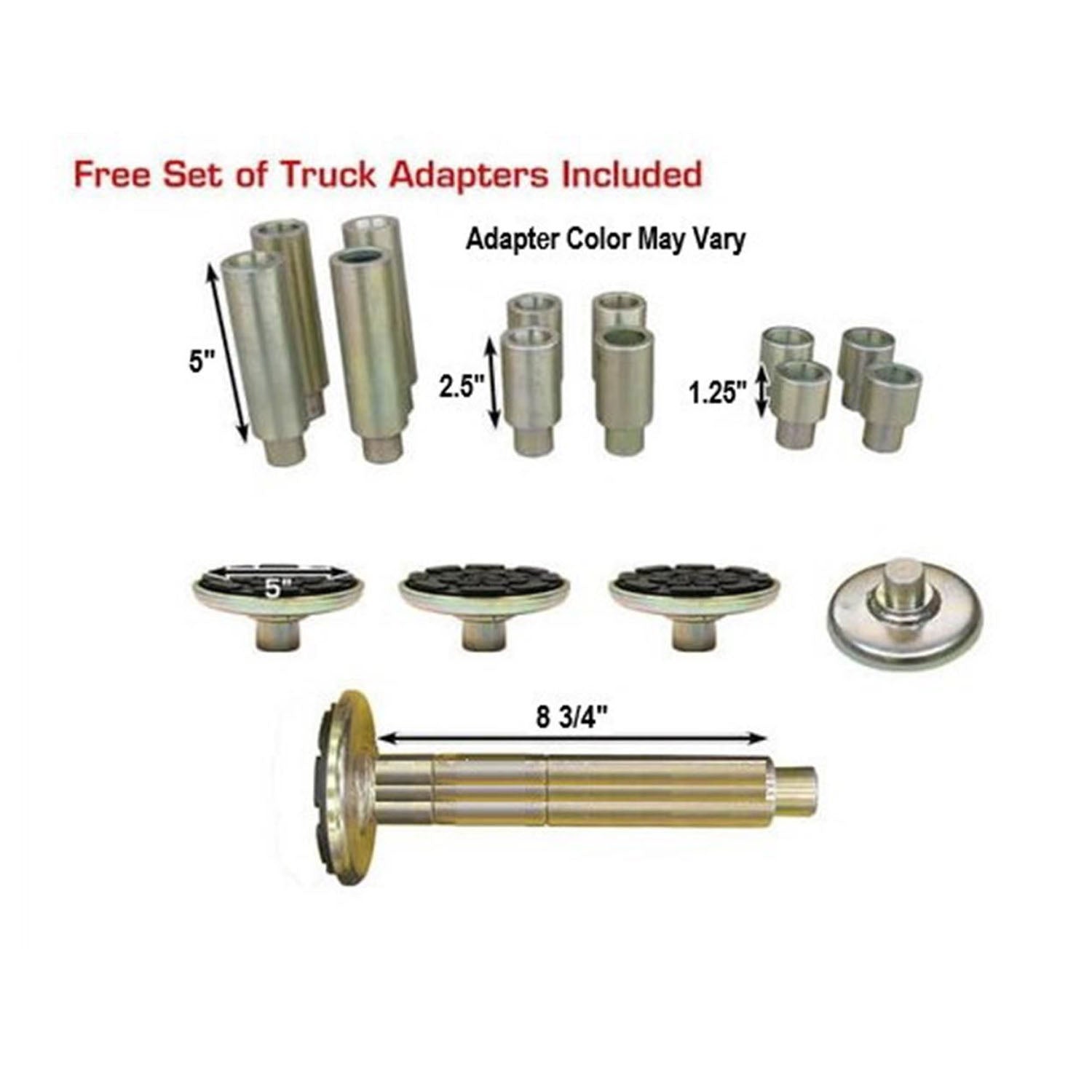

- Free 12 Piece Truck Adapter Set

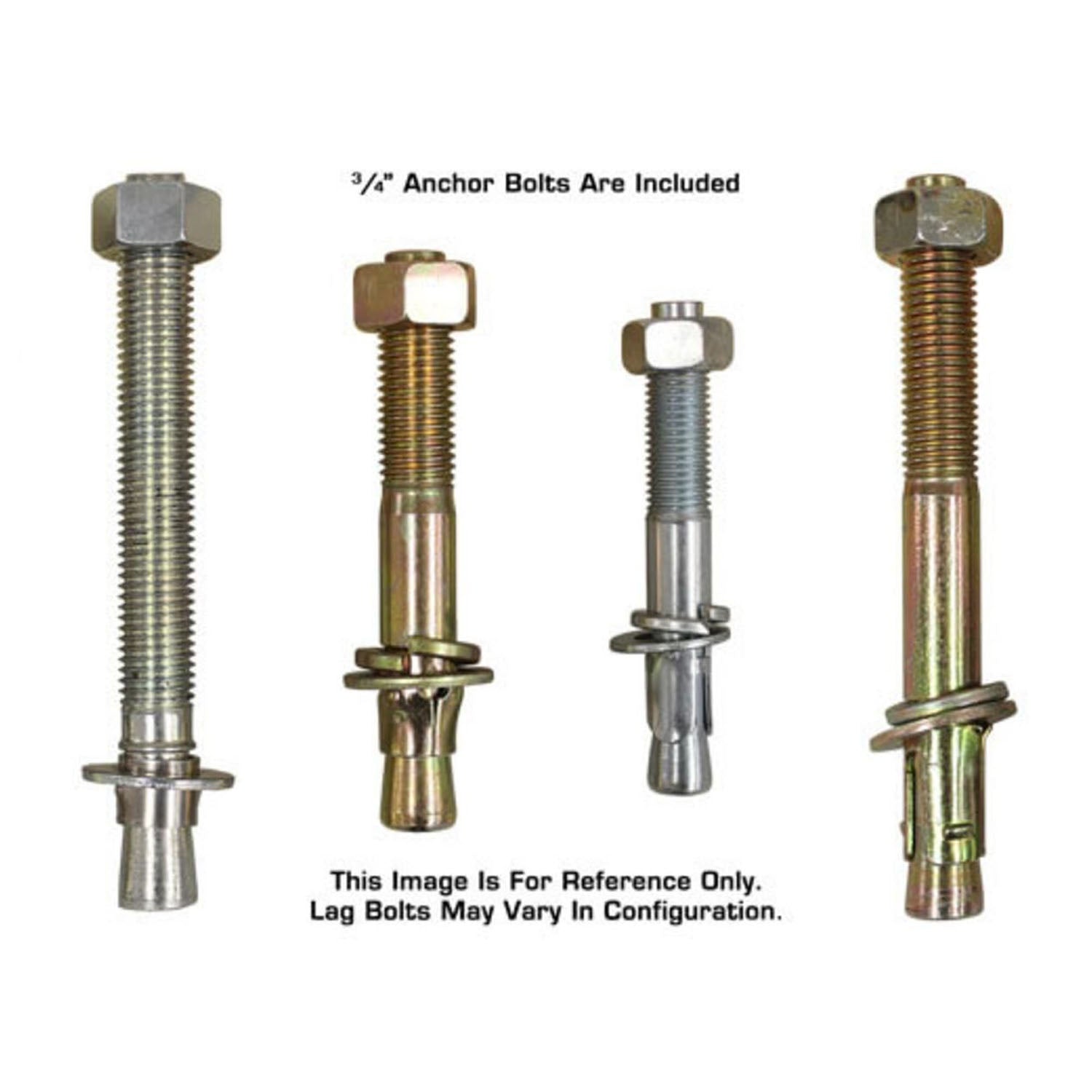

- Mounting Hardware Included

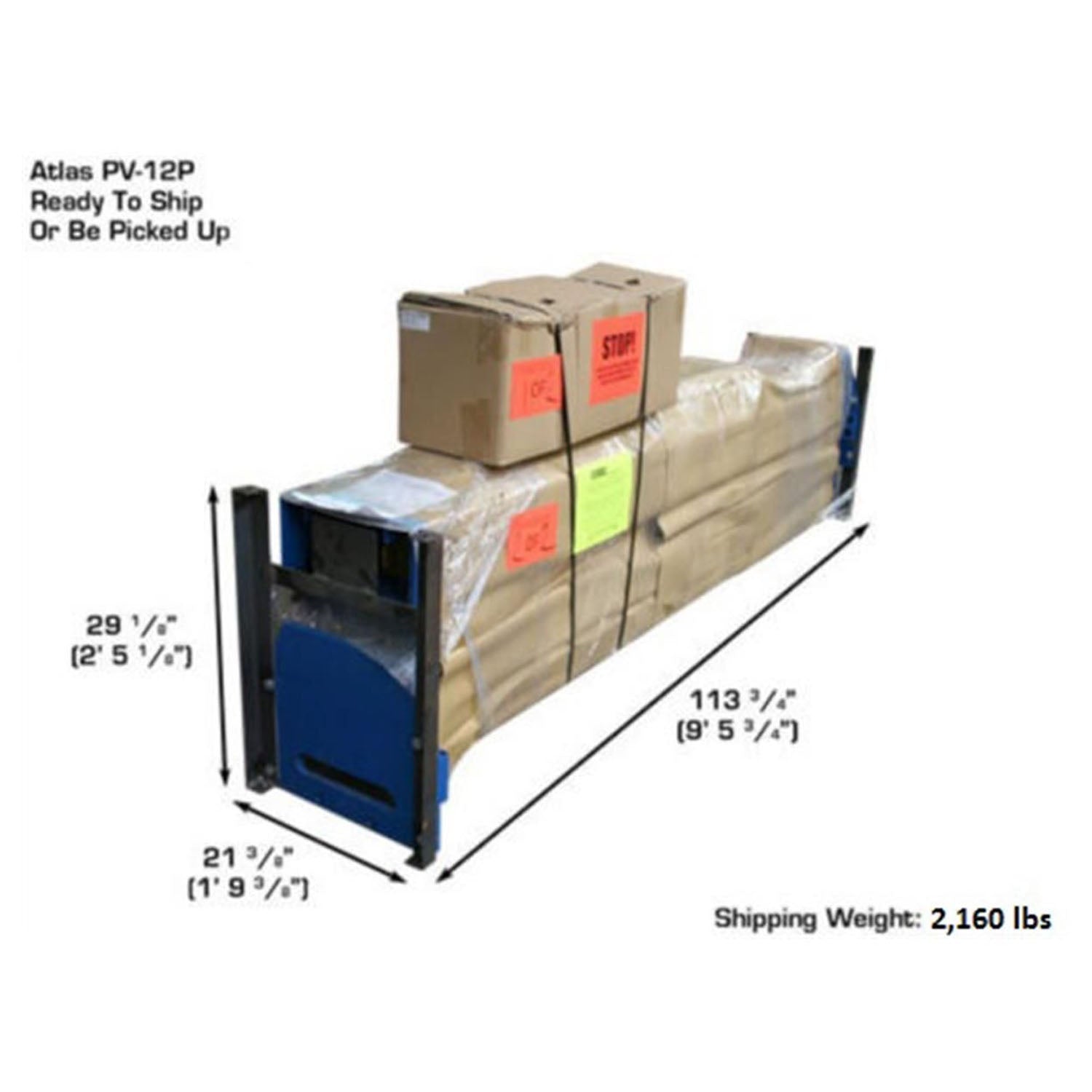

- Shipping weight: 2,160 lbs.
- 5 yr. Structural ‐ 2 yr. Hydraulic ‐ 1 yr. Power Unit ‐ Parts Only Warranty
Includes
- 12 Piece Truck Adapter Set
-
SPECIFICATIONS
Lifting Capacity 12,000 lbs Overall Height Low - 150" (12' 6")
Middle - 165" (13' 9")
High - 168" (14')Height To Shut Off Bar Low - 141" (11' 9") need to purchase shorter cables
Middle - 156" (13')
High - 168" (14')
Overall Width w/o Motor 150 3/4" Overall Width w/ Motor
159"
Outside Column To Outside Column
138 1/2" Maximum Lift Height w/o Adapters 72 1/4"
Maximum Lift Height w/ adapters
79 1/4"
Minimum Arm Height 4 1/2"

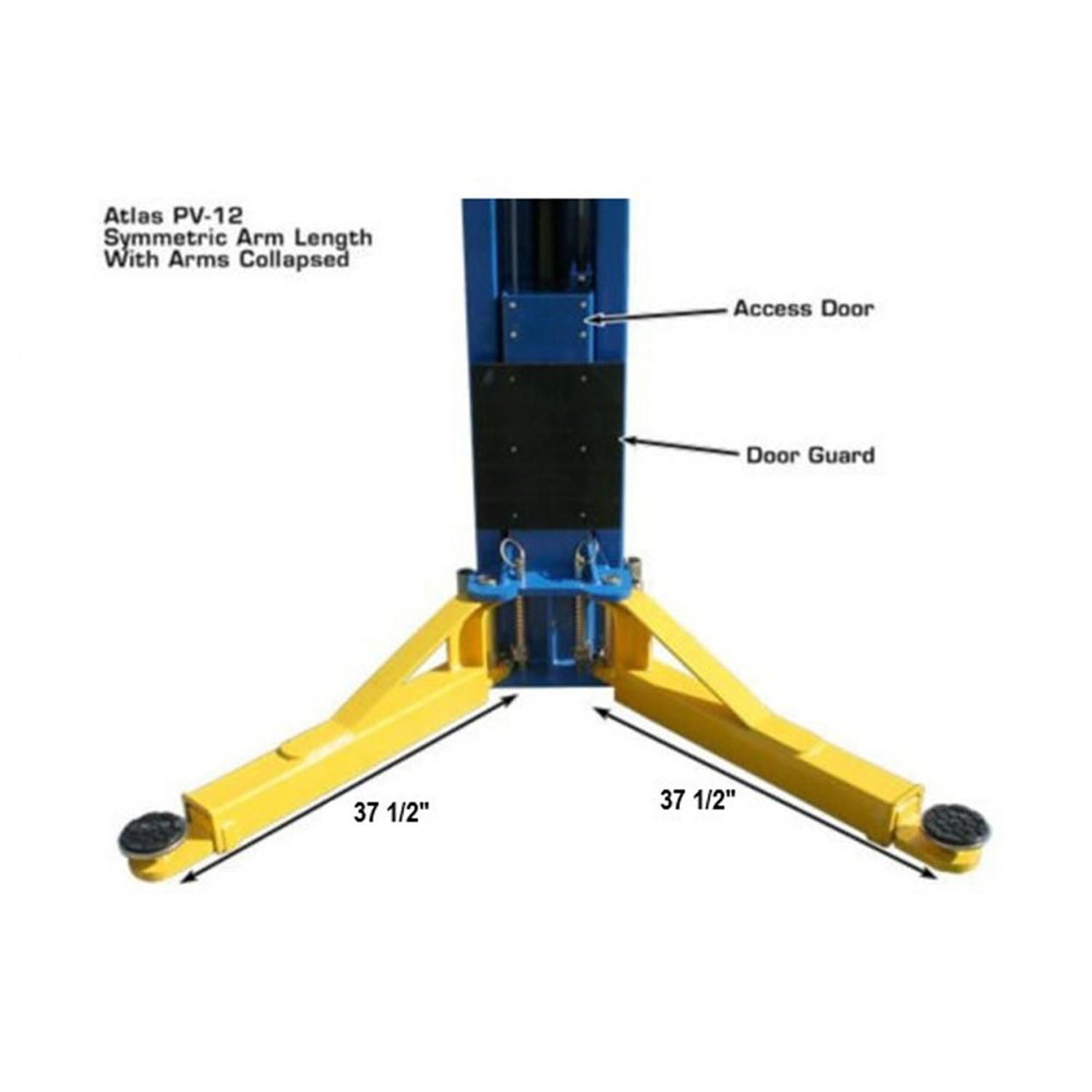

Minimum Arm Height (Assuming Level Floor) 4 1/2" Arm Collapsed
37 1/2"

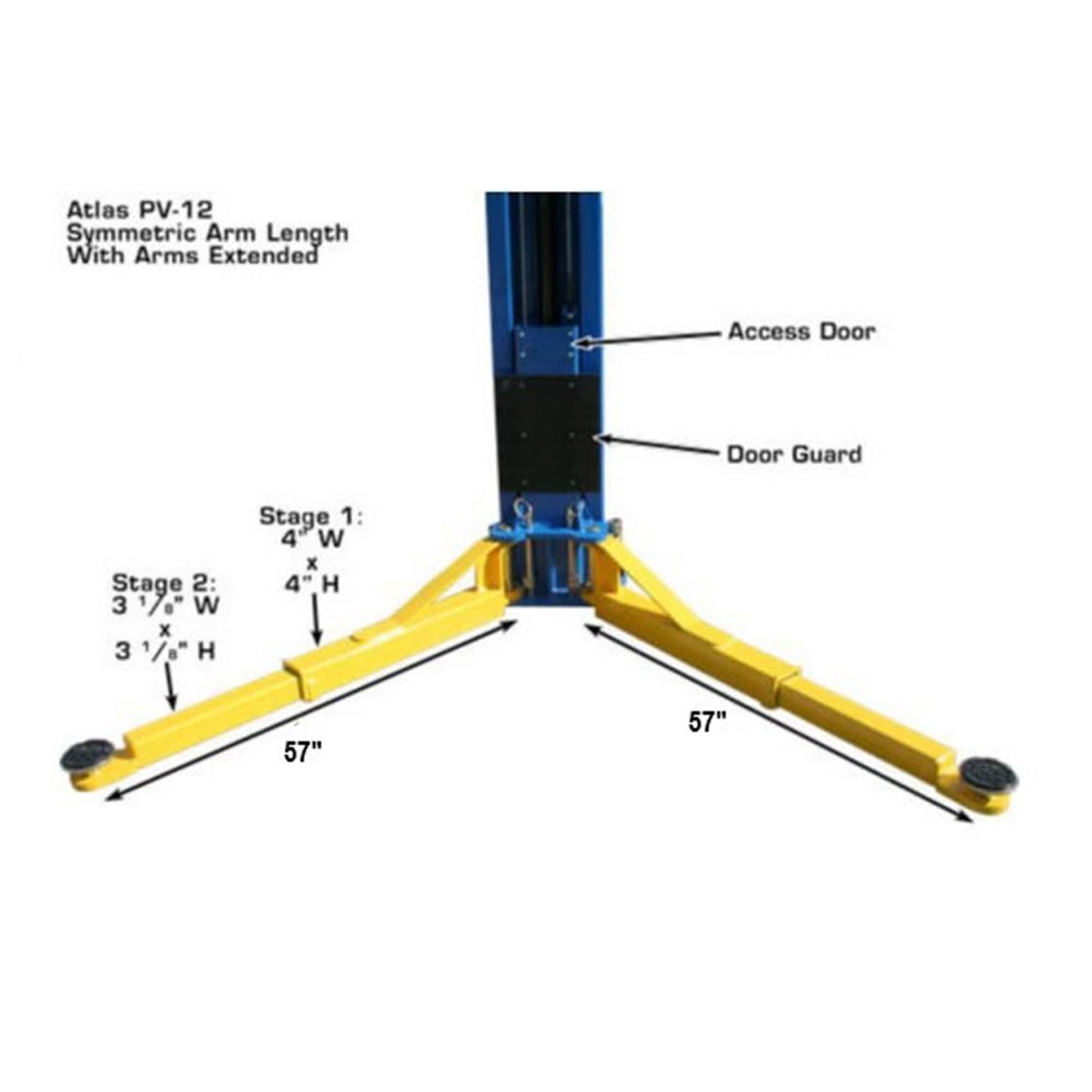

Arm Fully Extended
57"
Width Between Columns
123 1/4"
Drive Thru 109 1/2"
Round Lift Pad
5 1/2" Across / 1 1/4" Shank

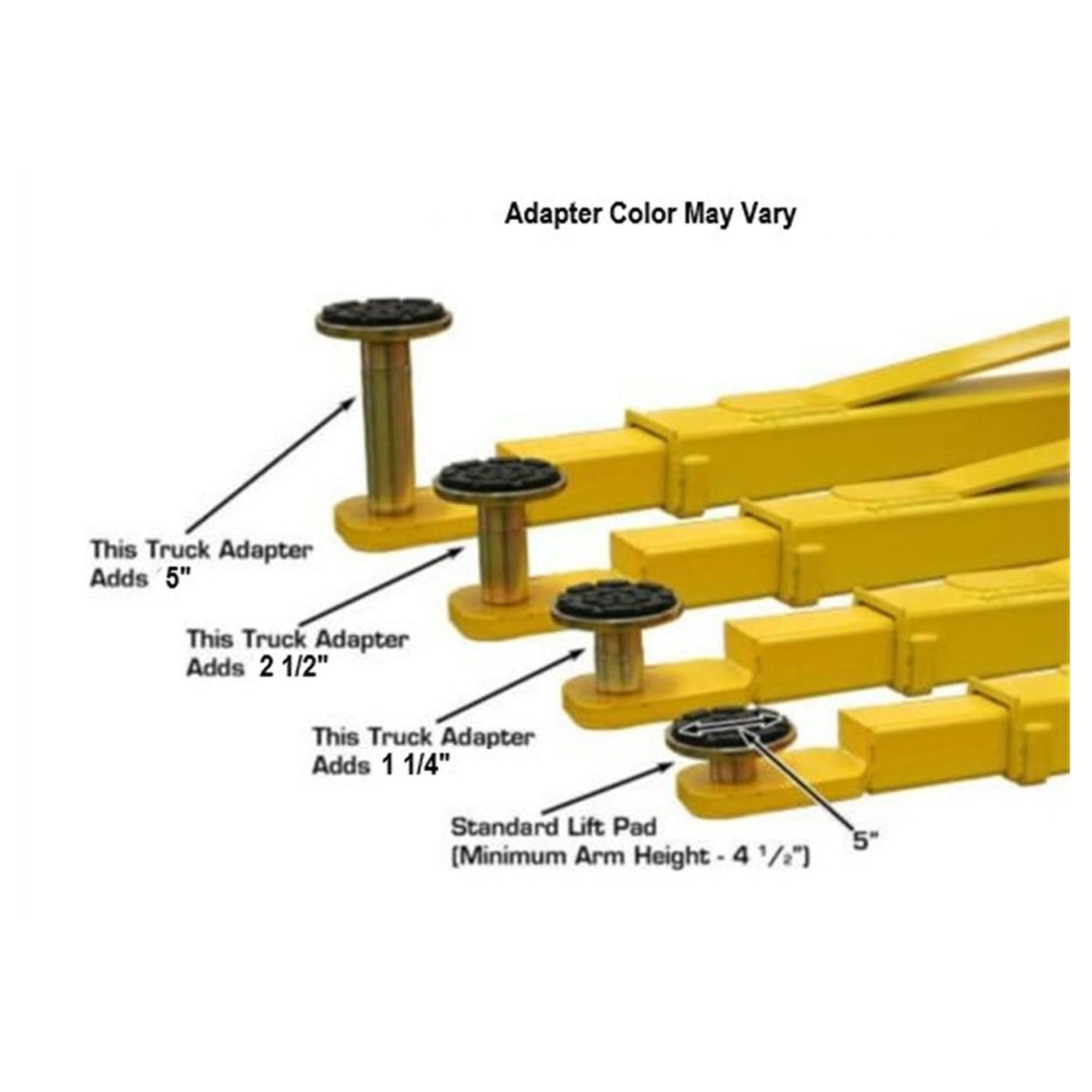

Adapter Sizes (4 ea.)
1 1/4" / 2 1/2" / 5"
Motor/Electrical Requirement 220V (1) phase / 30 amp breaker recommended
Oil Requirements 3-5 Gallons AW32/AW46 Shipping Weight 2,160 lbs. -
WARRANTY
Warranty Information
- 5-Year Structural Warranty
- 2-year Hydraulic-Power Warranty
- 5-Year Structural Warranty
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
