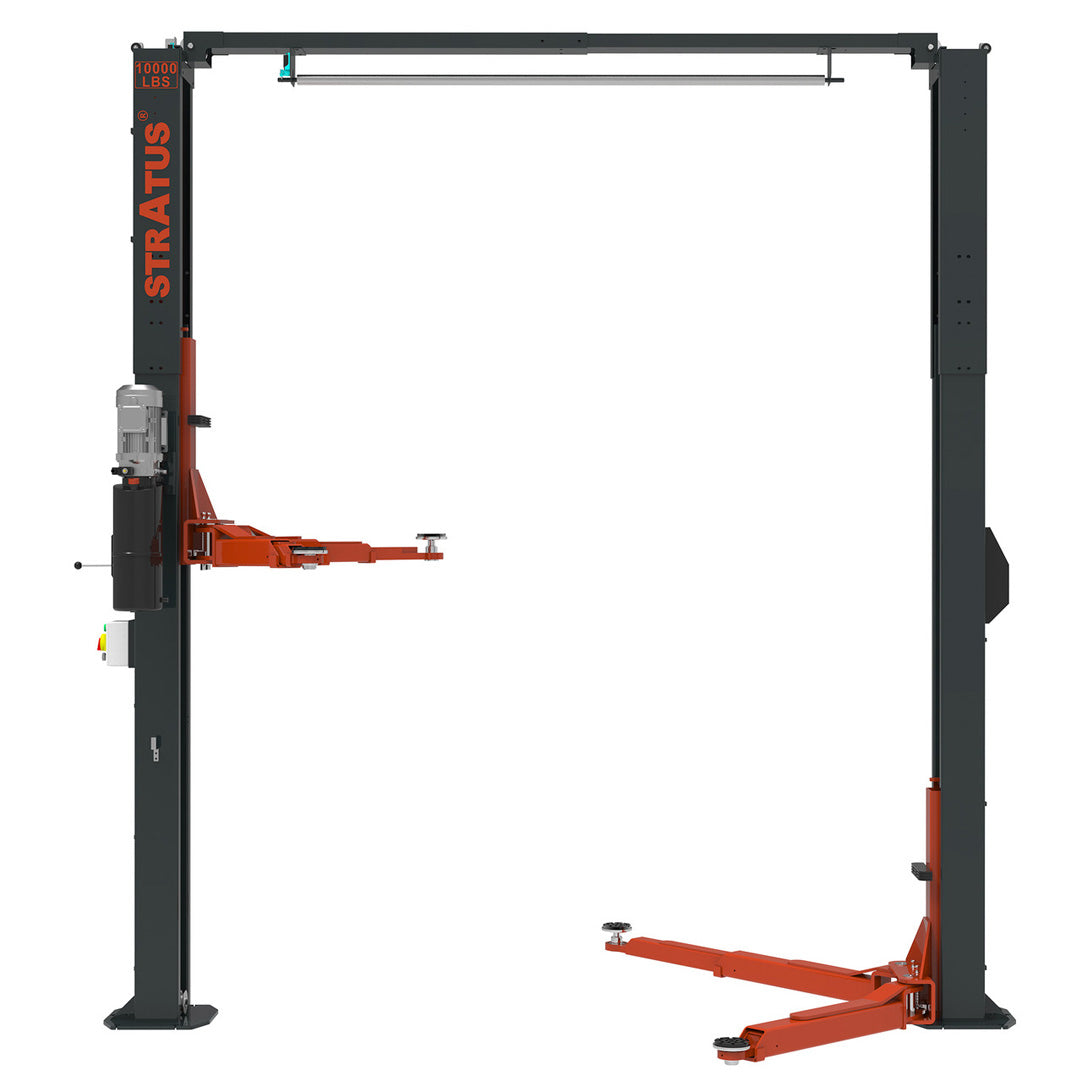

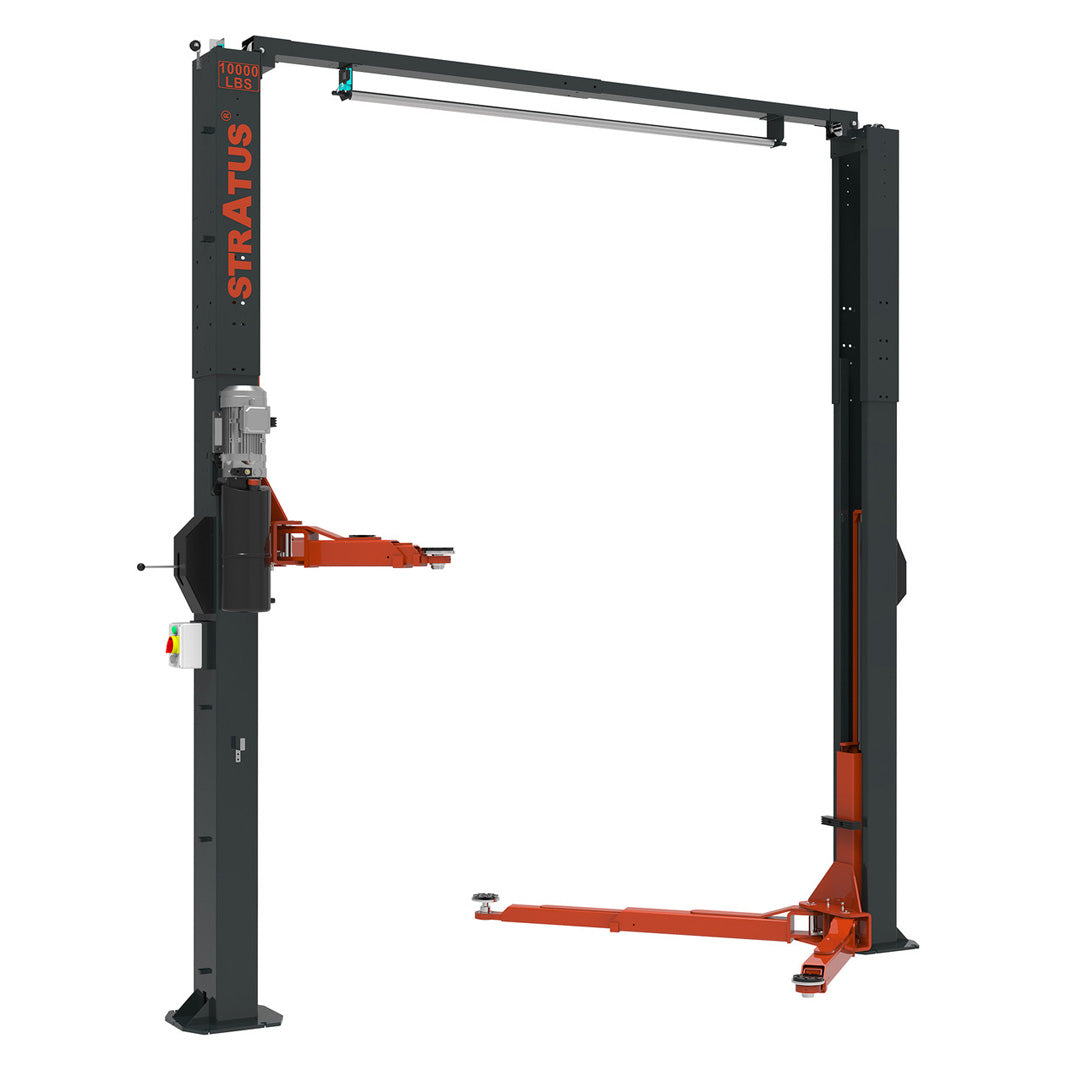

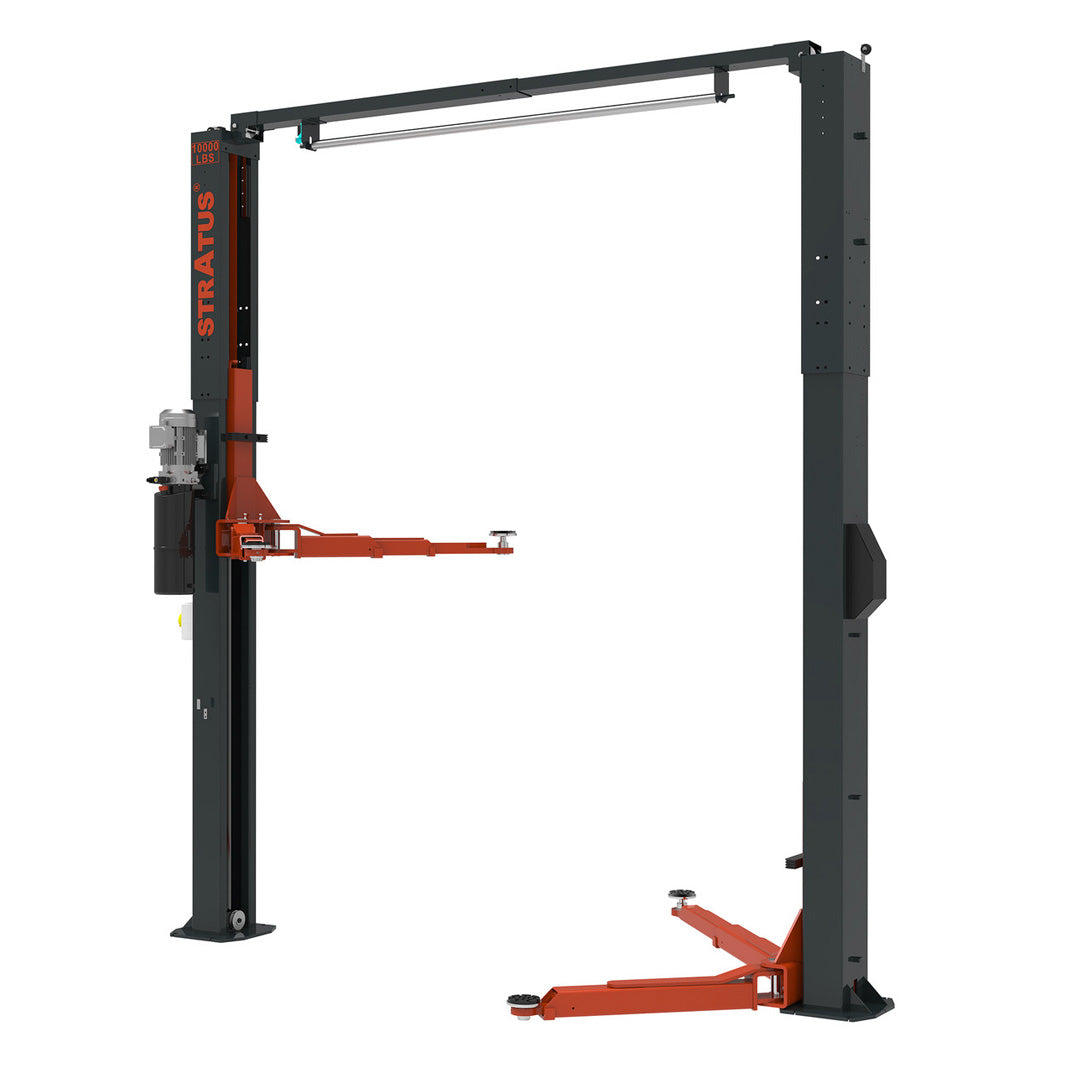

Stratus Clear Floor Height Adjustable 10k lbs 2-Post Lift SAE-C10A
Couldn't load pickup availability
Quick Specs
| Model / Part Number | SAE-C10A |
| Capacity | 10,000 lbs |
| Lift Type | Height-adjustable overhead clearfloor 2-post lift |
| Lock Release | Single-point manual release |

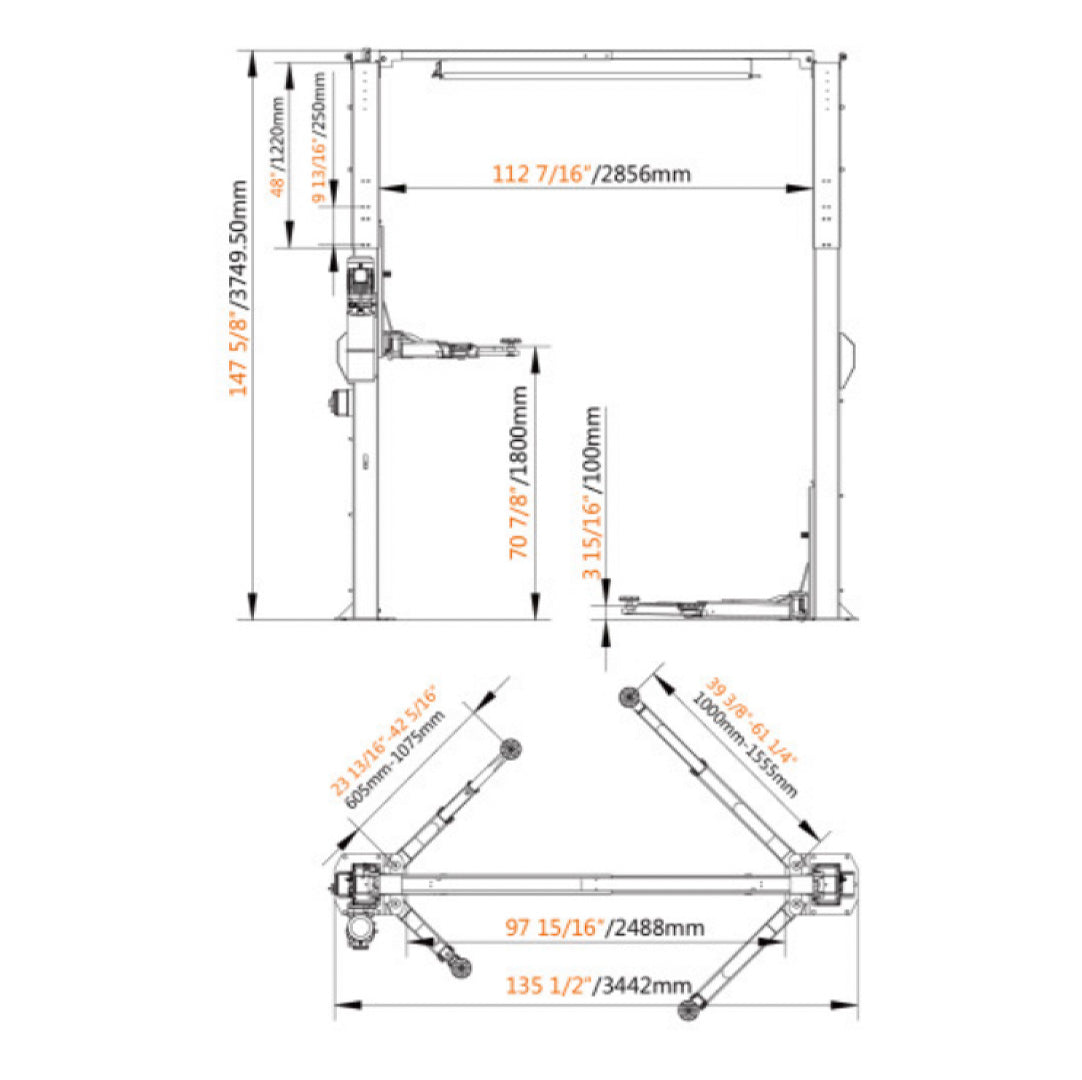

| Max Lift Height | 74 7/8" with adapters / 70 7/8" without adapters |
| Overall Height | 137 3/4" to 147 5/8" |
| Inside Columns | 112 3/16" |
| Drive-Thru Clearance | 101 5/16" |
| Arm Reach | Front 39 3/8"-61 1/4"; rear 23 13/16"-42 5/16" |
| Rise Time | About 50 seconds |
| Included Adapters | 4 screw-up rubber pads and 4" truck adapters |
| Motor / Electrical | 3 HP, 220V, 60Hz, 1-phase, 30A breaker |
| Concrete Requirement | 6" slab, 3000 PSI concrete |
| Oil Requirement | AW32 or AW46 hydraulic oil |
| Weight | 1,674 lbs |
| Warranty | 5-year structural / 3-year hydraulic / 2-year electrical parts |
| Installation | Available - call (817) 865-3707 |
The Stratus SAE-C10A is a 10,000 lb height-adjustable clearfloor 2-post lift for repair bays that want under-vehicle access without a floor plate across the working area.
Its 137 3/4 inch to 147 5/8 inch overall height range, direct-drive cylinders, single-point manual release, and included adapters make it a practical Stratus option for cars, SUVs, light trucks, and mixed service work.
Height-Adjustable Clearfloor Layout
The overhead clearfloor design keeps the work area between columns open while the adjustable height range gives shops more bay-planning flexibility.
Direct-Drive 10K Lifting
Direct-drive cylinders, anti-surge valves, and 10,000 lb capacity support everyday passenger-car, SUV, and light-truck service.
Included Adapter Support
The listing includes screw-up rubber pads and 4 inch truck adapters, helping the SAE-C10A reach common pickup points without a separate first adapter purchase.
Single-Point Manual Release
A single release point simplifies lowering compared with walking to both columns on dual-release designs.
Stratus Warranty Coverage
The current listing shows 5-year structural, 3-year hydraulic, and 2-year electrical parts coverage.
Frequently Asked Questions
What is the lifting capacity of the SAE-C10A?
The SAE-C10A is rated for 10,000 lbs, assuming the lift is installed correctly and the vehicle is positioned within the lift rating.
Is the SAE-C10A ALI certified?
The current Alamo source page does not support an ALI certification claim for this model.
What type of 2-post lift is the SAE-C10A?
Height-adjustable overhead clearfloor 2-post lift
What electrical service does the SAE-C10A need?
3 HP, 220V, 60Hz, 1-phase, 30A breaker
What concrete does the SAE-C10A require?
6" slab, 3000 PSI concrete
Does the SAE-C10A include adapters?
4 screw-up rubber pads and 4" truck adapters
Can Alamo install the SAE-C10A?
Yes. Alamo Equipment & Service can help with bay planning, installation, annual inspections, repair, and long-term service support. Call (817) 865-3707 to discuss the bay.
How does the SAE-C10A compare to the Atlas® OHX10000X?
Choose the SAE-C10A when a Stratus clearfloor 10K lift with height adjustability and included truck adapters fits the bay. Choose the Atlas® OHX10000X when extra-tall Atlas® dimensions, wider drive-through clearance, and the Atlas® value package matter more.
Best For
✓ Shops that want a 10,000 lb clearfloor 2-post lift without a baseplate across the bay
✓ Bays that can use a 137 3/4 inch to 147 5/8 inch height-adjustable Stratus layout
✓ Buyers who want included truck adapters, single-point manual release, and a 50-second listed rise time
✓ Facilities that want Alamo help confirming slab, electrical, delivery, and installation planning
✗ Not ideal when documented ALI certification is required by policy or bid spec
✗ Not ideal for vehicles above 10,000 lbs
✗ Not ideal for very low ceilings where a baseplate lift is the better fit
Installation Requirements
• Plan around the 137 3/4" to 147 5/8" overall lift height plus vehicle and working clearance
• Verify 112 3/16" inside-column space and 101 5/16" drive-thru clearance against the shop bay
• Current source lists 6" / 3000 PSI concrete; verify slab condition, reinforcement, anchors, and local code
• Provide 3 HP, 220V, 60Hz, 1-phase power with a 30A breaker
• Plan for AW32 or AW46 hydraulic oil and receiving equipment for the listed 1,674 lb weight
• Professional installation strongly recommended for commercial 2-post lifts
• Alamo offers installation planning and support - call (817) 865-3707
Why Buy This SAE-C10A From Alamo Equipment
✓ Alamo can help confirm whether the SAE-C10A's 10,000 lb capacity, clearfloor layout, and height-adjustable frame fit the buyer's bay
✓ This Stratus model lists 6 inch / 3000 PSI concrete, 3 HP 220V power, and a 30A breaker, so Alamo can help prevent slab and electrical surprises
✓ The included screw-up pads and truck adapters make the SAE-C10A easier to plan for light trucks and SUVs
✓ Alamo can compare the SAE-C10A against internal 10K alternatives like the Atlas® OHX10000X before purchase
✓ Alamo supports lift buyers with installation planning, inspections, maintenance, repair, and replacement-part guidance
(817) 865-3707
SAE-C10A vs Atlas® OHX10000X
Both products are sold by Alamo and serve nearby two-post lift use cases.
| Spec | SAE-C10A | Atlas® OHX10000X |
|---|---|---|
| Capacity | 10,000 lbs | 10,000 lbs |
| Positioning | Stratus SAE-C10A Height Adjustable 10K Clearfloor 2-Post Lift | Atlas® extra-tall / extra-wide overhead 10K value lift |
| Certification | No ALI claim on current source | No ALI claim on current source |
| Bay Layout | Height-adjustable overhead clearfloor 2-post lift | Overhead clearfloor |
| Overall Height | 137 3/4" to 147 5/8" | 152" |
| Drive-Thru Clearance | 101 5/16" | 106 7/8" |
| Best Fit | Shops that want a 10,000 lb clearfloor 2-post lift without a baseplate across the bay | Best when extra height/width and Atlas® value matter most |
Choose the SAE-C10A when a Stratus clearfloor 10K lift with height adjustability and included truck adapters fits the bay. Choose the Atlas® OHX10000X when extra-tall Atlas® dimensions, wider drive-through clearance, and the Atlas® value package matter more.
Delivery Notice:
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
