Stratus Floor Plate Open 10k lbs Single Point Manual Release 2-Post Car Lift SAE-F10S
Delivery Notice
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
-
DESCRIPTION

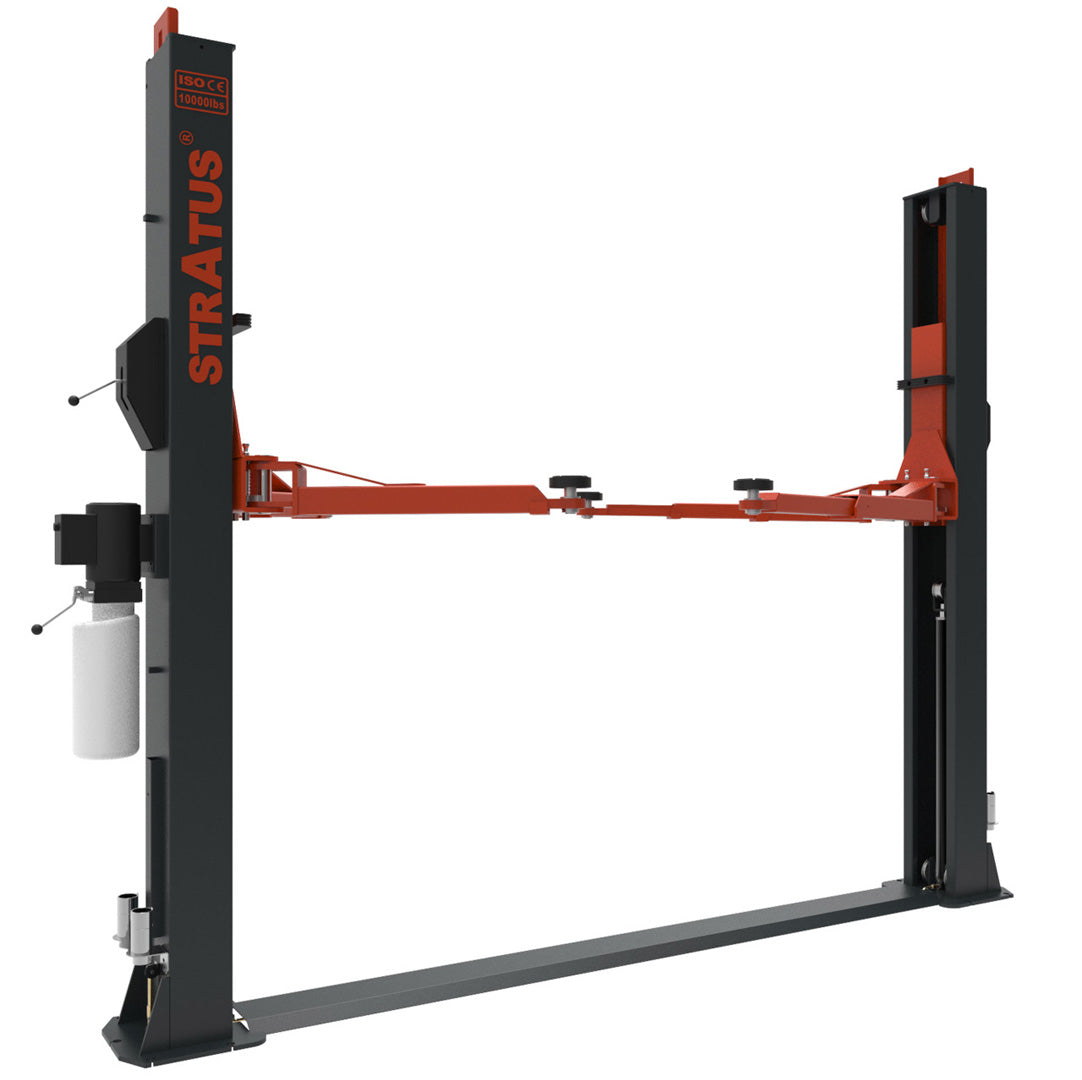

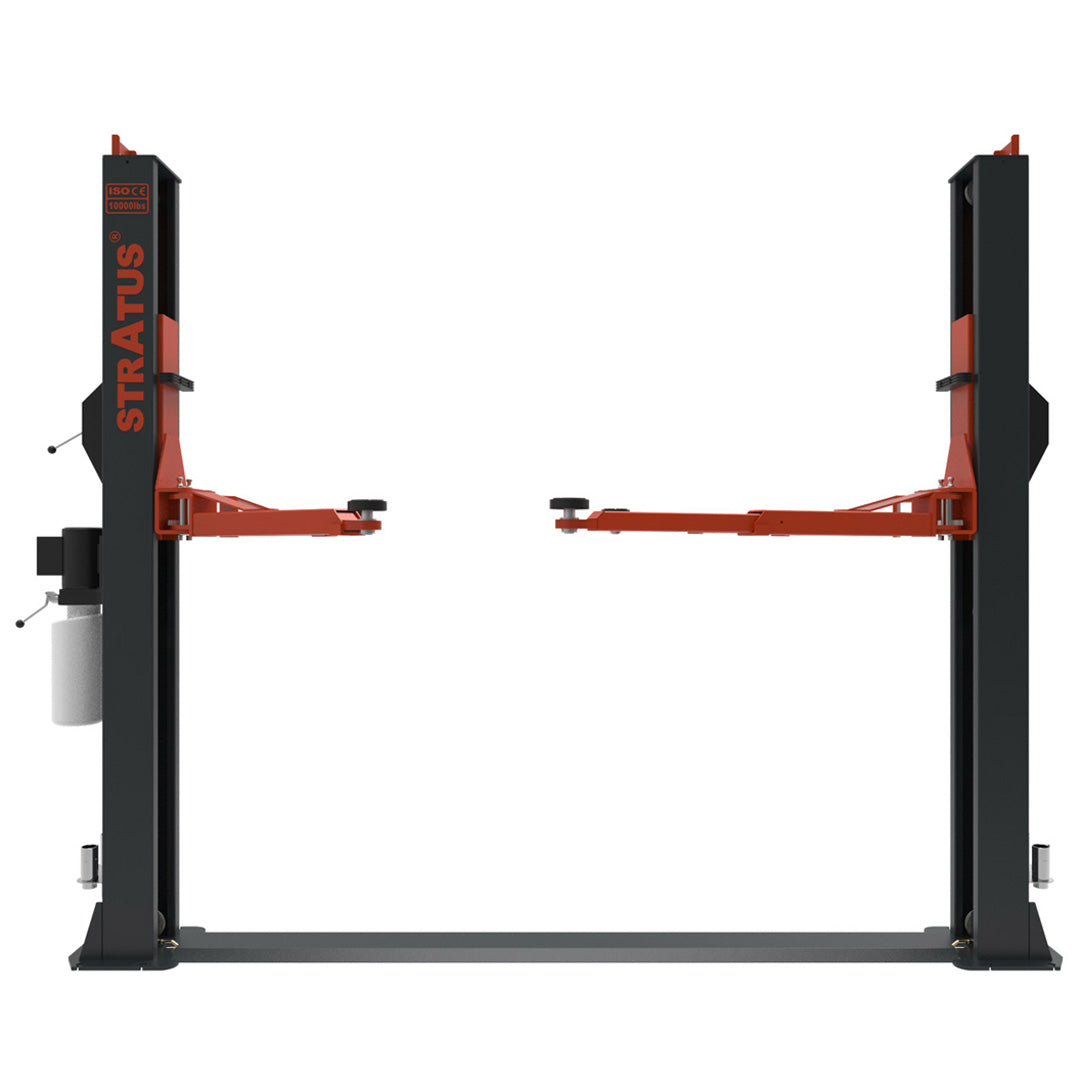

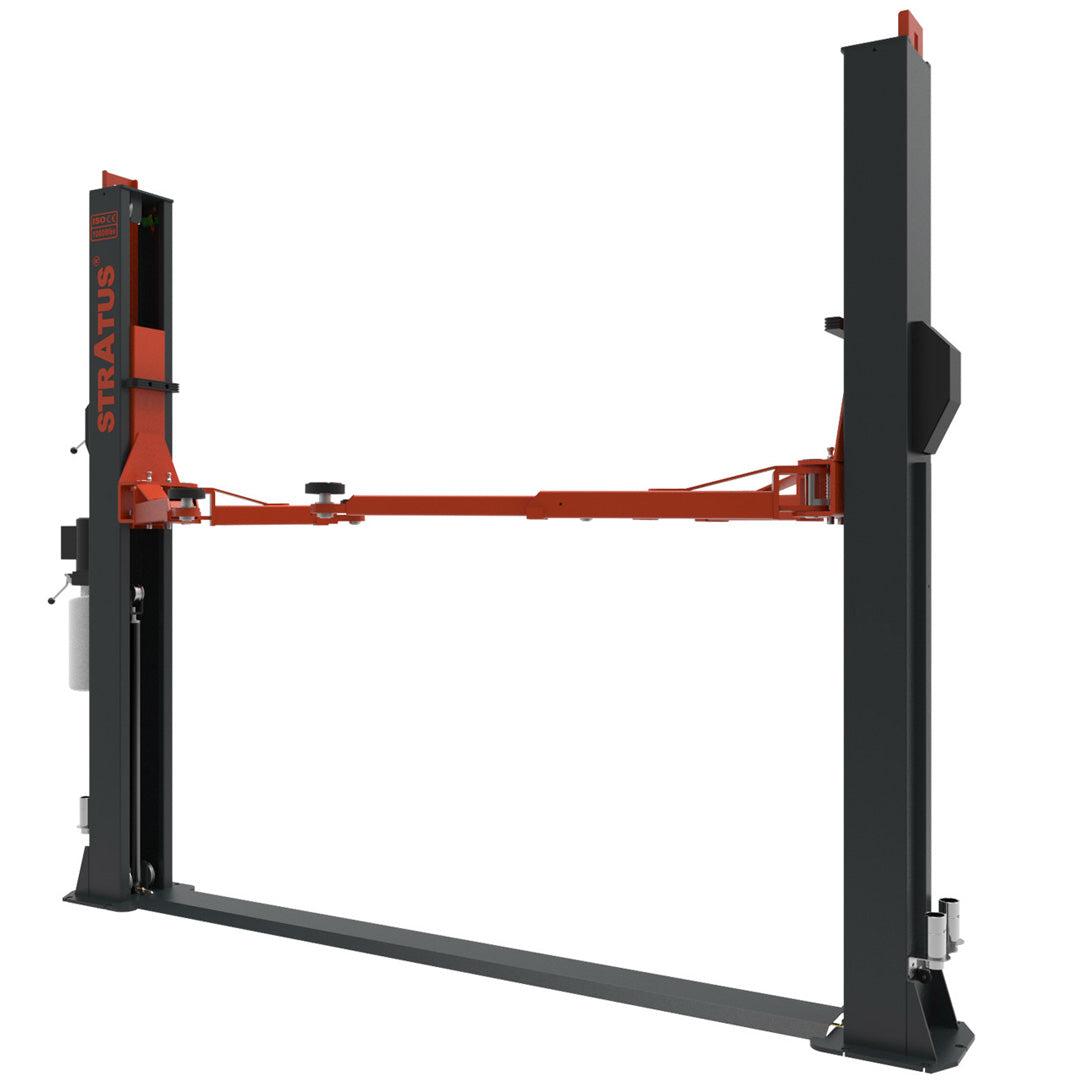

Stratus SAE-F10S Floor Plate Open Top 10,000 LBS Capacity Single Point Manual Release Car Lift
Change how you handle heavy-duty vehicles with the Stratus SAE-F10S Floor Plate Car Stratus Lift. Featuring a two-post-open Top design, it scales up your vehicle handling with an impressive 10,000 lbs capacity. Its single-point manual release system ensures full control at a single touch. Ease, reliability, and operational safety – the Stratus 10,000 lbs 2 Post Lift is a significant addition to your workspace equipment. No more struggle, just smooth lifting with Stratus.
-
FEATURES + BENEFITS

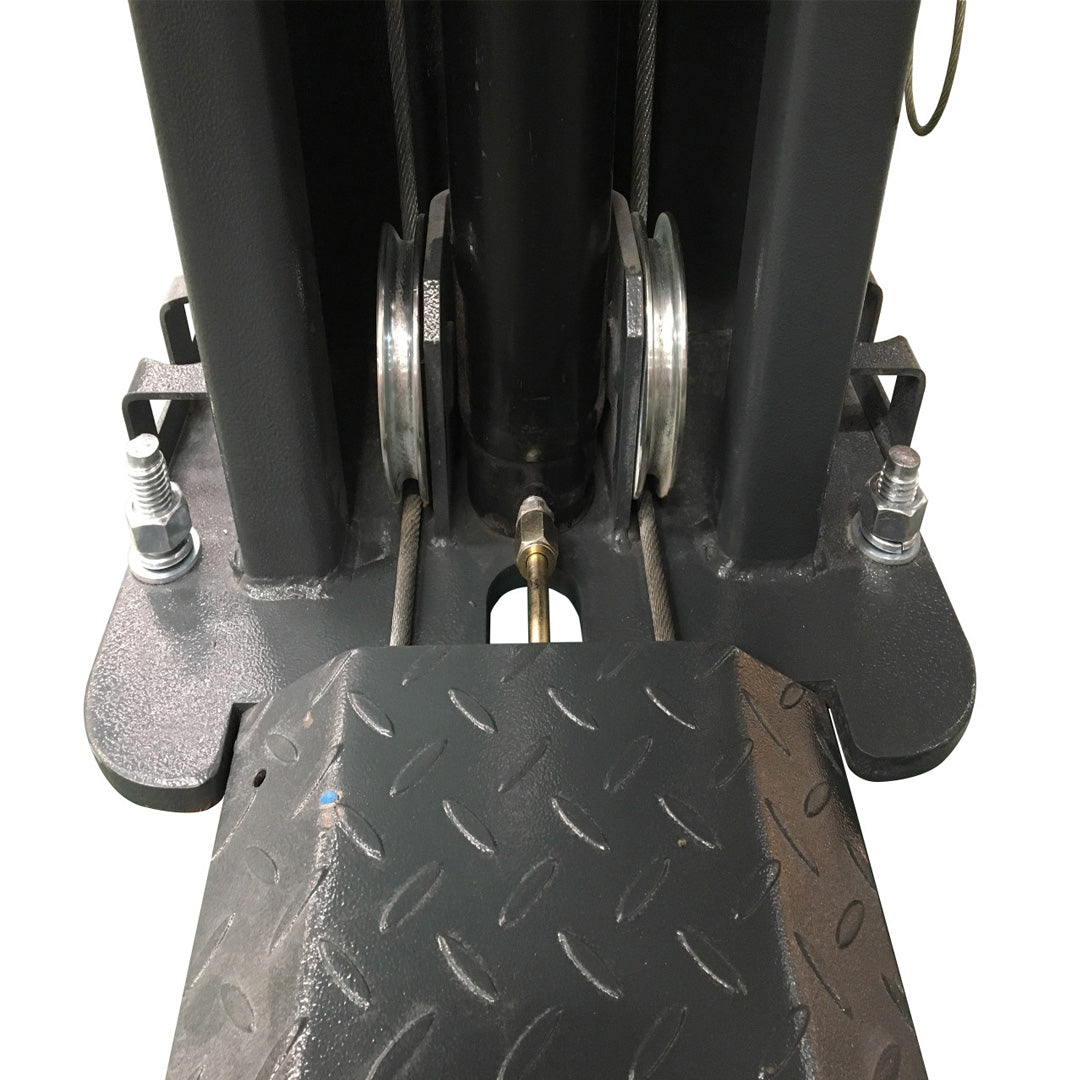

- Base plate / Open top
- Single-point manual release
- Top limiter switch
- CE certified
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Includes

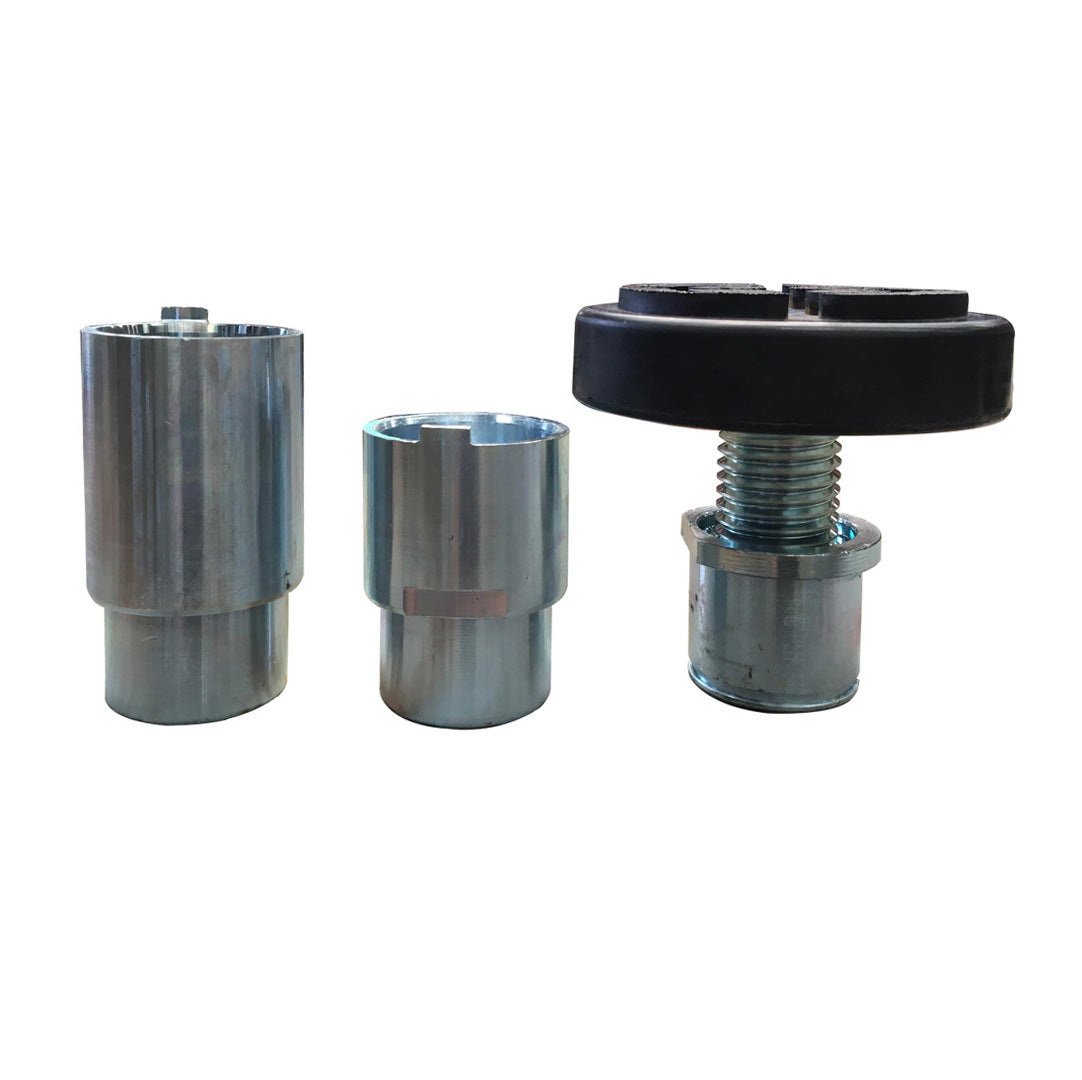

- 4pcs Screw-up rubber pads - Peg 50mm (4")
- 4pcs 2 3/4" Truck Adaptors - Peg 50mm (4")
-

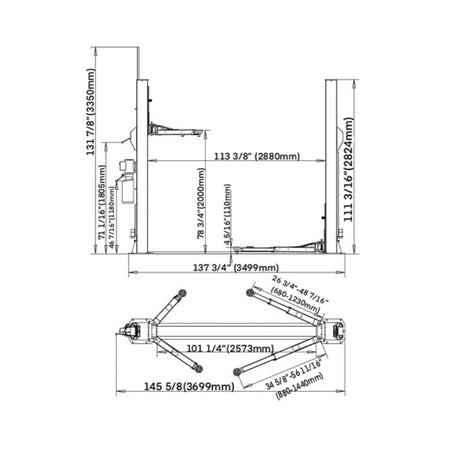

SPECIFICATIONS
Model F110S Capacity 10,000 lbs Max Lifting Height with Adapaters 82 3/4"(2102mm)
Min Lifting Height with Adapters
8 5/16" (212mm)
Max Lifting Height without Adapters
78 3/4" (2000mm)
Min Lifting Height without Adapters
4 5/16" (110mm)
Rise Time
~50 sec
Overall Height
131 7/8" (3350mm)
Overall Width
19 11/16" (500mm)
Overall Length
137 3/4" (3499mm)
Inside Columns
113 3/8" (2880mm)
Drive Thru
101 1/4" (2572.60mm) Front Arm Reach Max 56 11/16" (1440) Front Arm Reach Min 34 5/8" (880)
Rear Arm Reach Max 48 7/16" (1230) Rear Arm Reach Min 26 3/4" (680) Motor 3 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 1345 lbs Dimensions 115"L x 31"W x 33"H Requirements 6" - 3000 psi -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
