Stratus X-Wide Asymmetric & Symmetric 2-in-1, 10k lbs 2-Post Lift SAE-C10XE
SKU SAE-C10XE
Original price
$4,961.00
-
Original price
$4,961.00
Original price
$4,961.00
$4,961.00
-
$4,961.00
Current price
$4,961.00
Delivery Notice
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
-
DESCRIPTION

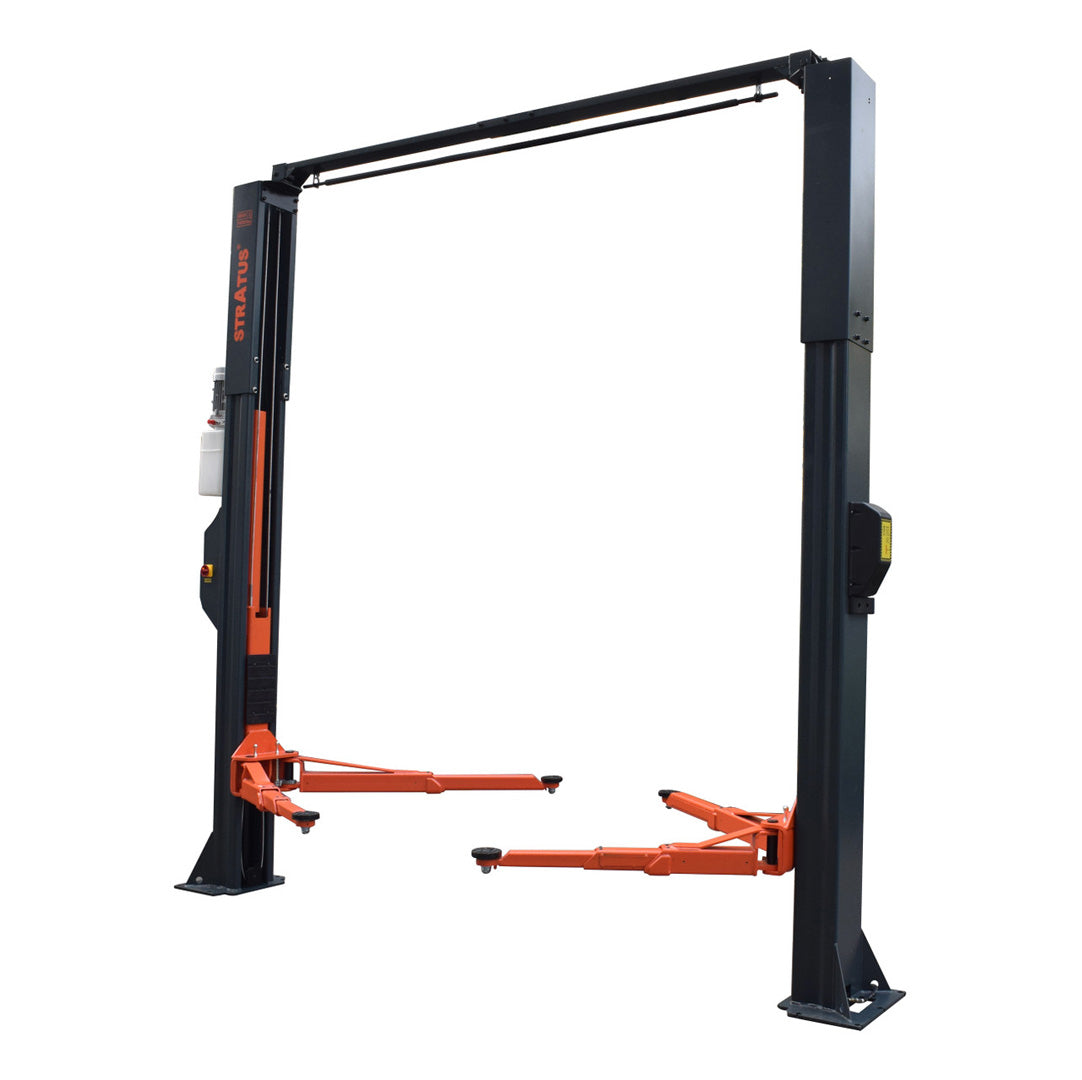

Stratus SAE-C10XE Extra Wide Asymmetric & Symmetric 2-in-1 Clear Floor Direct Drive 10,000 LBS Capacity Electric Safety Lock Release Car Lift
This clear floor two-post lift comes with electric safety lock release design, easy to operate and maintain. It is suitable to hold 10,000 lbs. or less, ideally for inspection, repair and maintenance of various types of vehicles.
-
FEATURES + BENEFITS

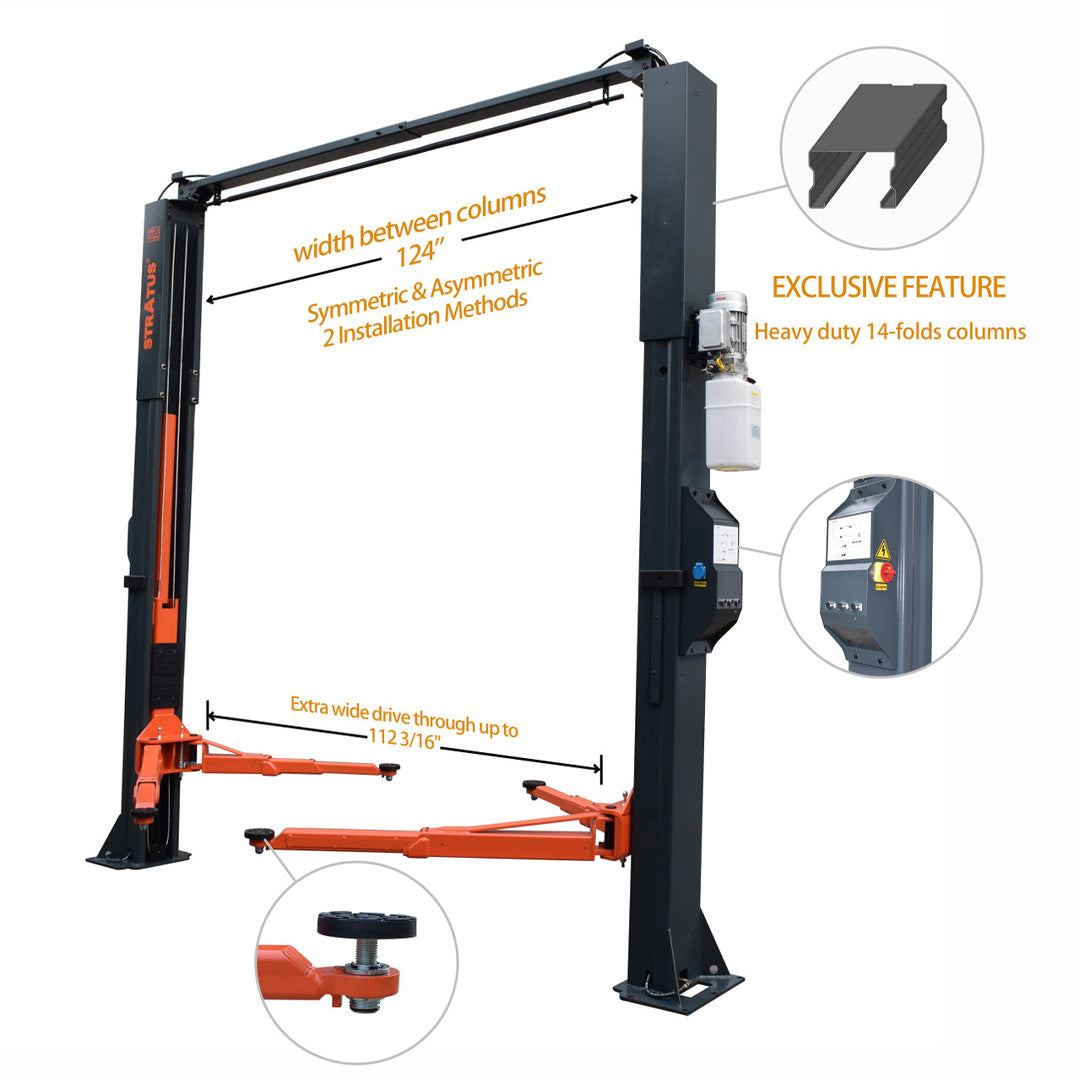

- Extra wide drive through: 112”
- Heavy-duty 14-folds columns
- Clear floor
- Symmetric & Asymmetric 2-in-1 design

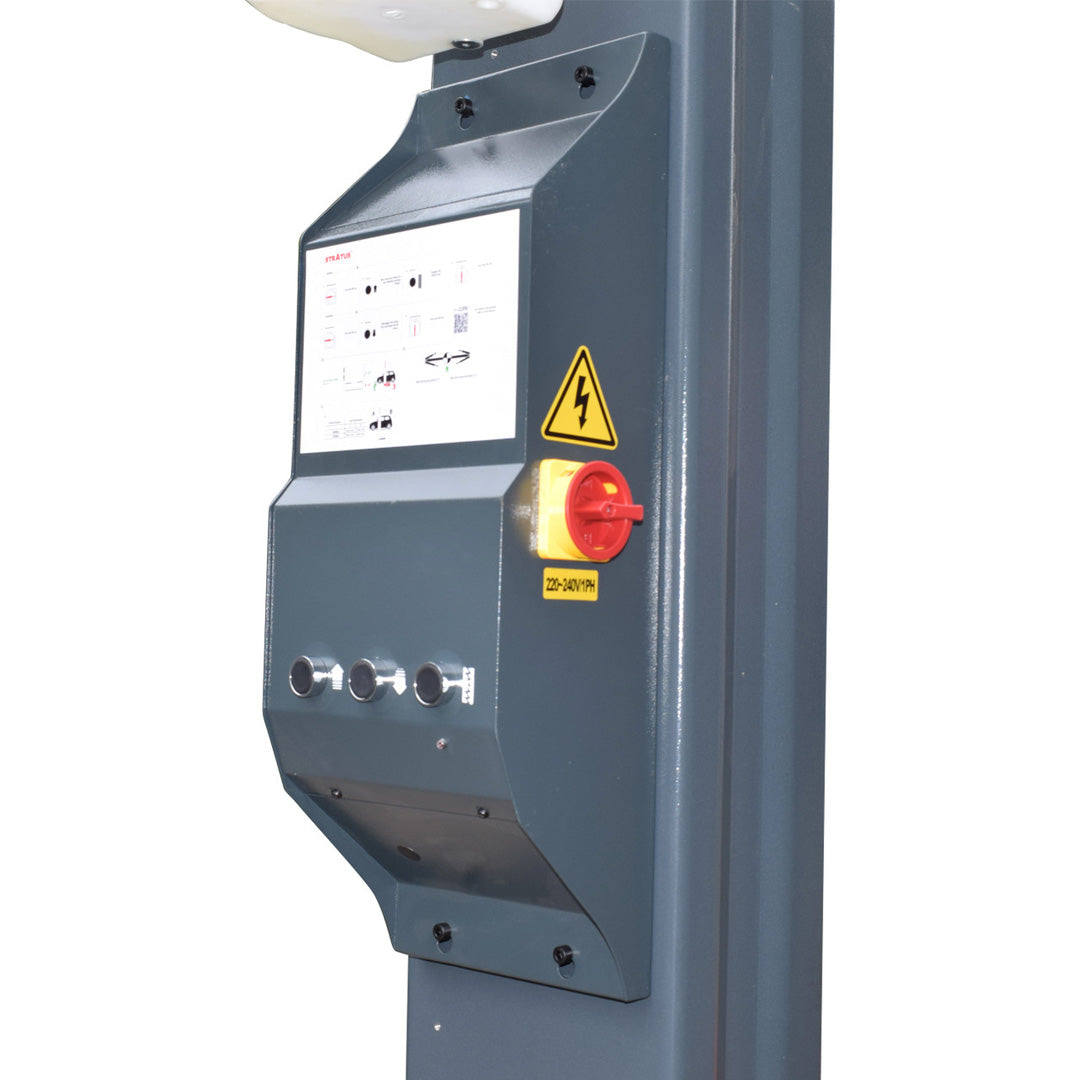

- Electric safety lock release
- Direct drive

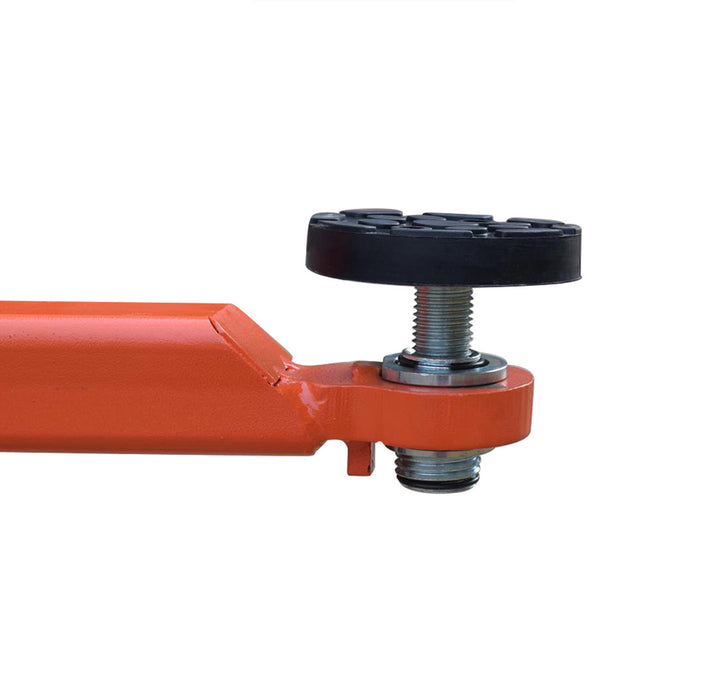

- 4 Screw-up rubber pads

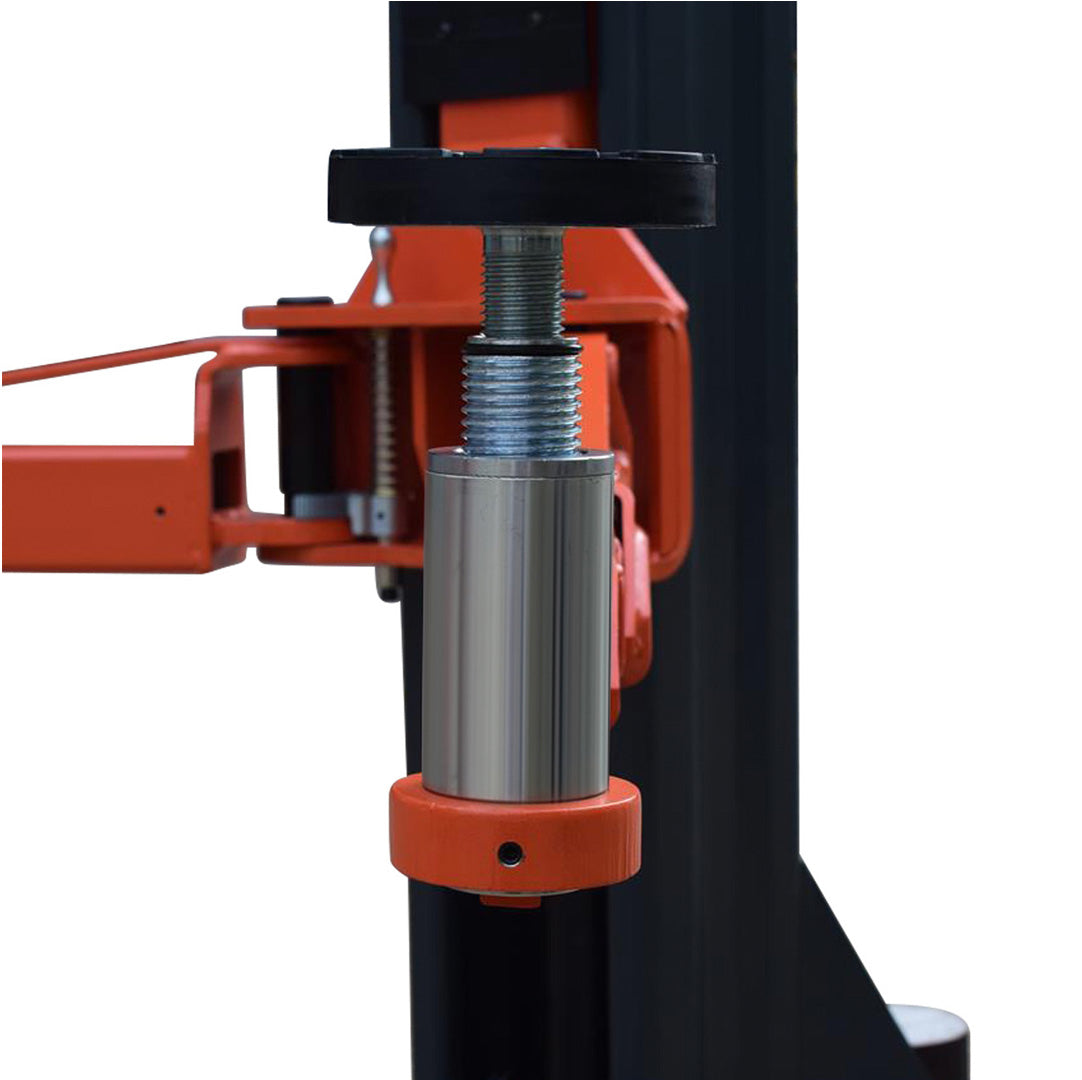

- 4 x 4" (100 MM) truck adapters included

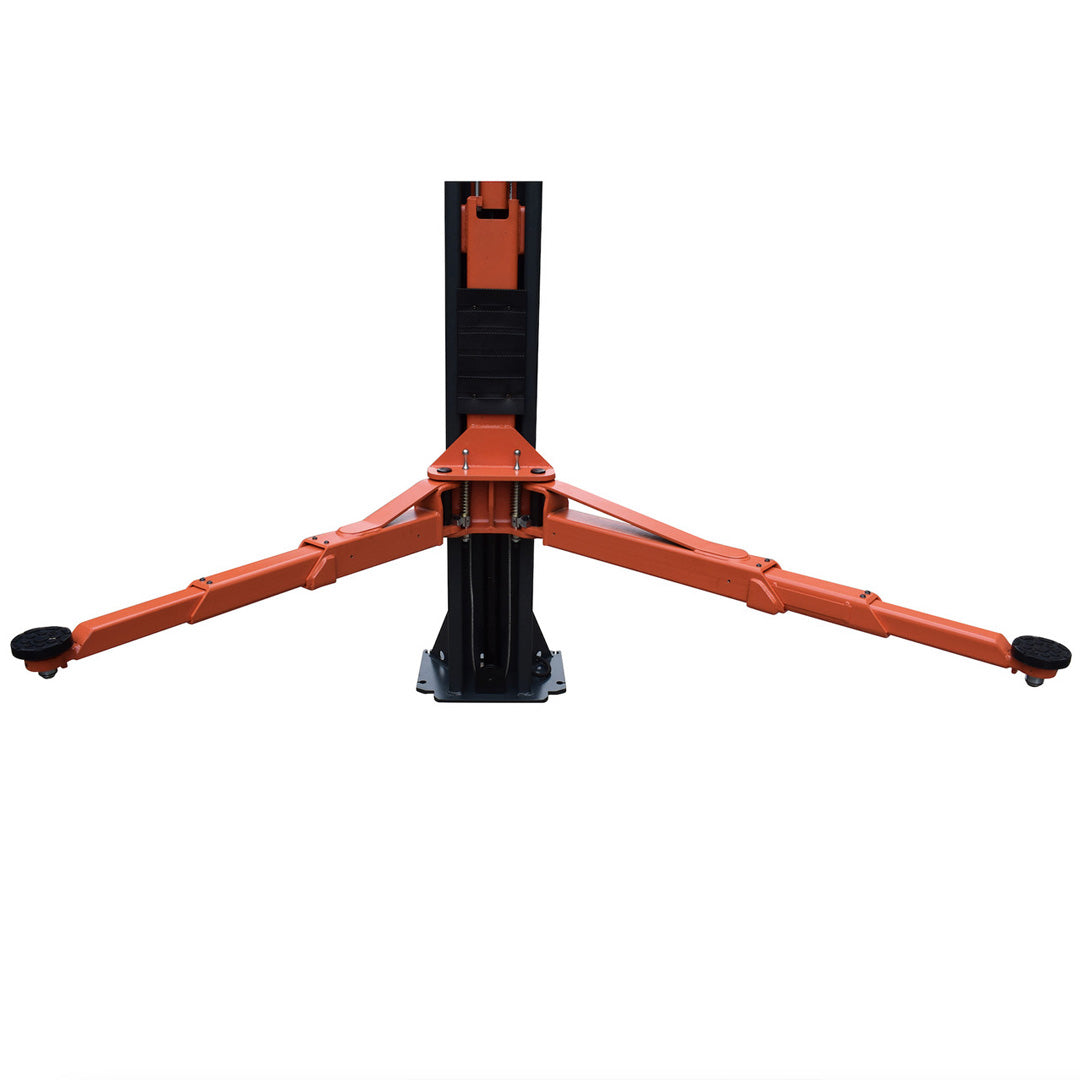

- 4 x 3-stage arms
- 2 top limiter switches
- Anti-surge valves
- Automatic arms restraints
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes
- 4pcs Screw-up rubber pads - Peg 50mm (4")
- 4pcs 4" Truck Adaptors - Peg 50mm (4")
-
SPECIFICATIONS

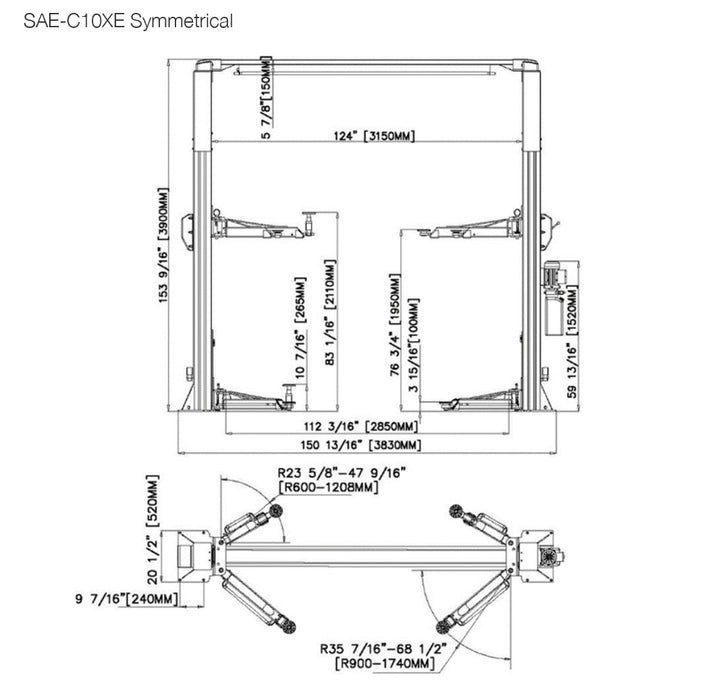

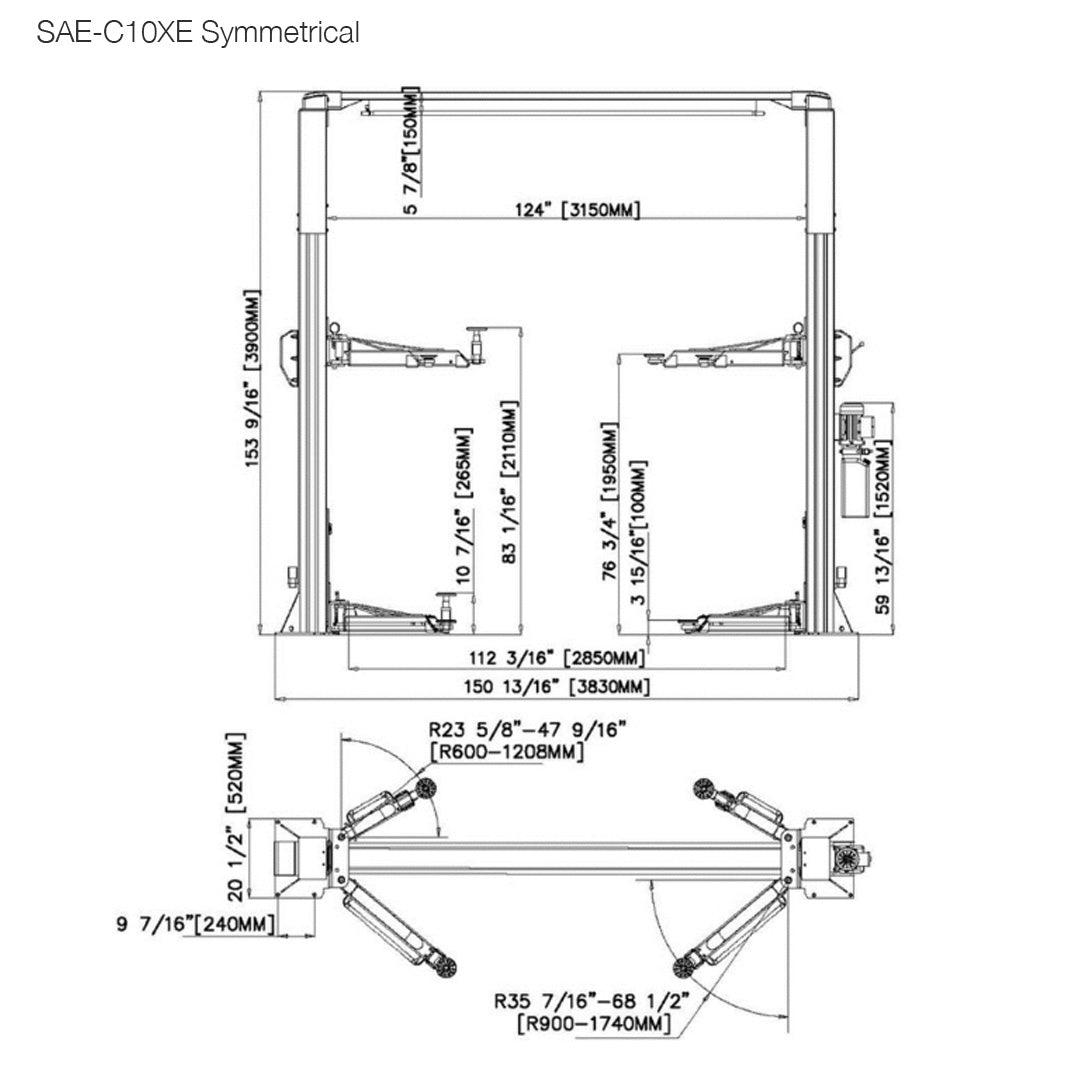

Model - SYMMETRICAL SAE-C10XE Capacity 10,000 lbs Max Lifting Height with Adaptors 83 1/16"(2110mm)
Min Lifting Height with Adaptors
10 7/16" (265mm)
Max Lifting Height without Adaptors
76 3/4" (1950mm)
Min Lifting Height without Adaptors
3 15/16" (100mm)
Rise Time
~50 sec
Overall Height
153 9/16" (3900mm)
Overall Width
20 1/2" (520mm)
Overall Length
150 13/16" (3900mm) Inside Columns 124" (3150mm) Drive Through 112 3/16 (2850mm) Front Arm Reach Max 68 1/2" (1740)

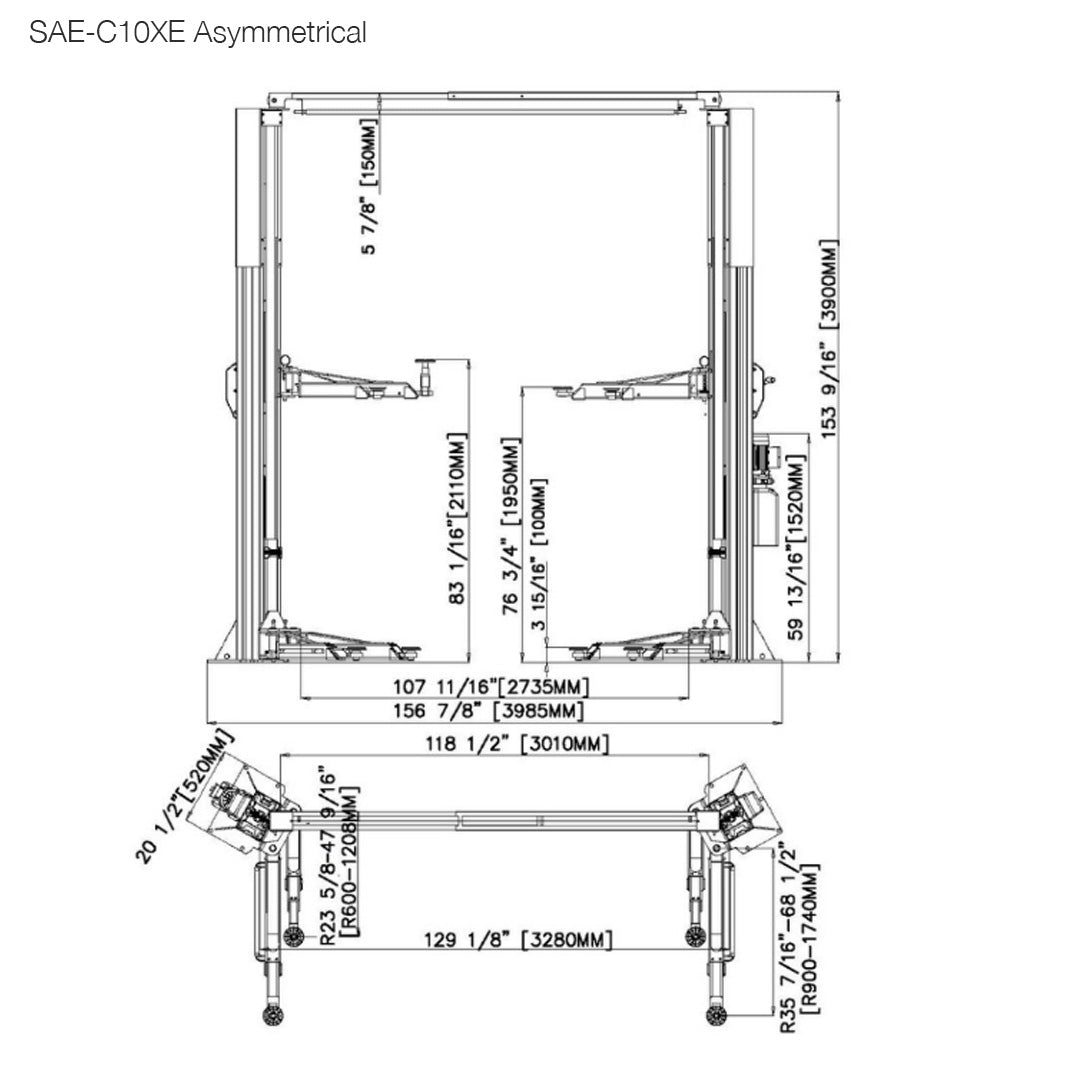

Front Arm Reach Min 35 7/16" (900) Rear Arm Reach Max 47 9/16" (1208) Rear Arm Reach Min 23 5/8" (600) Motor 3 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 1726 lbs Dimensions 117"L x 21"W x 45"H Requirements 6" - 3000 psi Model - ASYMMETRICAL SAE-C10XE Capacity 10,000 lbs Max Lifting Height with Adaptors 83 1/16"(2100mm)
Min Lifting Height with Adaptors
10 1/4" (261mm)
Max Lifting Height without Adaptors
76 3/4" (1950mm)
Min Lifting Height without Adaptors
3 15/16" (100mm)
Rise Time
~50 sec
Overall Height 153 9/16" (3900mm) Overall Width 20 1/2" (520mm) Overall Length 156 7/8" (3985mm) Front Arm Reach Max 107 11/16" (2735mm) Front Arm Reach Min 35 7/16" (900mm) Rear Arm Reach Max 47 9/16" (1208mm) Rear Arm Reach Min 23 5/8" (600mm) Motor 3HP, 220V, 60Hz, 1ph Oil AW32 or AW46 Breaker 30A Weight 1726 lbs Requirements 6" - 3000 PSI -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
