| Model | CL10AV3-2-DPC-QC |
| Capacity | 10,000 lbs |
| Lift Type | Versymmetric 2-post adjustable width lift |
| Arm Configuration | 3-stage front / 3-stage rear |
| Quick Cycle | Yes - 24 second speed of rise |
| Controls | Dual pendant controls |
| Rise Height | 74.125" |
| Overall Height | 158" / 164" |
| Ceiling Height Required | 13' 3" / 13' 9" |
| Overall Width | 11' 6.5" / 12' 0.5" / 12' 6.5" |
| Drive-Thru Clearance | 100" / 106" / 112" |
| Front Arm Reach | 20" - 42" |
| Rear Arm Reach | 37.625" - 60" |
| Screw Pad Height | 3.875" - 6.125" |
| Motor / Voltage | 3HP, 208V-230V, 60Hz, 1-phase |
| 2' Height Extension | Included |
| 3' Height Extension | Available |
| Certification | ALI/ETL certified |
| Colors | Red, blue, black |
| Free Shipping | Included to the 48 contiguous states |
| Installation | Available - call (817) 865-3707 |

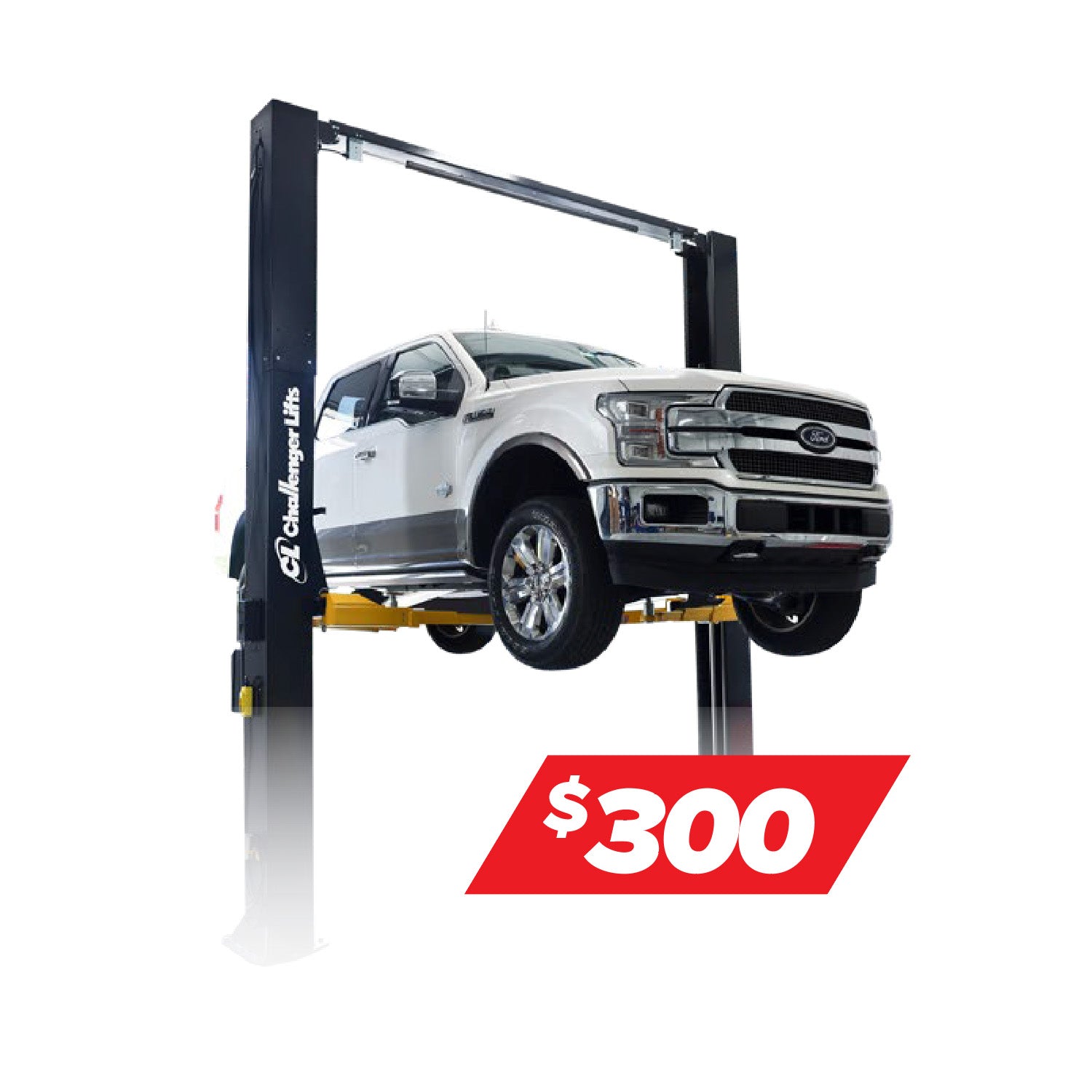

The Challenger CL10AV3-2-DPC-QC is the 10,000 lb 2-post lift for shops that do not get the same vehicle twice in a row. Passenger cars, SUVs, pickups, and light-duty work trucks all need different spotting. This lift gives your bay the flexibility to handle that mix without wasting time walking a vehicle back and forth to find the lift points.
The key is Challenger's Versymmetric design. It gives you the door clearance advantages of an asymmetric lift and the centered loading feel of a symmetric lift in the same service bay. The 3-stage front and 3-stage rear arms use directSPOT geometry to reach recommended lift points faster, which matters when the bay is busy and every extra re-spot slows the whole shop down.
This version adds Quick Cycle speed and dual pendant controls. With a 24-second rise time and controls on both sides of the lift, techs spend less time waiting and less time walking around the vehicle. That makes the CL10AV3-2-DPC-QC a strong fit for tire, brake, inspection, maintenance, and general repair bays where throughput matters.
It is also built like a production shop lift should be built: oversized 5" pulleys, heavy-duty 5/16" equalization cables, a 48" elongated carriage, fully gusseted base plates, plated arm restraints, padded overhead shutoff, dual rubber door guards, and a durable powder coat finish. The included 2' height extension helps shops with taller ceilings take advantage of more usable overhead space, while the adjustable width settings let you match the lift to the bay.
Bottom line: if you want one 10K 2-post lift that can handle mixed vehicles, faster cycle times, and real shop volume, this CL10AV3 Quick Cycle configuration is the one to look at.
Alamo sells, installs, services, and inspects Challenger lifts. If you are not sure whether this model fits your bay, ceiling, slab, or vehicle mix, call the lift team at (817) 865-3707 before you order.
Best fit: busy general repair, tire, brake, inspection, dealership, and fleet service bays that need one lift to handle a broad mix of cars, SUVs, pickups, and light-duty trucks.
Use it when: you want 10,000 lb capacity, faster rise time, symmetric/asymmetric spotting flexibility, dual controls, and ALI/ETL certification in a commercial 2-post lift.
Not ideal for: ceilings below 13' 3", vehicles over 10,000 lbs, or shops that need a drive-on platform for alignments or vehicle storage.
Ceiling height: This Quick Cycle configuration requires 13' 3" or 13' 9" of ceiling height depending on setup. Measure from finished floor to the lowest obstruction, not just to the roof deck.
Bay width: Overall width settings are 11' 6.5", 12' 0.5", or 12' 6.5". Drive-thru clearance is 100", 106", or 112" depending on width.
Electrical: 3HP motor, 208V-230V, 60Hz, single phase. Have a licensed electrician verify the circuit before installation.
Slab check: Verify slab thickness, concrete condition, and anchor suitability before scheduling the install. A professional lift installer should confirm the bay is ready.
Need help checking fit? Call Alamo at (817) 865-3707 with your ceiling height, bay width, and the heaviest vehicles you plan to lift.
Free shipping: Orders ship free to the 48 contiguous states.
Real lift support: Alamo can help with model selection, bay fit, installation planning, maintenance, inspections, and service after the sale.
Commercial shop focus: This is not a generic pallet drop. You are buying from a team that works with automotive shop equipment every day.
Questions before you order? Call (817) 865-3707.
10,000 lbs. This lift is built for cars, SUVs, pickups, and light-duty service vehicles within that rating.
This is the Quick Cycle / dual pendant control configuration with a 3HP motor, 3-stage front and rear arms, and included 2' height extension.
The listed speed of rise is 24 seconds, which is useful for high-volume bays where waiting on the lift adds up.
13' 3" or 13' 9", depending on setup. Measure to the lowest overhead obstruction before ordering.
Yes. The product listing identifies this lift as ALI/ETL certified.
Versymmetric lifting lets the same 2-post lift handle symmetric and asymmetric vehicle spotting, which helps when your bay sees a mix of cars, SUVs, and trucks.
Yes. Call (817) 865-3707 to confirm bay fit, installation requirements, and service options.
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson. Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ www.challengerlifts.com/register-your-lift
