APlusLift 12k LB 2-Post Single Release Direct Drive Car Lift #HW-12HD

APlusLift HW-12HD — 12,000 lbs 2-Post Lift

When a shop's 10,000 lb lift starts feeling like it is working at its limit every time a 3/4-ton pickup rolls in, the choice is not just a bigger number — it is a lift that gives the tech a real margin to work with. The APlusLift HW-12HD is a 12,000 lb overhead 2-post lift that steps above the 10K class without moving into the 14K or 20K price and slab-requirement territory. Single-point release, dual hydraulic chain-drive operation, included truck adapters, and a 160" overhead clearance make it a direct answer for mixed service bays that need more capacity without a facility overhaul.

The HW-12HD has a 137 13/32" overall width and 99 23/32" drive-thru clearance — dimensions that fit a standard commercial bay for a 1/2-ton and 3/4-ton truck without demanding extra space. The 6" 3500 PSI concrete requirement is consistent with other commercial-grade 12K lifts. The overhead layout keeps the floor clear for jacks and creepers, which is the practical advantage over a baseplate design when your team is working multiple tools under a loaded pickup. Alamo confirms the bay fit before delivery.

Who the HW-12HD Is Built For

• Shops seeing more 3/4-ton pickups and heavy SUVs rolling in — F-250s, Ram 2500s, Chevy Silverado HDs — where the 10K lift is technically rated but leaves no margin and the tech knows it every time they press the raise button.
• Independent general service shops that want a 12K overhead lift at a value APlusLift price point, without paying the premium of an ALI-certified Challenger CL12A or Stratus SAE-C12X.
• Bays with ceiling height for a 160" overhead lift where the floor-clearance advantage of a clearfloor design matters — a tech doing exhaust work or axle service under a lifted pickup needs the floor clear, not blocked by a baseplate.
• Shops adding capacity with a second bay, where the HW-12HD handles the heavier vehicle load while the existing 10K lift stays in rotation for passenger cars and light SUVs.
• Buyers who want single-point release on a 12K platform — one motion to lower instead of releasing each column individually, which adds up to meaningful time savings across a multi-vehicle day.
• Operations that need included adapters from day one — the HW-12HD ships with 2 3/4" and 5 1/2" truck adapter sets so the lift is ready for the full range of pickup-point heights without a separate accessory order.

What the HW-12HD Is NOT Built For

• ❌ Shops requiring ALI certification — choose the Atlas PV12PX or Stratus SAE-C12X for alternative 12K options
• ❌ Very low-ceiling bays under 160" — a baseplate design like the Atlas BP-12000 fits lower ceilings

What Makes the HW-12HD Different

12,000 lb Overhead Clearfloor Design

The HW-12HD's overhead bar routes the equalization system across the top of the lift instead of across the floor, leaving the bay floor between the columns completely open. For a tech doing exhaust work, CV axle service, or a full brake job on a 3/4-ton pickup, that clear floor means floor jacks, drain pans, and creepers can move freely without working around a baseplate. The 77 15/16" max lift height with adapters gives full underbody access on most pickups and vans in a standard commercial service bay.

Dual Hydraulic Chain-Drive Operation

The HW-12HD uses dual hydraulic cylinders with a chain-drive lifting mechanism — a proven design in commercial 2-post lifts that delivers reliable, synchronized column movement at a 75-second rise time. The 3 HP, 220V motor and 30A breaker requirement are standard commercial specs consistent with the APlusLift lineup. Dual-cylinder operation keeps both columns lifting at the same rate, which is the mechanical guarantee against a tilted vehicle during the rise cycle on a heavier truck.

Single-Point Release for One-Motion Lowering

All four safety lock points release from a single lever, so lowering a loaded pickup takes one motion and a few seconds — not a column-by-column cycling process. In a shop turning 15 or more vehicles a day, that operational simplicity keeps bay turns tight. Single-point release is standard on premium Challenger and Stratus models; the HW-12HD brings it to the APlusLift price class without requiring a step up to a certified lift.

Included Truck Adapters for Immediate Use

The HW-12HD ships with 2 3/4" and 5 1/2" truck adapter sets, so the lift is ready for pickups, vans, and SUVs with higher-profile pickup points right out of the box. No separate accessory order before the first job. The adapters work with the symmetric arm geometry to cover most light commercial and pickup-truck underbody profiles — the combination that makes the HW-12HD a practical day-one solution for a shop adding 12K capacity.

Bay-Proven Dimensions for 12K Work

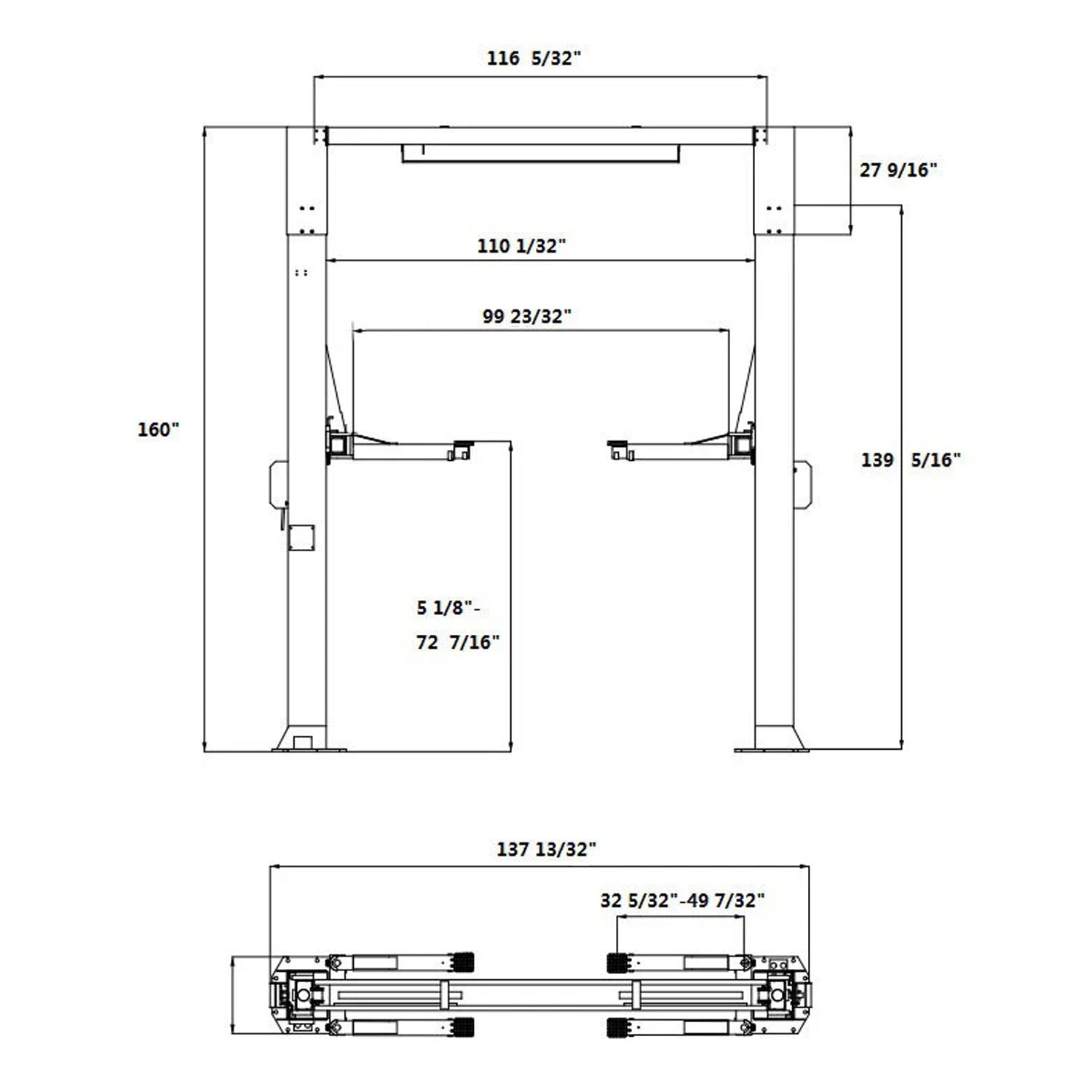

At 137 13/32" overall width with 110 1/32" column-to-column and 99 23/32" drive-thru clearance, the HW-12HD fits a standard commercial bay built around half-ton and three-quarter-ton trucks. The 160" overall height is the ceiling commitment — Alamo confirms clearance to the lowest obstruction before the lift ships. The 6" 3500 PSI concrete requirement is consistent with what a commercial service bay floor should already be built to handle for this weight class.

Full Specifications — HW-12HD

APlusLift Warranty — HW-12HD

APlusLift backs the HW-12HD with a 3-year parts warranty (source: apluslift.com — car lift parts coverage).

Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it. APlusLift car lifts carry a 3-year parts warranty; confirm any extended or component-specific terms at purchase.
