Graco Fire-Ball® 300 Series 15:1 120 lb (55 kg). Grease Pump #206699
SKU 206699
by Graco
Original price
$2,120.00
-
Original price
$2,120.00
Original price
$2,120.00
$2,120.00
-
$2,120.00
Current price
$2,120.00
-
DESCRIPTION
Graco Fire-Ball® 300 Series 15:1 120 lb (55 kg). Grease Pump #206699, as the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Install the Fire-Ball 300 15:1 in high-pressure, medium-volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.

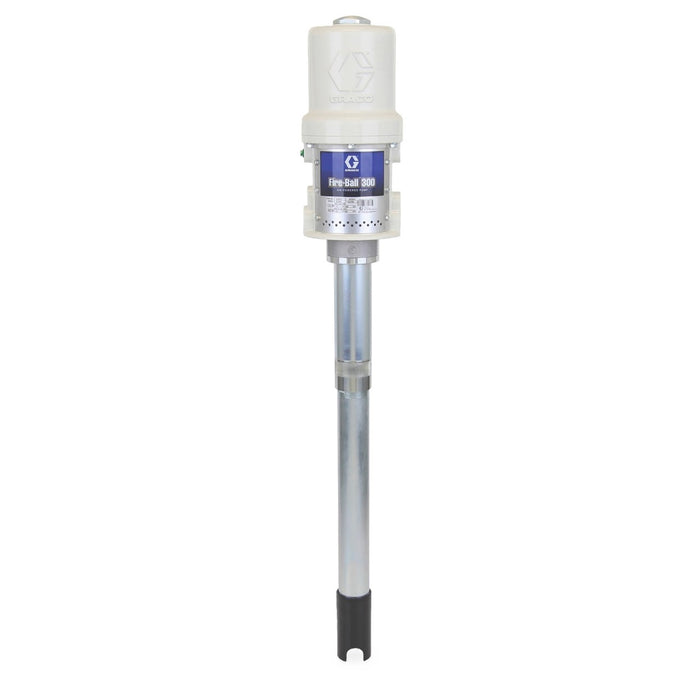

The Fire-Ball 300 image is for illustrative purposes only.
-
FEATURES

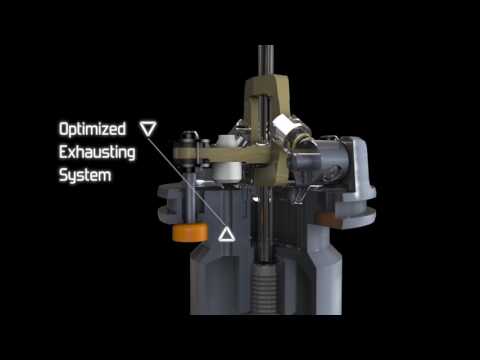

- Reliable Flow - A 3-inch (76.2 mm) differential air motor and the double-acting pump design provide reliable fluid flow and accurate dispense.
- Durable - Thick-cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and a lower repair cost.
- Extended Seal Life - The in-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design efficiently uses a compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum, and chrome on key components for longer life.
-
SPECS
Air Inlet Size 3/8 inch
Air Inlet Thread Gender
Female
Air Inlet Thread Type
NPT
Air Motor Effective Diameter
3 inch Application
Industrial
Compatible Material Grease, Rustproofing, Undercoating
Construction
Carbon Steel, Brass, Copper, Aluminum, PTFE, Nitrile Rubber, Leather
Cycles Per Gallon 90
Fluid Inlet Size
1 inch
Fluid Inlet Thread Gender
Female
Fluid Inlet Thread Type
NPT
Fluid Outlet Size
1/4 inch
Fluid Outlet Thread Gender
Female
Fluid Outlet Thread Type NPT For Use with Grease
Material
Aluminum, Carbon Steel, Leather, PTFE, Rubber Maximum Air Consumption (CSFM) 14 Maximum Air Inlet Pressure (psi) 180 Maximum Continuous Cycle Rate (CPM) 66
Maximum Flow Rate (GPM) 0.7
Maximum Working Pressure (MPa) 18.6
Maximum Working Pressure (psi) 2700
Model Fire-Ball Pump Ratio 15:1 Power Type Pneumatic Series 300 Sound Power Level (dB(A)) 85.6 Sound Pressure Level (dB(A)) 77.8 Type Pneumatic Piston Pump Weight 22 pounds -
