Graco Fire-Ball® 300 Series 50:1 35 or 70 lb (16 or 32 kg). Pail Grease Pump #239877
SKU 239877
by Graco
Original price
$1,465.00
-
Original price
$1,465.00
Original price
$1,465.00
$1,465.00
-
$1,465.00
Current price
$1,465.00
-
DESCRIPTION
Graco Fire-Ball® 300 Series 50:1 35 or 70 lb (16 or 32 kg). Pail Grease Pump #239877, as the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Install the Fire-Ball 300 50:1 in grease dispense applications.

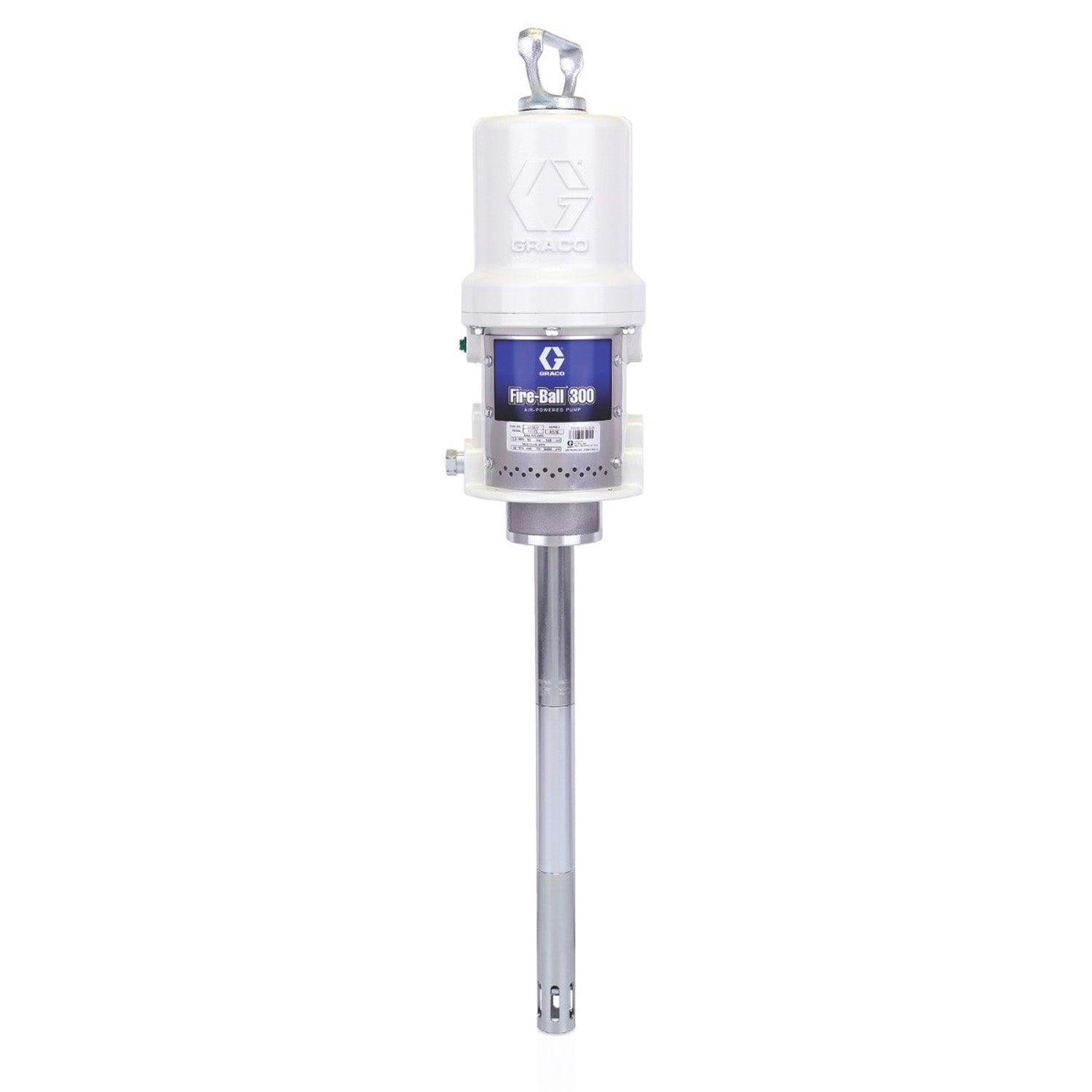

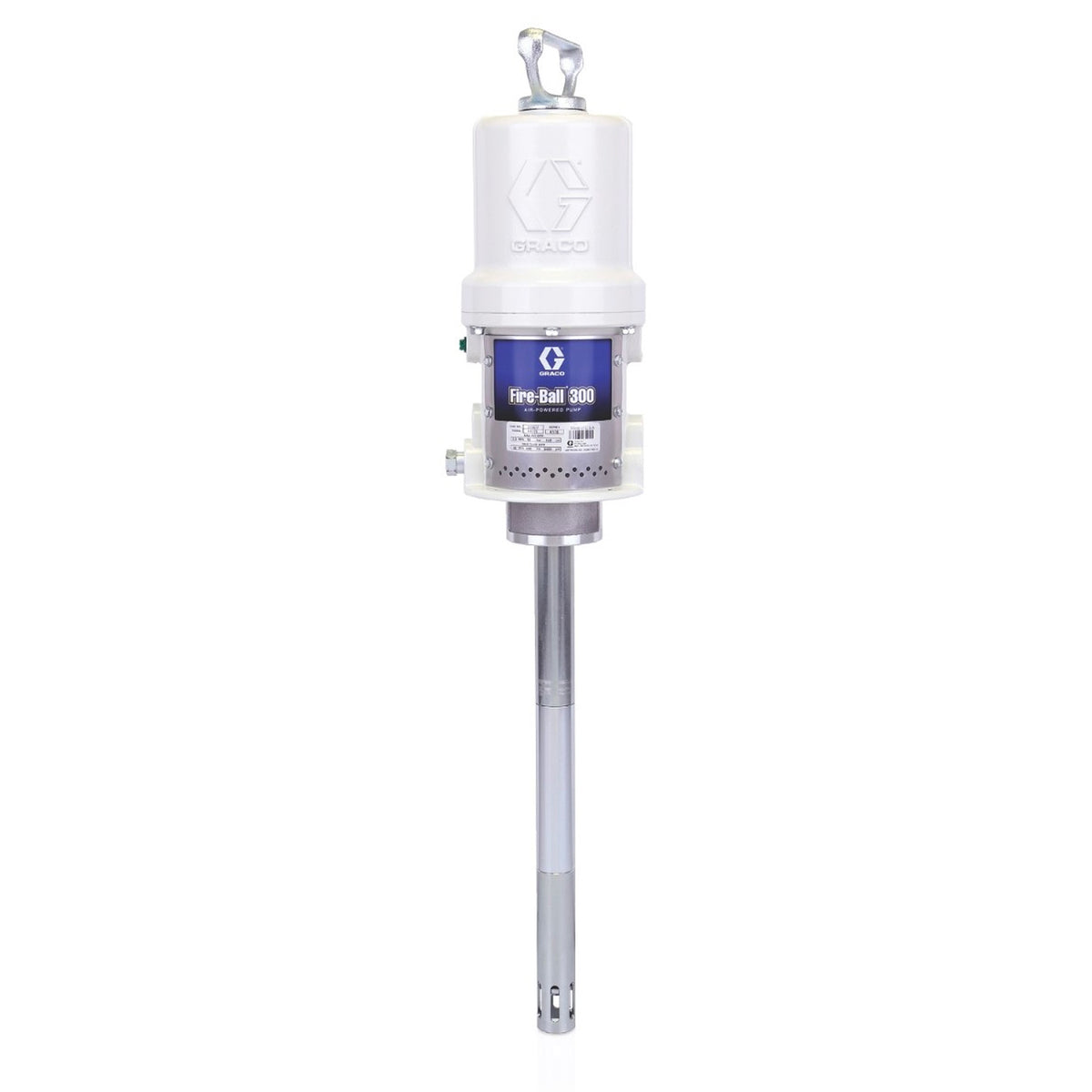

The Fire-Ball 300 image is for illustrative purposes only.
-
FEATURES
- Reliable Flow - A 3-inch (76.2 mm) differential air motor and the double-acting pump design provide reliable fluid flow and accurate dispense.
- Durable - Thick-cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and a lower repair cost.
- Extended Seal Life - The in-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design efficiently uses a compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum, and chrome on key components for longer life.
-
SPECS
Air Inlet Size 3/8 inch
Air Inlet Thread Gender
Female
Air Inlet Thread Type
NPT
Air Motor Effective Diameter
3 inch Application
Industrial
Compatible Material Grease
Construction
Steel, Brass, Aluminum, Acetal, Nitrile Rubber, Polyurethane
Fluid Inlet Thread Gender Female
Fluid Outlet Thread Type
NPT
Fluid Inlet Type
Slotted
Fluid Outlet Size
1/4 inch
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
For Use With Grease
Maximum AirConsumption (SCFM) 22.8
Maximum Air Inlet Pressure (psi)
140 Maximum Continuous Cycle Rate (CPM) 76 Maximum Intermittent Cycle Rate (CPM) 76 Maximum Working Pressure (MPa) 58
Maximum Working Pressure (psi) 8400
Model Fire-Ball
Power Type
Pneumatic
Pump Ratio
50:1
Series
300 Sound Power Level (dB(A))
85.6
Sound Pressure Level (dB(A)) 77.8 Type Pneumatic Piston Pump Weight 22 pounds -
DOWNLOADS
Greco Fire-Ball® 300 Series 50:1 35 or 70 lb (16 or 32 kg). Pail Grease Pump #239877
