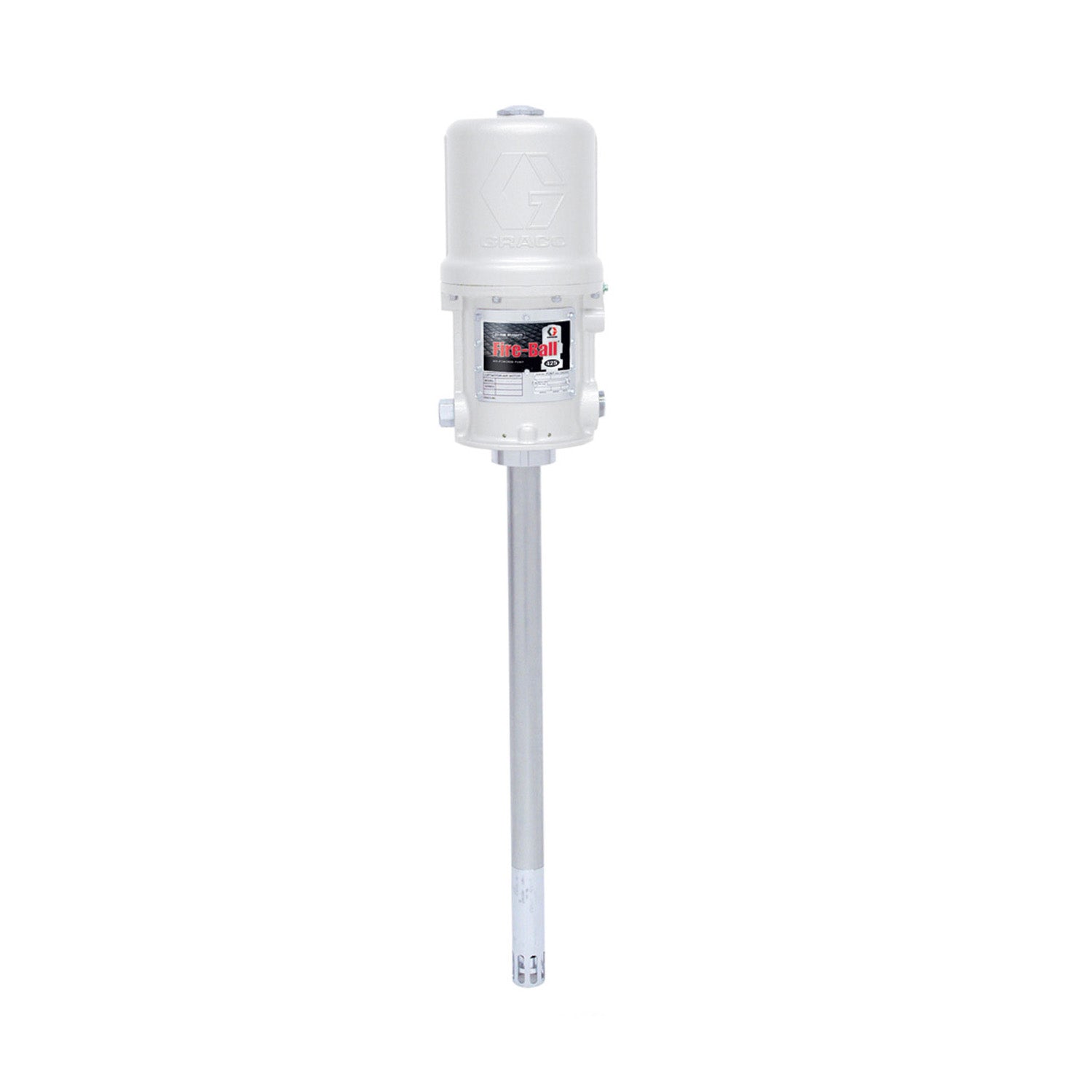

Graco Fire-Ball® 425 75:1 Bare Pump, 400lb Drum #239730
SKU 239730
by Graco
Save 1%
Original price
$6,343.88
Original price
$6,343.88
-
Original price
$6,343.88
Original price
$6,343.88
Current price
$6,300.00
$6,300.00
-
$6,300.00
Current price
$6,300.00
-
DESCRIPTION
The Fire-Ball® 425 Series 75:1 350-400 lb (160-180 kg). Container Bare Grease Pump features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispensations coincide.
The Fire-Ball 425 is the pump of choice for your most demanding high-volume applications.
-
FEATURES
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
-
SPECS
Air Inlet Size 1/2 inch
Air Inlet Thread Gender Female
Air Inlet Thread Type
NPT
Air Motor Effective Diameter
4.25 inch Application
Industrial
Compatible Material Grease
Cycles Per Gallon 165
Fluid Inlet Type (in) Slotted Fluid Inlet Size (in) 3/8 Fluid Inlet Thread Gender Female Fluid Inlet Thread Type NPT
For Use With Grease
Maximum Air Inlet Pressure (psi) 100 Maximum Continuous Cycle Rate (CPM) 60 Maximum Flow Rate (GPM) 0.33 Maximum Intermittent Cycle Rate (CPM) 60 Maximum Working Pressure (MPa) 51.7 Maximum Working Pressure (psi) 7500 Model Fire-Ball
Power Type Pneumatic Pump Ratio 75:1 Seal Material Nitrile Rubber Series 425 Sound Pressure Level (dB(A)) 94.62 Sound Pressure Level (dB(A)) 80.85 Throat Seal Type Wiper Type Pneumatic Piston Pump Weight 30 pounds Wetted Material CS, Steel, Brass, Aluminum, Leather -
