Atlas® AF8 5HP 80 Gallon Commercial Air Compressor #ATEMPAF8-FPD
Couldn't load pickup availability
| Model / Part Number | ATEMPAF8-FPD |
| Horsepower | 5 HP Heavy Duty, Low RPM |
| Tank | 80 Gallon Vertical |
| CFM @ 90 PSI | 20 CFM @ 145 PSI |
| Pressure Range | 145–175 PSI |
| Warranty | 1-year parts only |
Atlas® AF8 — 5 HP Heavy Duty, Low RPM Air Compressor
Multi-bay shops running impact wrenches, tire equipment, and paint guns off the same line need a pump that was actually built for that duty cycle — not a single-stage unit stretched past what it was designed to do.
The Atlas® AF8 is a commercial 2-stage reciprocating compressor rated for 5 HP Heavy Duty, Low RPM with an 80 gallon vertical tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the AF8 Is Built For
- ✅ Small businesses and 3–4 technician shops that need dependable, continuous daily air supply without paying for accessories they may not need yet
- ✅ Shops running pneumatic tools, tire machines, and sandblast cabinets at 145–175 PSI where consistent output matters more than moisture-control extras
- ✅ Buyers who want the industrial-grade pressure switch and magnetic starter Atlas builds into this tier, but don't need the Plus Package's automatic tank drain or aftercooler
- ✅ Operations upgrading from a 60-gallon single-stage unit to true commercial-grade 2-stage performance and 20 CFM output
- ✅ Shops that plan to handle tank draining and oil monitoring manually as part of routine maintenance rather than automating it
- ✅ Cost-conscious buyers comparing the AF8 against the AF8P who've decided the Plus Package upgrades aren't worth the added cost for their operation
What the AF8 Is NOT Built For
- ❌ Shops that want automatic tank drain and low-oil monitoring built in from day one to reduce maintenance oversight — see the AF8P
- ❌ Operations dealing with high humidity or moisture-sensitive air tools that would benefit from the AF8P's air-cooled aftercooler
- ❌ Shops needing more than 20 CFM continuous — look at the 7.5HP AF9 for higher-draw applications
What Makes the AF8 Different
Commercial 2-Stage Pump
The AF8 uses a 2-Cylinder, 2-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 20 CFM @ 145 PSI and holds pressure across a 145–175 PSI range, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Plus Package Upgrades
standard AF8; add the aftercooler/auto-drain/low-oil monitor by stepping up to the AF8P.
Power Requirements
220V, 1-Phase, 30 Amp Breaker, #10 Wire Required. Confirm your panel and breaker sizing with an electrician before delivery.
- 3–4 technician commercial shops
- Daily continuous-duty air supply
- Buyers not needing Plus Package extras
- Shops wanting auto-drain/aftercooler built in — see AF8P
- Needs over 20 CFM — see AF9
AF8 vs. FS-Curtis CA5+ (5 HP, 80 Gal Vertical) — Which Compressor Is Right for Your Shop?
| Decision Point | AF8 | FS-Curtis CA5+ (5 HP, 80 Gal Vertical) |
|---|---|---|
| Horsepower / Tank | 5 HP / 80 Gal Vertical | 5 HP / 80 Gal Vertical |
| CFM @ 175 PSI | 19 CFM | 18.5 CFM (E57 pump) |
| Pressure switch | Industrial-grade Hubbell + Eaton starter | Magnetic starter, manual tank drain, oil sight glass (standard simplex) |
| Best fit | 3–4 tech commercial shops, no Plus Package needed | Shops wanting FS-Curtis pump architecture |
Choose the AF8 for true commercial-grade 2-stage output with industrial electrical components, minus the Plus Package extras. Choose the FS-Curtis CA5+ if you want to compare pump architecture at the same HP/tank tier. Both stay inside Alamo’s catalog — call (844) 480-6059.

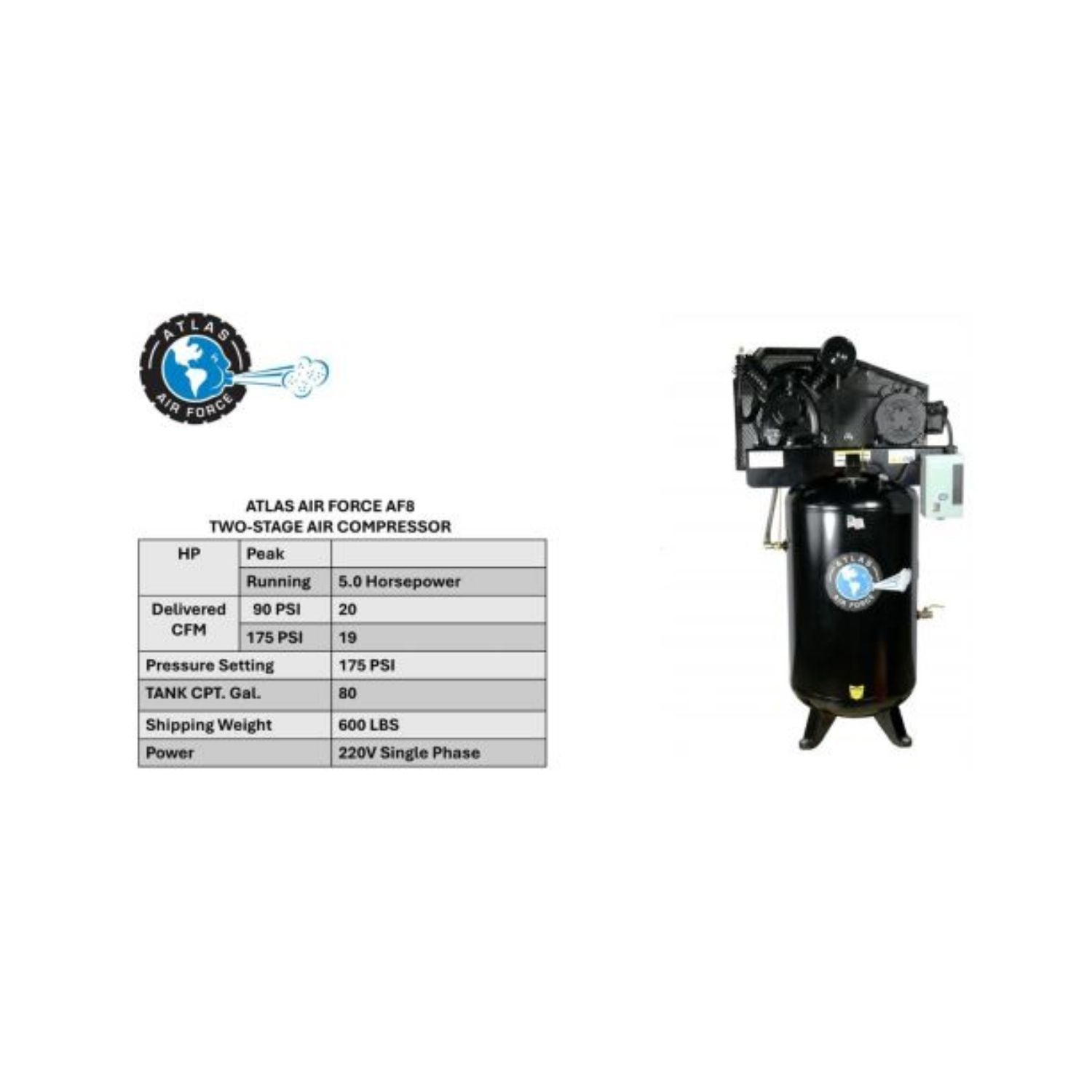

Full Specifications — AF8
| Model / Part Number | ATEMPAF8-FPD |
| Horsepower | 5 HP Heavy Duty, Low RPM |
| Pump | 2-Cylinder, 2-Stage |
| Configuration | Commercial 2-Stage Reciprocating |
| Tank | 80 Gallon Vertical |
| CFM @ 90 PSI | 20 CFM @ 145 PSI |
| CFM @ 175 PSI | 19 CFM @ 175 PSI |
| Pressure Range | 145–175 PSI |
| Motor / Electrical | 220V, 1-Phase, 30 Amp Breaker, #10 Wire Required |

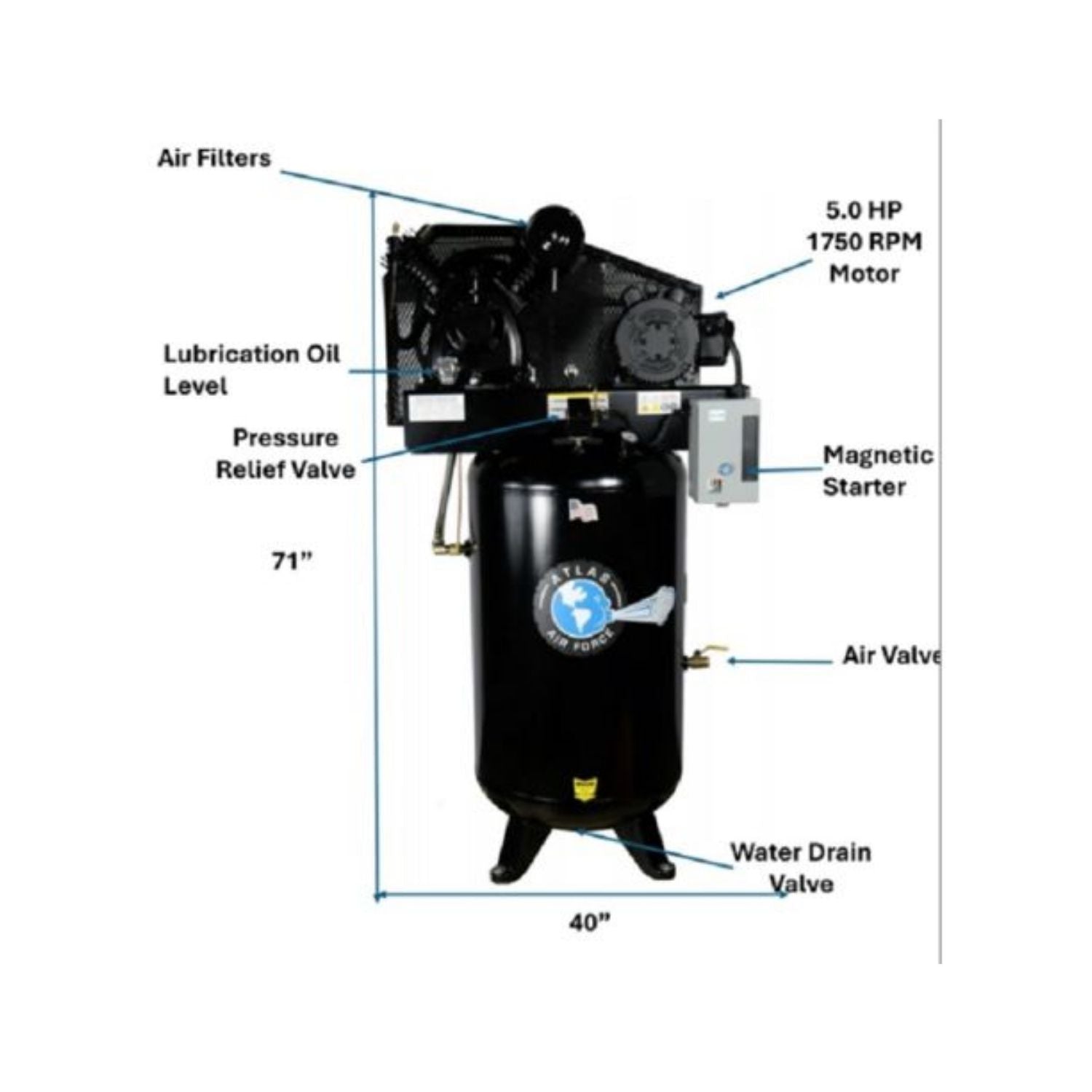

| Overall Dimensions | 40" L × 24" W × 71" H |
| Shipping Weight | 589 lbs |
| Warranty | 1-year parts only |
⚠️ Setup Requirements
- Electrical: 220V, 1-Phase, 30 Amp Breaker, #10 Wire Required; have an electrician confirm your panel capacity before delivery.
- Floor space: 40" L × 24" W × 71" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 589 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
Atlas® Warranty — AF8
Atlas® backs the AF8 with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to Atlas® warranty terms, conditions, and requirements.
Frequently Asked Questions — Atlas® AF8
Why Buy the AF8 from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 5 HP Heavy Duty, Low RPM, 80 Gallon Vertical tank, 20 CFM @ 145 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the AF8 or the FS-Curtis CA5+ (5 HP, 80 Gal Vertical) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
