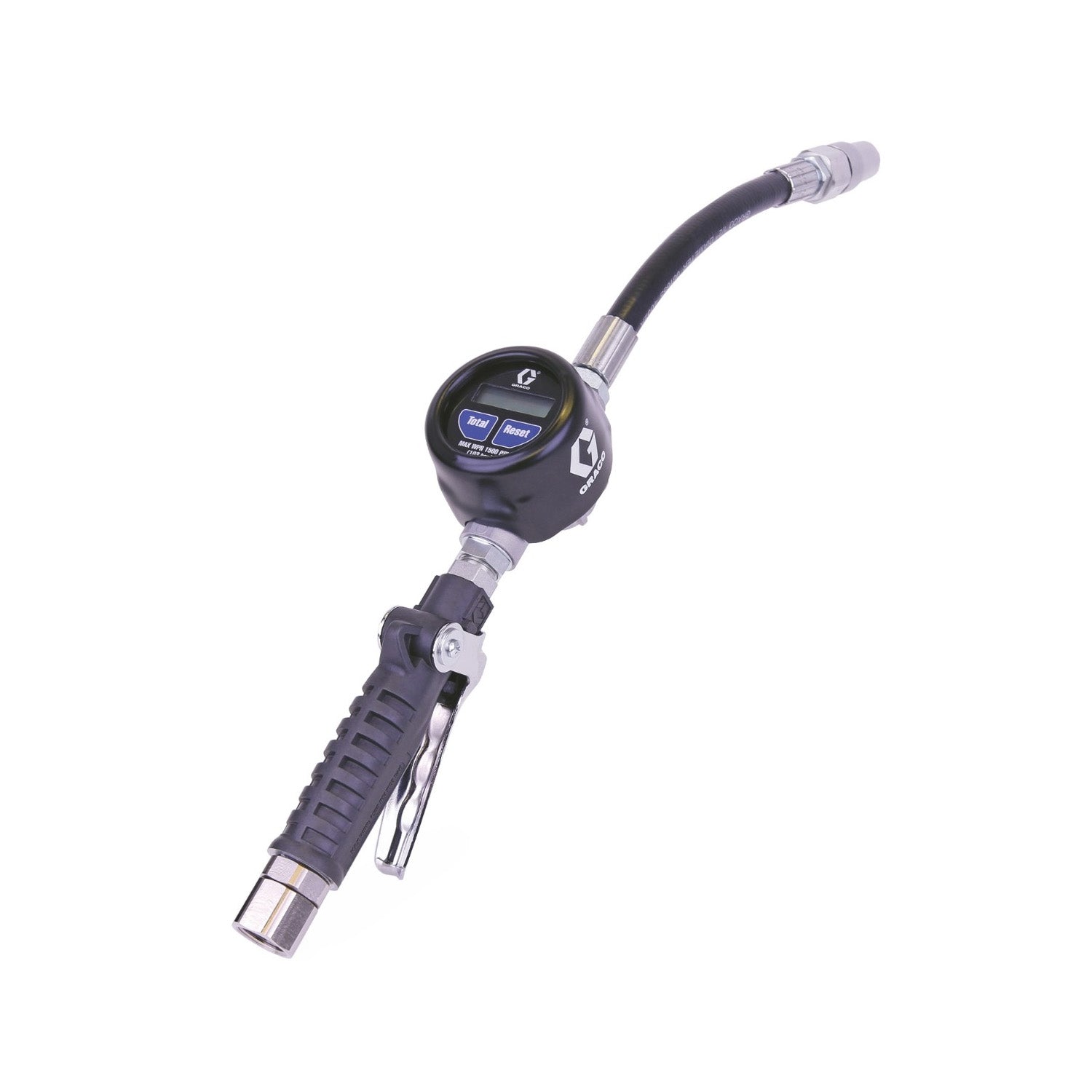

Graco 25C918 EM20 Electronic Manual Oil/Antifreeze Meter, Flexible 3/4 in. Inlet, NPT #25C918
Regular price
$1,100.00
-
DESCRIPTION
EM Series handheld and in-line meters are designed to last – from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Graco’s EM Series meters are backed by our robust warranty and feature upgraded electronics and easy-to-read LCD with simple operator controls that measures in quarts, gallons, pints and liters.
-
FEATURES
- Twist-Close Nozzle Prevents Leaking - Multiple extensions available, including rigid, flexible, and gear lube.
- High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
- Legacy Valve - 3/4 inch (19 mm) inlet, compatible with oil and Antifreeze.
- Prevent Accidental Dispenses - Easy-to-hold locking handle.
- Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.
-
SPECS
Approvals CE Calibration Type Factory Calibrated Compatible Material Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze Display Type Electronic Electronic Flexible Fluid Inlet Thread Gender Female Fluid Outlet Thread Gender Female IP Rating 69K Includes Nozzle, Extension Inlet Size (in) 3/4 Inlet Thread Type NPT Maximum Flow Rate (GPM) 20 Maximum Flow Rate (cc/min) 75708 Maximum Operating Temperature (°F) 180° Maximum Recorded Dispense 19999 Maximum Storage Temperature (°F) 185° Maximum Totalizer 19999 Maximum Working Pressure (MPa) 10.2 Maximum Working Pressure (psi) 1500 Meter Accuracy (%) ±0.5 Meter Pressure Loss (psi) 85 PSI at 12 GPM Meter Technology Oval Gear Metering Gun Weight (lb) 3.1 Minimum Flow Rate (GPM) 0.25 Minimum Operating Temperature (°F) -22° Model EM20 Nozzle Type Manual Outlet Size (in) 7/8 Outlet Thread Type ORB Overall Height (in) 5.25 Overall Length (in) 13 Overall Width (in) 3.5 Recommended Environment Indoor/Outdoor Series A Trigger Lock Locking Trigger Protection Type Lock Off Button Type Electronic Metered Dispense Valve Unit of Measure Quart, Pint, Liter, Gallon Valve Type Metered Warranty 5 Years Wetted Material Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® -
DOWNLOADS
Graco Instruction-Parts List EM8, EM20, and IM20 Meters Instructions and Part List
