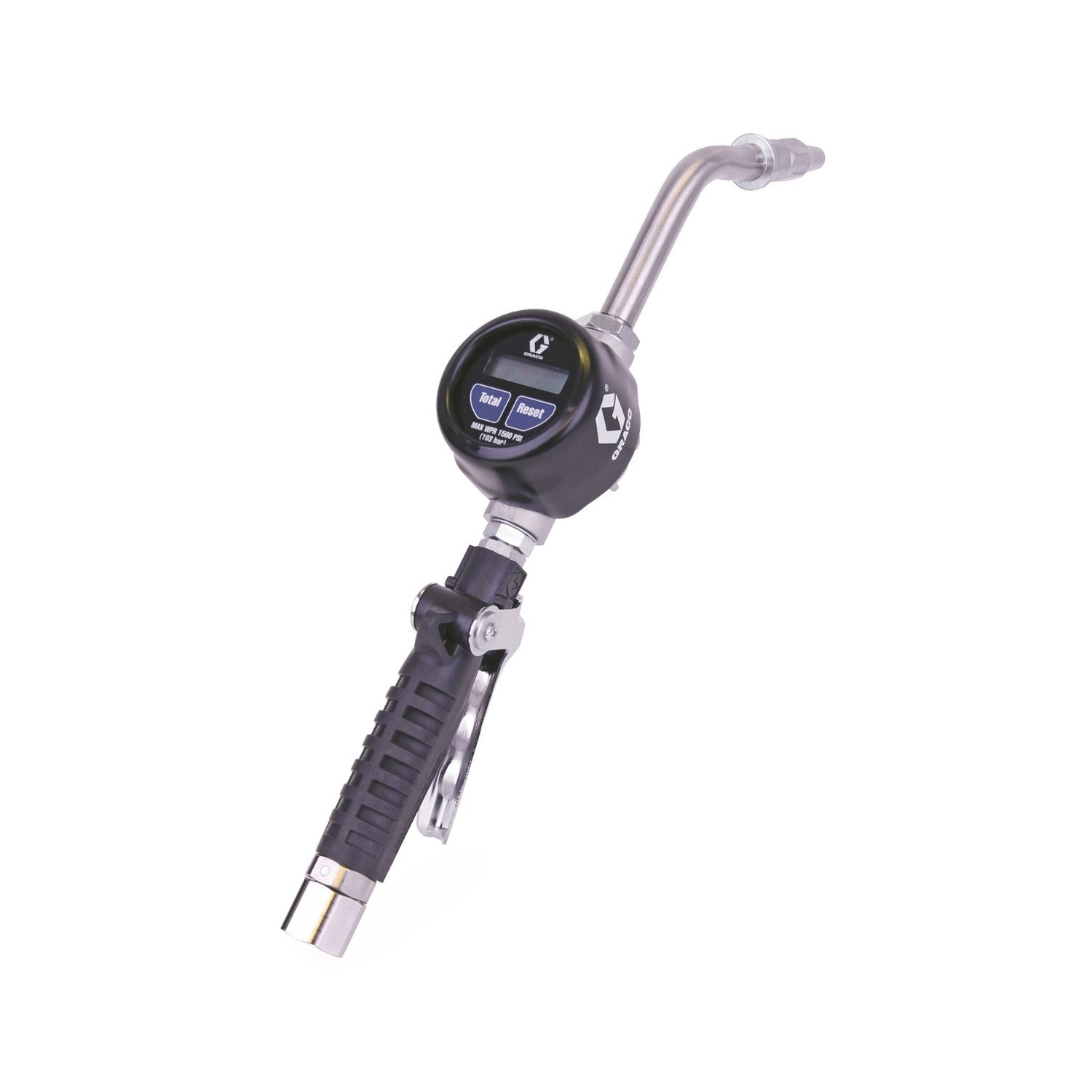

Graco EM8 Elec. Manual Oil & Antifreeze Meter, 1/2" NPT Inlet #25C903
Couldn't load pickup availability
-
DESCRIPTION
The EM8 is an Electronic Manual Oil/Anti-freeze Meter with a rigid extension and a 1/2-inch inlet. It is handheld, and in-line meters are designed to last, from small service centers and lubrication trucks to heavy-duty repair facilities. Choose from 8 or 20 gpm (30.3 to 75.7 lpm) hand-held models or our 20 gpm (75.7 lpm) in-line meter. Our robust warranty and feature-packed Graco EM Series meters feature upgraded electronics and an easy-to-read LCD with simple operator controls, measuring in quarts, gallons, pints, and liters.
Engineered for demanding shop environments, the EM8 includes sealed electronics with an IP69K rating to protect against dust, moisture, and high-pressure washdowns, ensuring dependable performance in harsh conditions.
With high flow capability up to 8 GPM and ±0.5% accuracy, technicians can dispense fluids quickly while maintaining precise control over inventory and service measurements.
Ideal for professional lube systems, the Graco EM8 meter combines durability, precision, and ease of use for reliable fluid management in any shop.
-
FEATURES
- Twist-Close Nozzle Prevents Leaking - Multiple extensions are available, including rigid, flexible, and gear lube.
- High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
- Legacy Valve - 1/2 inch (13 mm) inlet, compatible with oil and Antifreeze.
- Prevent Accidental Dispenses - Easy-to-hold locking handle.
- Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.
-
SPECS
Approvals CE Calibration Type Factory Calibrated Compatible Material Petroleum-Based Oil, Synthetic-Based Oil, Anti-freeze Display Type Electronic Electronic Rigid Fluid Inlet Thread Gender Female Fluid Outlet Thread Gender Female IP Rating 69K Includes Nozzle, Extension Inlet Size (in) 1/2 Inlet Thread Type NPT Maximum Flow Rate (GPM) 8 Maximum Flow Rate (cc/min) 30283 Maximum Operating Temperature (°F) 180° Maximum Recorded Dispense 19999 Maximum Storage Temperature (°F) 185° Maximum Totalizer 19999 Maximum Working Pressure (MPa) 10.2 Maximum Working Pressure (psi) 1500 Meter Accuracy (%) ±0.5 Meter Pressure Loss (psi) 30 PSI at 6 GPM Meter Technology Oval Gear Metering Gun Weight (lb) 3 Minimum Flow Rate (GPM) 0.25 Minimum Operating Temperature (°F) -22° Model EM8 Nozzle Type Manual Outlet Size (in) 3/4 Outlet Thread Type ORB Overall Height (in) 5.25 Overall Length (in) 13 Overall Width (in) 3.5 Recommended Environment Indoor/Outdoor Series A Trigger Lock Locking Trigger Protection Type Lock Off Button Type Electronic Metered Dispense Valve Unit of Measure Quart, Pint, Liter, Gallon Valve Type Metered Warranty 5 Years Wetted Material Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® -
DOWNLOADS
Graco Instruction-Parts List EM8, EM20, and IM20 Meters Instructions and Part List
