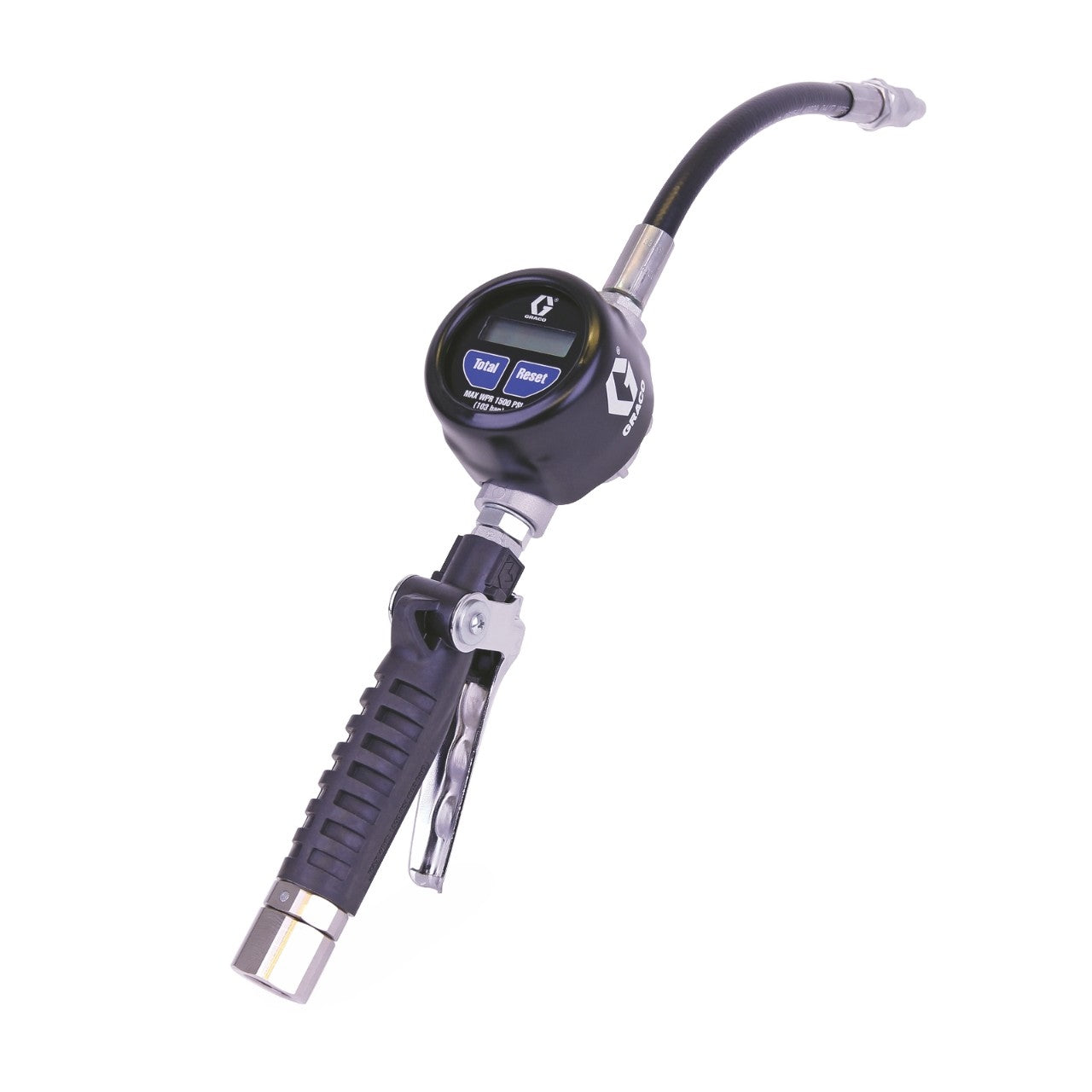

Graco EM8 Electronic Meter, Flexible Extension, 1/2” NPT Inlet #25C904
Couldn't load pickup availability
-
DESCRIPTION
The Graco EM8 Electronic Meter with Flexible Extension (25C904) is designed for accurate and reliable dispensing of oil and antifreeze in automotive service centers, lubrication trucks, fleet maintenance facilities, and heavy-duty repair shops. Built with Graco’s proven EM Series technology, this electronic metered dispense valve delivers precise fluid measurement with a durable design that performs even in harsh shop environments.
Featuring an easy-to-read electronic LCD display, the EM8 meter allows technicians to quickly measure fluids in quarts, gallons, pints, or liters, improving accuracy and efficiency during fluid service operations. The flexible extension and manual nozzle make it easy to reach tight service areas while maintaining smooth, controlled dispensing.
The EM8 is engineered for reliability with sealed IP69K electronics, protecting the meter from dust, debris, and high-pressure washdowns commonly found in busy service shops. With ±0.5% accuracy and flow rates up to 8 GPM, this meter ensures precise fluid tracking and consistent performance.
Whether you're servicing engines, transmissions, or coolant systems, the Graco EM8 electronic meter provides professional-grade fluid management you can depend on.
-
FEATURES
- Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
- High-Flow Rates - Capable of up to 8 gpm (30.3 lpm).
- Legacy Valve - 1/2 inch (13 mm) inlet, compatible with oil and Antifreeze.
- Prevent Accidental Dispenses - Easy-to-hold locking handle.
- Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
- Long Battery Life - Features upgraded electronics and easily replaceable AAA batteries.
Ideal Applications
- Automotive repair shops
- Fleet maintenance facilities
- Quick-lube service centers
- Heavy equipment service shops
- Lubrication trucks and mobile service units
-
SPECS
Approvals CE Calibration Type Factory Calibrated Compatible Material Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze Display Type Electronic Electronic Flexible Fluid Inlet Thread Gender Female Fluid Outlet Thread Gender Female IP Rating 69K Includes Nozzle, Extension Inlet Size (in) 1/2 Inlet Thread Type NPT Maximum Flow Rate (GPM) 8 Maximum Flow Rate (cc/min) 30283 Maximum Operating Temperature (°F) 180° Maximum Recorded Dispense 19999 Maximum Storage Temperature (°F) 185 Maximum Totalizer 19999 Maximum Working Pressure (MPa) 10.2 Maximum Working Pressure (psi) 1500 Meter Accuracy (%) ±0.5 Meter Pressure Loss (psi) 30 PSI at 6 GPM Meter Technology Oval Gear Metering Gun Weight (lb) 3 Minimum Flow Rate (GPM) 0.25 Minimum Operating Temperature (°F) -22 Model EM8 Nozzle Type Manual Outlet Size (in) 3/4 Outlet Thread Type ORB Overall Height (in) 5.25 Overall Length (in) 13 Overall Width (in) 3.5 Recommended Environment Indoor/Outdoor Series A Trigger Lock Locking Trigger Protection Type Lock Off Button Type Electronic Metered Dispense Valve Unit of Measure Quart, Pint, Liter, Gallon Valve Type Metered Warranty 5 Years Wetted Material Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® -
