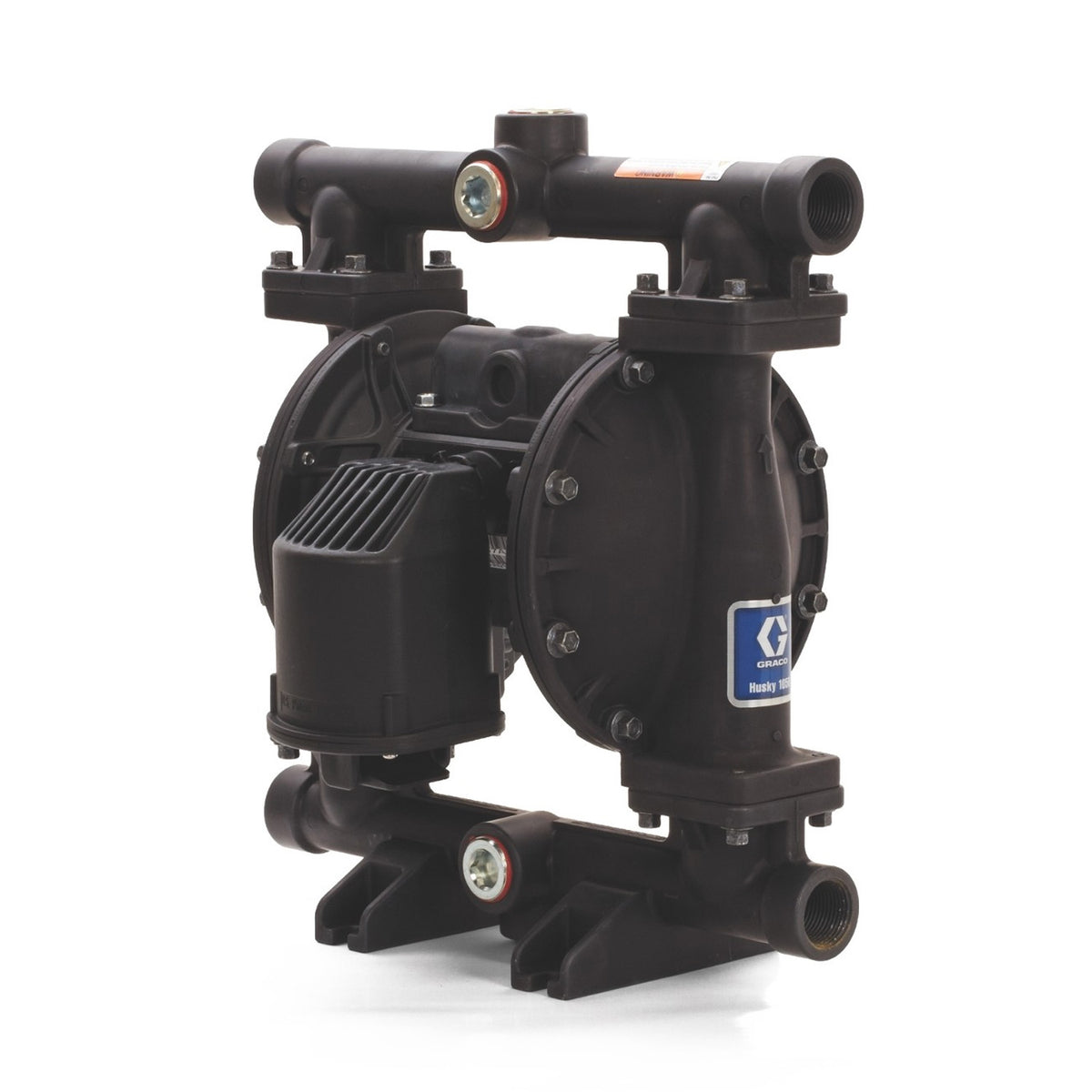

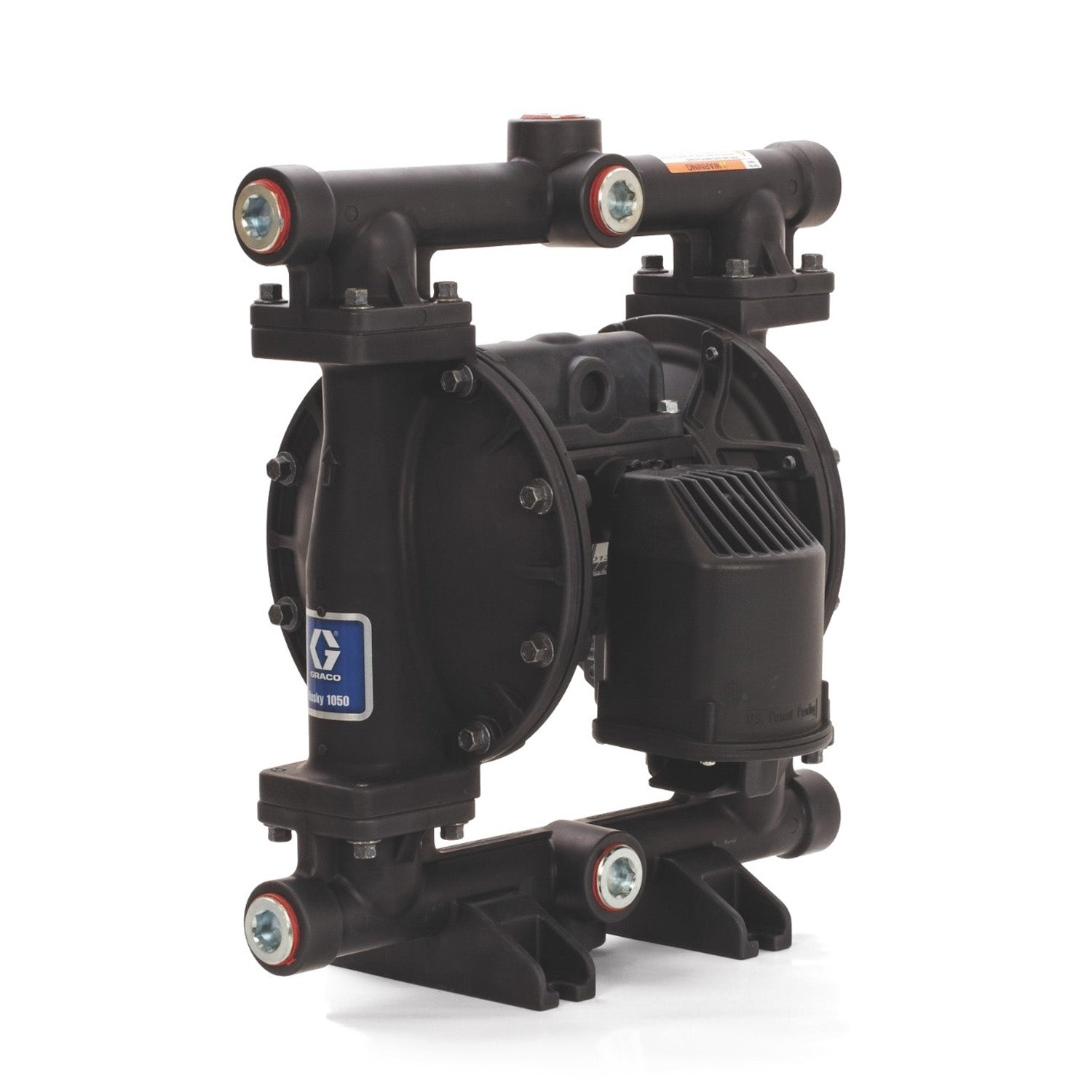

Graco Husky 1050 Air-Operated Double Diaphragm Transfer Pump #647731
Couldn't load pickup availability
-
DESCRIPTION
The Graco Husky 1050 Air-Operated Double Diaphragm Transfer Pump (647731) is a durable and high-performance pump designed for oil evacuation and fluid transfer in automotive service shops, fleet maintenance facilities, and industrial environments. Built with a rugged aluminum fluid section and advanced air-valve technology, this pump delivers smooth, reliable flow with minimal pulsation and reduced maintenance.
The Husky 1050 features a stall-free modular air valve and one-piece center section, helping eliminate leaks while improving efficiency and pump longevity. With the ability to deliver up to 50 GPM and handle pressures up to 100 PSI, this pump is ideal for quickly and safely transferring motor oil, waste oil, and similar fluids.
Designed for demanding shop environments, the Husky 1050 offers long diaphragm life, flexible installation options, and reliable operation, making it a trusted choice for professional technicians and fluid handling systems.
Perfect for automotive dealerships, quick-lube facilities, heavy-duty repair shops, and fleet service operations that need dependable oil transfer equipment.
-
FEATURES
- Longer Diaphragm Life - Up to 5x longer diaphragm life for less maintenance and downtime
- Modular Air Valve - Stall-free, low pulsation operation provides smooth and rapid changeover
- One-Piece Center Section - Eliminates air leaks for more efficient operation
- Four Bolt Joint Design - Bolted design provides even sealing pressure for leak-free operation
- Multiple Ports - Increased number of ports for installation flexibility
- Optional Features - DataTrak™ (Runaway protection and tracks material usage), Pulse Output (Cycle count capability)
- Spring-loaded, externally serviceable pilot valves for faster changeover and reduced pulsation
- 30% more efficient than the market leader
- 20% increase in fluid flow compared to the Husky 1040
Why Choose Graco Husky Pumps?
Graco Husky diaphragm pumps are trusted worldwide for durability, efficiency, and reliable fluid transfer performance. The Husky 1050 is engineered to help service shops and industrial operations move fluids faster while reducing maintenance and downtime.
-
SPECS
Air Exhaust Port Size 3/4 inch Air Exhaust Port Thread Gender Female Air Exhaust Port Thread Type NPT Air Inlet Size 1/2 inch Air Inlet Thread Gender Female Air Inlet Threat Type NPT Application Industrial Ball Material Acetal Center Section Material Aluminum Compatible Material Oil, Water, Antifreeze Connection Type Threaded Diaphragm Material TPE (Hytrel) Fluid Inlet Size (in) 1 Fluid Inlet Thread Gender Female Fluid Inlet Thread Type NPT Fluid Outlet Size (in) 1 Fluid Outlet Thread Gender Female Fluid Outlet Thread Type NPT Fluid Section Material Aluminum For Use With Oil, Waste Oil Manifold O-Ring Material None Material Aluminum Maximum Air Consumption (SCFM) 25 Maximum Air Pressure (MPa) 0.7 Maximum Air Pressure (psi) 100 Maximum Cycle Rate (CPM) 280 Maximum Flow Rate (GPM) 50 Maximum Fluid Pressure (MPa) 0.7 Maximum Fluid Pressure (psi) 100 Maximum Solid Size (in) 0.125 Model Husky Overall Height (in) 15.9 Power Source Air Pump Ratio 1:1 Seat Material Buna-N Series 1050 Standards Met UL Type Pneumatic Diaphragm Pump Weight (lb) 23 Wetted Material Aluminum, TPC-ET, Acetal, PTFE, Buna-N -
