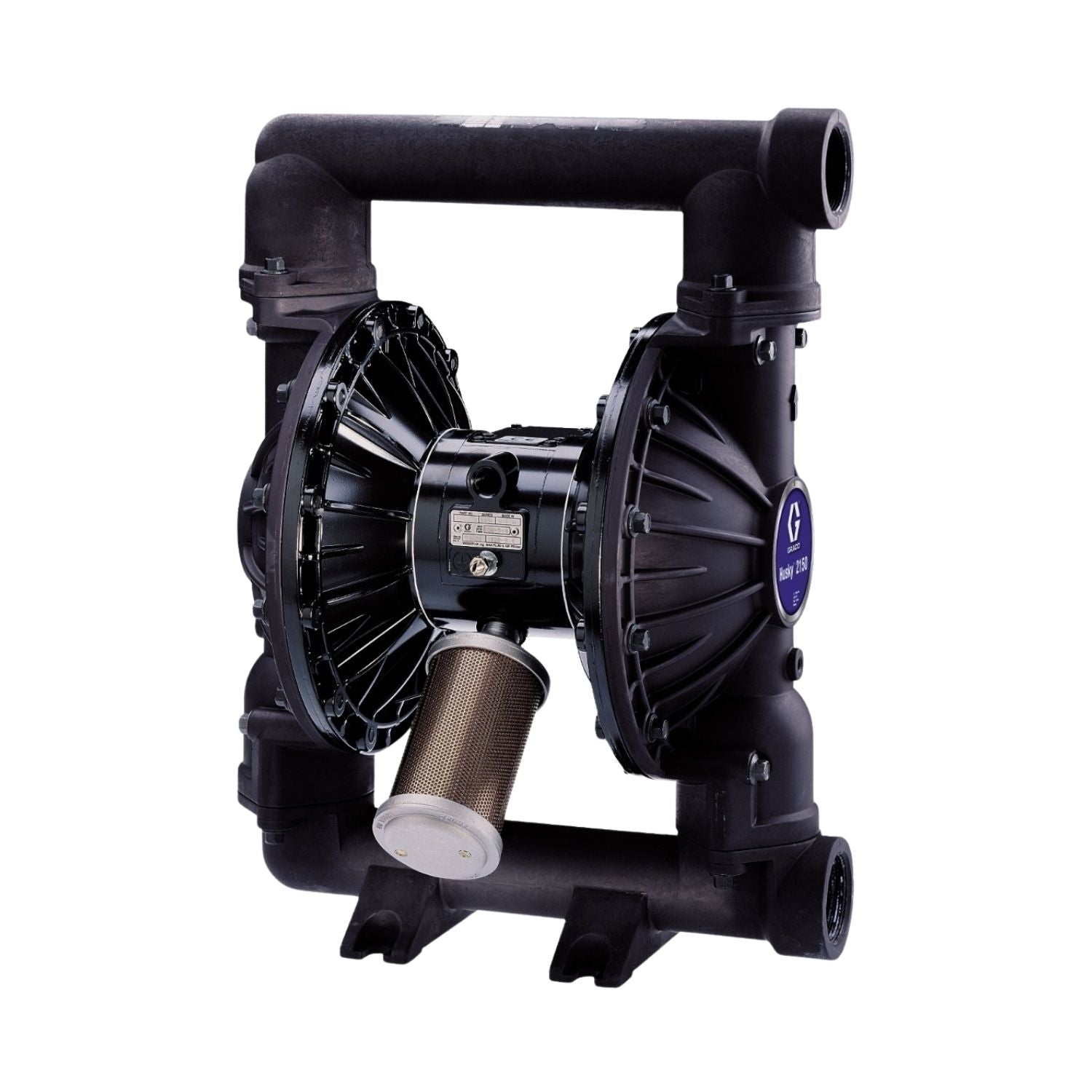

Graco Husky 2150 Air-Operated Diaphragm Pump #DF3525
Regular price
$2,530.00
Manuals & Resources
Questions before ordering? Call Alamo at (844) 480-6059 - we help you confirm fit for your equipment.
Specifications
| Graco Part # | DF3525 |
| UPC | 633955198548 |
| Type | Air-operated double-diaphragm (AODD) pump |
| Max Fluid Pressure | 120 psi (8.4 bar) |
| Max Free-Flow Delivery | 150 gpm (568 lpm) |
| Max Pump Speed | 145 cpm |
| Fluid Displacement / Cycle | 1.03 gal (3.9 l) |
| Max Suction Lift | 20 ft (6.1 m) dry |
| Max Solids | 0.25 in (6.3 mm) |
| Max Air Consumption | 175 scfm |
| Air Operating Range | 20-120 psi |
| Max Operating Temp | 150°F (65.5°C) |
| Product Dimensions | 19.2 x 15.6 x 25.2 in |
| Product Weight | 59 lb |
| Packaged / Shipping Dimensions | 19.2 x 15.6 x 25.2 in |
| Packaged / Shipping Weight | 59 lb |
Product dimensions/weight are the unit itself; packaged/shipping figures are the boxed values used for freight.
Compatibility & Fitment
Husky 2150 configuration 2150A-PA01AA1TPACTP. Use only fluids compatible with the pump's wetted materials. Confirm exact fluid-section config with Alamo before ordering.
Warranty
Graco backs the Husky 2150 AODD pump with its published limited warranty. For exact warranty terms and coverage, call Alamo Equipment at (844) 480-6059.

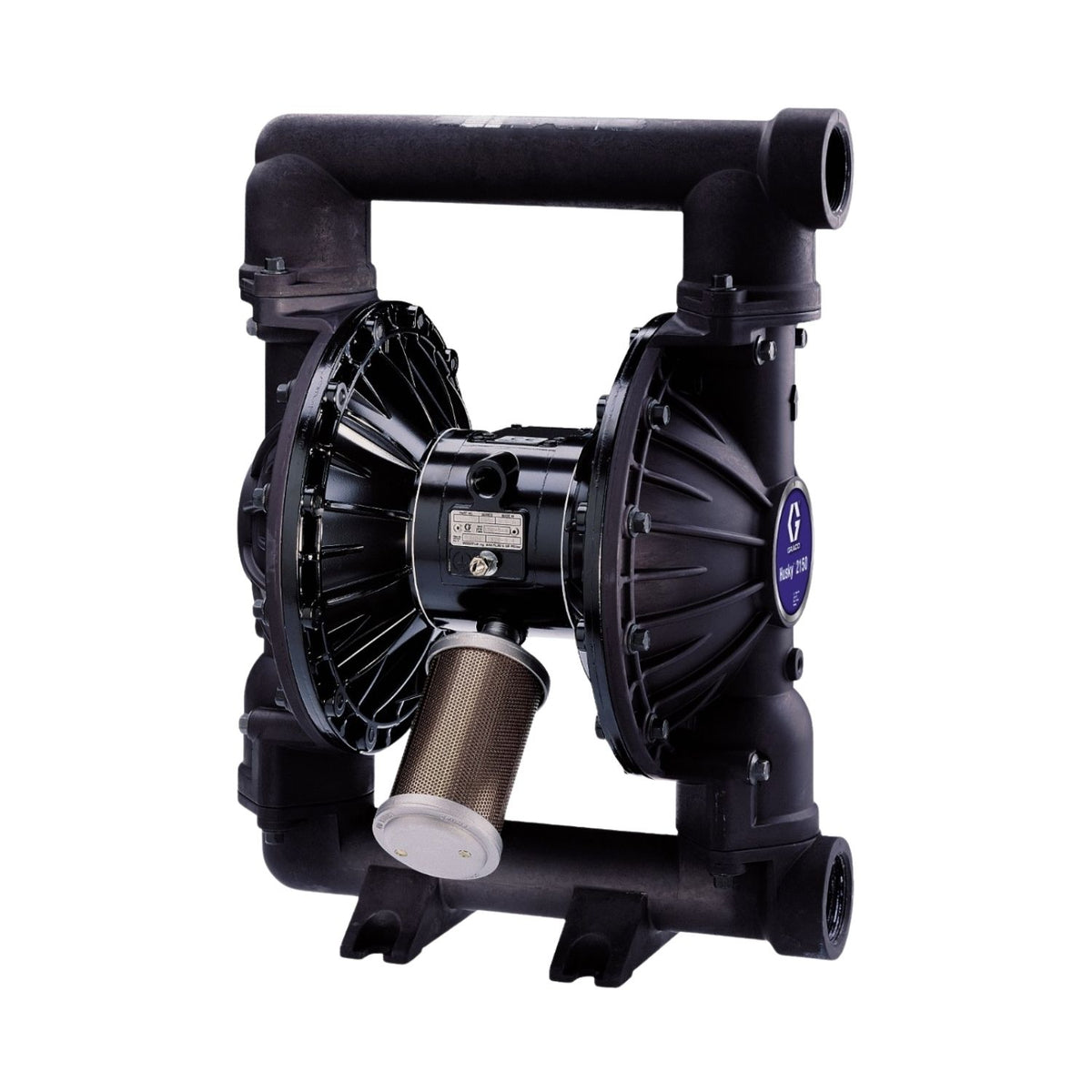

Graco Husky 2150 Air-Operated Diaphragm Pump
Graco Husky 2150 heavy-duty AODD pump delivering up to 150 gpm for demanding high-volume fluid transfer.
