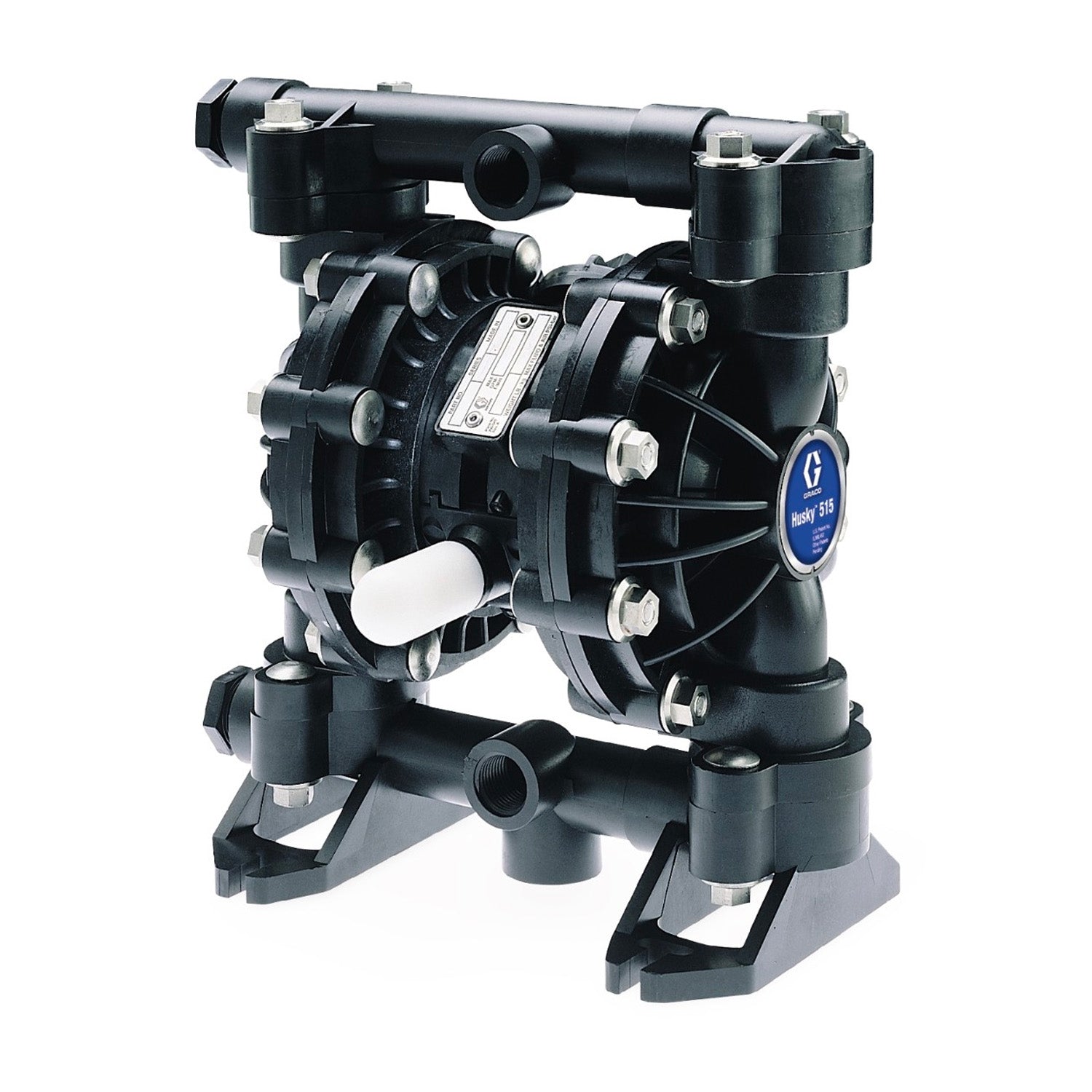

Graco Husky 515 Series Air-Operated Double Diaphragm Transfer Pump for 50/50 Windshield Wash Solution, Water, Antifreeze #243669
SKU 243669
by Graco
Original price
$1,225.00
-
Original price
$1,225.00
Original price
$1,225.00
$1,225.00
-
$1,225.00
Current price
$1,225.00
-
DESCRIPTION
The Graco Husky 515 Series Air-Operated Double Diaphragm Transfer Pump for 50/50 Windshield Wash Solution, Water, Antifreeze #243669 is an air-operated double diaphragm pump features a stall-free low pulsation air valve, that provides a smooth and rapid changeover.
The bolt-through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
-
FEATURES
- Center and end porting options.
- No mechanical seals to cause fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
- Split manifold option to pump multiple fluids without mixing
- Delivery up to 15 gpm (56.7 lpm)
- Easy-to-service air valve and ball checks
- Reliable air valve for years of dependable performance
-
SPECS
Air Exhaust Port Size 3/8 inch
Air Exhaust Port Thread Gender
Female
Air Exhaust Port Thread Type
NPT
Air Inlet Size
1/4 inch Air Inlet Thread Gender
Female
Air Inlet Threat Type
NPT
Application
Industrial
Ball Material
Buna-N
Center Section Material Aluminum
Compatible Material Water, Anti-freeze, Windshield Washer Fluid
Construction
Groundable Acetal, Buna-N, PTFE
Diaphragm Material Buna-N
Fluid Section Material Acetal
For Use With Oil, Water, Anti-freeze, Washer Fluid Manifold O-Ring Material PTFE Material Acetal Maximum Air Consumption (SCFM) 28
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 400
For Use With
Oil, Waste Oil
Manifold O-Ring Material
none
Material
Aluminum
Maximum Air Consumption (SCFM)
25
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 400 Maximum Flow Rate(GPM) 15 Maximum Fluid Pressure (MPa) 0.7 Maximum Fluid Pressure (psi) 100 Maximum Solid Size 0.09375 inch Model Husky Overall Height 10.63 inches Power Source Air Pump Ratio 1:1 Series 515
Type Pneumatic Diaphragm Pump Weight 7.8 pounds
-
