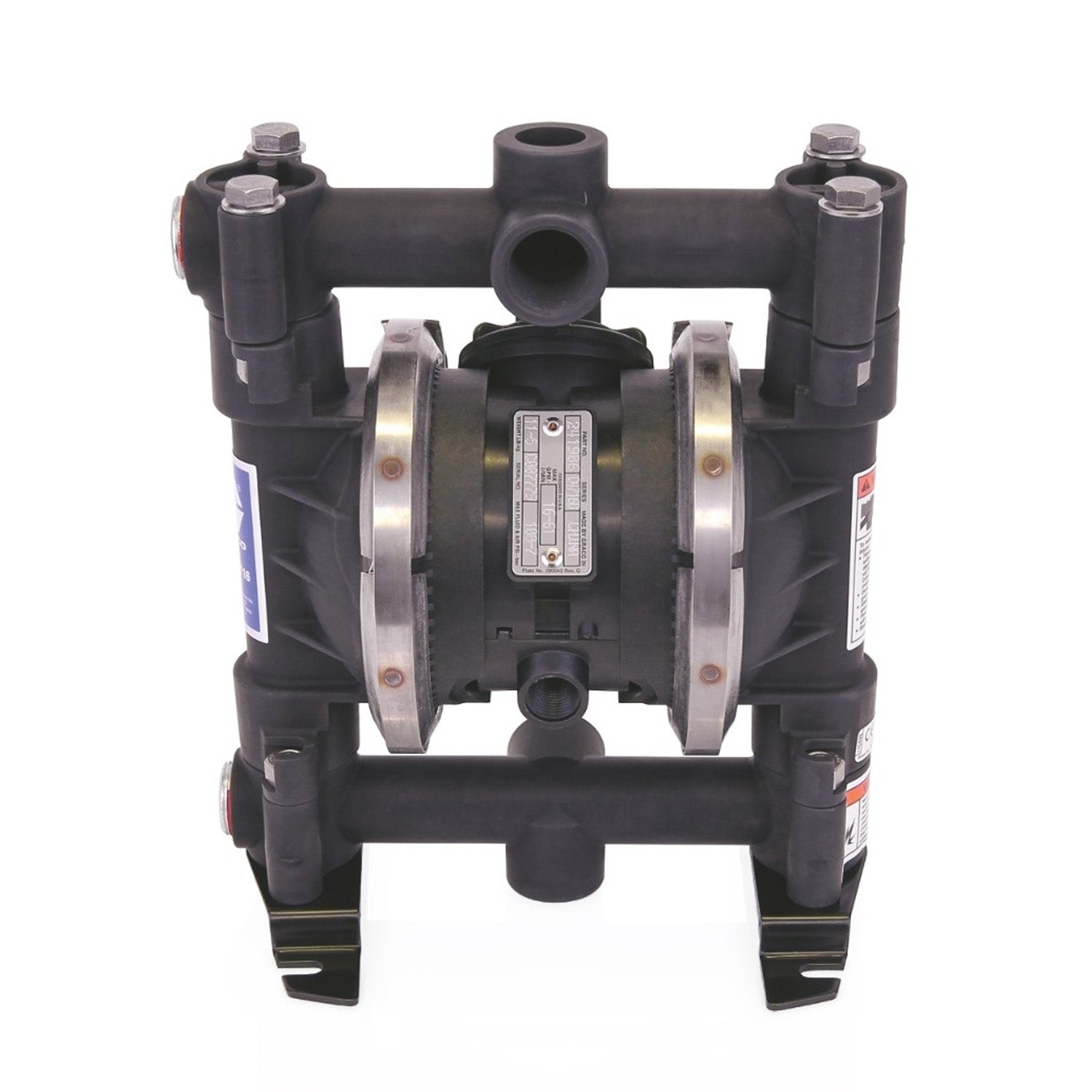

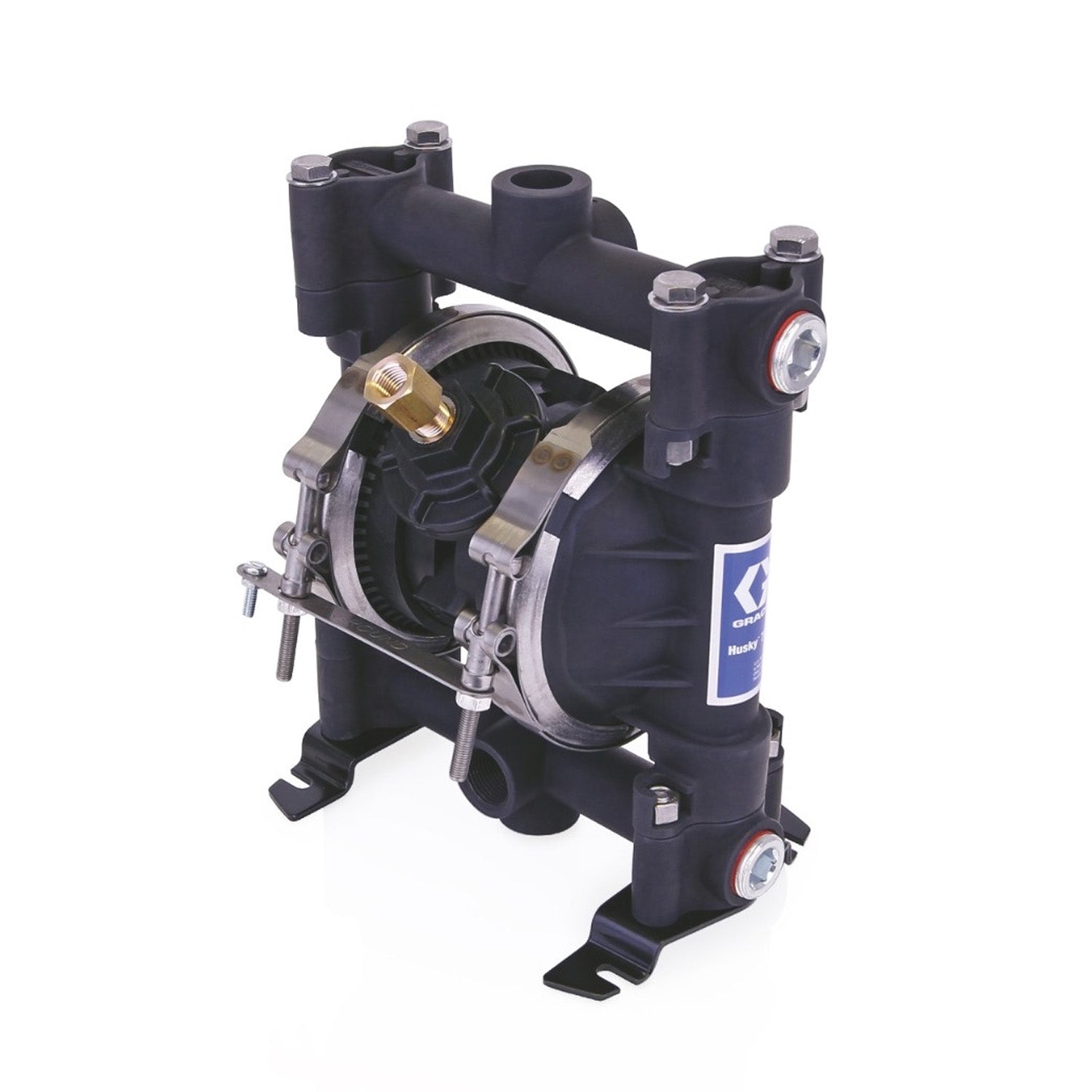

Graco Husky 716 Series Air-Operated Double Diaphragm Transfer Pump #241906
Regular price
$1,224.00
Regular price
-13%
$1,405.00
Sale price
$1,224.00
Couldn't load pickup availability
-
DESCRIPTION
The Husky 716 air-operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of fluid and features center and end porting options. The Husky 716 Series is ideal for transferring Oil Evacuation, Water, Antifreeze, and Windshield Wash Fluid.
-
FEATURES
- Center- and end-porting
- No mechanical seals which causes fluid leaks or failures
- Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
- 3/4 in (19.05 mm) center- and end-porting
- No seals to leak or fail
- Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
- Easy-to-service air valve and ball checks
-
SPECS
Air Exhaust Port Size 3/8 inch Air Exhaust Port Thread Gender Female Air Exhaust Port Thread Type NPT Air Inlet Size 1/4 inch Air Inlet Thread Gender Female Air Inlet Threat Type NPT Application Industrial Ball Material
Buna-N Compatible Material Oil, Water, Antifreeze, Windshield Washer Fluid Connection Type Threaded Diaphragm Material Buna-N Fluid Inlet Size (in) 3/4 Fluid Inlet Thread Gender Female Fluid Inlet Thread Type NPT Fluid Outlet Size (in) 3/4 Fluid Outlet Thread Gender Female Fluid Outlet Thread Type NPT For Use With Oil, Water, Anti-freeze, Washer Fluid, Used Oil Manifold O-Ring Material PTFE Material Aluminum Maximum Air Consumption (SCFM) 28 Maximum Air Pressure (MPa) 0.7 Maximum Air Pressure (psi) 100 Maximum Cycle Rate (CPM) 400 Maximum Flow Rate (GPM) 16 Maximum Fluid Pressure (MPa) 0.7 Maximum Fluid Pressure (psi) 100 Maximum Operating Temperature (°F) 180 Maximum Solid Size (in) 0.09375 Model Husky Overall Height (in) 10.43 Power Source Air Series 716 Standards Met CE Type Pneumatic Diaphragm Pump Weight (lb) 8.5 Wetted Material Aluminum, Buna-N, PTFE -
DOWNLOADS
Graco Husky 716 Series Air-Operated Double Diaphragm Transfer Pump #241906 Instructions
