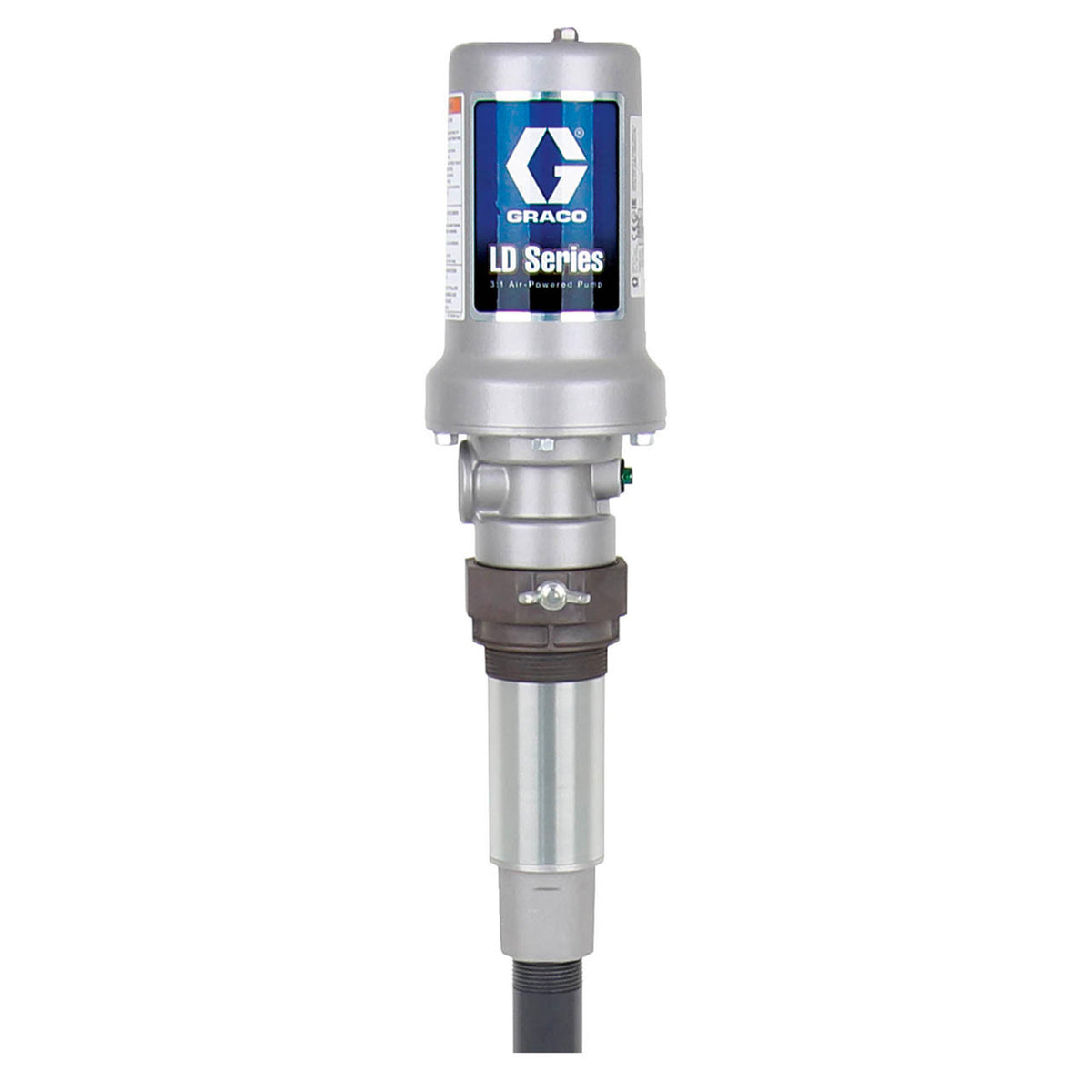

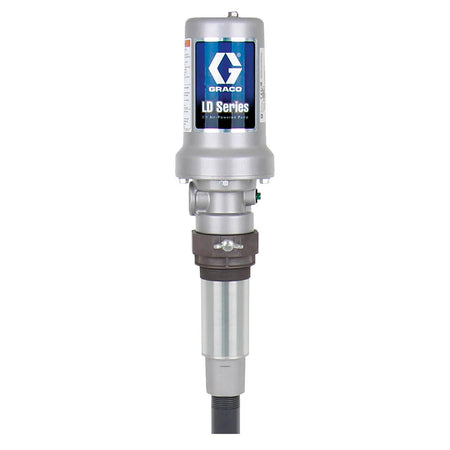

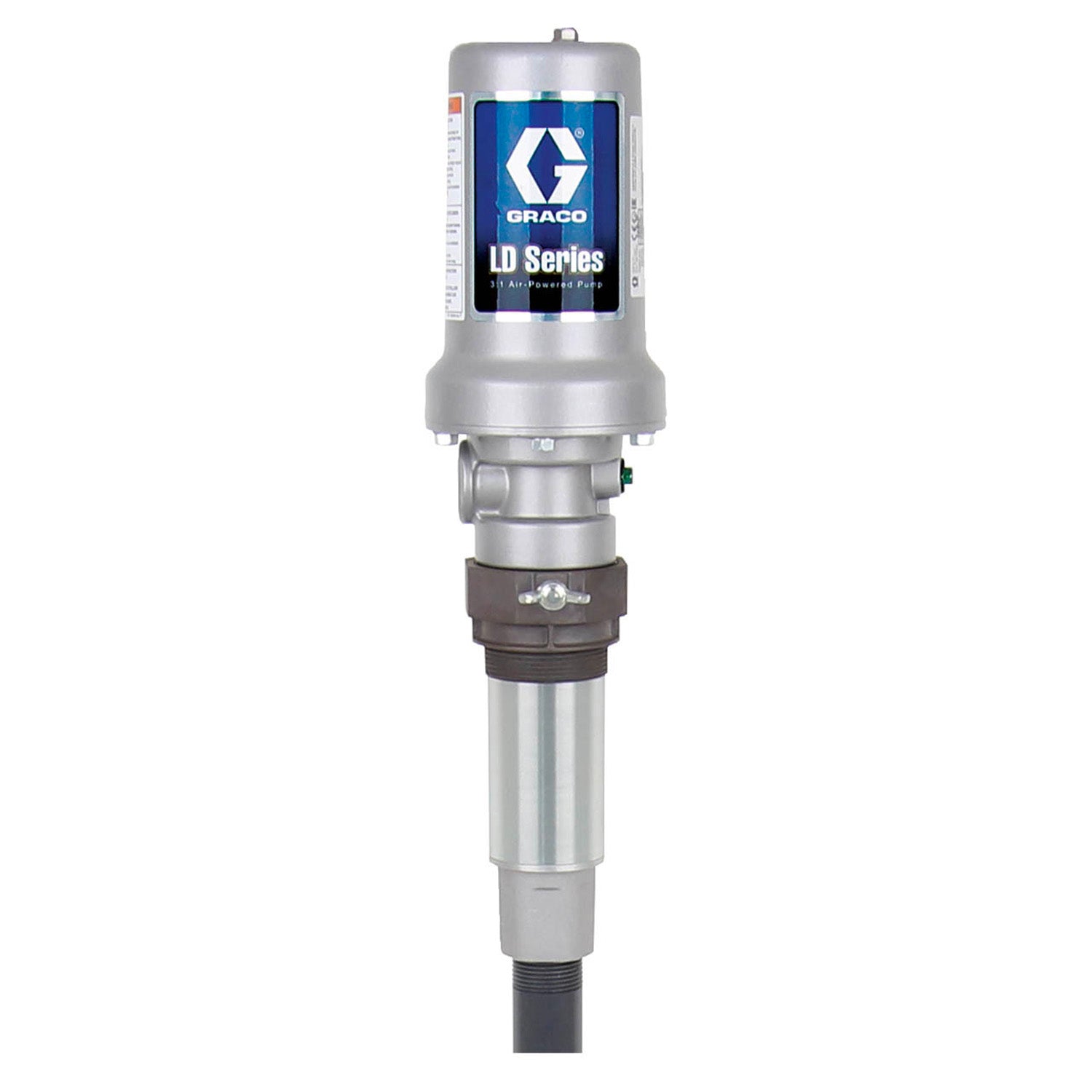

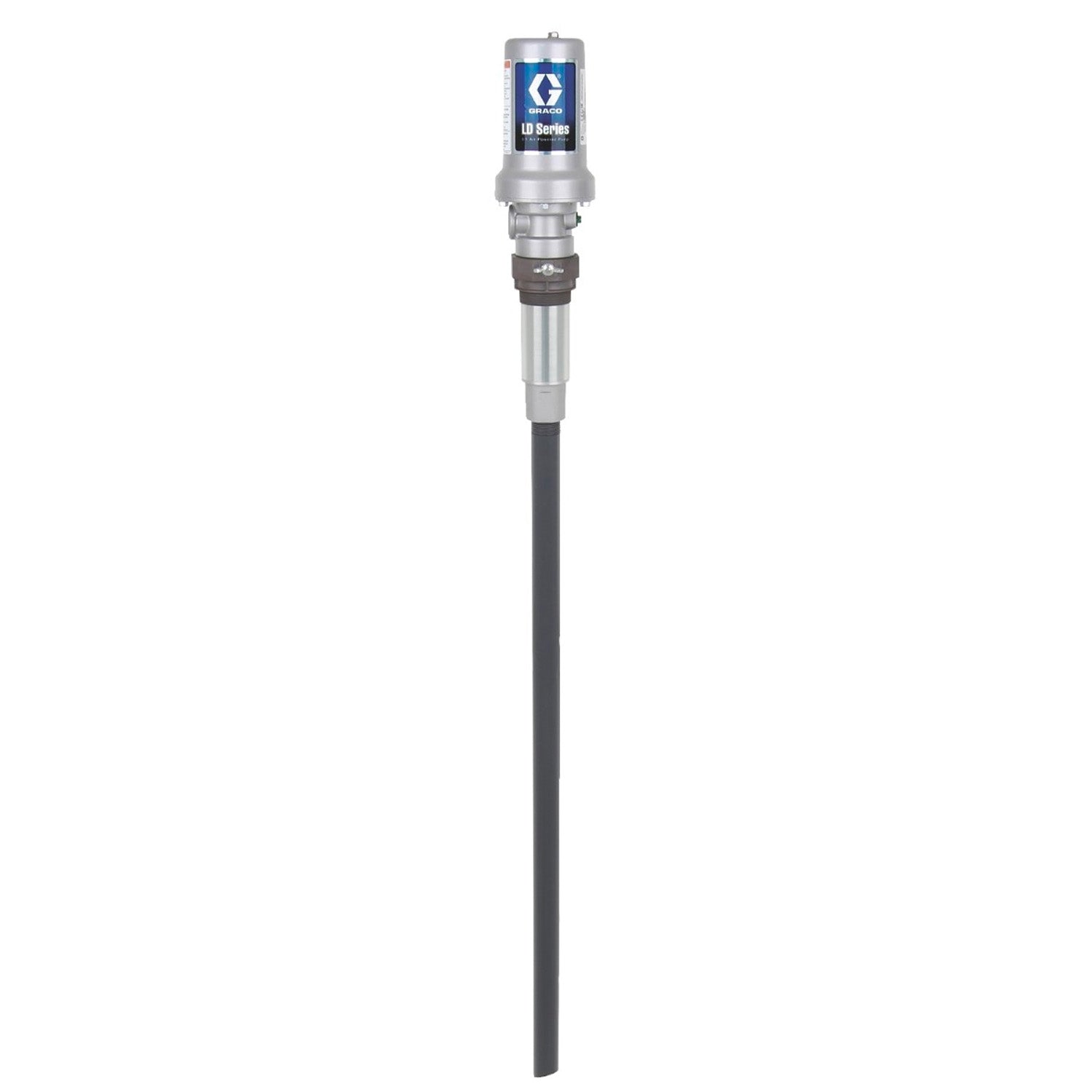

Graco LD Series 3:1 Air Powered Piston Oil Pump - 7.8 GPM w/ Cut to Length Down Tube and Bung Adapter #24G579
Regular price
$1,000.00
-
DESCRIPTION
The Graco LD Series 3:1 Air Powered Piston Oil Pump - 7.8 GPM w/ Cut to Length Down Tube and Bung Adapter #24G579 offers an amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low-volume applications to provide long life and serviceability. LD™ has a powerful three-inch air motor to deliver the needed fluids while the built-in thermal relief protects your equipment from thermal expansion.
-
FEATURES
- Three-Inch Air Motor - Provides more power to create better flow.
- Innovative Air Valve - Designed to reduce icing in continuous-use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
- Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle-free installations.
- Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
- Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
- Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. An inlet strainer (oil only) is built-in to protect the pump from containments that can damage your pump.
- Includes cut-to-length downtube.
-
SPECS
Air Inlet Size (in) 1/4
Application Oil Compatible Material Oil
Fluid Inlet Size 1 inch Fluid Outlet Size 1/2 inch Maximum Air Inlet Pressure (psi) 150 Maximum Working Pressure (MPa) 5.2 Maximum Working Pressure (psi) 750 Model LD Power Type Pneumatic Pump Ratio 3:1 Type Pneumatic Piston Pump Weight 7 pounds -
DOWNLOADS
Graco LD Series 3:1 Air Powered Piston Oil Pump - 7.8 GPM w/ Cut to Length Down Tube and Bung Adapter Manual
