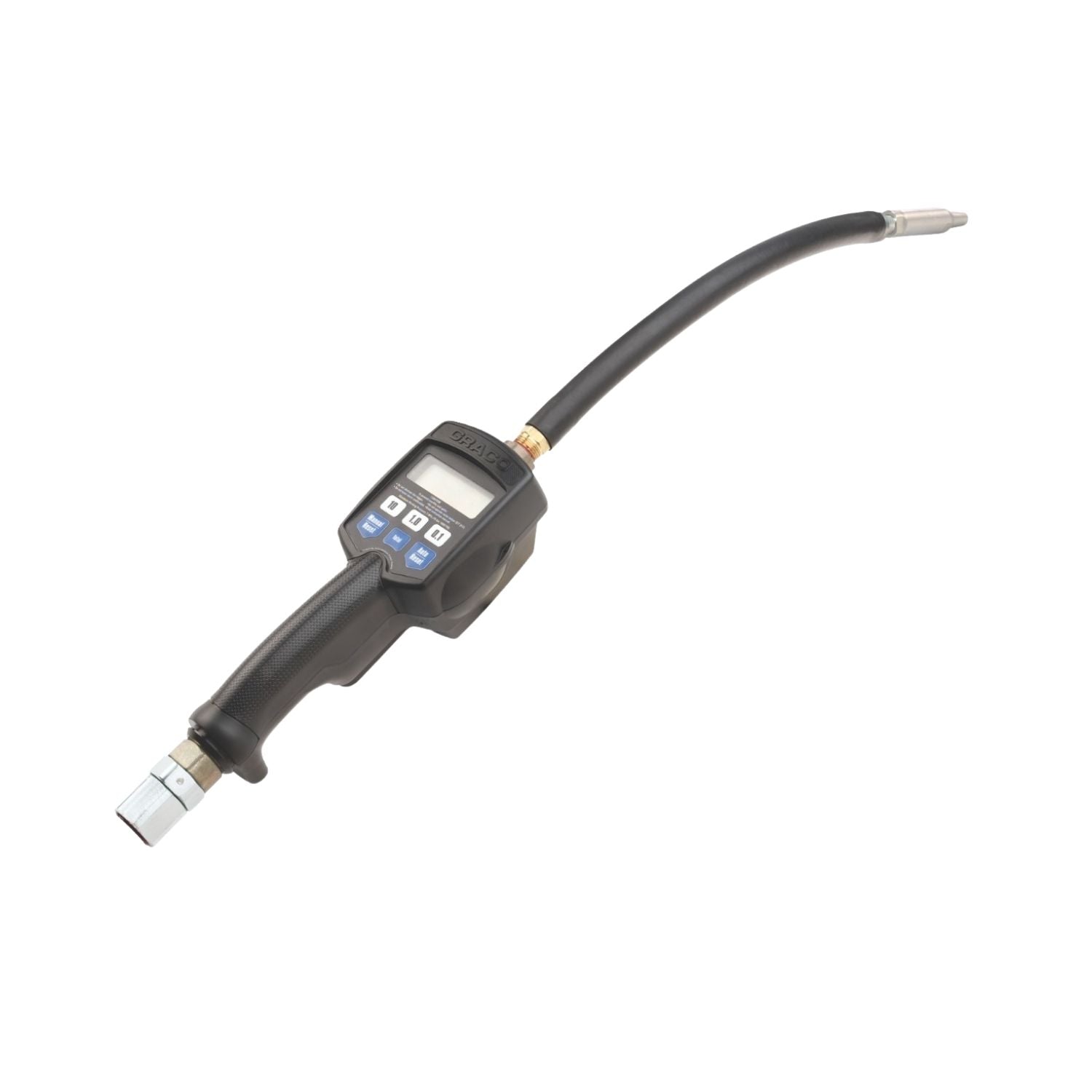

Graco LDP5 Electronic Preset Meter #255277
Regular price
$1,125.00
Manuals & Resources
Questions before ordering? Call Alamo at (844) 480-6059 - we help you confirm fit for your equipment.
Specifications
| Graco Part # | 255277 |
| UPC | 633955308022 |
| Type | Electronic preset metered dispense valve |
| Flow Range | 0.1 to 5 gpm (0.4 to 19 lpm) |
| Max Working Pressure | 1,000 psi (69 bar) |
| Accuracy | +/- 0.5% |
| Inlet | 1/2 in NPT |
| Outlet | 1/2 in NPT |
| Units | Quarts, pints, gallons, liters |
| Operating Temp | 32°F to 120°F |
| Extension | Flexible |
| Product Dimensions | 4.85 x 14.5 x 5.35 in |
| Product Weight | 4.44 lb |
| Packaged / Shipping Dimensions | 4.85 x 14.5 x 5.35 in |
| Packaged / Shipping Weight | 4.44 lb |
Product dimensions/weight are the unit itself; packaged/shipping figures are the boxed values used for freight.
Compatibility & Fitment
LDP5 preset meter for lower-volume oil/ATF/antifreeze dispensing. Battery life ~1 year.
Warranty
Graco backs this dispense valve/meter with a 5-year warranty (per Graco Vehicle Service Buyer's Guide). For exact warranty terms and coverage, call Alamo Equipment at (844) 480-6059.
Graco LDP5 Electronic Preset Meter
Graco LDP5 electronic preset metered dispense valve for lower-volume service applications.
Questions before ordering? Call (844) 480-6059 and our team will confirm fit for your application.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
