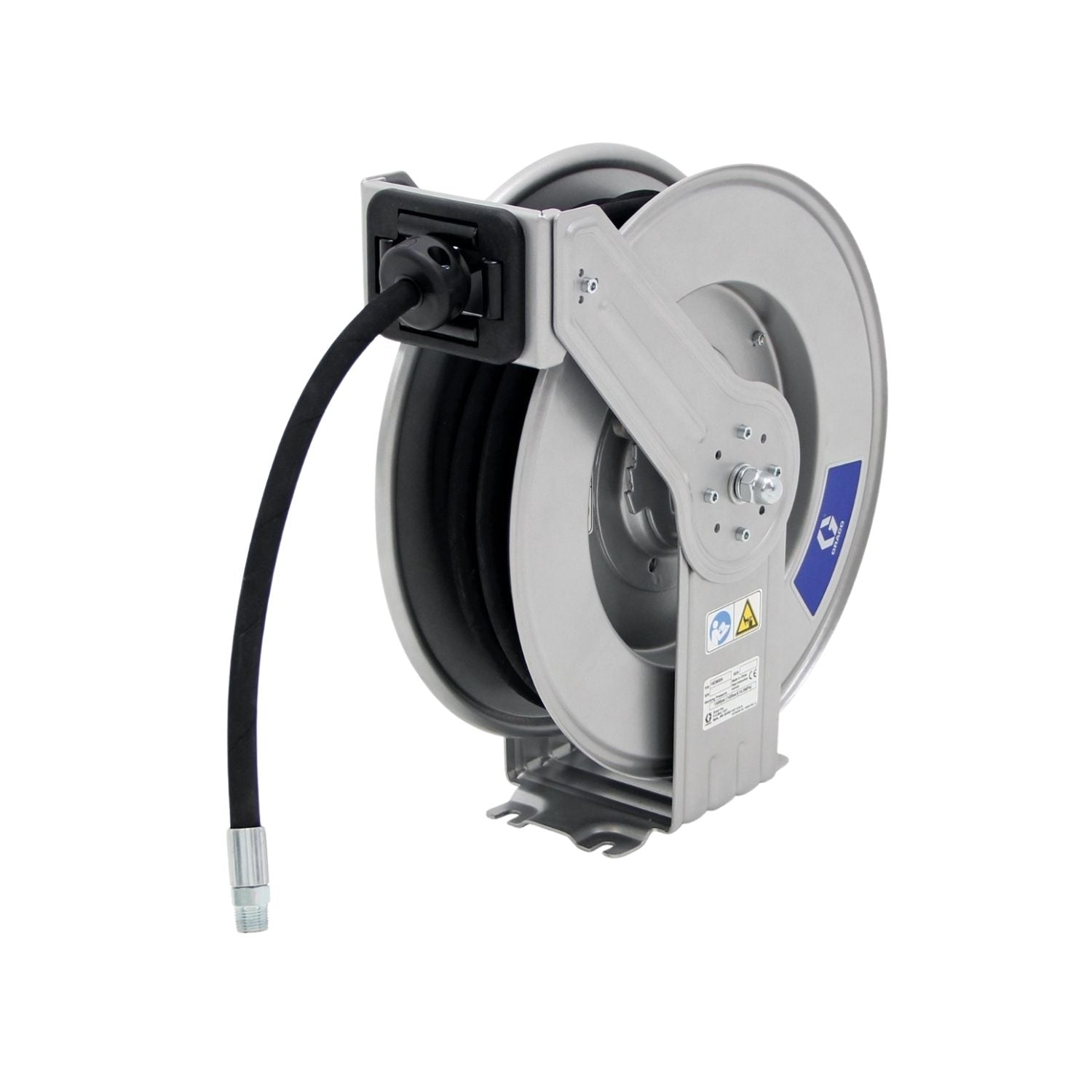

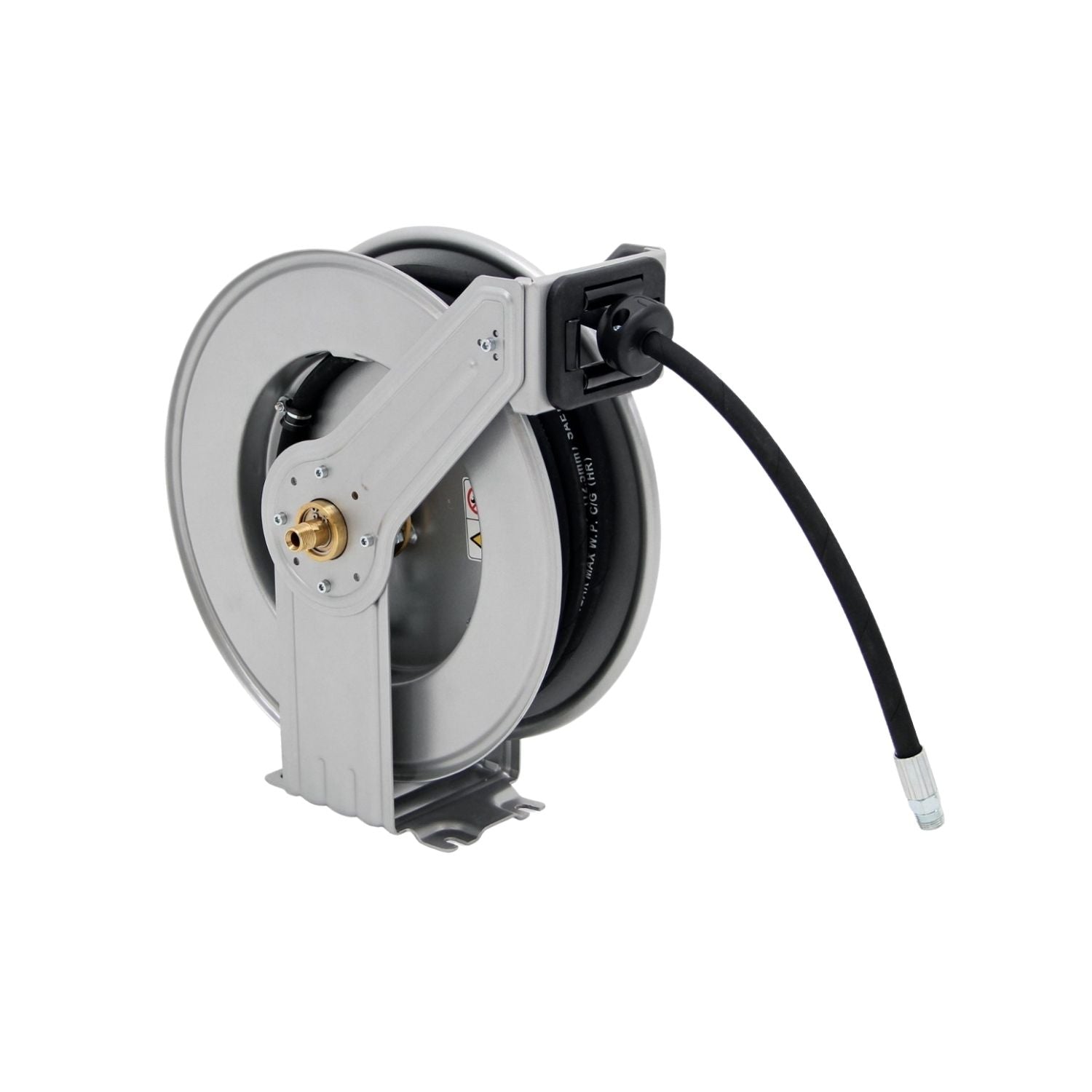

Graco LDX Series Grease Hose Reel, 3/8 in x 50 ft #HEH006
| Graco Part # | HEH006 |
| UPC | 769946211917 |
| Fluid | Grease |
| Max Working Pressure | 4,060 psi (280 bar) |
| Inlet | 3/8 in NPT (M) |
| Outlet | 3/8 in NPT (M) |
| Hose | 3/8 in ID x 50 ft (included, Kit 25U376) |
| Operating Temp | -40°F to 212°F |
| Frame | Dual pedestal all-metal; adjustable arm; ball-bearing swivel |
| Mounting | Ceiling / wall / bench |
| Product Dimensions | 17.5 x 9.4 x 19 in |
| Product Weight | 50.6 lb |
| Packaged / Shipping Dimensions | 21 x 11 x 22.5 in |
| Packaged / Shipping Weight | 55 lb |
Graco LDX Series Grease Hose Reel, 3/8 in x 50 ft #HEH006
Graco LDX Series industrial-grade, all-metal spring-retract hose reel configured for grease service and supplied with a 3/8 in ID x 50 ft hose. The dual-pedestal frame, adjustable guide arm, and ball-bearing swivel make it a durable option for garages, fleet facilities, and repair shops.
Questions before ordering? Call (844) 480-6059 and our team will confirm fit for your application.
Compatibility & Fitment
Designed for grease dispensing applications and used as the 3/8 in x 50 ft grease reel option in Graco LD grease system configurations. It pairs well with the Graco LD 50:1 grease pump #24G600. Confirm pressure rating, hose size, fitting size, and mounting location before installation.
Warranty
Warranty coverage is subject to Graco's applicable written warranty terms. For exact coverage for part #HEH006, call Alamo Equipment at (844) 480-6059.
