Graco SD 5 Series 120V Single Cord Reel, 50 ft #24Y861

SKU: ALMGRA24Y861
(0)
$746.00
Available to order

Got questions?

Feel free to

Email: info@alamoequipment.com

Phone: (844) 480-6059

Manuals & Resources
Questions before ordering? Call Alamo at (844) 480-6059 - we help you confirm fit for your equipment.
Specifications
Graco Part # 24Y861
UPC 755652331834
Reel Size SD 5
Wire 16 AWG, SJTOW insulation
Amp Rating 13 A
Cord Length 50 ft (15 m); 5 ft lead-in cable
Voltage 120 VAC
Finish Black
Operating Temp -22°F to 122°F
Retraction Spring cassette (retractable)
Mounting Ceiling / wall / overhead
Product Dimensions 13.84 x 4.7 x 14.8 in
Product Weight 27.6 lb
Packaged / Shipping Dimensions 16.5 x 10 x 21.5 in
Packaged / Shipping Weight 33 lb
Product dimensions/weight are the unit itself; packaged/shipping figures are the boxed values used for freight.

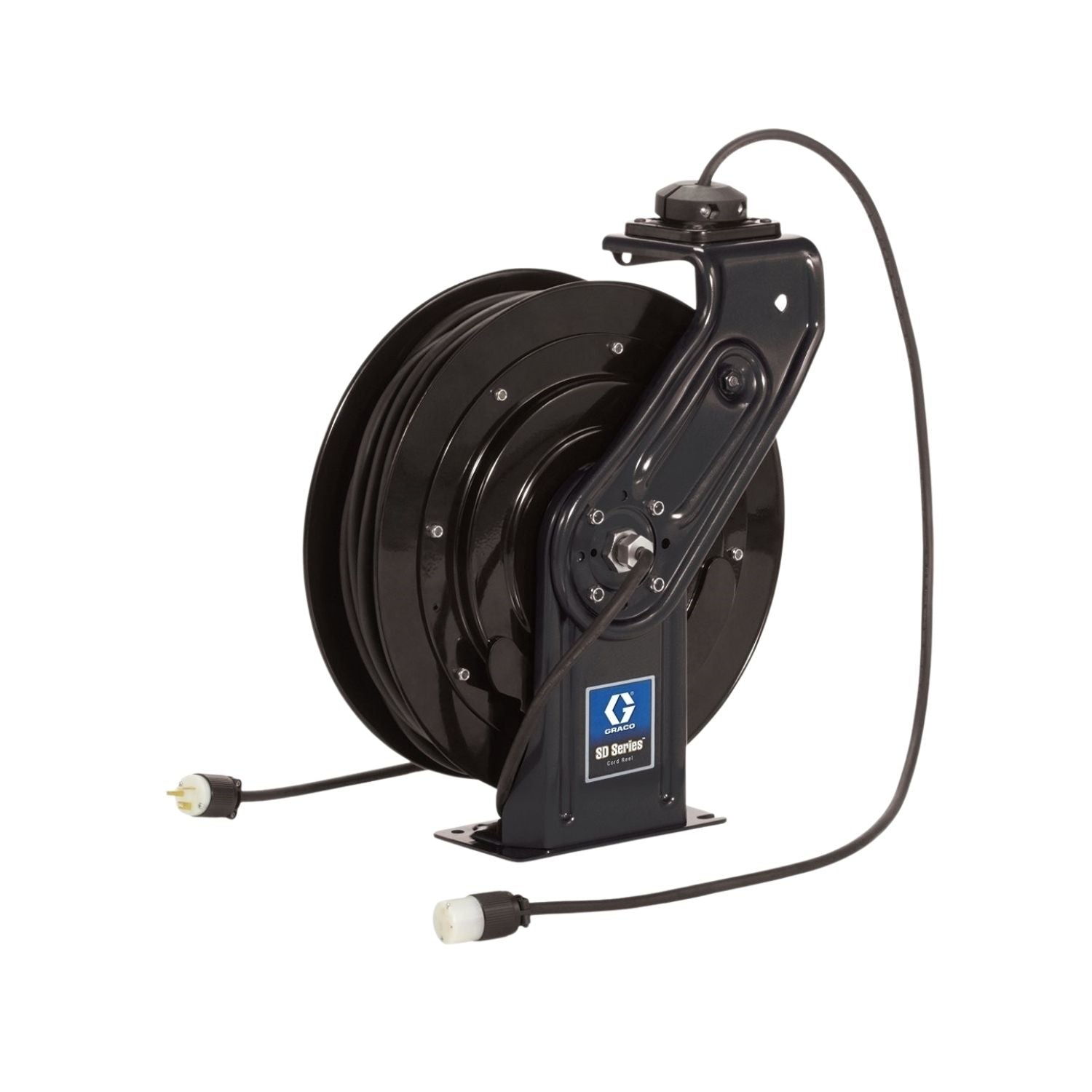

Graco SD 5 Series 120V Single Cord Reel (50 ft)

Graco SD Series retractable electric cord reel, Size 5, with a fully enclosed spring cassette tucked inside the spool for a compact footprint and easier service. A 50 ft cord plus 5 ft lead-in gives solid working reach for overhead or wall-mounted shop lighting and power tool stations.

Questions before ordering? Call (844) 480-6059 and our team will confirm fit for your application.

Compatibility & Fitment

Compatible with Graco SD Series enclosures. If used with an existing SD Series enclosure + Size 5 reel, Kit 24P164 is required. Model-specific spring cassette kit 24M452; Size 5 wall/overhead mount plate kit 24N686.

Warranty

Graco warranty coverage applies according to the applicable SD Series written warranty terms. For exact coverage for part #24Y861, call Alamo Equipment at (844) 480-6059.

Frequently Asked Questions

What's the best use for this reel?

This reel is well suited for service bays, workstations and other shop areas where you want a 120V power cord readily available while keeping it retracted and off the floor when not in use.

Do I need extra hardware to add this to an existing SD Series setup?

If you're pairing this Size 5 reel with an existing Graco SD Series enclosure, Kit #24P164 may be required. The correct mounting hardware can depend on your existing setup, so call (844) 480-6059 if you need help confirming the required components.

What should I confirm before ordering?

Confirm that your mounting location can properly support the reel, that 120V electrical service is available at the installation point, and that the 50 ft cord length and 13 A rating are suitable for your application.
