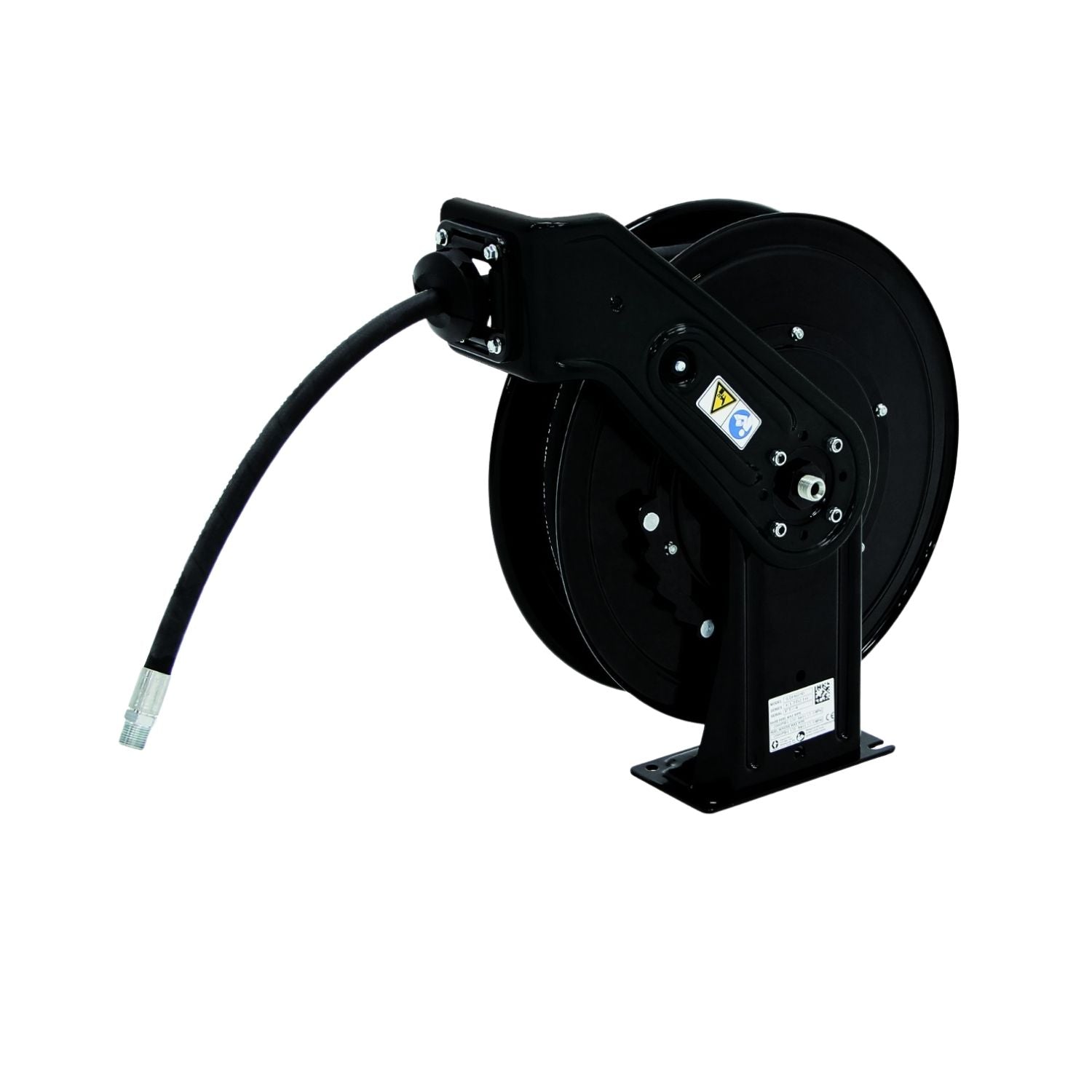

Graco SDX Series Air Hose Reel (1/2 in (13 mm) x 50 ft) #SDL65D
Regular price
$938.00
Manuals & Resources
Questions before ordering? Call Alamo at (844) 480-6059 - we help you confirm fit for your equipment.
Specifications
| Graco Part # | SDL65D |
| UPC | 769946206876 |
| Fluid | Air / Water / Antifreeze / WWS |
| Hose (Included) | 1/2 in (13 mm) ID x 50 ft (15 m) |
| Inlet | 1/2 in NPT (M) |
| Outlet | 1/2 in NPT (M) |
| Max Working Pressure | 300 psi (20.7 bar) |
| Operating Temp | -20°F to 190°F (air/water/oil); -40°F to 200°F (grease) |
| Weight | 52 lb (23.5 kg) bare reel |
| Frame | Rigid metal frame & spool; adjustable 6-position arm; low-friction cartridge swivel |
| Finish | Baked-on enamel (five colors) |
| Color | Black |
| Product Dimensions | 24.5 x 9.5 x 26 in |
| Product Weight | 52.15 lb |
| Packaged / Shipping Dimensions | 24.5 x 9.5 x 26 in |
| Packaged / Shipping Weight | 52.15 lb |
Product dimensions/weight are the unit itself; packaged/shipping figures are the boxed values used for freight.
Compatibility & Fitment
SDX Series reel assembly includes hose, ball stop kit, and roller guide. A hose inlet kit is required and sold separately. Available in five colors (Black shown).
Warranty
Graco backs the SDX Series hose reel with a 7-year warranty (per Graco Vehicle Service Buyer's Guide). For exact warranty terms and coverage, call Alamo Equipment at (844) 480-6059.
Graco SDX Series Air Hose Reel (1/2 in (13 mm) x 50 ft)
Graco's flagship SDX Series industrial hose reel delivers uniform, consistent retraction with an easy-to-service swivel cartridge.
Questions before ordering? Call (844) 480-6059 and our team will confirm fit for your application.
