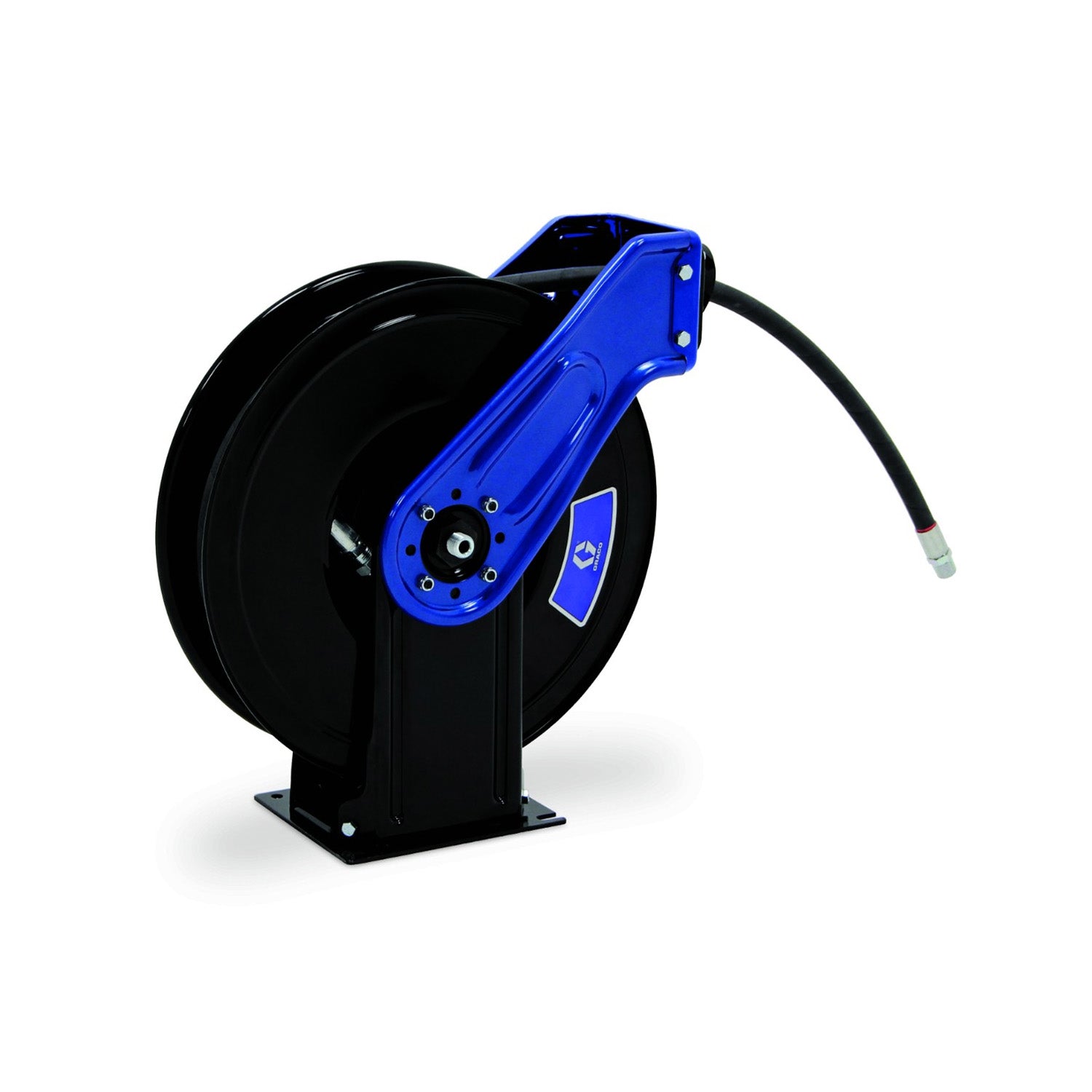

Graco XDX™ 20, Oil, 1/2 in Inlet, 1/2 in X 50 ft Hose, NPT, Truck/Bench Mount #XDM65B
Regular price
$1,351.00
Regular price
-1%
$1,370.00
Sale price
$1,351.00
Couldn't load pickup availability
-
DESCRIPTION
Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.
Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.
-
FEATURES
- Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
- Durable Finish - Baked-on enamel finish protects reel from corrosion
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
-
SPECS
Application Oil Color Metallic Blue Frame Type Dual Pedestal Hose Inside Diameter (in) 1/2 Hose Length (ft) 50 Hose Reel Type Reel with Hose Includes Hose Yes Inlet Size (in) 1/2 Inlet Thread Gender Male Inlet Thread Type NPSM Maximum Temperature (°F) 190° Maximum Working Pressure (psi) 2000 Minimum Temperature (°F) -20° Mount Location Truck Mount, Bench Mount Outlet Size (in) 1/2 Outlet Thread Gender Male Overall Height (in) 25.2 Overall Length (in) 23.4 Overall Width (in) 7.5 Recommended Environment Indoor, Outdoor Recommended Fluid Type Oil Reel Thread Type NPT Series 20 Type Spring-Rewind Reel Wetted Parts Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber -
DOWNLOADS
Graco 3A8626H, SDX and XDX 10/20 Series Hose Reels, Instruction
