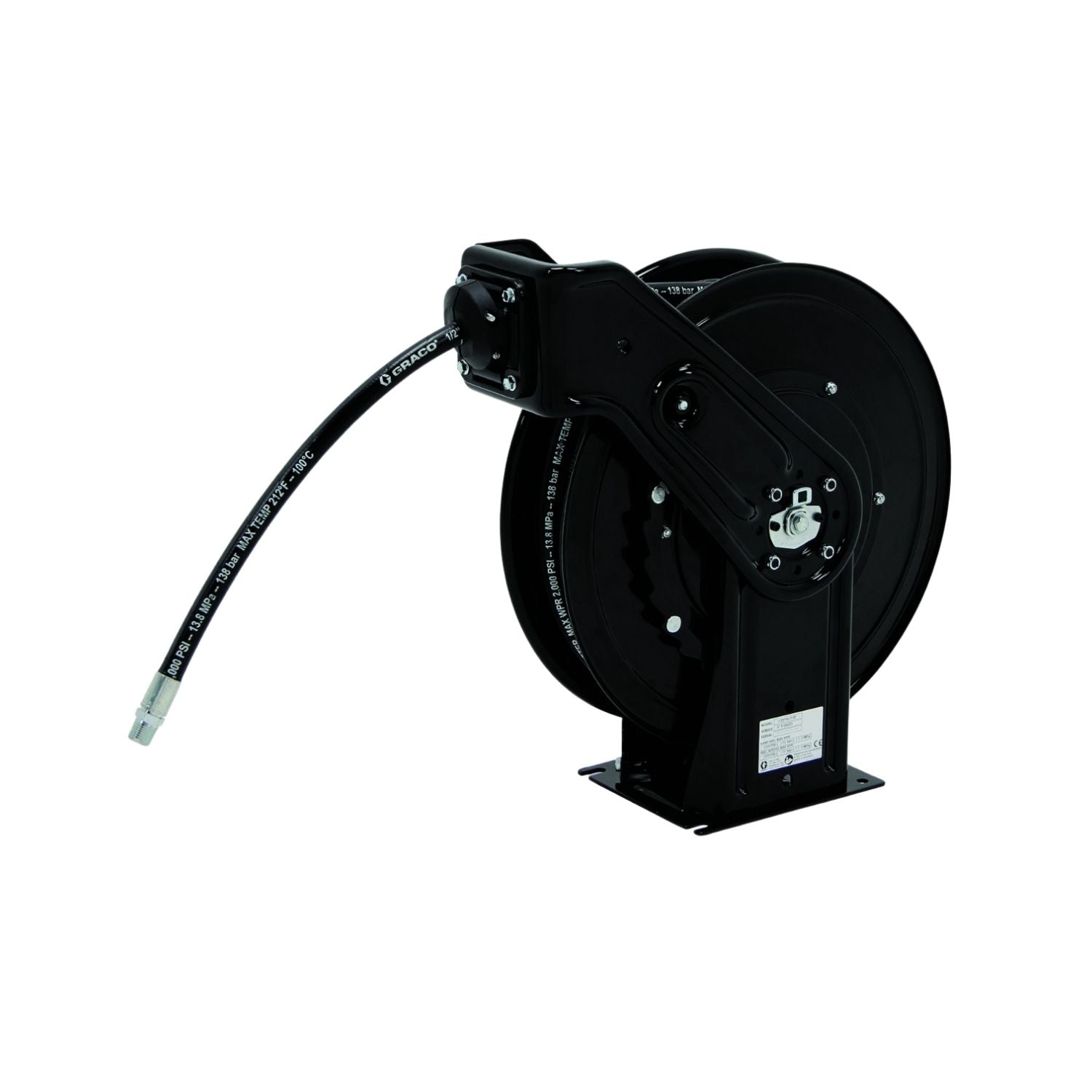

Graco XDX Series Air Hose Reel (1/2 in (13 mm) x 50 ft) #XDL65D
Regular price
$1,350.00
Manuals & Resources
Questions before ordering? Call Alamo at (844) 480-6059 - we help you confirm fit for your equipment.
Specifications
| Graco Part # | XDL65D |
| UPC | 769946210583 |
| Fluid | Air / Water / Antifreeze / WWS |
| Hose (Included) | 1/2 in (13 mm) ID x 50 ft (15 m) |
| Inlet | 1/2 in NPSM (M) |
| Outlet | 1/2 in NPT (M) |
| Max Working Pressure | 300 psi (20.7 bar) |
| Operating Temp | -20°F to 190°F (air/water/oil); -40°F to 200°F (grease) |
| Weight | 59 lb (26.5 kg) bare reel (HS w/ arm) |
| Frame | Heavy-gauge dual-pedestal metal frame; steel spool; full-flow swivel |
| Finish | Baked-on enamel (four colors) |
| Color | Black |
| Product Dimensions | 24.25 x 9.5 x 26 in |
| Product Weight | 65 lb |
| Packaged / Shipping Dimensions | 24.25 x 9.5 x 26 in |
| Packaged / Shipping Weight | 65 lb |
Product dimensions/weight are the unit itself; packaged/shipping figures are the boxed values used for freight.
Compatibility & Fitment
XDX Series reel assembly includes hose, ball stop kit, and roller guide. A hose inlet kit is required and sold separately. Available in four colors (Black shown).
Warranty
Graco backs the XDX Series hose reel with a 7-year warranty (per Graco Vehicle Service Buyer's Guide). For exact warranty terms and coverage, call Alamo Equipment at (844) 480-6059.
Graco XDX Series Air Hose Reel (1/2 in (13 mm) x 50 ft)
The heavy-duty XDX Series hose reel handles fluid-delivery tasks in the harshest environments with a robust dual-pedestal metal frame.
Questions before ordering? Call (844) 480-6059 and our team will confirm fit for your application.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
