Hofmann Flush Tank #AEK102-N21

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

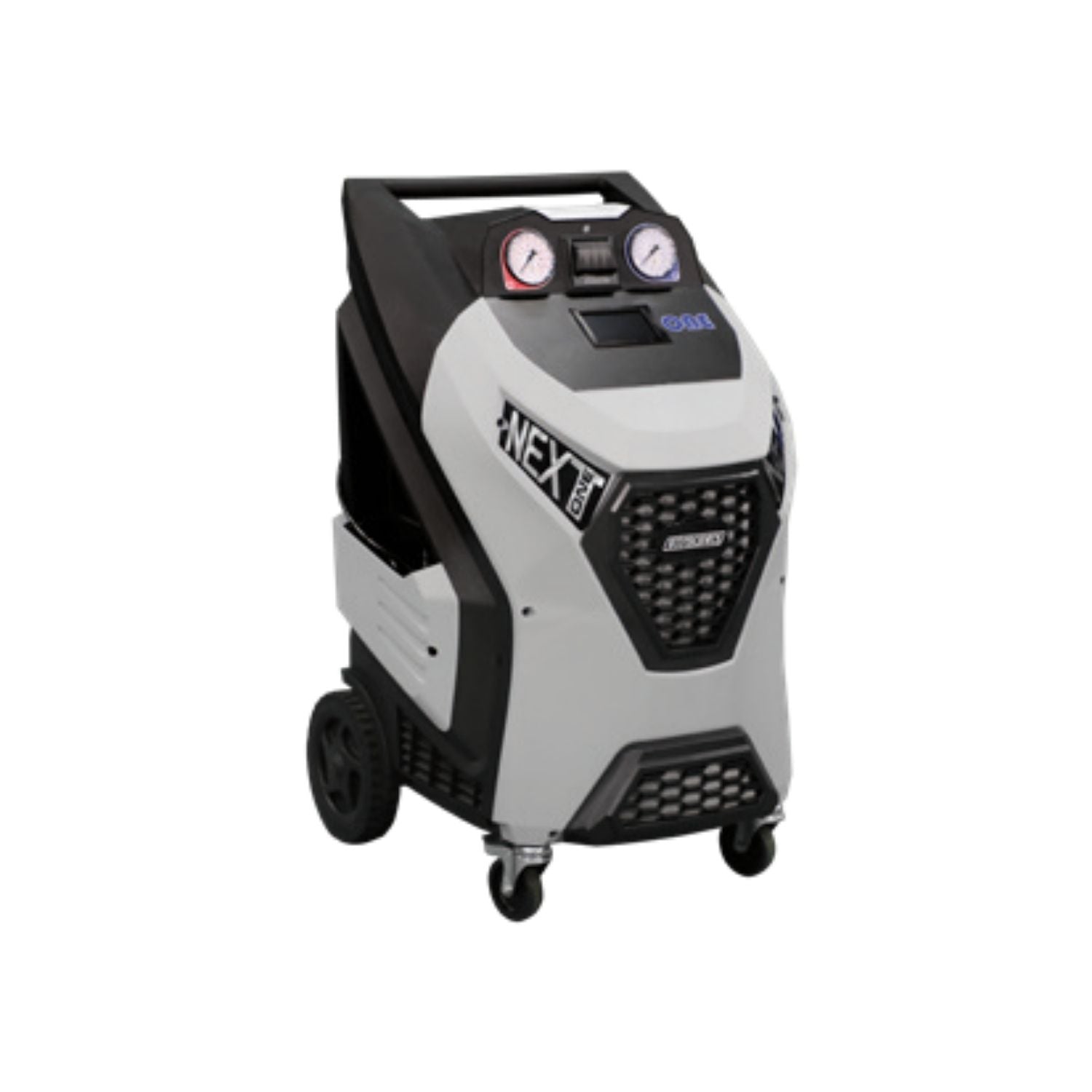

  The Hofmann ECO NEXT ONE HYBRID R134a A/C Service Station is a fully automatic refrigerant recovery, recycle, vacuum, leak test, and recharge machine engineered for professional automotive repair shops, dealerships, and fleet service centers. Designed specifically for R134a refrigerant systems, this advanced A/C service station supports both standard gasoline vehicles and hybrid vehicle platforms with OEM-level service capability.

  Equipped with automatic service valves, a 5-inch color touchscreen display, integrated thermal printer, and hybrid service functionality, the ECO NEXT ONE HYBRID helps technicians streamline air conditioning maintenance procedures while improving service accuracy and shop productivity. Its compact commercial-grade design and integrated vehicle database make it ideal for modern high-volume automotive service environments.

• FEATURES AND BENEFITS

  • Designed for R134a Refrigerant: Engineered specifically for modern R134a automotive A/C systems
  • Hybrid Vehicle Compatible: Supports air conditioning service procedures for hybrid vehicles
  • Fully Automatic Operation: Recovery, recycle, vacuum, leak test, and recharge functions operate automatically after hose connection
  • Automatic Service Valves: Reduces technician intervention during service procedures
  • 5-Inch Color Touchscreen Display: Provides intuitive operation with user-friendly interface software
  • Integrated Thermal Printer: Generates service reports and customer documentation
  • Automatic Non-Condensable Gas Purge: Improves refrigerant recovery efficiency and system performance
  • Integrated Status Light System: Allows technicians to monitor workflow status from a distance
  • Built-In U.S. Vehicle Database: Simplifies vehicle setup and refrigerant management procedures
  • Bottle Heater Included: Improves refrigerant charging performance and operational efficiency
  • Long Service Hoses with Storage Pockets: Enhances vehicle accessibility and shop organization
  • Easy Vacuum Pump Maintenance Access: Includes visible oil inspection window and convenient refill access
  • Commercial-Grade Construction: Built for continuous operation in demanding professional environments
  • Quick Setup Configuration: Simplifies installation and daily operation for high-volume service shops


• SPECIFICATIONS

  Brand:	Hofmann
  Part Number:	EEAC820B
  Product Type:	A/C Recovery, Recycling & Recharge Machine
  Application:	Automotive Air Conditioning Service
  Refrigerant Compatibility:	R134a
  Operation Type:	Fully Automatic
  Display Type:	5-Inch Color Touchscreen
  Hybrid Function:	Standard
  Printer:	Integrated Thermal Printer
  Vacuum Pump Capacity:	100 L/min (3.5 CFM)
  Refrigerant Tank Capacity:	30 lbs. (13.6 kg)
  Hose Length:	10 ft. (3 m)
  Service Valves:	Automatic
  Leak Check Function:	Standard
  Bottle Heater:	Standard
  Flushing Kit:	Optional
  Non-Condensable Gas Purge:	Automatic
  Vehicle Database:	Standard U.S. Database Included
  Voltage:	110V / 60Hz
  Working Temperature Range:	50°F–120°F (10°C–50°C)
  Dimensions LxWxH:	43" x 26" x 28"
  Weight:	180 lbs. (82 kg)
  Vehicle Compatibility:	Passenger Cars, SUVs, Hybrid Vehicles, and Light Trucks
  Use Environment:	Professional Automotive Shops, Dealerships, and Fleet Service Centers
