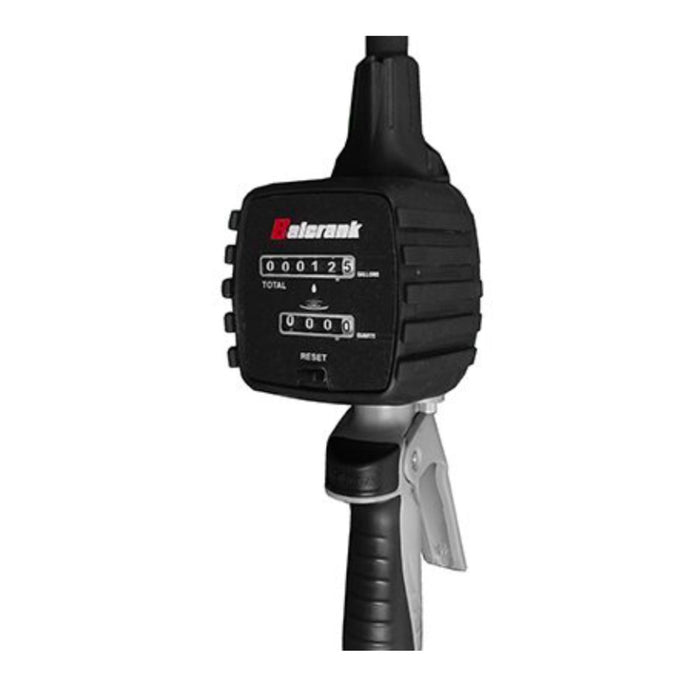

Balcrank 3330-205 Flex Memory 1/4 Turn Mechanical Oval Gear (MO) Meter Control Handle - Oil

• DESCRIPTION
• FLUIDS HANDLED
• DOWNLOADS
• WARRANTY + MANUAL

• DESCRIPTION

  Balcrank 3330-205. Improve accuracy and control of fluid dispensing with this mechanical oval gear (MO) meter control handle. Dispense a variety of synthetic and petroleum-based oils with one mechanical meter handle.

  • SKU: 3330-205
  • Manufacturer: Balcrank
  • Extension Type: Flex Memory
  • Nozzle: Manual
  • Weight: 4.00 LBS

• FEATURES

  • 6-digit totalizer; keeps lifetime record of volume dispensed in gallons
  • Meter with odometer display, works without batteries and performs well in all environments
  • No calibration required; precision machined metering chamber assures repeatable accuracy
  • Ergonomically designed grip handle for optimum comfort Unique 1/4 turn manual non-drip tip; fast, simple
  • Included swivel hose-end cover, protects vehicle or machine surfaces from scratches

• SPECIFICATIONS

  • Units of measure: (in 0.01 increments) Quarts & Liters (totalizer Gallons)
  • Accuracy: +/- 1%
  • Flow range: 0.25-8 gal/m (1-30 l/m)
  • Max pressure: 1,000 psi (70 bar)
  • Swivel inlet: 1/2 NPT (F) / Auto=0.605"
  • Dispense: Manual 1/4 turn for Oil =0.705"
  • Nozzle OD: Manual 1/4 turn for ATF =0.315"
  • Operating temp: 14°F - 160°F (-10°C-70°C)
  • Battery 2 x 1.5 v alkaline "AAA"
  • Weight 4 lbs (1.80 kg) (meter)
  • Compatible fluids: Oil, transmission fluid, hydraulic fluid, and anti-freeze
  • Wetted materials: Acetal, aluminum, stainless steel, NBR, Zinc plated steel, TPU, Polyamide

• WARRANTY + MANUAL

  5 Year Warranty

  Balcrank 3330-205 Flex Memory 1/4 Turn Mechanical Oval Gear MO Handle Manual
