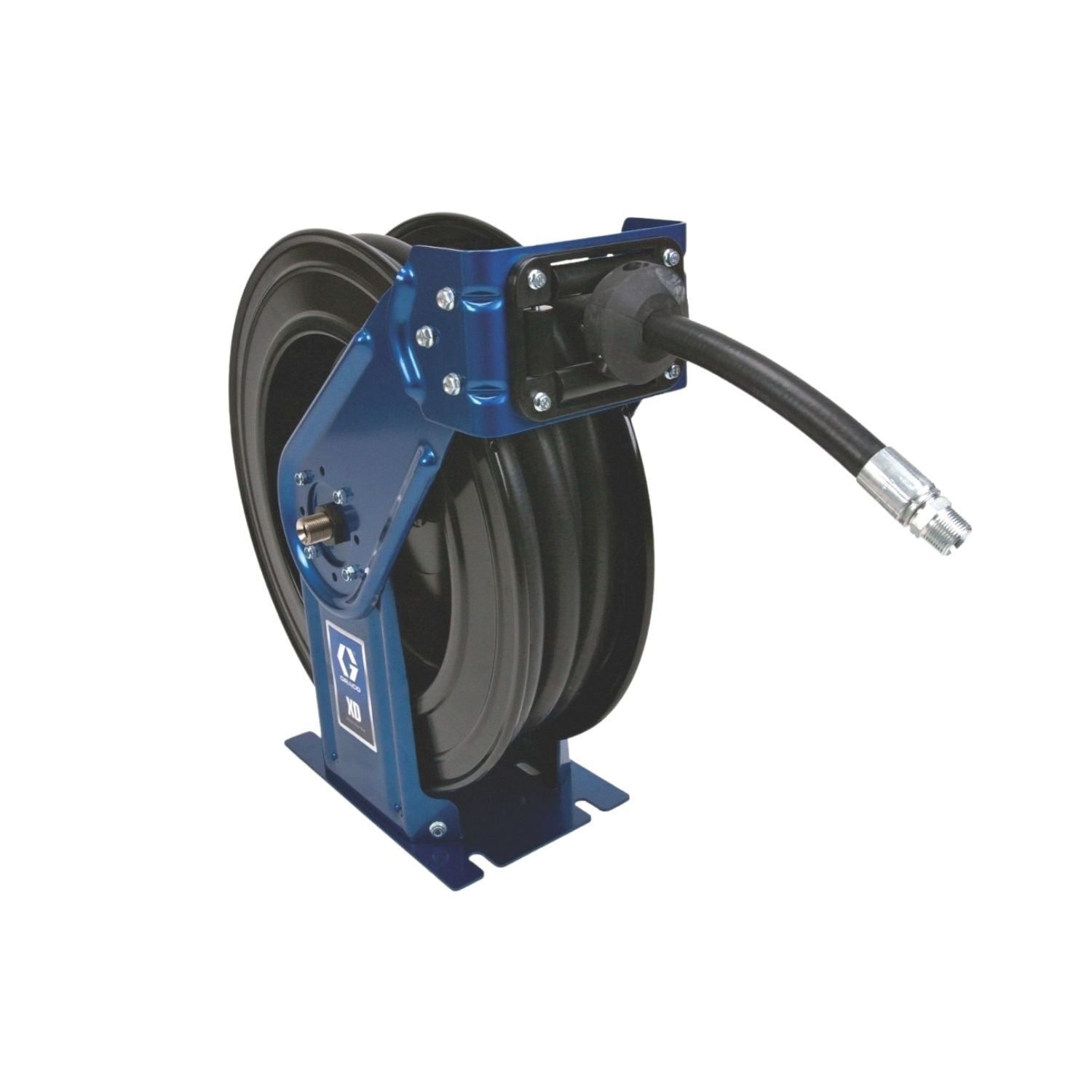

Graco XD30 Series Oil Hose Reel (1/2 in (13 mm) x 75 ft) #HSMC8B
| Part Number | HSMC8B |
| Model / Series | XD30 |
| Fluid | Oil |
| Hose (Included) | 1/2 in (13 mm) ID x 75 ft (23 m) |
| Inlet | 1/2 in NPSM (M) |
| Outlet | 1/2 in NPT (M) |
| Maximum Working Pressure | 1,500 psi (103 bar) |
| Operating Temperature | -40°F to 180°F |
| Frame | Heavy-duty dual-pedestal, nickel-plated steel, full-flow swivel |
| Color | Metallic Blue (3 colors available) |
| Weight (Bare Reel) | 98 lb (44.5 kg) |
Graco XD30 Series Oil Hose Reel, 1/2 in x 75 ft, Dual-Pedestal
Graco's XD30 series oil hose reel is built on a heavy-duty dual-pedestal frame with a nickel-plated steel spool and full-flow swivel, giving shops a long-reach 75 ft hose option for oil dispensing at up to 1,500 psi. The rugged construction is designed for high-duty-cycle service in busy service bays.
Questions before ordering? Call (844) 480-6059 and our team will confirm fit for your application.
Compatibility & Fitment
Rated for oil service at up to 1,500 psi. Includes 1/2 in x 75 ft hose with a 1/2 in NPSM inlet and 1/2 in NPT outlet; heavy-duty dual-pedestal mount suited for stationary shop installation.
Warranty
Graco backs this hose reel with a tiered warranty: 12 months on wear parts (hose, seals, swivel), 36 months on reel structural components and the spring, and 12 months on bare hose reels (all components).
