iDEAL EV/Hybrid Component Lift Table 2,500 lb #LT-EV2500AH-X
iDEAL shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model / Part Number | LT-EV2500AH-X |
| Capacity | 2,500 lb |
| Lift Type | Portable air/hydraulic EV & hybrid component lift table |
| Operation | Pneumatic hand-operated stainless-steel control panel with integrated air gauge & water separator |
| Air Supply Required | 90–125 PSI (6–9 Bar) |
| Max Platform Height | 72.6 in |
| Min Platform Height | 35.4 in |
| EV Platform Size | 59 in L x 31.5 in W, multi-directional sliding platform, 6 adjustable latch clamps |
| Overall Footprint | 74.6 in L x 35.4 in W |
| Rise / Lower Time | 72s rise / 33s lower |
| Casters | 6 in poly swivel, directional and locking |
| Ship Weight | 978 lb |
- Level, load-rated shop floor
- Portable — no anchoring required for standard use
- Indoor use
- 90–125 PSI (6–9 Bar) shop air supply
- Confirm your compressor keeps up during EV component work
- Portable on 6" locking swivel casters
- Min. platform height 35.4 in for load-in
- Freight arrives via LTL — dock or liftgate access recommended

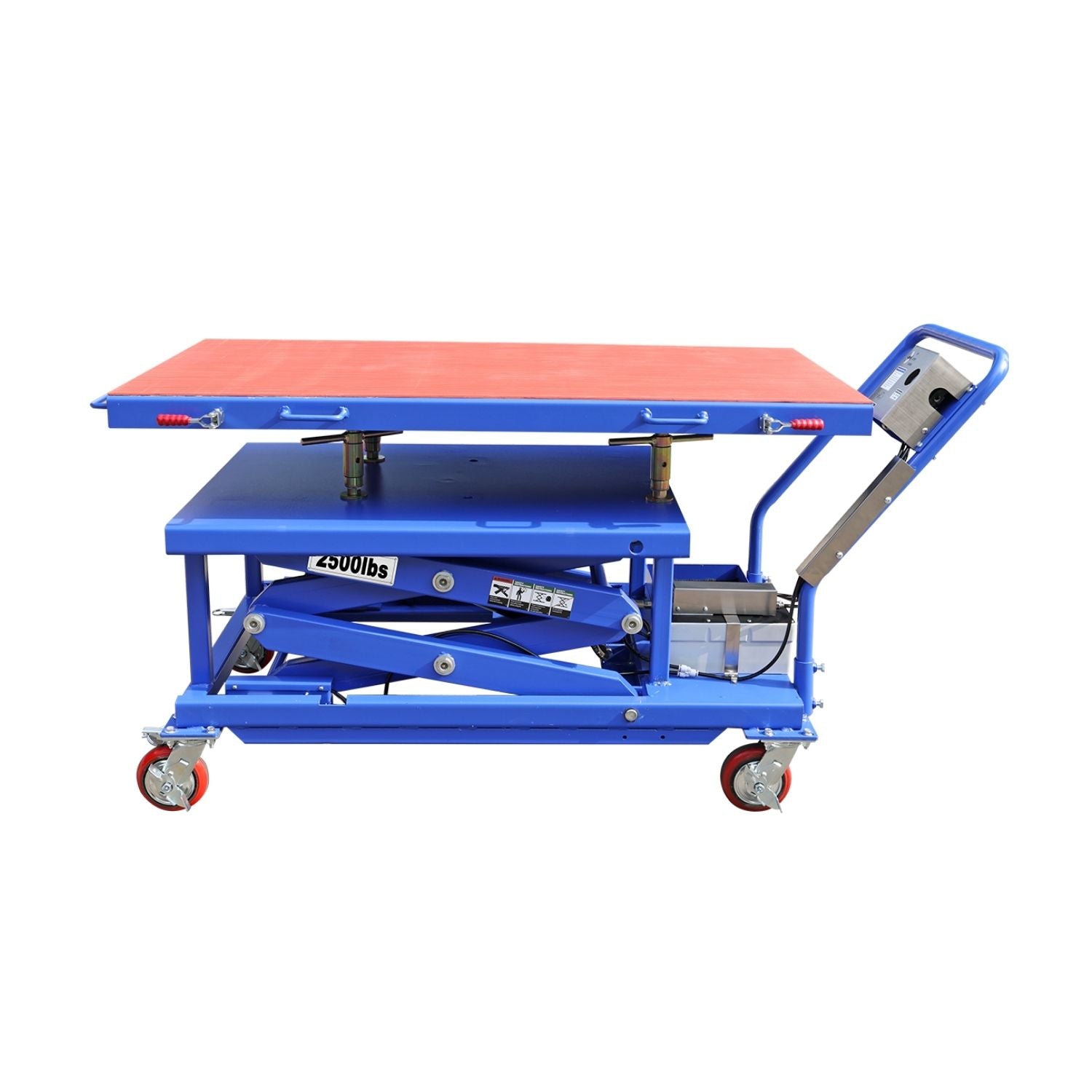

iDEAL LT-EV2500AH-X — 2,500 lb EV/Hybrid Component Lift Table

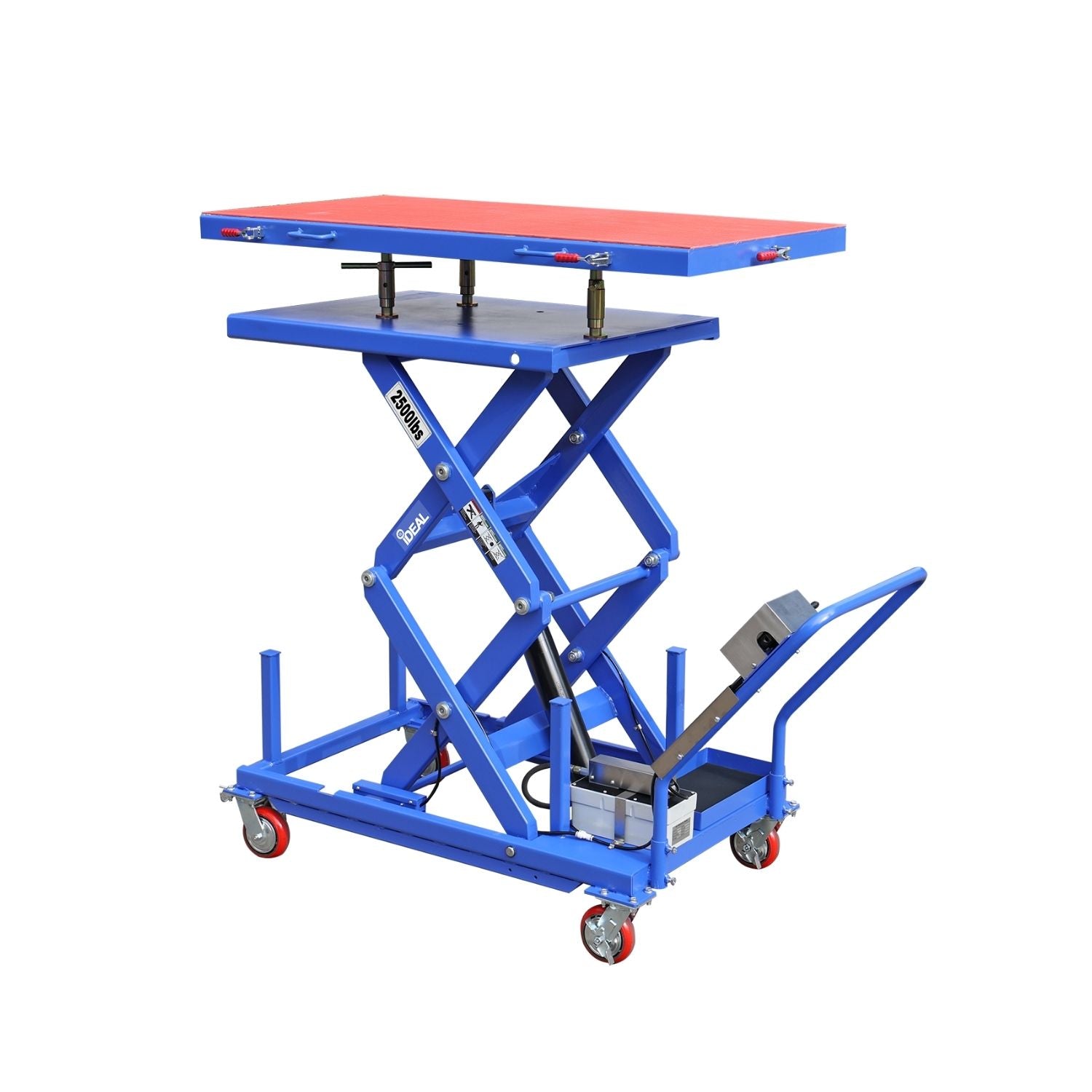

The iDEAL LT-EV2500AH-X is a 2,500 lb air/hydraulic EV component lift table designed for removing, replacing, and servicing electric and hybrid vehicle components, including battery packs, motors, and powertrain assemblies.
Built for EV service operations, the LT-EV2500AH-X features an adjustable insulated platform with clamping and tilt capabilities to help technicians safely position and align components during service. Its air/hydraulic system operates on standard shop compressed air (90–125 PSI), making it a practical solution for shops already equipped with air systems.
The portable design includes locking directional casters for easy movement between service bays and provides a stable, adjustable work platform for dealerships, repair facilities, fleet operations, and EV service centers.
Who the LT-EV2500AH-X Is Built For
- Independent shops and dealership service departments adding EV/hybrid battery and powertrain service capability
- Facilities that already have 90–125 PSI shop air and want to avoid running new electrical for a battery-lift system
- Shops needing a multi-position, tilt-adjustable EV platform to align components during R&R instead of a flat table
What the LT-EV2500AH-X Is NOT Built For
- ❌ Heavier EV battery packs or components over 2,500 lb — see the LT-EV3300DC-X for higher capacity
- ❌ Shops without reliable 90–125 PSI compressed air at the point of use
Questions about fit, freight, or capacity? Call Alamo at (844) 480-6059.
What Makes the LT-EV2500AH-X Different
2,500 lb Rated Capacity, Purpose-Built EV Platform
The LT-EV2500AH-X is rated for 2,500 lb and lifts from a 35.4 in minimum height to a 72.6 in max platform height across 3 locking positions (49 in / 61 in / 68 in), reaching full height in about 72 seconds and lowering in about 33 seconds.
Multi-Adjustable Insulated EV Platform

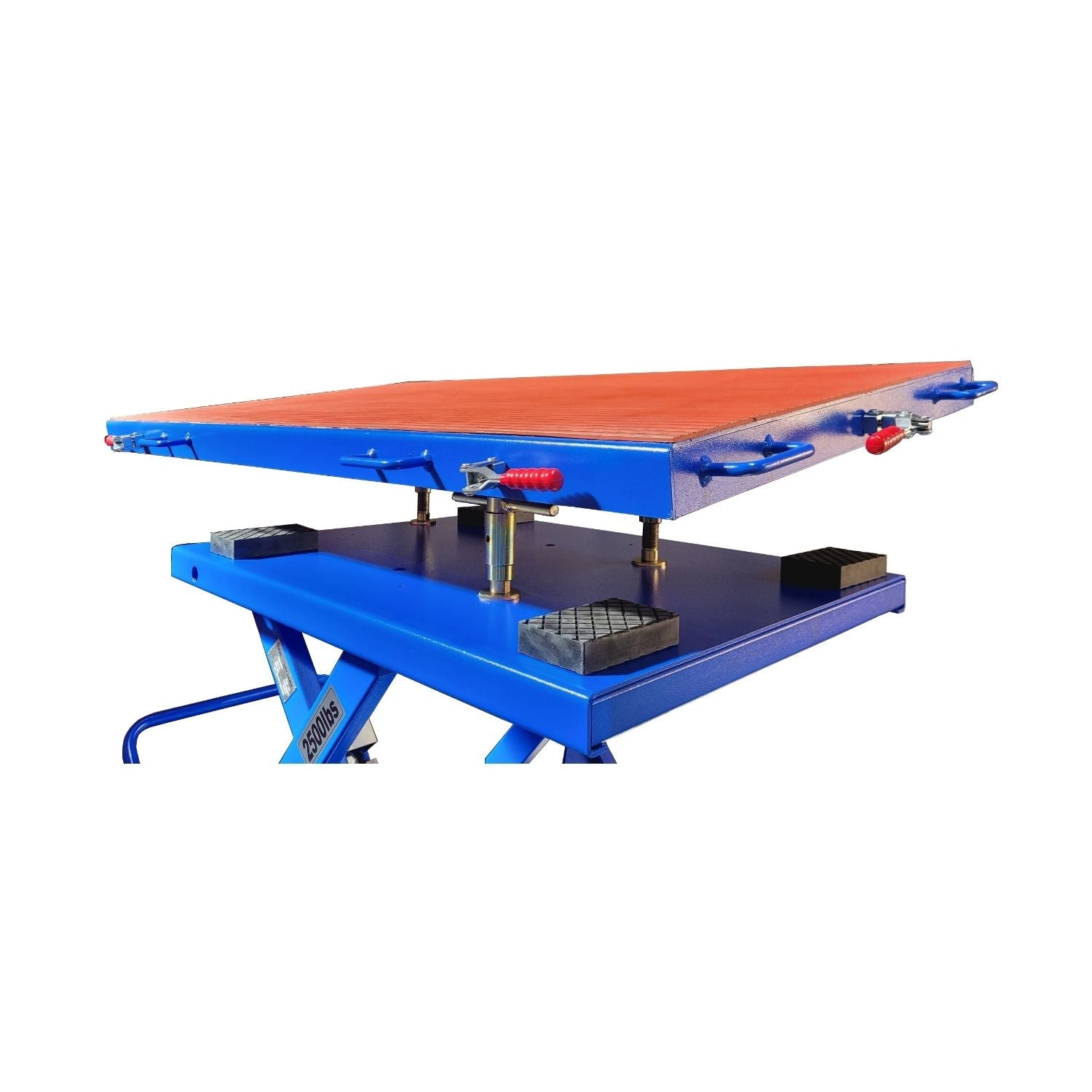

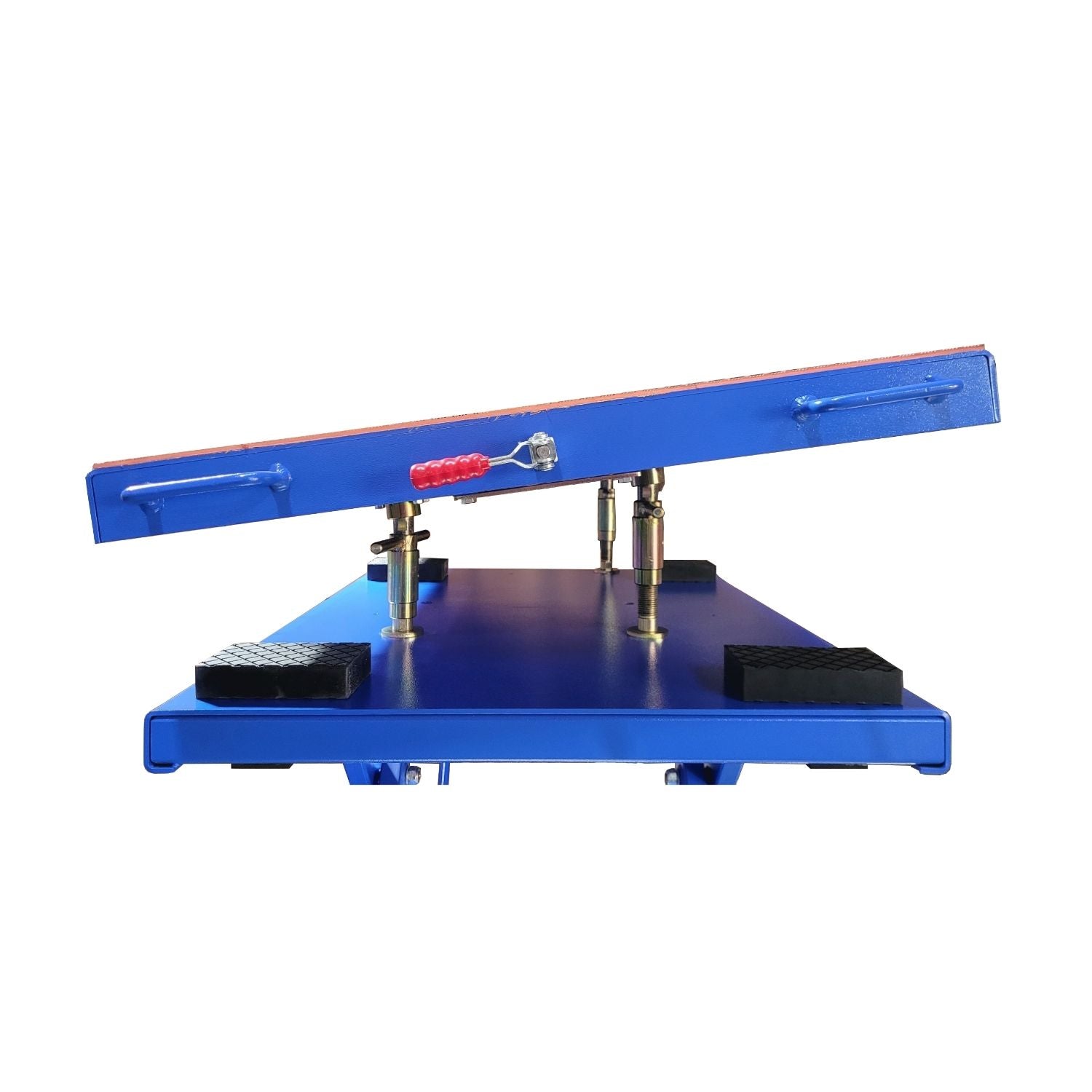

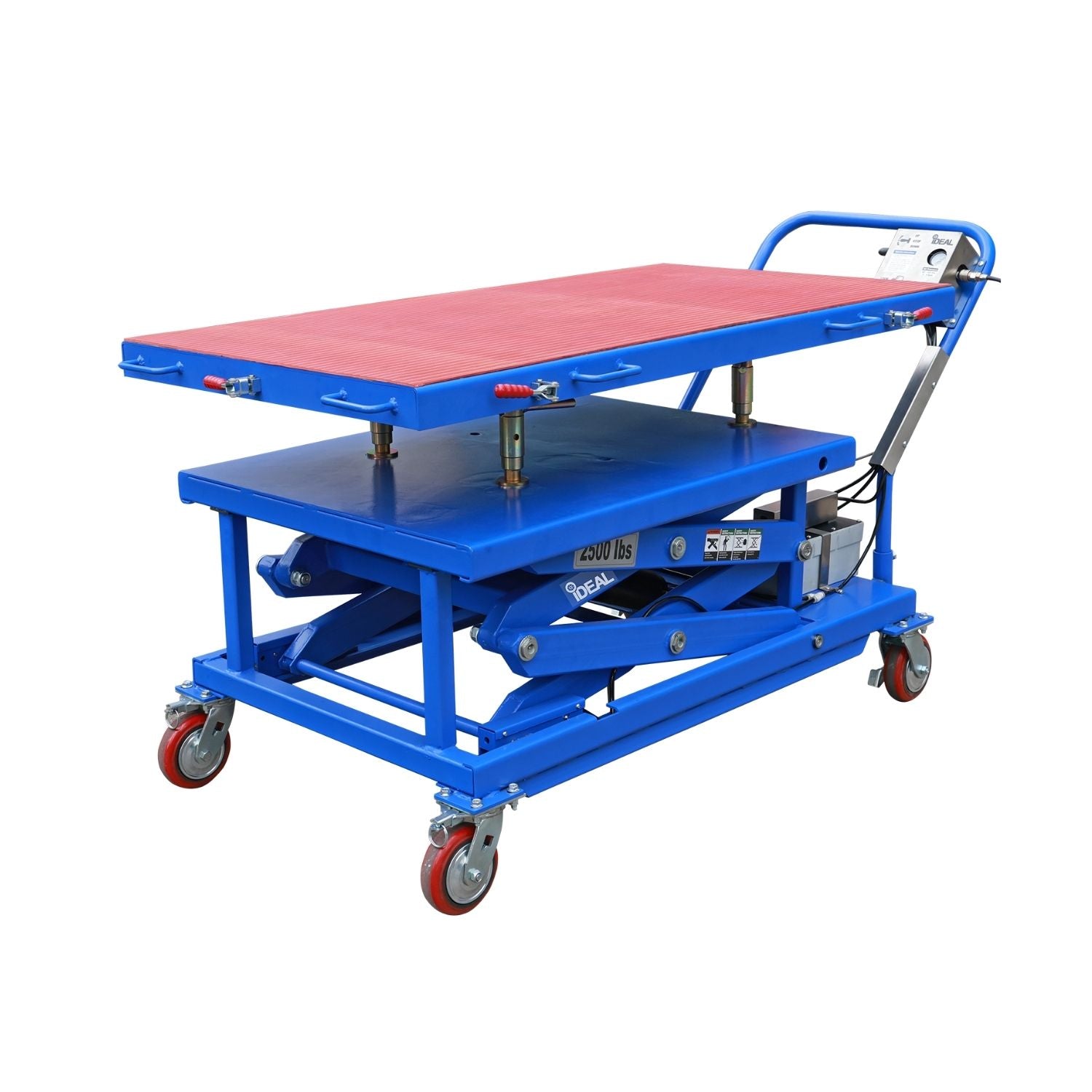

The 59 in x 31.5 in platform slides multi-directionally and locks with 6 adjustable latch clamps, plus 4°–8° tilt adjustment via HD jack screws — letting a technician align a battery pack or powertrain assembly precisely instead of fighting a fixed flat table.
Air Supply and Control Requirements

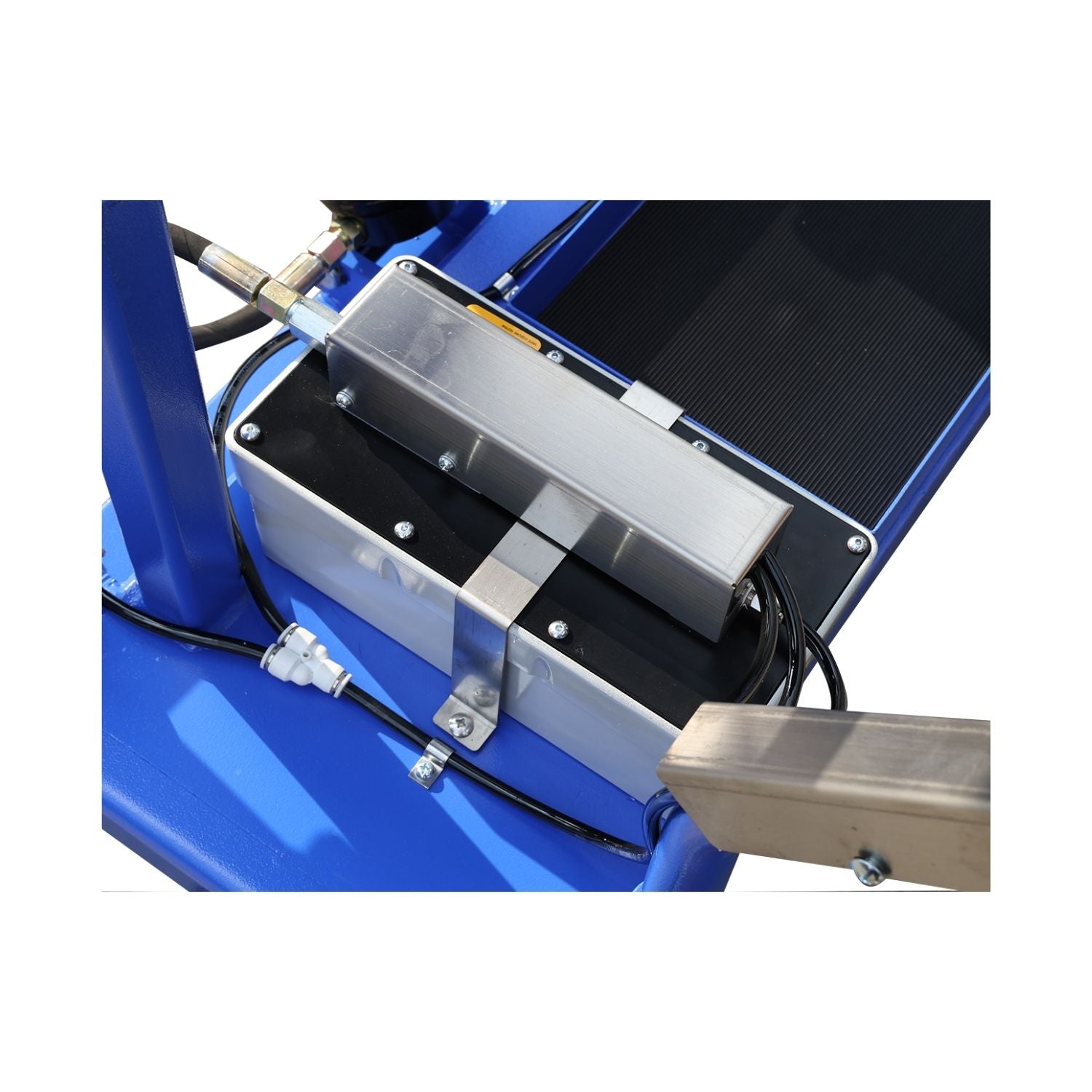

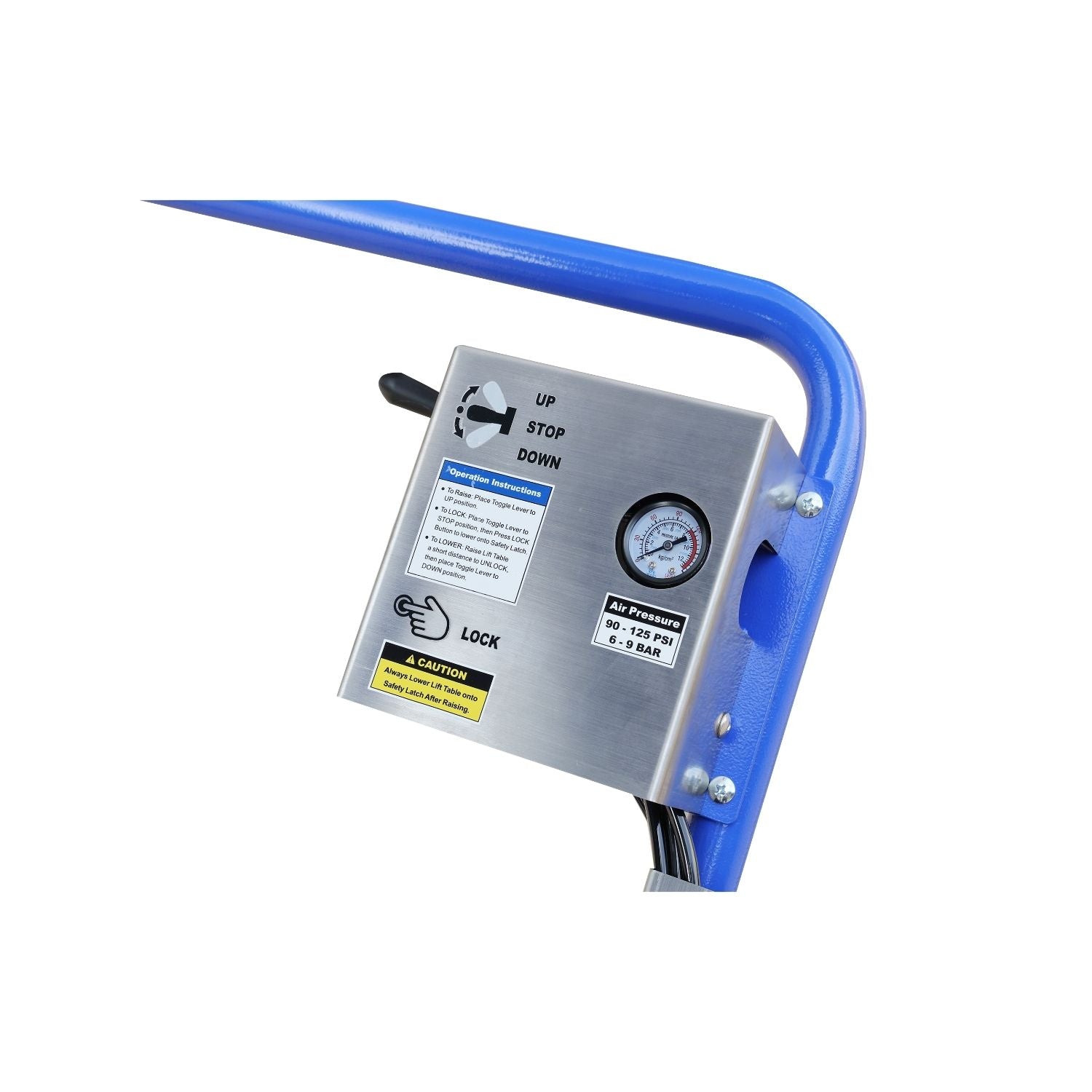

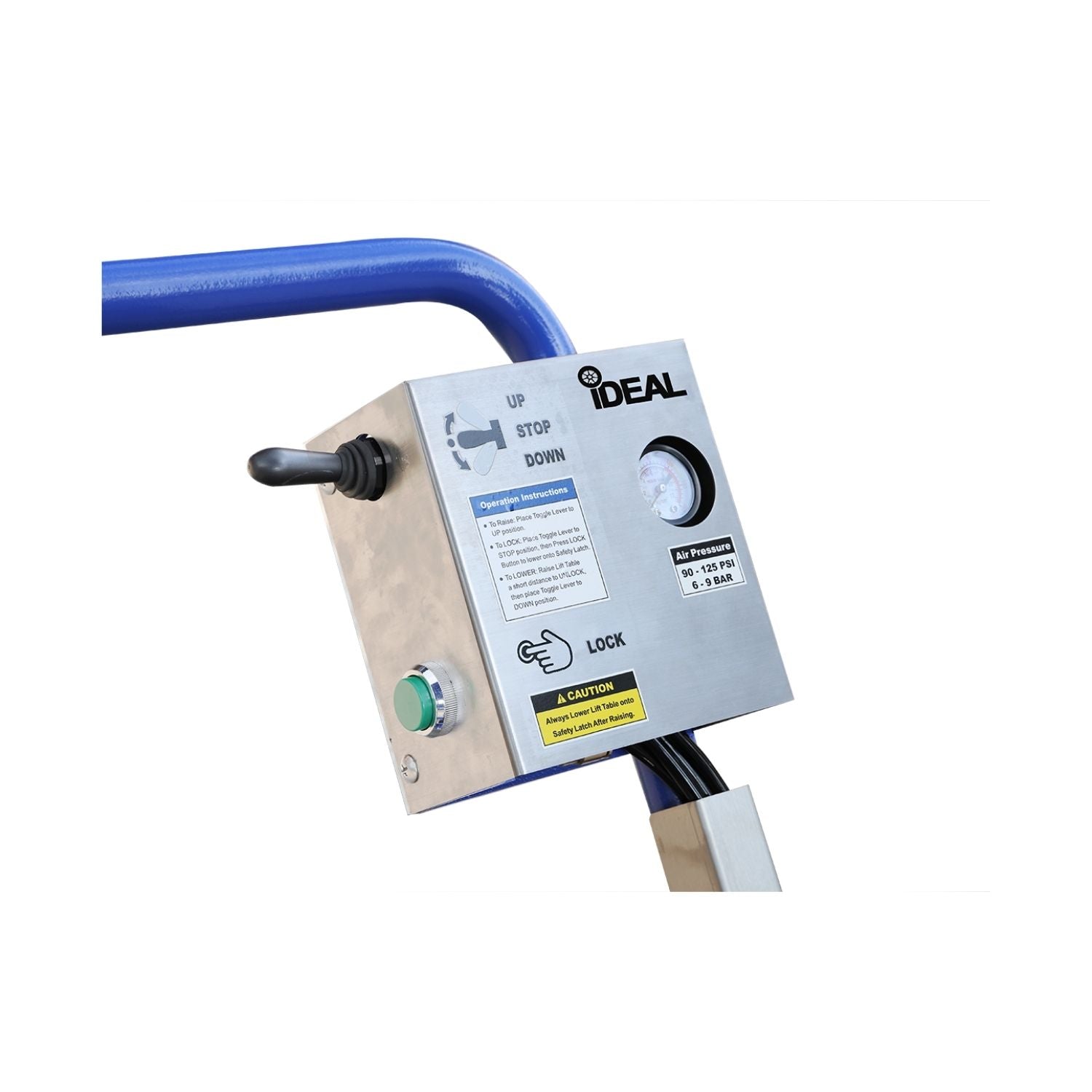

The LT-EV2500AH-X runs on standard shop compressed air at 90–125 PSI (6–9 Bar) through an exclusive stainless-steel pneumatic control panel with integrated air gauge and water separator — no special electrical service or battery charging required.
Mobility and Included Equipment

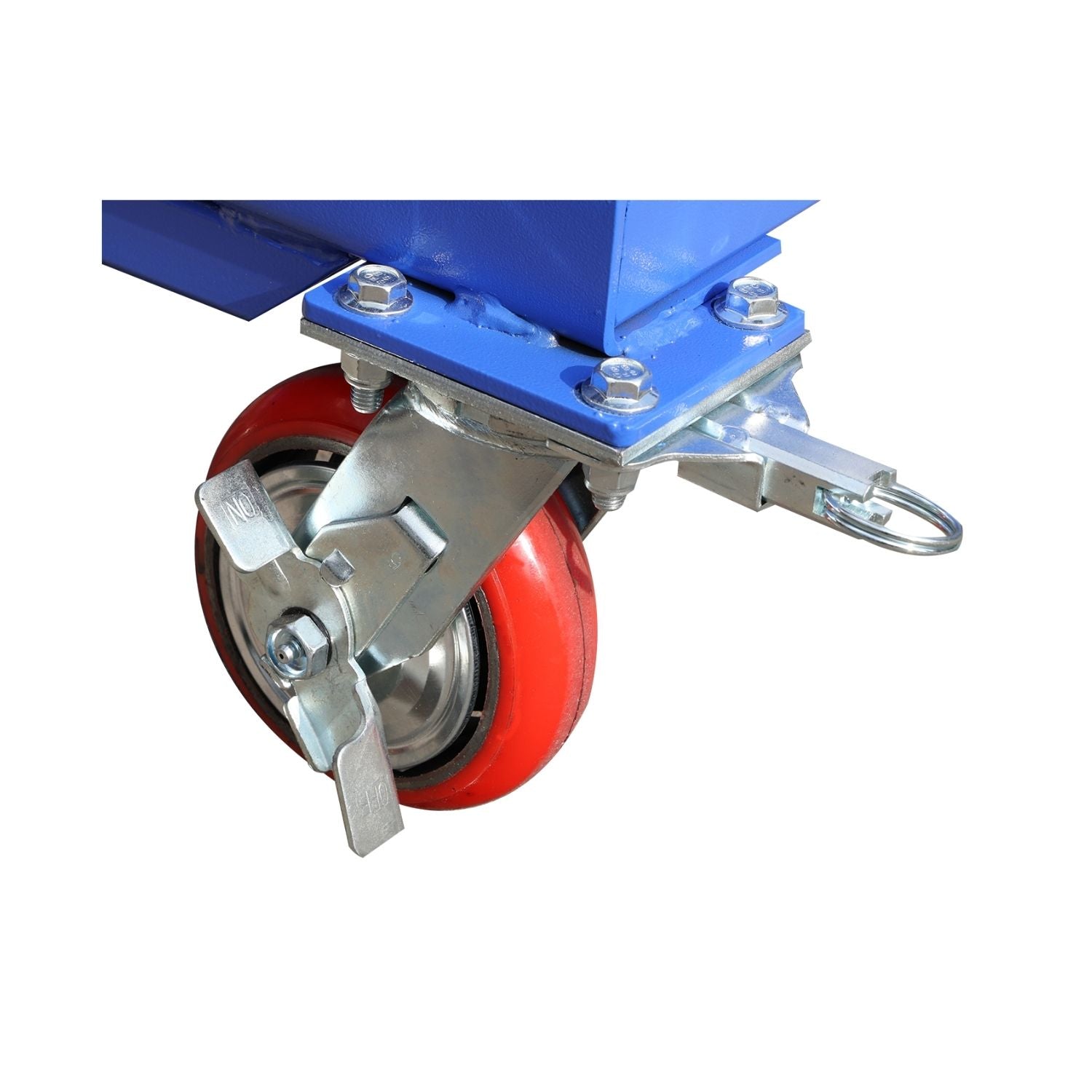

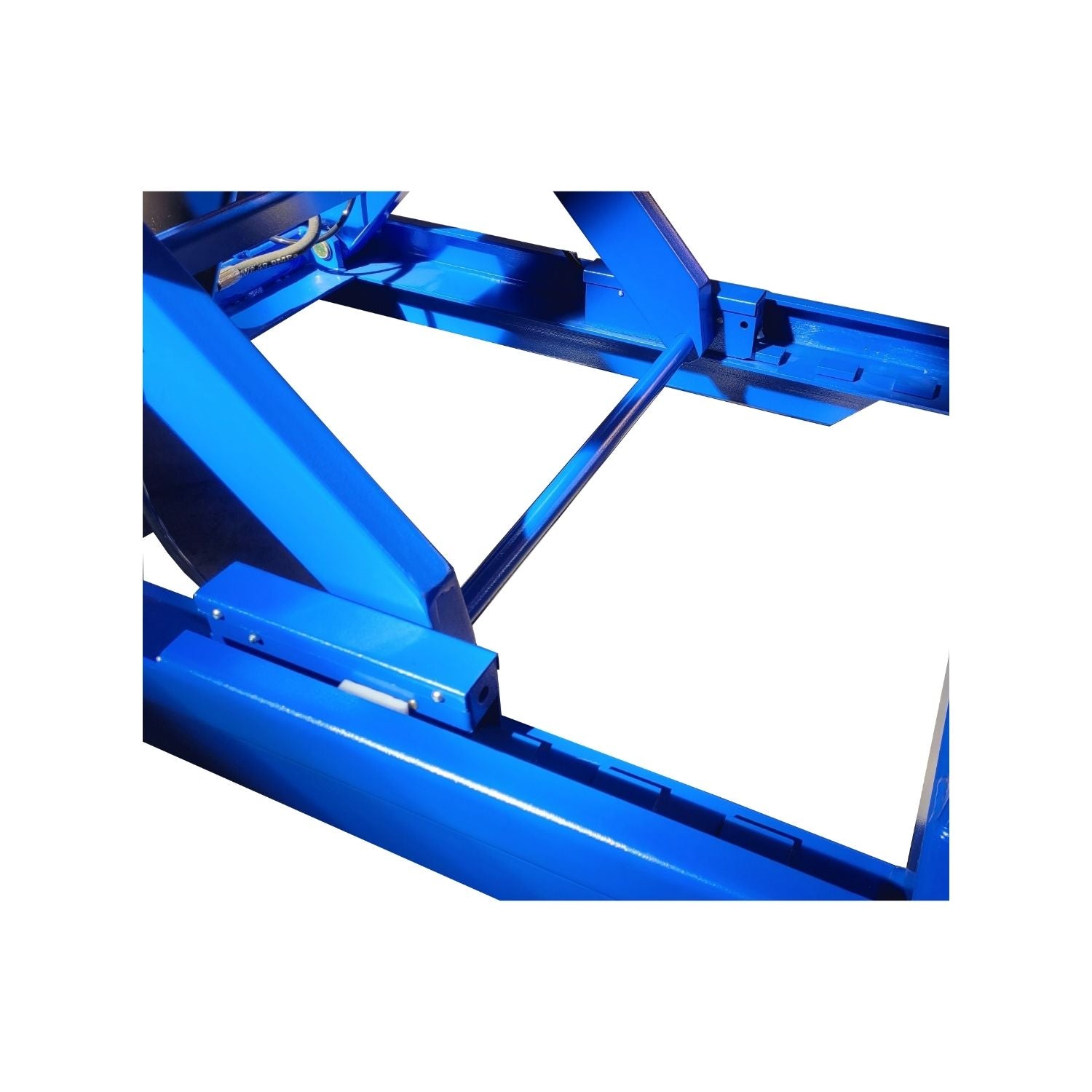

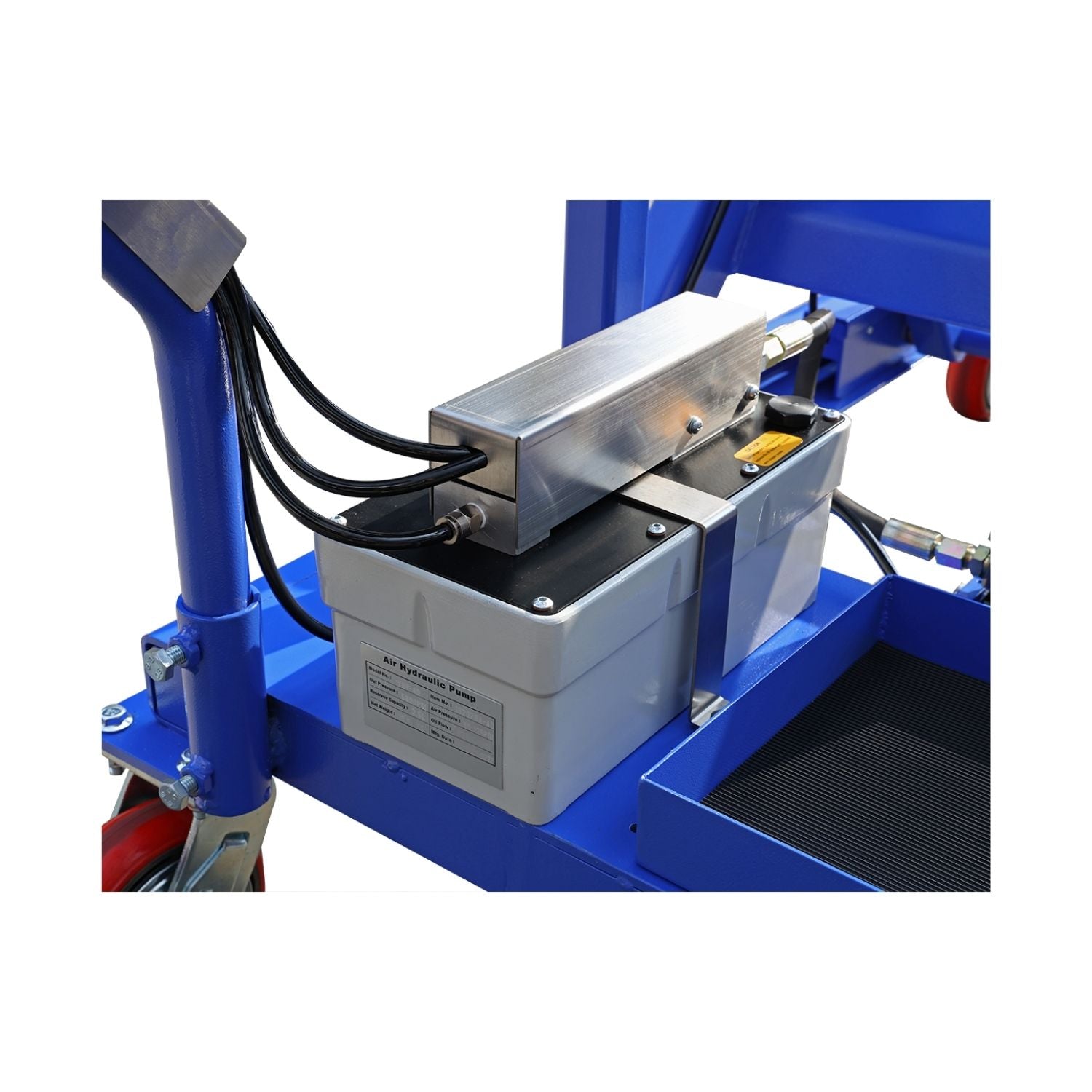

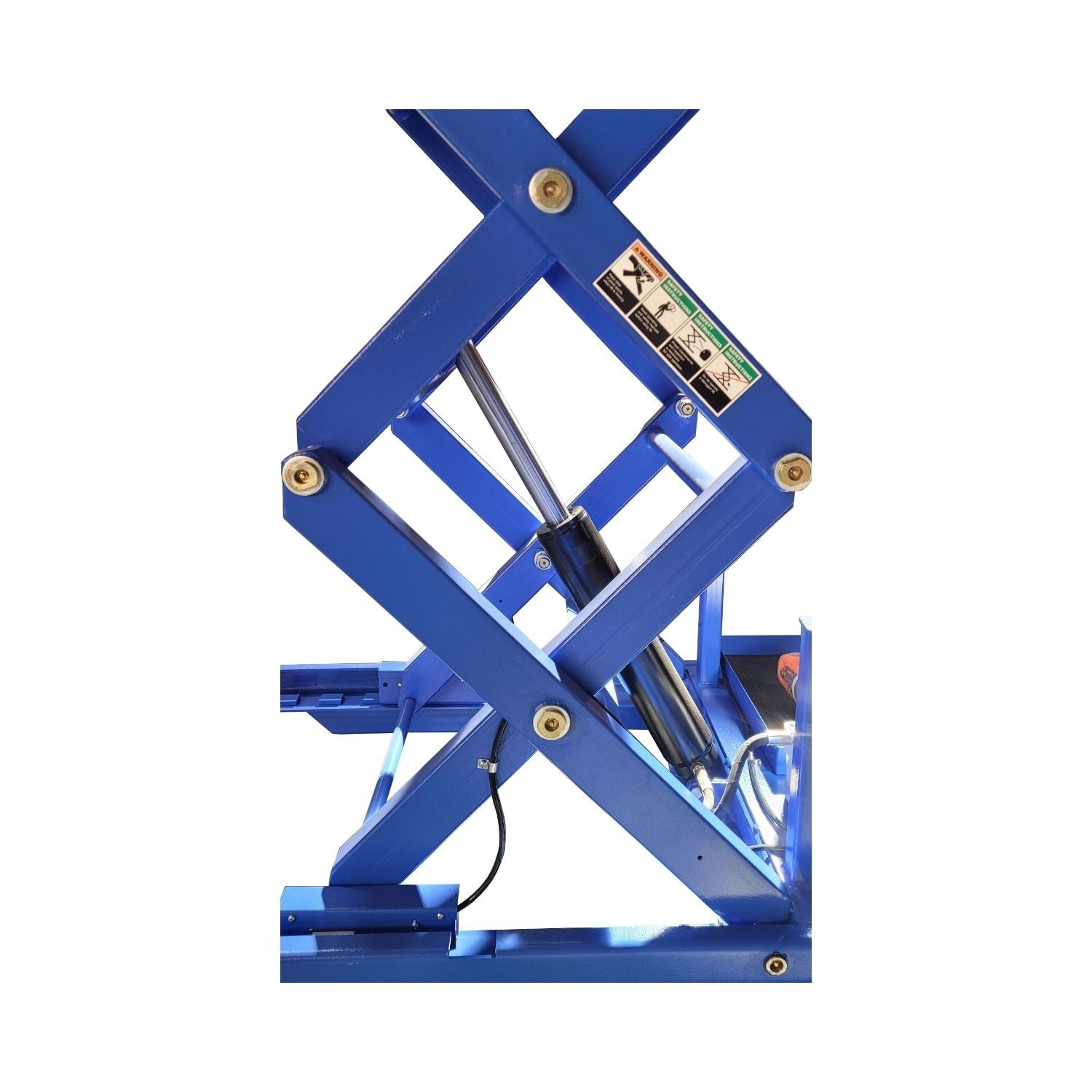

Locking, directional 6 in poly swivel casters make the table easy to reposition between bays. It ships with a tool tray, removable hand bar, double lift scissors, an HD air-hydraulic pump and hydraulic cylinder, and 4 rubber pads (6.4 x 4 x 1.45 in).
Bay Footprint
Overall footprint is 74.6 in L x 35.4 in W. Confirm these dimensions against your bay before ordering — Alamo will walk through the numbers with you.
- ✅ Shops adding EV/hybrid battery and powertrain service without new electrical work
- ✅ Facilities with existing 90–125 PSI shop air
- ✅ Technicians who need tilt/height adjustment to align components during R&R
- ❌ Components heavier than 2,500 lb
- ❌ Shops without adequate compressed air supply
LT-EV2500AH-X vs. iDEAL LT-EV3300DC-X — Which EV Lift Table Is Right for Your Shop?
| Decision Point | LT-EV2500AH-X | LT-EV3300DC-X |
|---|---|---|
| Capacity | 2,500 lb | 3,300 lb |
| Power source | Shop compressed air (90–125 PSI) | 12VDC battery, no shop air needed |
| Rise time | 72s rise / 33s lower | 20s rise / 22s lower (faster) |
| Best fit | Shops with existing shop air, lighter components | Shops wanting higher capacity and cordless operation |
Choose the LT-EV2500AH-X if you already run shop air and your heaviest EV components stay under 2,500 lb. Choose the LT-EV3300DC-X for higher capacity and faster cycle times with no air line required. Both are in Alamo's catalog — call (844) 480-6059.
Full Specifications — LT-EV2500AH-X
| Model / Part Number | LT-EV2500AH-X |
| Capacity | 2,500 lb |
| Operation | Pneumatic hand-operated stainless-steel control panel with integrated air gauge & water separator |
| Air Supply Required | 90–125 PSI (6–9 Bar) |
| Max Platform Height | 72.6 in |
| Min Platform Height | 35.4 in |
| Locking Heights | 49 in / 61 in / 68 in (3 positions) |
| EV Platform Size | 59 in L x 31.5 in W, multi-directional sliding, 6 adjustable latch clamps |
| Platform Tilt | 4° to 8° |
| Overall Footprint | 74.6 in L x 35.4 in W |
| Rise / Lower Time | 72s rise / 33s lower |
| Casters | 6 in poly swivel, directional and locking |
| Ship Weight | 978 lb |

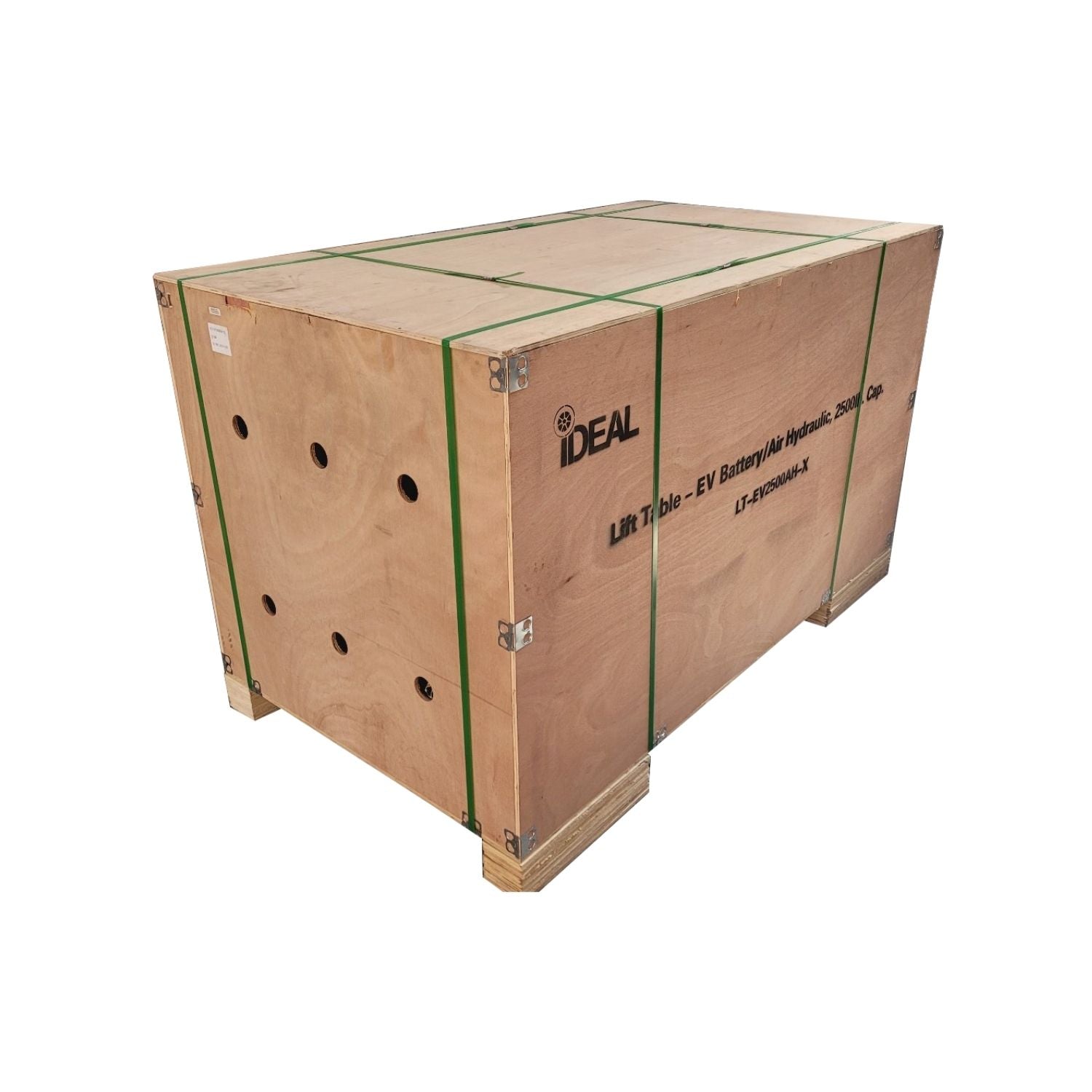

| Crate Dimensions | 65.5 x 37.5 x 40.5 in |
| Includes | Tool tray, removable hand bar, double lift scissors, HD air-hydraulic pump & hydraulic cylinder, 4 rubber pads (6.4 x 4 x 1.45 in) |
⚠️ Installation Requirements
- Compressed air: 90–125 PSI (6–9 Bar) shop air supply with a water separator recommended.
- Floor: Level, load-rated shop floor; unit is portable on locking casters, no anchoring required for standard use.
- Bay footprint: Confirm 74.6" L x 35.4" W clearance; measure before ordering.
- Freight: Ships LTL freight, not included in the item price — call Alamo for a shipping quote to your dock before ordering.
- Installation: Alamo sets up every lift table we sell. Call (844) 480-6059 to schedule.
iDEAL Warranty — LT-EV2500AH-X
iDEAL (Tuxedo Distributors, LLC) backs the LT-EV2500AH-X with its published Limited Warranty — verified from the LT-EV2500AH-X manufacturer manual (manufacturer-PDF source). Coverage is split between a longer structural warranty and a one-year parts warranty on the equipment as a whole.
| Component | Coverage Term |
|---|---|
| Structural components (columns, arms, uprights, swivel pins, legs, carriages, overhead beam, tracks, cross rails, top rail beam) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only, original purchaser, US & Canada |
| Wear items (cables, slider blocks, chains, rubber pads, pulleys) & normal maintenance parts | Not covered |
| Hydraulic cylinder replacement after first 30 days | Not covered as a free replacement — iDEAL ships a seal kit + repair instructions instead |
| On-site labor | Not covered; purchaser pays all shipping charges on warranty parts |
Warranty is void if the LT-EV2500AH-X is improperly installed or altered, or not operated/maintained per iDEAL's specifications. Warranty service is coordinated through Alamo Equipment & Service — when you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
❓ Frequently Asked Questions — LT-EV2500AH-X
Does the LT-EV2500AH-X price include shipping?
No. This is a heavy LTL freight item and the listed price does not include shipping. Call Alamo at (844) 480-6059 for an LTL shipping quote to your location before you order.
What power does the LT-EV2500AH-X need?
It runs on standard shop compressed air (90–125 PSI / 6–9 Bar) through its pneumatic control panel — no special electrical service is required.
Can the EV platform tilt or slide for battery pack alignment?
Yes — the platform slides multi-directionally, locks with 6 adjustable latch clamps, and tilts 4° to 8° via HD jack screws to help align heavy components during removal or installation.
How is this different from the LT-EV3300DC-X?
The LT-EV2500AH-X runs on shop air and lifts up to 2,500 lb. The LT-EV3300DC-X runs on a 12VDC battery (no shop air needed) and lifts up to 3,300 lb with faster cycle times.
Why Buy the LT-EV2500AH-X from Alamo Equipment & Service?
- We handle the freight. This is an LTL-shipped item — the listed price does not include freight. Call (844) 480-6059 for a shipping quote to your dock before you order.
- We set it up. Alamo can get the LT-EV2500AH-X into your bay and running — one number, one invoice.
- We service it. Questions after delivery? Call (844) 480-6059 — not a manufacturer hotline.
- We size it with you. Not sure if the LT-EV2500AH-X (2,500 lb, 74.6" x 35.4" footprint) fits your bay and shop air setup? Call and we'll walk through it.
- Expert comparison help. Not sure if the LT-EV2500AH-X or the LT-EV3300DC-X is the right fit? Call (844) 480-6059 — we'll give you a straight answer.
A shop buying from a pure e-commerce retailer gets a box and a freight bill surprise. A shop buying from Alamo gets a partner who tells you the freight cost up front.
Shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the freight method and total before sending a payment link.
