iDEAL EV/Hybrid Component Lift Table 3,300 lb #LT-EV3300DC-X
iDEAL shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model / Part Number | LT-EV3300DC-X |
| Capacity | 3,300 lb |
| Lift Type | Portable 12VDC battery electric-hydraulic EV & hybrid component lift table |
| Operation | Remote hand controller plus control-box panel buttons — no shop air required |
| Power Supply | 110VAC 1.5A 1PH integrated battery charger (included); 12VDC deep-cycle sealed battery (included) |
| DC Power Unit | 12VDC 120A, 2.15 HP |
| Max Lift Height | 72.6 in |
| Min Lift Height | 35.4 in |
| EV Platform Size | 59 in L x 31.5 in W, multi-directional sliding platform, adjustable latch clamps |
| Overall Footprint | 67.3 in L x 35.4 in W |
| Rise / Lower Time | 20s rise / 22s lower |
| Casters | 6 in poly swivel front casters plus pallet-jack dolly |
| Ship Weight | 1,090 lb |
- Level, load-rated shop floor
- Portable — no anchoring required for standard use
- Indoor use
- Standard 110VAC outlet for the included battery charger (1.5A, 1PH)
- No shop air or heavy electrical service required — runs on the onboard 12VDC battery
- Portable on 6" swivel casters plus included pallet-jack dolly
- Min. lift height 35.4 in for load-in
- Freight arrives via LTL — dock or liftgate access recommended

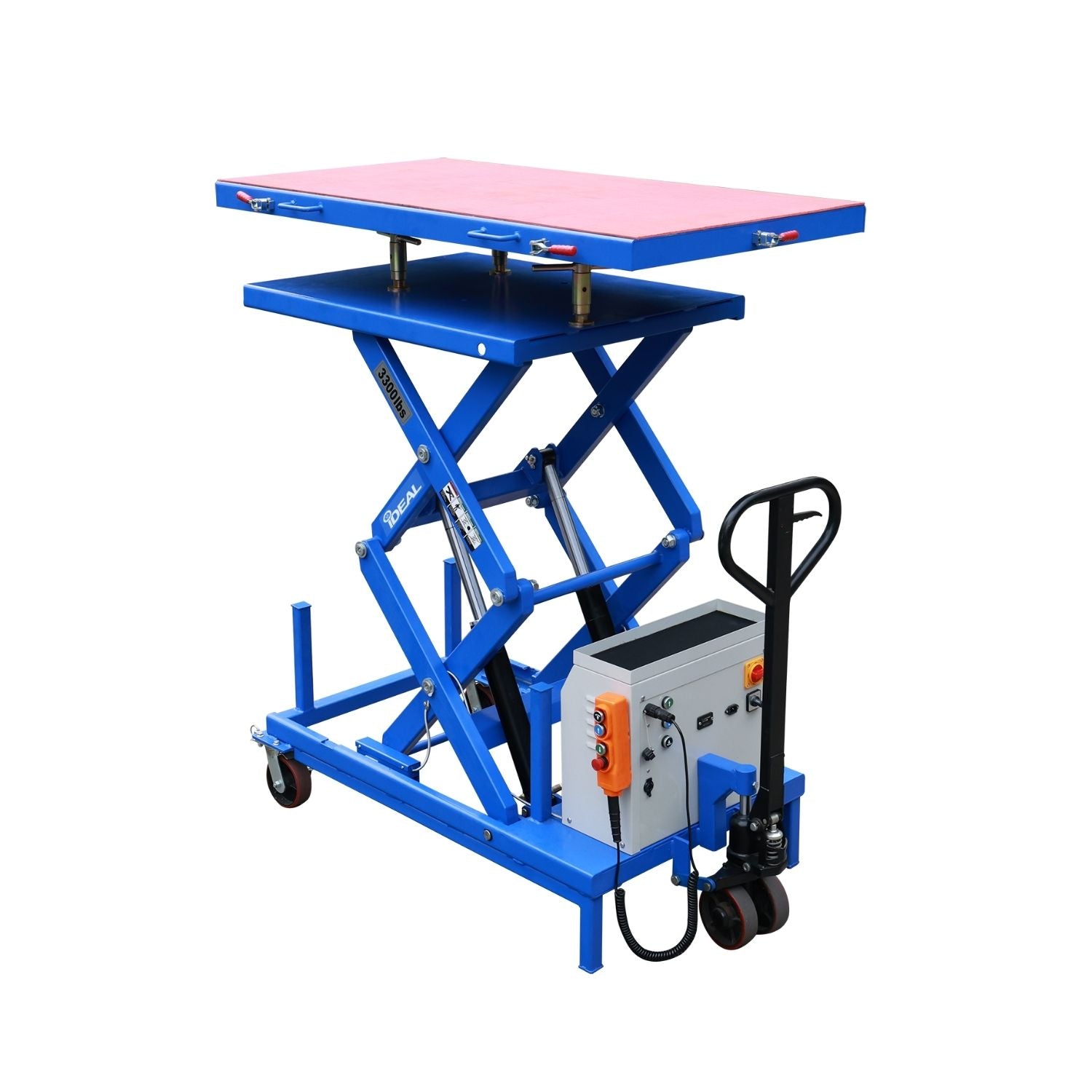

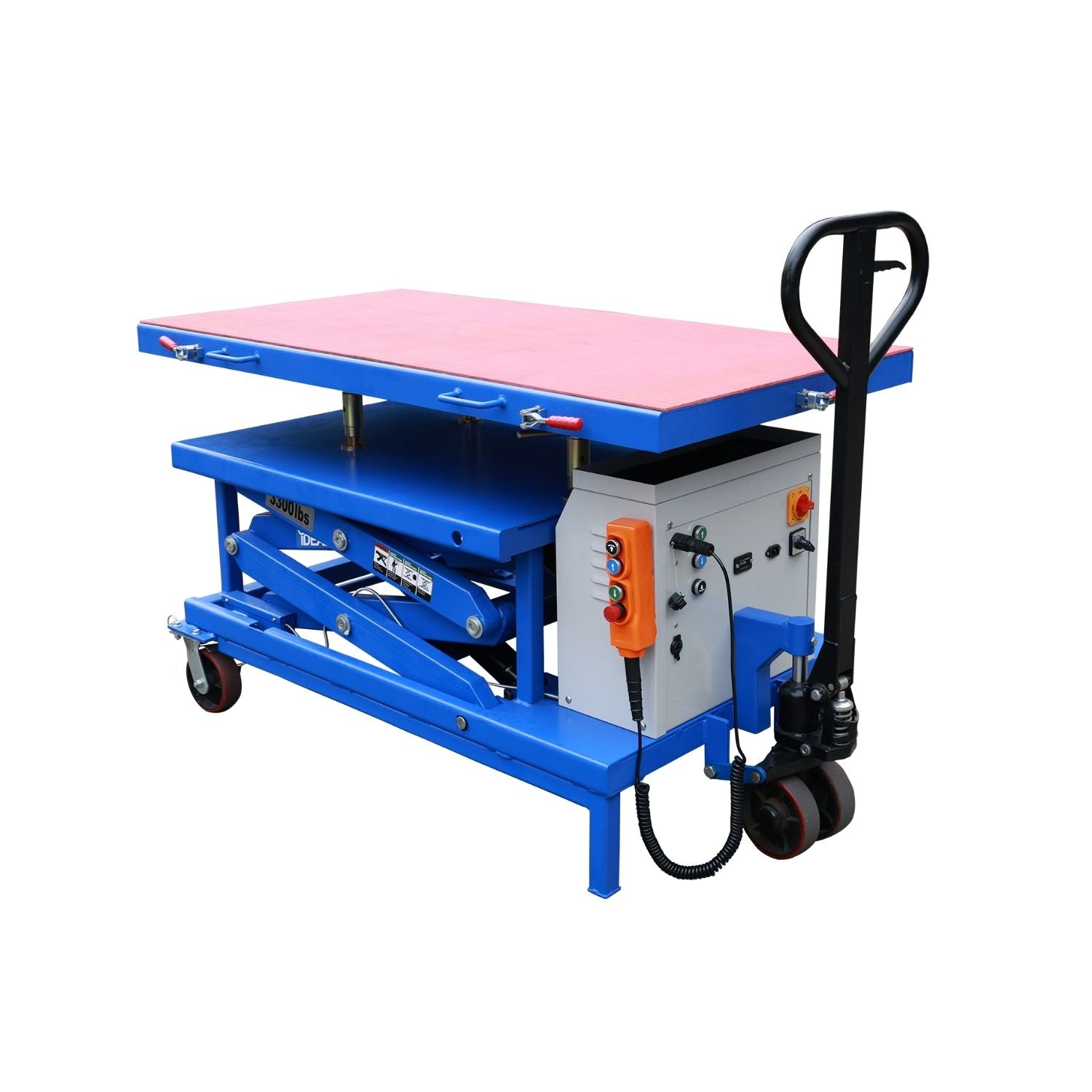

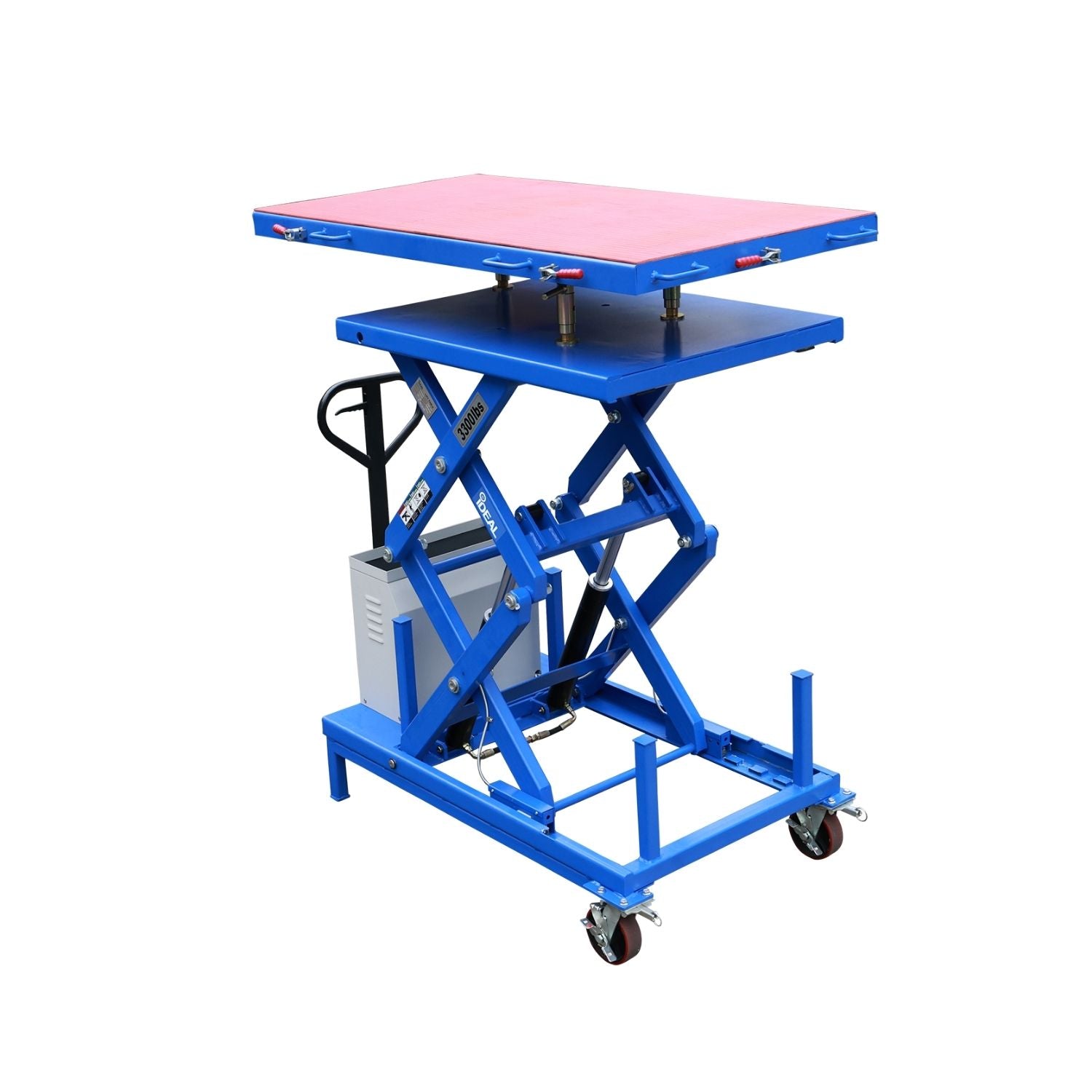

iDEAL LT-EV3300DC-X — 3,300 lb EV/Hybrid Component Lift Table
The iDEAL LT-EV3300DC-X is a 3,300 lb portable battery-powered EV component lift table designed for removing, replacing, and servicing heavy electric and hybrid vehicle components, including battery packs, motors, and powertrain assemblies.
Powered by a self-contained 12VDC battery system, the LT-EV3300DC-X eliminates the need for shop air connections, allowing flexible use throughout the service bay. Its adjustable insulated platform, clamping system, and tilt capability help technicians safely position and align components during EV service operations.
Designed for mobility and efficiency, the lift table features locking directional casters and an included transport dolly for easy movement between bays. It is ideal for dealerships, repair facilities, fleet operations, and EV service centers handling larger battery and drivetrain components.
Who the LT-EV3300DC-X Is Built For
- Shops that need higher EV/hybrid component capacity (up to 3,300 lb) than a standard air-hydraulic table offers
- Facilities without dedicated shop air at the point of use — this table only needs a standard 110V outlet to recharge
- Mobile or multi-bay operations that want to roll the table between service areas using the included pallet-jack dolly
What the LT-EV3300DC-X Is NOT Built For
- ❌ Shops wanting the lowest-cost option when components stay under 2,500 lb — see the LT-EV2500AH-X
- ❌ Continuous multi-shift use without monitoring battery charge between uses
Questions about fit, freight, or capacity? Call Alamo at (844) 480-6059.

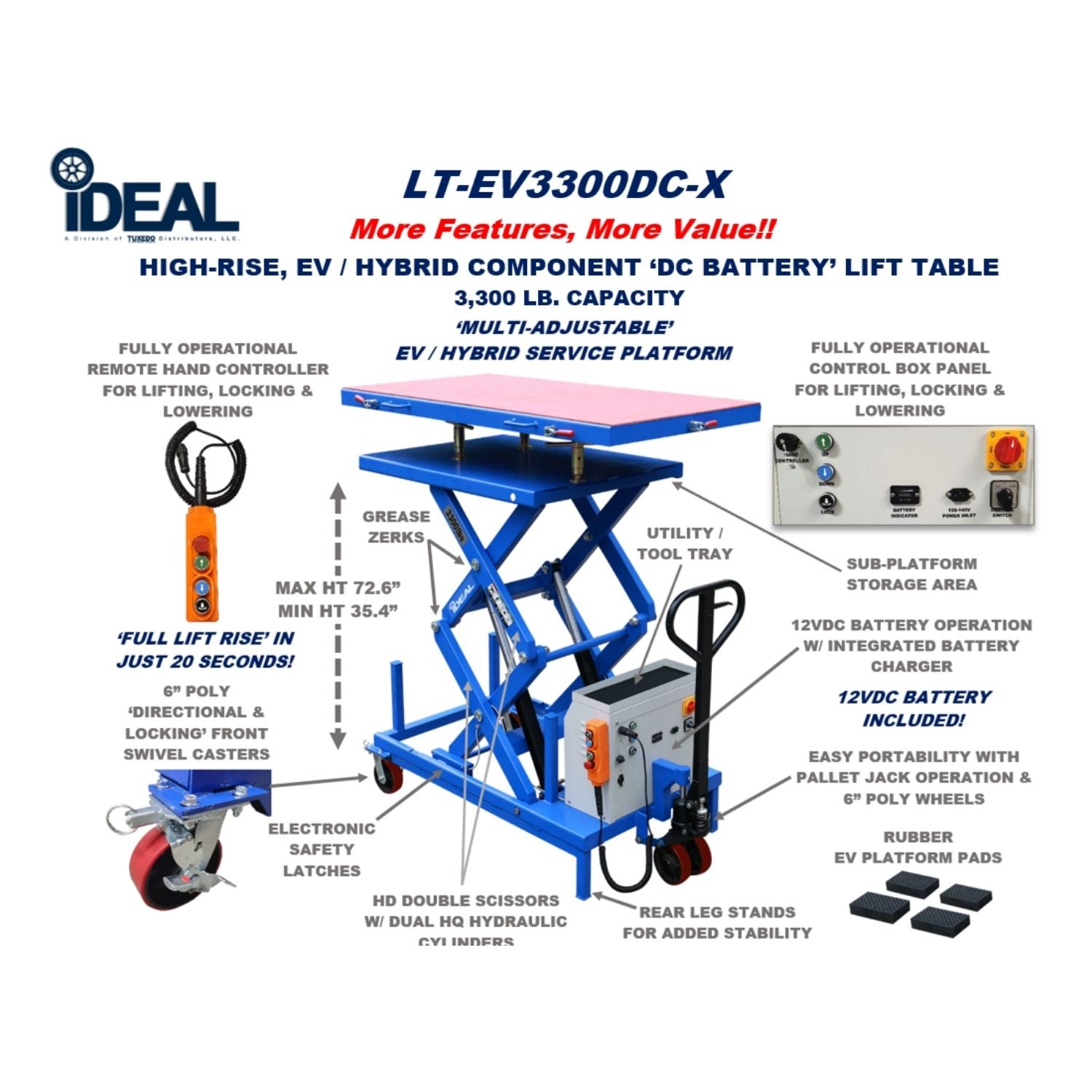

What Makes the LT-EV3300DC-X Different
3,300 lb Rated Capacity, Faster Cycle Times
The LT-EV3300DC-X is rated for 3,300 lb and lifts from a 35.4 in minimum height to a 72.6 in max lift height across 3 locking positions (49 in / 61 in / 68 in) in about 20 seconds, lowering in about 22 seconds — noticeably faster than the air-hydraulic LT-EV2500AH-X.
Cordless 12VDC Battery Operation
A 12VDC 120A, 2.15 HP DC power unit runs off an included deep-cycle sealed battery, charged through a 110VAC 1.5A integrated charger. There's no shop air line or dedicated 220V circuit to run — plug the charger into a standard outlet between uses.

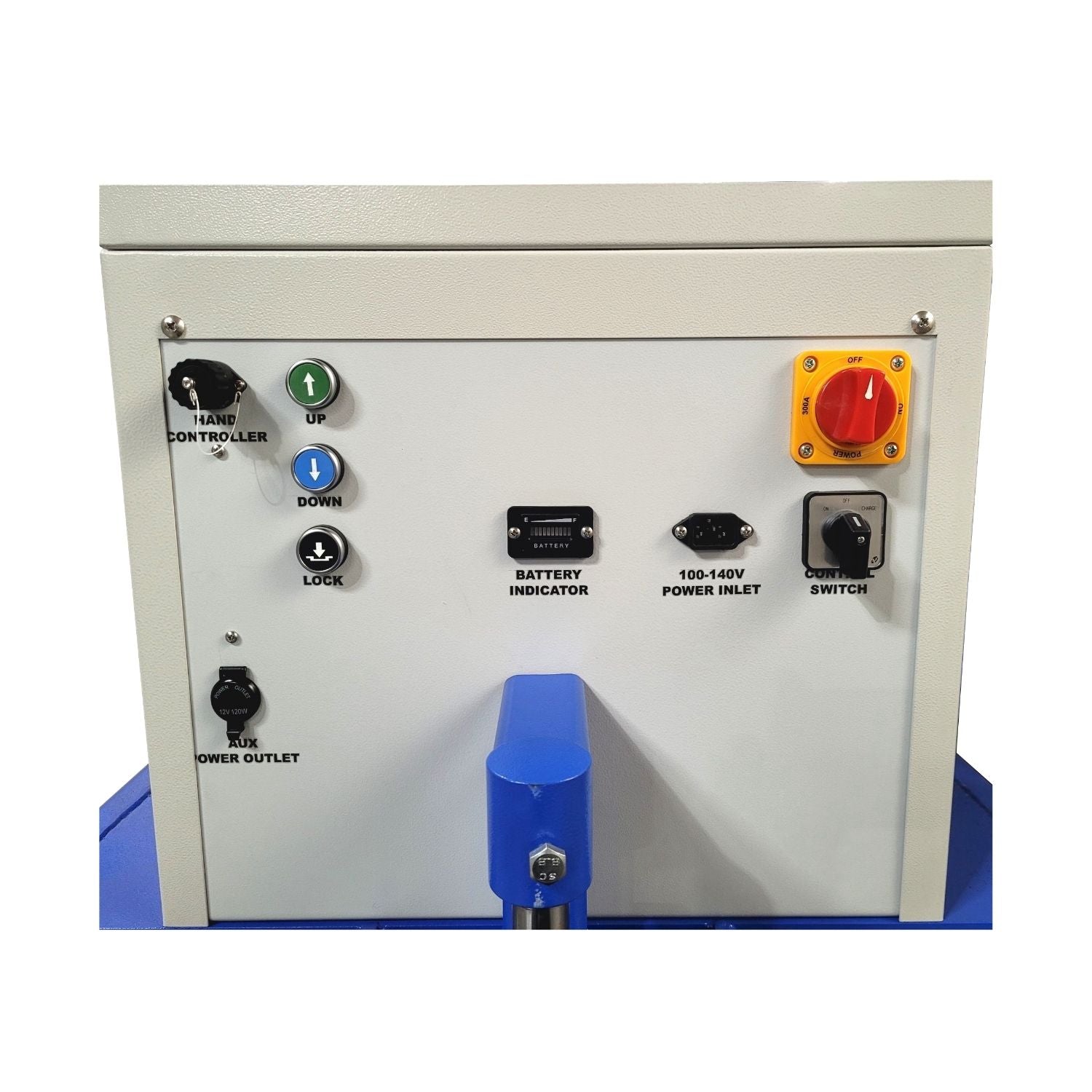

Dual Control and Adjustable EV Platform

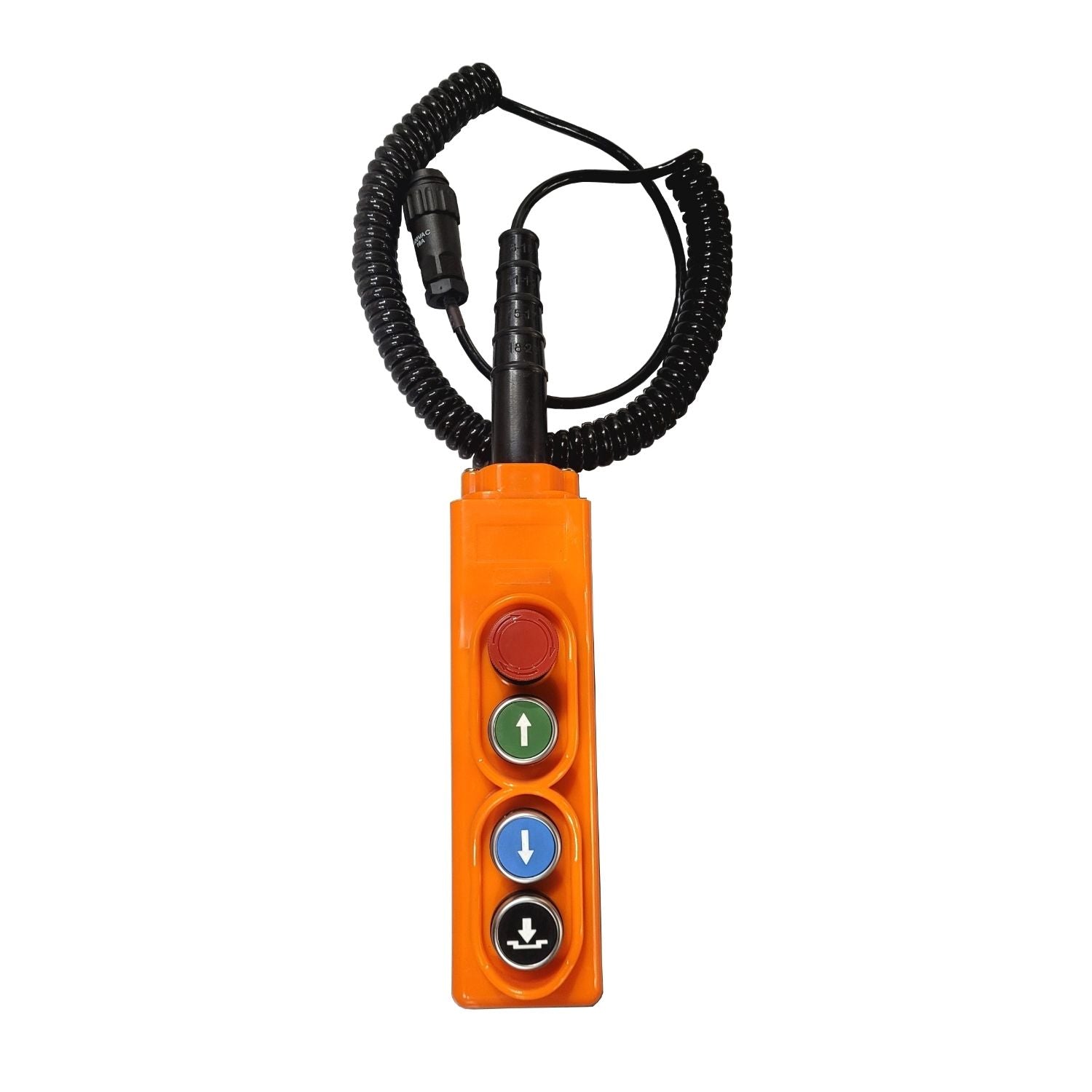

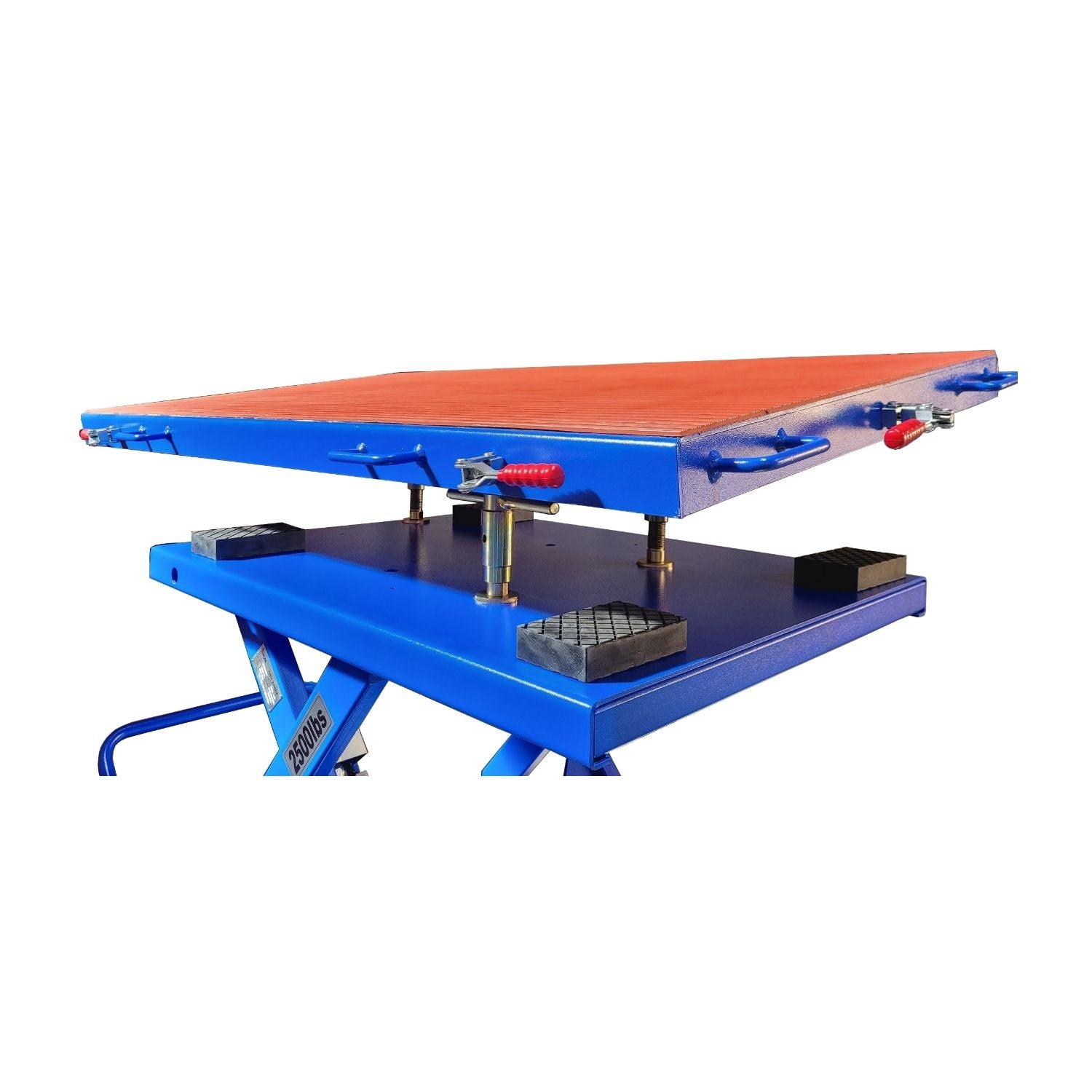

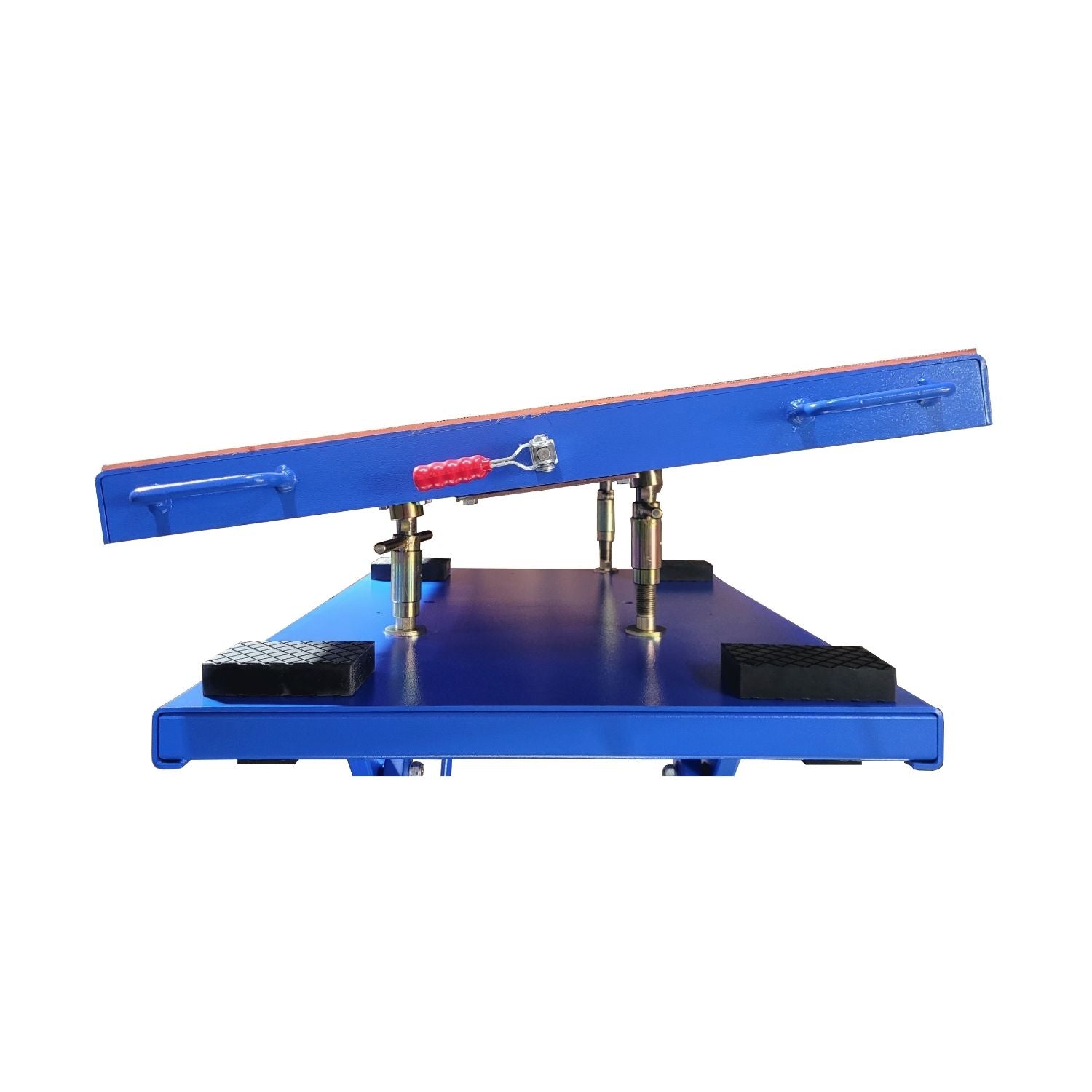

Operate it from the remote hand controller or the control-box panel buttons. The 59 in x 31.5 in platform slides multi-directionally with adjustable latch clamps and 4°–8° tilt via HD jack screws, letting a technician align a battery pack or powertrain assembly precisely.
Mobility and Included Equipment

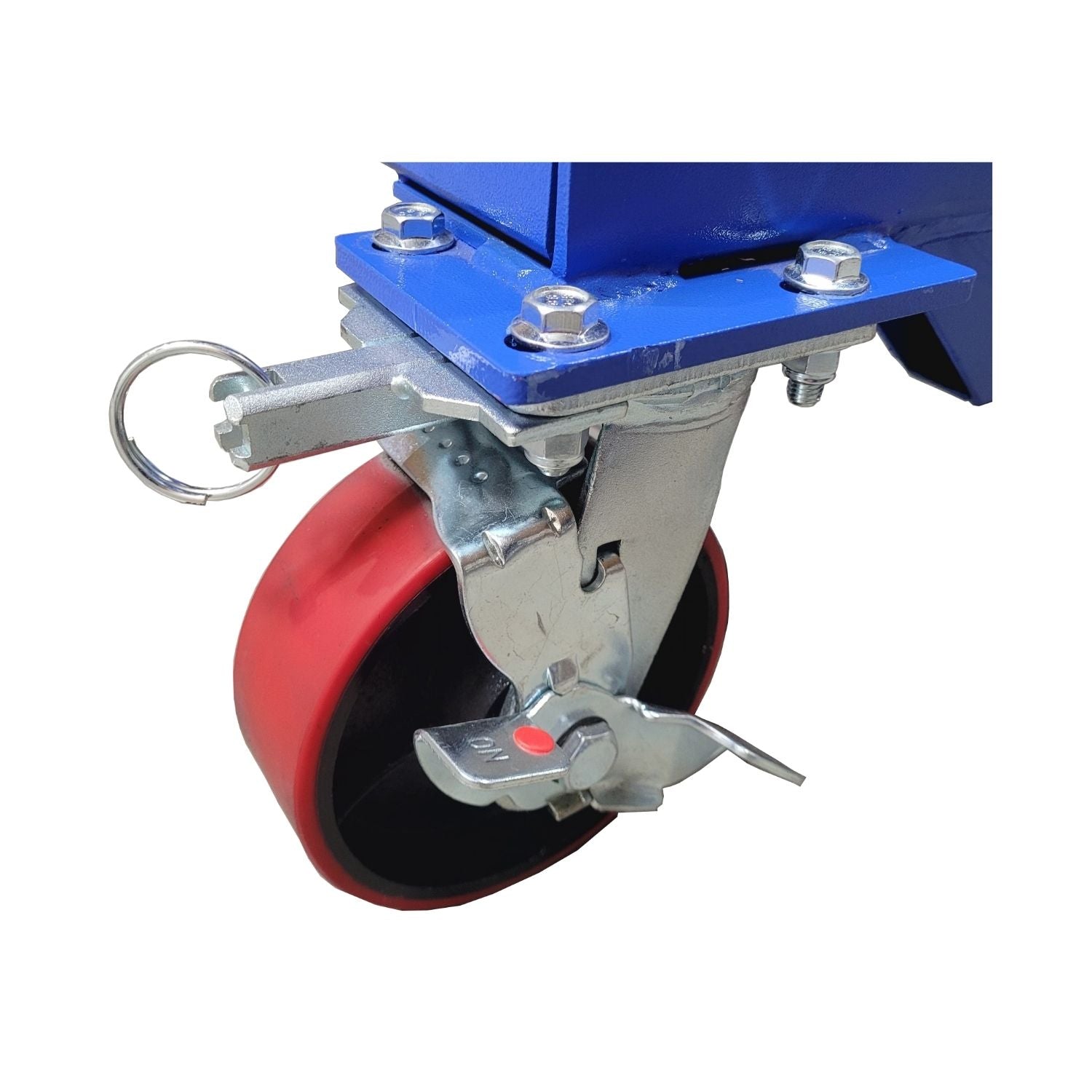

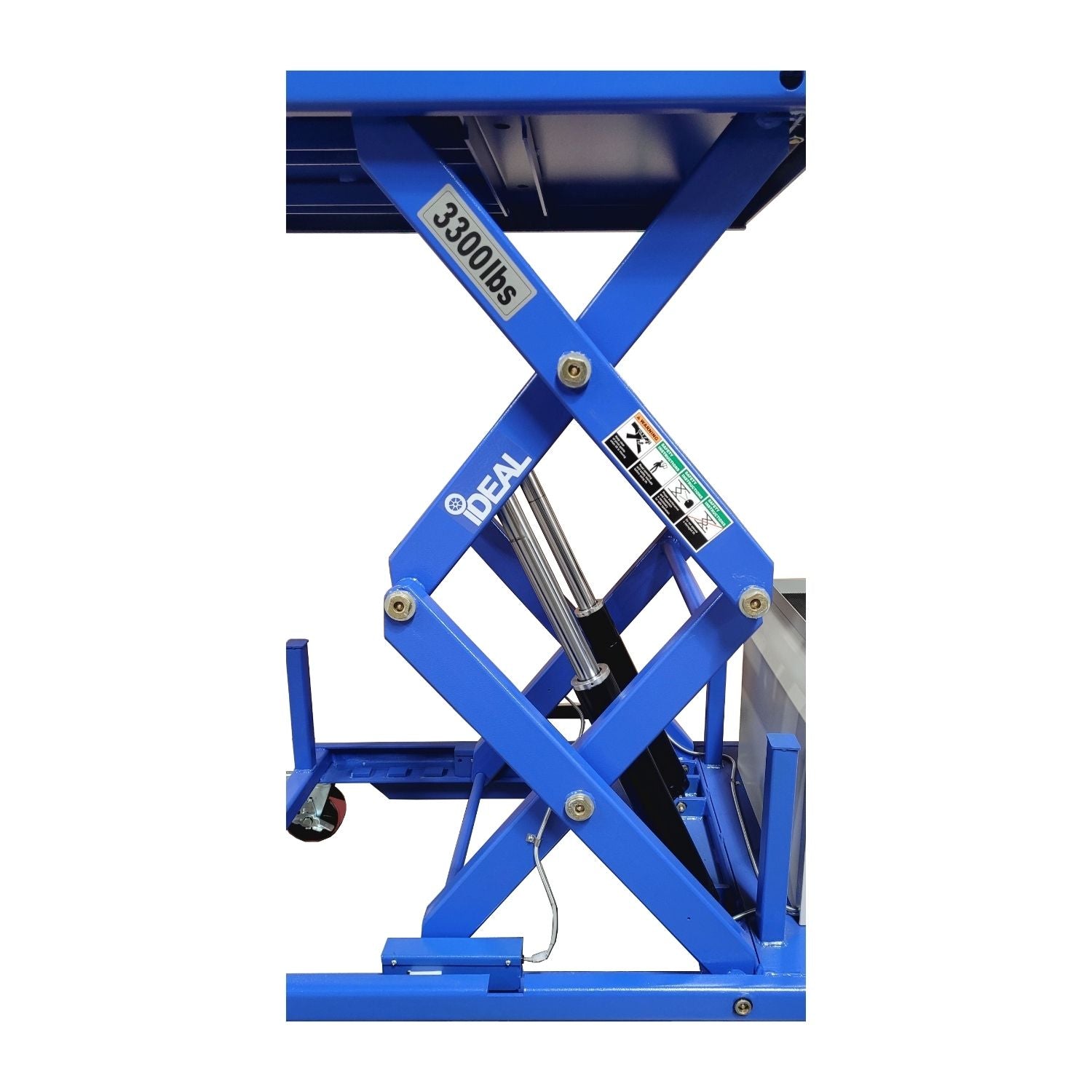

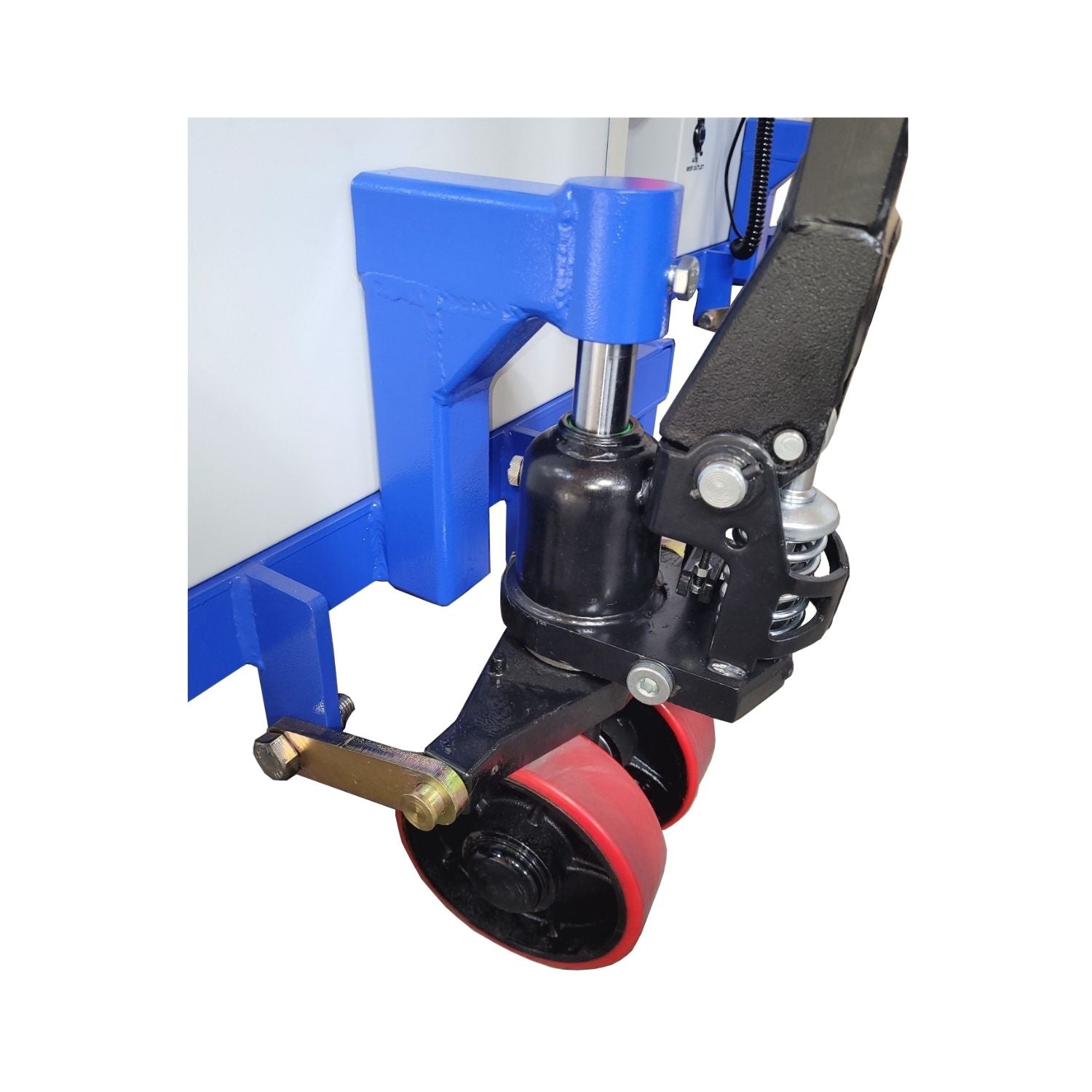

Front locking, directional 6 in poly swivel casters plus an included pallet-jack dolly make this table easy to reposition. It ships with leg support stands, a utility/tool tray, dual hydraulic cylinders, the 12VDC battery, and 4 rubber pads (6.4 x 4 x 1.45 in). An optional 12VDC LED spot light with magnetic base is available separately.
Bay Footprint
Overall footprint is 67.3 in L x 35.4 in W — more compact than the LT-EV2500AH-X. Confirm these dimensions against your bay before ordering — Alamo will walk through the numbers with you.
- ✅ Shops needing higher EV/hybrid component capacity (up to 3,300 lb)
- ✅ Facilities without dedicated shop air at the point of use
- ✅ Multi-bay shops that want to roll the table between service areas
- ❌ Shops on a tighter budget with only lighter EV components to service
- ❌ Continuous multi-shift use without charging the battery between uses
LT-EV3300DC-X vs. iDEAL LT-EV2500AH-X — Which EV Lift Table Is Right for Your Shop?
| Decision Point | LT-EV3300DC-X | LT-EV2500AH-X |
|---|---|---|
| Capacity | 3,300 lb | 2,500 lb |
| Power source | 12VDC battery, no shop air needed | Shop compressed air (90–125 PSI) |
| Rise time | 20s rise / 22s lower (faster) | 72s rise / 33s lower |
| Best fit | Shops wanting higher capacity and cordless operation | Shops with existing shop air, lighter components |
Choose the LT-EV3300DC-X for higher capacity, faster cycle times, and no air line to run. Choose the LT-EV2500AH-X if you already run shop air and your heaviest EV components stay under 2,500 lb. Both are in Alamo's catalog — call (844) 480-6059.
Full Specifications — LT-EV3300DC-X
| Model / Part Number | LT-EV3300DC-X |
| Capacity | 3,300 lb |
| Operation | Remote hand controller plus control-box panel buttons, 12VDC battery electric-hydraulic |
| Power Supply | 110VAC 1.5A 1PH integrated battery charger (included); 12VDC deep-cycle sealed battery (included); 12VDC auxiliary outlet port |
| DC Power Unit | 12VDC 120A, 2.15 HP |
| Max Lift Height | 72.6 in |
| Min Lift Height | 35.4 in |
| Locking Heights | 49 in / 61 in / 68 in (3 positions) |
| EV Platform Size | 59 in L x 31.5 in W, multi-directional sliding, adjustable latch clamps |
| Platform Tilt | 4° to 8° |
| Overall Footprint | 67.3 in L x 35.4 in W |
| Rise / Lower Time | 20s rise / 22s lower |
| Casters | 6 in poly swivel front casters plus pallet-jack dolly |
| Ship Weight | 1,090 lb |

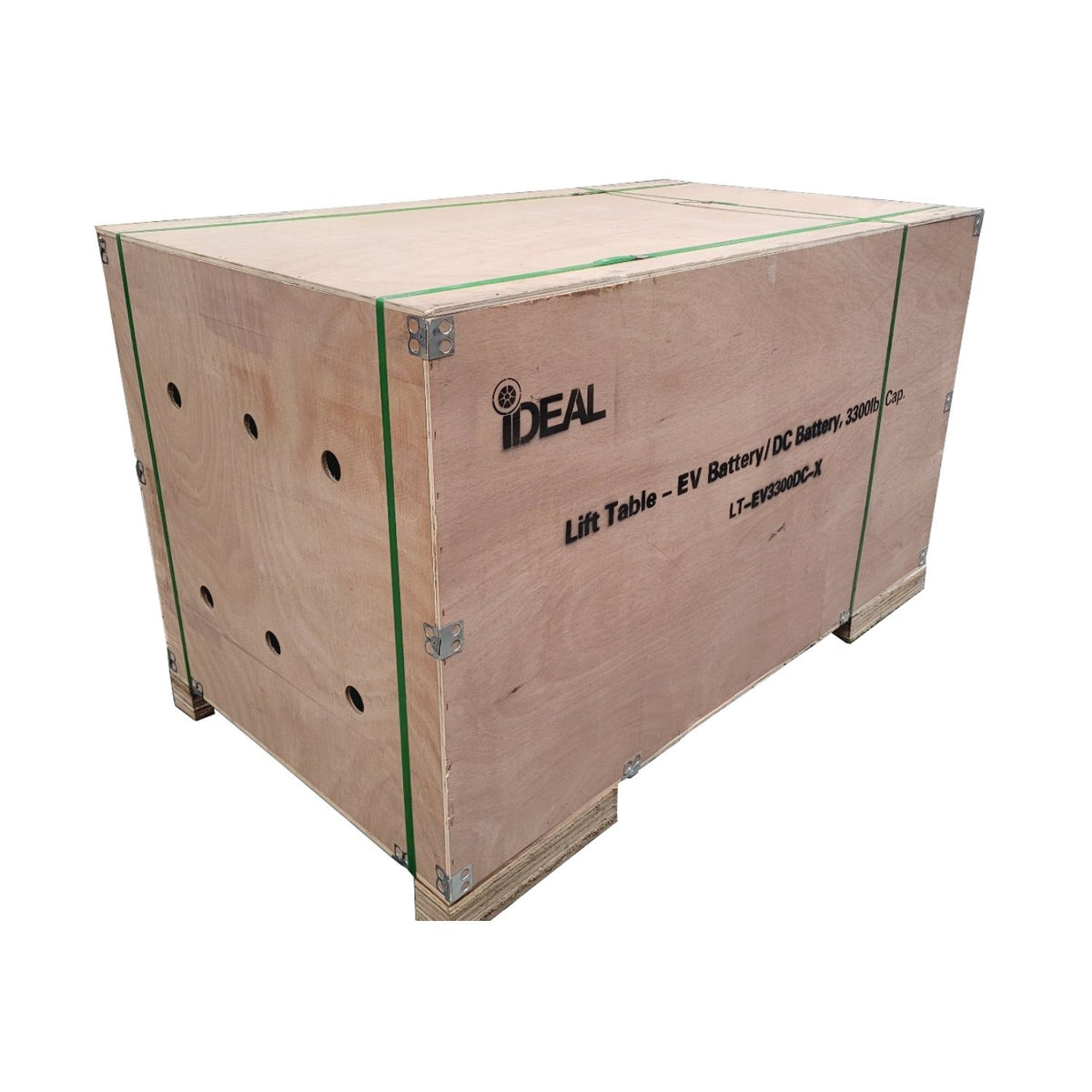

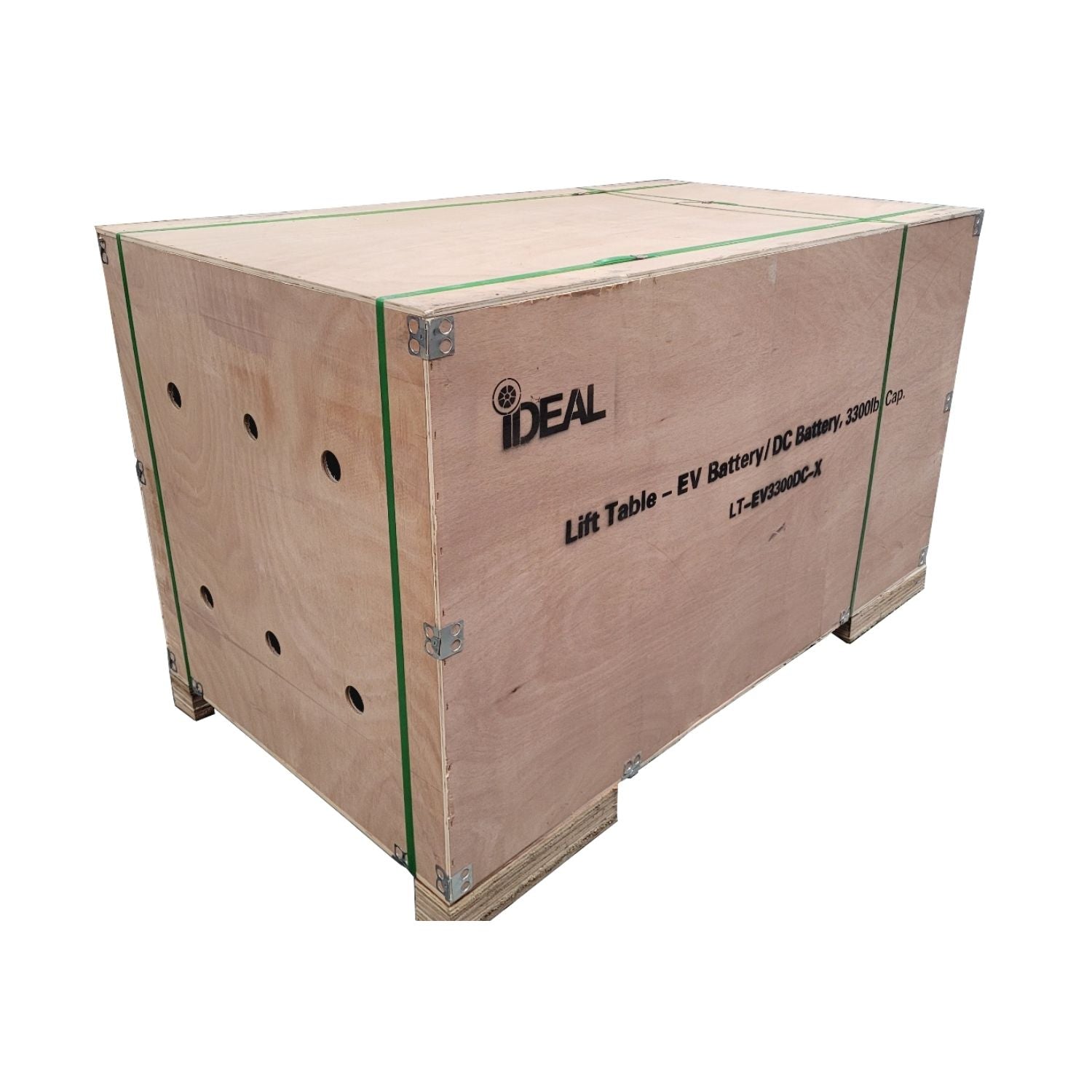

| Crate Dimensions | 65.5 x 37.5 x 40.5 in |
| Includes | Leg support stands, utility/tool tray, dual hydraulic cylinders, 12VDC battery, 4 rubber pads (6.4 x 4 x 1.45 in). Optional 12VDC LED spot light available separately. |
⚠️ Installation Requirements
- Power: Standard 110VAC outlet for the included battery charger (1.5A, 1PH) — no shop air or dedicated 220V circuit required.
- Floor: Level, load-rated shop floor; unit is portable on locking casters plus the included pallet-jack dolly, no anchoring required for standard use.
- Bay footprint: Confirm 67.3" L x 35.4" W clearance; measure before ordering.
- Freight: Ships LTL freight, not included in the item price — call Alamo for a shipping quote to your dock before ordering.
- Installation: Alamo sets up every lift table we sell. Call (844) 480-6059 to schedule.
iDEAL Warranty — LT-EV3300DC-X
iDEAL (Tuxedo Distributors, LLC) backs the LT-EV3300DC-X with its published Limited Warranty — verified from the LT-EV3300DC-X manufacturer manual (manufacturer-PDF source). Coverage is split between a longer structural warranty and a one-year parts warranty on the equipment as a whole.
| Component | Coverage Term |
|---|---|
| Structural components (columns, arms, uprights, swivel pins, legs, carriages, overhead beam, tracks, cross rails, top rail beam) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only, original purchaser, US & Canada |
| Wear items (cables, slider blocks, chains, rubber pads, pulleys) & normal maintenance parts | Not covered |
| Hydraulic cylinder replacement after first 30 days | Not covered as a free replacement — iDEAL ships a seal kit + repair instructions instead |
| On-site labor | Not covered; purchaser pays all shipping charges on warranty parts |
Warranty is void if the LT-EV3300DC-X is improperly installed or altered, or not operated/maintained per iDEAL's specifications. Warranty service is coordinated through Alamo Equipment & Service — when you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
❓ Frequently Asked Questions — LT-EV3300DC-X
Does the LT-EV3300DC-X price include shipping?
No. This is a heavy LTL freight item and the listed price does not include shipping. Call Alamo at (844) 480-6059 for an LTL shipping quote to your location before you order.
Does the LT-EV3300DC-X need shop air or a special electrical circuit?
No. It runs on a 12VDC deep-cycle battery, recharged through an included charger from a standard 110VAC outlet. No compressed air line or dedicated 220V circuit is needed.
Can I move the table between bays?
Yes — it rolls on 6 in front poly swivel casters and includes a pallet-jack dolly for repositioning around the shop.
How is this different from the LT-EV2500AH-X?
The LT-EV3300DC-X runs on a 12VDC battery (no shop air needed) and lifts up to 3,300 lb with faster cycle times. The LT-EV2500AH-X runs on shop air and lifts up to 2,500 lb.
Why Buy the LT-EV3300DC-X from Alamo Equipment & Service?
- We handle the freight. This is an LTL-shipped item — the listed price does not include freight. Call (844) 480-6059 for a shipping quote to your dock before you order.
- We set it up. Alamo can get the LT-EV3300DC-X into your bay and running — one number, one invoice.
- We service it. Questions after delivery? Call (844) 480-6059 — not a manufacturer hotline.
- We size it with you. Not sure if the LT-EV3300DC-X (3,300 lb, 67.3" x 35.4" footprint) fits your bay and power setup? Call and we'll walk through it.
- Expert comparison help. Not sure if the LT-EV3300DC-X or the LT-EV2500AH-X is the right fit? Call (844) 480-6059 — we'll give you a straight answer.
A shop buying from a pure e-commerce retailer gets a box and a freight bill surprise. A shop buying from Alamo gets a partner who tells you the freight cost up front.
Shipping is quoted by destination before payment. Select your product options and request a freight quote above. We will confirm the freight method and total before sending a payment link.
