iDEAL FP14KAC-X Alignment Lift, RAJ-7K-H #CK-FP14KACX-IWA-60-2000T-K
| Combo Part Number | CK-FP14KACX-IWA-60-2000T-K |
| System Type | 4-Post Alignment Lift + 3D Wheel Aligner + Rolling Air Jack |
| Lift Model | FP14KAC-X |
| Lift Capacity | 14,000 lb |
| Wheel Aligner | IWA-60-2000T-K 3D iPRO Imaging Wheel Aligner |
| Rolling Air Jack | RAJ-7K-H, 7,000 lb Capacity |
| Max 4-Wheel Alignment Wheelbase | 157" |
| Max 2-Wheel Alignment Wheelbase | 166.7" |
| Max Service Wheelbase | 182.5" |
| Maximum Lift Rise | 79.5" |
| Runway Width | 20" |
| Alignment Accuracy | Up to 0.01° |
| Wheel Clamp Range | 12" to 24" |
| Lift Power | 220V / 20A / 1 Phase |
| Aligner Power | 120V / 15A / 1 Phase |
| Listed Combo Ship Weight | 3,891 lb |
- Level, structurally suitable shop floor
- Follow Tuxedo's current anchoring and installation requirements
- Allow adequate clearance around the lift and alignment equipment
- Indoor installation recommended
- Lift: 220V / 20A / single phase
- Aligner: 120V / 15A / single phase
- Compressed air required for pneumatic lock release and rolling air jack
- Have a qualified electrician complete permanent electrical connections
- Plan adequate bay length for vehicles up to the 182.5" service wheelbase
- Allow working room around the aligner cabinet and lift
- Plan an accessible delivery path for heavy LTL freight
- Confirm unloading equipment and delivery requirements before shipment
iDEAL 14,000 lb Alignment Lift & 3D Wheel Aligner Combo #CK-FP14KACX-IWA-60-2000T-K

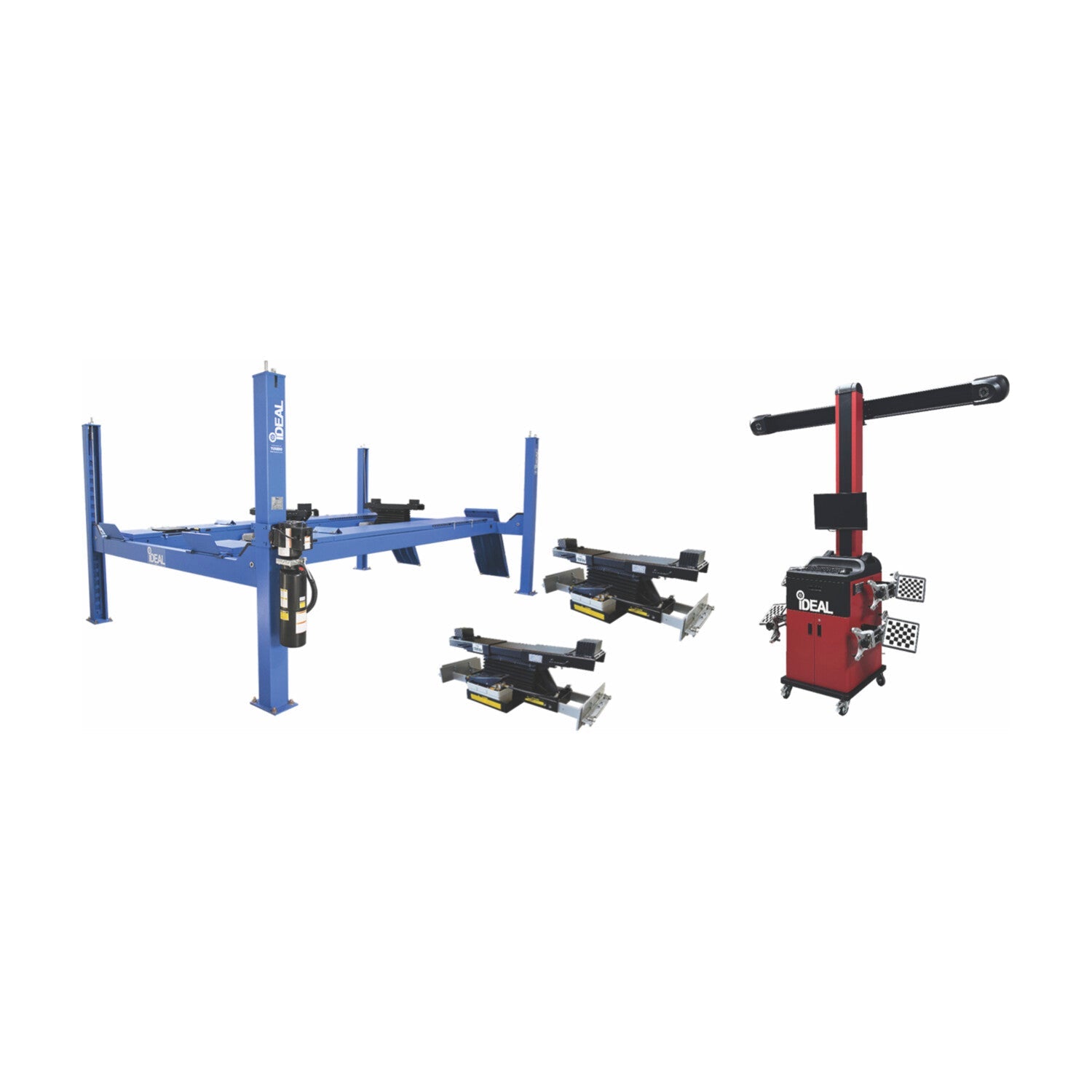

The iDEAL CK-FP14KACX-IWA-60-2000T-K combines the FP14KAC-X 14,000 lb 4-post alignment lift, IWA-60-2000T-K 3D iPRO imaging wheel aligner, and RAJ-7K-H 7,000 lb rolling air jack into a professional alignment package for automotive service facilities.
The FP14KAC-X provides a maximum 4-wheel alignment wheelbase of 157", a 2-wheel alignment wheelbase up to 166.7", and a maximum service wheelbase of 182.5". Its 20" runways, full-width rear slip plates, front turntable positions, and 18 locking heights provide the flexibility needed for cars, SUVs, light trucks, and other compatible vehicles.
The IWA-60-2000T-K uses 3D imaging technology with wide-scope cameras and magnesium targets to provide alignment measurements with accuracy up to 0.01°. A mobile cabinet and wide working-height range allow the aligner to be positioned for efficient use in a professional alignment bay.
Who It's Built For
- Professional automotive alignment and repair shops
- Dealership service departments
- Fleet maintenance facilities
- Shops servicing passenger cars, SUVs, and light trucks
- Facilities that want a lift, wheel aligner, and rolling jack packaged together
Delivered Pricing: Freight within the contiguous 48 states is included in the advertised price. Additional charges apply for Alaska and Hawaii.
Product Features
FP14KAC-X 14,000 lb Alignment Lift
- 14,000 lb commercial alignment-lift capacity
- 79.5" extended rise height
- 18 locking height positions
- 20" wide runways
- Full-width rear wheel slip plates
- Front turntable positions with spacer covers
- Narrow and wide runway mounting positions
- Single-point pneumatic safety-lock release
- Adjustable lock stops for runway leveling
- Slack-cable safety devices
- Self-chocking approach ramps with nylon rollers
- Internal airline kit
IWA-60-2000T-K 3D iPRO Wheel Aligner
- 3D imaging alignment technology
- Alignment accuracy up to 0.01°
- Wide-scope camera technology for an expanded working-height range
- Four self-centering adjustable wheel clamps
- 12" to 24" wheel-clamp range
- Lightweight magnesium targets
- 21.5" widescreen LCD monitor
- Real-time alignment measurements
- 2D and 3D alignment graphics
- Integrated vehicle specifications and adjustment information
- Mobile cabinet for flexible bay placement
RAJ-7K-H Rolling Air Jack
- 7,000 lb lifting capacity
- High-mount configuration for compatible jack rails
- Air/hydraulic operation
- Telescoping locking support arms
- Dual spring-loaded roller assemblies
- Two locking height positions
- Rubber height adapters
Full Specifications
| Combo Part Number | CK-FP14KACX-IWA-60-2000T-K |
| Lift Model | FP14KAC-X |
| Lift Capacity | 14,000 lb |
| Maximum Rise | 79.5" |
| Max 4-Wheel Alignment Wheelbase | 157" |
| Max 2-Wheel Alignment Wheelbase | 166.7" |
| Maximum Service Wheelbase | 182.5" |
| Runway Width | 20" |
| Locking Positions | 18 |
| Lift Electrical Requirement | 220V / 20A / 1 Phase |
| Wheel Aligner Model | IWA-60-2000T-K |
| Aligner Technology | 3D iPRO Imaging |
| Alignment Accuracy | Up to 0.01° |
| Wheel Clamp Range | 12" to 24" |
| Display | 21.5" Widescreen LCD |
| Aligner Electrical Requirement | 120V / 15A / 1 Phase |
| Rolling Jack Model | RAJ-7K-H |
| Rolling Jack Capacity | 7,000 lb |
| Rolling Jack Operation | Air / Hydraulic |
| Listed Combo Ship Weight | 3,891 lb |
⚠ Installation Requirements
- Electrical: Plan for 220V / 20A single-phase service for the lift and 120V / 15A single-phase service for the aligner.
- Air: Shop compressed air is required for the lift's pneumatic functions and rolling air jack.
- Floor: Install only on a suitable level concrete floor in accordance with the current Tuxedo installation manual.
- Delivery: Heavy LTL freight. Confirm unloading equipment, bay access, and delivery requirements before shipment.
- Assistance: Call Alamo at (817) 865-3707 before ordering if you need help reviewing your site.
Warranty Information
This equipment is covered by Tuxedo/iDEAL's applicable limited manufacturer warranty. Warranty coverage can vary by component, so refer to the current warranty documentation supplied with the FP14KAC-X, IWA-60-2000T-K, and RAJ-7K-H for complete terms, exclusions, and claim requirements.
For warranty or service assistance, call Alamo Equipment & Service at (817) 865-3707.
