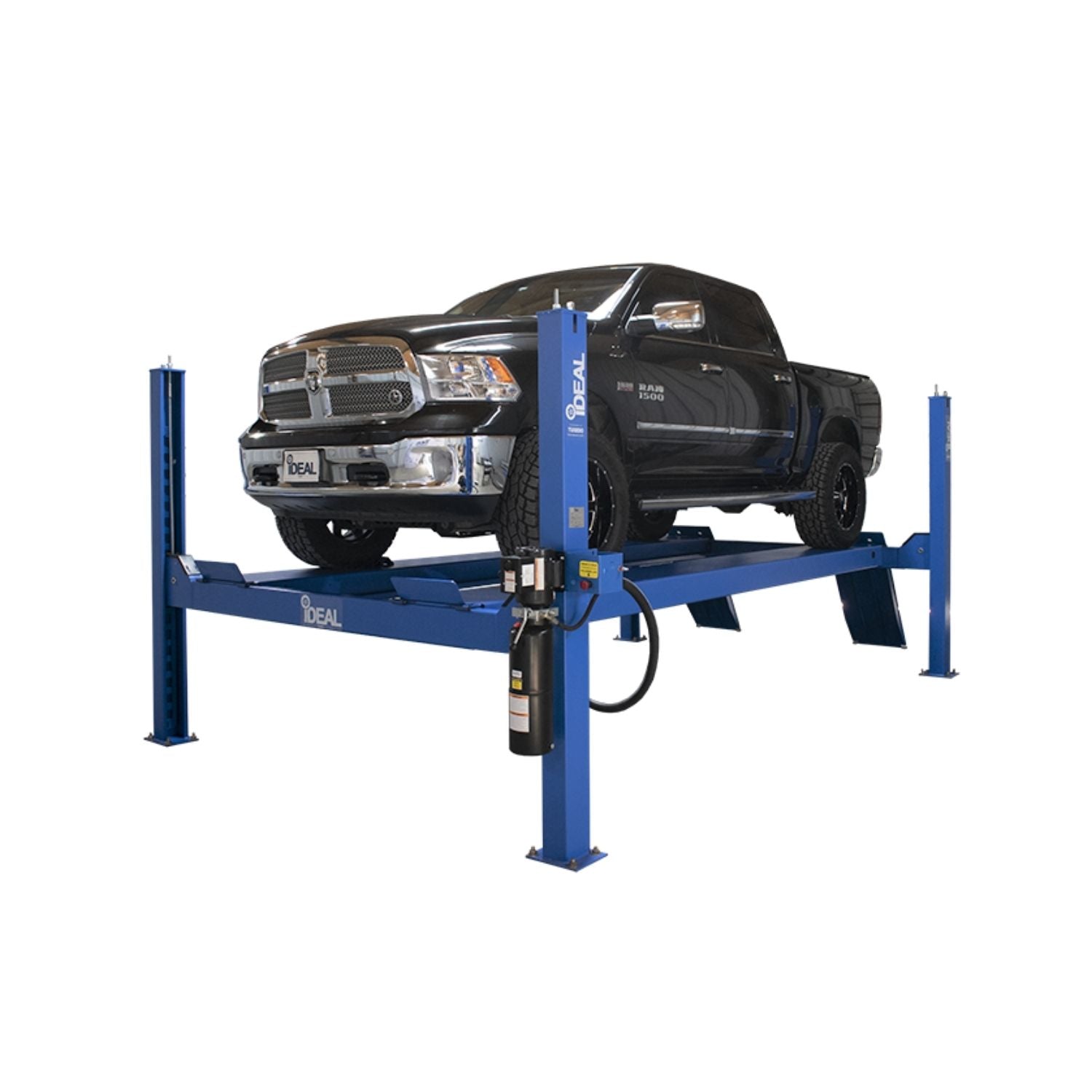

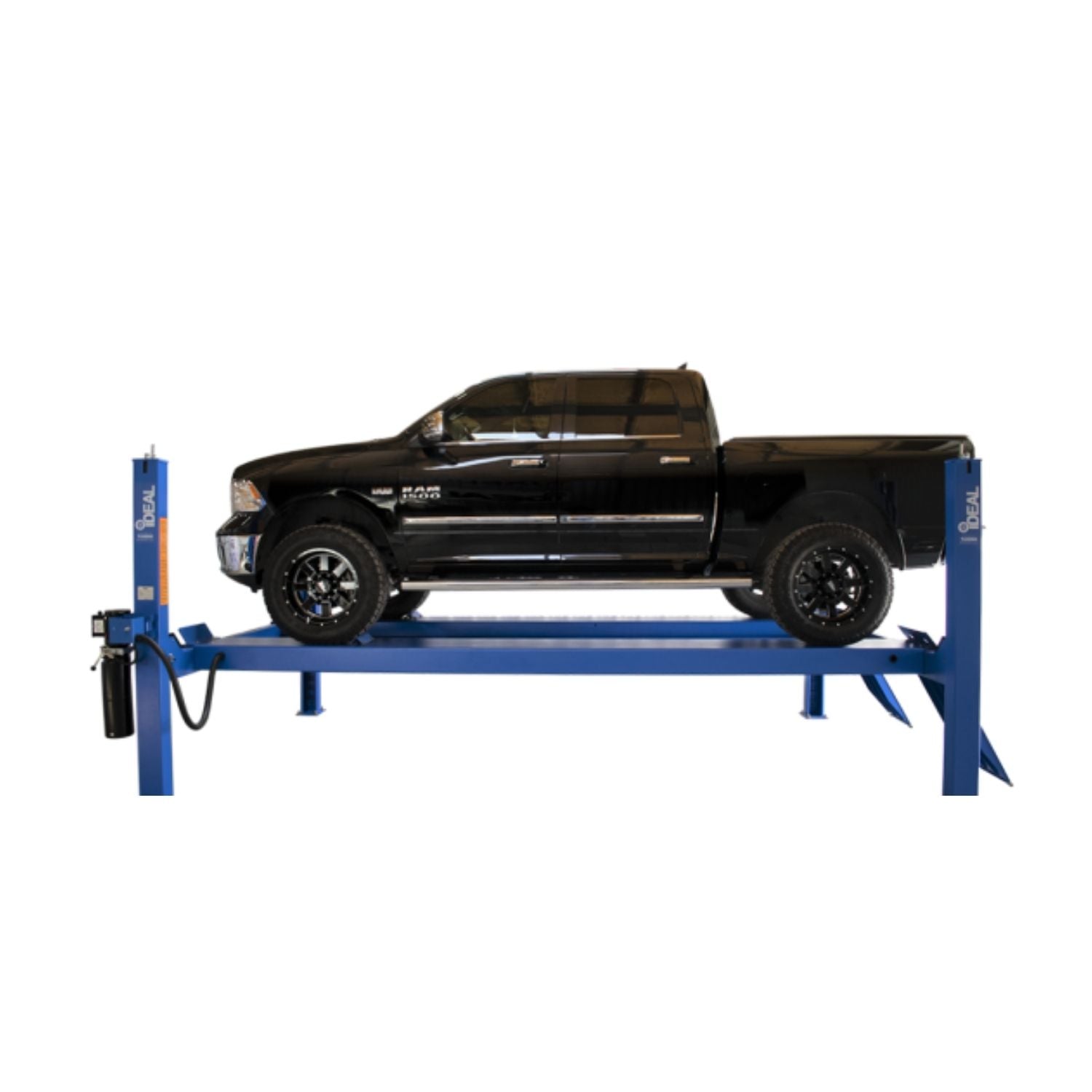

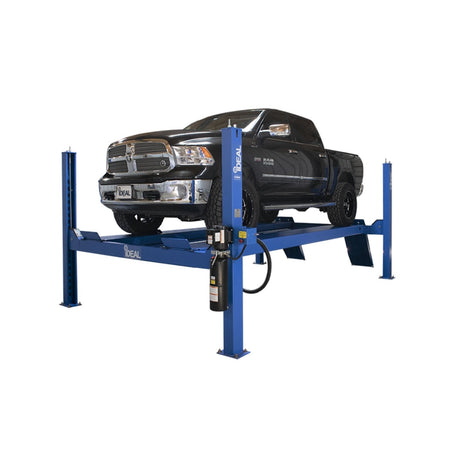

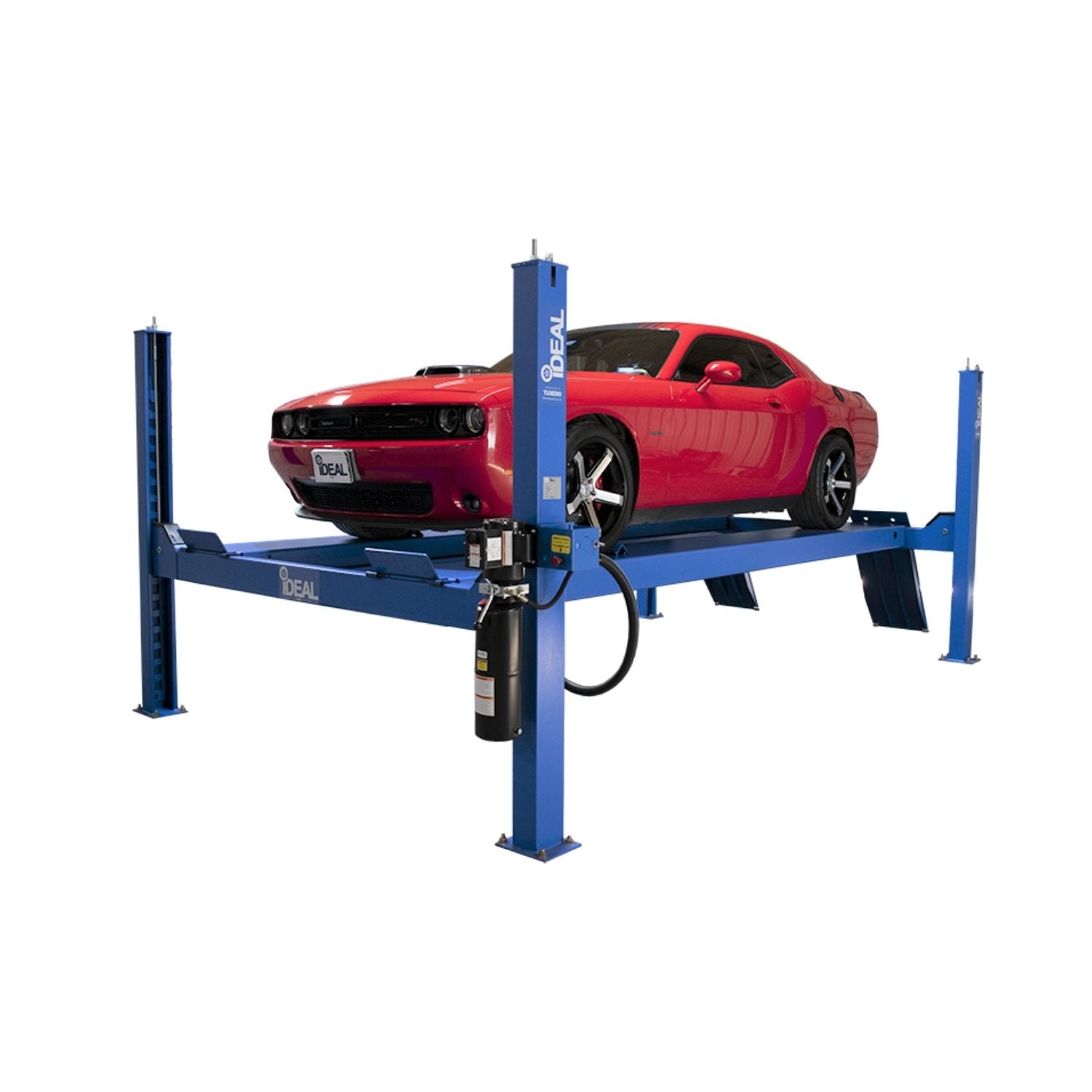

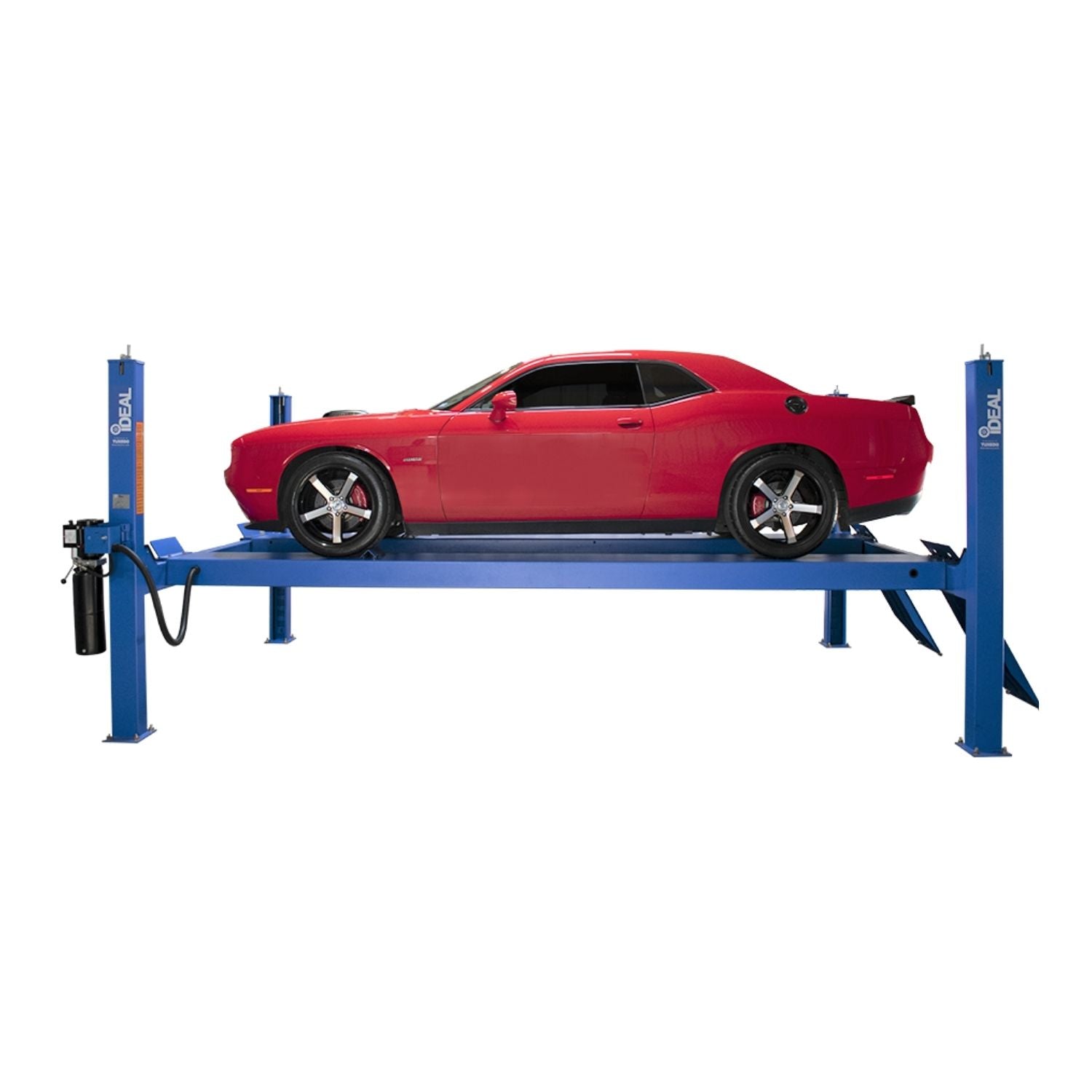

iDEAL 14K 4-Post Service Lift 182.5" #FP14KC-X
| Model / Part Number | FP14KC-X |
| Capacity | 14,000 lb |
| Lift Type | 4-post commercial service lift, closed front, cable-driven |
| Max Wheelbase | 182.5 in |
| Locking Height Positions | 18 |
| Overall Length | 208 in |
| Overall Width | 123 in |
| Lifting Height | 67 in |
| Ship Weight | 2,740 lb |
- Level, load-rated concrete floor rated for a 2,740 lb lift plus vehicle load
- Confirm slab thickness and anchoring requirements with the installation manual
- Indoor use; verify ceiling clearance for a 67 in lifting height
- Confirm required electrical service for the lift's drive motor before install
- Have a qualified electrician run the circuit if needed
- Confirm 208 in L x 123 in W overall footprint fits your bay
- Allow clearance for the self-chocking approach ramps at both ends
- Ships via LTL freight, crated

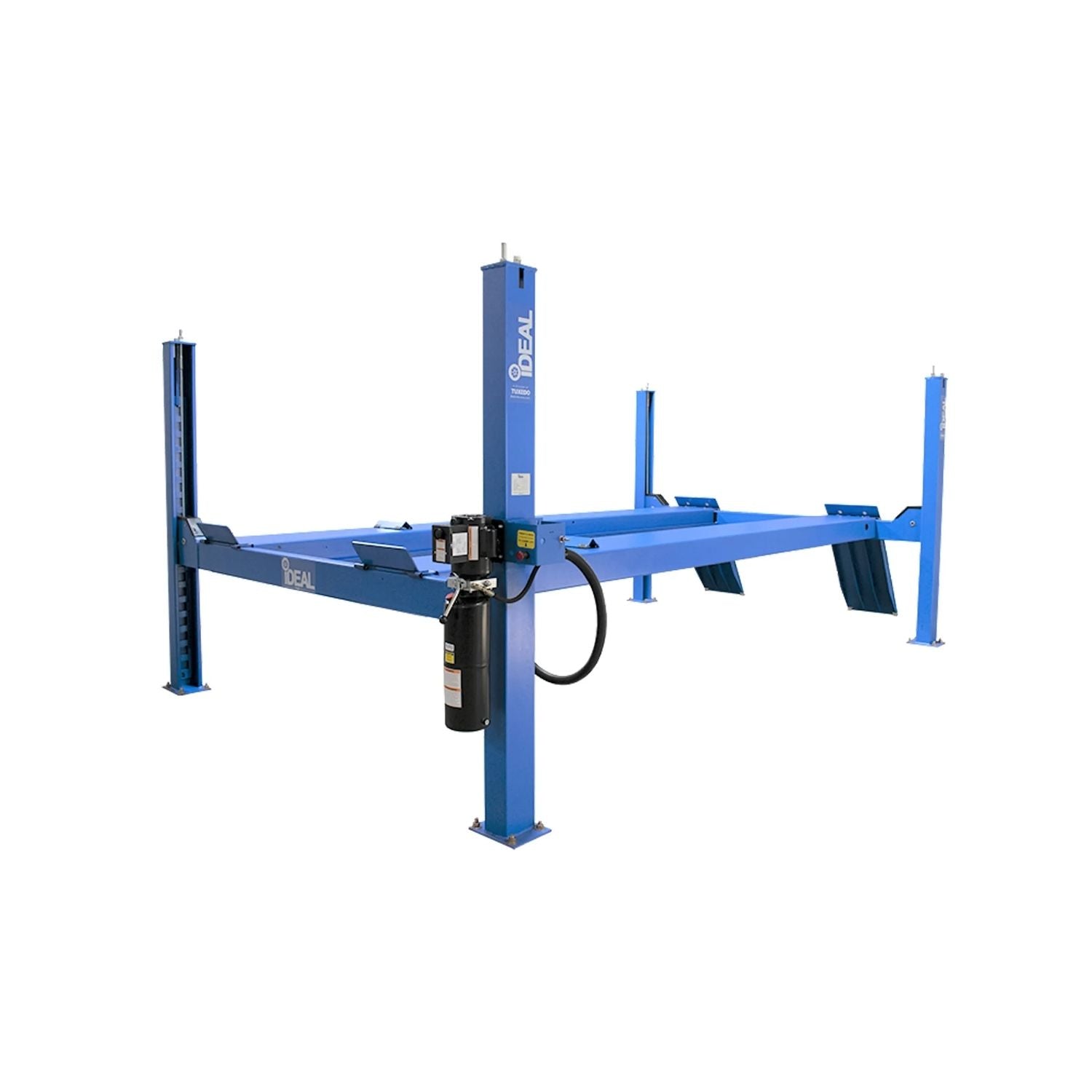

iDEAL 14K 4-Post Service Lift — FP14KC-X
The FP14KC-X is a 14,000 lb capacity, closed-front, commercial 4-post service lift built for general vehicle service and storage/parking applications. It's a chain-driven, high-performance lift with an 182.5 in maximum wheelbase, an overall footprint of 208 in L x 123 in W, and a lifting height of 67 in across 18 locking height positions.
A single-point manual lock release simplifies lowering the lift, and the durable powder-coat finish is built for daily shop use. Unlike the FP14KAC-X, the FP14KC-X does not include a runway alignment kit — it's built as a straightforward, capable service and storage lift for shops that don't need on-lift alignment capability.
It's built for general repair shops, dealership service departments, and storage/parking facilities that need a heavy-duty 4-post lift for routine service, undercarriage work, or vehicle storage without paying for alignment features they won't use.
Who It's Built For
- ✅ General repair shops and dealership service departments needing a 14,000 lb 4-post service lift
- ✅ Storage and parking facilities needing raised vehicle storage capacity
- ✅ Shops that don't need on-lift alignment capability
What It's NOT Built For
- ❌ Vehicles longer than the 182.5 in max wheelbase
- ❌ Shops needing on-lift alignment capability — see the FP14KAC-X with its bolt-on alignment kit instead
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.

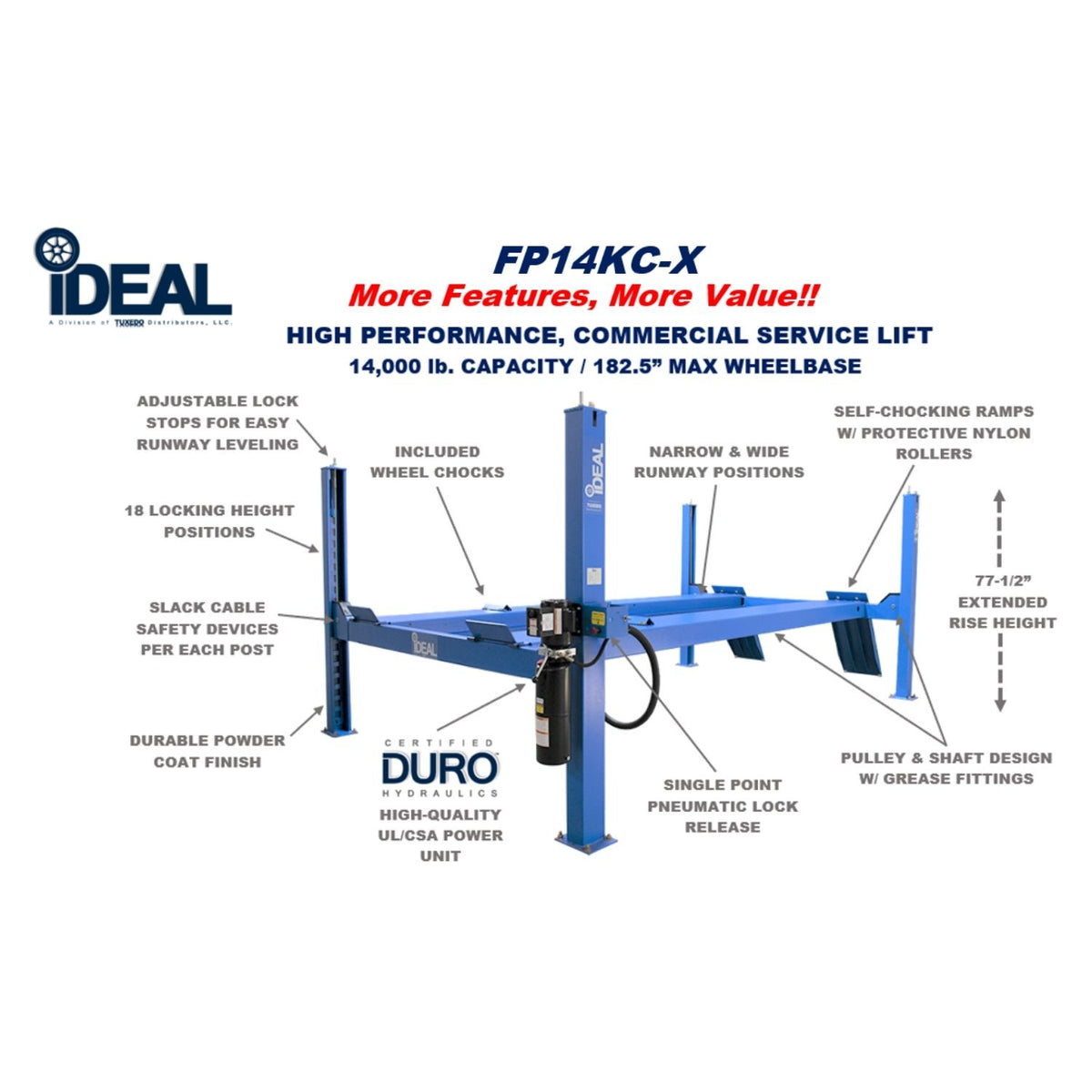

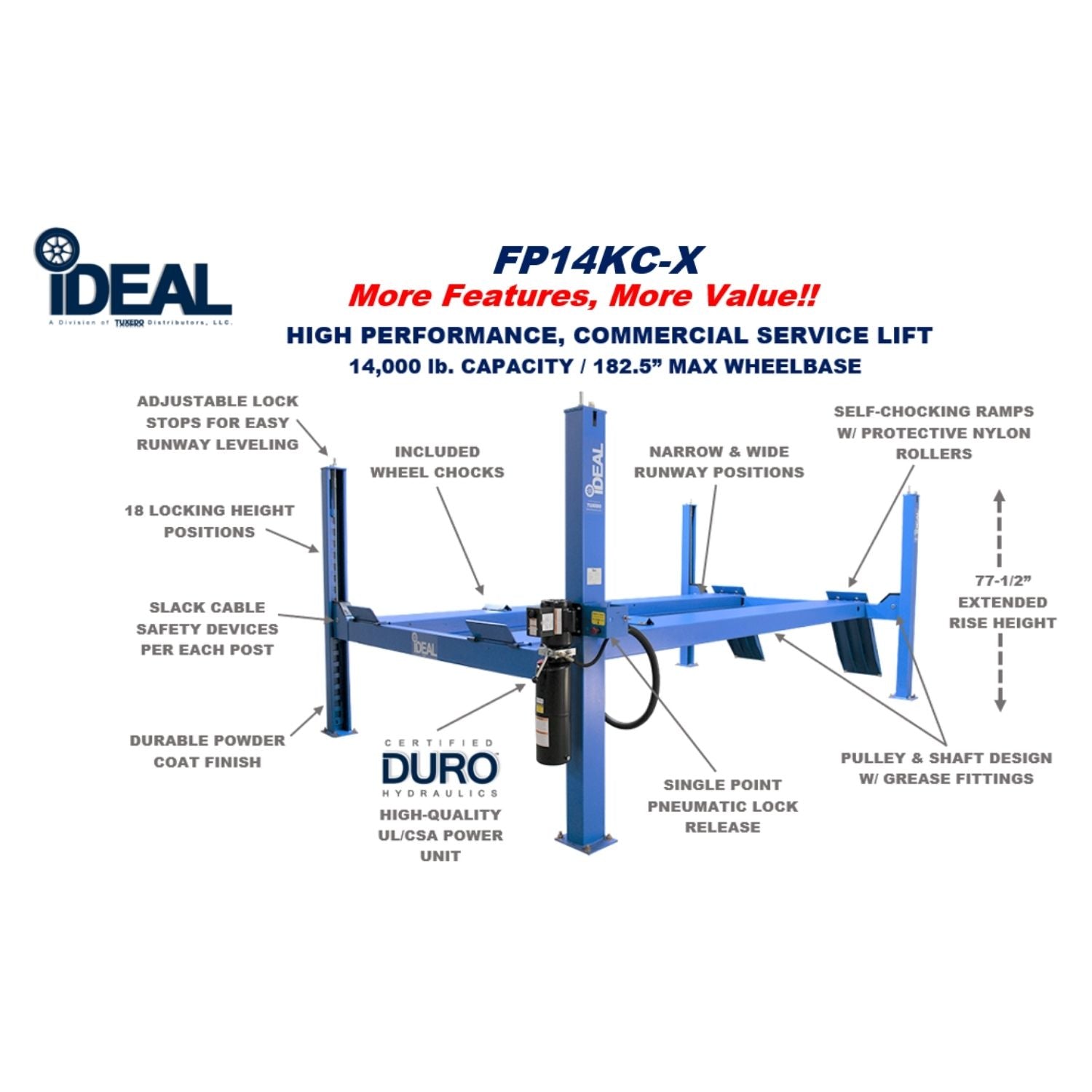

What Makes the FP14KC-X Different
14,000 lb Rated Capacity
The FP14KC-X is rated for 14,000 lb, sized for cars, SUVs, vans, and light-duty trucks up to a 182.5 in wheelbase.
Chain-Driven Lift Mechanism
A chain-driven lift mechanism provides 18 locking height positions up to a 67 in lifting height.
Single-Point Manual Lock Release
A single-point manual lock release simplifies lowering the lift from any locking position.
Footprint & Configuration
Overall footprint is 208 in L x 123 in W — closed-front design for service and storage/parking applications.
Finish
Durable powder-coat finish built for daily shop use.
✅ Best For
- ✅ Shops needing a 14,000 lb 4-post lift for general service or storage
- ✅ Facilities that don't need on-lift alignment capability
- ✅ Dealership service departments and repair shops running routine undercarriage work
❌ Not Ideal For
- ❌ Vehicles exceeding the 182.5 in max wheelbase
- ❌ Shops running alignment jobs — see the FP14KAC-X instead
FP14KC-X vs. iDEAL FP14KAC-X — Service-Only or Alignment 4-Post Lift?
| Decision Point | FP14KC-X | FP14KAC-X |
| Capacity | 14,000 lb | 14,000 lb |
| Alignment capability | Service lift only, no alignment kit | Bolt-on runway alignment kit included |
| Ship weight | 2,740 lb | 3,891 lb |
| Best fit | Shops needing service/storage lift only | Shops running alignment work |
Choose the FP14KC-X if you only need a general-service 4-post lift. Choose the FP14KAC-X if you need alignment capability built in. Call (817) 865-3707 — we'll help you pick.

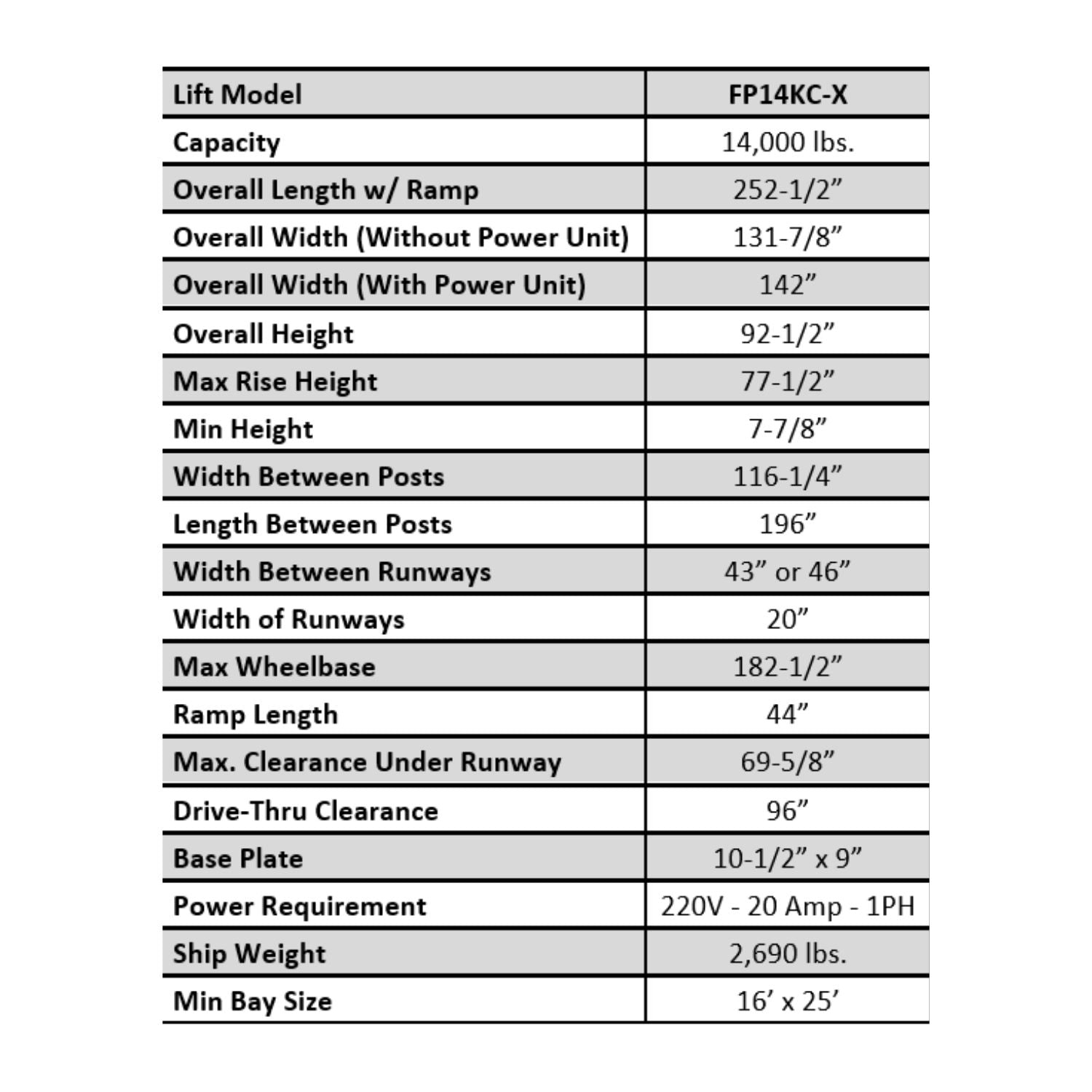

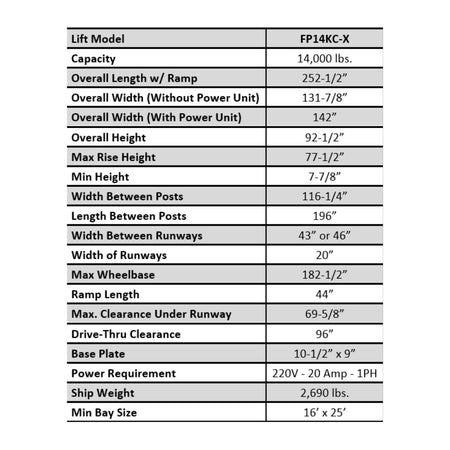

Full Specifications — FP14KC-X
| Model / Part Number | FP14KC-X |
| Capacity | 14,000 lb |
| Lift Type | 4-post commercial service lift, closed front |
| Lift Mechanism | Chain-driven, 18 locking height positions |
| Max Wheelbase | 182.5 in |
| Overall Length | 208 in |
| Overall Width | 123 in |
| Lifting Height | 67 in |
| Lock Release | Single-point manual lock release |
| Finish | Durable powder coat |
| Ship Weight | 2,740 lb |
⚠️ Installation Requirements
- Floor: Level, load-rated concrete floor; follow the manufacturer's anchoring specs for a 2,740 lb lift plus vehicle load.
- Bay footprint: Confirm 208 in L x 123 in W clearance for your bay.
- Power: Confirm required electrical service for the drive motor before install.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate setup.
iDEAL Warranty — FP14KC-X
The FP14KC-X carries iDEAL's (Tuxedo Distributors, LLC) published Limited Warranty for its Lifts and Wheel Service equipment line.
| Component | Coverage Term |
|---|---|
| Structural components (columns, arms, uprights, swivel pins, legs, carriages, overhead beam, tracks, cross rails, top rail beam) | 5 years |
| All other parts (materials/workmanship, normal use, original purchase) | 1 year, parts only (purchaser covers shipping) |
| Normal maintenance parts & wear items (cables, slider blocks, chains, rubber pads, pulleys) | Not covered |
| Lift/tire-changer cylinder replacement after first 30 days | Not covered as free replacement — seal kit provided instead |
| On-site labor | Not covered |
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — FP14KC-X
Does the FP14KC-X price include shipping?
Yes. The advertised price includes delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
Does the FP14KC-X include an alignment kit?
No — the FP14KC-X is a service-only lift. See the FP14KAC-X if you need on-lift alignment capability.
What's the largest vehicle this lift can service?
Up to a 182.5 in wheelbase, within the 14,000 lb rated capacity.
How is the lift raised and lowered?
It's chain-driven with 18 locking height positions and a single-point manual lock release for lowering.
