Tuxedo Frame Rack, Scissor, 1P10T-5.5K #FR-55
| Model / Part Number | FR-55 |
| Type | Scissor Frame Rack Machine |
| Lifting Capacity | 5,500 lb |
| Deck Length x Width | 173.25" x 37" |
| Deck Height Range | 4.75" – 63" |
| Pull Force Per Tower | 10 Ton |
| Power | 220VAC, 20A, 1PH |
| Ship Weight | 3,105 lb |
- Flat, good-quality concrete floor required
- Installation area of approximately 163 in x 115-3/4 in
- Indoor use
- 220VAC, 20A, single-phase dedicated circuit
- 100–120 PSI compressed air supply required for the air/hydraulic pump
- Confirm 173.25 in deck length and 37 in deck width clearance, plus pulling tower swing radius
- Ships via LTL freight, crated
Tuxedo FR-55 — Scissor Frame Rack Machine, 5,500 lb Capacity

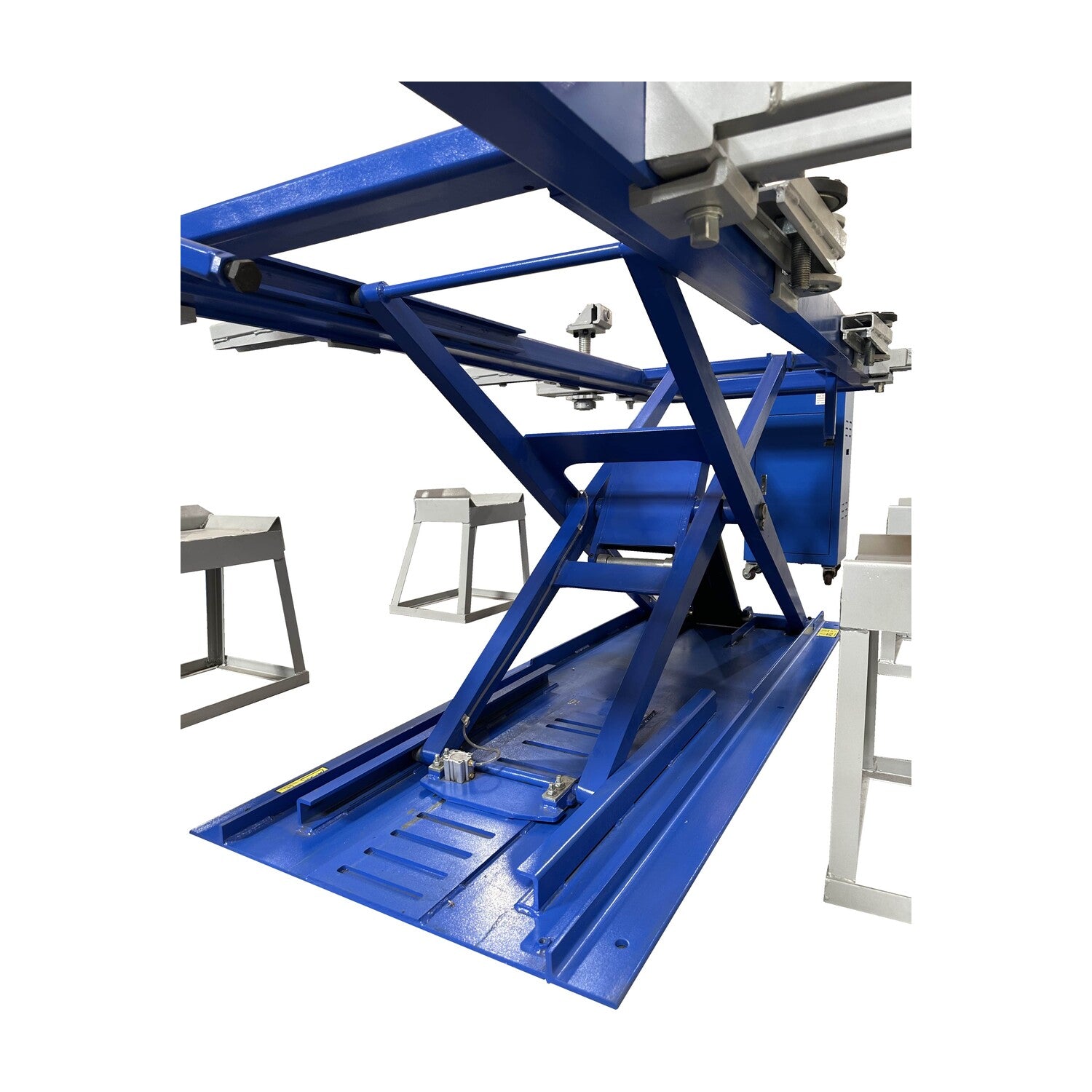

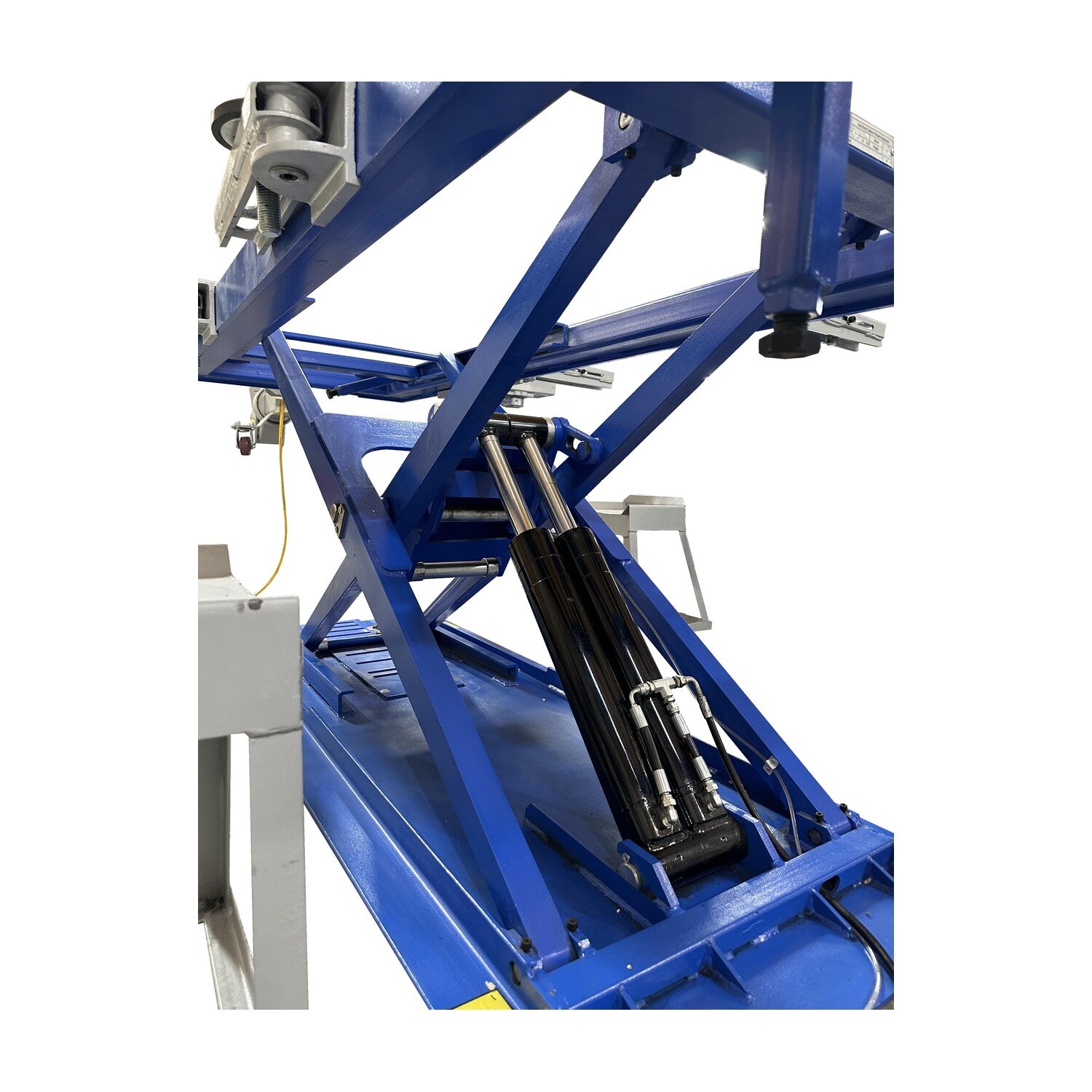

The Tuxedo FR-55 is a scissor-style frame rack and collision-repair bench rated for 5,500 lb, combining the versatility of an automotive lift with frame-straightening capability for full-frame and unibody vehicles. The scissor lifting system raises the 173.25 in x 37 in deck from 4.75 in to a full 63 in working height, and vehicles can be driven directly onto the platform without ramps.

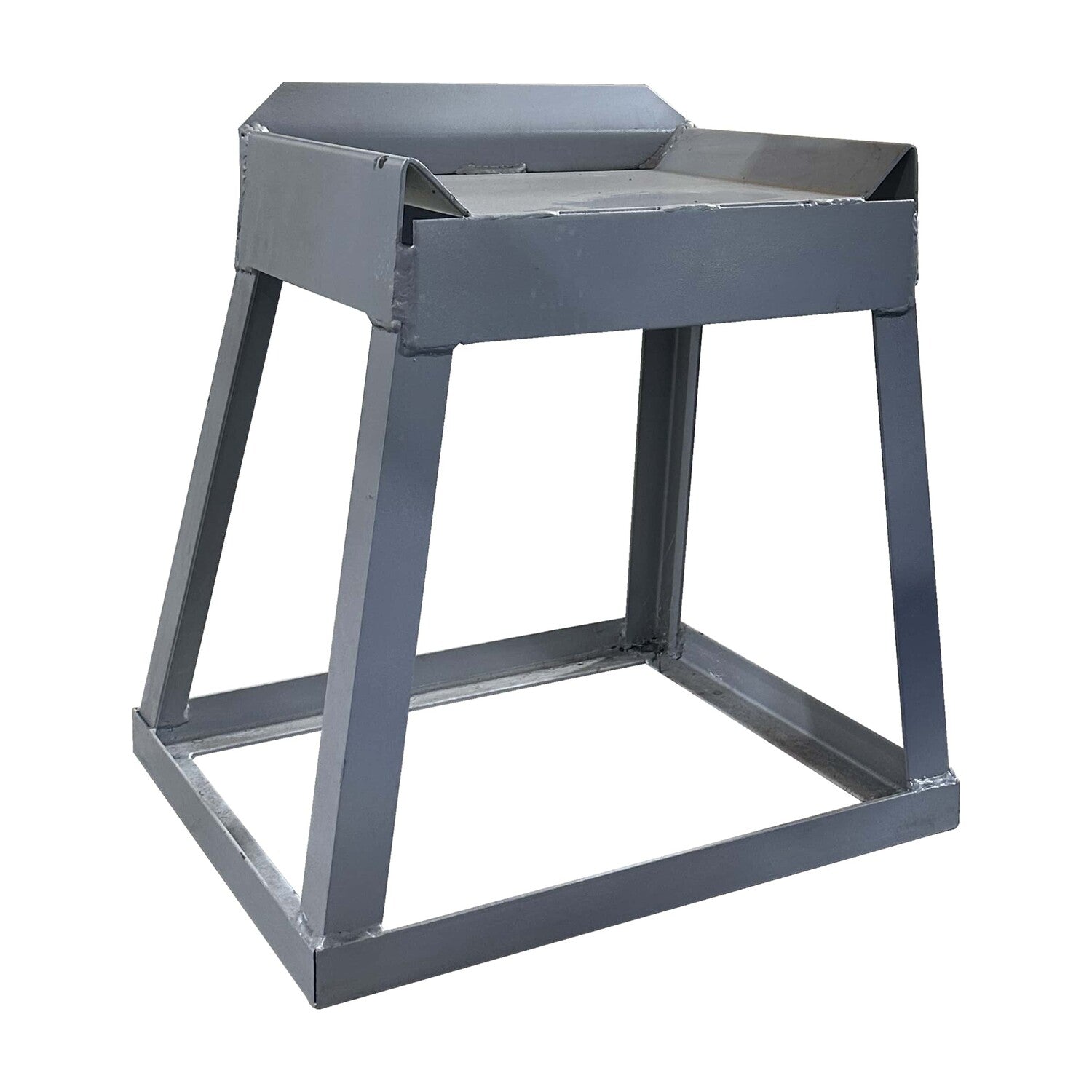

It ships with one 10-ton pulling tower with a down-pull roller, one 10-ft pulling chain with hook, quick-disconnect hydraulic fittings, a universal anchoring system with adjustable-height pinch-weld assemblies, universal wheel stands, and a high-quality air/hydraulic pump with pressure gauge. The finish is powder coated.
Who It's Built For
- ✅ Collision repair shops needing a combined lift + frame-straightening bench in one machine
- ✅ Shops servicing full-frame and unibody vehicles up to 5,500 lb

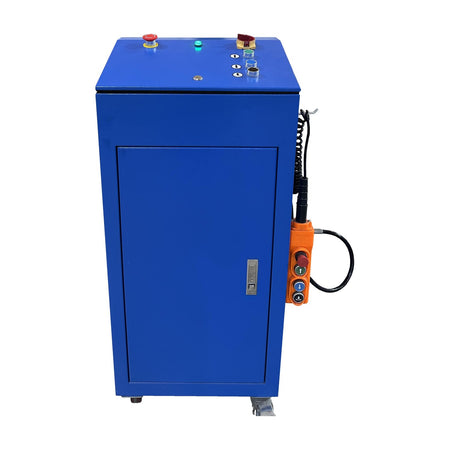

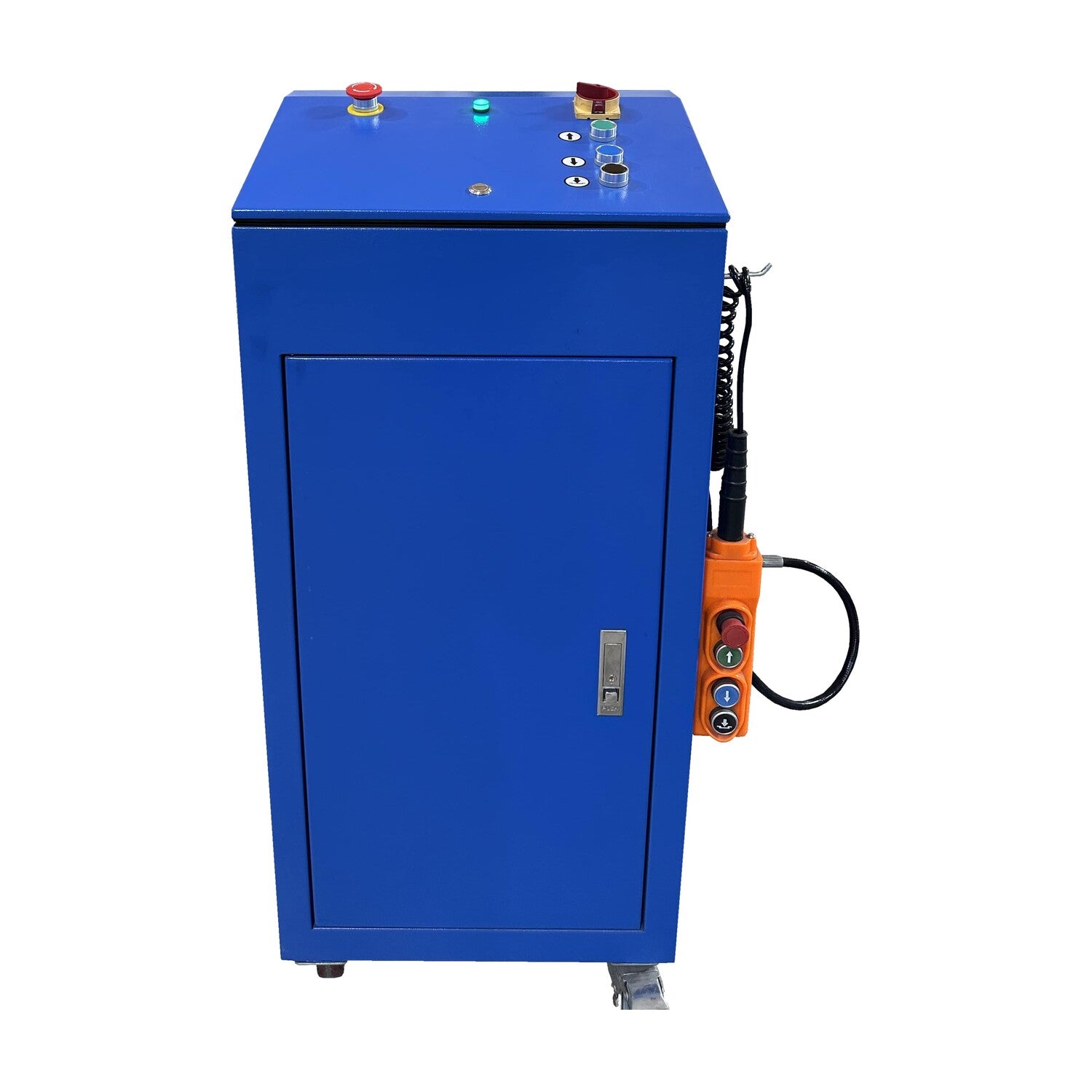

- ✅ Facilities that want simple console operation for raising and lowering the deck
What It's NOT Built For
- ❌ Vehicles or loads exceeding 5,500 lb
- ❌ Shops needing a steel-plate or tubular-deck frame rack instead of scissor-style — see Tuxedo's FR-77-20 or FR-77T-18
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the FR-55 Different
Scissor-Style Lift + Frame Rack in One
Combines the drive-on convenience of a scissor lift with frame-straightening capability — vehicles roll directly onto the platform without ramps.
5,500 lb Capacity, 4.75 in – 63 in Deck Height
Deck height range accommodates both low-clearance servicing and full working height for frame repair.

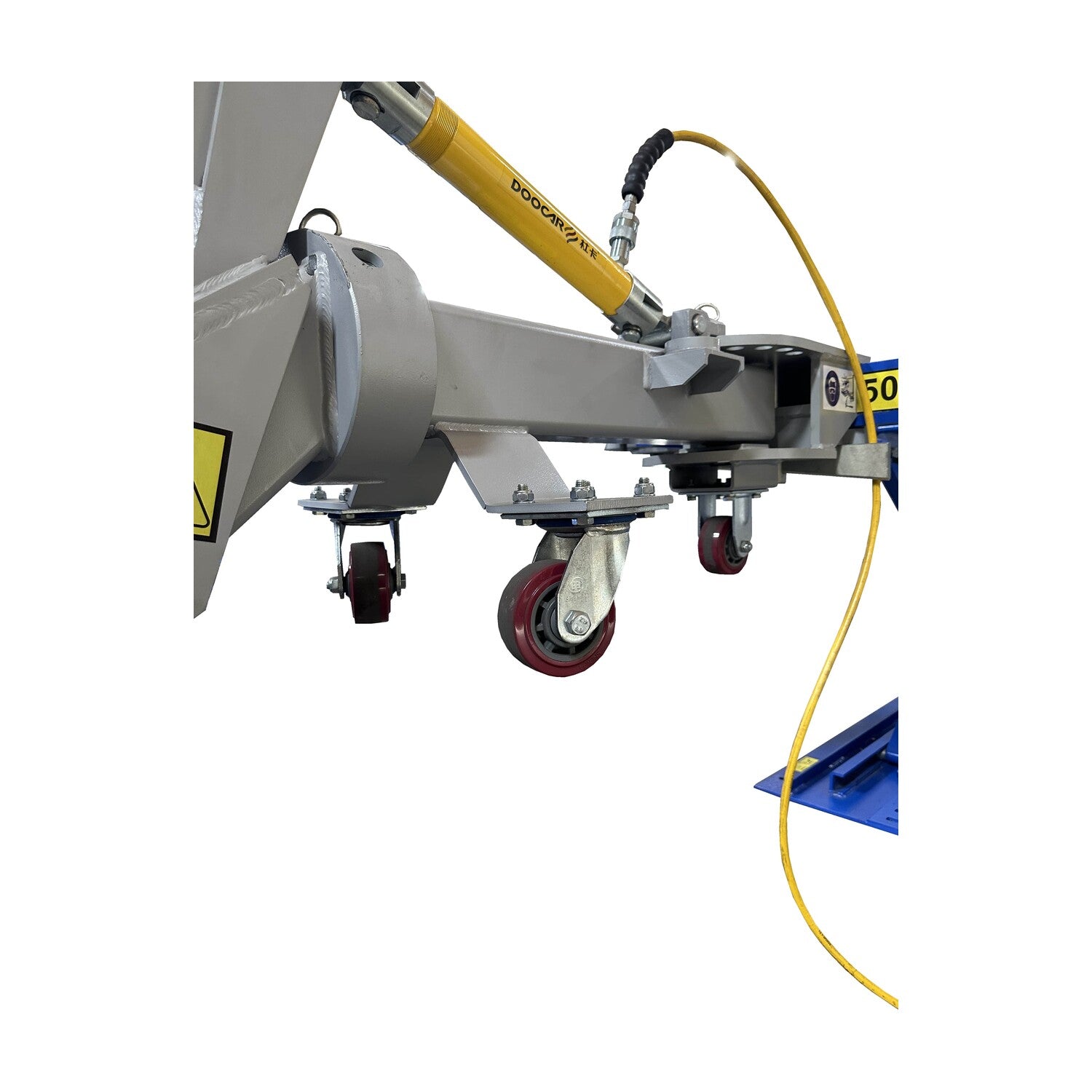

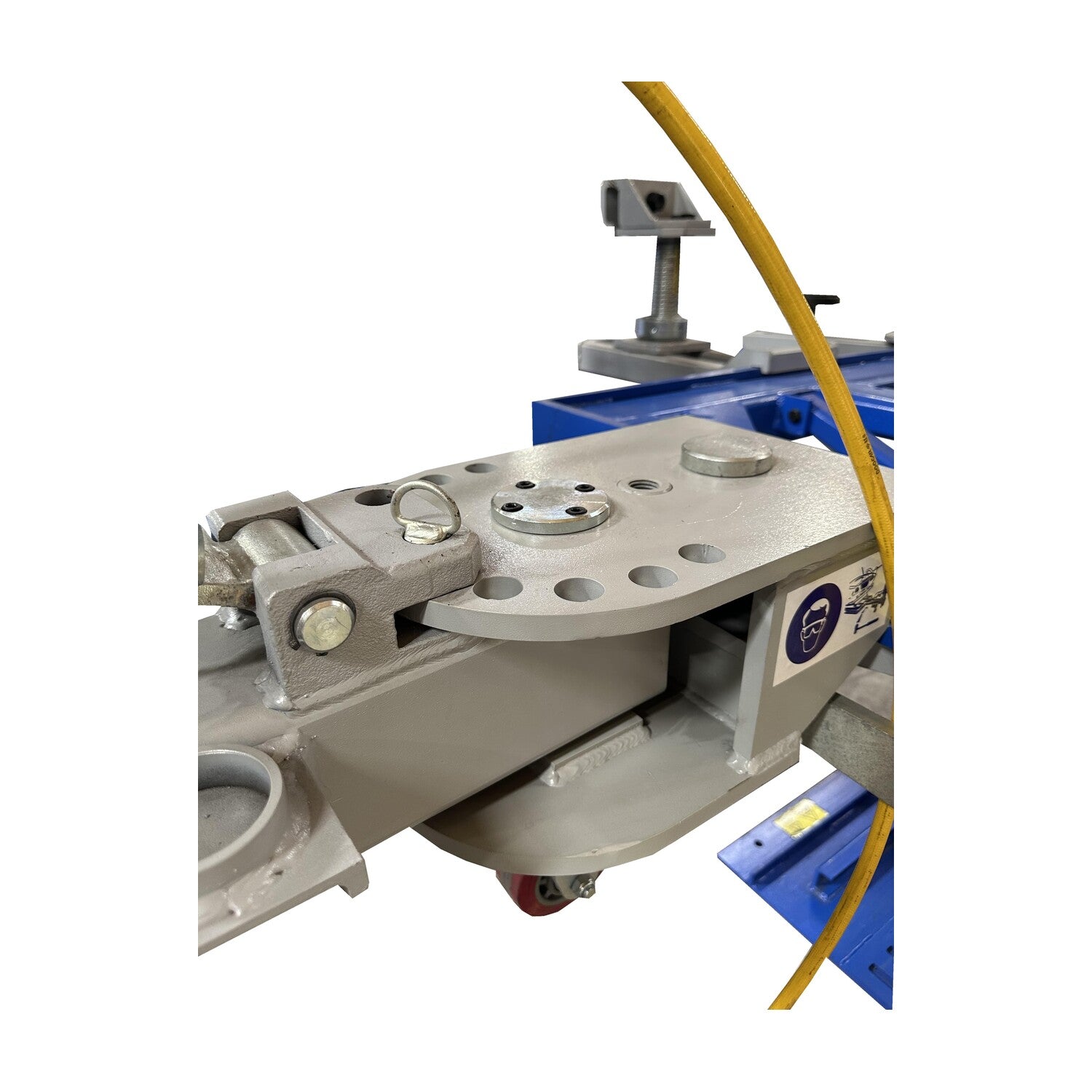

10-Ton Pulling Tower Included
Ships with one 10-ton pulling tower with down-pull roller and a 10-ft pulling chain with hook, ready to use out of the box.

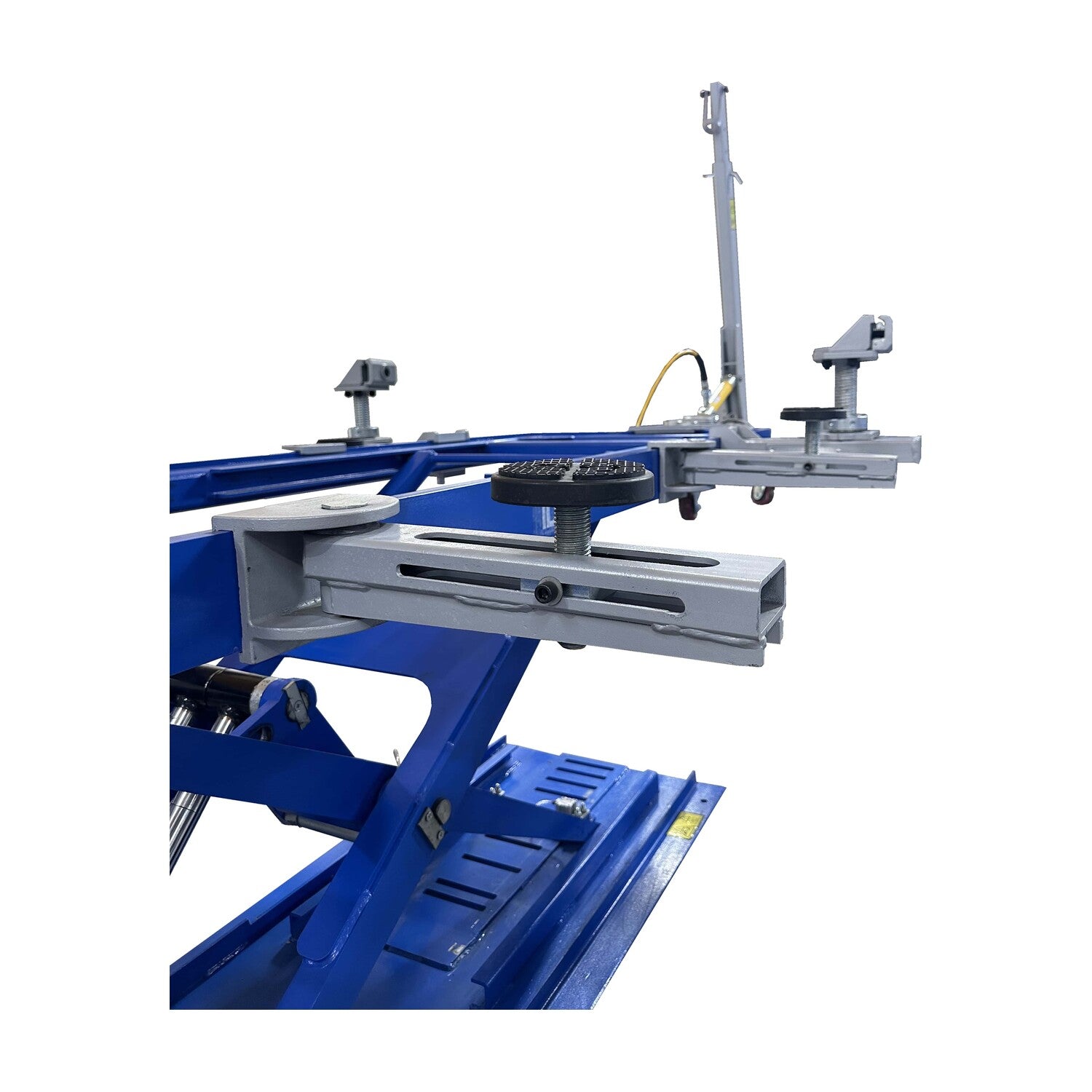

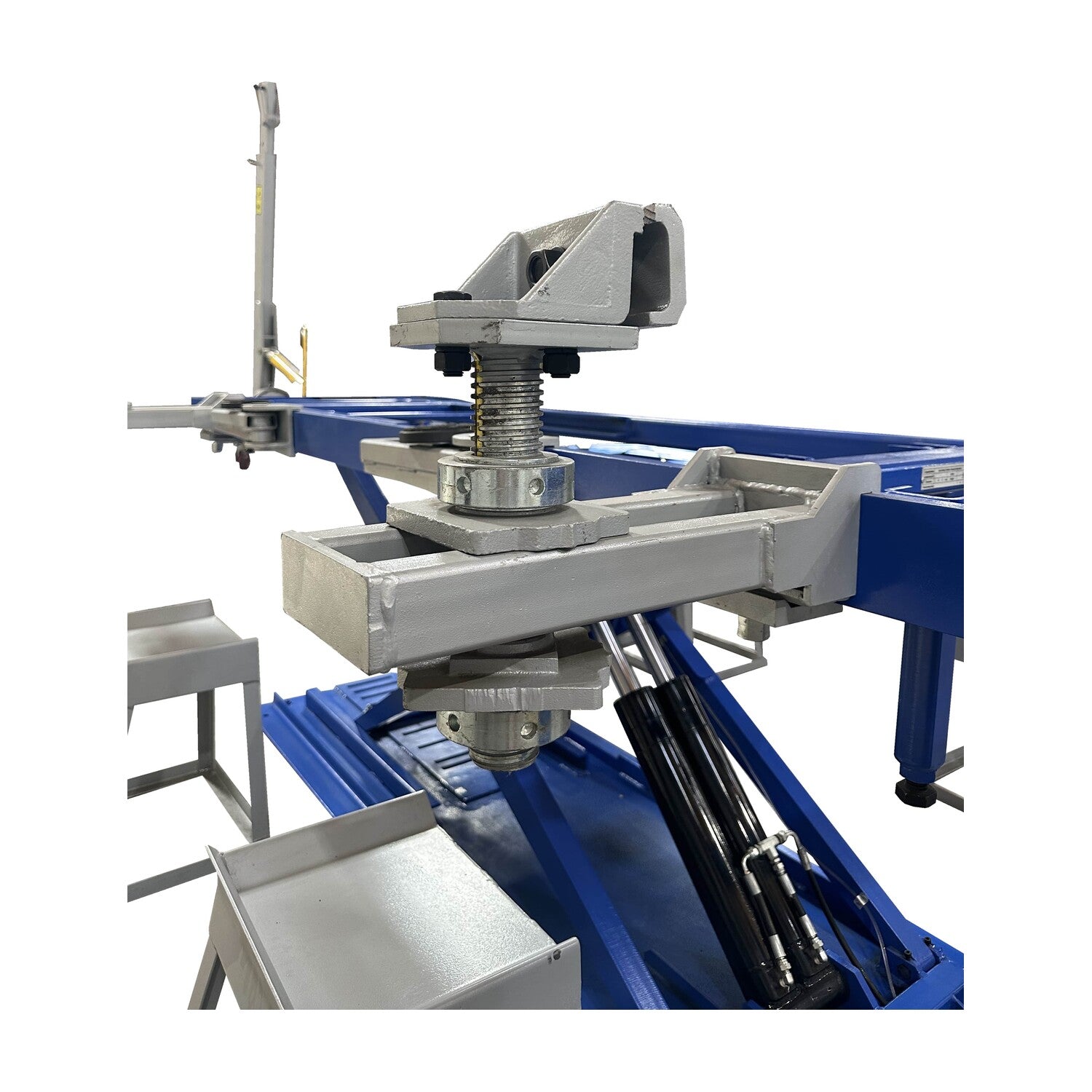

Universal Anchoring System
Adjustable-height pinch-weld assemblies accommodate a wide range of vehicle frame types.
Expandable with Accessories
Compatible with the FR-EWINCH electric winch, FR-BAGJACK air bag jack, FR-PROMEASRKIT professional measuring kit, and FR-55-TBK20 tool board kit.
✅ Best For
- ✅ Shops wanting one machine for both lifting and frame straightening
- ✅ Facilities servicing vehicles up to 5,500 lb with a compact footprint
❌ Not Ideal For
- ❌ Loads over 5,500 lb — see Tuxedo's higher-capacity steel-plate or tubular-deck frame racks
| Model / Part Number | FR-55 |
| Deck Design | Scissor Lift |
| Deck Length | 173.25" |
| Deck Width | 37" |
| Deck Height Range | 4.75" – 63" |
| Pull Force Per Tower | 10 Ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100 – 120 PSI |
| Lifting Capacity | 5,500 lb |
| Power | 220VAC, 20A, 1PH |
| Ship Weight | 3,105 lb |
| Available Options | FR-55-TBK20 (Tool Board Kit), FR-PROMEASRKIT (Professional Measure Kit), FR-EWINCH (Electric Winch), FR-BAGJACK (Air Bag Jack) |
⚠️ Installation Requirements
- Floor: Flat, good-quality concrete floor required over an approximately 163 in x 115-3/4 in installation area.
- Electrical: 220VAC, 20A, single-phase dedicated circuit.
- Air Supply: 100–120 PSI compressed air supply required for the air/hydraulic pump.
- Freight: Standard freight delivery within the 48 contiguous United States is included in the advertised price.
- Installation: Call Alamo at <a href="tel:+18178653707" style="color:#c47a20;font-weight:600;">(817) 865-3707</a> to coordinate professional installation.
Warranty — FR-55
For exact warranty terms and coverage on the FR-55, please contact Alamo Equipment at (817) 865-3707.
❓ Frequently Asked Questions — FR-55
Does the FR-55 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the lifting capacity of the FR-55?
5,500 lb.
What accessories are compatible with the FR-55?
The FR-EWINCH electric winch, FR-BAGJACK air bag jack, FR-PROMEASRKIT professional measuring kit, and FR-55-TBK20 tool board kit are all available options.
What power and air supply does the FR-55 need?
A 220VAC, 20A single-phase circuit plus a 100–120 PSI compressed air supply for the air/hydraulic pump.
